Baileigh SH-70250-HD 96" Heavy Duty Hydraulic Shear — 1/4"
Are you cutting thick sheet steel with a shear that can't keep up?
What if one machine handled full 8 foot sheets without slowing your shop down?

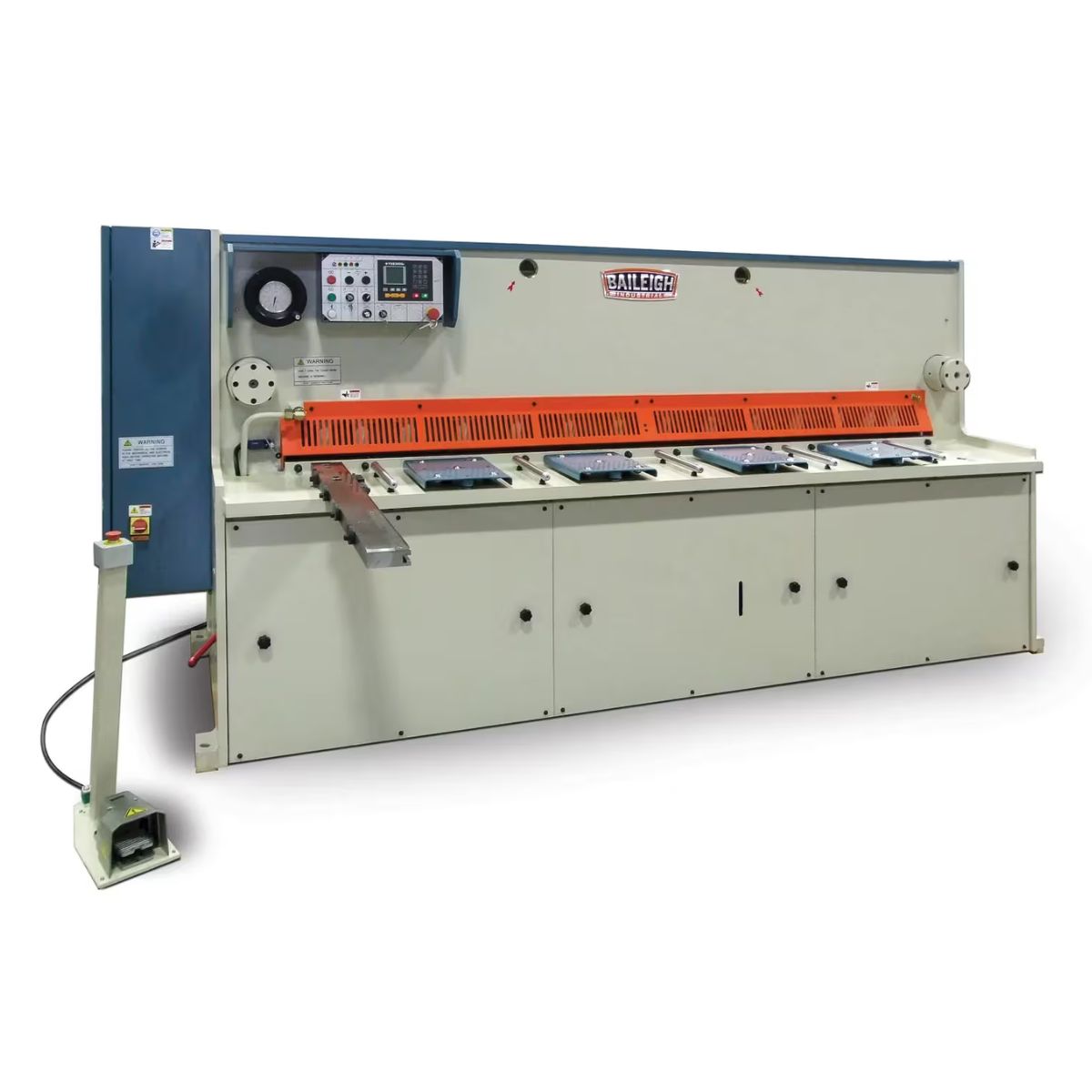

Meet the Baileigh SH-70250-HD, a 96 inch heavy duty hydraulic shear for industrial fabrication work.
With a welded steel frame, Rexroth hydraulics, and a programmable back gauge, it delivers accurate cuts on 1/4 inch mild steel.
When the shear holds tight tolerances every pass, your crew moves through production runs with confidence.
Baileigh SH-70250-HD for Heavy Gauge Steel Cutting
Fully Welded Steel Frame Prevents Deflection
The frame is fully welded from industrial grade steel for maximum rigidity. This keeps the shear steady during heavy cuts and protects accuracy across the full 96 inch width.

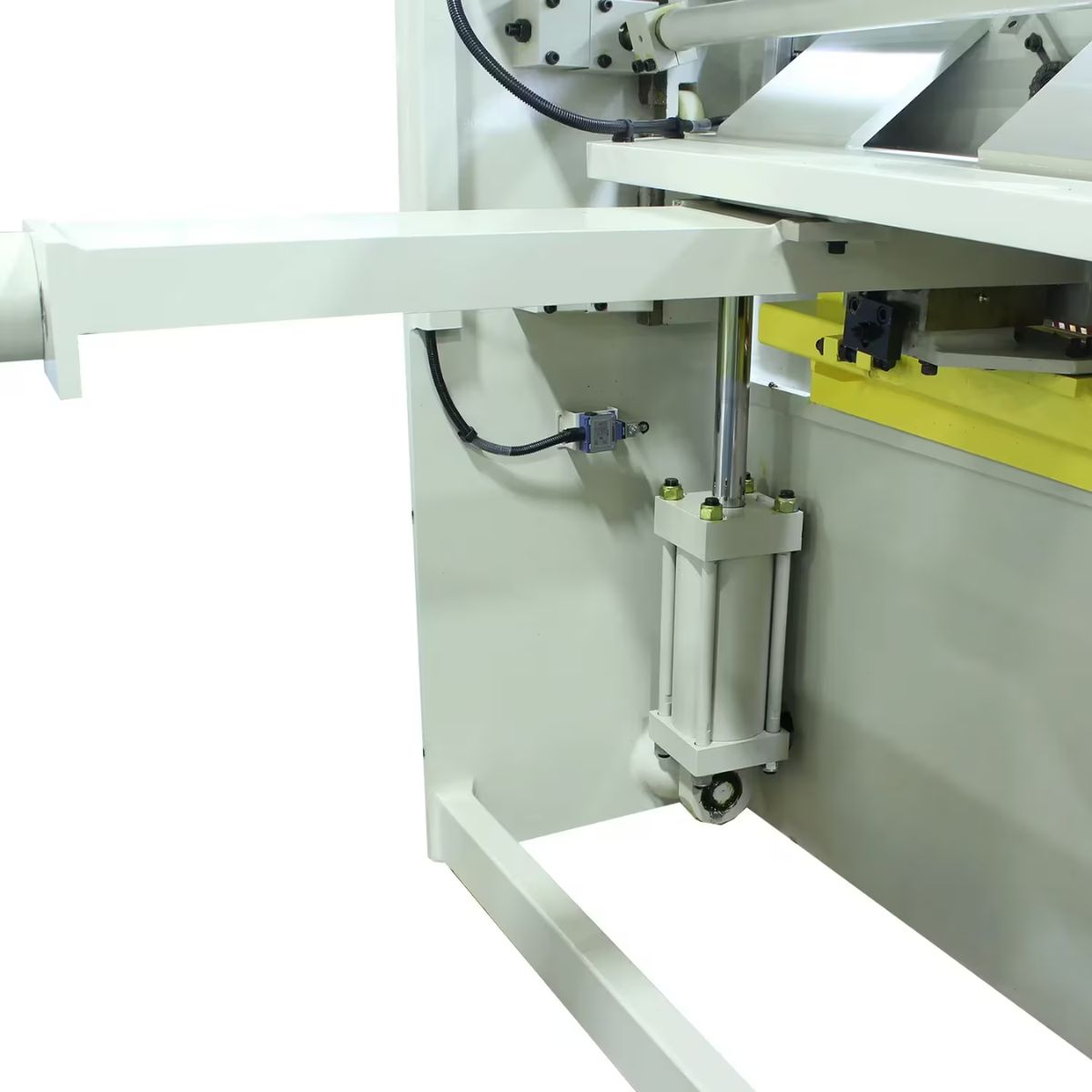

Rexroth Hydraulics Deliver Smooth Cutting Power
The hydraulic drive system uses Rexroth components for consistent, controlled shearing action. Power stays steady across the full cut, so results stay clean from the first pass to the last.

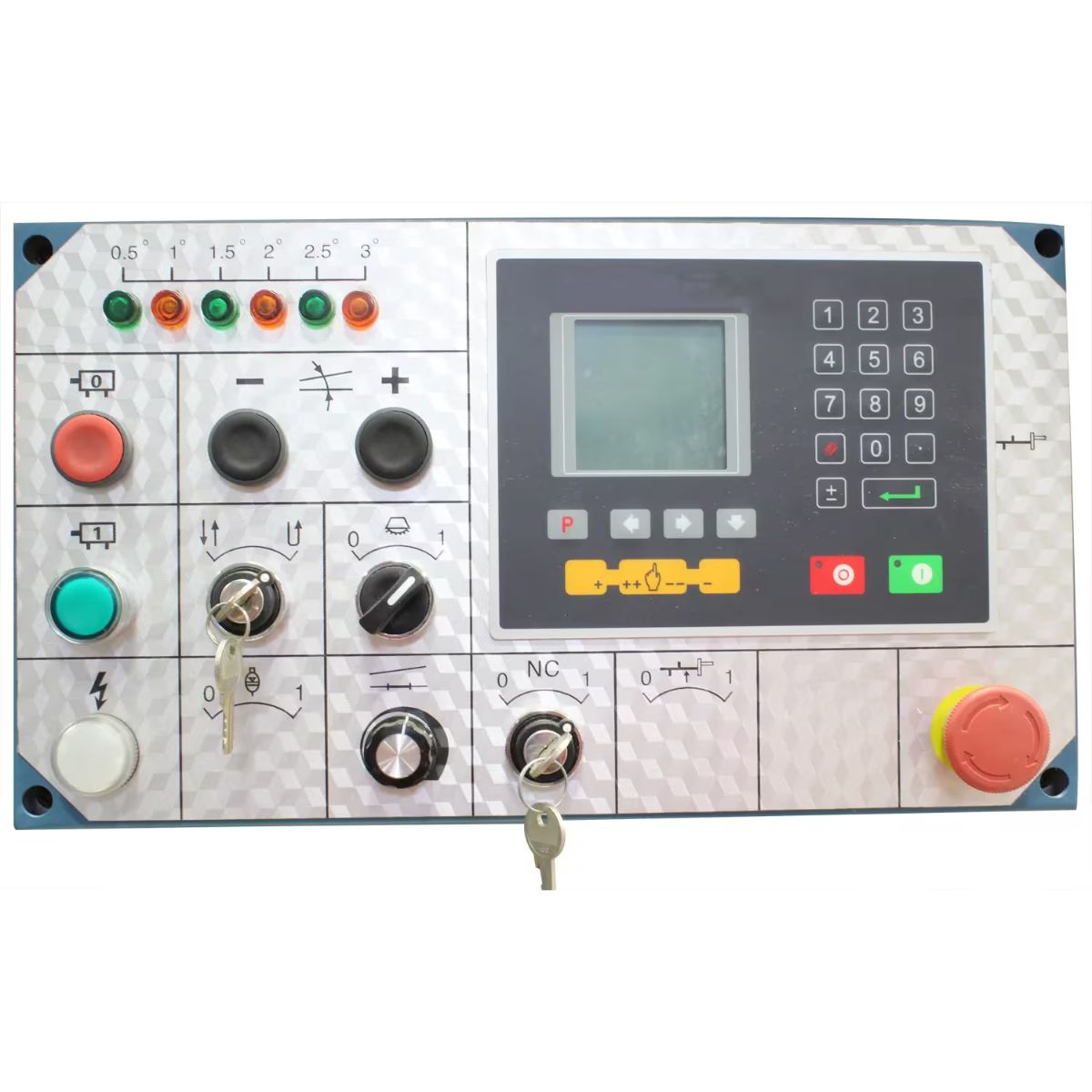

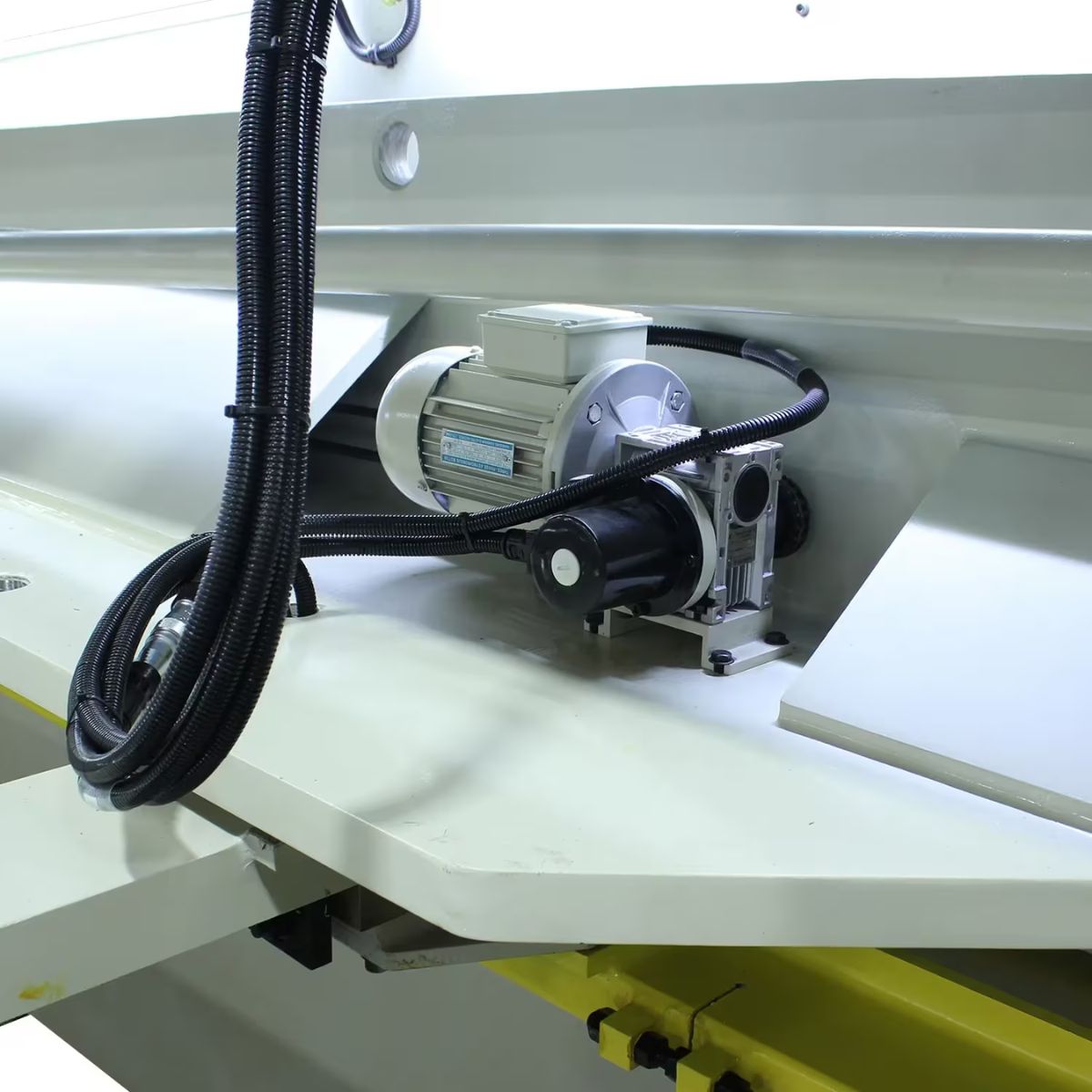

Programmable Back Gauge Speeds Repeat Cuts
The back gauge holds tolerance to plus or minus .01mm and stores up to 100 programs in memory. This lets you set up once and repeat identical cuts run after run.
Adjustable Hold Downs Keep Material Stable
Hold downs secure the sheet in place while the blade travels across the cut. Stable material means straighter cuts and less rework on every job.
What's Included
What's Included? Baileigh SH-70250-HD 96" Heavy Duty Hydraulic Shear — 1/4"
-
Baileigh SH-70250-HD Hydraulic Shear — Provides a 96 inch heavy duty shear platform built for cutting thick sheet steel.
-

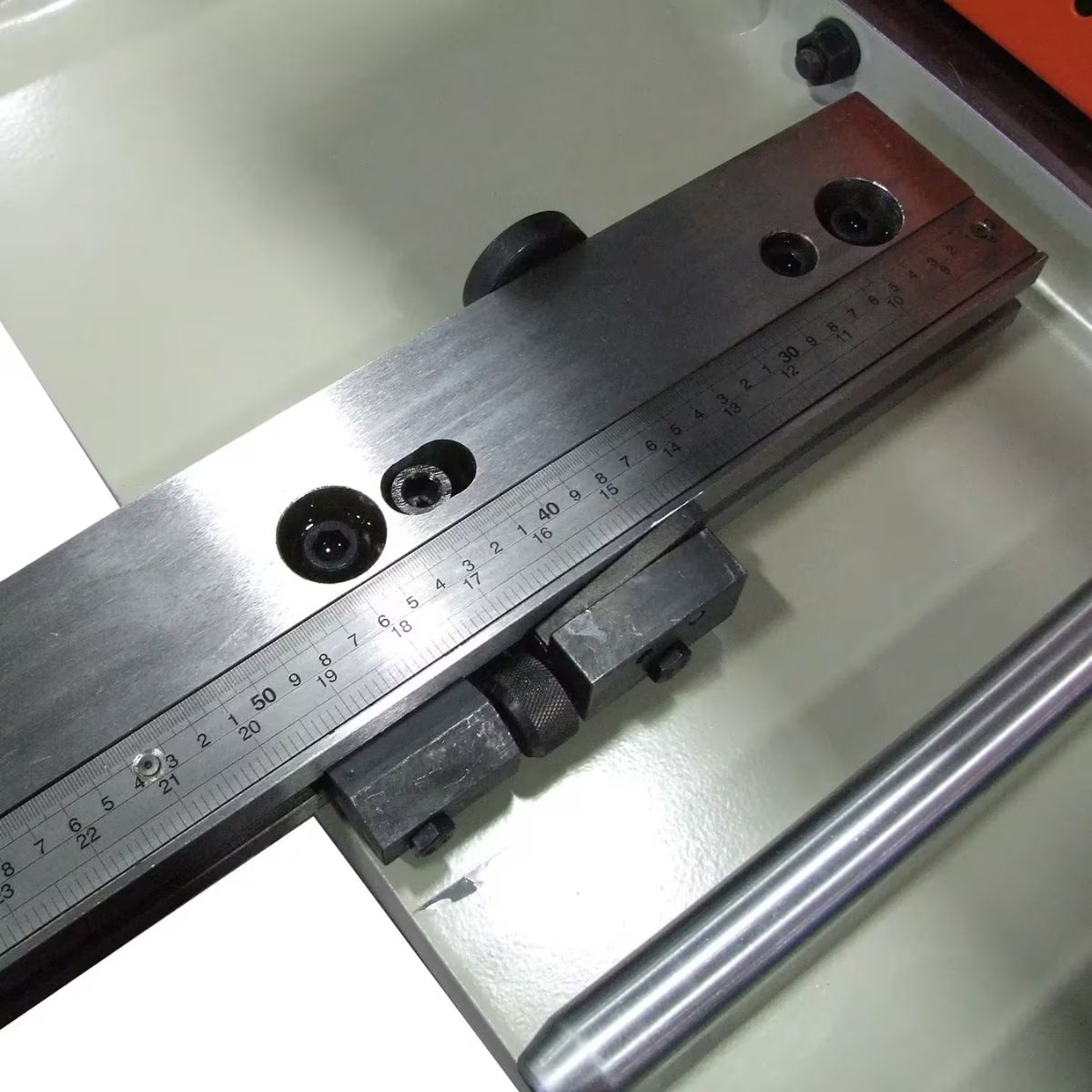

Front Support Arms and Squaring Guides — Help align material and simplify handling during setup.
Specs
Baileigh SH-70250-HD 96" Heavy Duty Hydraulic Shear — 1/4" Specifications
- Model: SH-70250-HD
- Stock Number: BA9-1007179
- Shearing Length Capacity: 96 in.
- Mild Steel Capacity: 1/4 in. (10 gauge)
- Stainless Steel Capacity: 10 gauge
- Motor: 10 HP
- Input Power: 220V Three Phase
- Back Gauge Accuracy: +/- .01mm
- Back Gauge Memory: Up to 100 programs
- Net Weight: 10,525 lb
- Gross Weight: 10,525 lb
- UPC: 731325414240
- Warranty: 1 Year
