Baileigh SH-5214 52" Hydraulic Shear — 14 Gauge
Are you tired of rough, out-of-square cuts on your sheet metal?
What if a hydraulic shear could deliver clean, straight cuts every time?

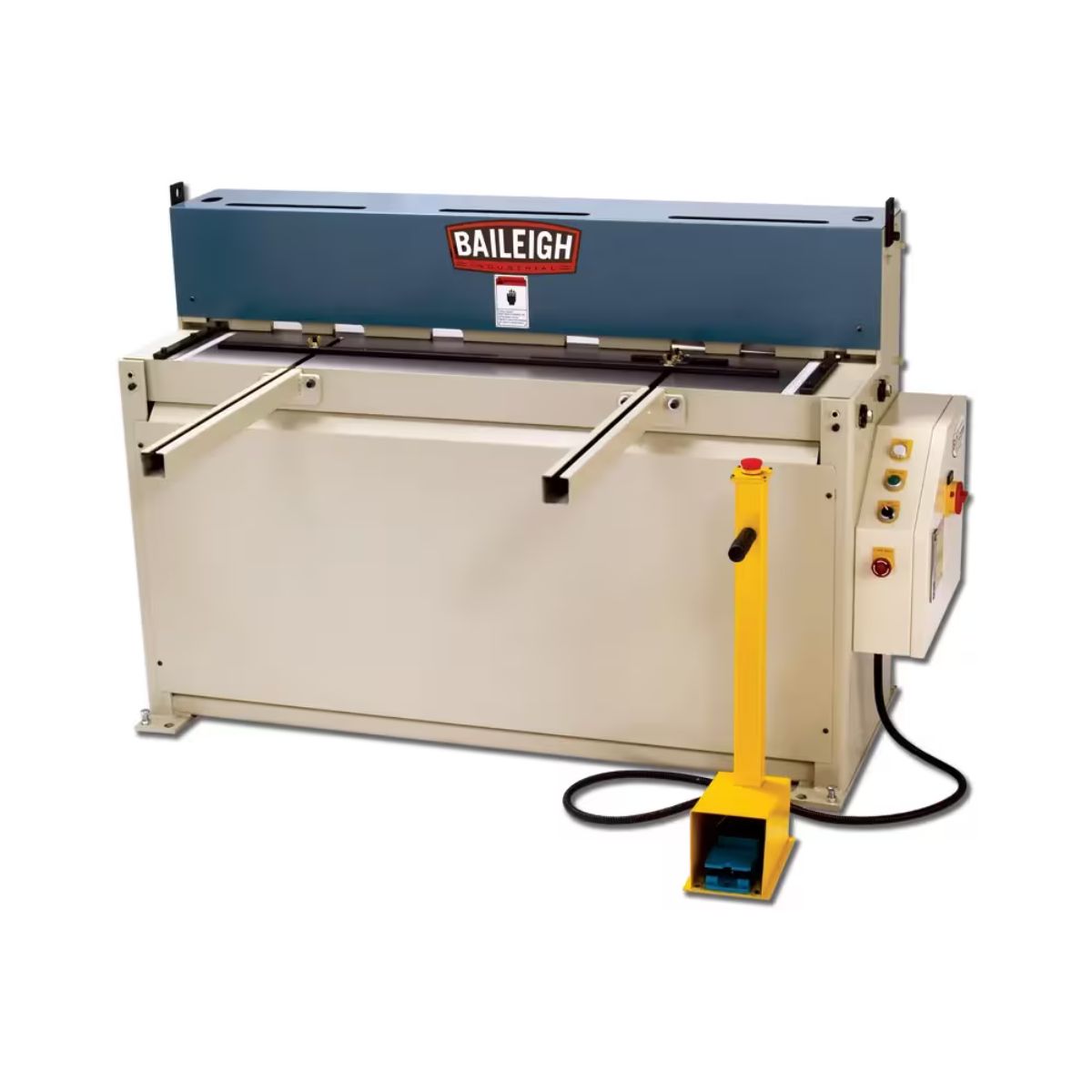

Meet the Baileigh SH-5214, a 52 inch hydraulic shear built for fabrication shops and metalworking departments.
With a fully welded steel frame, adjustable hold-downs, and an industrial hydraulic system, the shear holds tight tolerances cut after cut.
When your shear cuts straight the first time, you spend less time fixing mistakes and more time moving your work forward.
Baileigh SH-5214 for Precision Metal Shearing

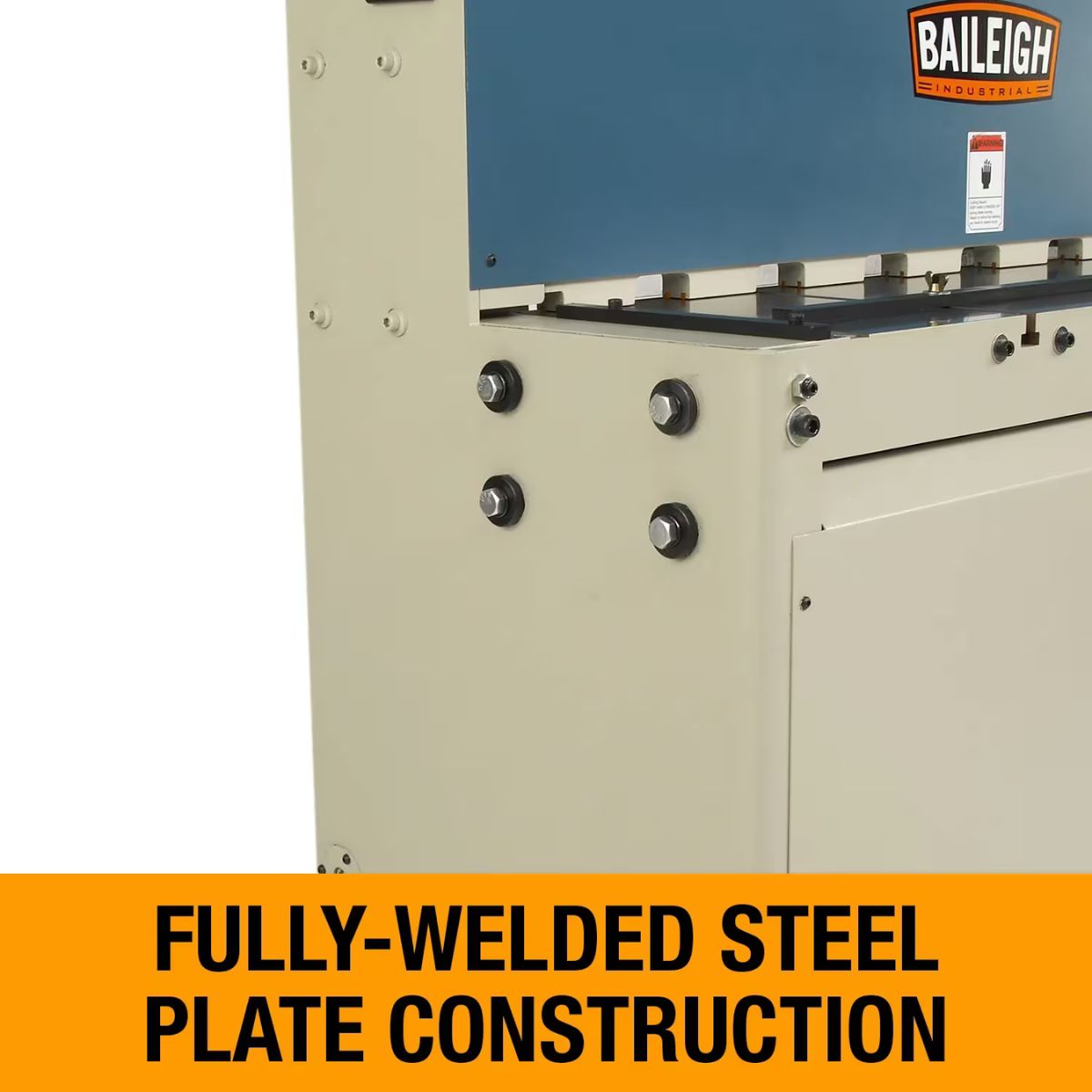

Welded Steel Frame Keeps Cuts Aligned
The SH-5214 frame is fully welded from heavy duty steel for lasting rigidity. A solid frame keeps the blade aligned so cuts stay straight under repeated use.
Hydraulic System Powers Smooth Shearing
The hydraulic system drives the blade with steady, consistent pressure through every cut. This reduces operator effort while keeping cut quality even from the first sheet to the last.
Adjustable Hold-Downs Prevent Material Shift
Adjustable hold-downs clamp material firmly in place before the blade engages. This keeps sheet metal from shifting mid-cut, so edges come out clean and burr-free.

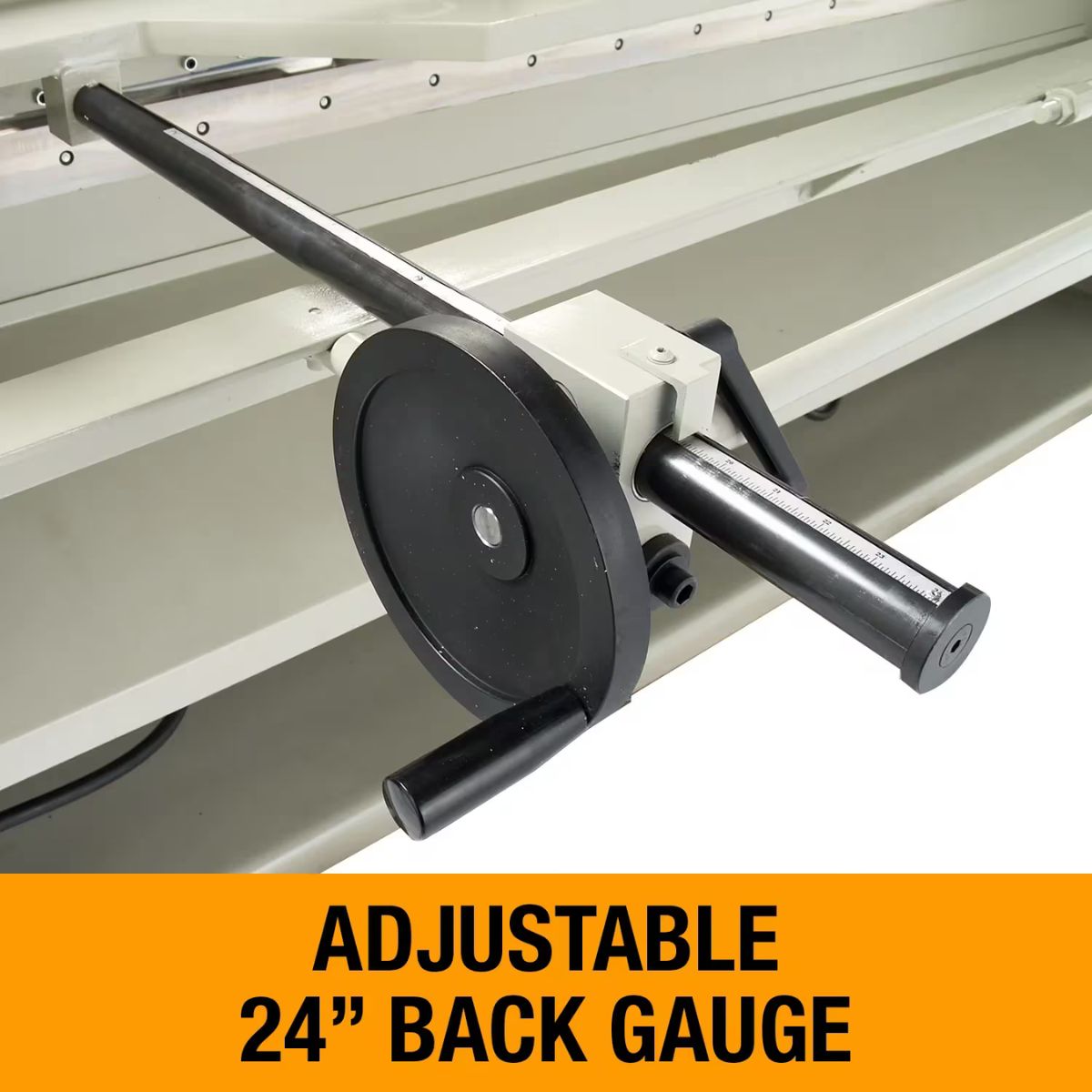

Backgauge System Speeds Repeat Cuts
The backgauge system lets you set a cut length once and repeat it accurately across multiple sheets. Front support arms and squaring guides help keep each cut square without extra measuring.
What's Included
What's Included? Baileigh SH-5214 52" Hydraulic Shear — 14 Gauge
-
Baileigh SH-5214 52" Hydraulic Shear — Provides a complete 52 inch hydraulic shearing platform ready for shop use.
-

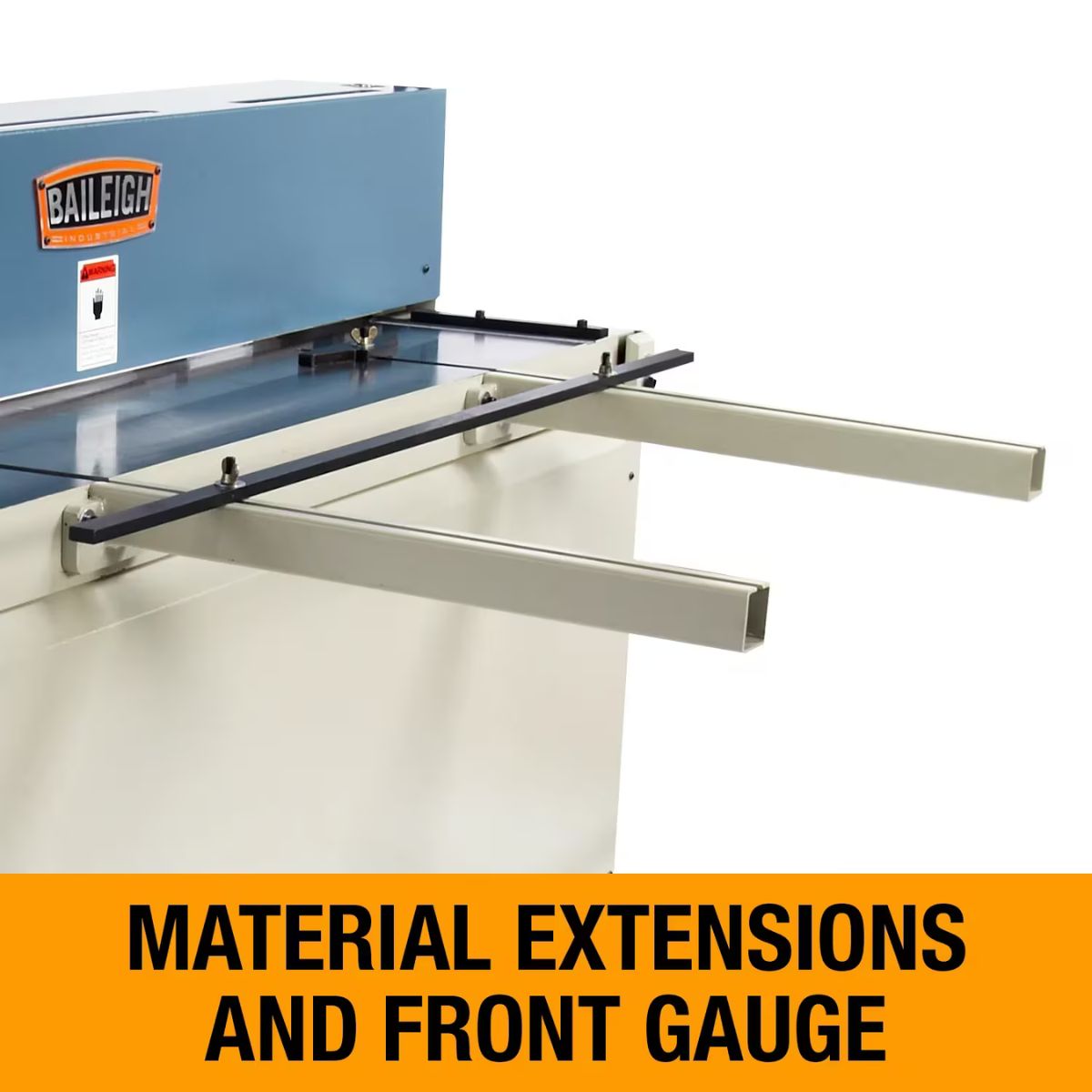

Front Support Arms and Squaring Guides — Help keep material supported and square during the cut.
-

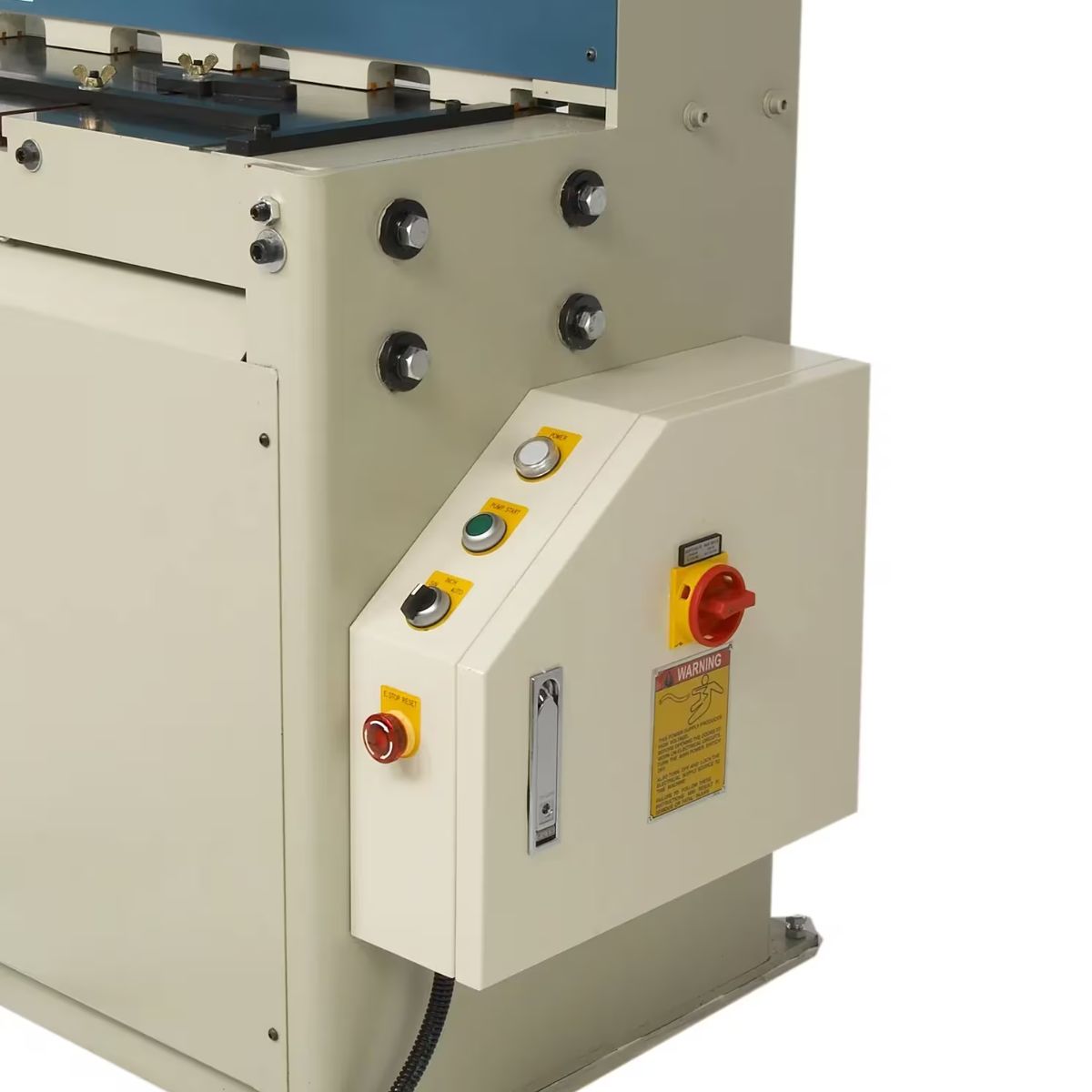

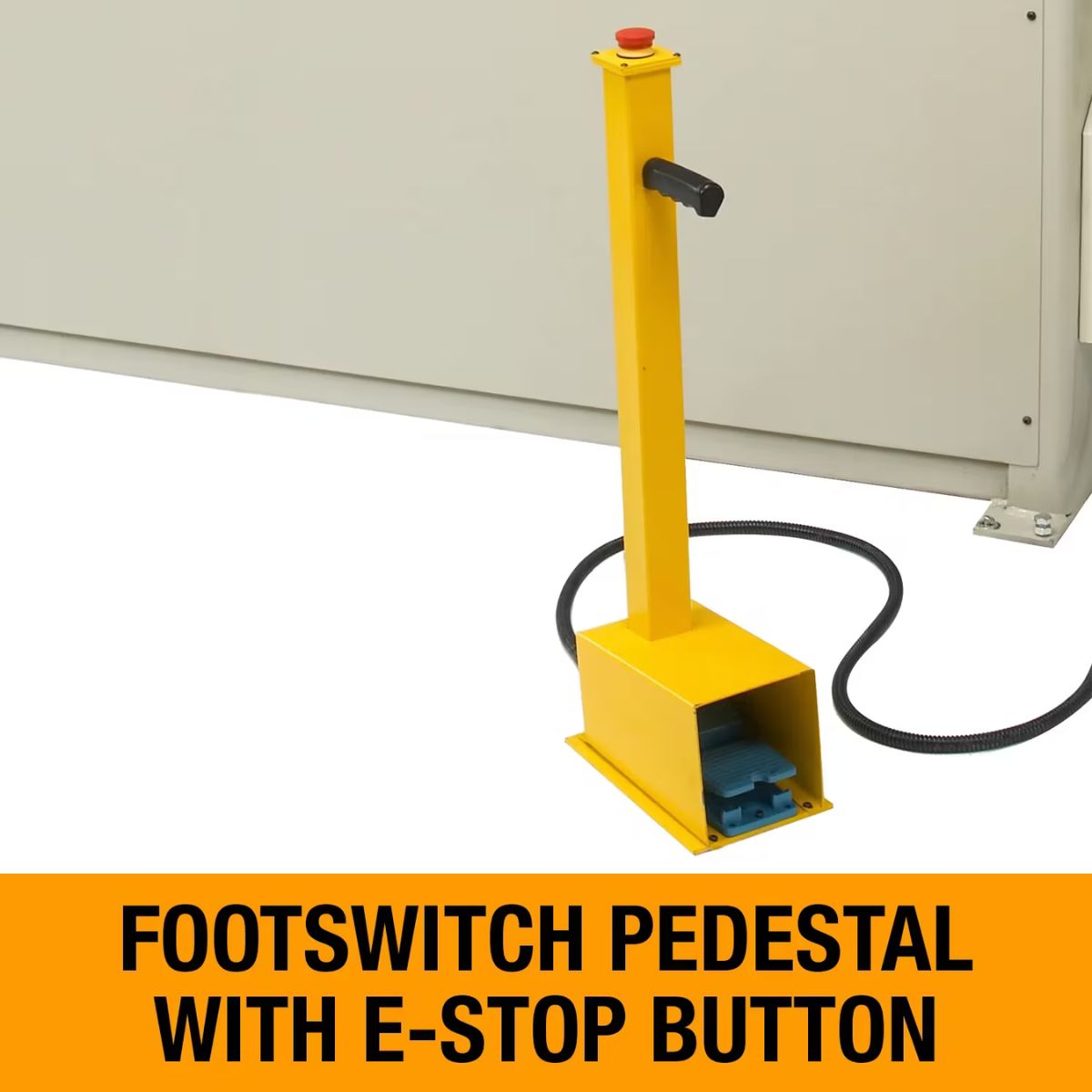

Blade Guards and Emergency Stop — Built-in safety features for daily shop operation.
Specs
Baileigh SH-5214 52" Hydraulic Shear — 14 Gauge Specifications
- Model: SH-5214
- Stock Number: BA9-1007148
- Shear Capacity: 52 in.
- Mild Steel Capacity: 14 Gauge
- Stainless Steel Capacity: 18 Gauge
- Front Gauge Capacity: 24 in.
- Strokes Per Minute: 35
- Input Power: 220V Single Phase
- Net Weight: 1,880 lb
- Warranty: 1 Year
