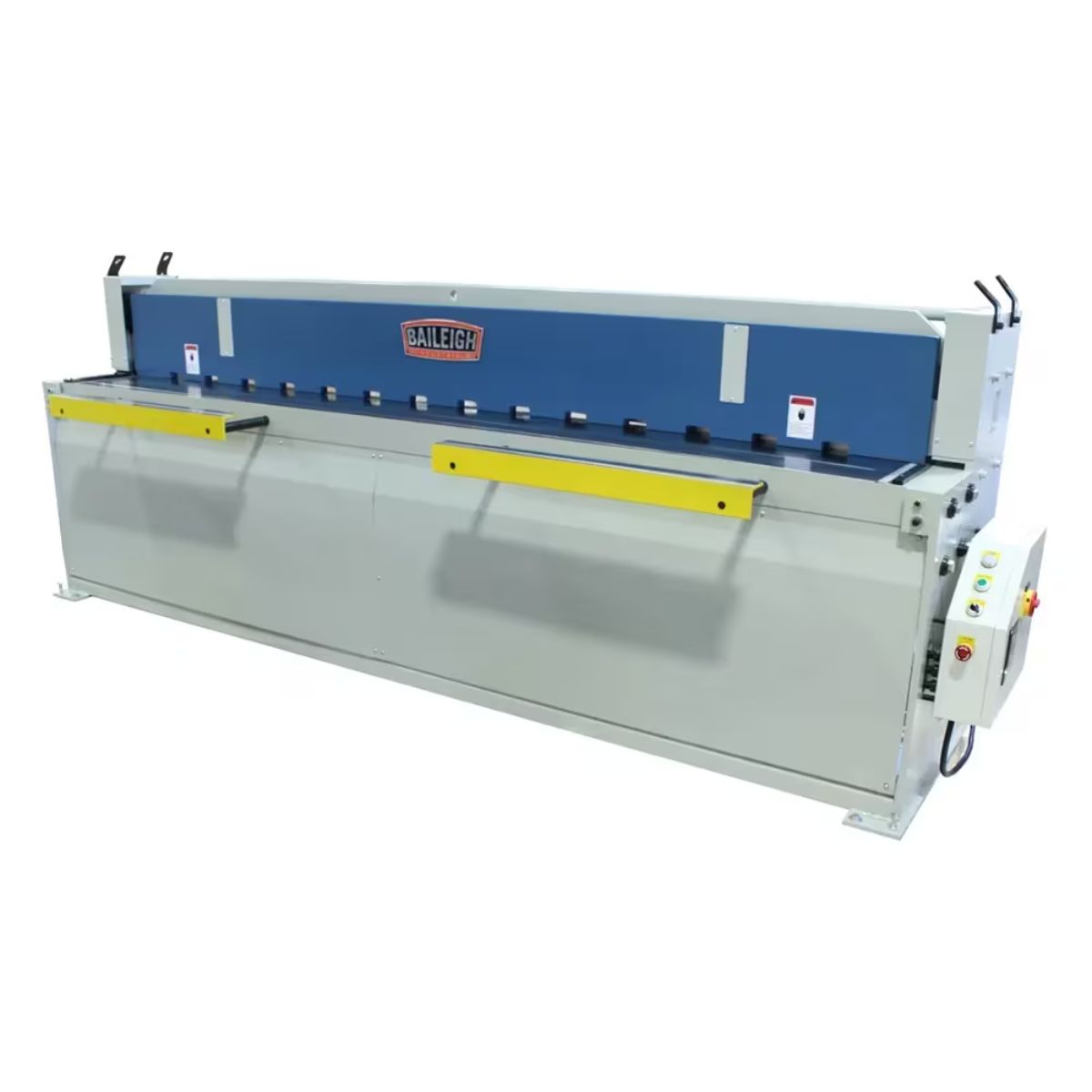

Baileigh SH-12010 120" Hydraulic Shear — 10 Gauge
Are you cutting large steel sheets on a shear that can't hold accuracy across the full width?
What if you had a shear that cuts 10 gauge steel across a full 120 inch width without flex?
Meet the Baileigh SH-12010 120" Hydraulic Shear — 10 Gauge, a heavy-duty shear built for large-format steel cutting.
With a welded steel frame, hydraulic drive, and adjustable hold-downs, the shear holds steady through every cut.
When the shear delivers clean, burr-free cuts sheet after sheet, your shop moves through big jobs with confidence.
Baileigh SH-12010 for Heavy-Duty Sheet Metal Cutting
Welded Steel Frame Reduces Flex and Vibration
The SH-12010 frame is fully welded from heavy-gauge steel for rigidity across the full 120 inch cutting width. This keeps the shear steady and accurate, even on long runs of sheet steel.
Hydraulic Drive Delivers Smooth Shearing Power
The hydraulic drive system powers the blade through 10 gauge mild steel with smooth, consistent motion. This reduces operator effort while keeping cuts clean and burr free.
Adjustable Hold-Downs Keep Material Secure
Adjustable hold-downs clamp sheet steel firmly in place during the cut. This keeps material from shifting so every cut comes out straight and repeatable.
Backgauge System Speeds Repeatable Cuts
The backgauge system lets you set cut length once and repeat it across multiple sheets. This cuts down on measuring and remarking on high-volume jobs.
What's Included
What's Included? Baileigh SH-12010 120" Hydraulic Shear — 10 Gauge
-
Baileigh SH-12010 Hydraulic Shear — Provides a complete 120 inch hydraulic shear ready for heavy-duty sheet metal work.
-
Front Support Arms and Squaring Guides — Help you align and support large sheets during the cut.
Specs
Baileigh SH-12010 120" Hydraulic Shear — 10 Gauge Specifications
- Model: SH-12010
- Stock Number: BA9-1007063
- Shear Capacity: 120 in.
- Mild Steel Capacity: 10 Gauge
- Stainless Steel Capacity: 13 Gauge
- Motor: 7.5 HP
- Input Power: 220V, 3 Phase
- Strokes Per Minute: 20
- Front Gauge Capacity: 24 in.
- Net Weight: 6,600 lb
- Warranty: 1 Year
- Manual: Available upon request
