Baileigh SBR-5220 52" 3-in-1 Shear Brake & Roll — 20 Gauge
Are you short on shop space but still need to shear, bend, and roll sheet metal?
What if one machine handled all three jobs without crowding your floor?

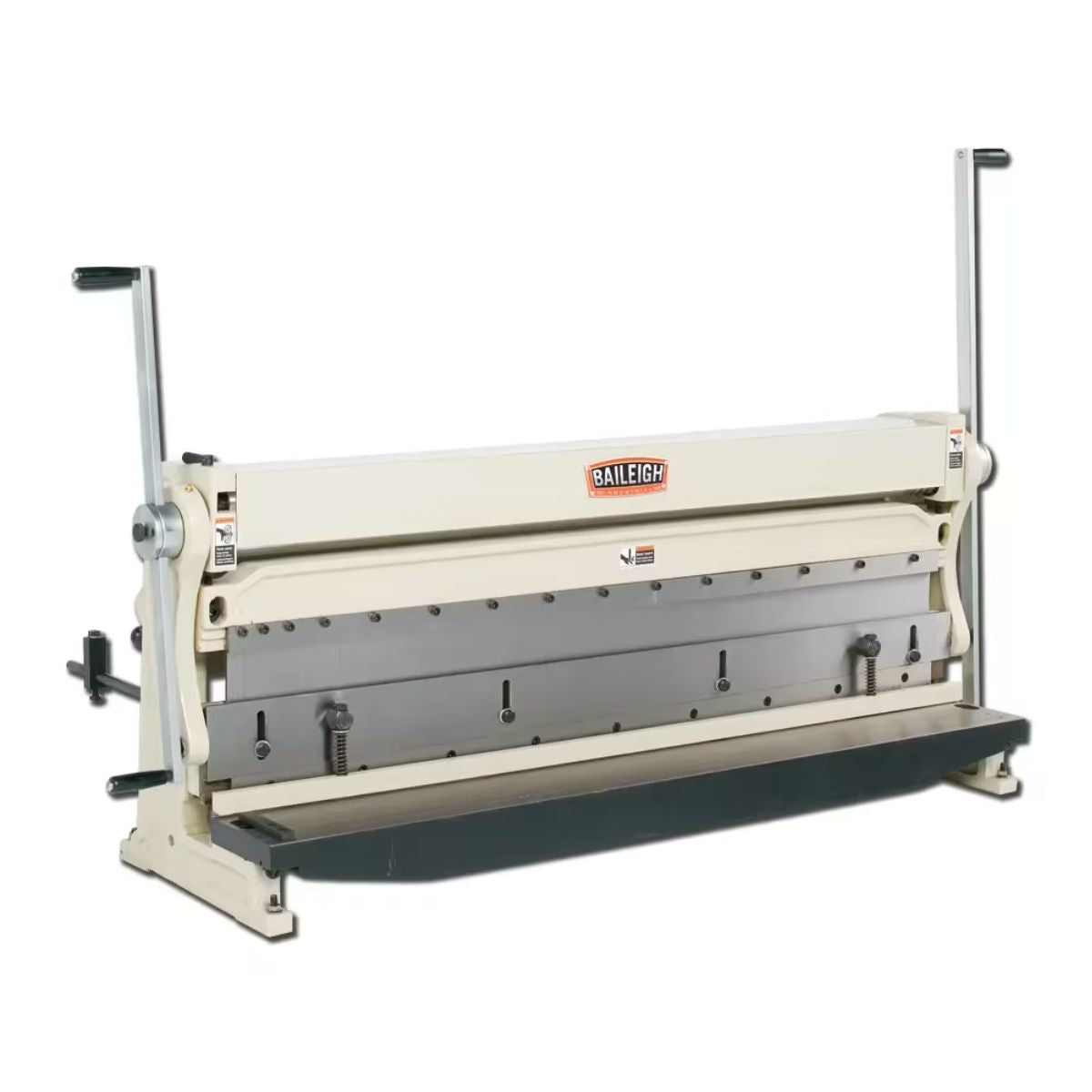

Meet the Baileigh SBR-5220, a manual 3-in-1 shear, brake, and roll built for small shop and maintenance work.

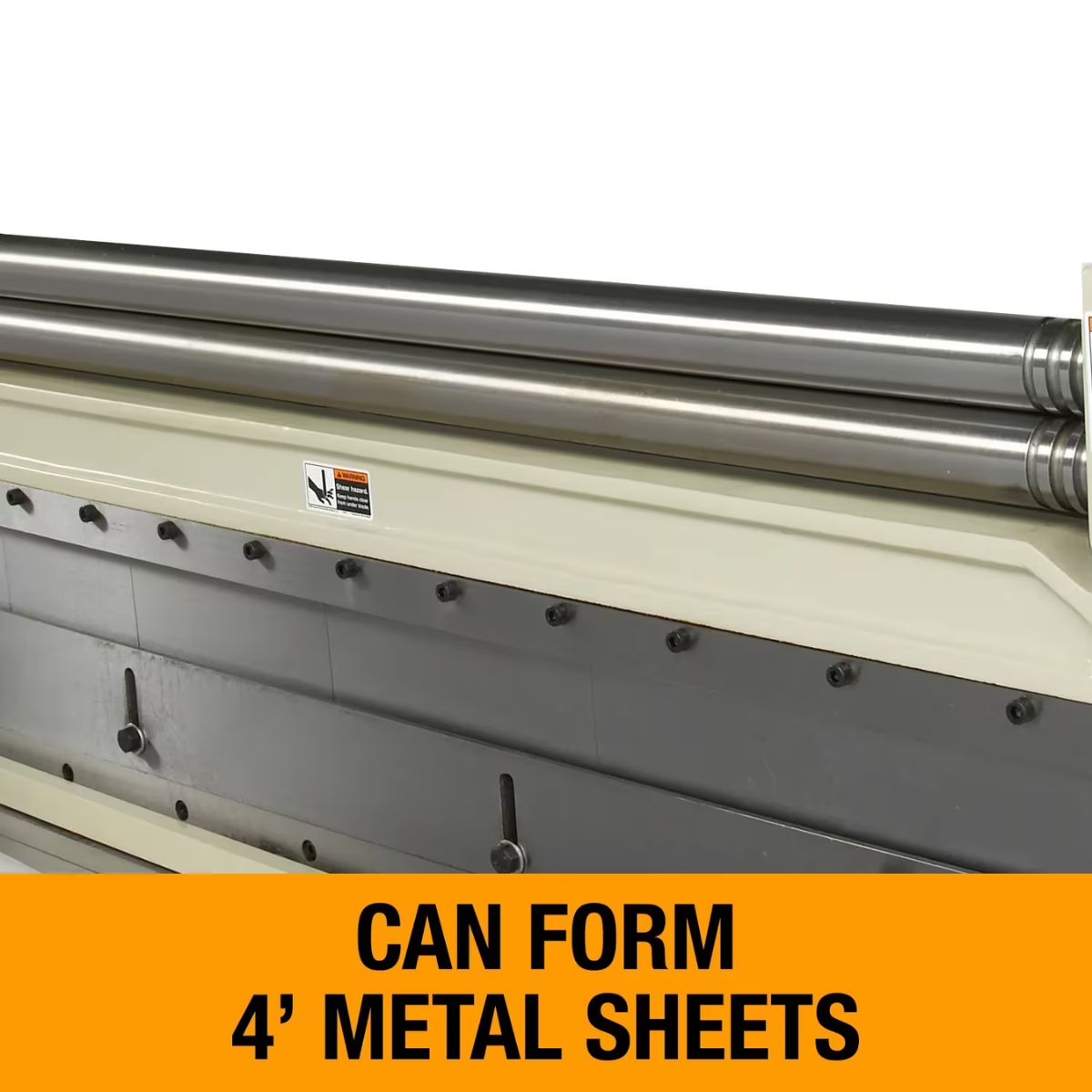

With a 52 inch bed and 20 gauge capacity, the machine handles standard 4 foot sheets with steady accuracy.
When one machine covers three jobs, you save space and keep work moving without extra equipment.
Baileigh SBR-5220 for Small Shop Sheet Metal Work
Heavy Steel Frame Maintains Cutting Accuracy
The SBR-5220 uses a heavy steel frame that holds its shape under load. This keeps shear, brake, and roll operations accurate even at full 20 gauge capacity.

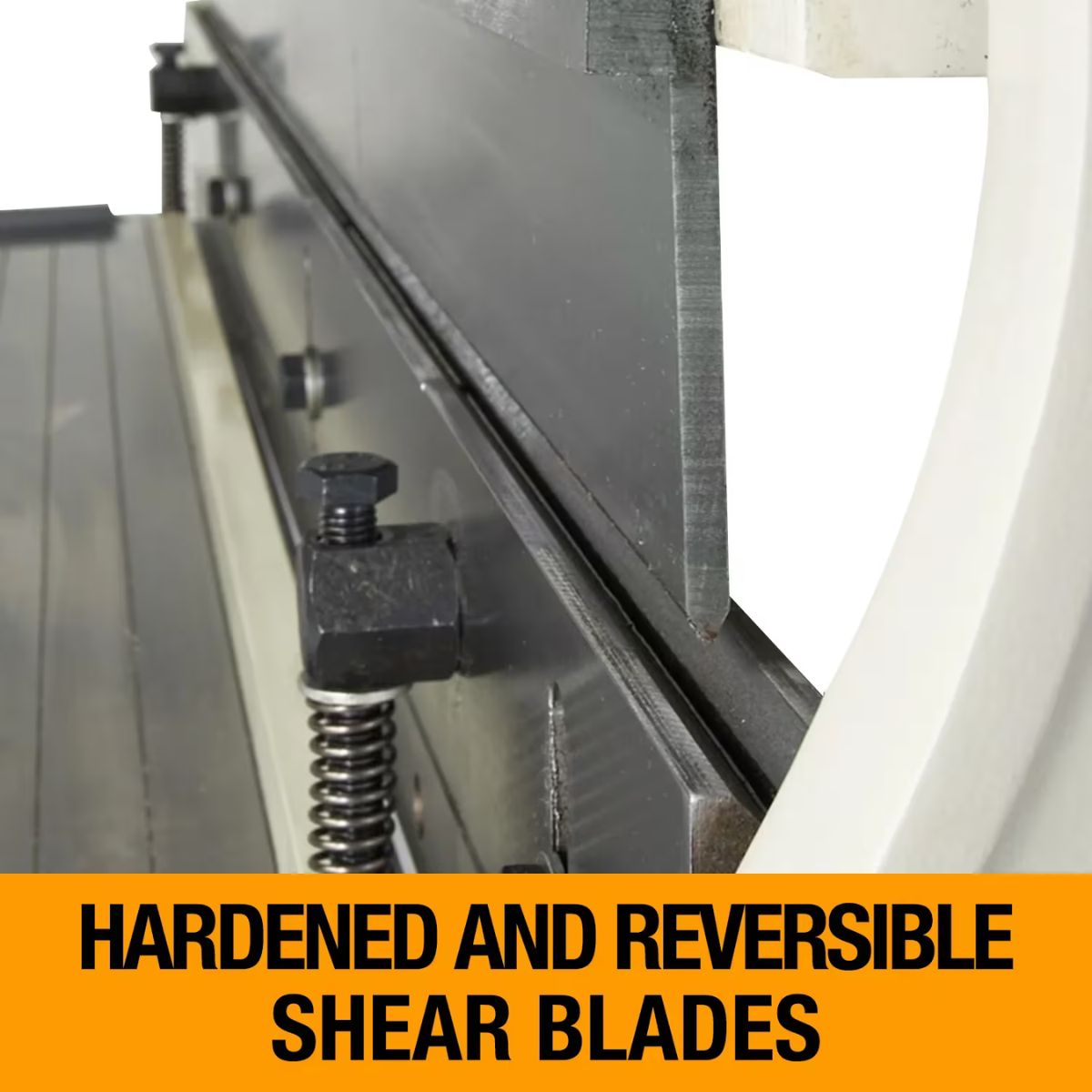

Hardened Reversible Shear Blades Extend Tool Life
The manual shear uses hardened blades that reverse for a fresh edge when one side dulls. This cuts down on blade replacement costs over time.

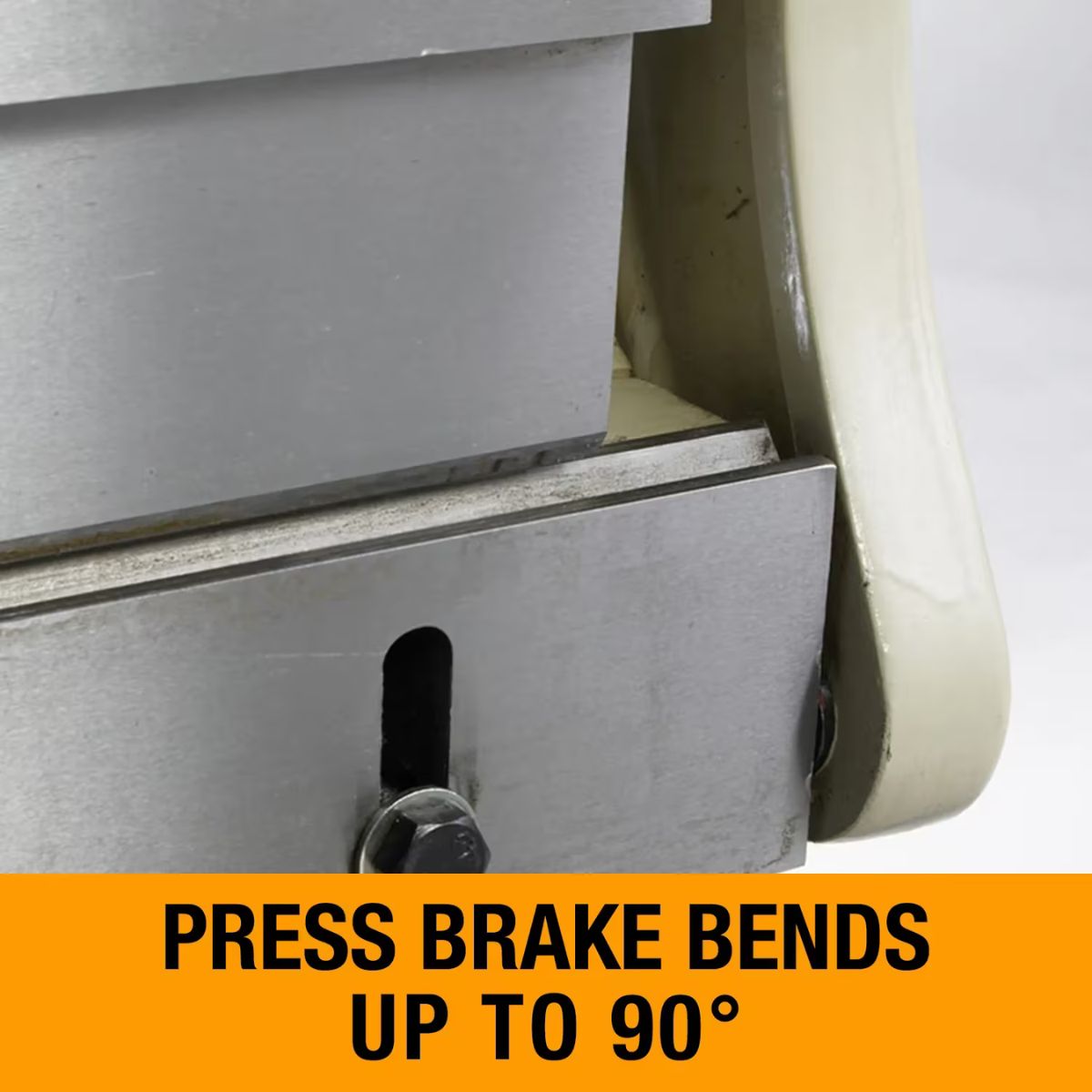

Removable Finger Dies Simplify Press Brake Setup
The press brake section uses removable hardened finger dies for box, channel, and flat bends. Swapping dies lets you switch bend types without extra tooling purchases.

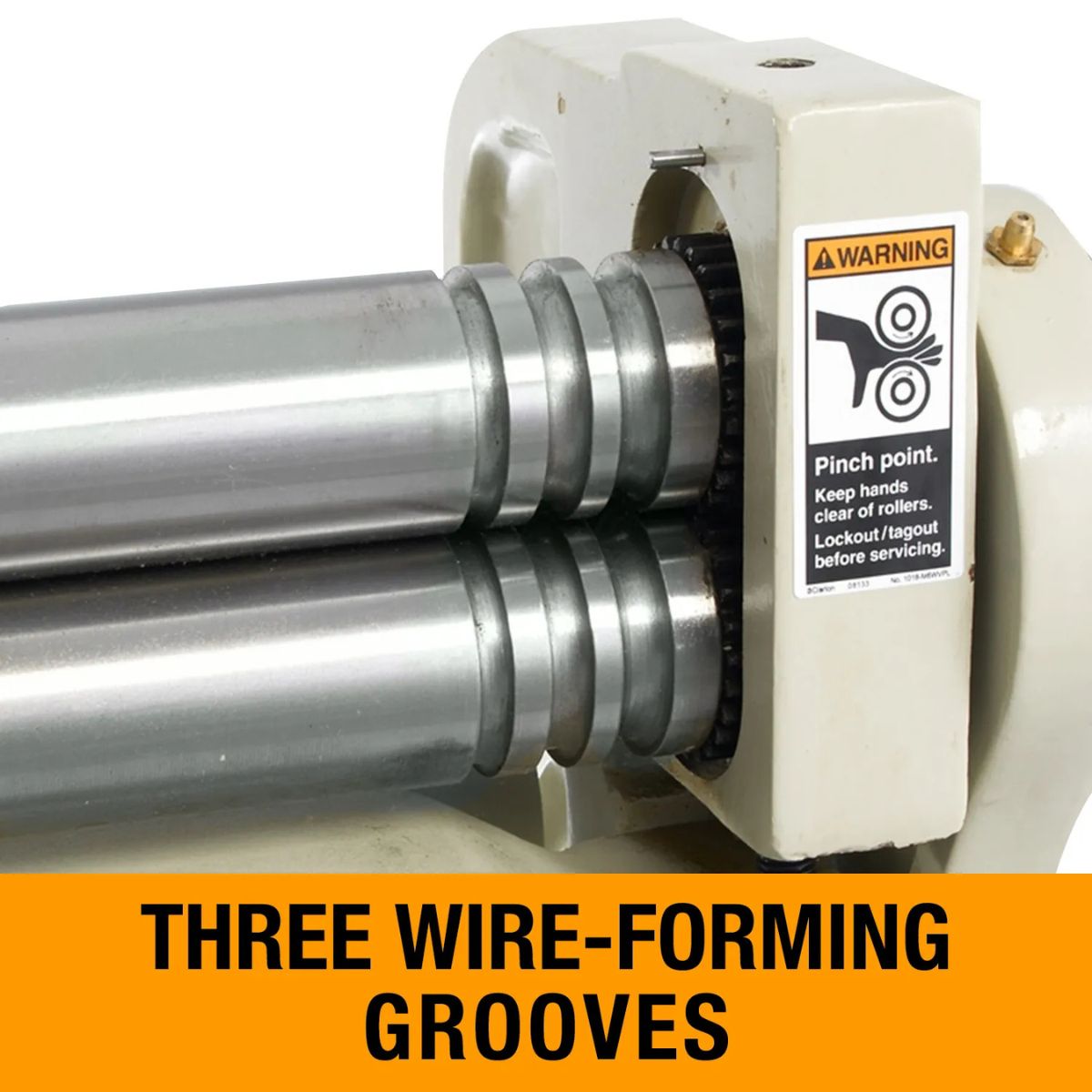

Manual Slip Roll Forms Tight Curves
The slip roll includes wire grooves and a 2 inch minimum diameter for tighter curves. This gives you more forming range without a separate roll machine.
What's Included
What's Included? Baileigh SBR-5220 52" 3-in-1 Shear Brake & Roll — 20 Gauge
-
Baileigh SBR-5220 Shear Brake & Roll — Provides a manual 3-in-1 shear, press brake, and slip roll in one machine for small shop sheet metal work.
-
Removable Finger Dies — Included for box, channel, and flat press brake bends without extra tooling purchases.
Specs
Baileigh SBR-5220 52" 3-in-1 Shear Brake & Roll — 20 Gauge Specifications
- Model Number: SBR-5220
- Stock Number: BA9-1007002
- Bed Width: 52 in
- Bending Capacity Length: 52 in
- Mild Steel Capacity: 20 gauge
- Aluminum Capacity: 16 gauge
- Rolling Capacity: 20 ga (.0396")
- Shear Capacity: 20 ga (.0396")
- Minimum Roll Diameter: 2 in
- Input Power: Manual
- Net Weight: 860 lb
- Gross Weight: 860 lb
- Warranty: 1 Year (parts), lifetime technical support
- Manual: Available from manufacturer
