Baileigh SBR-4020 40" 3-in-1 Shear Brake & Roll — 20 Gauge
Are you short on floor space for separate shear, brake, and roll machines?
What if one manual machine could shear, bend, and roll 20 gauge steel in a single station?

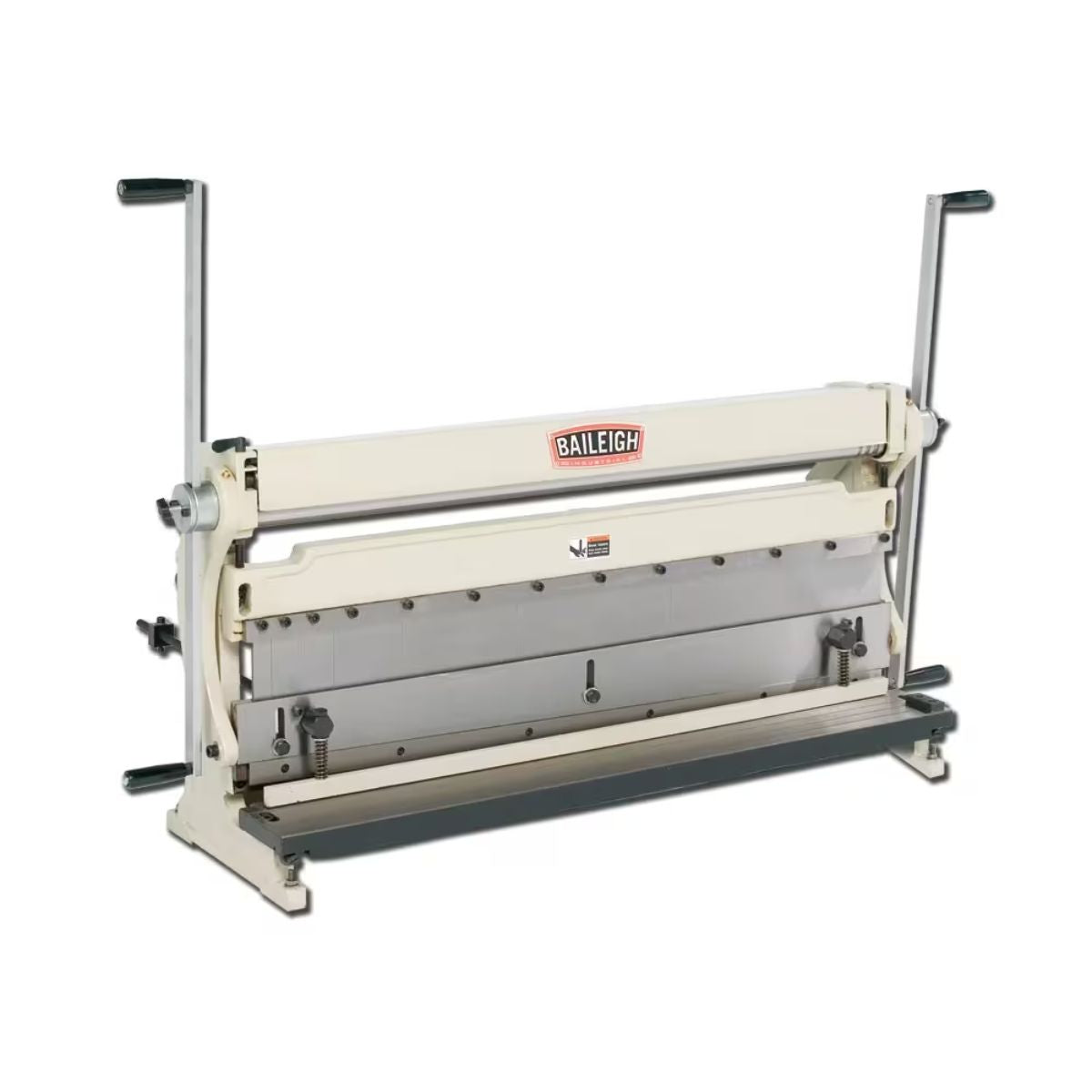

Meet the Baileigh SBR-4020, a 3-in-1 shear, brake, and roll machine built for light to medium duty metalwork.
With a 40 inch width, hardened reversible blades, and a back gauge, it delivers repeatable results on every job.
When one machine covers three operations, your shop stays efficient and your sheet metal work stays on schedule.
Baileigh SBR-4020 for Space-Saving Sheet Metal Work

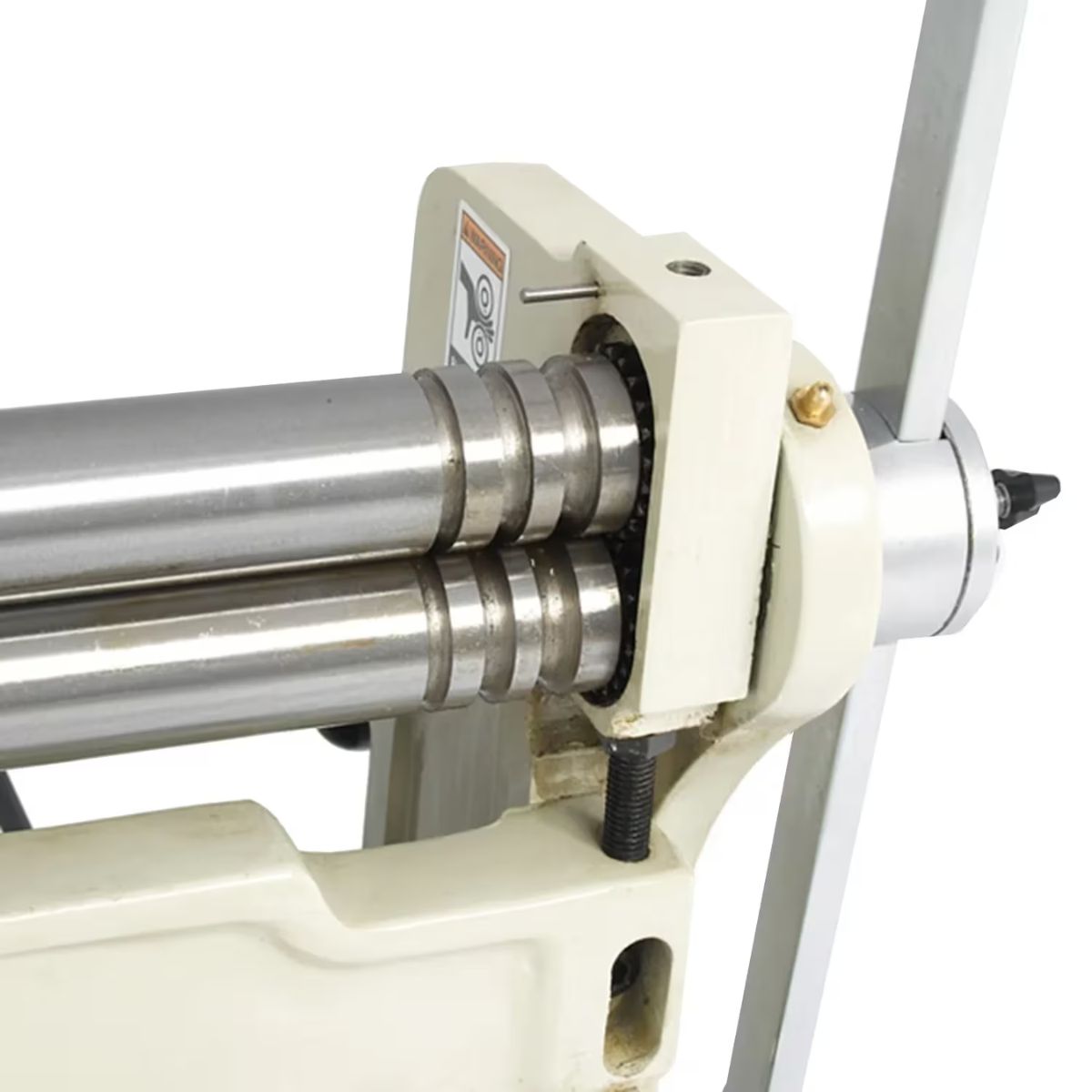

Manual Slip Roll Forms Curved Shapes and Cylinders
The top-mounted slip roll handles a 1.70 inch minimum roll diameter for tight curves and cylinders. Hardened rolls with three grooves also support wire and small round stock.
Press Brake with Crowning Feature Improves Bend Quality
The manual press brake includes a V-die set and a crowning adjustment to help keep bends straight across the full 40 inch width. Adjustable dies from 1 to 10 inches make it easy to form boxes and pans.

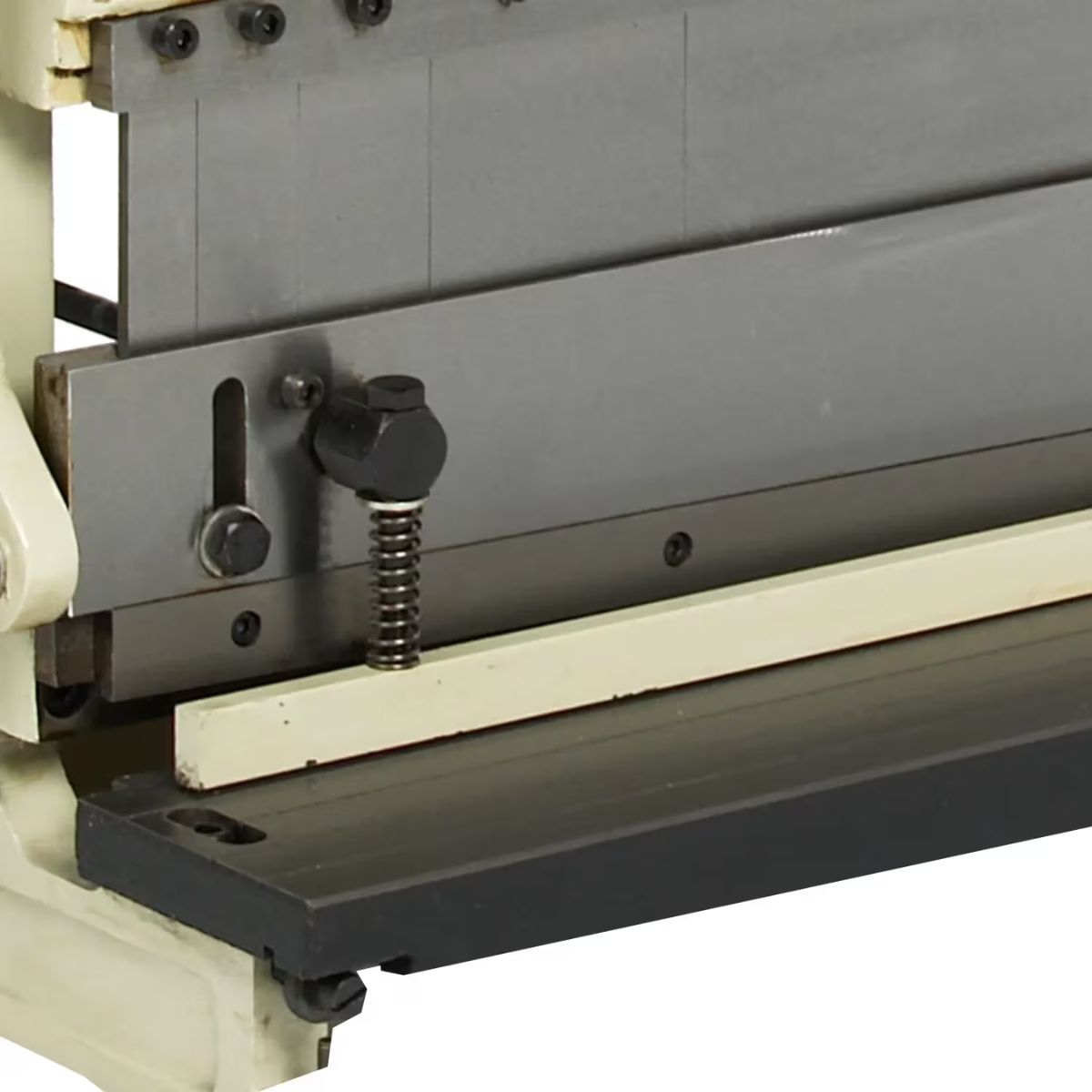

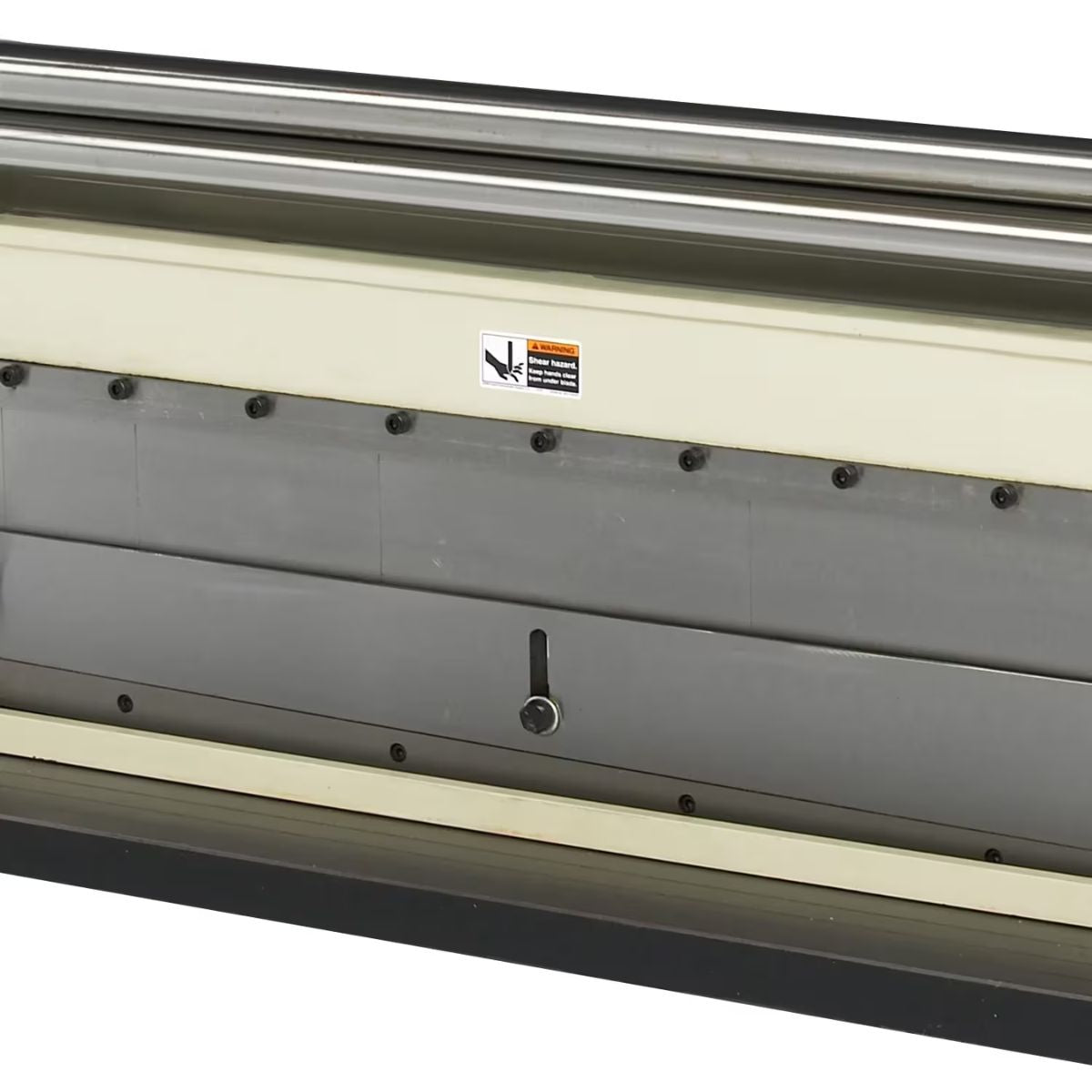

Hardened Reversible Shear Blades Deliver Clean Cuts
Spring-loaded clamps hold material steady while the hardened, reversible blades produce clean, crisp cuts. Reversible blades mean longer service life before you need new tooling.
Back Gauge Speeds Repeatable Setups
The built-in back gauge lets you set a position once and repeat it across multiple parts. This keeps bends and cuts consistent from the first piece to the last.
What's Included
What's Included? Baileigh SBR-4020 40" 3-in-1 Shear Brake & Roll — 20 Gauge
-
Baileigh SBR-4020 3-in-1 Shear Brake Roll — Provides shearing, bending, and rolling capability in a single machine for shops with limited floor space.
Specs
Baileigh SBR-4020 40" 3-in-1 Shear Brake & Roll — 20 Gauge Specifications
- Model Number: SBR-4020
- Stock Number: BA9-1006968
- Bending Capacity Length: 40 in
- Maximum Bend: 135°
- Mild Steel Capacity: 20 Gauge
- Rolling Capacity: 20 ga. (.0396")
- Shear Capacity: 20 ga. (.0396")
- Minimum Roll Diameter: 1.70 in
- Input Power: Manual
- Gross Weight: 465 lb
- Net Weight: 465 lb
- Warranty: 1 Year
