Baileigh SBR-3020 30" 3-in-1 Shear Brake & Roll — 20 Gauge
Are you tired of switching between separate machines just to shear, bend, and roll sheet metal?
What if one sturdy machine handled all three jobs without taking up extra floor space?

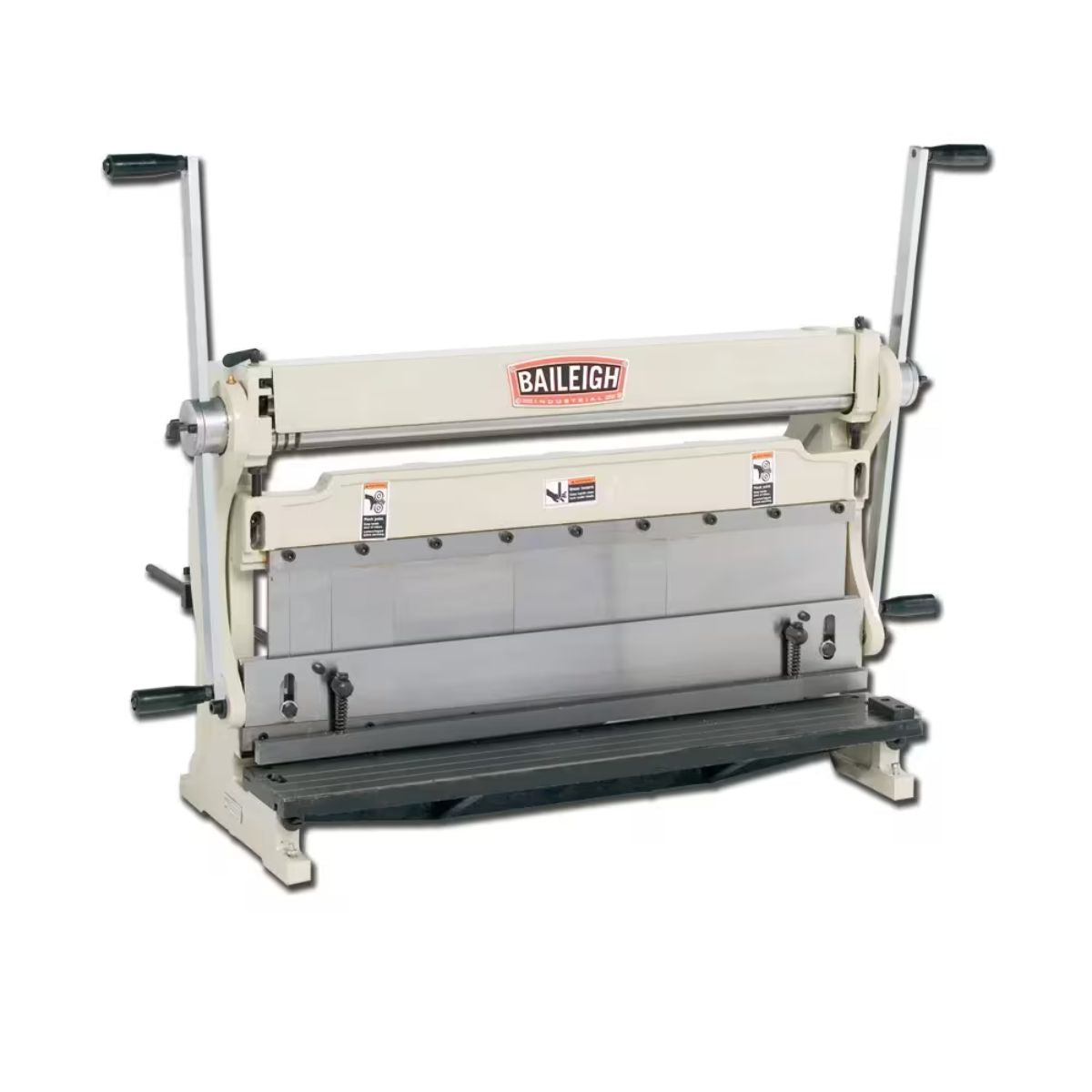

Meet the Baileigh SBR-3020, a manual combination machine built for shops that need shear, brake, and roll work in one footprint.
With a 30 inch bed and a cast iron frame, the machine holds steady through repeated shearing, bending, and rolling.
When one machine covers three jobs, you save space and keep fabrication work moving without extra setup.
Baileigh SBR-3020 for Shop Metal Fabrication Work

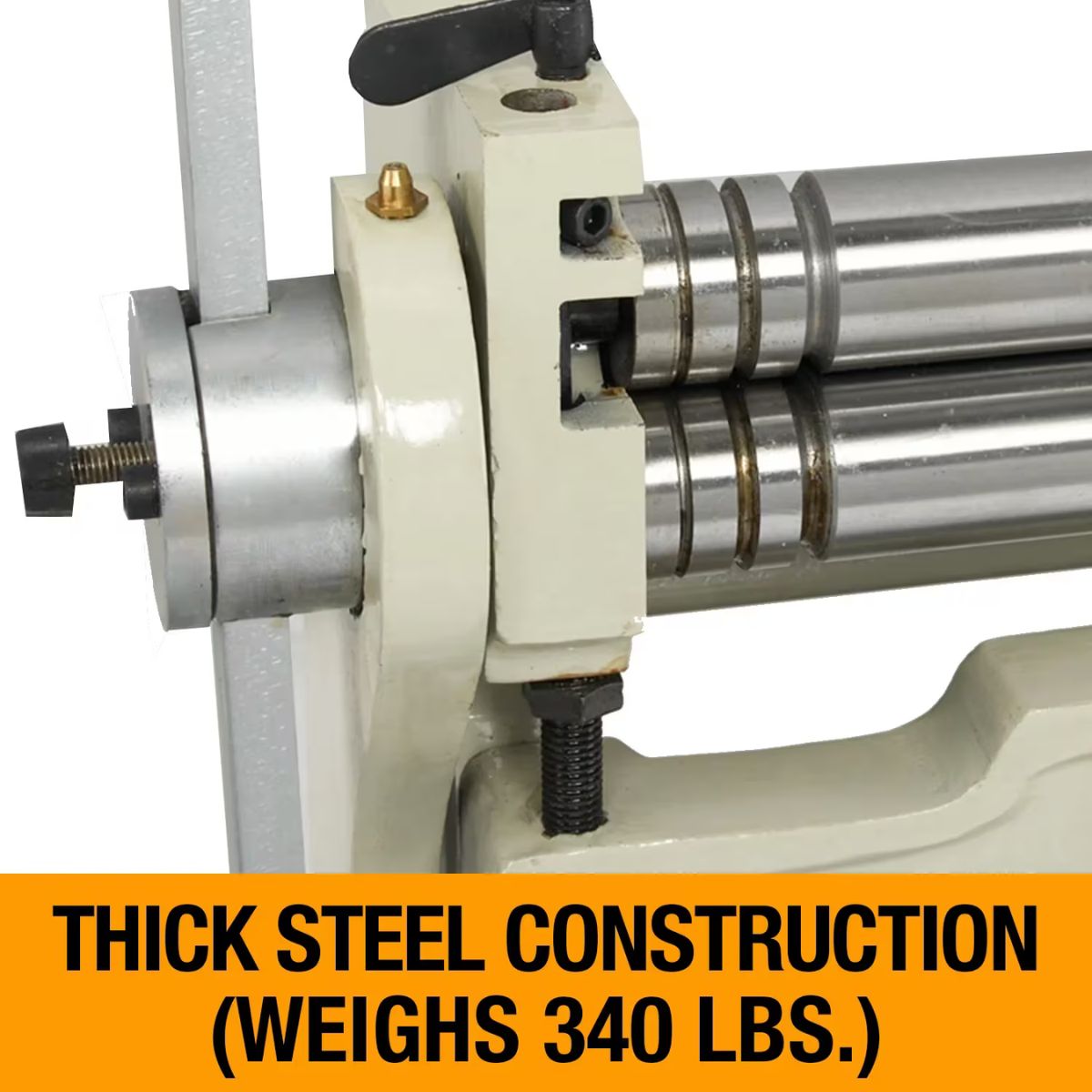

Cast Iron Frame Keeps Cuts and Bends Steady
The welded steel and cast iron frame holds the machine firm during shearing, bending, and rolling. A rigid frame keeps results consistent from one job to the next.
Reversible Shear Blades Extend Cutting Life
The hardened shear blades have four usable edges you can rotate as they dull. This keeps clean cuts going longer before you need to sharpen or replace them.
Adjustable Back Gauge Speeds Repeat Work
The back gauge sets a stop distance for both the shear and brake. This lets you cut or bend matching pieces without measuring and marking each one by hand.

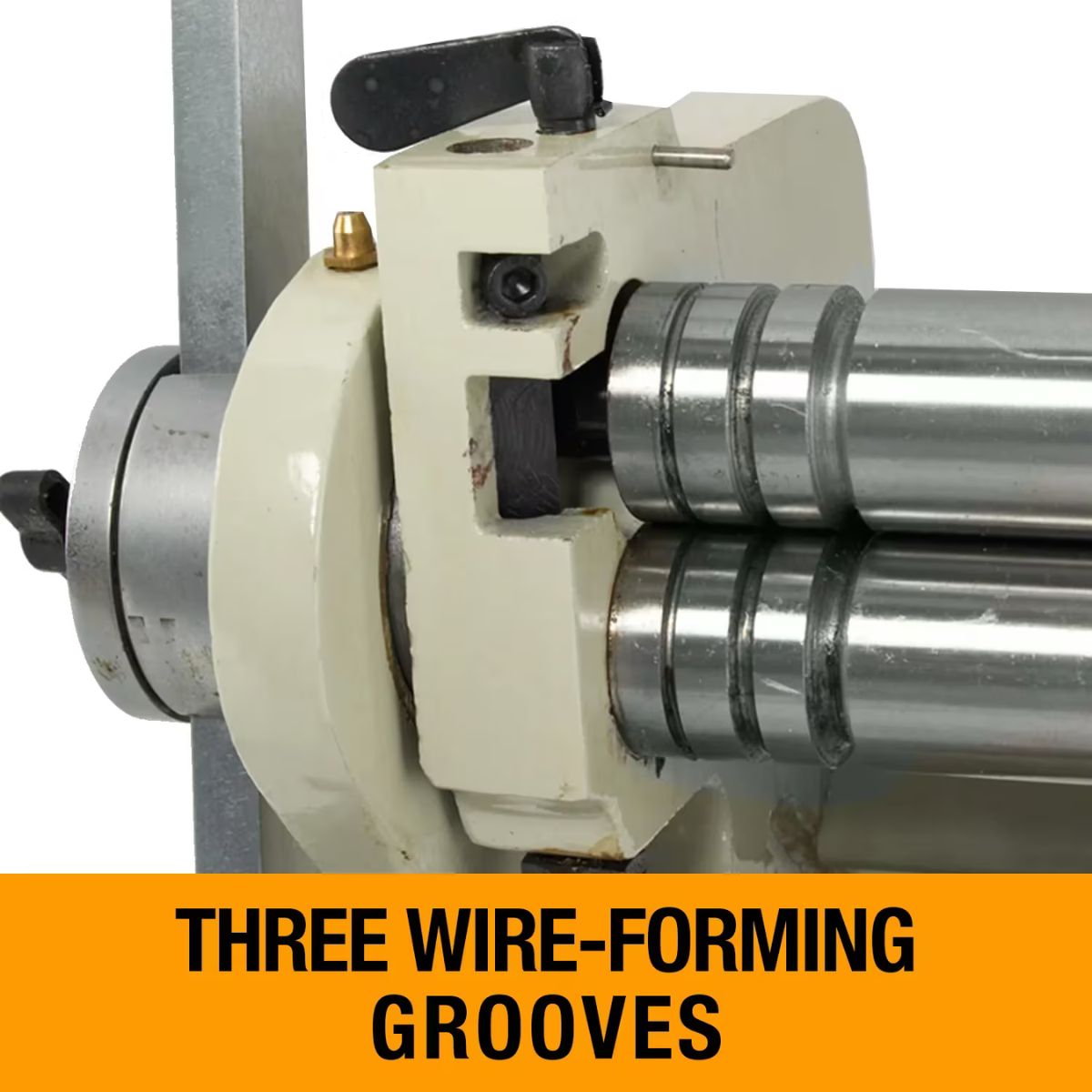

Slip Roll Wire Grooves Add Forming Options
The slip roll includes three wire grooves sized for common rod and tubing diameters. This lets you form rings and curved shapes beyond flat sheet metal work.
What's Included
What's Included? Baileigh SBR-3020 30" 3-in-1 Shear Brake & Roll — 20 Gauge
-
Baileigh SBR-3020 3-in-1 Shear Brake & Roll — Provides a complete manual shear, brake, and roll platform for shop metal fabrication.
Specs
Baileigh SBR-3020 30" 3-in-1 Shear Brake & Roll — 20 Gauge Specifications
- Model: SBR-3020
- Stock Number: BA9-1006958
- Power Requirements: Manual
- Bed Width: 30"
- Shear Capacity: 20 ga. mild steel
- Bending Capacity: 20 ga. mild steel
- Rolling Capacity: 20 ga. mild steel

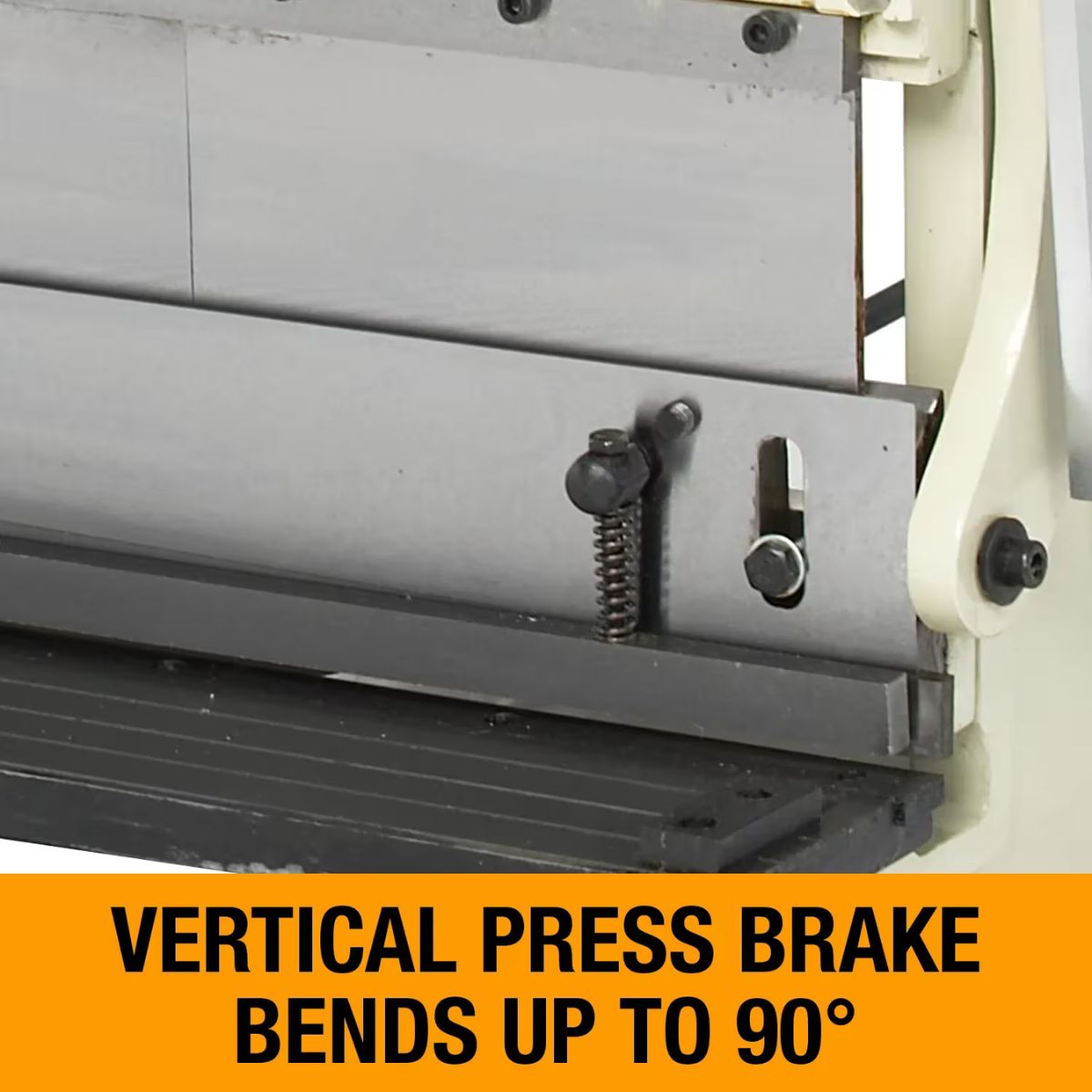

- Maximum Bend Angle: 90°
- Slip Roll Solid Rod Sizes: .187", .250", .312" diameter
- Minimum Roll Diameter: 1.54"
- Box Depth: 4"
- Frame and Base: Cast Iron
- Brake: Ground Steel with Hardened Edge
- Shear Table: Precision Ground Cast Iron
- Shear Blades: Hardened Steel, Reversible (4 Usable Edges)
- Shear Hold-Down Clamp: Spring-Loaded Cast Iron
- Diameter of Rolls: 1.54"
- Shipping Dimensions: 38" x 18" x 27"
- Shipping Weight: 363 lb
- Warranty: 1 Year
