Baileigh SBR-1220 12" 3-in-1 Shear Brake & Roll — 20 Gauge
Are you tight on shop space but still need shear, brake, and roll capability on hand?
What if one compact machine handled shearing, bending, and rolling without taking three machines worth of space?

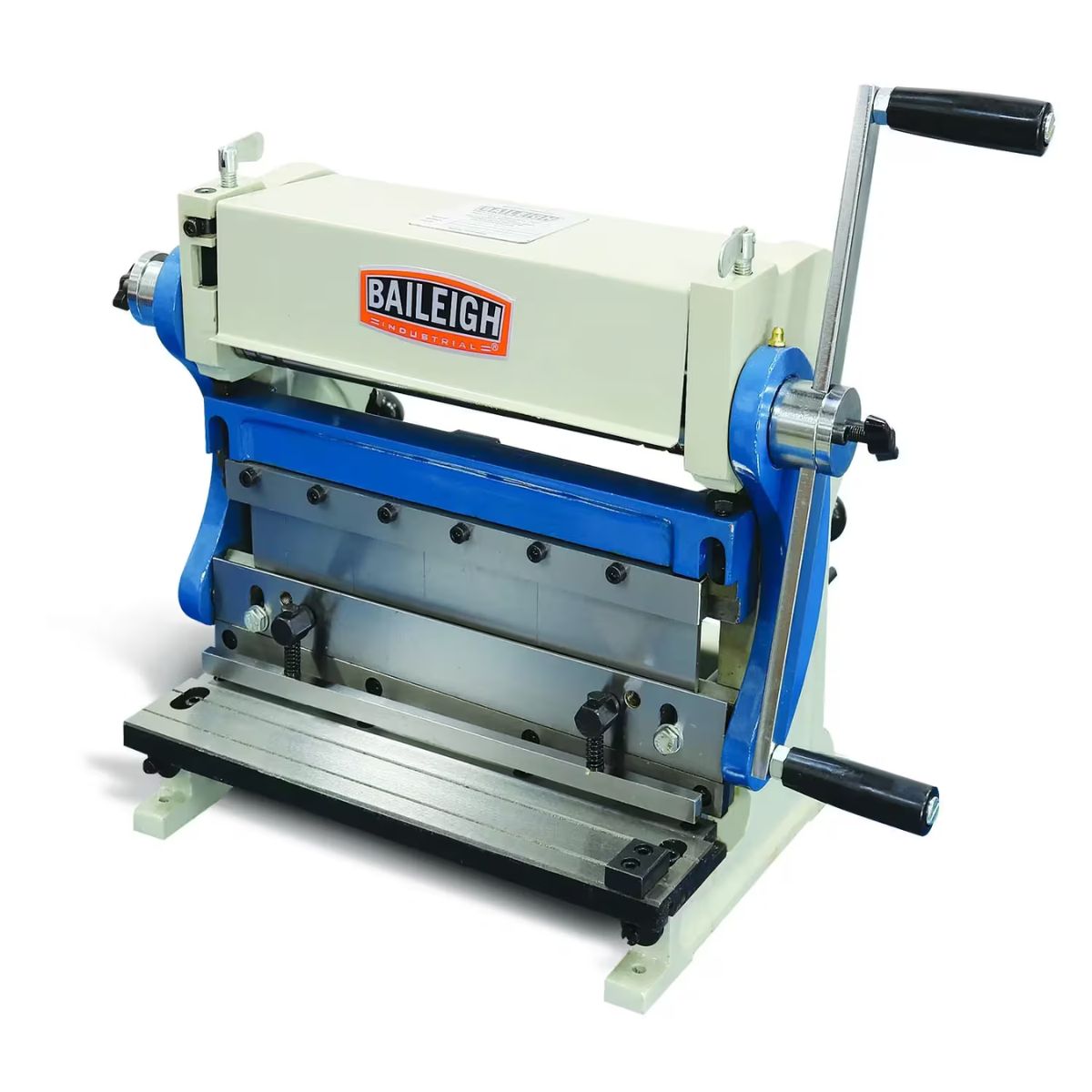

Meet the Baileigh SBR-1220, a manual 3-in-1 shear, brake, and roll built for 20 gauge mild steel work.
With a 12 inch bed and a rugged frame, it handles cutting, bending, and rolling from one station.
When one machine covers shear, brake, and roll, you spend less time moving stock between machines.
Baileigh SBR-1220 for Small Shop Metal Forming

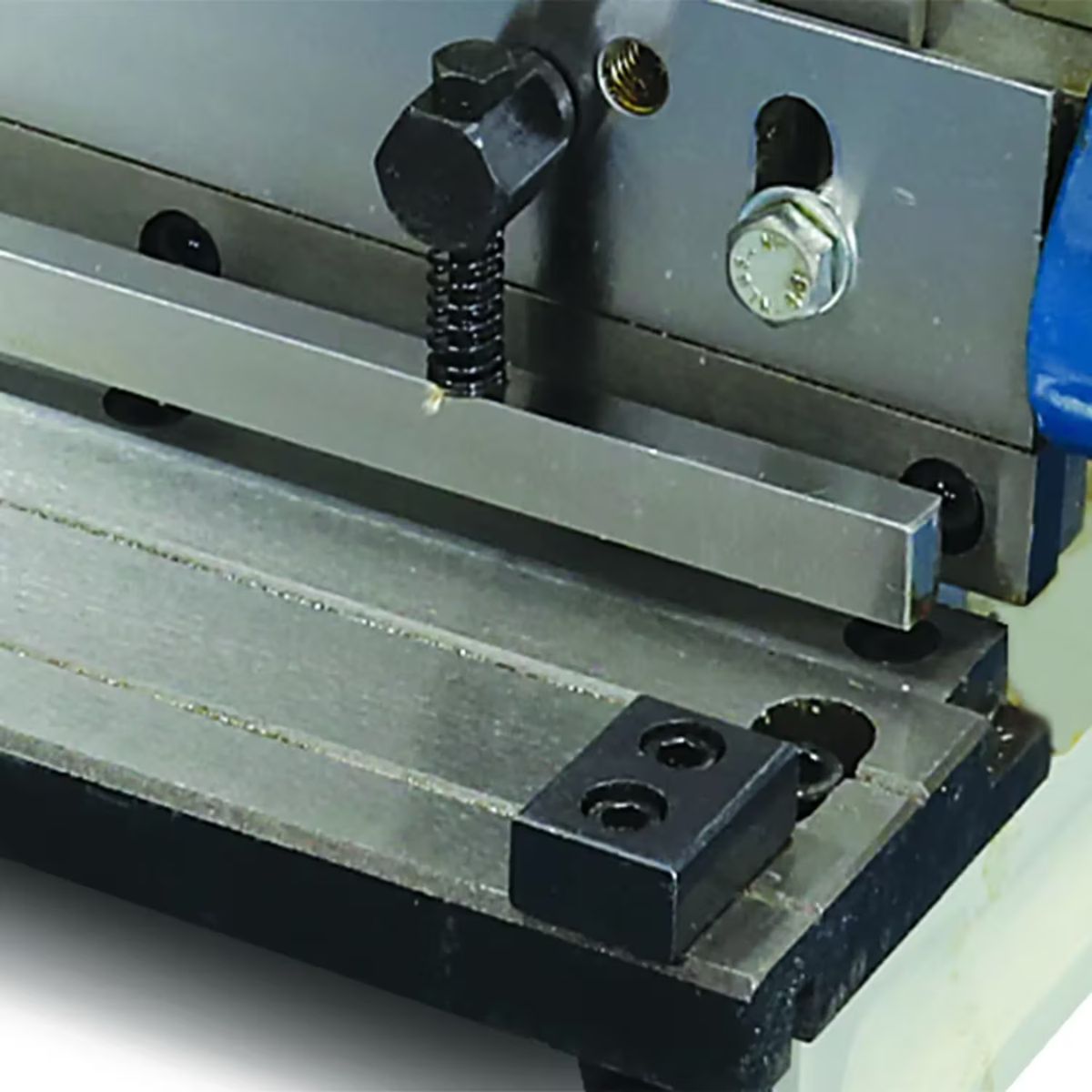

Hardened Reversible Shear Blades Extend Cutting Life
The shear section uses hardened, reversible blades that hold an edge through repeated cuts. When one edge wears, you flip the blade instead of replacing it.

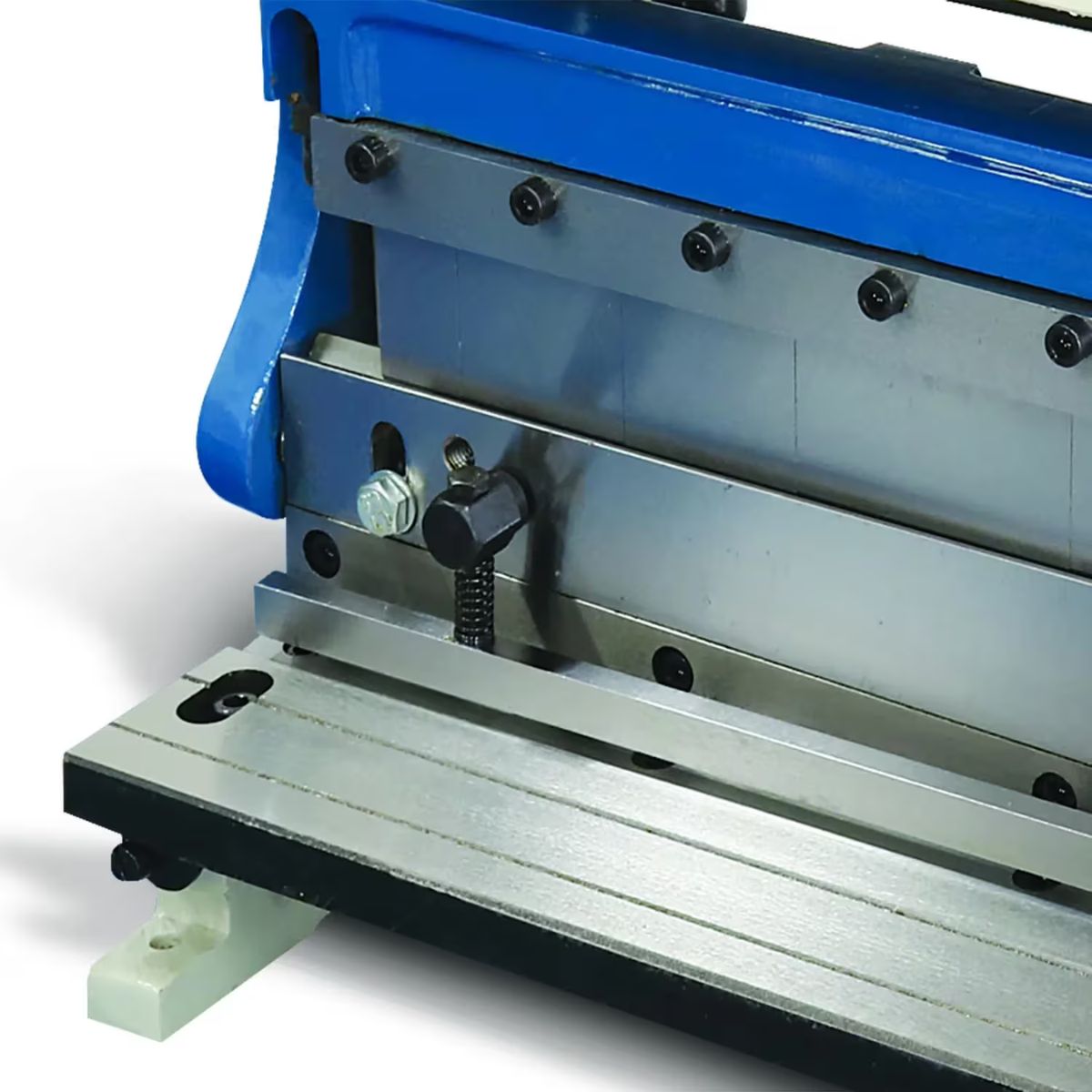

Manual Press Brake Delivers Controlled Bends
The press brake section forms clean bends in 20 gauge mild steel without any power hookup. Steady leverage on the handle keeps each bend consistent.

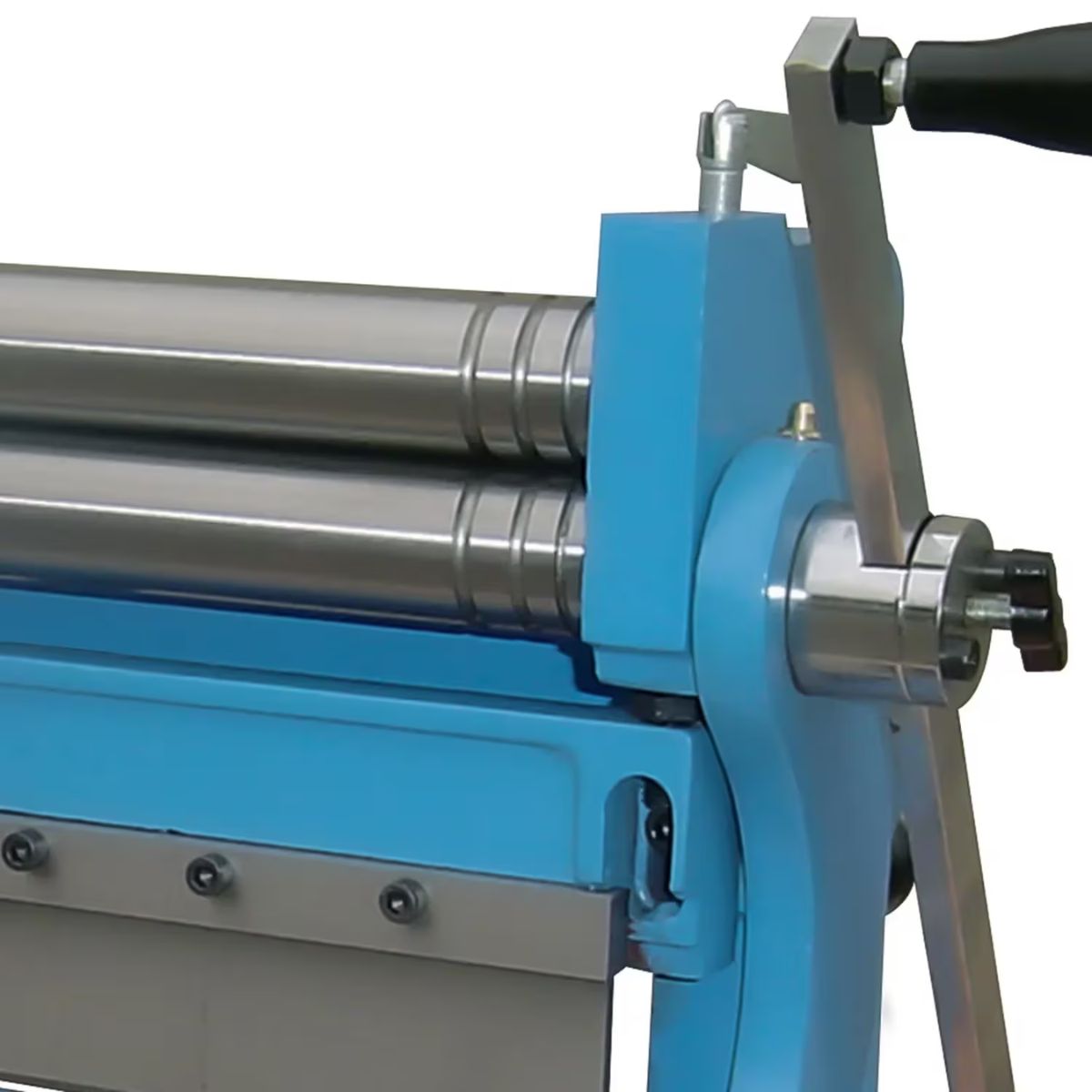

Slip Roll Grooves Shape Wire and Curves
Multiple grooves on the slip roll section let you form wire and small curves along with standard rolling work. Rolling capacity reaches down to a 1.54 inch minimum diameter for tighter curves.
Manual Operation Keeps Setup Simple
The SBR-1220 runs on hand power alone, with no motor or air line required. That keeps it ready to use anywhere in the shop, even without a power hookup nearby.
What's Included
What's Included? Baileigh SBR-1220 12" 3-in-1 Shear Brake & Roll — 20 Gauge
-
Baileigh SBR-1220 Shear Brake Roll — Provides the complete manual shear, brake, and roll unit ready for shop use.
Specs
Baileigh SBR-1220 12" 3-in-1 Shear Brake & Roll — 20 Gauge Specifications
- Model Number: SBR-1220
- Stock Number: BA9-1006957
- Bending Capacity Length: 12 in
- Mild Steel Capacity: 20 Gauge (.0396")
- Shear Capacity: 20 Gauge (.0396")
- Rolling Capacity: 20 Gauge (.0396")
- Minimum Roll Diameter: 1.54 in
- Maximum Bend Angle: 135° (verify against 90° listed elsewhere in supplier data)
- Input Power: Manual
- Net Weight: 135 lb
- Gross Weight: 135 lb
- Warranty: 1 Year
