Baileigh SB-8 Manual Mini Shear & Brake Combination — 8" Blade
Are you looking for a simple way to shear and bend sheet metal on the same bench?
What if one compact tool handled clean shearing and precise bends without extra machines?

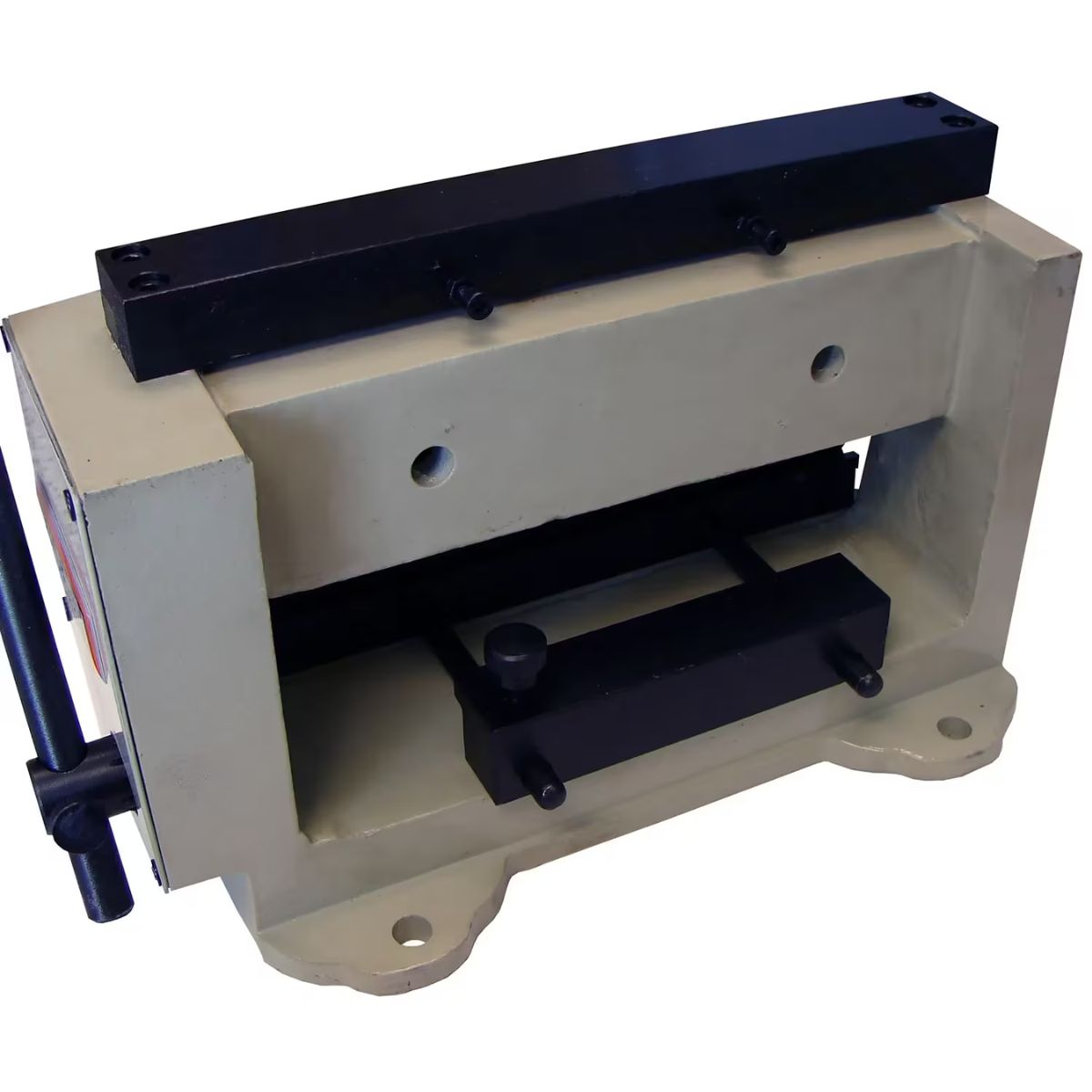

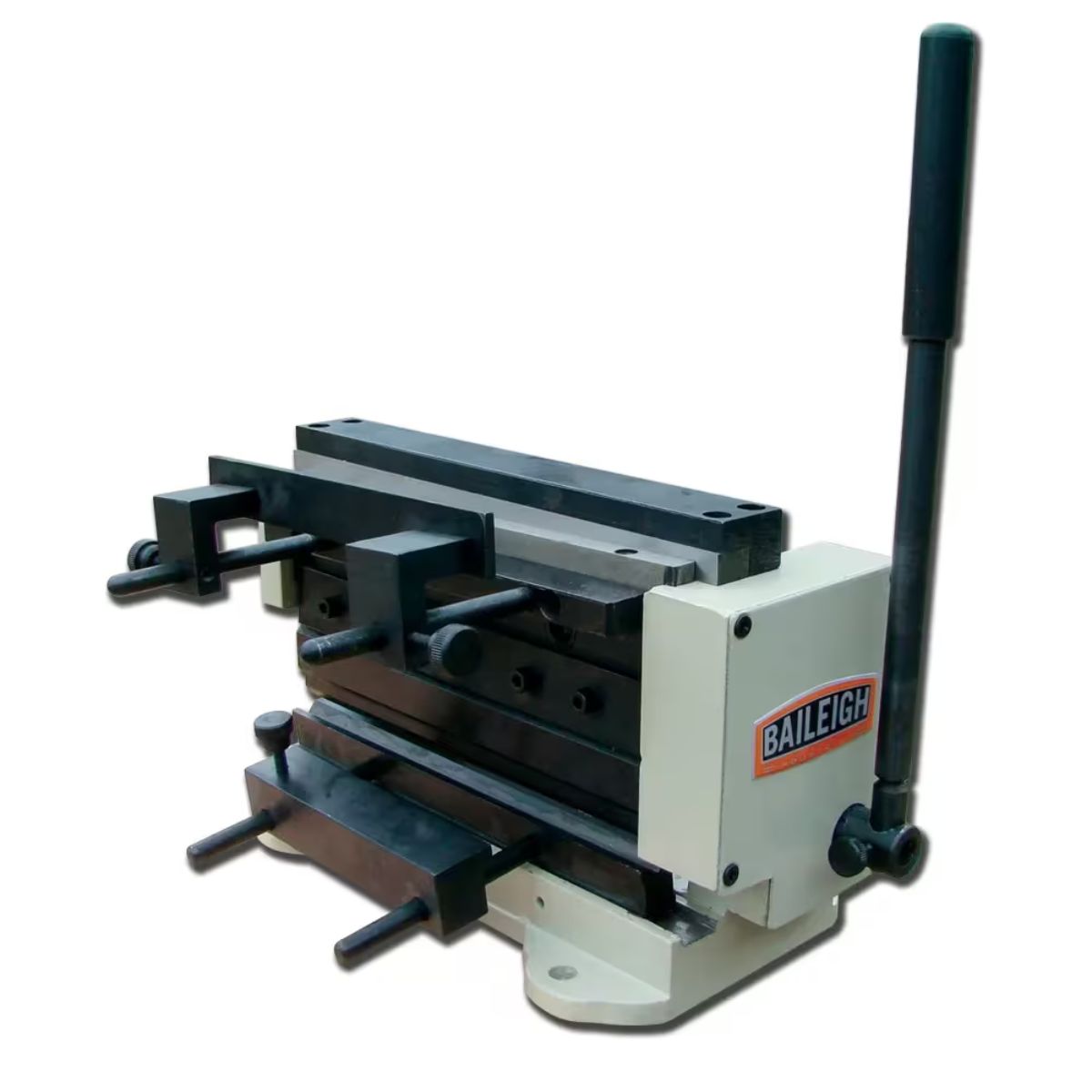

Meet the Baileigh SB-8 Manual Mini Shear & Brake Combination, a bench tool built for small metalworking jobs.
With an 8 inch bed, adjustable back gauge, and interchangeable bending tools, the SB-8 handles aluminum, copper, brass, and light steel.
When one machine handles both jobs, your bench stays organized and your parts come out consistent.
Baileigh SB-8 for Small Shop Shearing and Bending
Interchangeable Bending Tool Fingers Fit Different Box Sizes
The bending tool fingers come in several widths so you can match the tool to the part you are forming. Swap in the size you need and remove the rest for a clean, accurate bend.

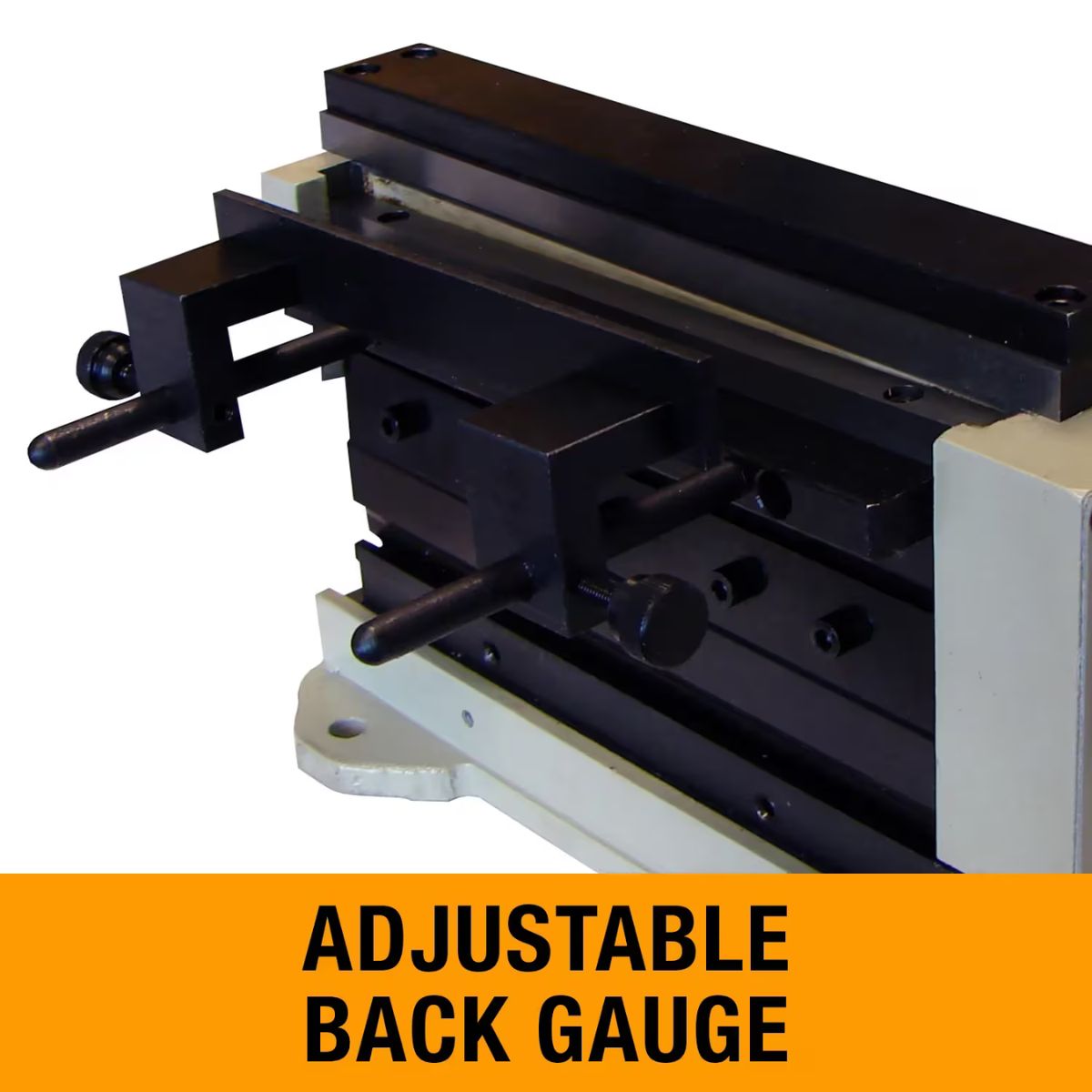

Adjustable Shear Stop Speeds Repeat Cuts
The shear stop slides into place and locks at a set dimension for shearing duplicate pieces. This keeps repeat cuts consistent without re-measuring every piece.
Reversible Bending Prism Adds a Second Radius Option
The bending prism flips 180 degrees to give you a second radius for curved work like cylinders and cones. Switching sides takes only a few turns of the clamp screw.

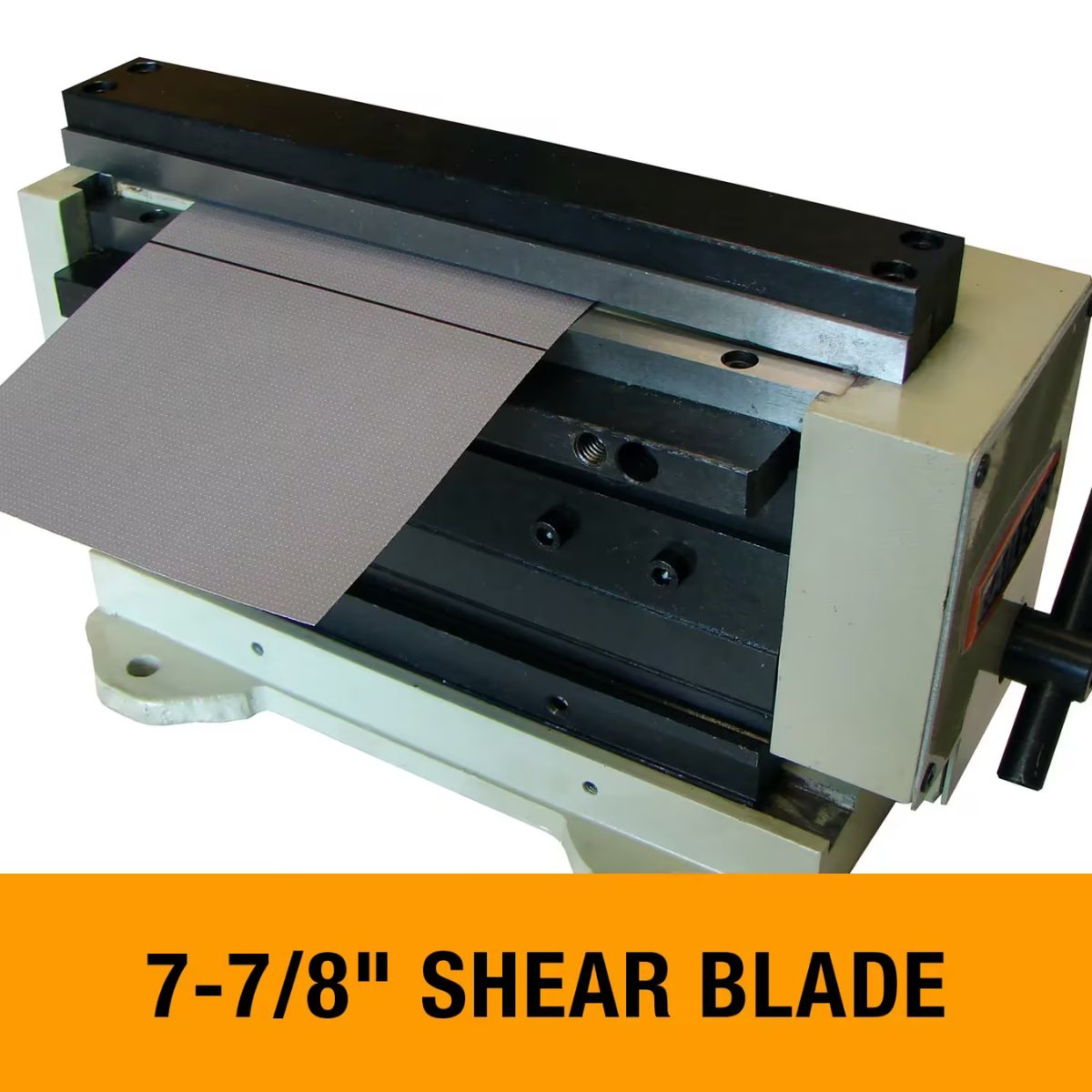

Four Edge Cutter Blades Extend Service Life
The upper cutter has four usable cutting edges, so you can rotate to a sharp edge instead of buying a new blade right away. This keeps your shear cutting clean between replacements.
What's Included
What's Included? Baileigh SB-8 Manual Mini Shear & Brake Combination
-
Baileigh SB-8 Manual Mini Shear & Brake Combination — Provides an 8 inch bench mounted shear and brake unit.
-

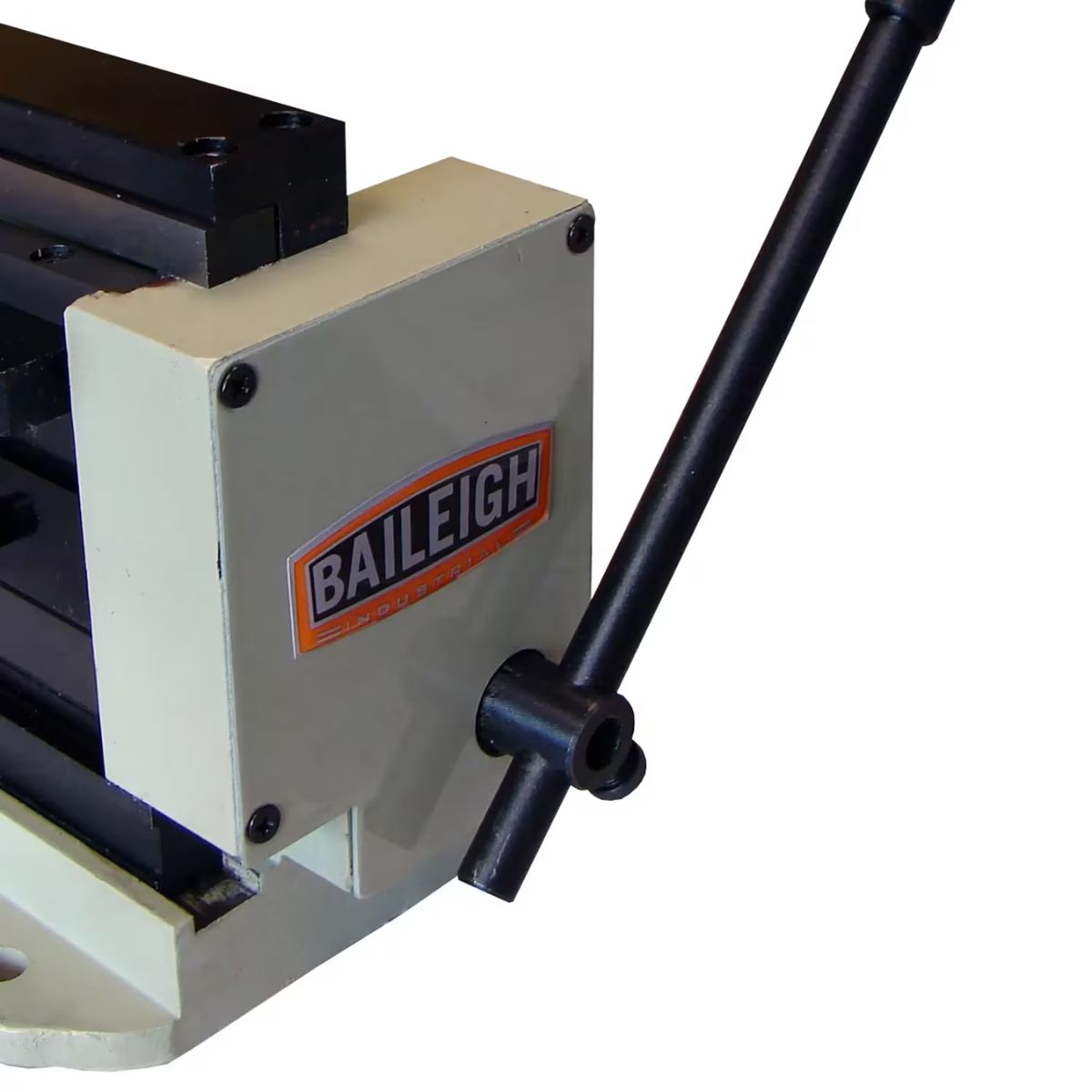

Handle — Operates the shear and brake cycles by hand.
-
Shear Stop — Allows repeat shearing of duplicate pieces.
-
Bending Prism with End Stop — Sets the bend radius and holds material in place.
-
Allen Wrenches — Used for machine assembly and tool adjustments.
Specs
Baileigh SB-8 Manual Mini Shear & Brake Combination Specifications
- Model: SB-8
- Stock Number: BA9-1006941
- Bed Width: 8"
- Max Bend Angle: 90°
- Mild Steel Capacity: 20 ga (.0359")
- Aluminum Capacity: 18 ga (.047")
- Copper Capacity: 20 ga (.039")
- Brass Capacity: 20 ga (.039")
- Circuit Board Capacity: .059"
- Tinplate Capacity: .039"
- Base Footprint: 5.75" x 9.25"
- Power: Manual
- Net Weight: 30 lb
- Warranty: 1 Year
