Baileigh RDB-150-AS 110V Hydraulic Rotary Draw Bender with Auto Stop — 2" Schedule 40 Pipe Capacity
Are you tired of guessing where a bend will land, only to scrap the piece and start over?
What if every bend stopped exactly where you set it, run after run?

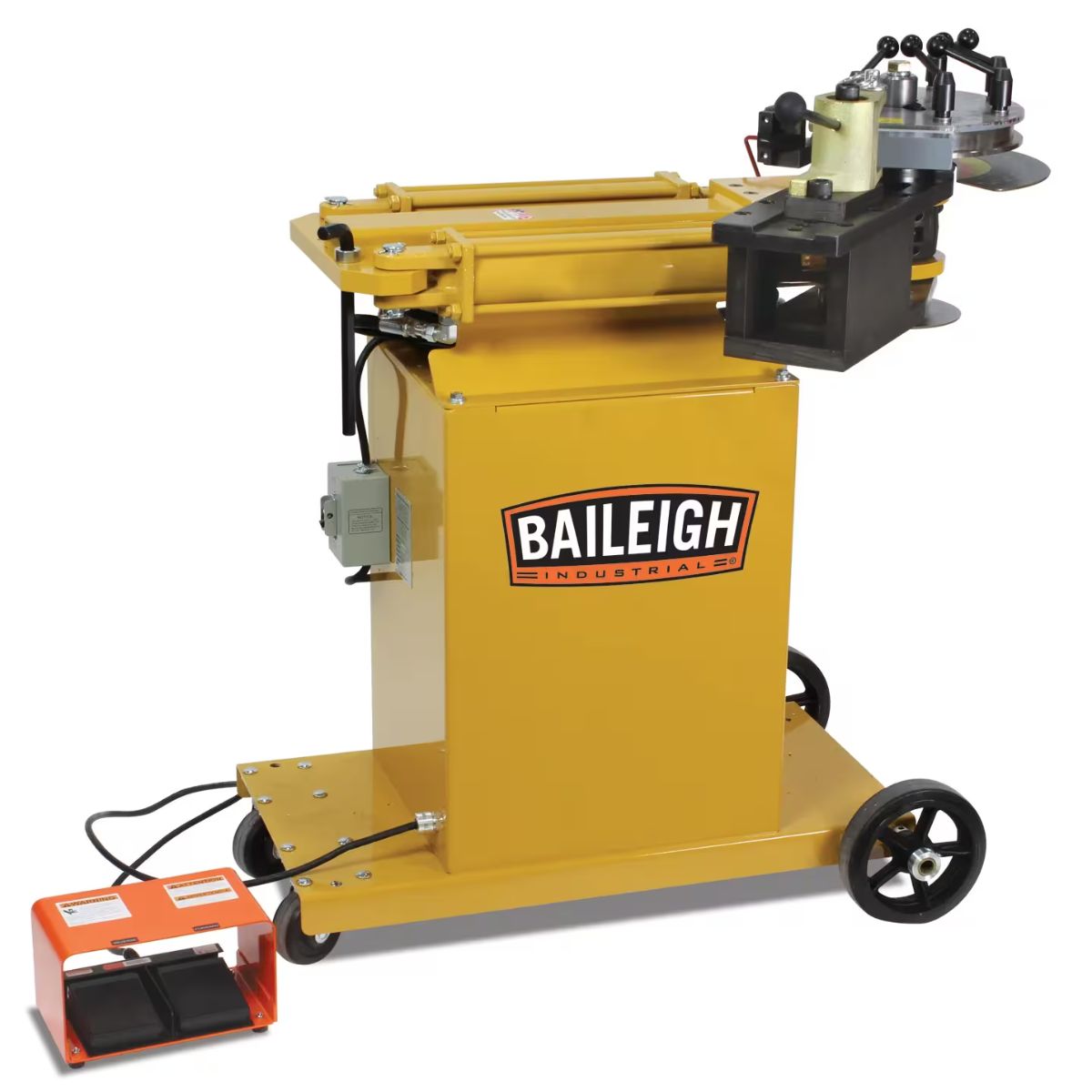

Meet the Baileigh RDB-150-AS, a hydraulic rotary draw bender built for accurate, repeatable pipe and tube work.
With a low pressure 110V hydraulic system and an auto stop programmer, the bender holds your preset angle on every cycle.
When the machine stops on its own, you can trust each part matches the last.
Baileigh RDB-150-AS for Precision Pipe and Tube Bending
Auto Stop Programmer Locks In Repeatable Bend Angles
You set the bend angle once and the programmer stops the machine there every time. This keeps every part in a run consistent, even across long production jobs.

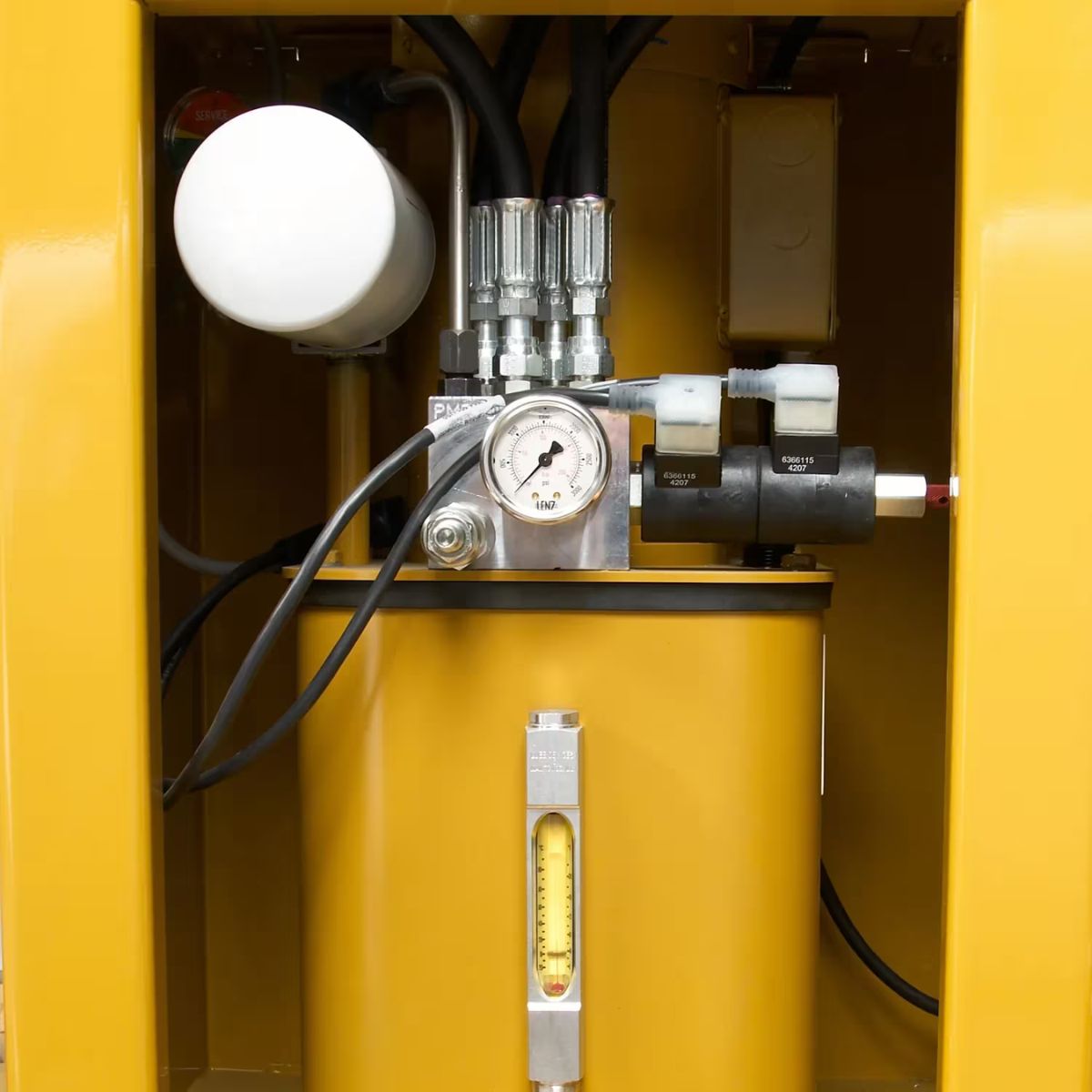

Low Pressure 110V Hydraulic System Powers Smooth Bends
A 110V hydraulic system delivers steady bending force without the need for heavier shop power. It handles pipe and tube up to 2 inch schedule 40 with smooth, controlled motion.

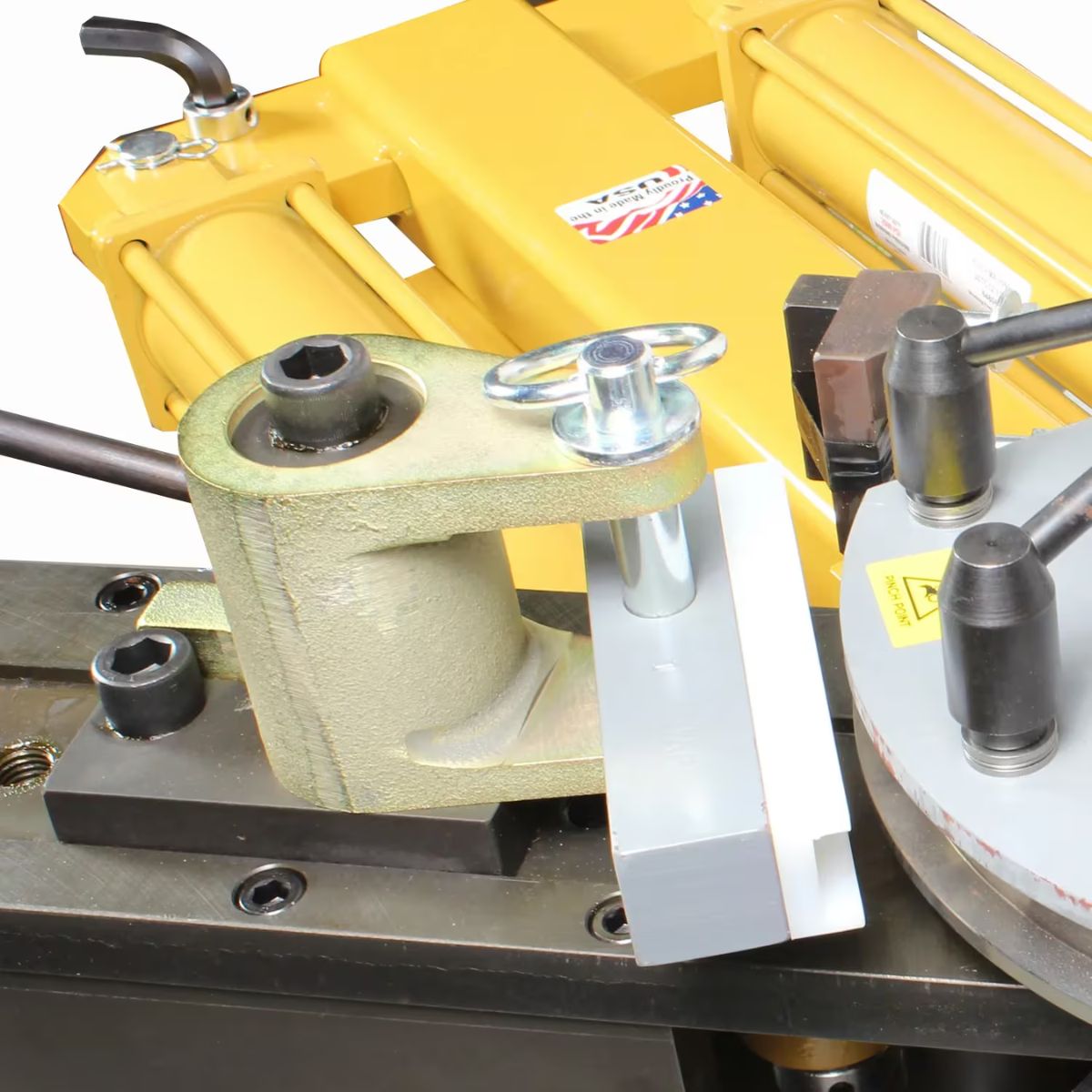

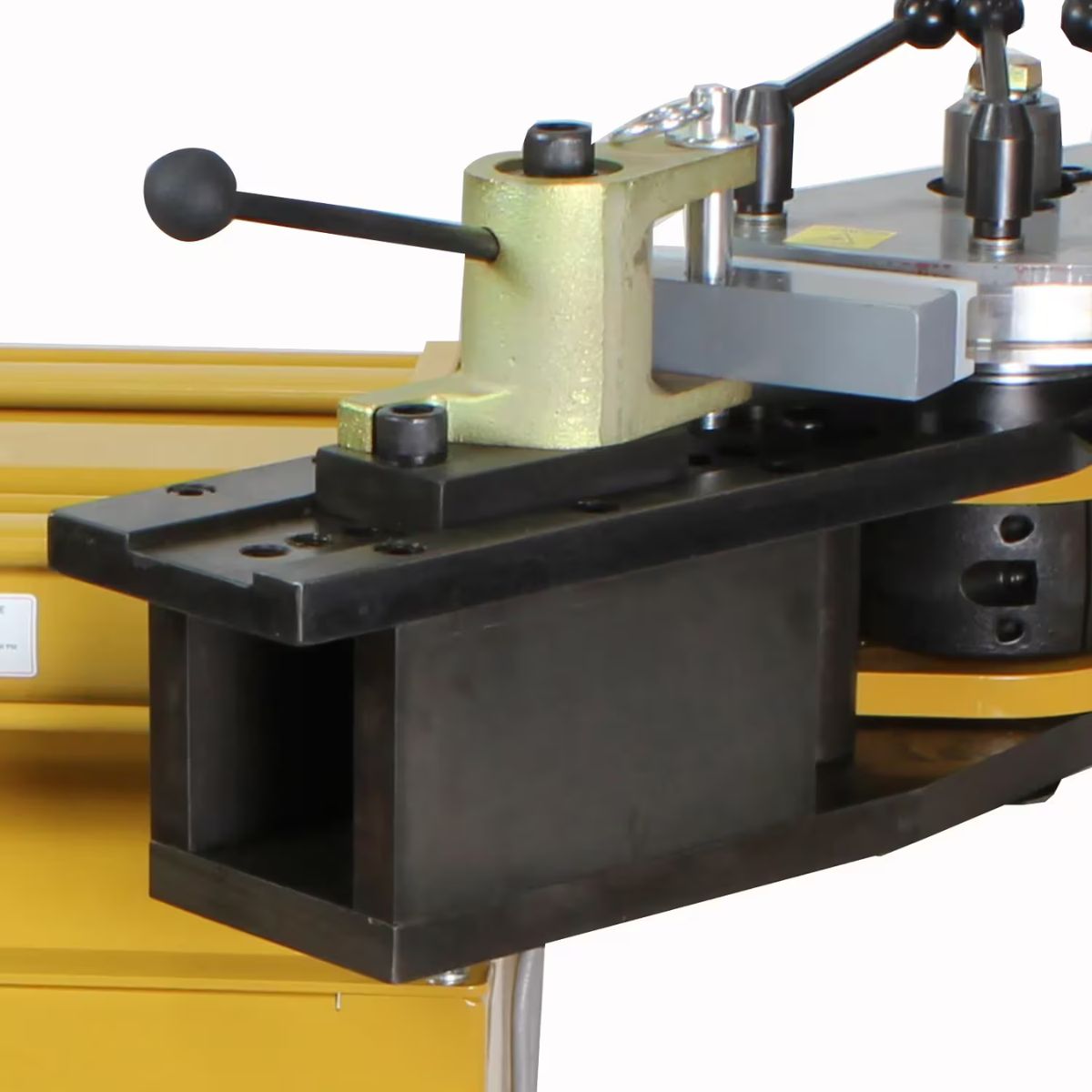

Quick Release Counter Die Speeds Setup and Unloading
The quick release counter die lets you load and unload material without extra tools or steps. This keeps changeover time short between bends and between jobs.

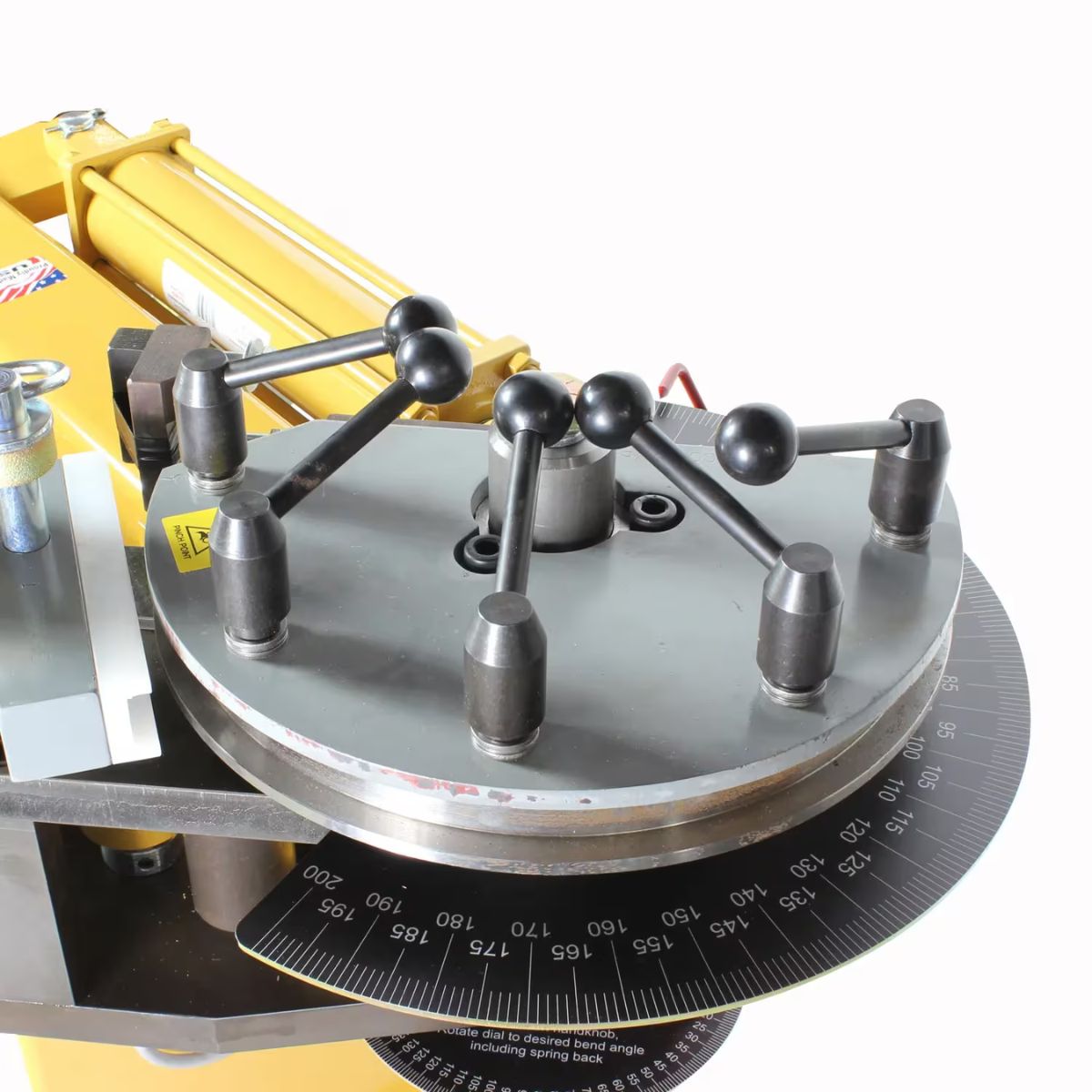

Degree Indicator Keeps Every Bend On Target
A clear degree indicator shows your progress as the bend forms. You can check your angle at a glance instead of stopping to measure.
What's Included
What's Included? Baileigh RDB-150-AS Hydraulic Rotary Draw Bender
-
Baileigh RDB-150-AS Hydraulic Rotary Draw Bender — Provides a complete 110V hydraulic bending station with auto stop control, ready for shop use.
-
Quick-Release Counter Die — Allows fast loading and unloading of pipe and tube.
Specs
Baileigh RDB-150-AS Specifications
- Model: RDB-150-AS
- Stock Number: BA9-RDB150ASB
- Input Power: 110V
- Motor: 2 HP
- Motor Phase: Single Phase
- Round Tube Capacity: 2.5 in
- Pipe Capacity: 2" Schedule 40
- Minimum OD: 0.25 in
- Center Line Radius: 8 in Max
- Maximum Bend Angle: 205°
- Gross Weight: 610 lb
- Net Weight: 610 lb
- Warranty: 1 Year
