Name: Baileigh RDB-150 110V Hydraulic Rotary Draw Bender — 2" Schedule 40 Pipe Capacity
Brand: Baileigh
SKU: BA9-RDB150110
Price: 7799.0 USD
Availability: InStock

Baileigh RDB-150-AS 110V Hydraulic Rotary Draw Bender with Auto Stop — 2" Schedule 40 Pipe Capacity

Are you looking for a rotary bender that gives you clean, repeatable bends without guesswork?

What if your shop had a hydraulic bender that stops right where you set it, every time?

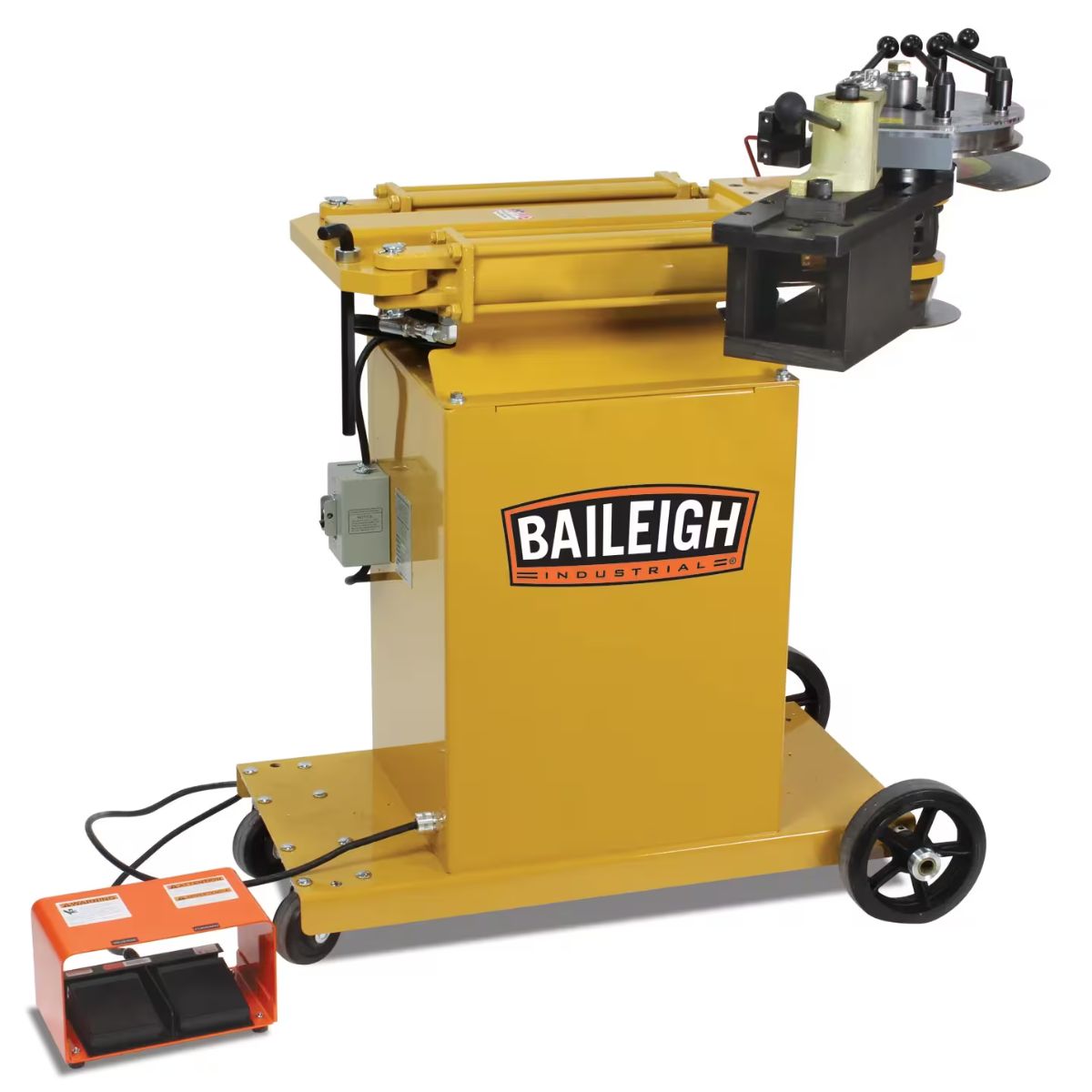

Meet the Baileigh RDB-150-AS, a 110V hydraulic rotary draw bender built for 2 inch schedule 40 pipe.

With an auto-stop programmer and quick-release counter die, the bender speeds up setup and holds accuracy through repeat runs.

When every bend lands at the angle you set, you can move through fabrication work with confidence.

Baileigh RDB-150-AS for Precision Pipe and Tube Bending

Auto-Stop Programmer Reduces Repeat Setup Errors

The auto-stop programmer lets you set a bend angle and repeat it automatically across a run of parts. This helps cut down on measuring errors and keeps every bend consistent from piece to piece.

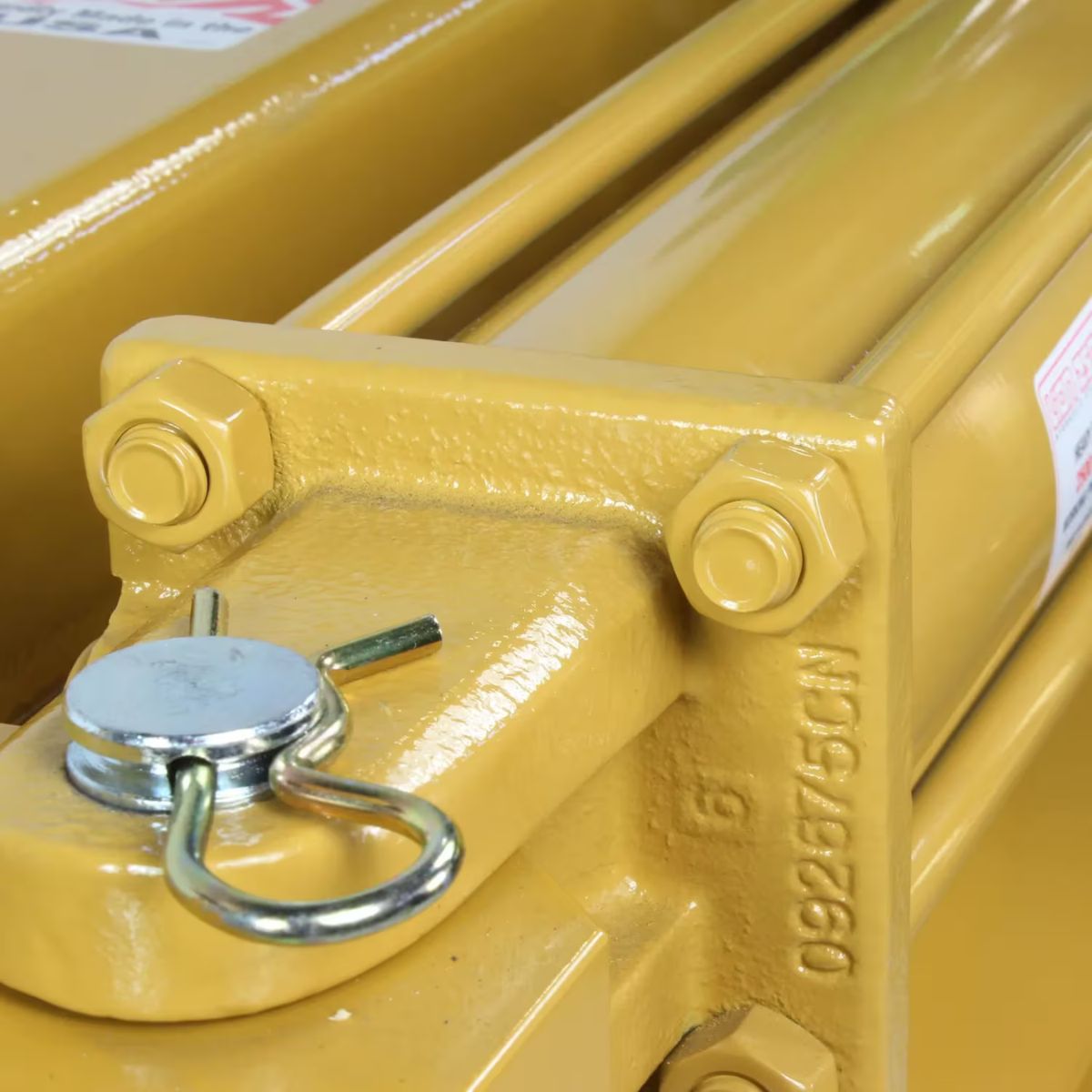

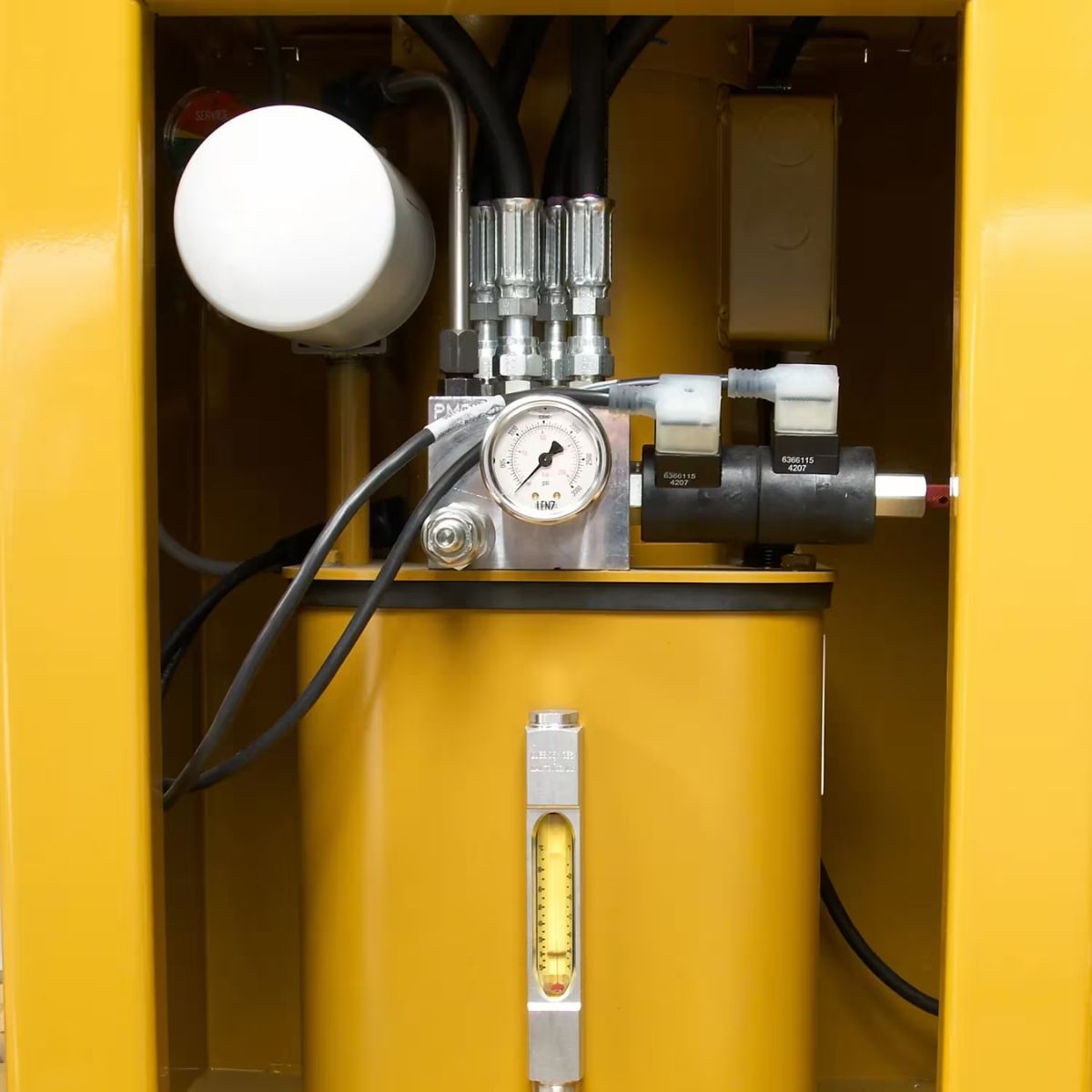

110V Hydraulic System Powers Smooth, Controlled Bends

The low-pressure 110V hydraulic system delivers steady bending force without requiring heavy shop power. It gives you smooth control through the full bend range, up to about 205 degrees.

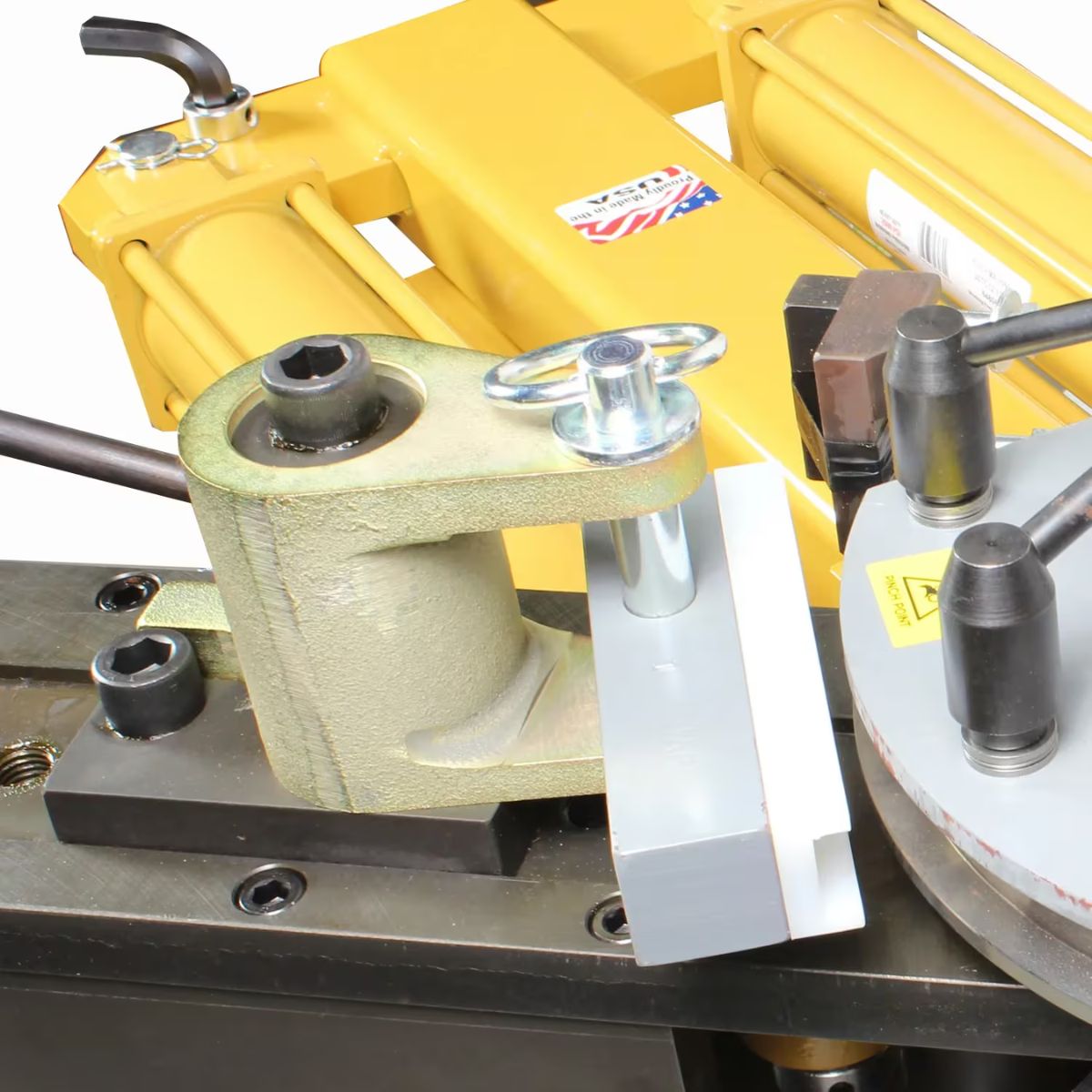

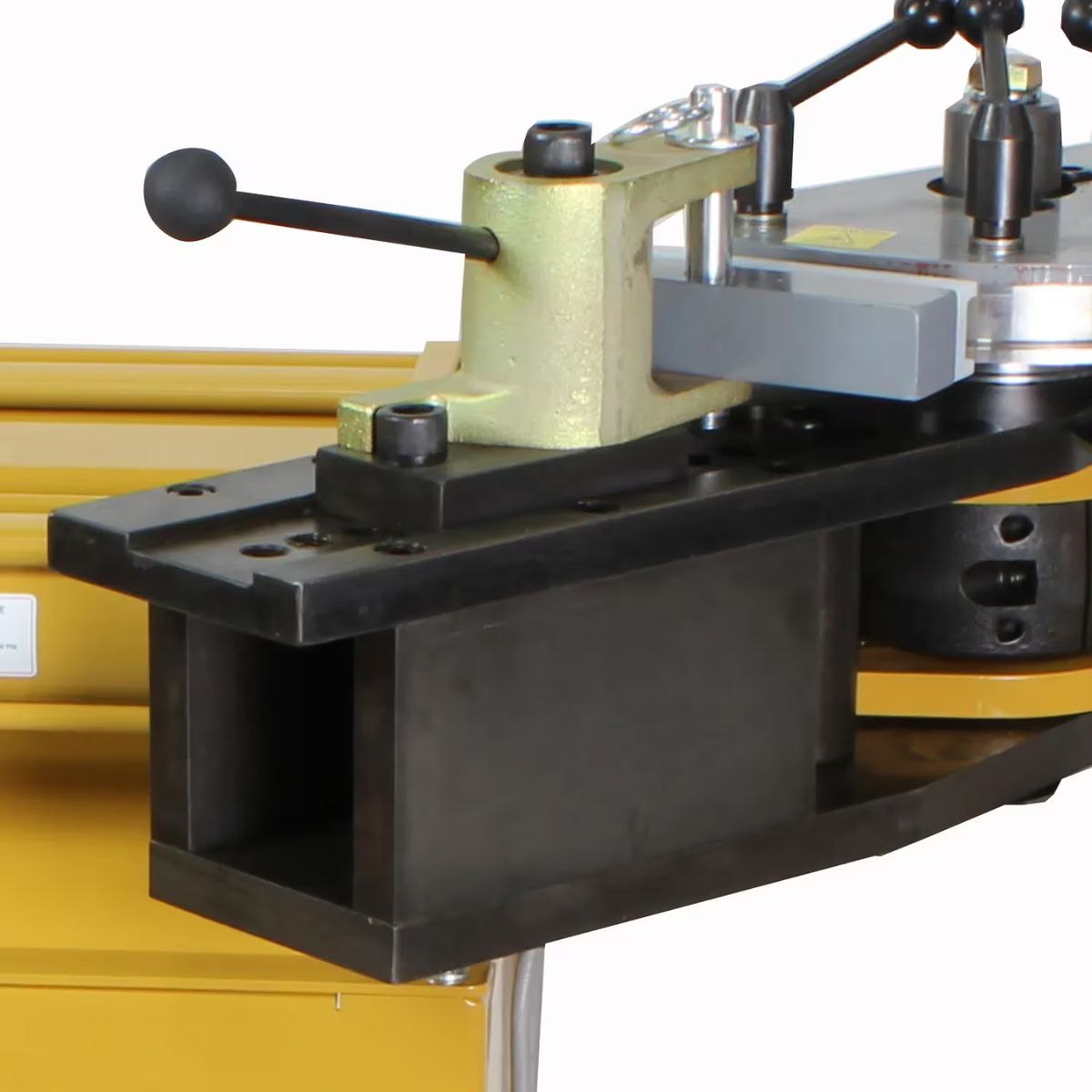

Quick-Release Counter Die Speeds Loading and Unloading

The quick-release counter die lets you load and unload material faster between bends. This keeps setup time down when you are running multiple pieces through the same job.

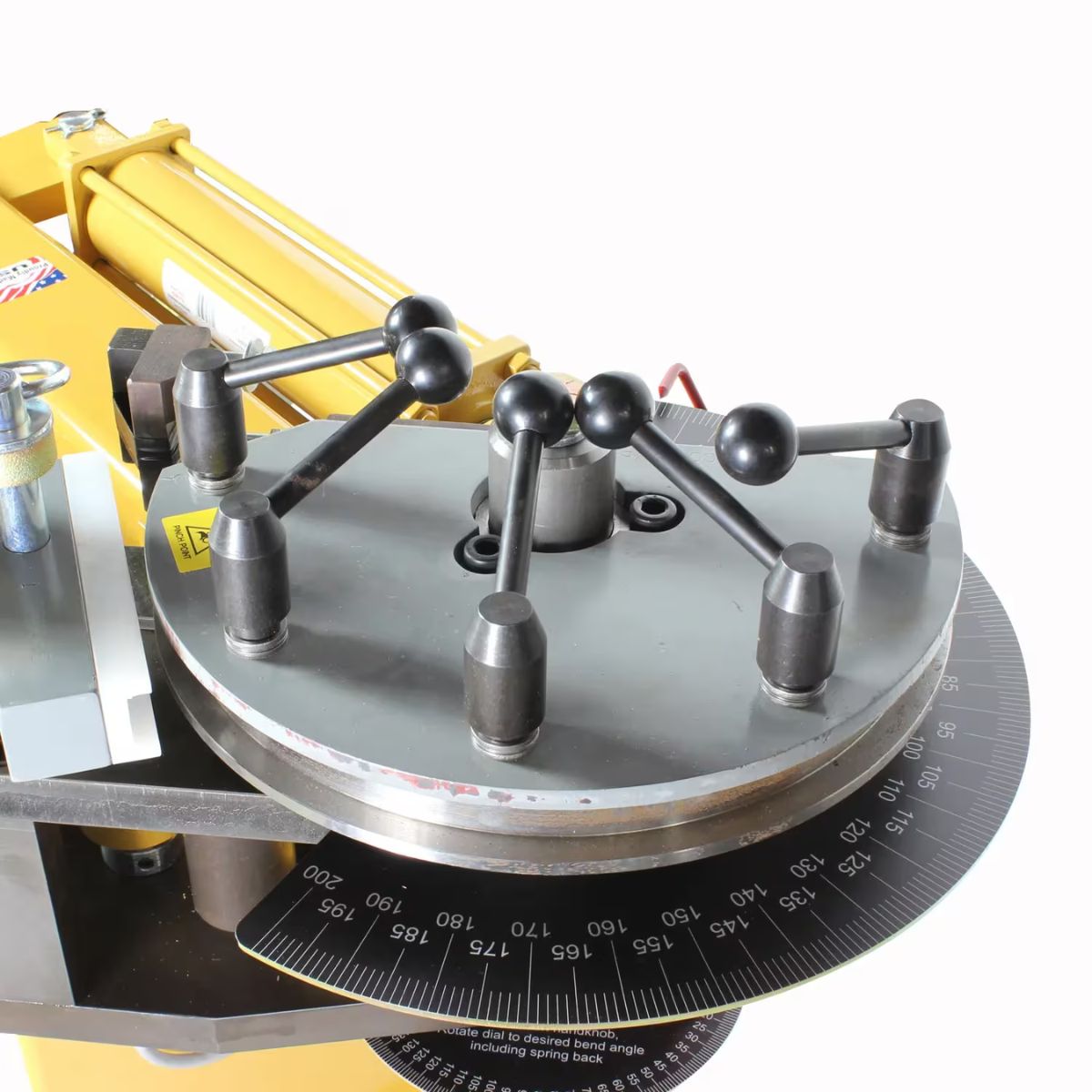

Degree Indicator Keeps Bend Angles Easy to Read

A clear degree indicator shows your bend progress as you work. You can check your angle at a glance instead of stopping to measure by hand.

Baileigh RDB-150 110V Hydraulic Rotary Draw Bender — 2" Schedule 40 Pipe Capacity

What's Included

What's Included? Baileigh RDB-150-AS 110V Hydraulic Rotary Draw Bender with Auto Stop — 2" Schedule 40 Pipe Capacity

Baileigh RDB-150-AS Hydraulic Rotary Draw Bender — Provides the complete hydraulic bending machine ready for shop use.

Specs

Baileigh RDB-150-AS 110V Hydraulic Rotary Draw Bender with Auto Stop — 2" Schedule 40 Pipe Capacity Specifications

Model Number: RDB-150-AS
Stock Number: BA9-RDB150ASB
Input Power: 110V
Motor: 2 HP
Motor Phase: Single Phase
Center Line Radius: 8 in maximum
Maximum Bend Angle: 205°
Round Tube Capacity: 2.5 in OD, .125 in wall
Pipe Capacity: 2 in Schedule 40
Minimum OD: 0.25 in
Gross Weight: 610 lb
Net Weight: 610 lb
Warranty: 1 Year parts, lifetime technical support
A full owner's manual is available for this model. Contact us if you need a copy.
