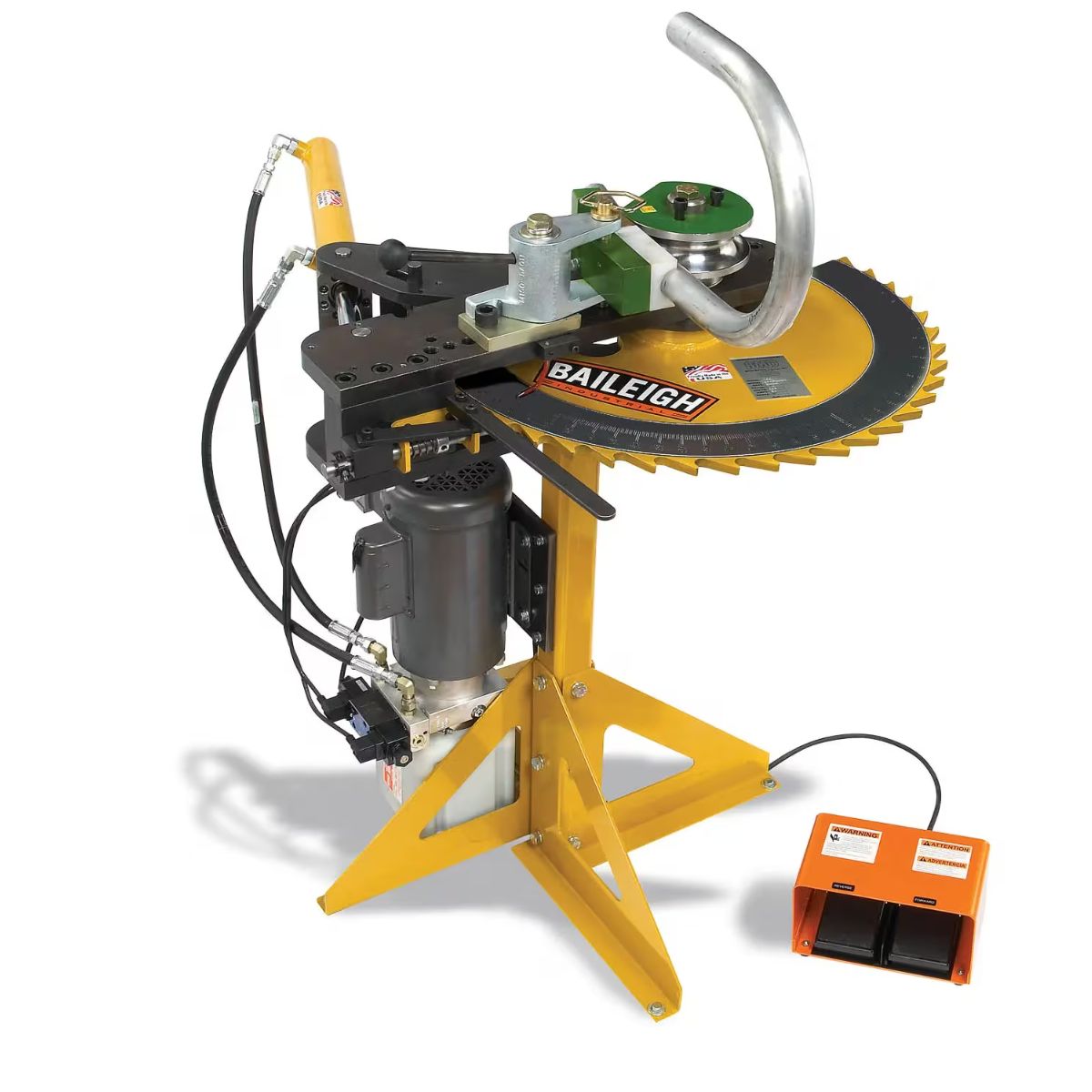

Baileigh RDB-125 110V Hydraulic Rotary Draw Bender — 2" Schedule 40 Pipe Capacity
Are you looking for a rotary bender that handles pipe and tube work without a big electrical upgrade?
What if a plug-and-play hydraulic bender could deliver smooth, repeatable bends right from a standard 110V outlet.
Meet the Baileigh RDB-125, a hydraulic rotary draw bender built for fabrication shops that need consistent results.
With a 200 degree maximum bend, an anti-spring-back system, and a heavy-duty steel frame, the RDB-125 holds its shape through repeated cycles.
When the bender holds its angle cycle after cycle, you can move through fabrication work with confidence.
Baileigh RDB-125 for Tube and Pipe Fabrication Work

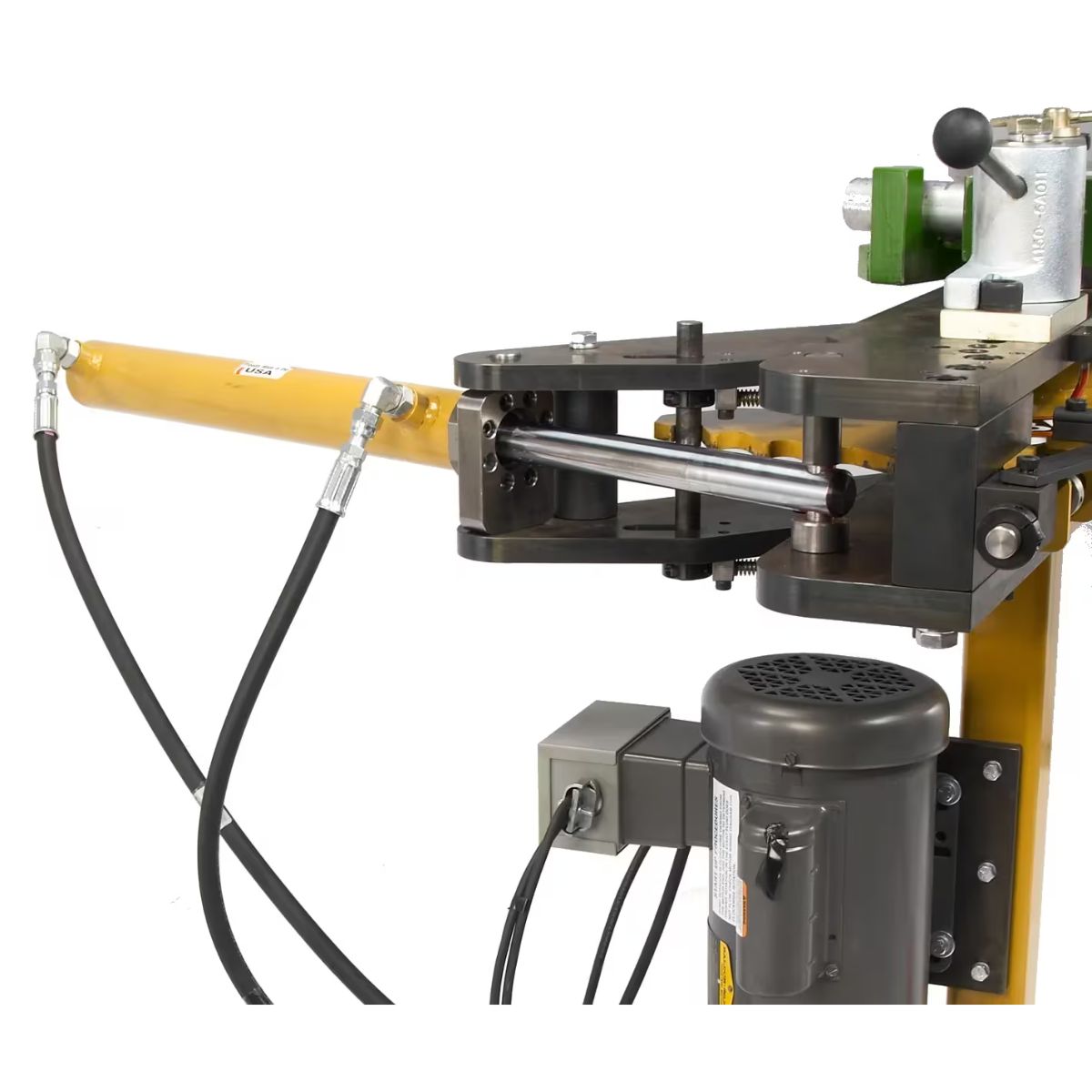

Hydraulic Power System Enables Plug-and-Play Bending
The RDB-125 runs on a 110V single-phase hydraulic system that plugs into a standard shop outlet. This gives you industrial bending power without the cost of upgrading your electrical service.
Anti-Spring-Back System Holds Bend Accuracy
The anti-spring-back system helps the bender maintain the intended angle between cycles. This keeps your bends consistent from the first piece to the last.
200 Degree Bend Range Handles Complex Geometries
A maximum bend angle of 200 degrees lets you form tight and complex shapes in a single setup. This reduces the need to reposition material mid-job.
Heavy-Duty Steel Frame Supports Daily Shop Use
The welded steel frame is built to stand up to daily bending work in a fabrication shop. A stable frame keeps the bender steady under load for safer, more predictable results.
What's Included
What's Included? Baileigh RDB-125 110V Hydraulic Rotary Draw Bender
-
Baileigh RDB-125 Rotary Draw Bender — Provides the core 110V hydraulic bending platform for tube and pipe fabrication work.
Specs
Baileigh RDB-125 Specifications
- Model Number: RDB-125
- Stock Number: BA9-RDB125
- Input Power: 110V
- Motor Phase: Single
- Round Tube Capacity: 2.5 in
- Round Pipe Schedule 40 Capacity: 2 in
- Aluminum Pipe Schedule 40 Capacity: 2.5 in
- Capacity Square: 2 in
- Minimum OD: .25 in
- Maximum Bend Angle: 200°
- Net Weight: 546 lb
- Gross Weight: 590 lb
- Warranty: 1 Year
