Baileigh RDB-10 Manual Hydraulic Line Bender with 10 Die Sets
Are you tired of tube bends that come out uneven or take multiple tries to get right?
What if you had a bender that gave you clean, accurate bends every time?
Meet the Baileigh RDB-10 Manual Hydraulic Line Bender, a hand operated tool built for precise tubing work.
With ten die sets from 1/4 to 5/8 inch and a heavy pedestal base, the RDB-10 handles a wide range of tubing jobs.
When your lines bend true the first time, you spend less time reworking and more time finishing the job.
Baileigh RDB-10 for Precise Tube and Line Bending
Ten Die Sets Cover a Wide Range of Tubing Sizes
The RDB-10 comes with ten die sets from 1/4 inch to 5/8 inch OD, each available in a 3D or 5D radius. This lets you match the die to the job without buying extra tooling.

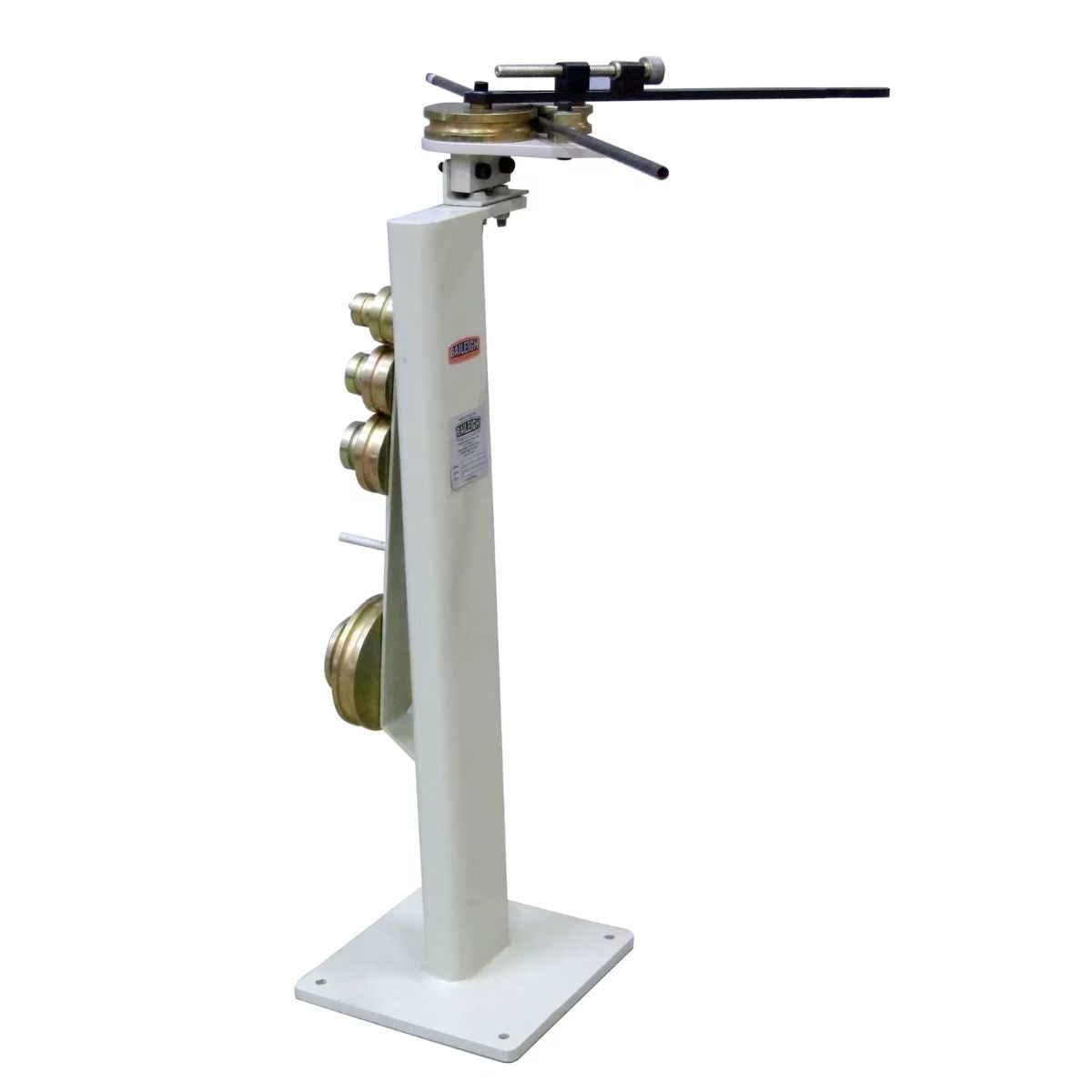

Heavy Pedestal Base Keeps the Bender Steady
The bender mounts to a heavy pedestal base that holds the tool steady during each bend. A stable base helps you get consistent results, especially on tighter radii.

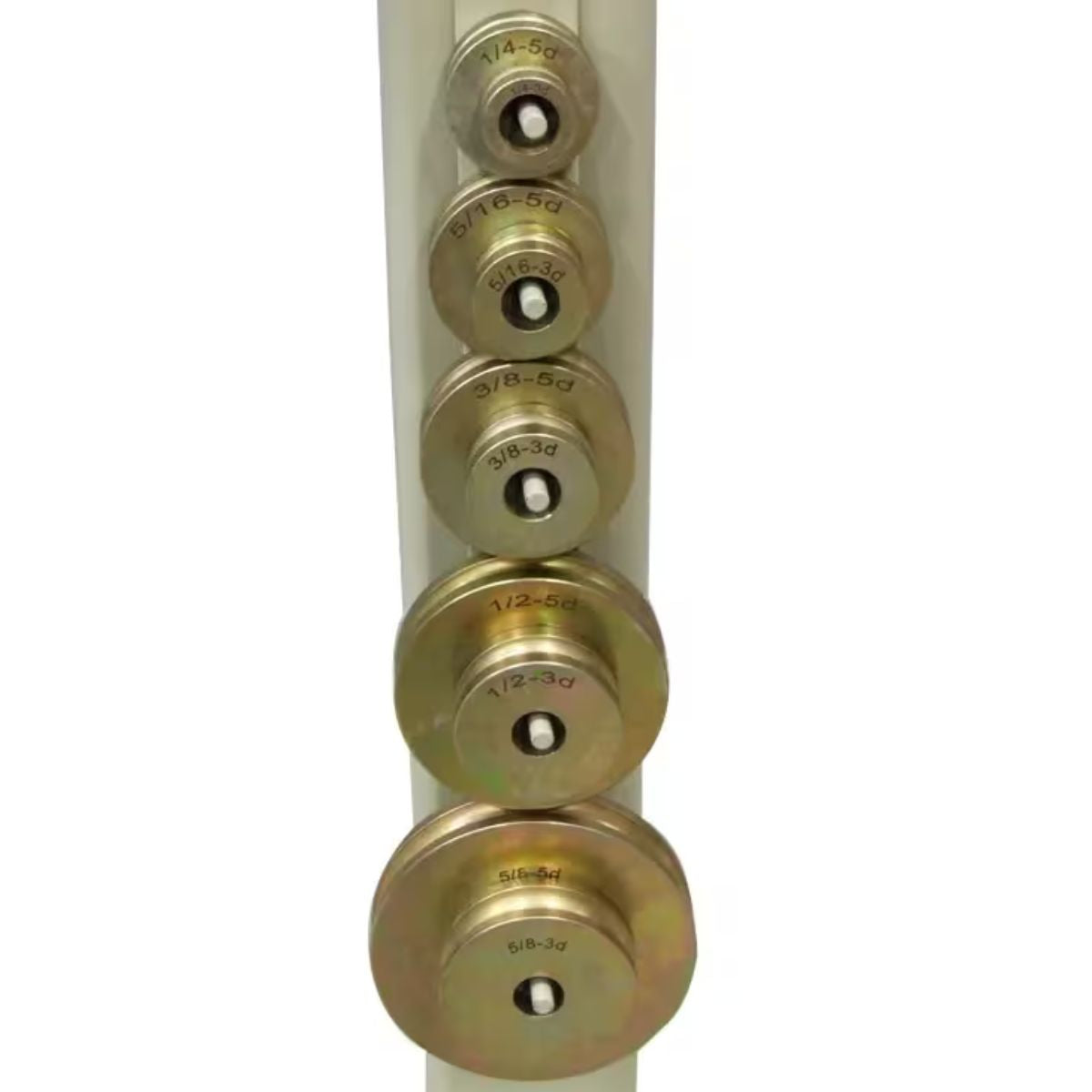

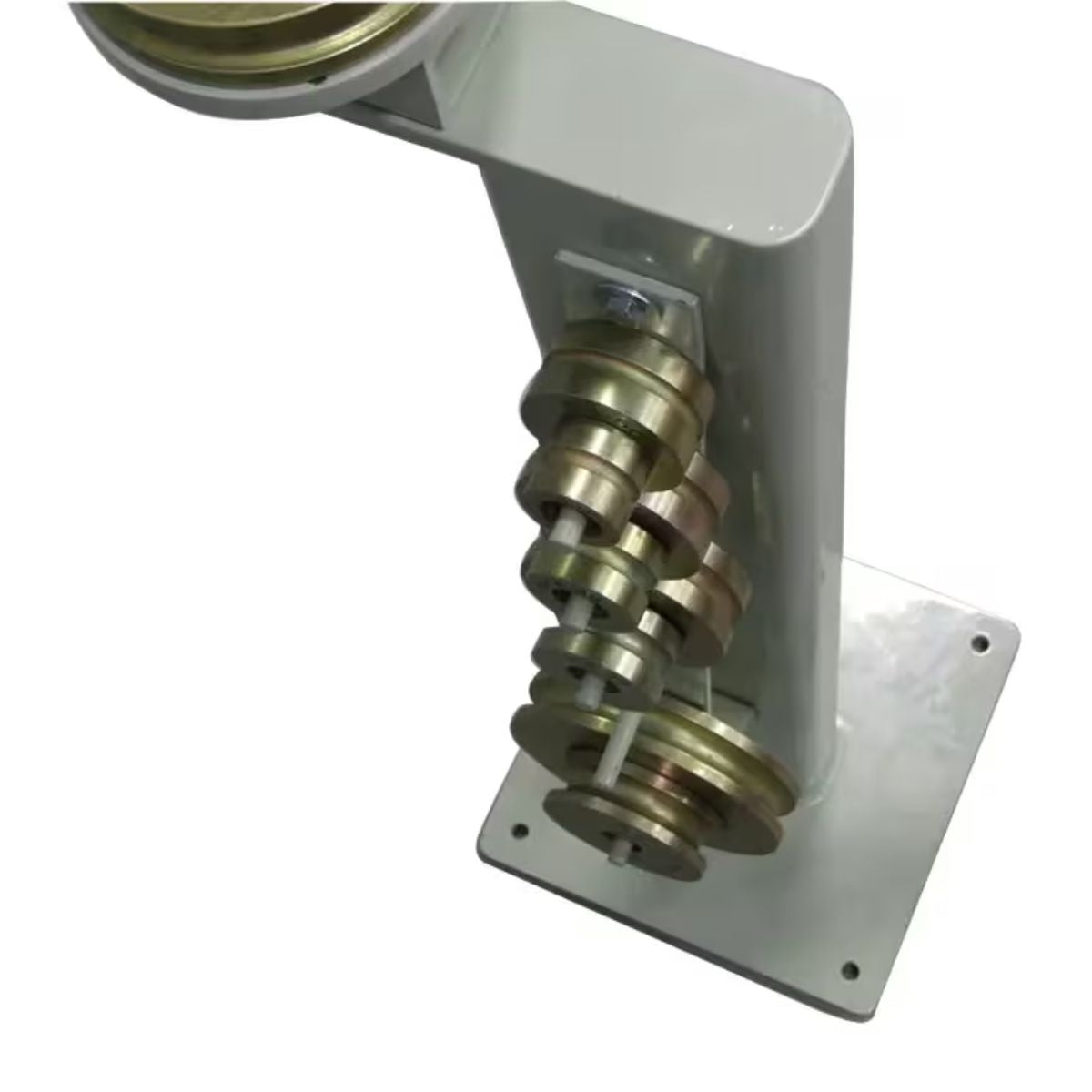

Tooling Rack Keeps Dies Organized and Ready
The included tooling rack attaches to the pedestal and holds your die sets close at hand. Quick access to the right die speeds up changeovers between jobs.
Manual Operation Gives You Direct Control Over Each Bend
Because the RDB-10 is hand operated, you feel the bend as it happens and can adjust as you go. This hands-on control helps you dial in tight radii on air, brake, fuel, and hydraulic lines.
What's Included
What's Included? Baileigh RDB-10 Manual Hydraulic Line Bender with 10 Die Sets
-
Baileigh RDB-10 Manual Hydraulic Line Bender — Provides the core bending machine for precise tube and line work.
-
10 Die Sets (1/4" to 5/8" OD, 3D and 5D radii) — Lets you bend a wide range of tubing sizes right out of the box.
-
Heavy Pedestal Base — Provides a stable mounting platform for consistent bends.
-
Tooling Rack — Keeps your die sets organized and within reach.
Specs
Baileigh RDB-10 Manual Hydraulic Line Bender with 10 Die Sets Specifications
- Model: RDB-10
- Stock Number: BA9-1006772
- Product Type: Rotary Draw Bender
- Power: Manual
- Maximum Bend Angle: 180°
- Center Line Radius: 3"
- Die Sets Included: 10 total — 1/4" x 3D, 1/4" x 5D, 5/16" x 3D, 5/16" x 5D, 3/8" x 3D, 3/8" x 5D, 1/2" x 3D, 1/2" x 5D, 5/8" x 3D, 5/8" x 5D
- Material Compatibility: Mild steel, stainless steel, select aluminum and copper alloys
- Shipping Weight: 135 lb (62 kg)
- Shipping Dimensions: 43" x 17" x 20"
- Warranty: 1 Year
