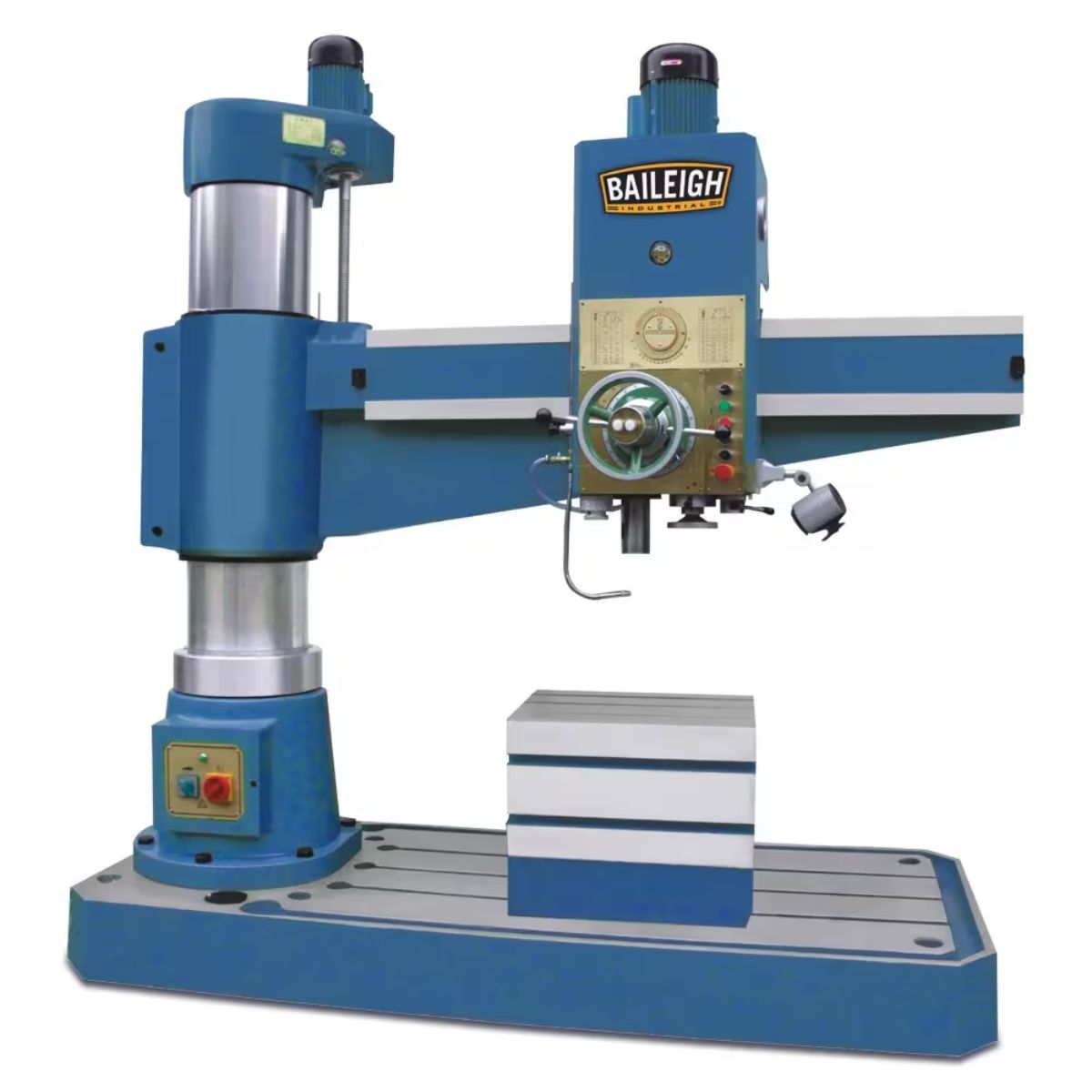

Baileigh RD-1600H 5' Hydraulic Radial Drill Press
Are you running a fabrication shop or industrial environment that needs a large-capacity hydraulic radial drill press with a 63-inch arm reach and 2-inch drilling capacity in your choice of 220V or 460V 3-phase power?
What if that radial drill gave you a 5.25 HP motor, 38 to 2,000 RPM, hydraulic downfeed, an MT5 spindle, and a full set of included accessories in the voltage configuration that matches your shop?
Meet the Baileigh RD-1600H, a 5-foot hydraulic radial drill press available in 220V and 460V 3-phase configurations, built for fabrication shops and industrial environments that need heavy-duty drilling on oversized and awkward workpieces with precise hydraulic feed control.
With the RD-1600H, you get a 5.25 HP motor, hydraulic downfeed, an adjustable arm reaching up to 63 inches, and a cast steel frame optimized for the strength and rigidity that heavy industrial drilling demands.
When the RD-1600H is set up for your job, you get accurate, consistent drilling results on large and heavy workpieces with a machine built for demanding daily industrial production use.
Baileigh RD-1600H for Heavy-Duty Hydraulic Radial Drill Press Work
63-Inch Arm Reach Covers Oversized Workpiece Setups
The adjustable radial arm reaches up to 63 inches from the column center to the spindle, allowing operators to position the spindle over a wide range of drilling locations on large and awkward workpieces without repositioning the part. This extended reach capability makes the RD-1600H suited for the oversized workpieces that fabrication shops and industrial facilities encounter on heavy production jobs.
Hydraulic Downfeed Delivers Controlled Drilling Performance
The hydraulic downfeed system controls spindle descent through the cut for smooth, consistent drilling performance on heavy stock. Hydraulic feed maintains controlled pressure through the full depth of the hole, which directly affects hole accuracy and drill wear on the large diameter holes this machine is built to produce.
5.25 HP Motor and MT5 Spindle Handle the Heaviest Drilling Work
The 5.25 HP motor delivers the power needed for 2-inch drilling capacity in mild steel across a spindle speed range of 38 to 2,000 RPM. The MT5 spindle taper provides secure tooling engagement for the heavy drill sizes that industrial radial drill work regularly requires, and the wide speed range adapts to a variety of materials and hole sizes.
Two Voltage Configurations Match Your Shop Power Requirements
The RD-1600H is available in 220V and 460V 3-phase configurations to match the power supply in your facility. Both configurations share the same 5.25 HP motor, MT5 spindle, 63-inch arm reach, hydraulic downfeed, and full accessory package for consistent performance regardless of the voltage selected.
What's Included
What's Included? Baileigh RD-1600H 5' Hydraulic Radial Drill Press
-
Quick Chuck — supports fast tool changes between drilling operations.
-
Tapping Chuck — enables tapping operations directly from the radial drill press.
-
Industrial Coolant System — cools the cutting zone to protect drill and tap life during production.
-
Work Light — illuminates the drilling area for improved visibility during machining.
-
Spindle Protection Cover — protects the MT5 spindle taper during non-drilling periods.
Specs
Baileigh RD-1600H 5' Hydraulic Radial Drill Press Specifications
-
Available Voltage Configurations: 220V (RD-1600H) | 460V (1014048)
-
Stock Number (220V): BA9-1008486
-
Stock Number (460V): BA9-1014048
-
Motor: 5.25 HP
-
Power Requirement (220V): 220V, 3-phase
-
Power Requirement (460V): 460V, 3-phase
-
Spindle Taper: MT5
-
Spindle Speed Range: 38–2,000 RPM
-
Maximum Arm Reach: 63"
-
Drilling Capacity (Mild Steel): 2"
-
Downfeed: Hydraulic
-
Net Weight: 9,500 lb.
-
Warranty: 1-year parts, lifetime technical support
