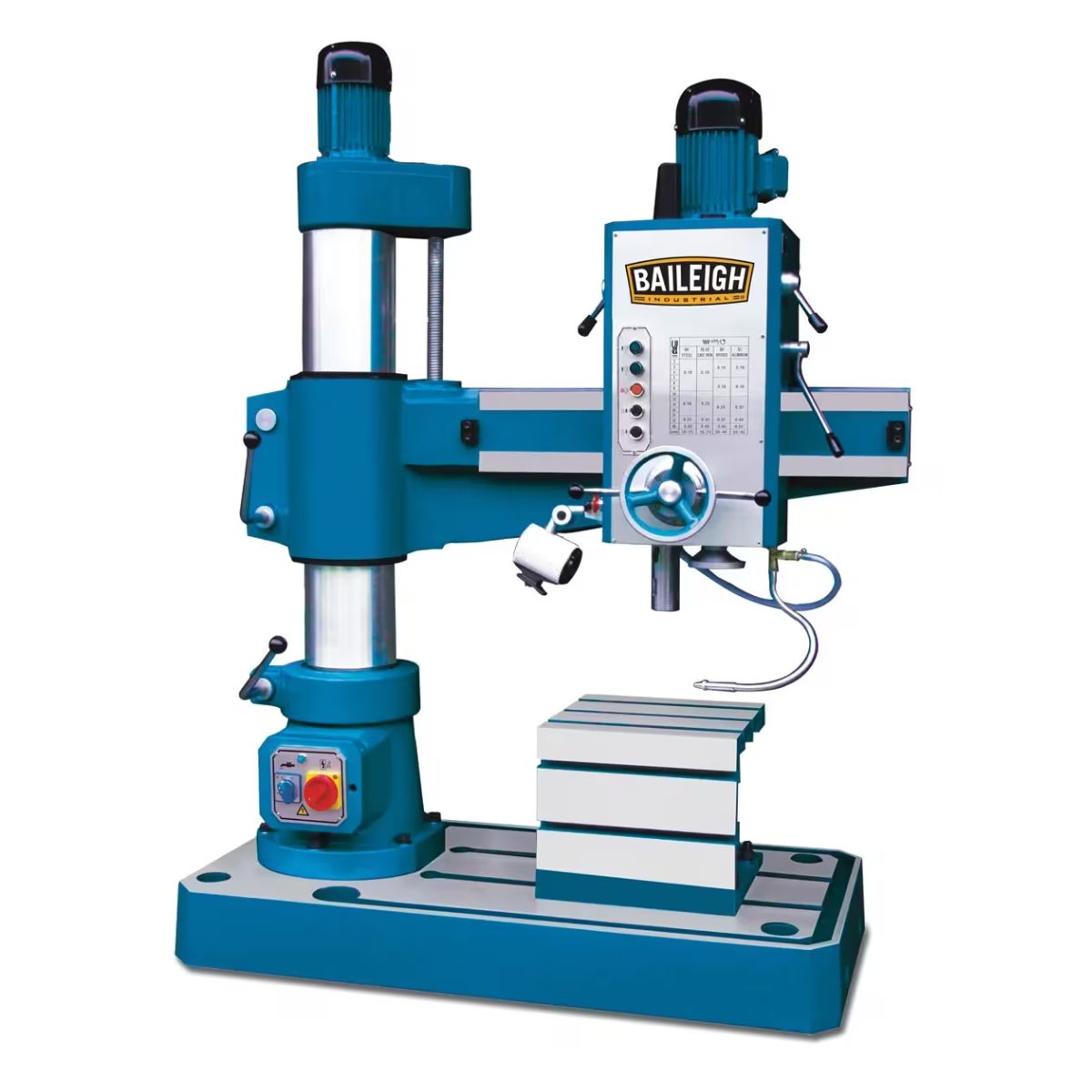

Baileigh RD-1000M 4' Mechanical Radial Drill Press
Are you running a fabrication or production facility that needs a heavy-duty radial drill press capable of reaching across large workpieces with precise drilling on 220V 3-phase power?
What if that radial drill gave you a 39.3-inch arm reach, 1.57-inch drilling capacity, a power down-feed system, and included quick and tapping chucks on a 9.4-inch column?
Meet the Baileigh RD-1000M, a 4-foot mechanical radial drill press built for industrial metalworking environments that need robust drilling performance and the flexibility to reach across large workpieces without repositioning.
With the RD-1000M, you get a 2 HP motor on 220V 3-phase power, spindle speeds from 75 to 1,220 RPM, an MT4 spindle taper, and a heavy-duty column and arm that hold the machine rigid through demanding drilling operations.
When the RD-1000M is set up for your job, you get accurate, consistent drilling results on large and heavy workpieces with a machine built for demanding daily industrial shop use.
Baileigh RD-1000M for Industrial Radial Drill Press Work on Large Workpieces
39.3-Inch Arm Reach Covers Large Workpiece Setups
The adjustable radial arm reaches up to 39.3 inches from the spindle to the column center, allowing operators to position the spindle over a wide range of drilling locations on large workpieces without repositioning the part on the table. This reach capability is the primary advantage of a radial drill press over a standard column drill on large fabrication and production work.
Power Down-Feed System Delivers Consistent Drilling Depth
The mechanical power down-feed system delivers controlled, consistent spindle descent during drilling operations, improving hole accuracy and reducing operator effort on repeated holes in heavy stock. Feed rates range from 0.005 to 0.02 inches per revolution, giving operators control over chip load across different materials and drill sizes.
MT4 Spindle and 1.57-Inch Capacity Handle Heavy Drilling Work
The MT4 spindle taper provides secure tooling engagement for the heavy drill sizes this machine is built to handle, and the 1.57-inch drilling capacity in mild steel covers the demanding drilling requirements of industrial fabrication and production environments. Spindle speeds range from 75 to 1,220 RPM to match cutting conditions across a wide variety of materials.
15.75" × 15.75" Box Table and 9.4-Inch Column Support Industrial Use
The 15.75-inch by 15.75-inch adjustable box-shape worktable provides a stable platform for workholding and fixturing on large and heavy workpieces. The 9.4-inch diameter heavy-duty column provides the structural rigidity needed to keep the arm and spindle aligned through demanding daily production drilling.
What's Included
What's Included? Baileigh RD-1000M 4' Mechanical Radial Drill Press
-
Quick Chuck — supports fast tool changes between drilling operations.
-
Tapping Chuck — enables tapping operations directly from the radial drill press.
Specs
Baileigh RD-1000M 4' Mechanical Radial Drill Press Specifications
-
Model Number: RD-1000M
-
Stock Number: BA9-1008487
-
Motor: 2 HP
-
Power Requirement: 220V, 3-phase
-
Spindle Taper: MT4
-
Spindle Speed Range: 75–1,220 RPM
-
Maximum Arm Reach: 39.3"
-
Column Diameter: 9.4"
-
Drilling Capacity (Mild Steel): 1.57"
-
Feed Rates: 0.005"–0.02" per rev
-
Worktable Size: 15.75" x 15.75"
-
Net Weight: 3,740 lb.
-
Warranty: 1 Year
