Baileigh R-M60-HD for Heavy Pipe and Tube Forming

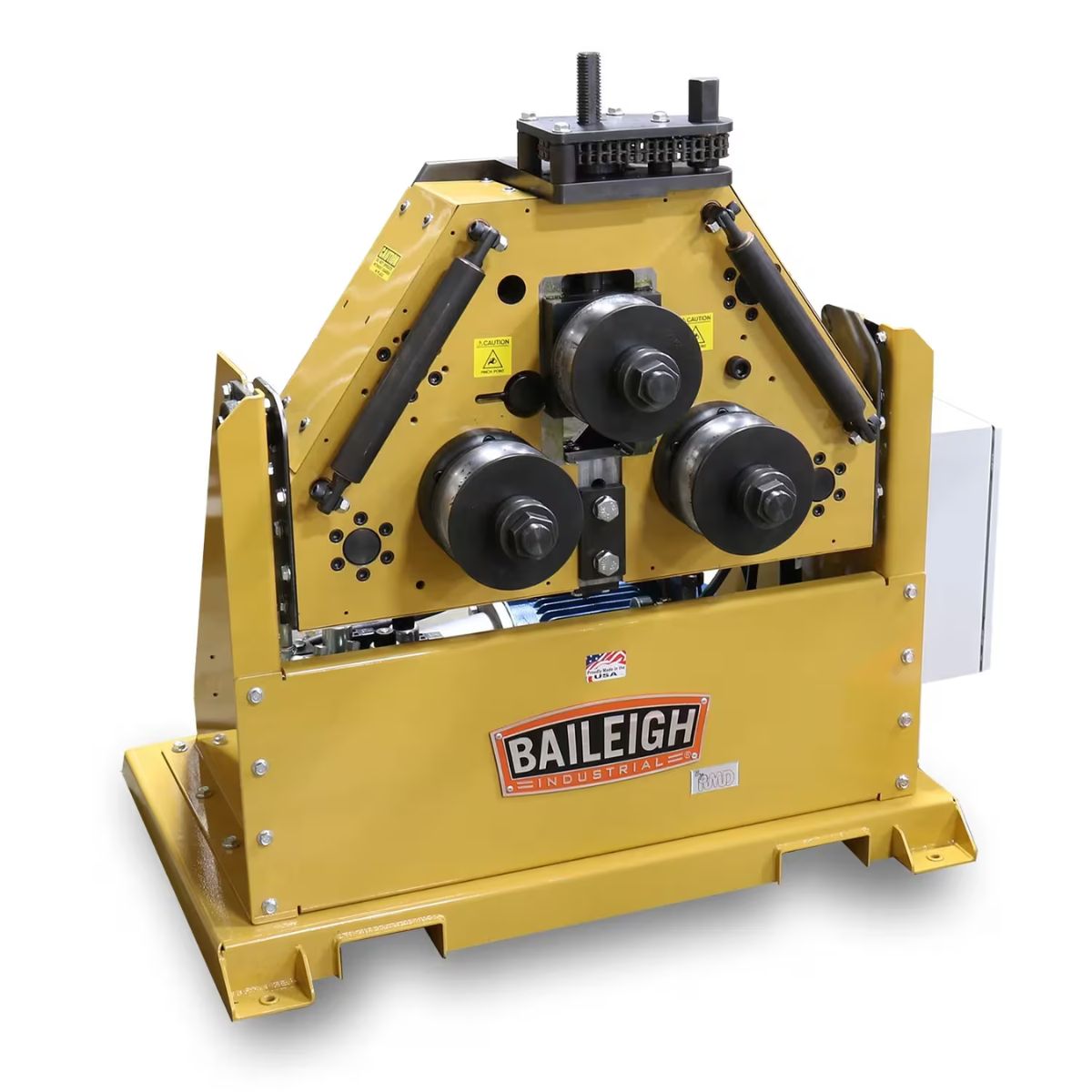

Hydraulic Drive Rolls Power Consistent Bending

Three hydraulically driven rolls turn the pipe or tube through each pass with steady force. This keeps the bend consistent from the start of the radius to the end.

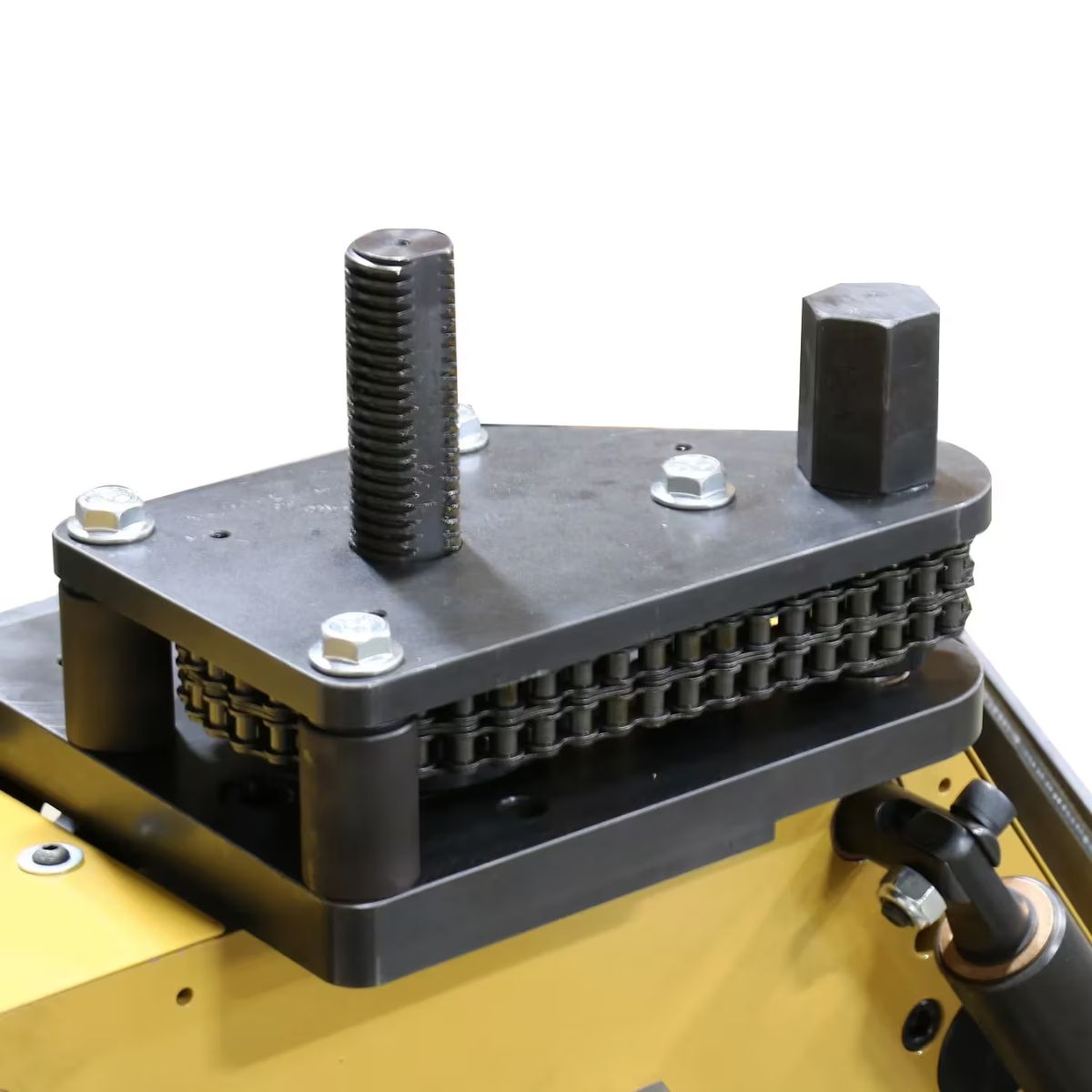

Ratcheting Top Roll Simplifies Forming Control

The integrated ratchet system lets you fine tune top roll pressure as the bend progresses. This gives you more control when dialing in tighter radii.

Lateral Roll Guides Support Accurate Coiling

Segment rolls and lateral guides keep pipe and tube aligned as it feeds through the rolls. This helps prevent drift and keeps each coil forming true.

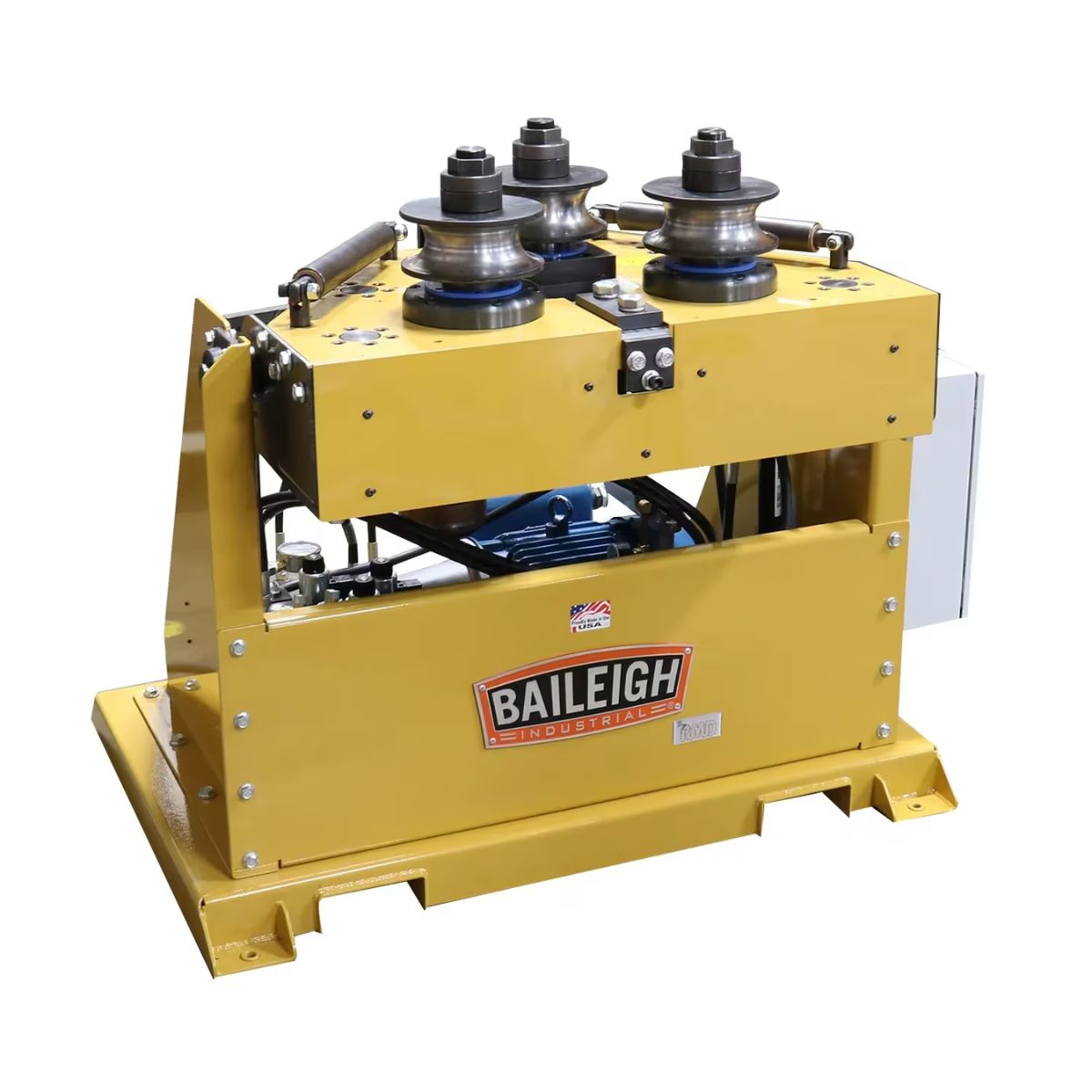

Manual Tipping System Eases Large Diameter Handling

The manual tipping system lets you shift to horizontal rolling when working with larger diameters. This makes it easier to manage bigger coils without extra equipment.

What's Included

What's Included? Baileigh R-M60-HD Roll Bender

• Baileigh R-M60-HD Roll Bender — Provides a 220V hydraulic drive platform for bending heavy pipe and tube.
• Segment Rolls and Lateral Roll Guides — Included for accurate coiling and pipe alignment right out of the box.

Specs

Baileigh R-M60-HD Roll Bender Specifications

• Model: R-M60-HD
• Stock Number: BA9-MDL-MERM60HD
• Input Power: 220V Single Phase
• Horsepower: 5 HP
• Motor Phase: Single
• Driven Rolls: 3
• Maximum Pipe Capacity: 2" Schedule 40
• Square Tube Capacity: 2" x .120" wall
• Bend Capacity: 2.75 in. OD
• Net Weight: 1,100 lb
• Gross Weight: 1,100 lb
• Warranty: 1 Year
