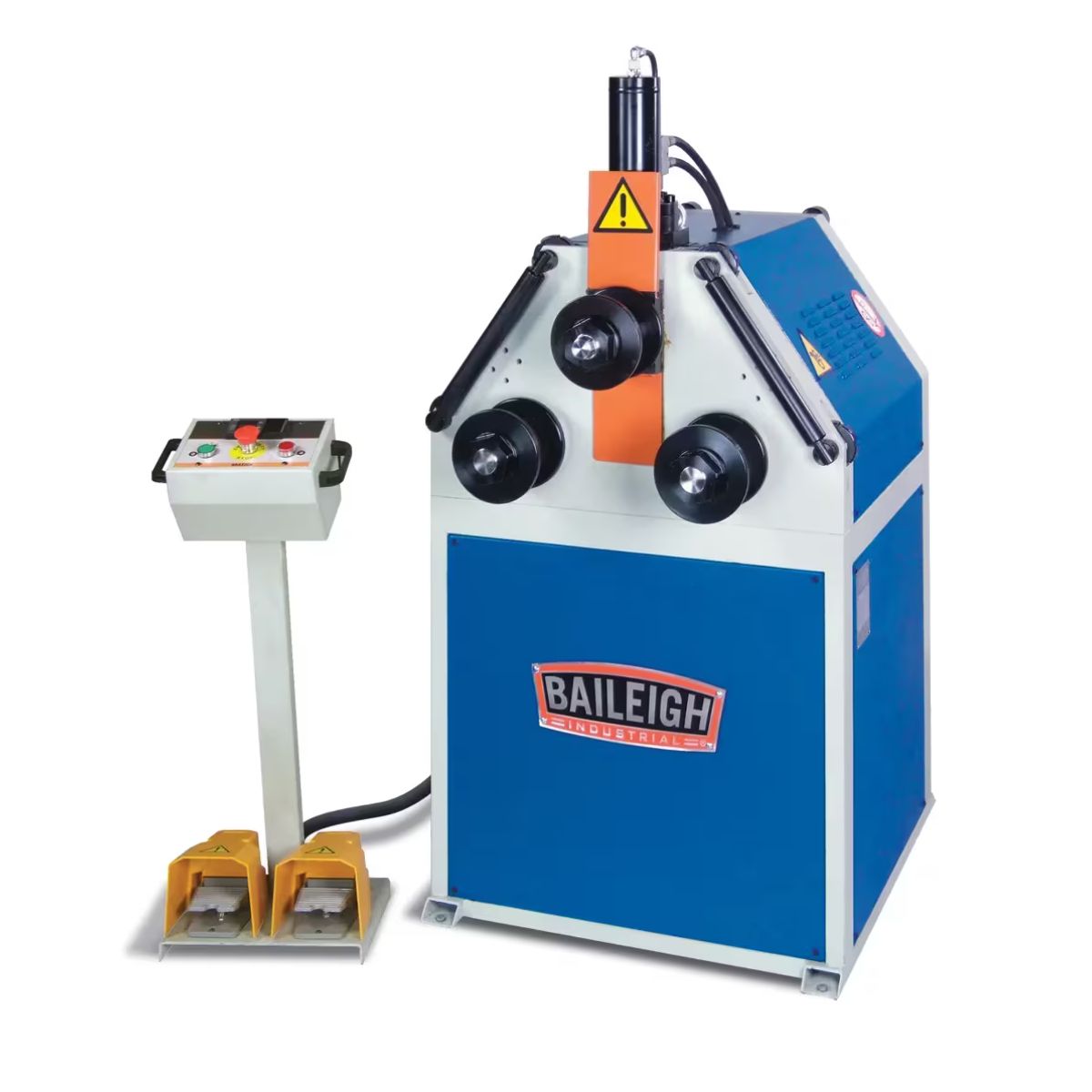

Baileigh R-M55H 220V Electric Roll Bender with Hydraulic Top Roll

Baileigh R-M55H 220V Electric Roll Bender with Hydraulic Top Roll

Baileigh R-M55H for Precise Pipe and Tube Bending

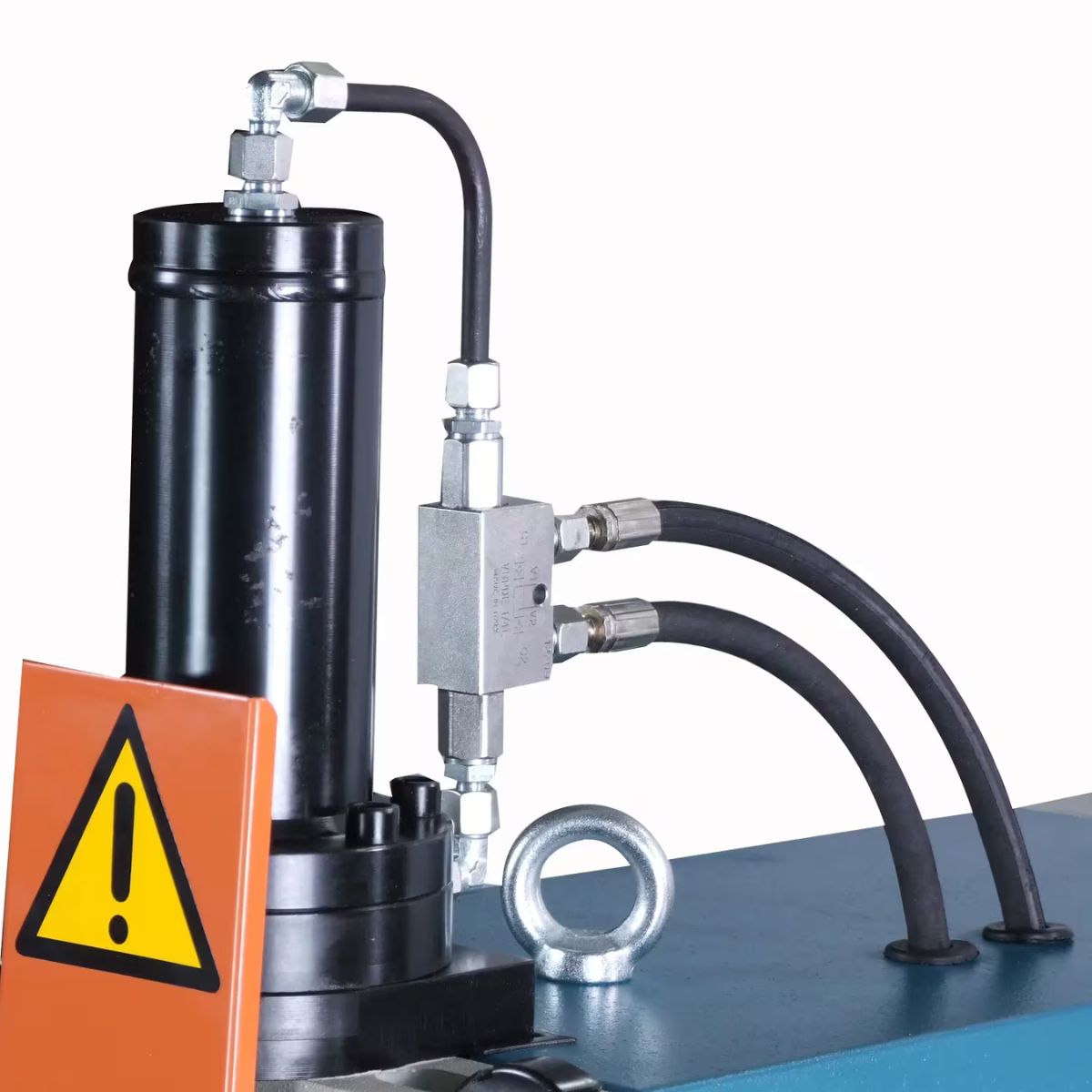

Hydraulic Top Roll Improves Bending Precision

The hydraulic top roll lets you set and hold precise pressure on each pass. This gives you repeatable radii without constant manual adjustment.

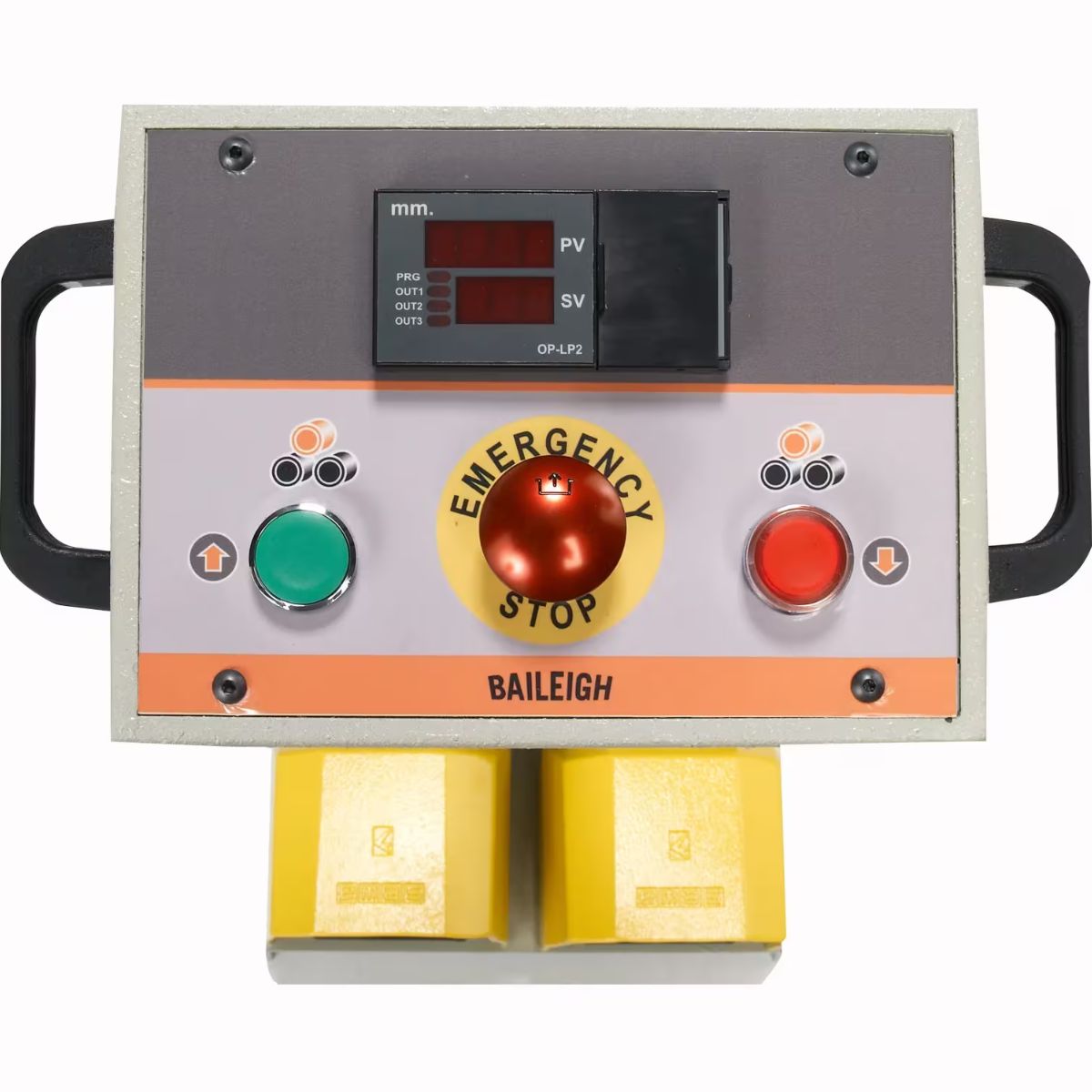

Digital Readout Tracks Top Roll Position

A digital readout shows the exact top roll position as you work. This helps you dial in the same bend again on the next job.

Direct Gearbox Drive Delivers Full Torque

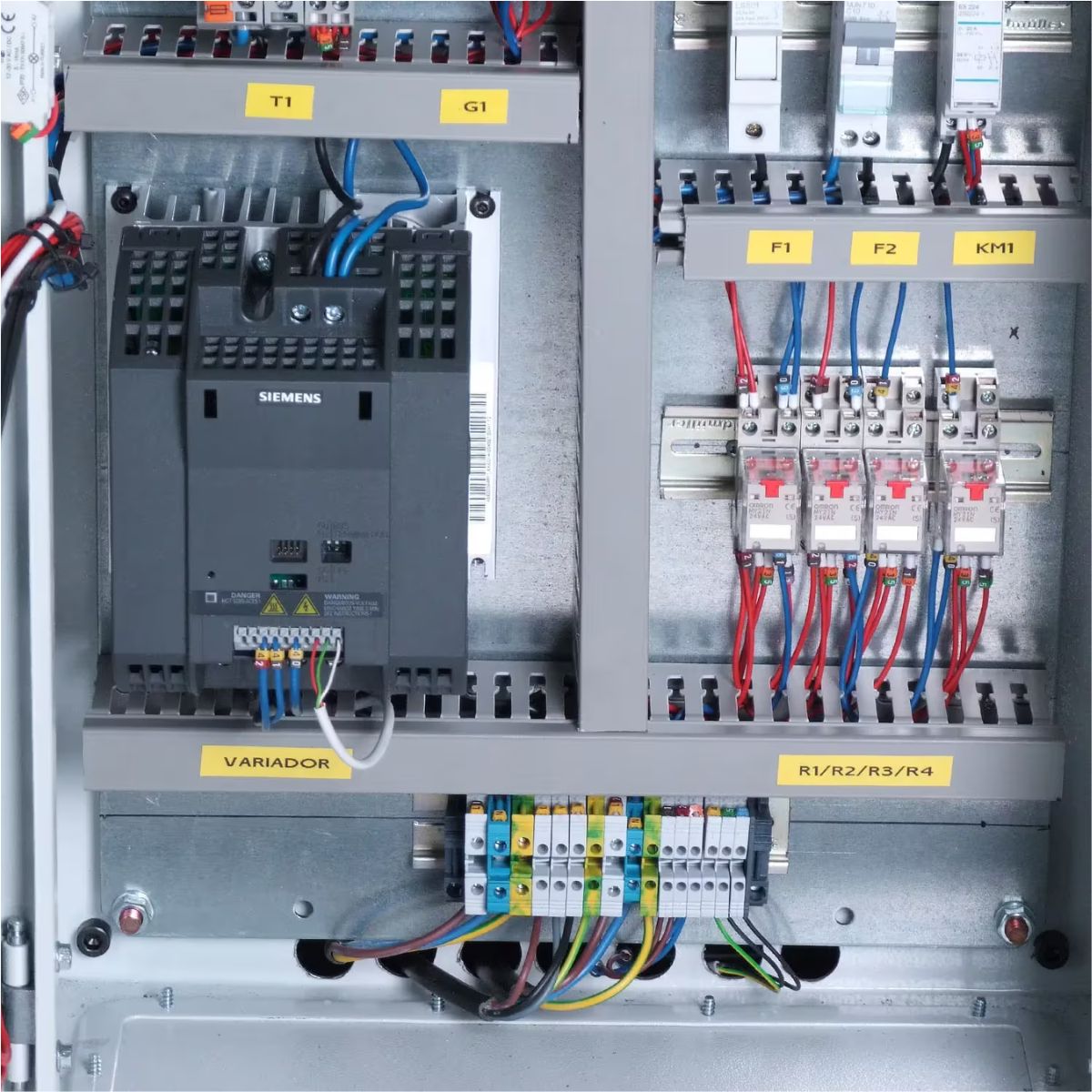

A direct gearbox drive sends full torque to the rolls at high capacity. A variable speed inverter lets you fine tune rolling speed for different materials.

Foot Pedal Controls Simplify Forward and Reverse

Foot pedal controls let you switch between forward and reverse without stepping away from the work. This keeps both hands free to guide the pipe or tube through the rolls.

What's Included

What's Included? Baileigh R-M55H 220V Electric Roll Bender with Hydraulic Top Roll

• Baileigh R-M55H Roll Bender — Provides the complete hydraulic roll bending platform for pipe and tube work.

Specs

Baileigh R-M55H 220V Electric Roll Bender with Hydraulic Top Roll Specifications

• Model: R-M55H
• Stock Number: BA9-1006859
• Input Power: 220V Single Phase
• Motor: 1.5 HP

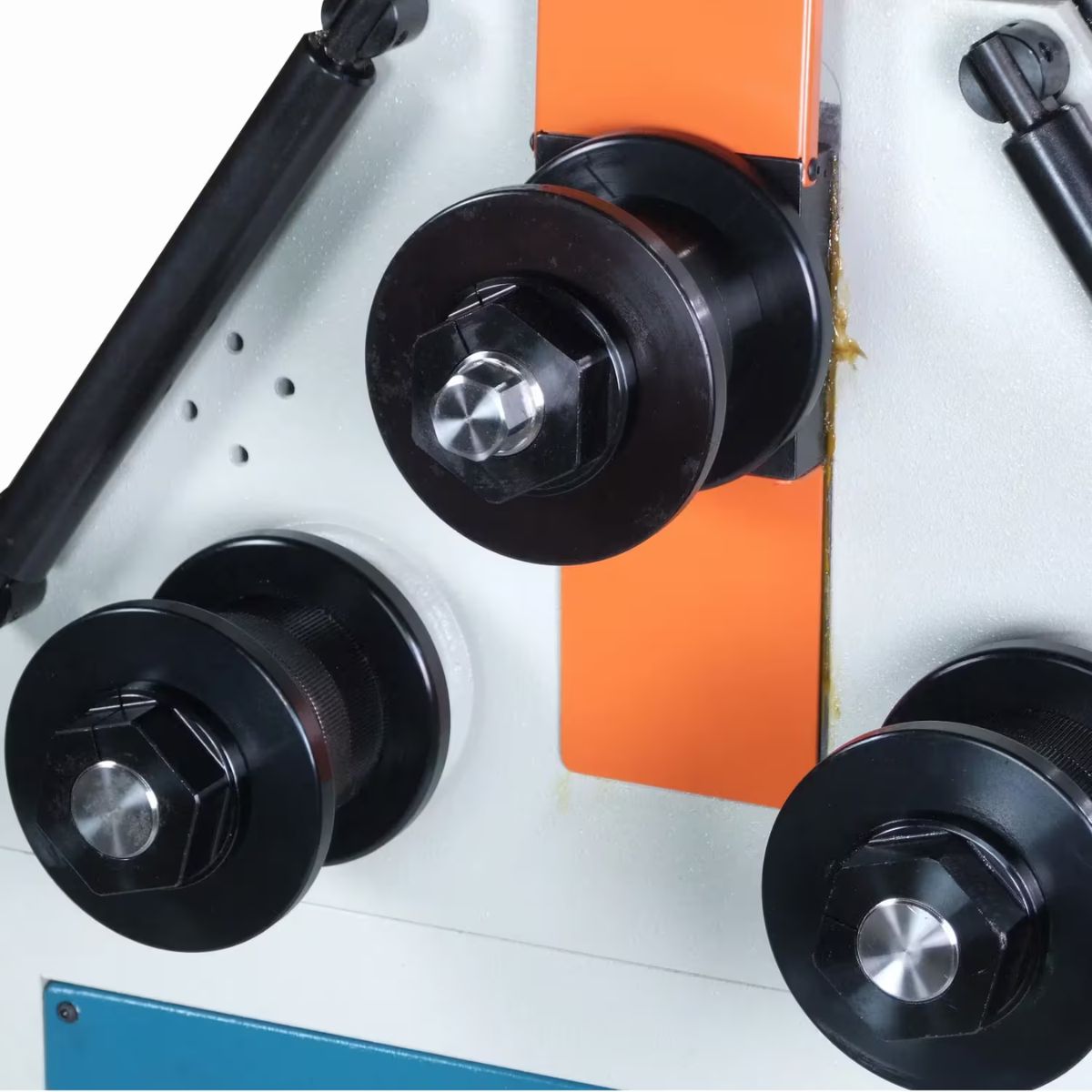

• Driven Rolls: 3 rolls, 1 top forming roll and 2 driven bottom rolls
• Top Roll Movement: Hydraulic
• Bend Capacity: 2.75 in. OD round tubing, 2 in. schedule 40 pipe
• Drive Type: Direct gearbox drive with variable speed inverter
• Position Feedback: Digital readout for top roll position
• Operation: Foot pedal forward and reverse control
• Orientation: Vertical or horizontal operation
• Net Weight: 965 lb
• Warranty: 1 Year
