Baileigh R-M40 220V Electric Roll Bender
Are you looking for a roll bender that handles tube, pipe, and bar without fighting you through every pass?
What if a single machine could bend round, flat, and solid stock in both horizontal and vertical positions.

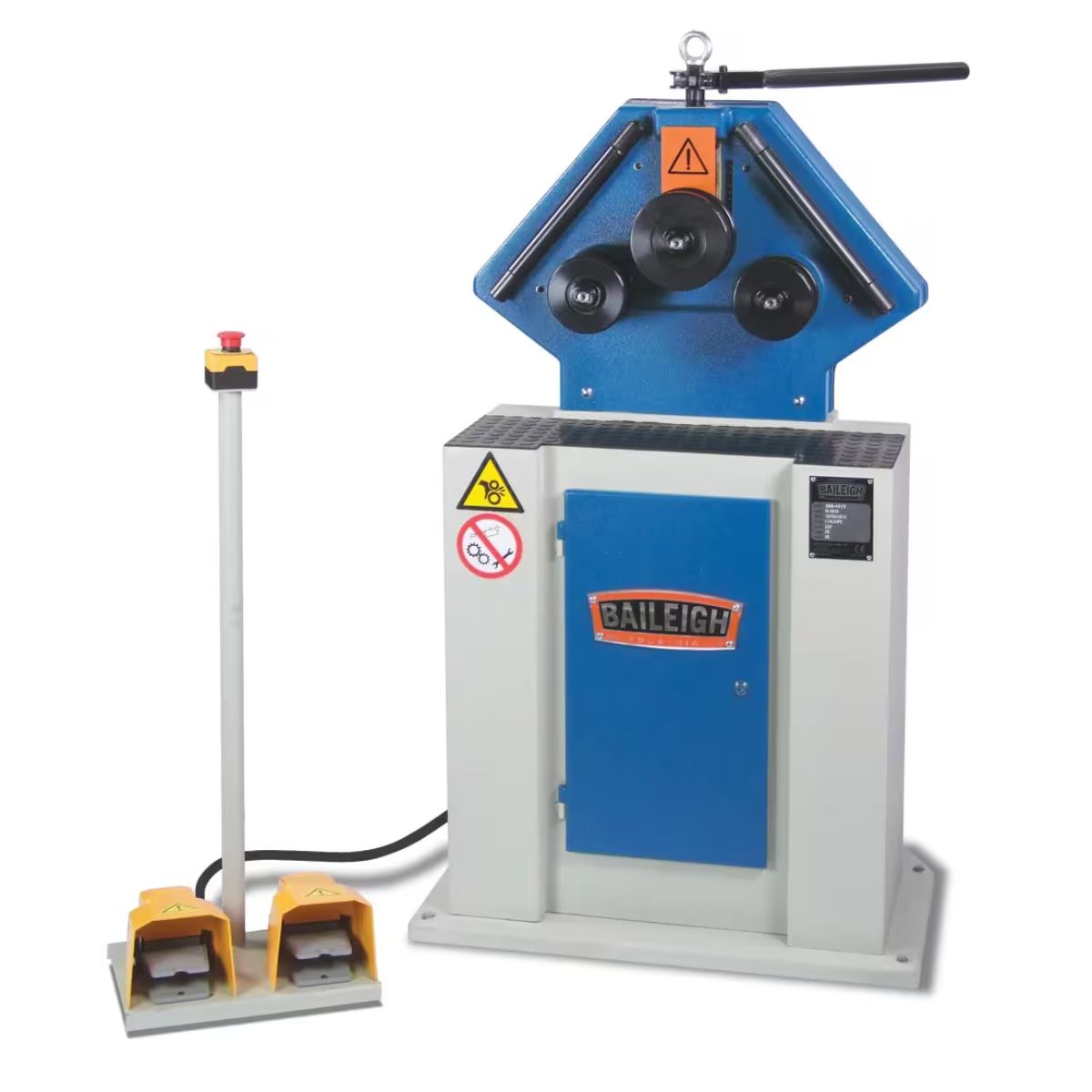

Meet the Baileigh R-M40 220V Electric Roll Bender, a heavy machine built for ornamental and industrial fabrication.
With a variable speed inverter drive and ratchet style top roll, the R-M40 gives you steady control over every bend.
When the machine holds consistent pressure through the bend, you can shape tight curves with confidence.
Baileigh R-M40 for Tube, Pipe, and Bar Bending

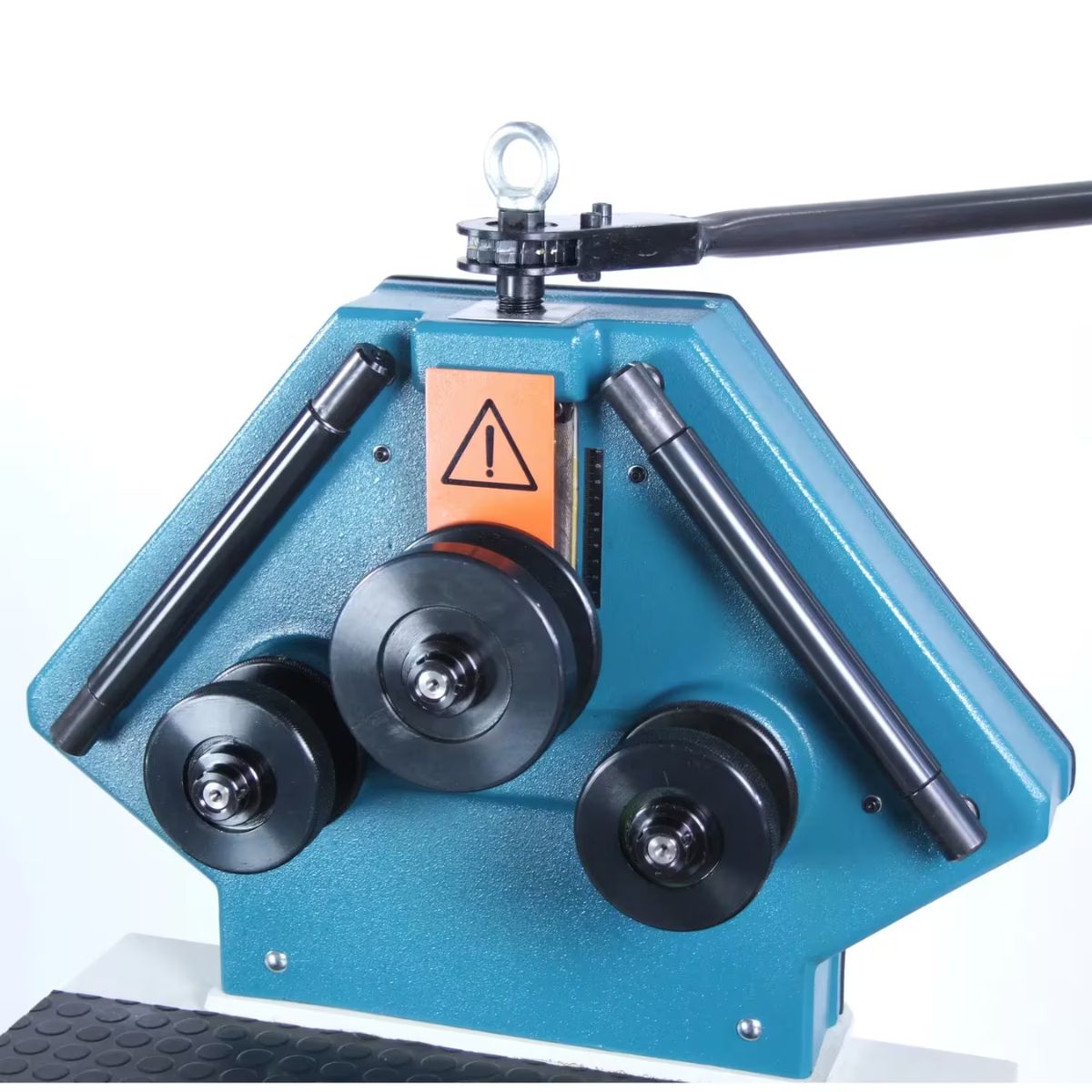

Three-Roll Design Bends Tube, Pipe, and Bar
Two driven rolls work with a manual top roll to shape round tube, pipe, and flat or solid stock. Standard tooling for flat bar and solid rod comes included, so you can start bending common shop materials right away.

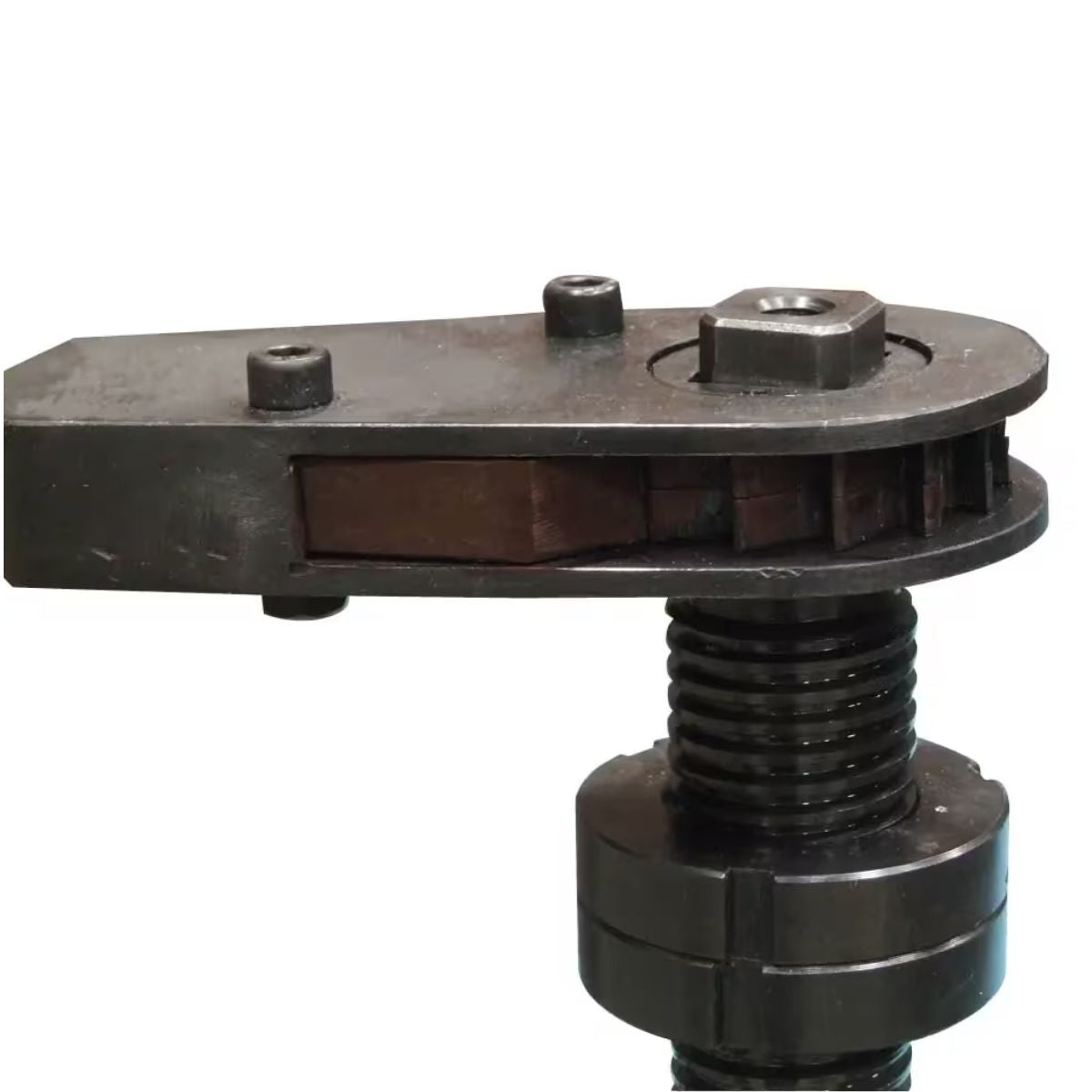

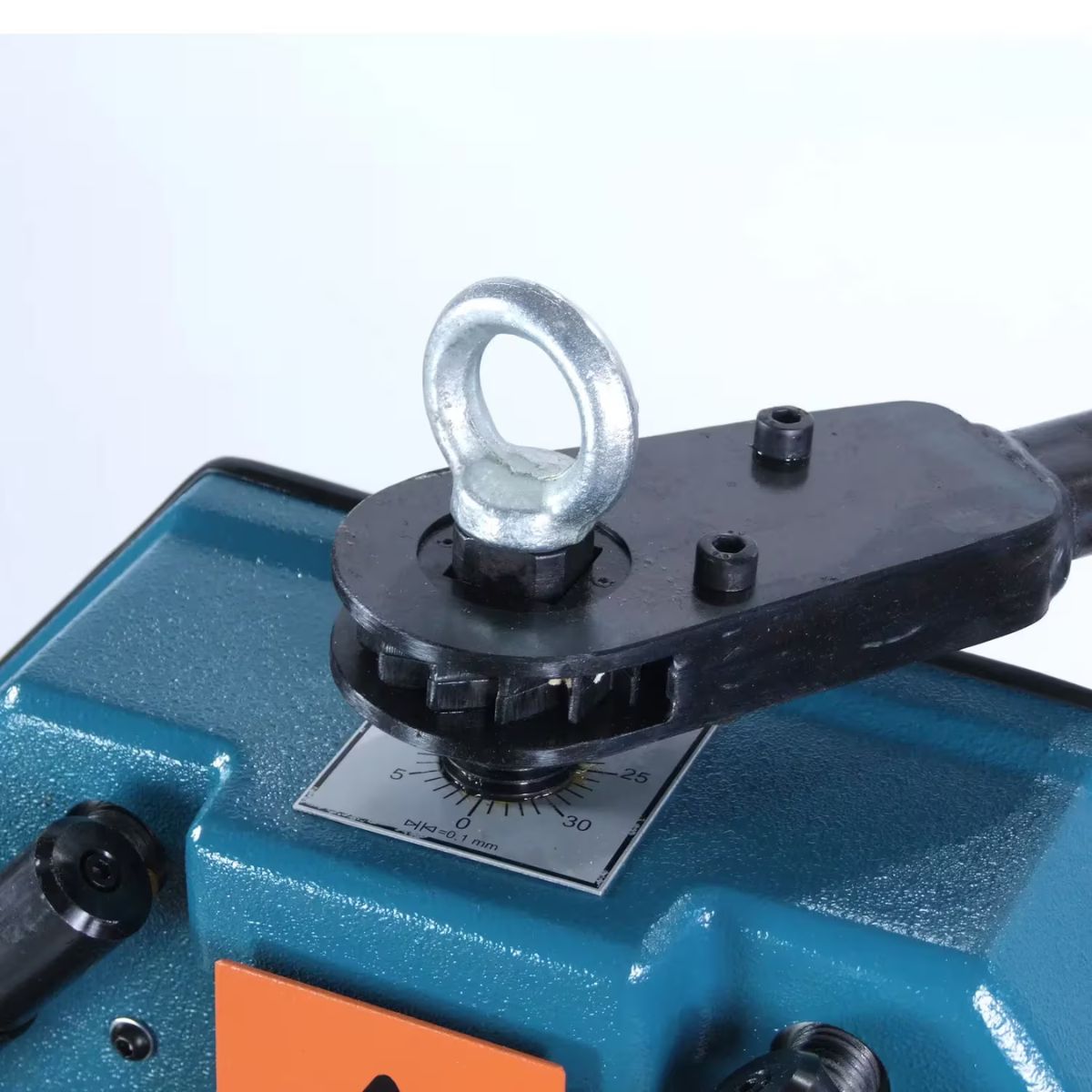

Ratchet-Style Top Roll Adjusts Forming Pressure
The ratchet style manual top shaft lets you dial in forming pressure by hand for each pass. This keeps the bend consistent as material work hardens through repeated rolling.

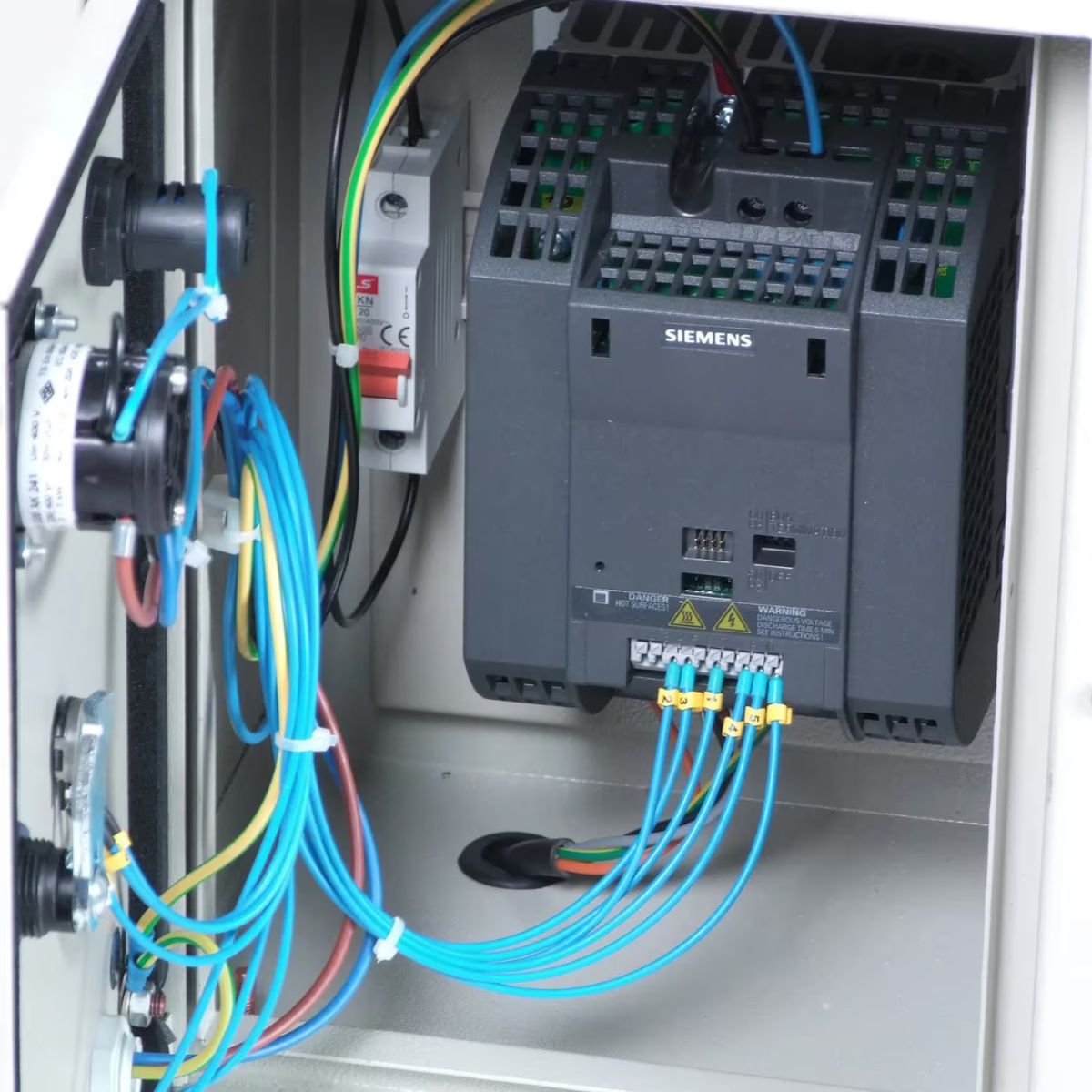

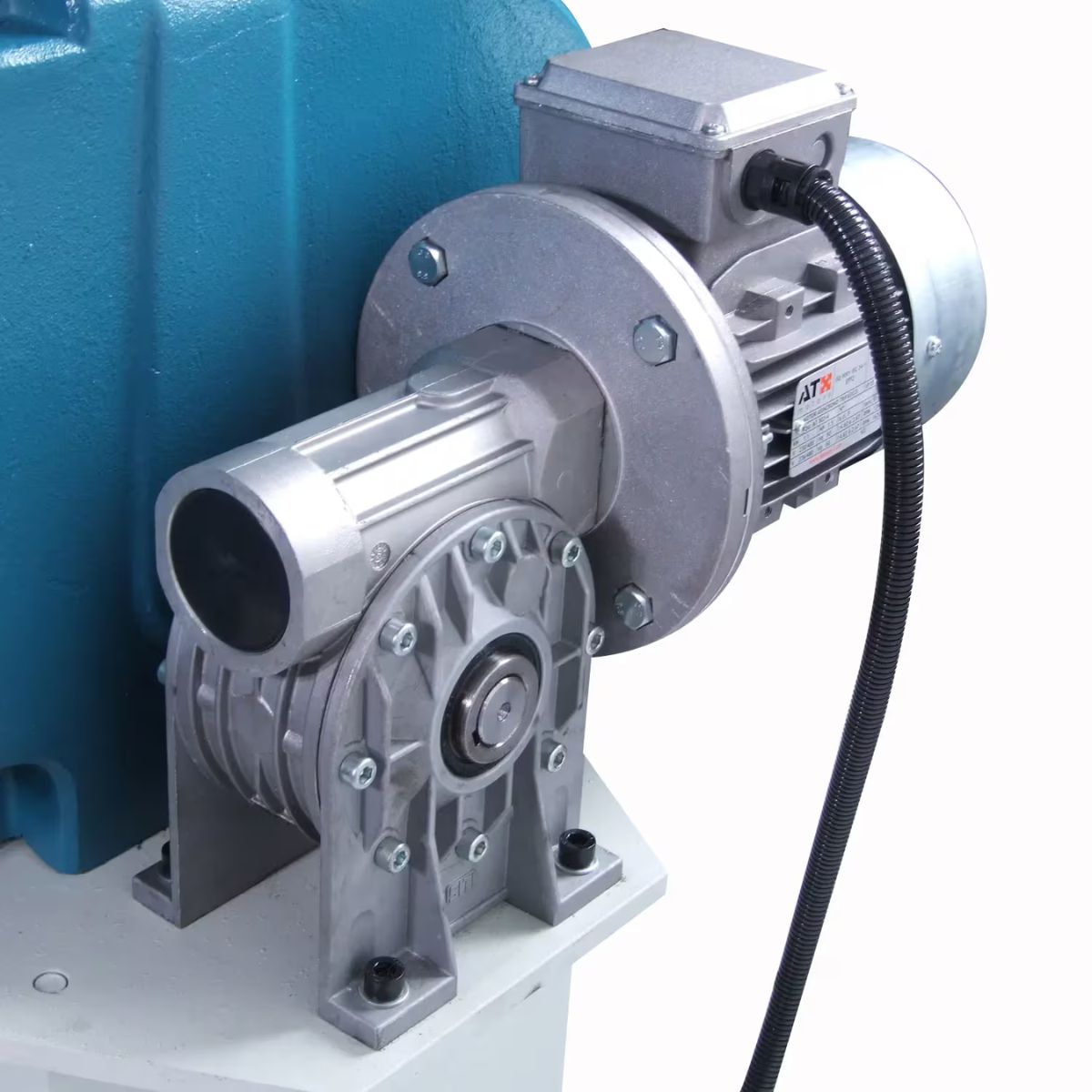

Variable-Speed Drive Controls Bending Speed
An industrial grade transmission paired with a variable speed inverter drive lets you match rolling speed to the material and bend you are working on. Slower speeds help with tight curves while faster speeds keep long runs moving.
Onboard Tooling Storage Keeps Your Shop Organized
The sturdy base opens up to store tooling right at the machine. Keeping segment rolls and attachments close by speeds up tooling changes between jobs.
What's Included
What's Included? Baileigh R-M40 220V Electric Roll Bender
-
Baileigh R-M40 Roll Bender — Provides a heavy-duty three-roll platform for bending tube, pipe, and bar.
-

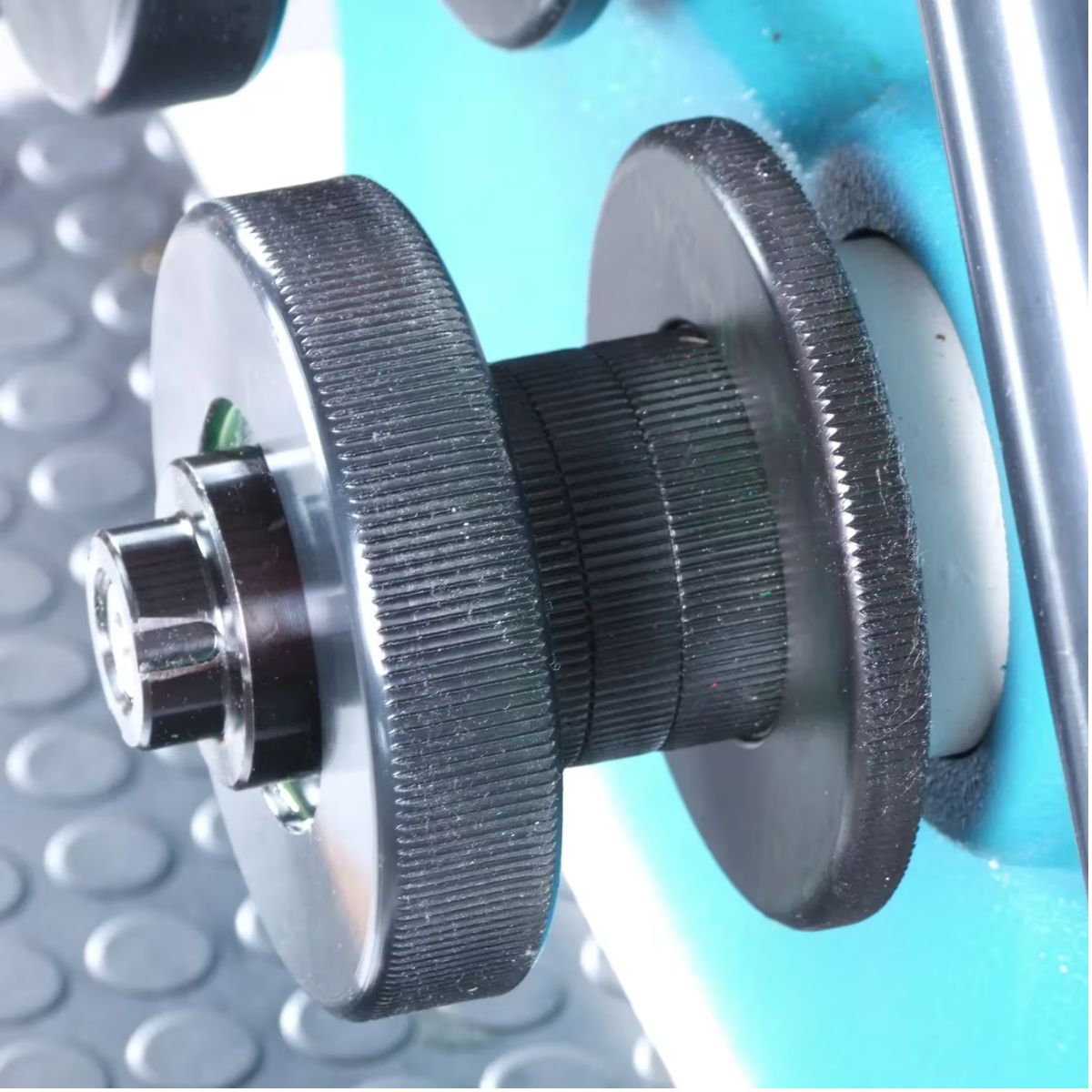

Segment Rolls for Flat Bar and Solid Rod — Lets you start bending common shop stock right out of the box.
Specs
Baileigh R-M40 220V Electric Roll Bender Specifications
- Model Number: R-M40
- Stock Number: BA9-1006852
- Bend Capacity: 2 in. OD
- Maximum Round Tube Capacity: 2 in.
- Maximum Pipe Capacity: 1.5 in. Schedule 40 Pipe
- Input Power: 220V Single Phase
- Motor Phase: Single
- Horse Power: 1.75 HP
- Roll Adjustment: Ratchet-style manual top shaft

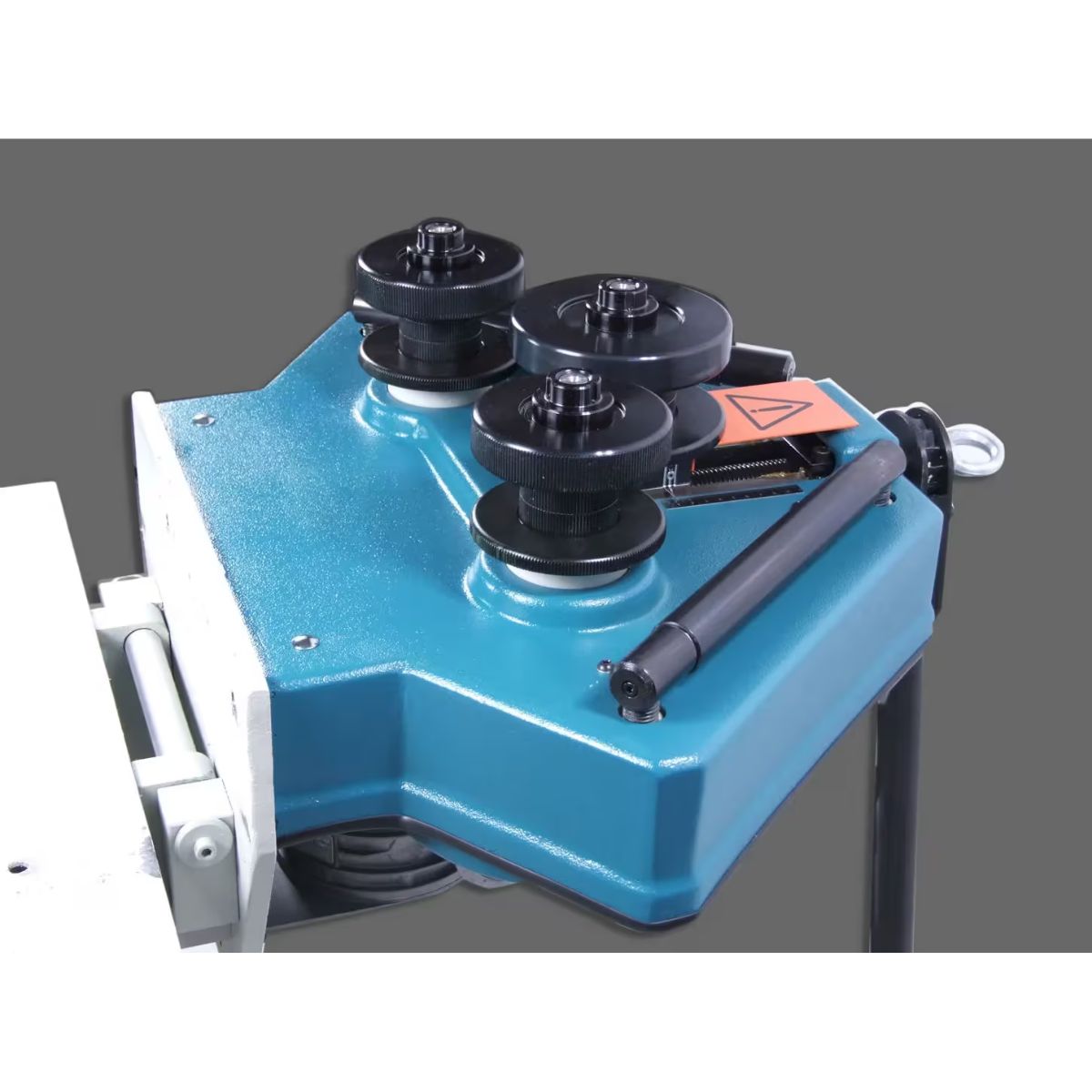

- Bending Positions: Upright or horizontal
- Gross Weight: 600 lb
- Net Weight: 600 lb
- Warranty: 1 Year
