Baileigh R-M20 Ring & Angle Roll Bender - 1" Round Tube Capacity
Are you looking for a way to bend rings and curved profiles from small tube and bar in your own shop?
What if a compact roll bender could turn round tube and bar into clean, consistent curves?
Meet the Baileigh R-M20 Ring & Angle Roll Bender, a manual 3-roll bender built for 1" round tube capacity.
Available in 110V or 220V, the R-M20 gives shops the option of foot pedal control and added pipe capacity.
When the rolls hold your material steady through each pass, you can shape curves with confidence.

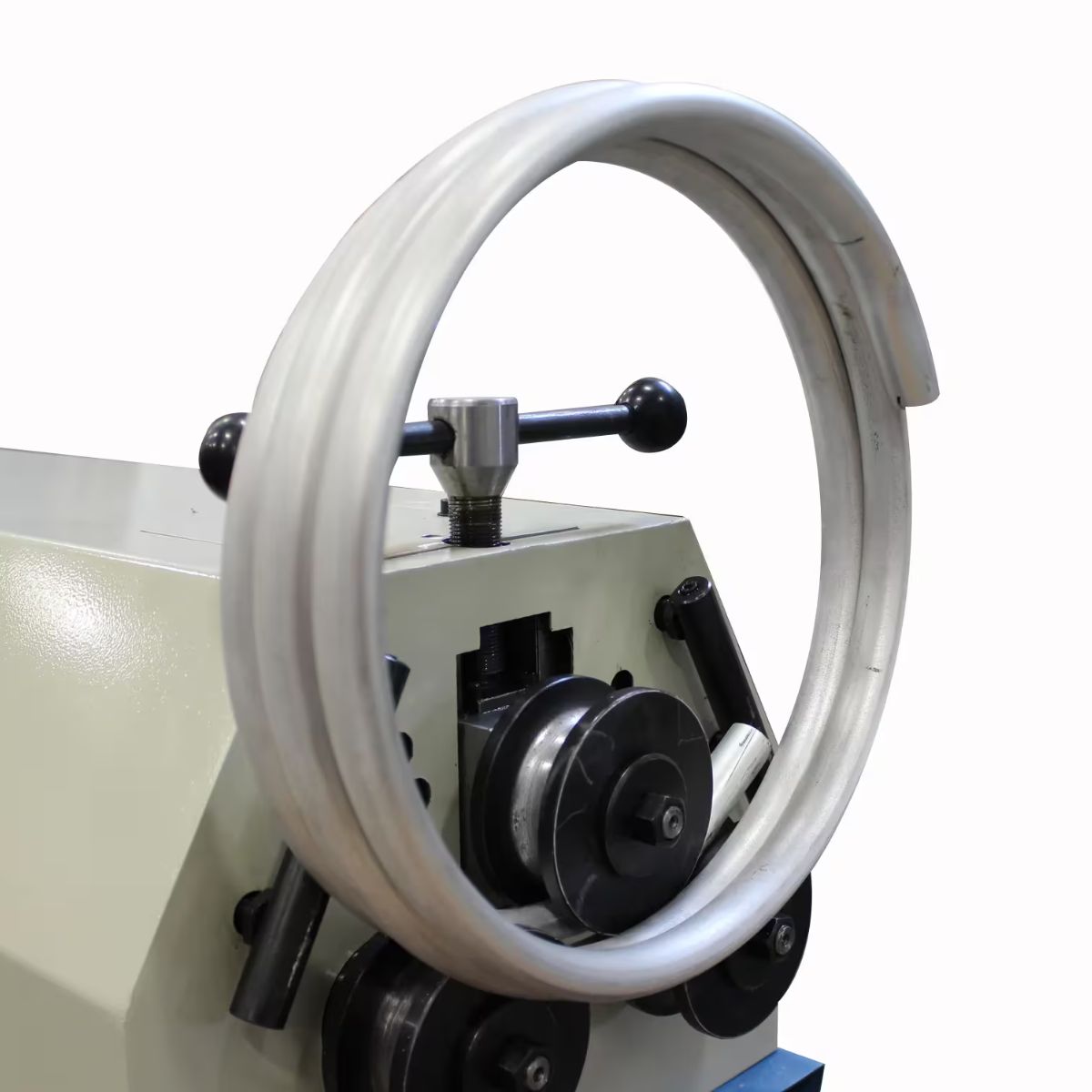

Baileigh R-M20 for Rings, Coils, and Curved Profiles

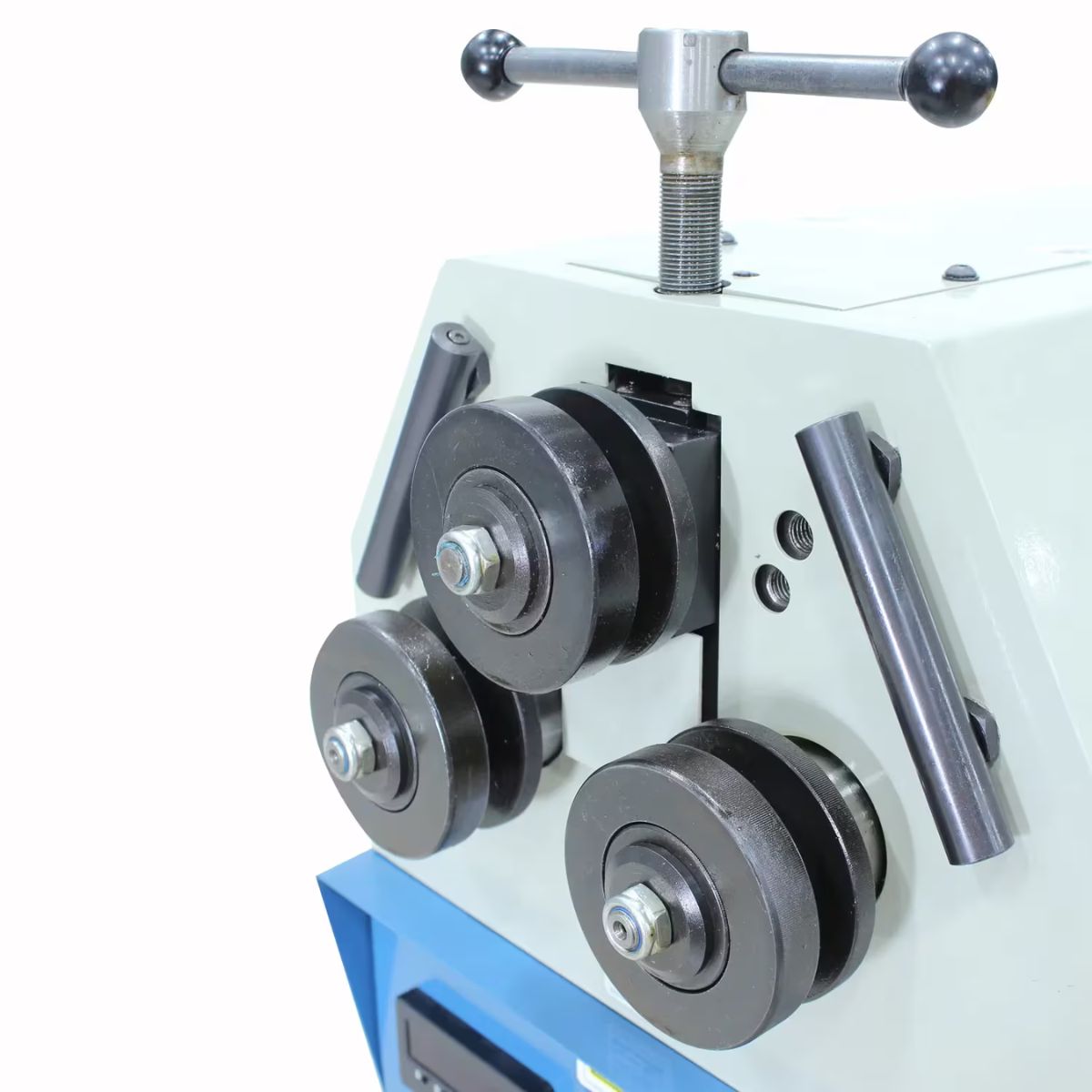

Knurled Lower Rolls Drive Consistent Material Feed
The two lower rolls are knurled to grip round tube and bar without slipping during the bend. This keeps material feeding evenly through the rolls for a consistent curve from start to finish.
Hardened Steel Shafts Support Daily Shop Use
Main shafts are hardened, ground, and polished for long-term durability under repeated bending loads. The rugged steel frame keeps the machine steady as you work.

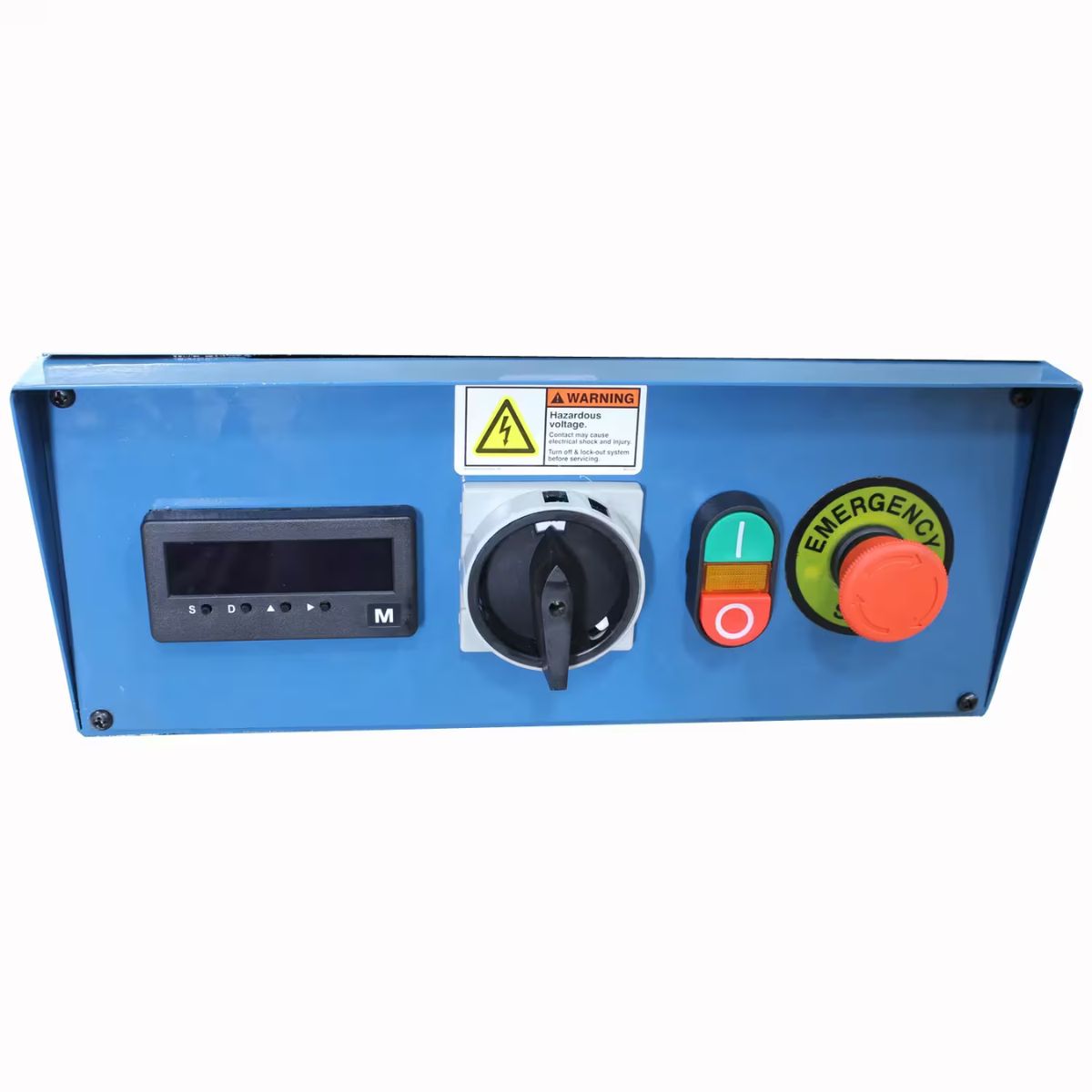

Digital Readout Tracks Top Roll Position
A digital display shows the top roll position with decimal precision so you can dial in a bending radius. Once you find a setting that works, the readout makes it easy to repeat.

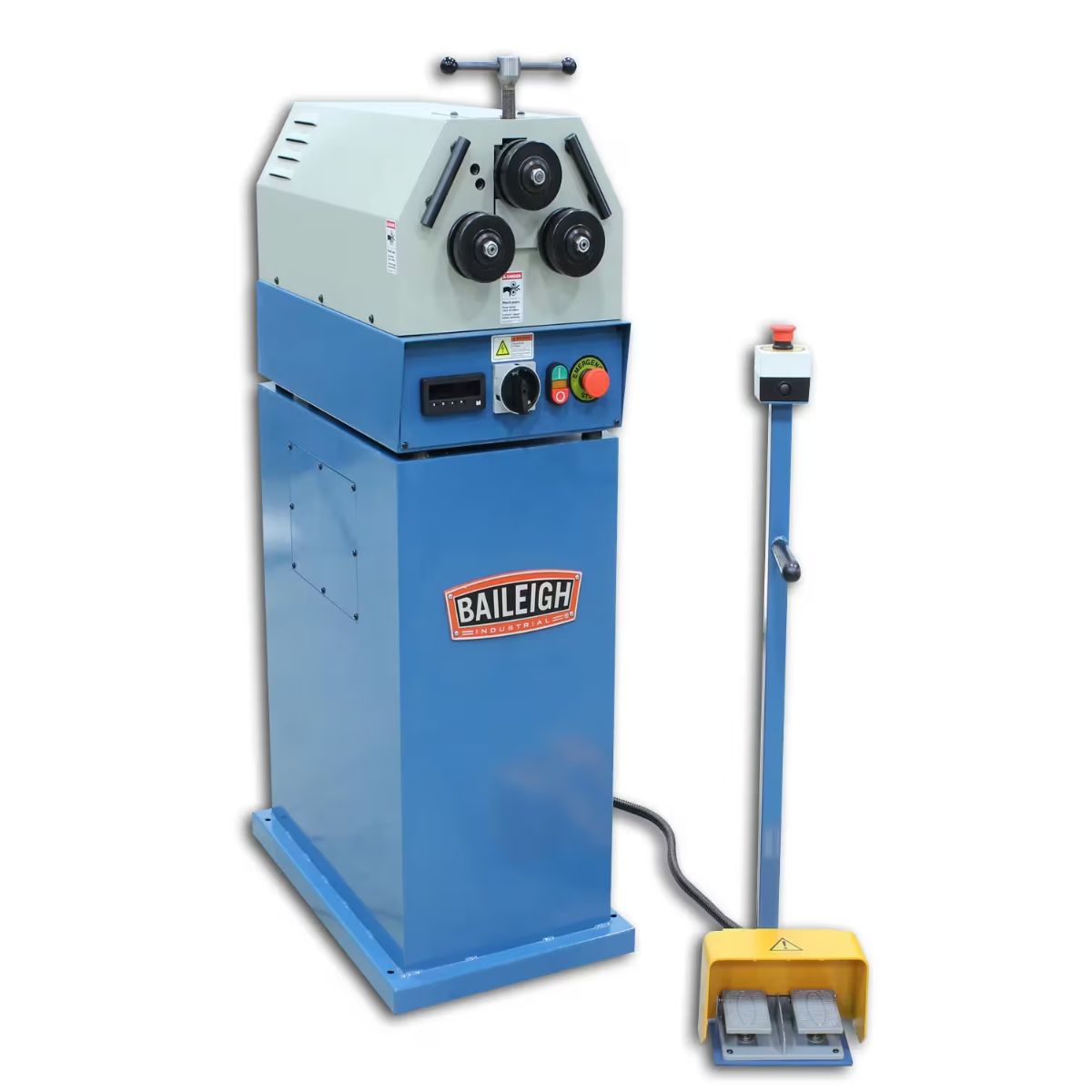

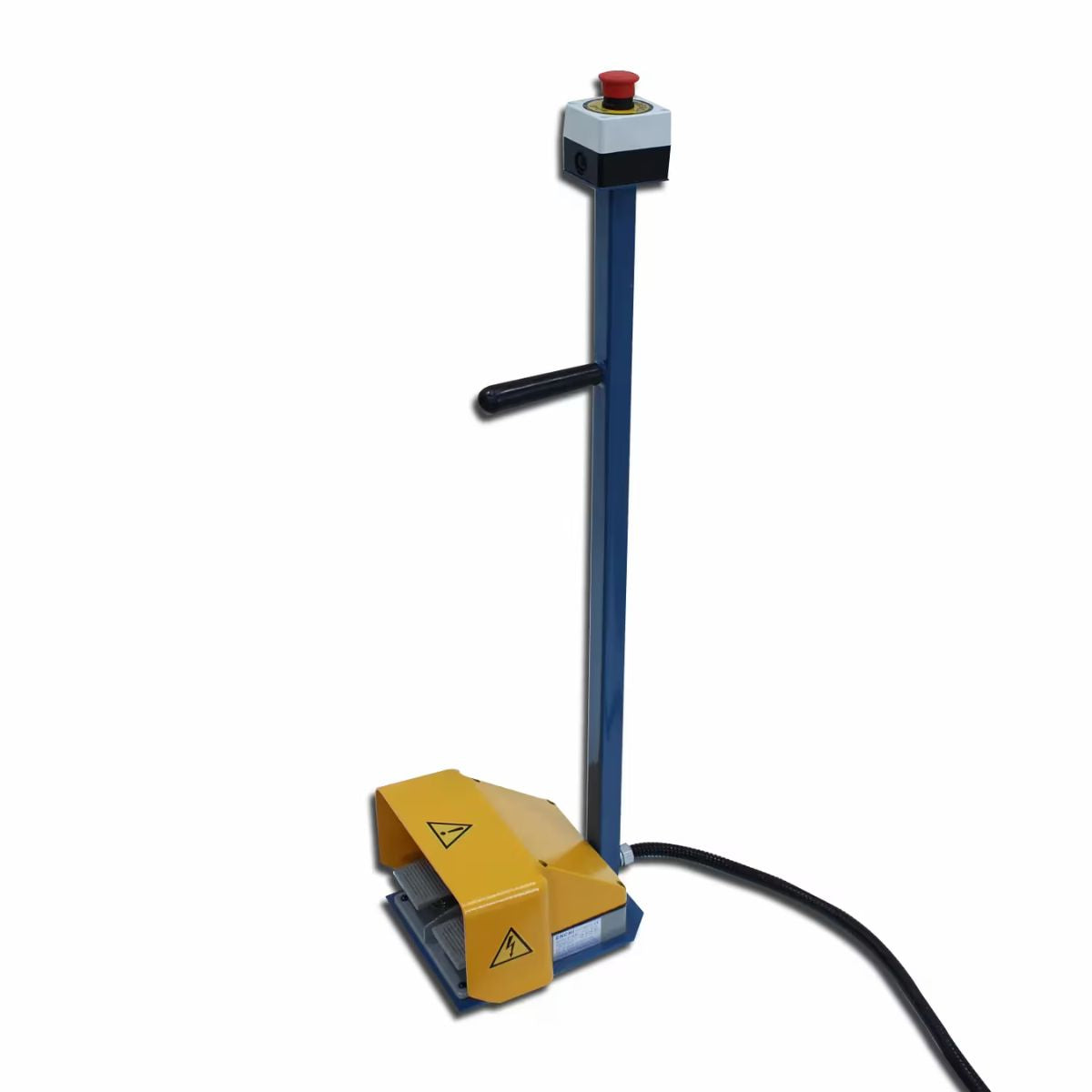

Optional 220V Configuration Adds Foot Pedal Control
The 220V configuration adds foot pedal control for hands-free direction changes and adjustable lateral guides for coil work. It also adds an emergency stop and expands pipe capacity to 0.5" schedule 40.
What's Included
What's Included? Baileigh R-M20 Ring & Angle Roll Bender
-
Baileigh R-M20 Ring & Angle Roll Bender — Provides a manual 3-roll platform for bending rings and curved profiles from round tube, bar, and other small profiles.
-
Floor Stand — Included for a stable working height in the shop.
-
Digital Readout — Displays top roll position so you can dial in and repeat a bending radius.
-
Standard Set of Rolls — A 15-piece set of shoulders and spacers for bending common profiles right out of the box.
Specs
Baileigh R-M20 Ring & Angle Roll Bender Specifications
- Roll Configuration: 3 rolls, 2 driven, 1 manual top roll
- Driven Rolls: 2
- Round Tube Capacity: 1" OD, minimum 16" diameter
- Solid Round Capacity: 0.5" minimum, 5" diameter
- Pipe Capacity: 0.5" schedule 40, minimum 14" diameter
- Square Capacity: 1.25" minimum, 20" diameter
- Square Tube Capacity: 0.75" minimum, 12" diameter
- Angle Iron Capacity: 0.75" minimum, 10" diameter
- Flat Bar Easy Way: 1.75" minimum, 12" diameter
- Flat Bar Hard Way: 1" minimum, 8" diameter
- Roll Speed: 12 RPM
- Roll Adjustment: Manual (top roll)
- Frame Construction: Rugged steel frame
- Shaft Quality: Hardened, ground, and polished steel shafts
- Weight: 420 lb
- Warranty: 1 Year
Specs by Configuration
- 110V — Model R-M20-110, Input Power: 110V Single Phase, Control: hand-adjustable top roll
- 220V — Model R-M20-220, Input Power: 220V 3-Phase, Control: foot pedal forward/reverse, adjustable lateral guides, emergency stop
