Baileigh R-H85 220V 3-Phase Hydraulic Double Pinch Roll Bender with Hydraulic Guide Rolls
Are you looking for a roll bender that can handle heavy pipe and tube work without losing accuracy?
What if your shop had a hydraulic roll bender built to bend cleanly with less wasted material?

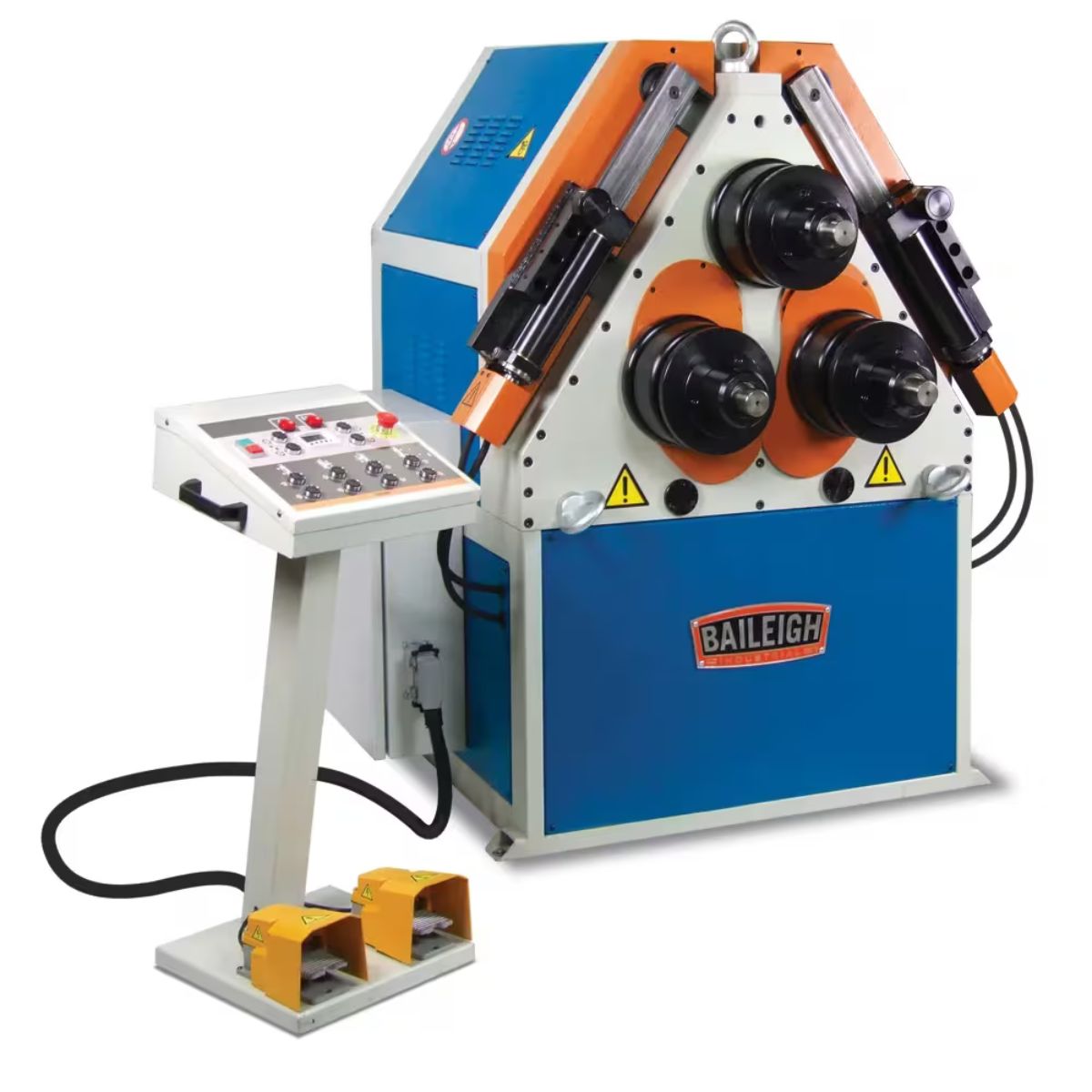

Meet the Baileigh R-H85, a double pinch hydraulic roll bender built for medium to large profile bending.
With three hydraulically driven rolls, lateral guide rolls, and a digital readout, the R-H85 delivers repeatable results on every pass.
When your bends come out consistent every time, you can move through fabrication work with confidence.
Baileigh R-H85 for Heavy Pipe and Tube Bending
Double Pinch Design Reduces Wasted Material

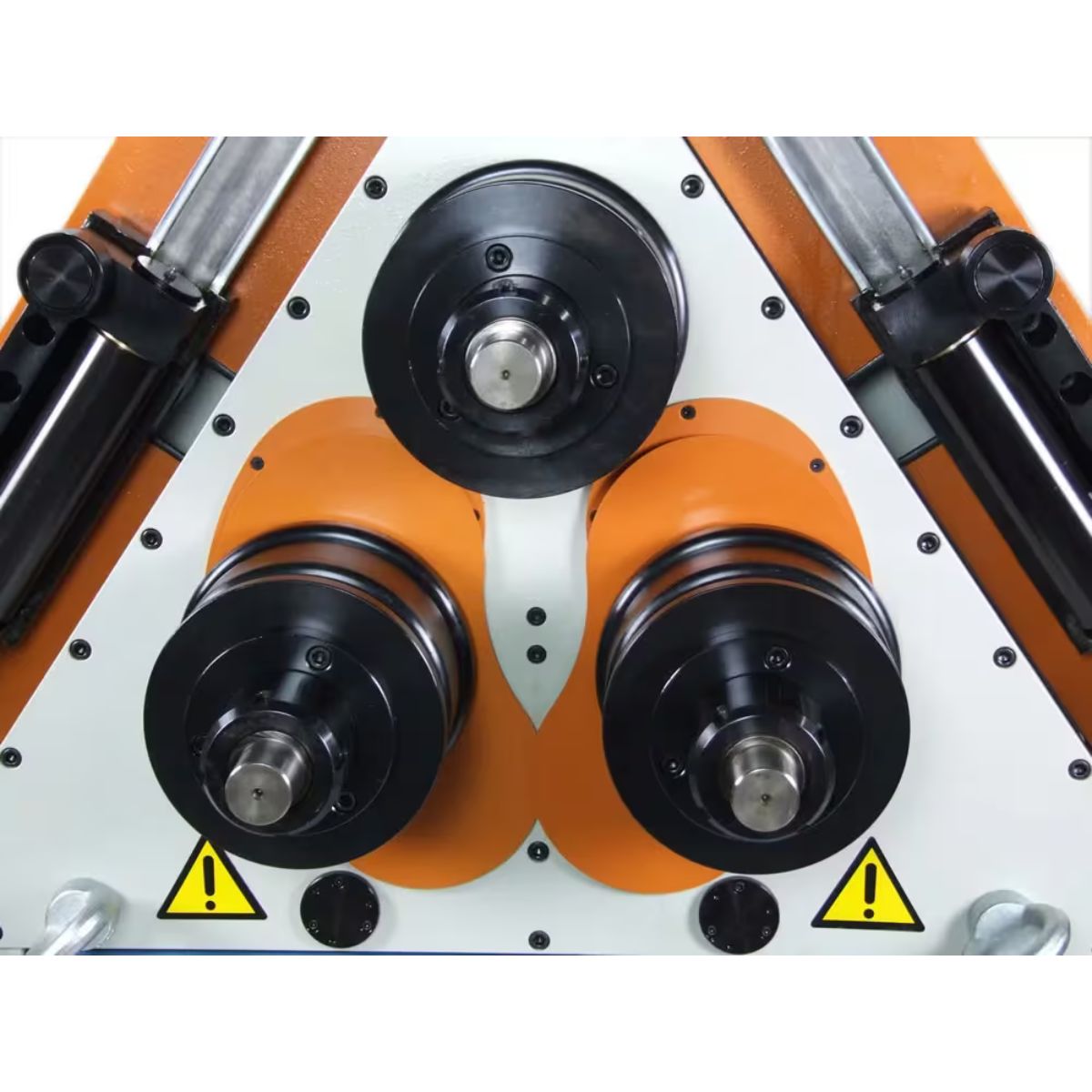

The double pinch system uses a fixed top roll with two independently driven bottom rolls to pre-bend and post-bend material in the same pass. This reduces the straight, unbent sections left at each end of the workpiece and cuts down on wasted stock.

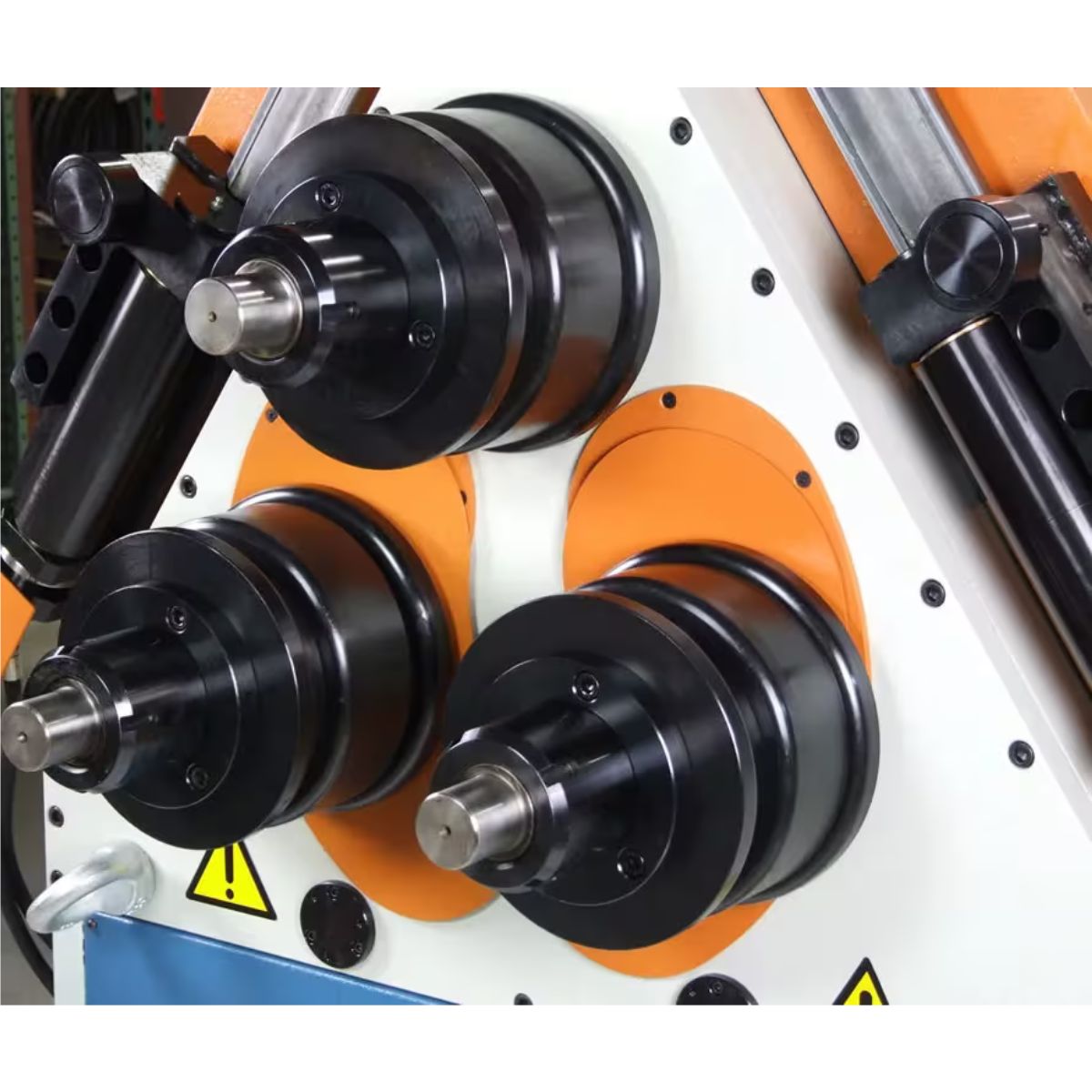

Three Hydraulic Rolls Maintain Bending Control

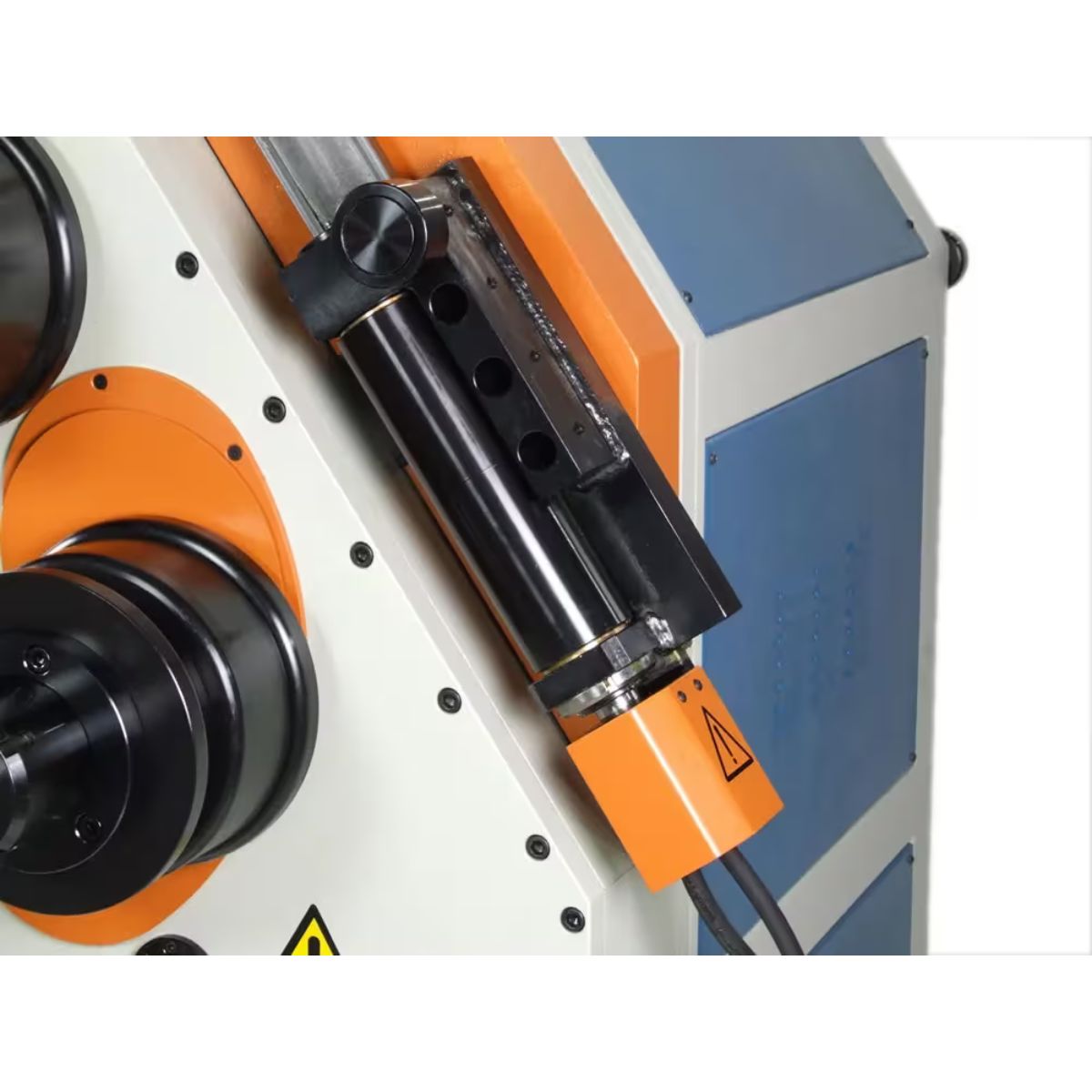

Three rolls driven by an industrial hydraulic transmission move the material through the bend with steady, even pressure. Lateral guide rolls keep pipe and tube tracking straight so the bend holds its shape.

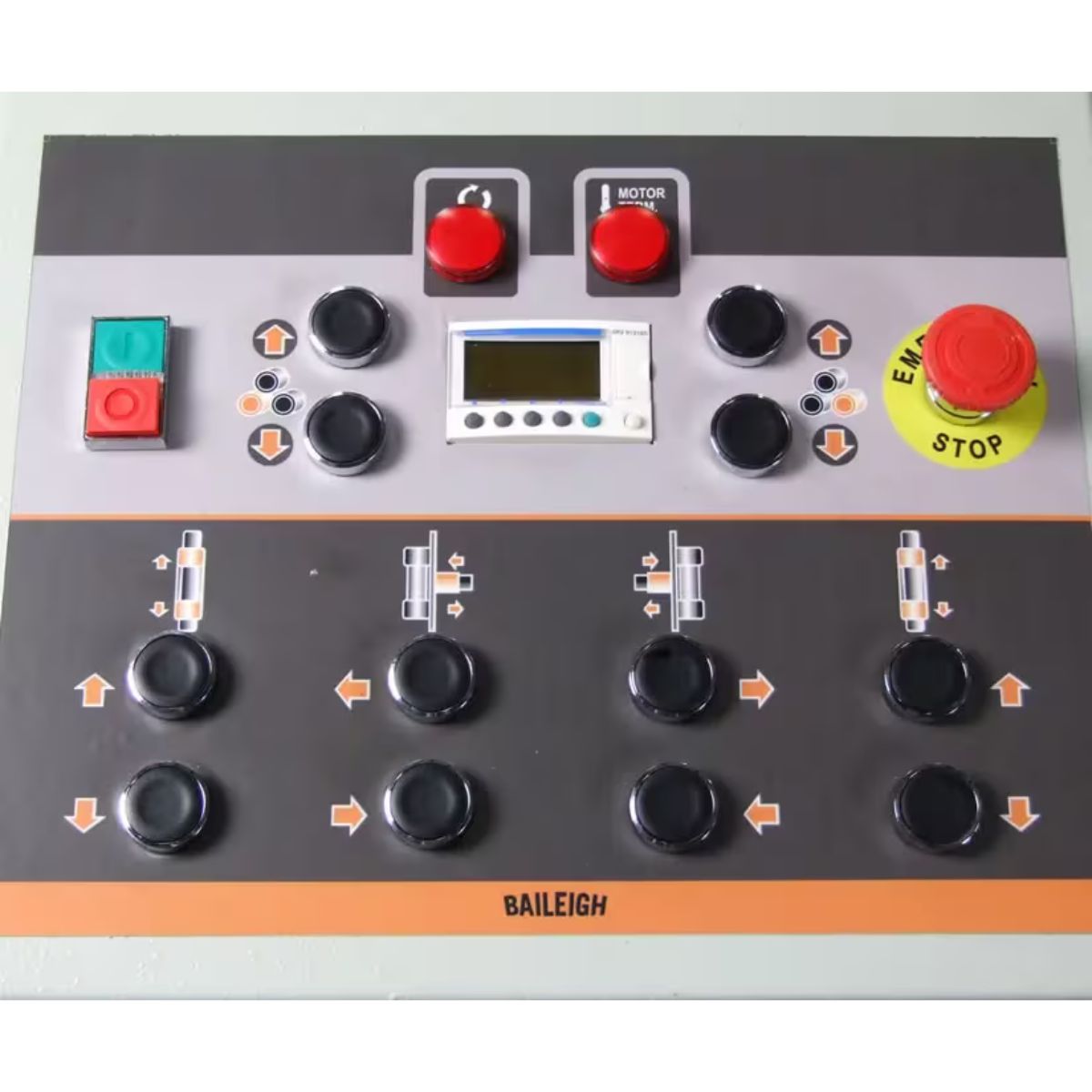

Digital Readout Improves Bend Repeatability
An integrated digital readout tracks roll position so you can return to the same setting on future jobs. This makes it easier to match bends across a run of parts without re-measuring each time.
Foot Pedal Controls Simplify Operation
An operator podium with a foot pedal lets you control forward and reverse rotation without stepping away from the workpiece. This keeps both hands free to guide material through the bend.
What's Included
What's Included? Baileigh R-H85 220V 3-Phase Hydraulic Double Pinch Roll Bender with Hydraulic Guide Rolls
-
Baileigh R-H85 Hydraulic Roll Bender — Provides a complete double pinch roll bending setup ready for shop installation.
Specs
Baileigh R-H85 220V 3-Phase Hydraulic Double Pinch Roll Bender with Hydraulic Guide Rolls Specifications
- Model: R-H85
- Stock Number: BA9-1006841
- Input Power: 220V Three Phase
- Motor: 10.5 HP
- Driven Rolls: 3 hydraulically driven rolls
- Bend System: Double pinch, fixed top roll with two driven bottom rolls
- Maximum Round Tube Capacity: 4" OD
- Maximum Pipe Capacity: 3" Schedule 40
- Bend Capacity: 4 in. OD
- Controls: Foot pedal, forward and reverse
- Digital Readout: Included
- Frame Construction: Heavy duty welded steel
- Net Weight: 3550 lb
- Gross Weight: 3550 lb
- Warranty: 1 Year Parts, Lifetime Technical Support
