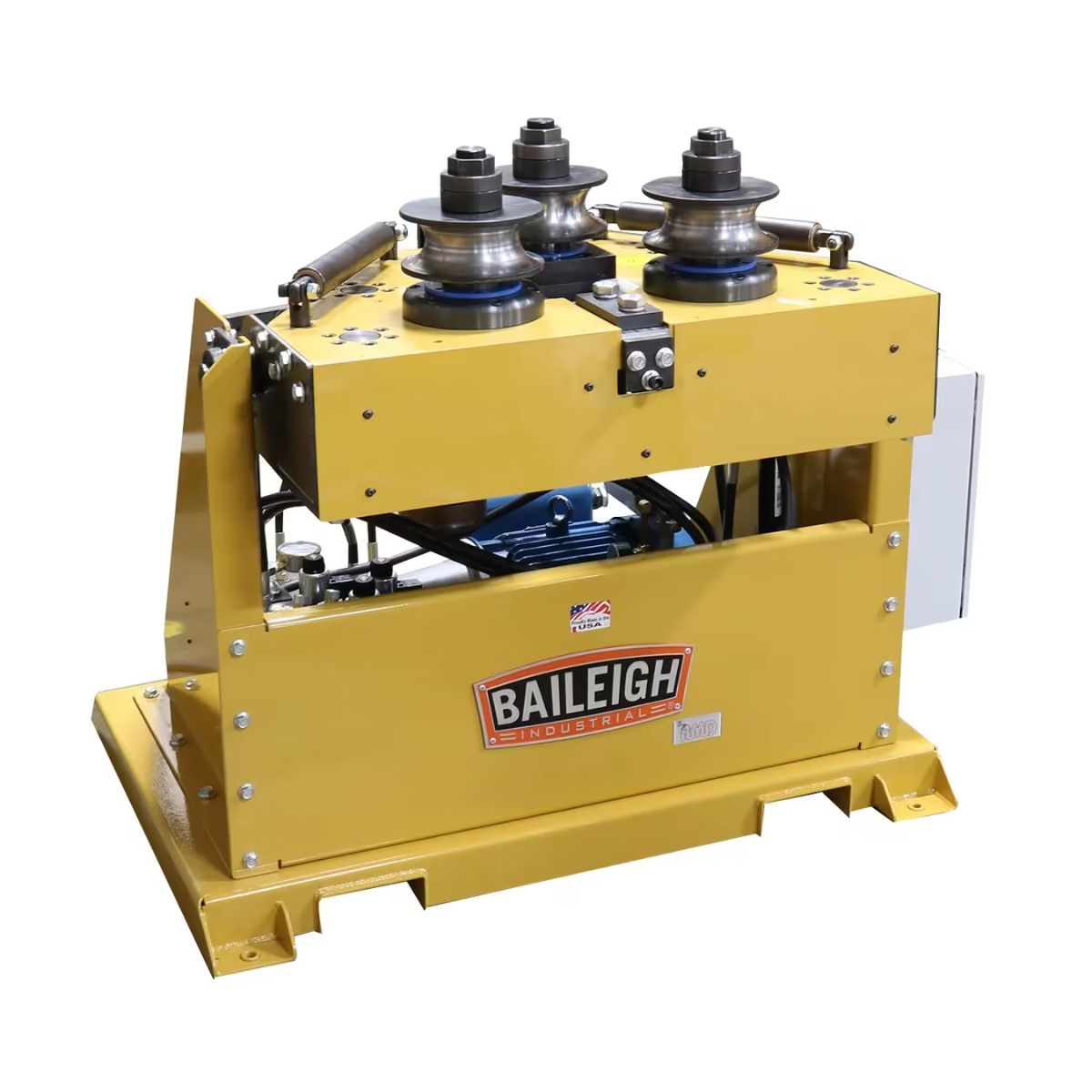

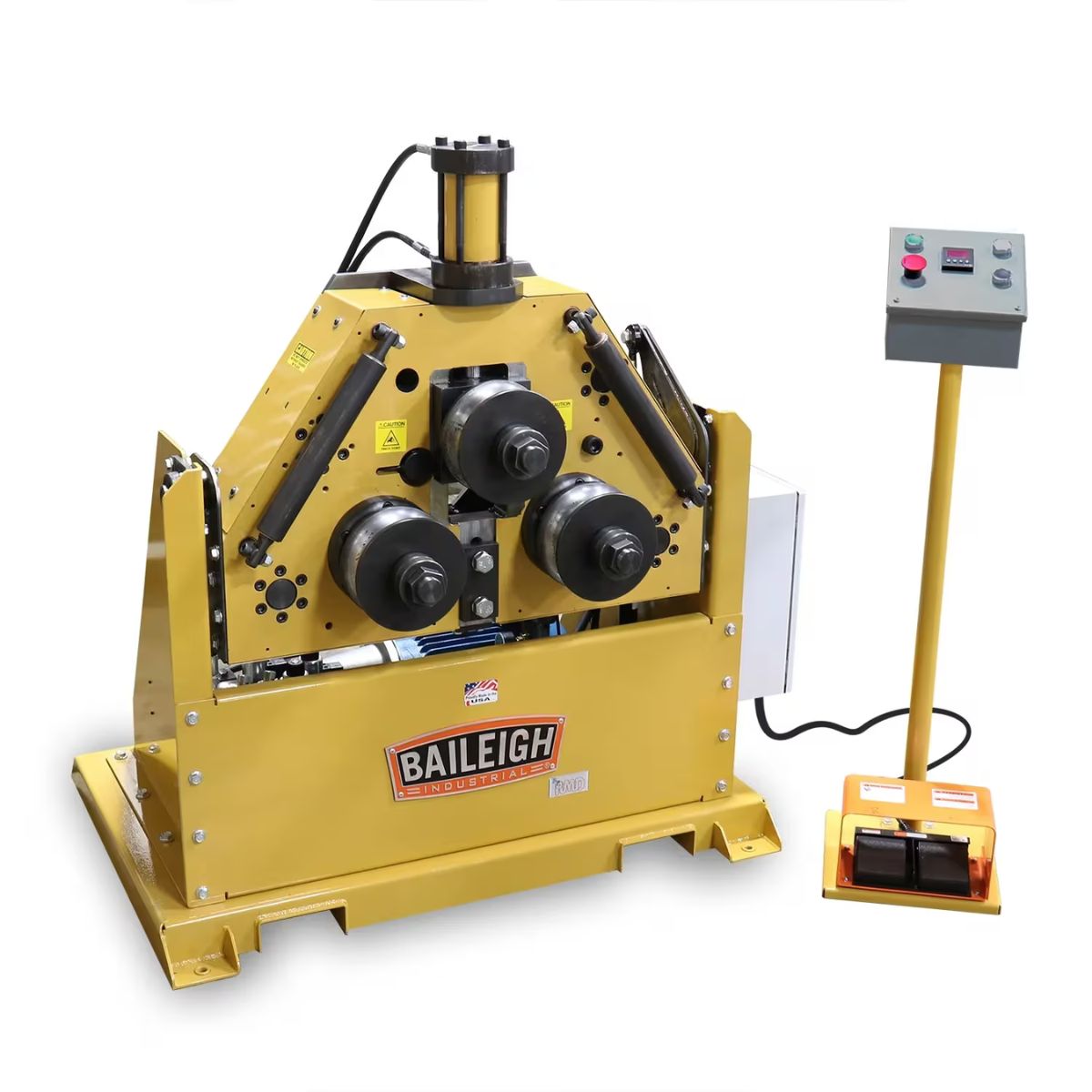

Baileigh R-H60-HD 220V Hydraulic Drive Roll Bender with Hydraulic Top Roll — 2-1/2" Schedule 40 Capacity
Are you looking for a roll bender that can handle large radii and tough material without losing accuracy?
What if your shop had a hydraulic roll bender built to deliver consistent bends on heavy pipe and tubing.
Meet the Baileigh R-H60-HD, a 220V hydraulic drive roll bender built for demanding bending work.
With three driven rolls, hydraulic top roll movement, and a digital readout, this machine gives you repeatable control over every bend.
When the machine holds its setting through the job, you can move through production work with confidence.
Baileigh R-H60-HD for Heavy Pipe and Tube Bending
Three Driven Rolls Deliver Smooth Bending Action
Three driven rolls work together to move material evenly through each pass. This keeps the bend consistent from the start of the cut to the end.
Hydraulic Top Roll Movement Improves Bend Control
The top roll moves under hydraulic power, giving you precise adjustment during the bend. This helps you dial in accurate radii on heavy pipe and tubing without extra passes.
Digital Readout Simplifies Repeat Bends
A digital readout with programmable stops lets you set a bend once and repeat it accurately. This saves setup time when you need multiple parts to match.
Movable Operator Podium Speeds Setup
The foot pedal controlled podium moves with you around the machine, so you can work from the best position. This keeps the job moving without extra trips back to a fixed control panel.
What's Included
What's Included? Baileigh R-H60-HD 220V Hydraulic Drive Roll Bender with Hydraulic Top Roll — 2-1/2" Schedule 40 Capacity
-
Baileigh R-H60-HD Hydraulic Roll Bender — Provides the complete hydraulic roll bending machine ready for shop use.
-
Segment Rolls and Lateral Roll Guides — Help keep material aligned during the bend.
-
Movable Operator Podium with Foot Pedal — Lets you control the machine from the best position on the job.
Specs
Baileigh R-H60-HD 220V Hydraulic Drive Roll Bender with Hydraulic Top Roll — 2-1/2" Schedule 40 Capacity Specifications
- Model: R-H60-HD
- Stock Number: BA9-MDL-MERH60HD
- Bend Capacity: 2.75 in. OD
- Maximum Pipe Capacity: 2-1/2" Schedule 40
- Driven Rolls: 3
- Horse Power: 5 HP
- Input Power: 220V Single Phase
- Net Weight: 1475 lb
- Gross Weight: 1475 lb
- Warranty: 1 Year
