Baileigh R-H55 220V 3-Phase Electric Roll Bender with Hydraulic Top Roll
Are you looking for a roll bender that can shape angle iron, tube, and pipe without fighting the machine for accuracy?
What if your shop had a hydraulic bender that holds a steady radius pass after pass?

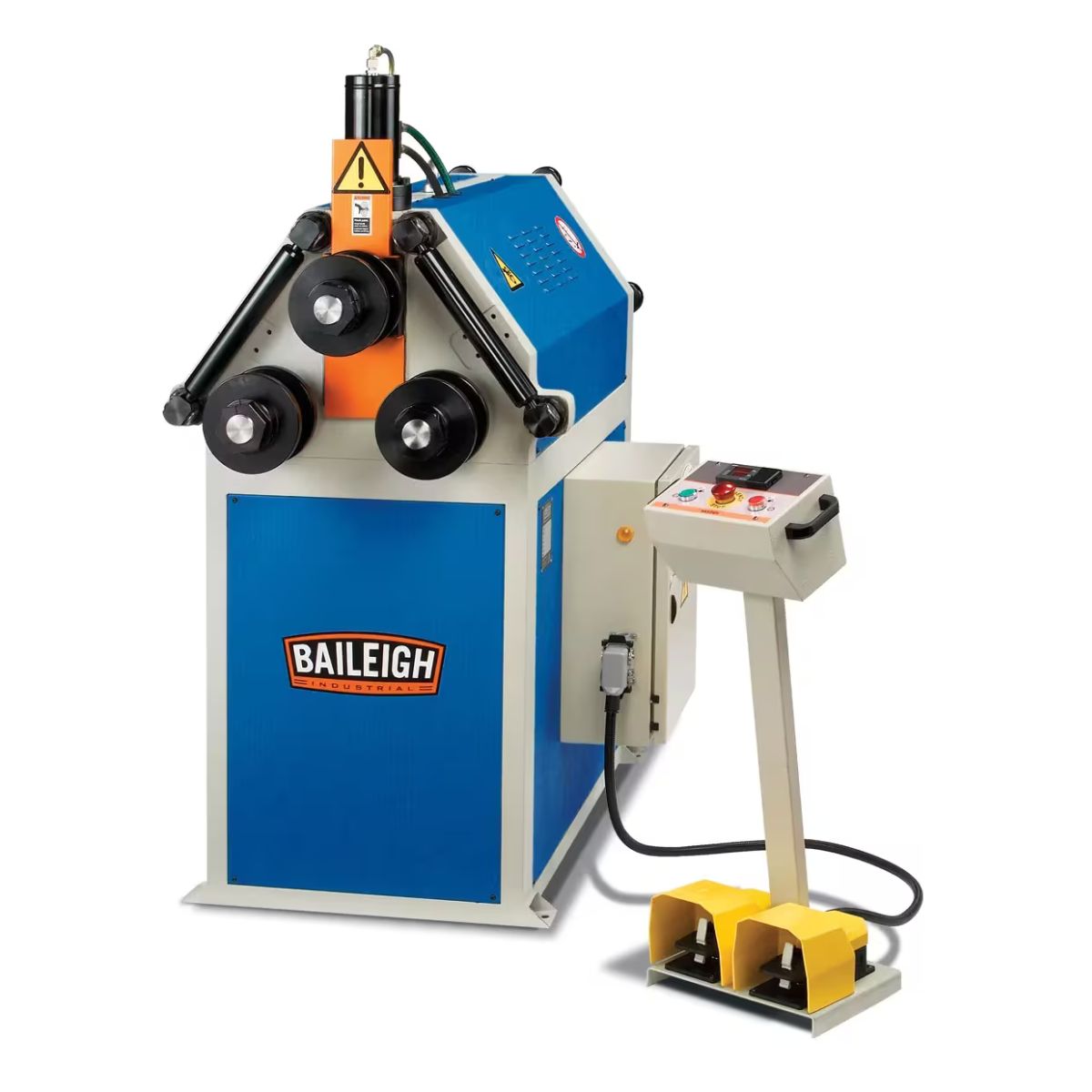

Meet the Baileigh R-H55, a 220V 3-phase hydraulic roll bender built for forming structural profiles into large radii.
With three driven rolls, hydraulic top roll movement, and a digital readout, the R-H55 helps you repeat the same bend on the next part.
When the machine holds the radius steady, you can move through fabrication work with confidence.
Baileigh R-H55 for Bending Tube, Pipe, and Angle Iron

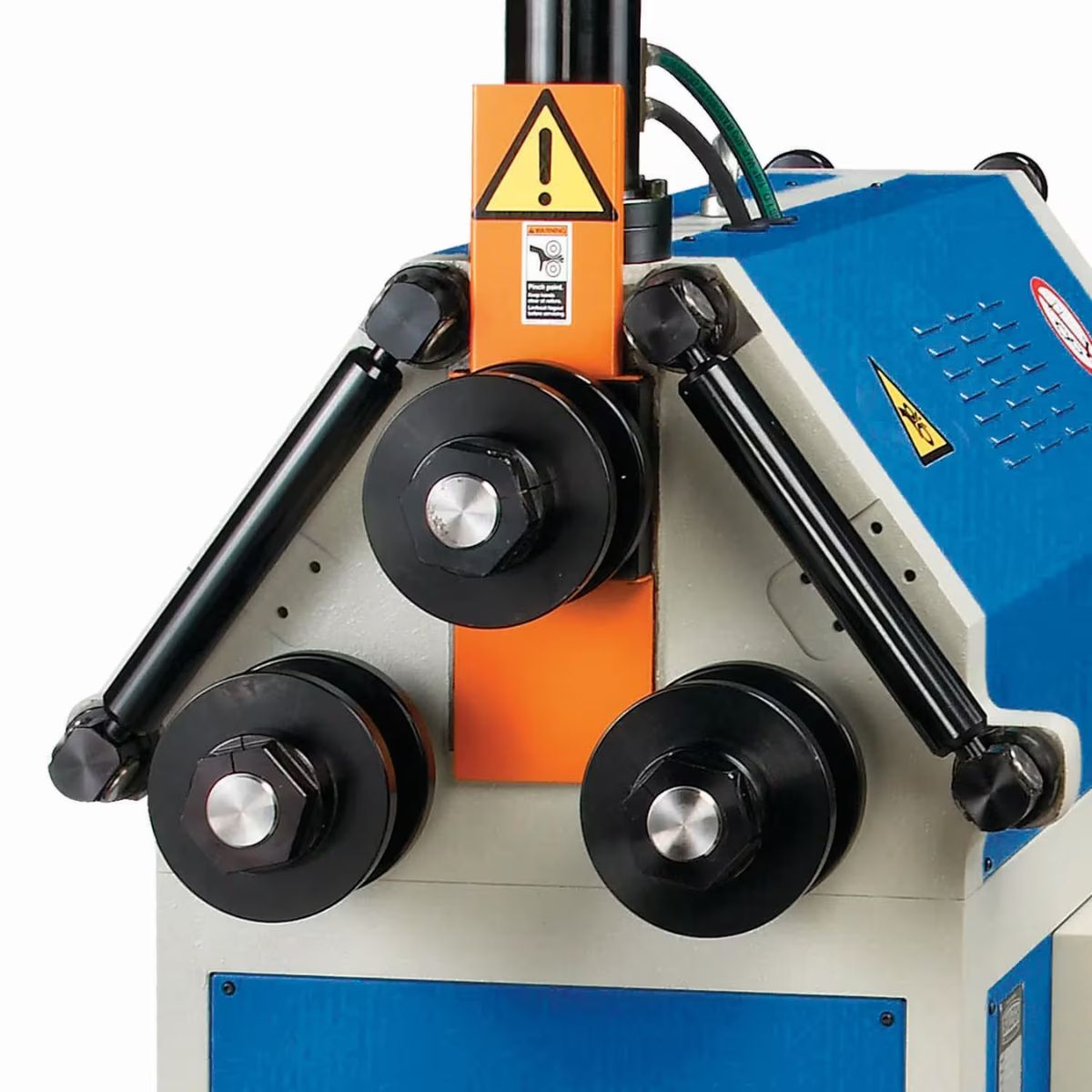

Three Driven Rolls Keep Material Feeding Evenly
The R-H55 uses three driven rolls to pull material through the bend instead of relying on a single powered roll. This keeps material feeding evenly and reduces slipping during the pass.

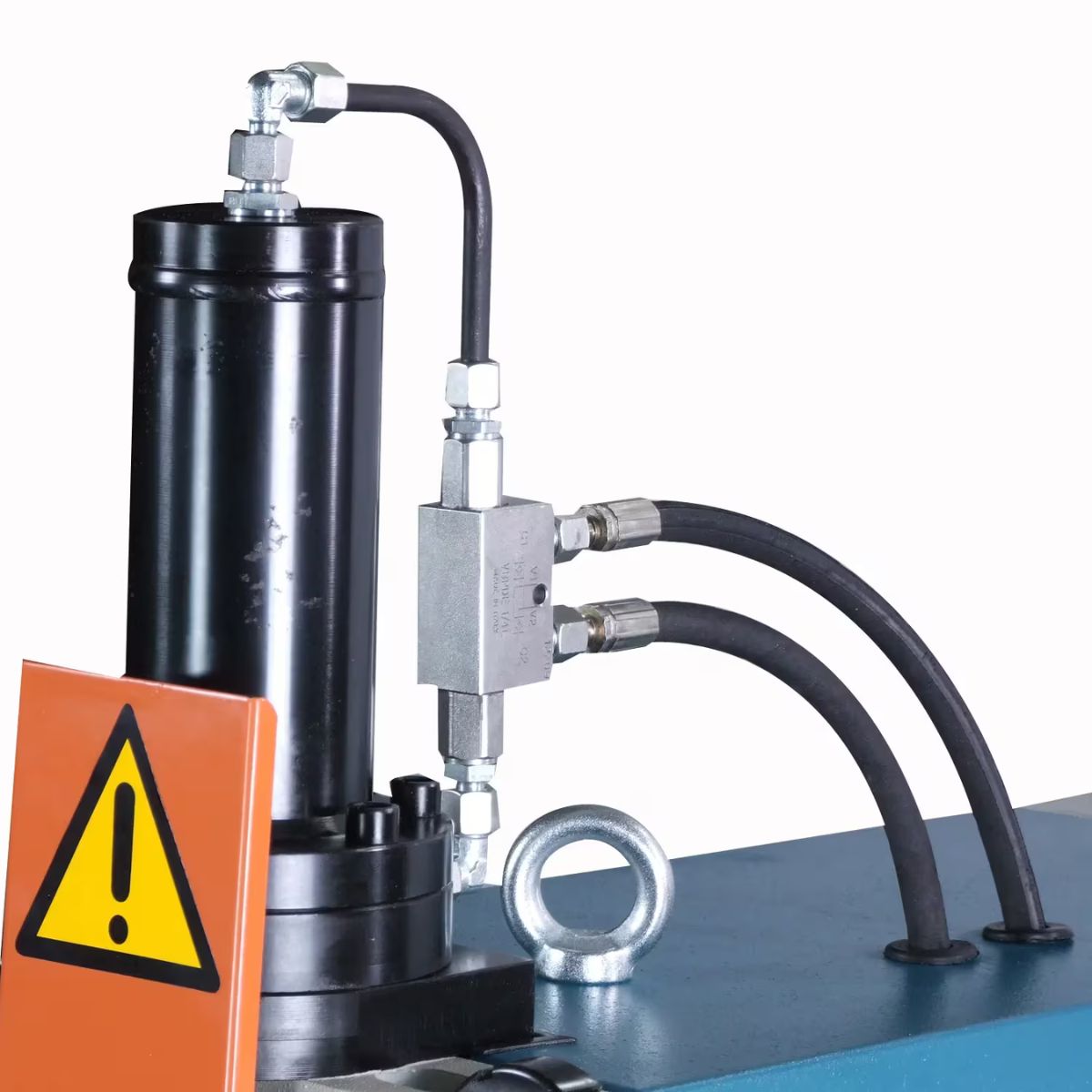

Hydraulic Top Roll Adjusts Bend Depth with Precision

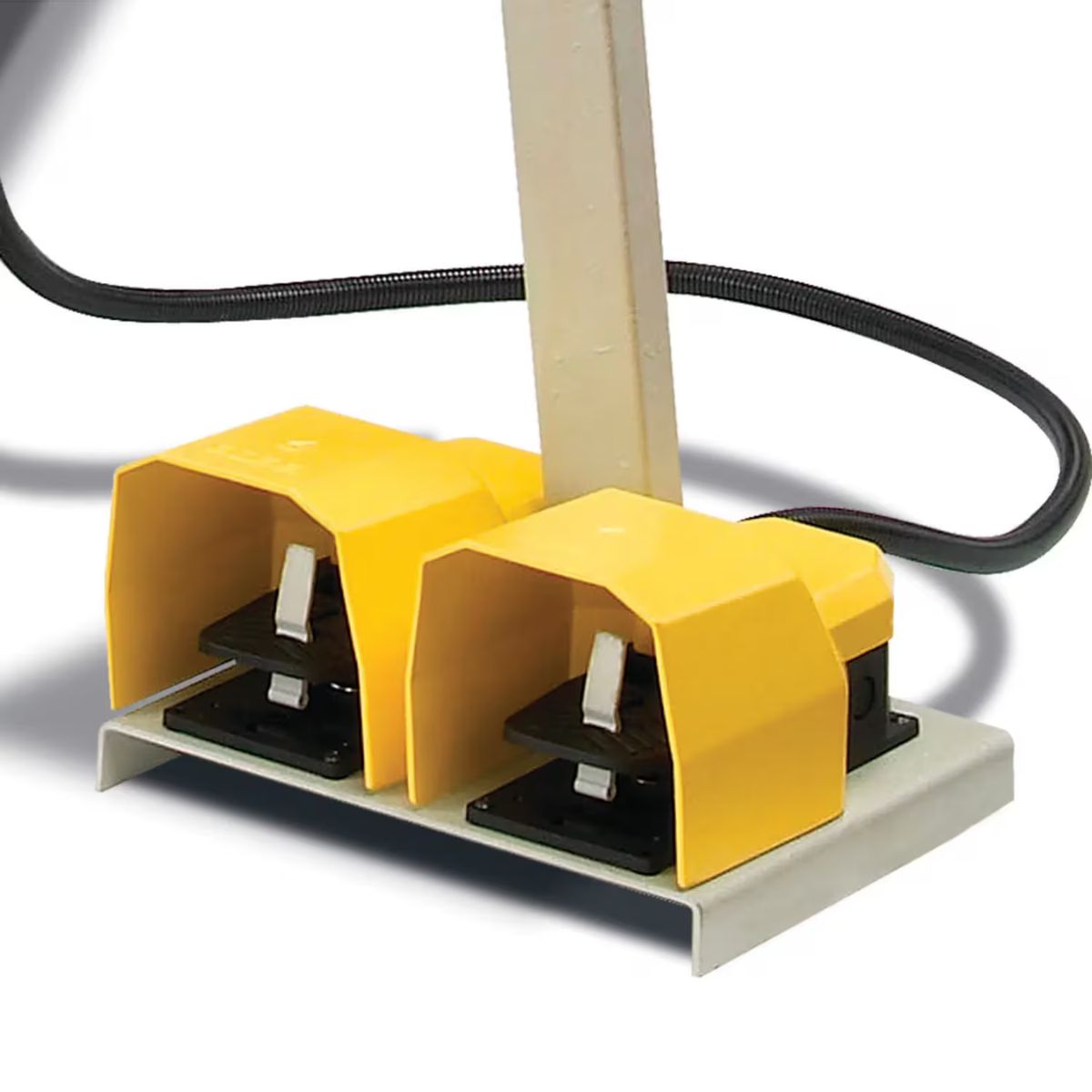

The top roll raises and lowers hydraulically with foot pedal control, so you can dial in bend depth without stopping to crank an adjustment by hand. This keeps the work moving and cuts down on setup time between passes.

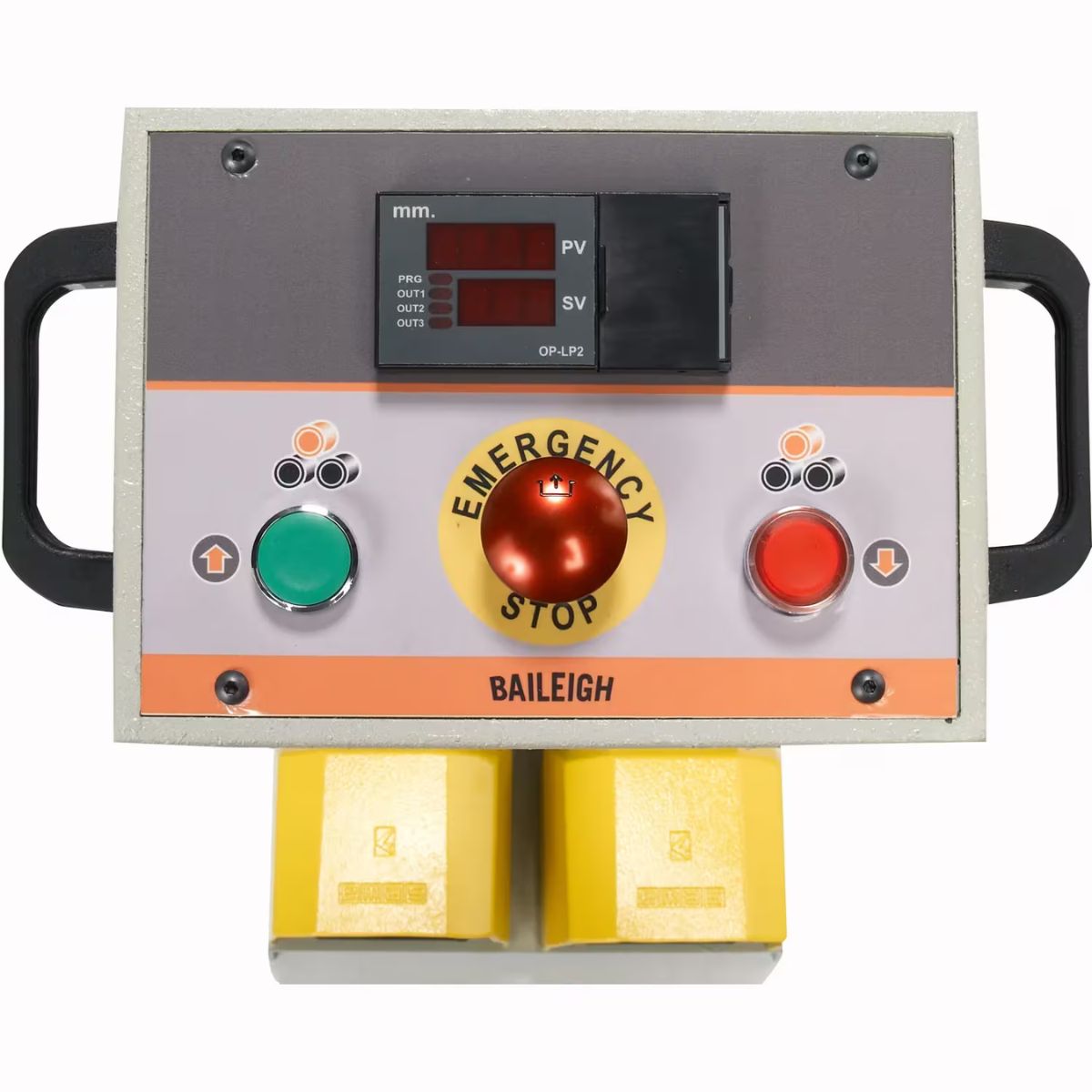

Digital Readout Repeats Top Roll Position
A digital position readout displays the top roll's exact position on every pass. This lets you return to the same setting on the next part for a matching radius.

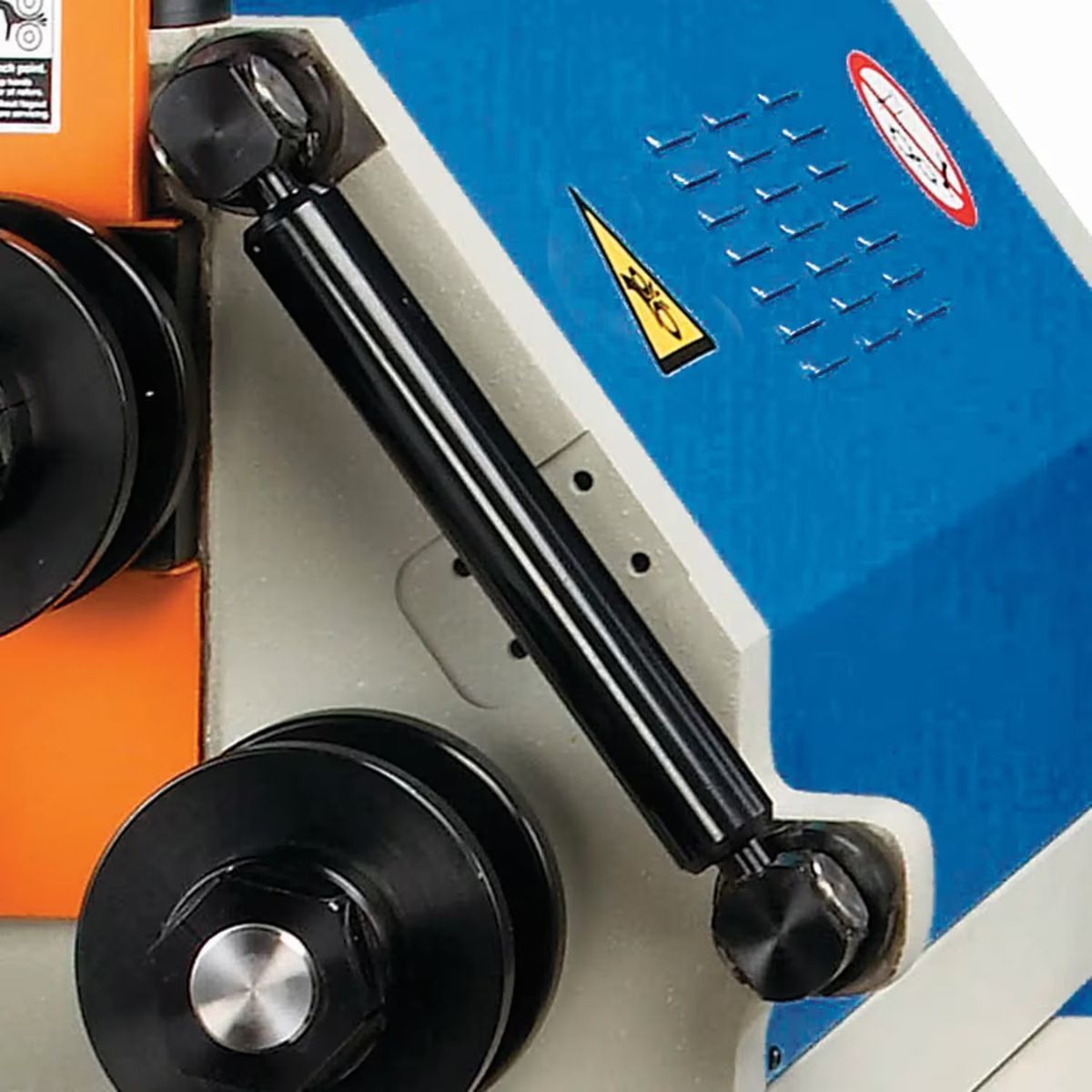

Lateral Guide Rollers Keep Material Tracking Straight
Integrated lateral guide rollers hold material against the rolls so it does not drift left or right during the bend. This keeps longer stock aligned and reduces wasted passes from correcting drift.
What's Included
What's Included? Baileigh R-H55 220V 3-Phase Electric Roll Bender with Hydraulic Top Roll
-
Baileigh R-H55 Roll Bender — Provides a complete 220V 3-phase hydraulic bending platform for structural profiles.
-

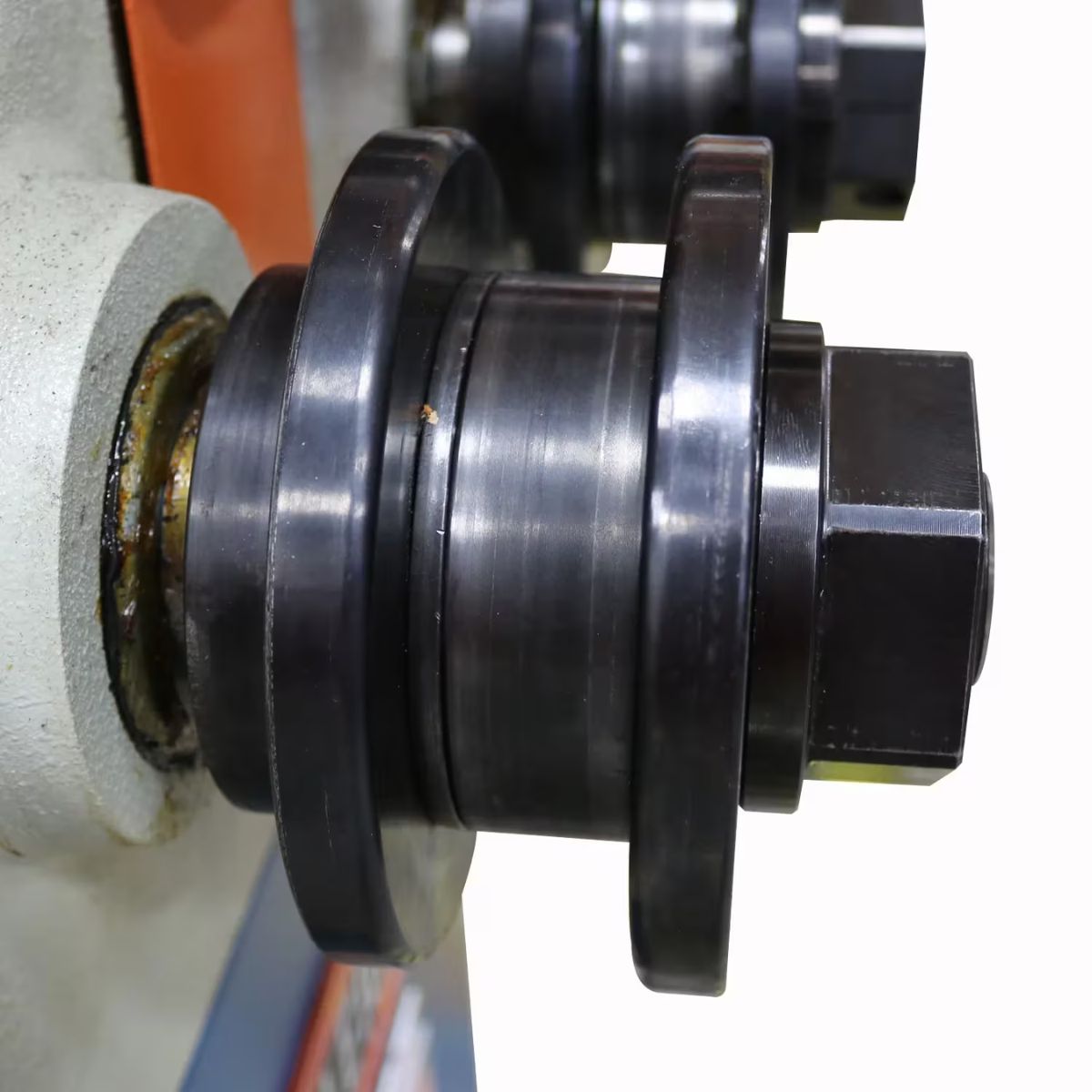

Standard Roll Set — Lets you begin bending common profiles without ordering separate tooling.
Specs
Baileigh R-H55 220V 3-Phase Electric Roll Bender with Hydraulic Top Roll Specifications
- Model: R-H55
- Stock Number: BA9-1006836
- Input Power: 220V 3-Phase, 60Hz, 30A
- Main Motor: 7.3 HP (5.5kW)
- Hydraulic Motor: 2 HP (1.5kW)
- Driven Rolls: 3, with hydraulic top roll movement
- Roll Diameter: 6.693" (170mm)
- Shaft Diameter: 2.165" (55mm)
- Round Tube Capacity: 2-3/4" OD, .095" wall
- Maximum Pipe Capacity: 2-1/2" Schedule 40
- Hydraulic Pressure: 2,900 PSI
- Hydraulic Capacity: 2.65 Gal
- Rolling RPM: 11
- Operating Positions: Horizontal or Vertical
- Net Weight: 1,320 lb
- Warranty: 1 Year
