Baileigh R-H45 220V Electric Roll Bender with Hydraulic Top Roll
Are you looking for a roll bender that holds a true arc through round, square, and flat stock?
What if your shop had a bender that adjusts forming pressure with hydraulic precision instead of guesswork.

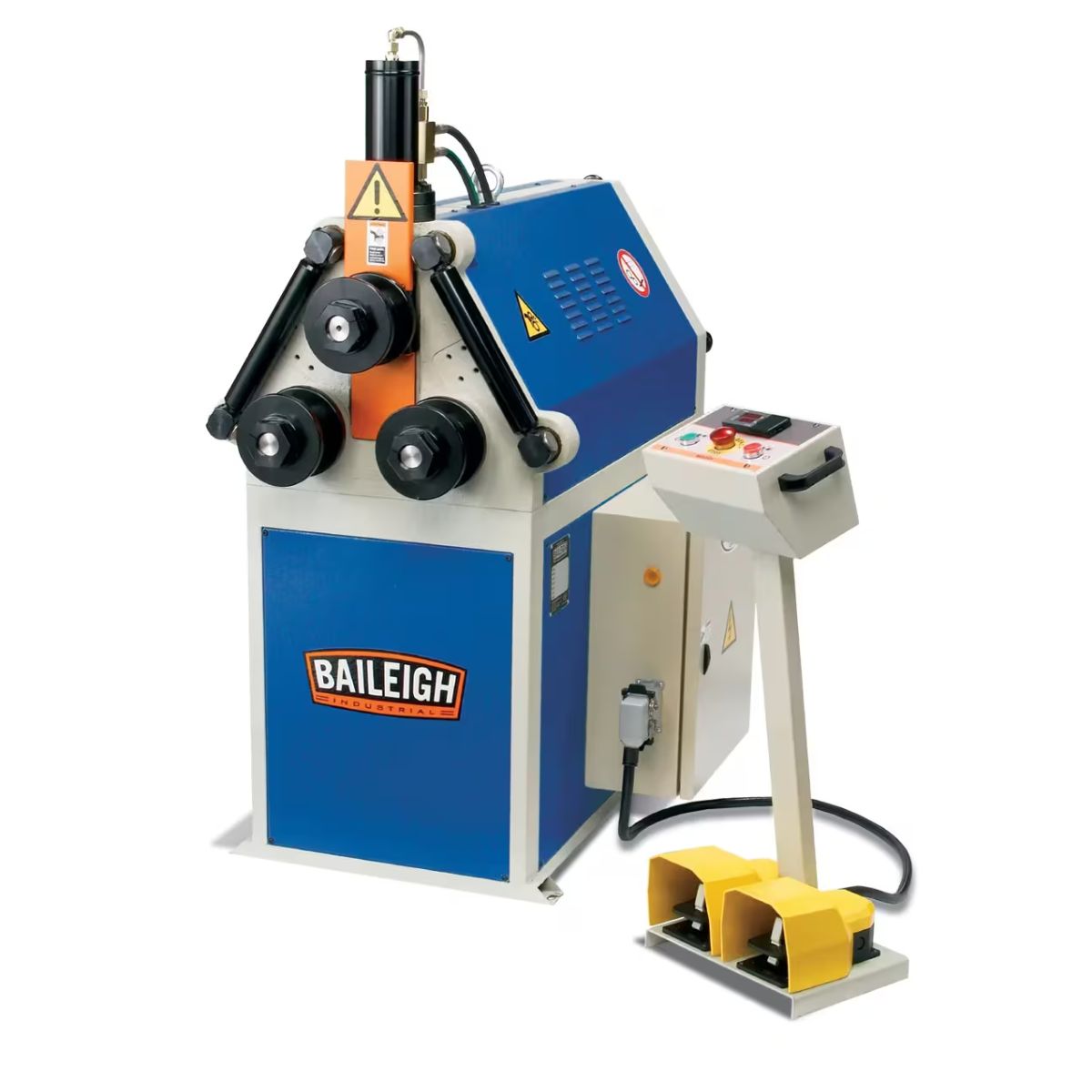

Meet the Baileigh R-H45 220V Electric Roll Bender with Hydraulic Top Roll, a welded steel bender for custom fabrication work.
With three driven rolls, hydraulic top roll adjustment, and a digital readout, the bender delivers repeatable bends.
When the roll holds steady through each pass, you can shape consistent arcs with confidence.
Baileigh R-H45 for Custom Fabrication and Ornamental Bending

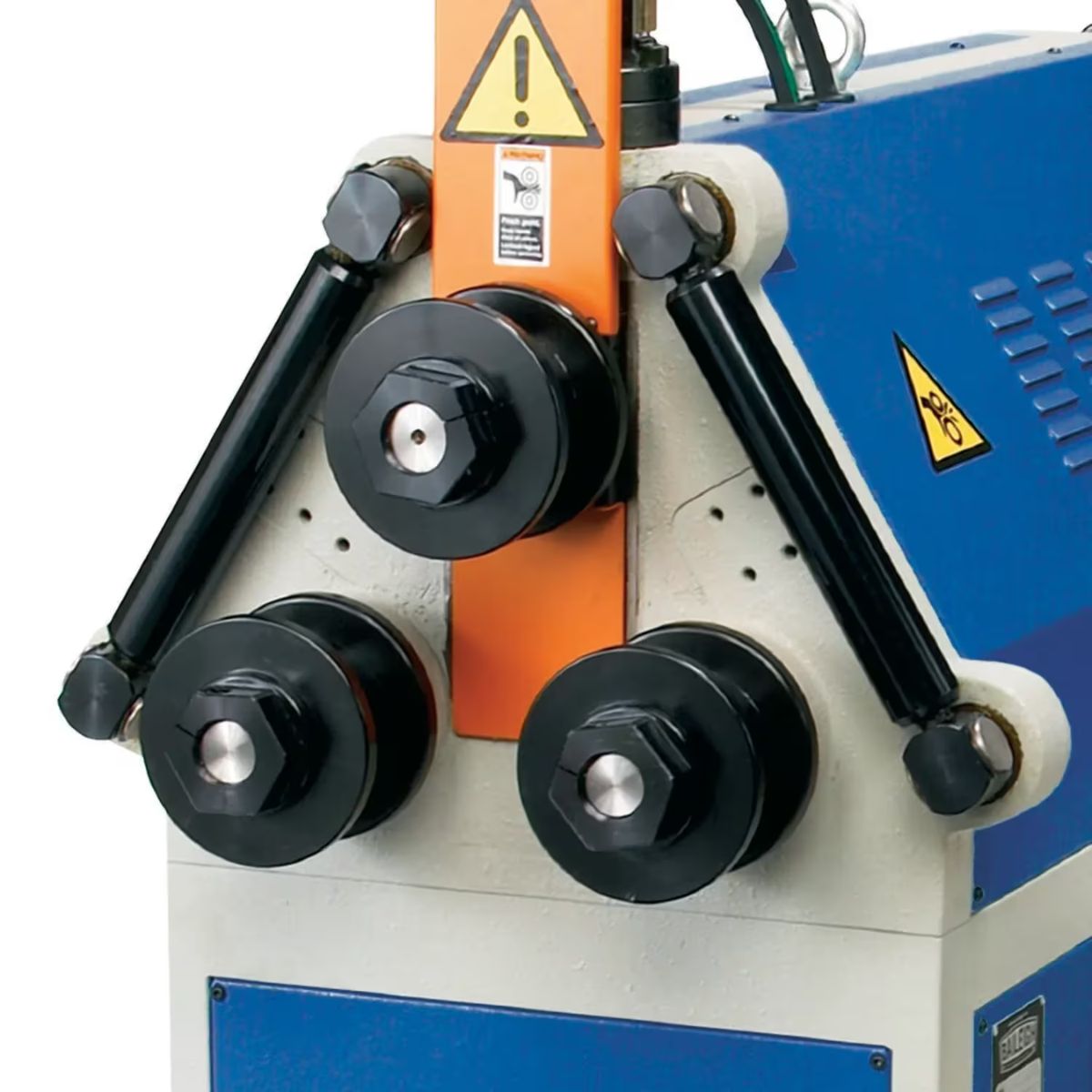

Three Driven Rolls Deliver Smooth Bending Action
Three driven rolls work together to move stock evenly through each pass. This keeps the bend consistent from the start of the arc to the end.

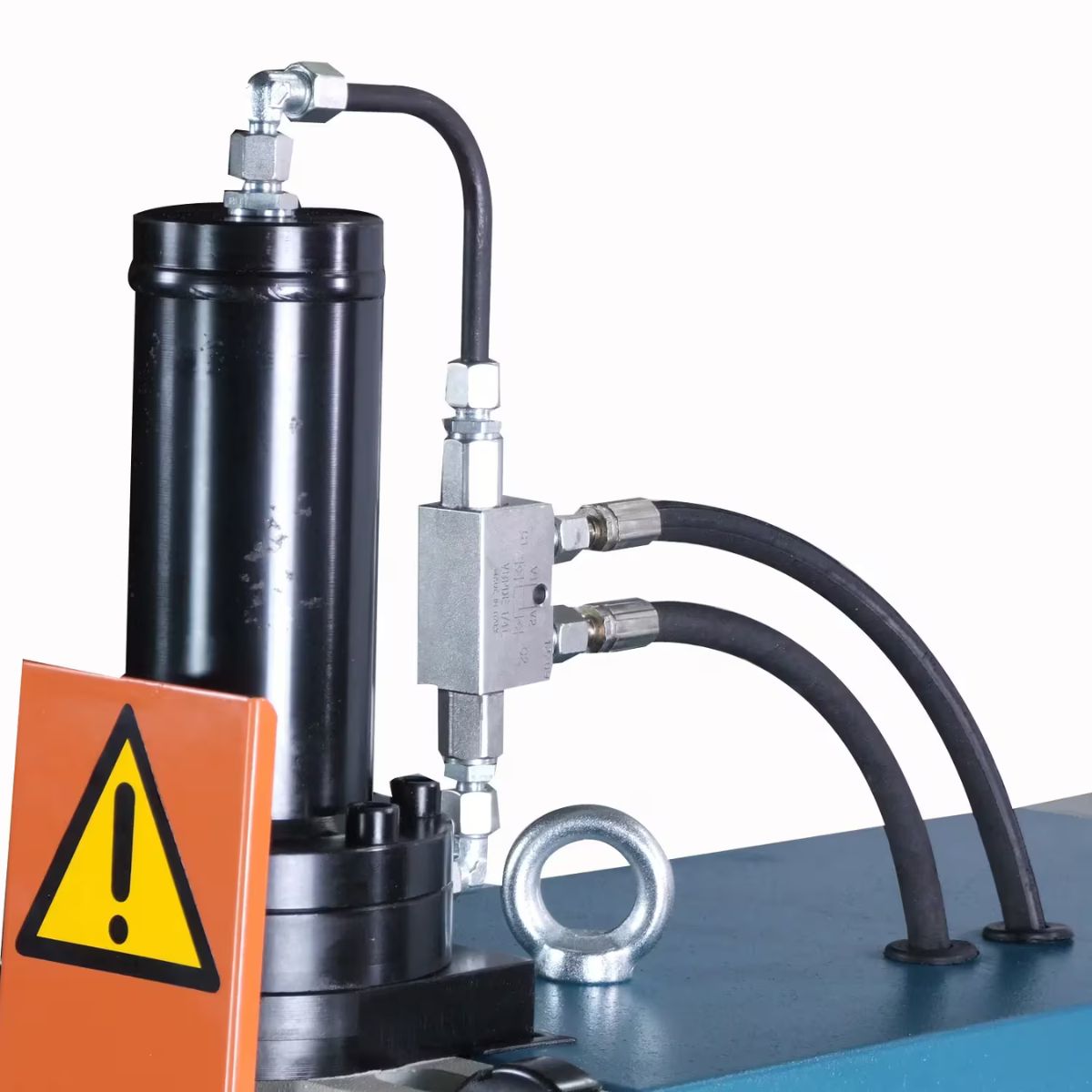

Hydraulic Top Roll Adjustment Controls Forming Pressure
The hydraulic top roll adjusts forming pressure without manual cranking. This lets you dial in the right pressure for round, square, or flat stock.

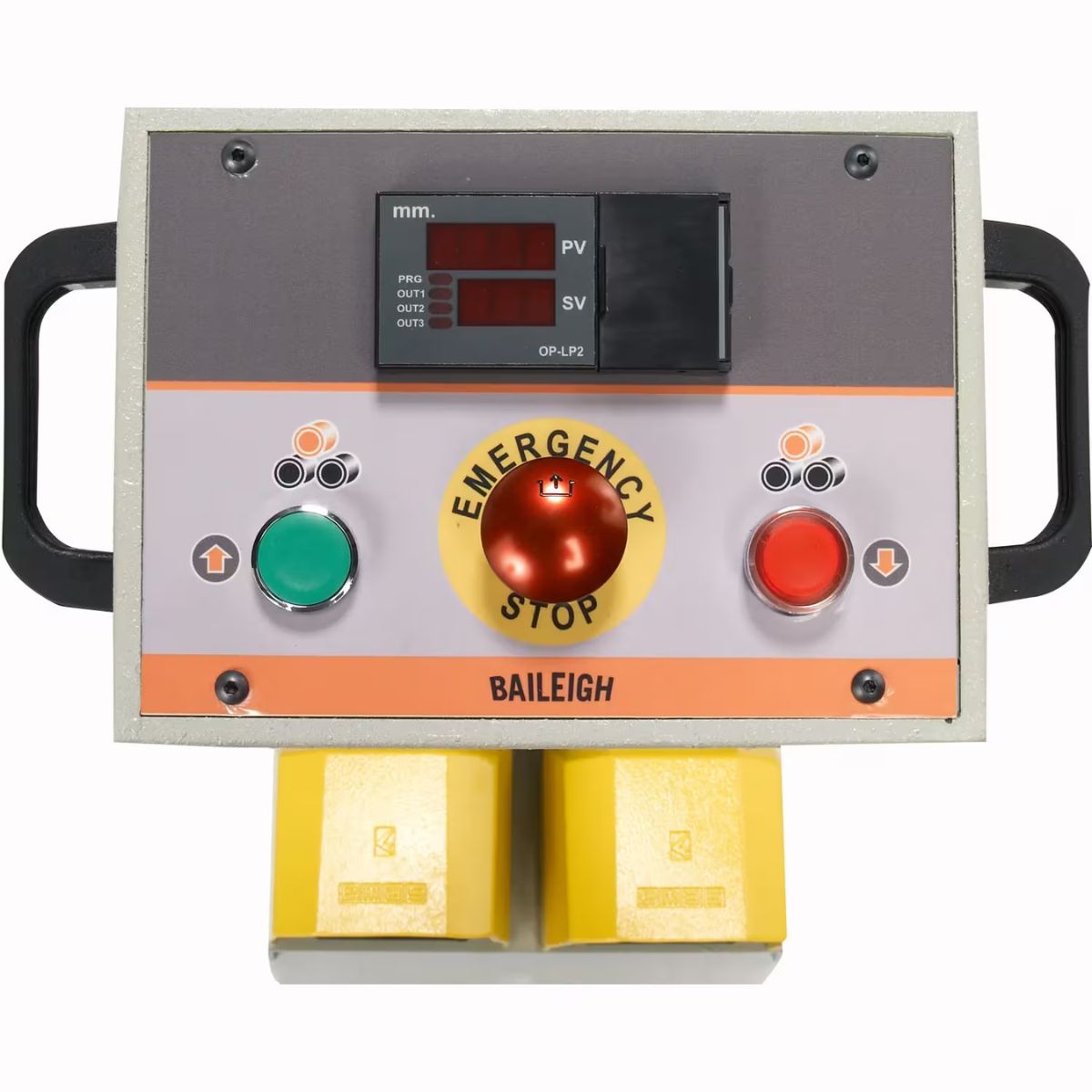

Digital Readout Supports Repeatable Bends
The digital readout shows roll position as you work. This makes it easier to return to the same setting for matching parts.
Foot Pedal Control Simplifies Forward and Reverse Operation
A foot pedal controls forward and reverse rolling so your hands stay free to guide the material. This keeps setup and operation straightforward on the shop floor.
What's Included
What's Included? Baileigh R-H45 220V Electric Roll Bender with Hydraulic Top Roll
-
Baileigh R-H45 220V Electric Roll Bender with Hydraulic Top Roll — Provides a complete hydraulic roll bending setup ready for shop use.
Specs
Baileigh R-H45 220V Electric Roll Bender with Hydraulic Top Roll Specifications
- Model Number: R-H45
- Stock Number: BA9-1006835
- Bend Capacity: 2.75 in. OD
- Pipe Capacity: 2" Schedule 40 Pipe
- Driven Rolls: 3
- Horse Power: 3.5 HP
- Input Power: 220V Single Phase
- Motor Phase: Single
- Net Weight: 1000 lb
- Warranty: 1 Year
