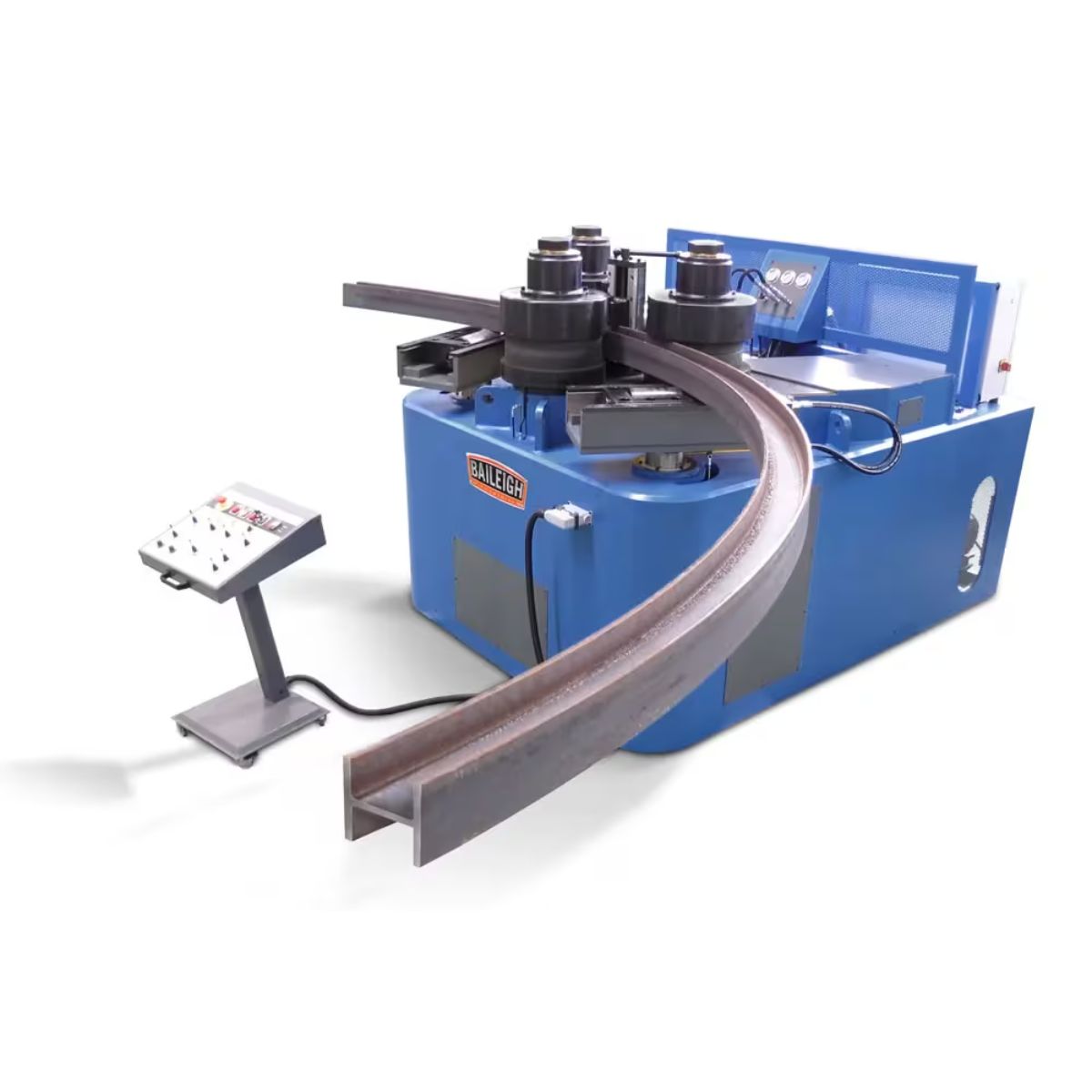

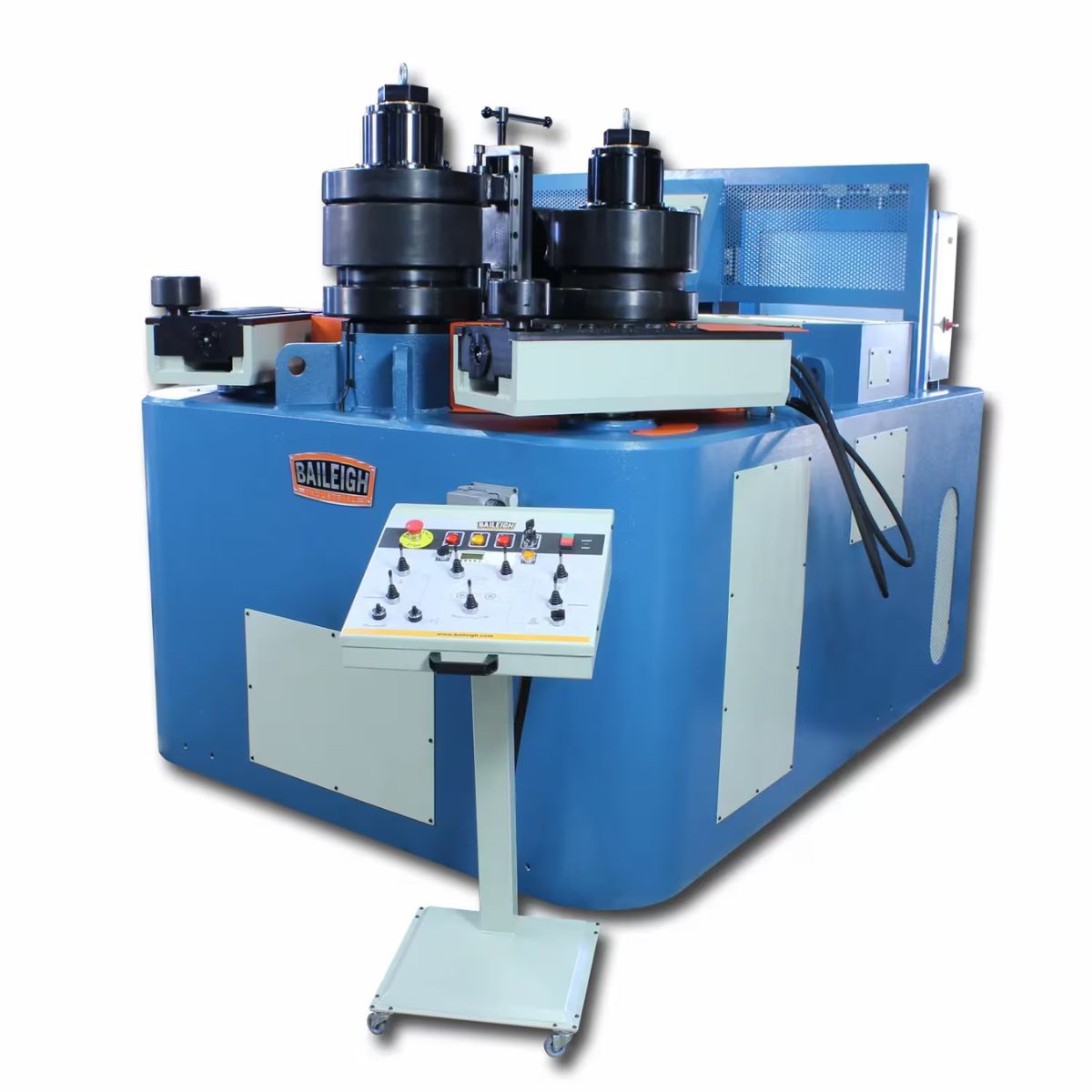

Baileigh R-H170 for Heavy-Duty Pipe and Tube Bending

Heavy Steel Frame Holds Up Under Daily Use

The R-H170 is built on a heavy-duty steel frame designed for long-term rigidity. This solid construction keeps the machine steady through extended production runs and repeated heavy bends.

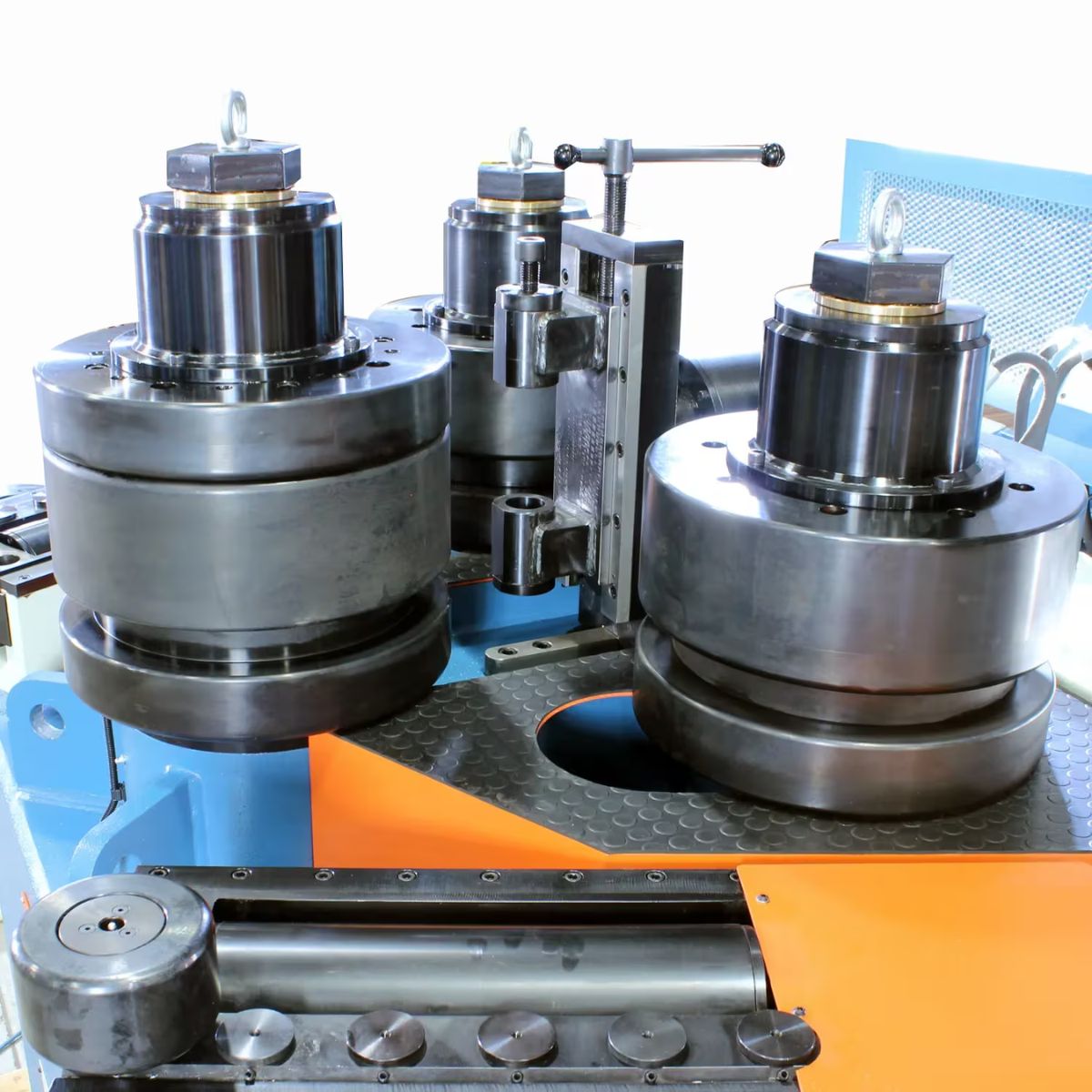

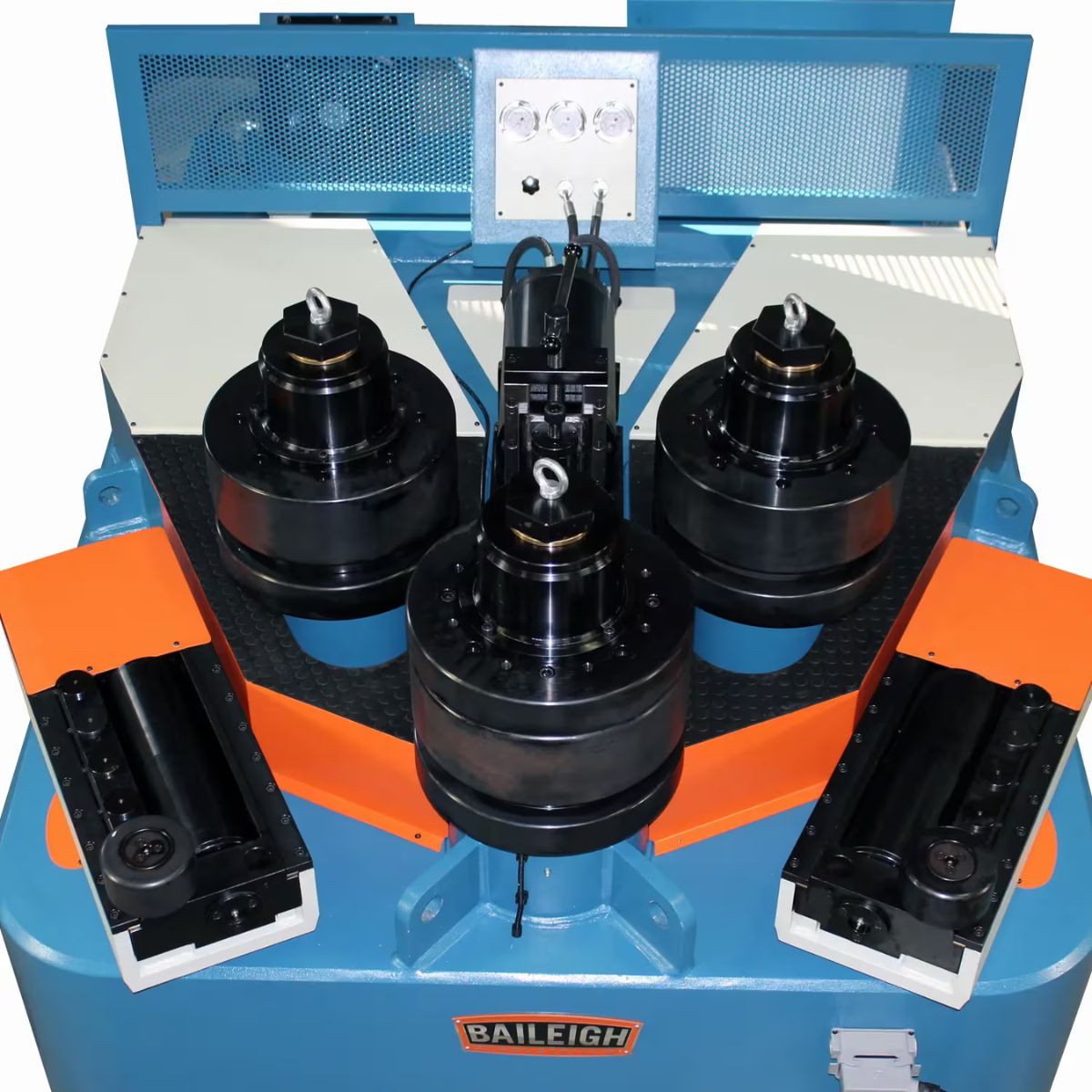

Three Variable-Speed Rolls Fine-Tune Every Bend

Three variable-speed driven rolls let you dial in the right forming speed for different materials and part shapes. This control helps you match the bend to the job instead of forcing one setting to work for everything.

Digital Readout Delivers Repeatable Bends

The digital readout tracks roll position so you can return to the same setting on future runs. This makes it easier to reproduce a bend accurately across multiple parts.

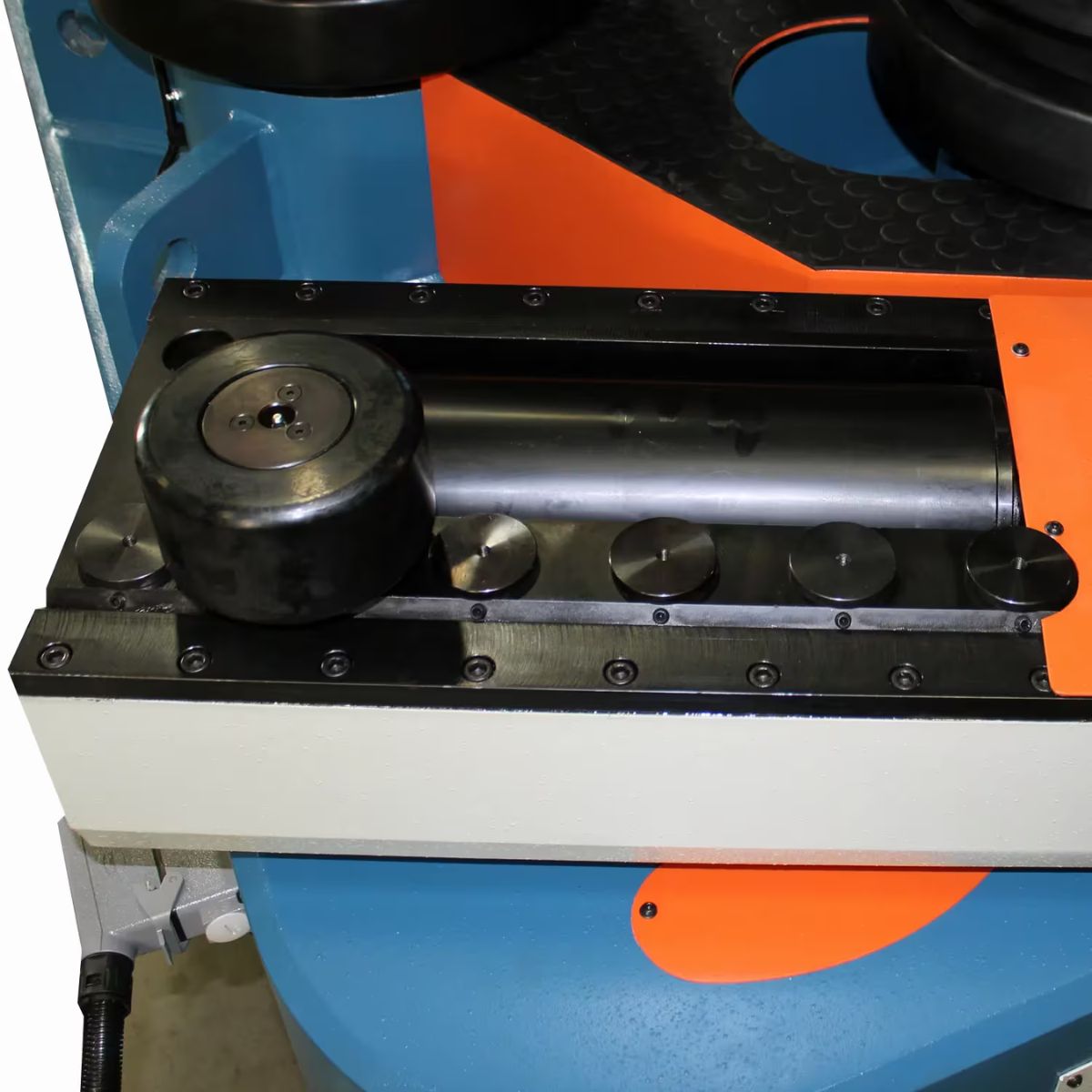

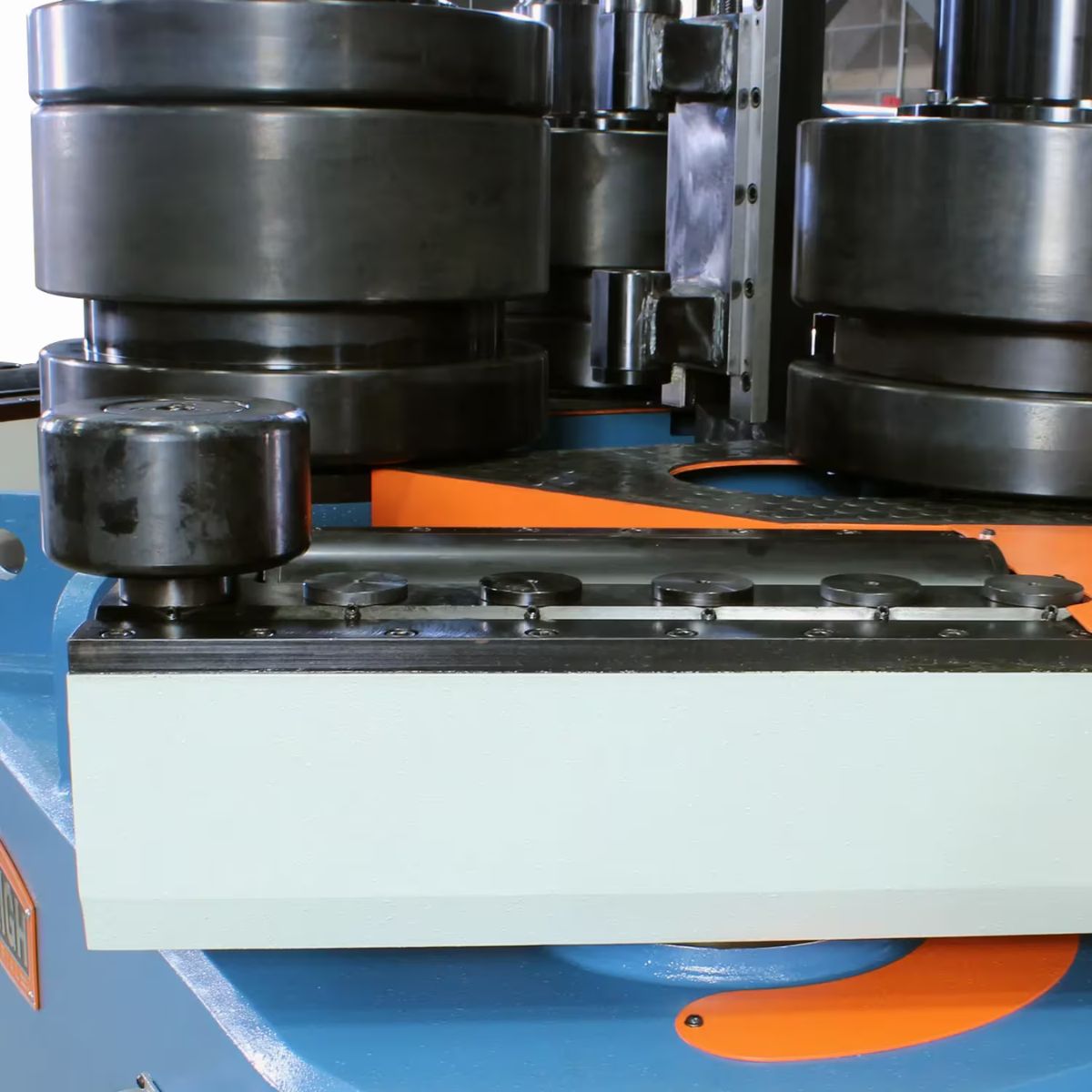

Hydraulic Guide Rolls Keep Material Aligned

Hydraulic guide rolls and angle guide rolls help hold material in position as it moves through the bend. This keeps the workpiece aligned and reduces drift during the forming process.

What's Included

What's Included? Baileigh R-H170 440/480V 3-Phase Hydraulic Double Pinch Roll Bender with Guide Rolls

• Baileigh R-H170 Roll Bender — Provides a fully hydraulic double pinch bending platform for heavy shop use.
• Hydraulic Guide Rolls — Keeps material aligned through the bend for consistent, accurate results.

Specs

Baileigh R-H170 440/480V 3-Phase Hydraulic Double Pinch Roll Bender with Guide Rolls Specifications

• Model: R-H170
• Stock Number: BA9-1006834
• Power: 440-480V, 3-Phase, 60Hz
• Motor: 5.3 HP
• Roll Adjustment: Hydraulic with digital readout
• Pipe Capacity: 6 in (Schedule 40)
• Square Tube Capacity: 4.7 in (.315 in wall)
• Solid Round Capacity: 4 in
• Flat Bar Easy Way: 9.75 in (1.5 in)
• Flat Bar Hard Way: 5.875 in (1.375 in)
• Lower Shaft Diameter: 6.69 in
• Upper Shaft Diameter: 7.48 in
• Length: 112 in
• Width: 102 in
• Height: 90 in
• Net Weight: 21,500 lb
• Warranty: 1 Year
