Baileigh R-H150 220V 3-Phase Hydraulic Double Pinch Profile Bending Machine
Are you struggling to get clean, repeatable bends on heavy tube and thick angle iron?
What if one machine could handle both round tube and heavy angle iron without losing accuracy?

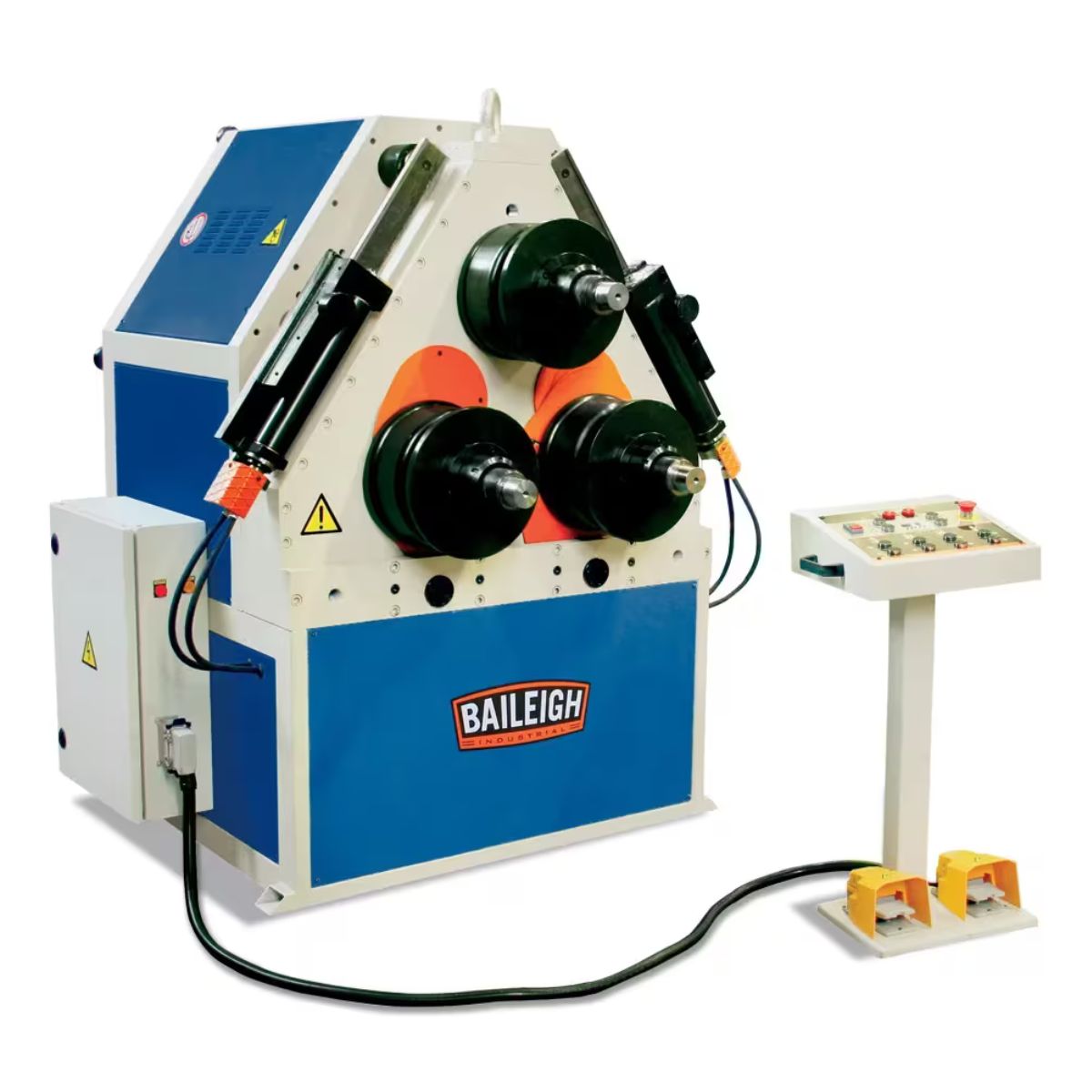

Meet the Baileigh R-H150, a hydraulic double pinch roll bender built for high capacity shop bending.
With three driven rolls, hydraulic lateral guides, and a digital readout, the R-H150 holds tight tolerances through long production runs.
When your bends come out consistent every time, you can move through big jobs with confidence.
Baileigh R-H150 for Precision Tube and Profile Bending
Double-Pinch Rolls Reduce Wasted Material

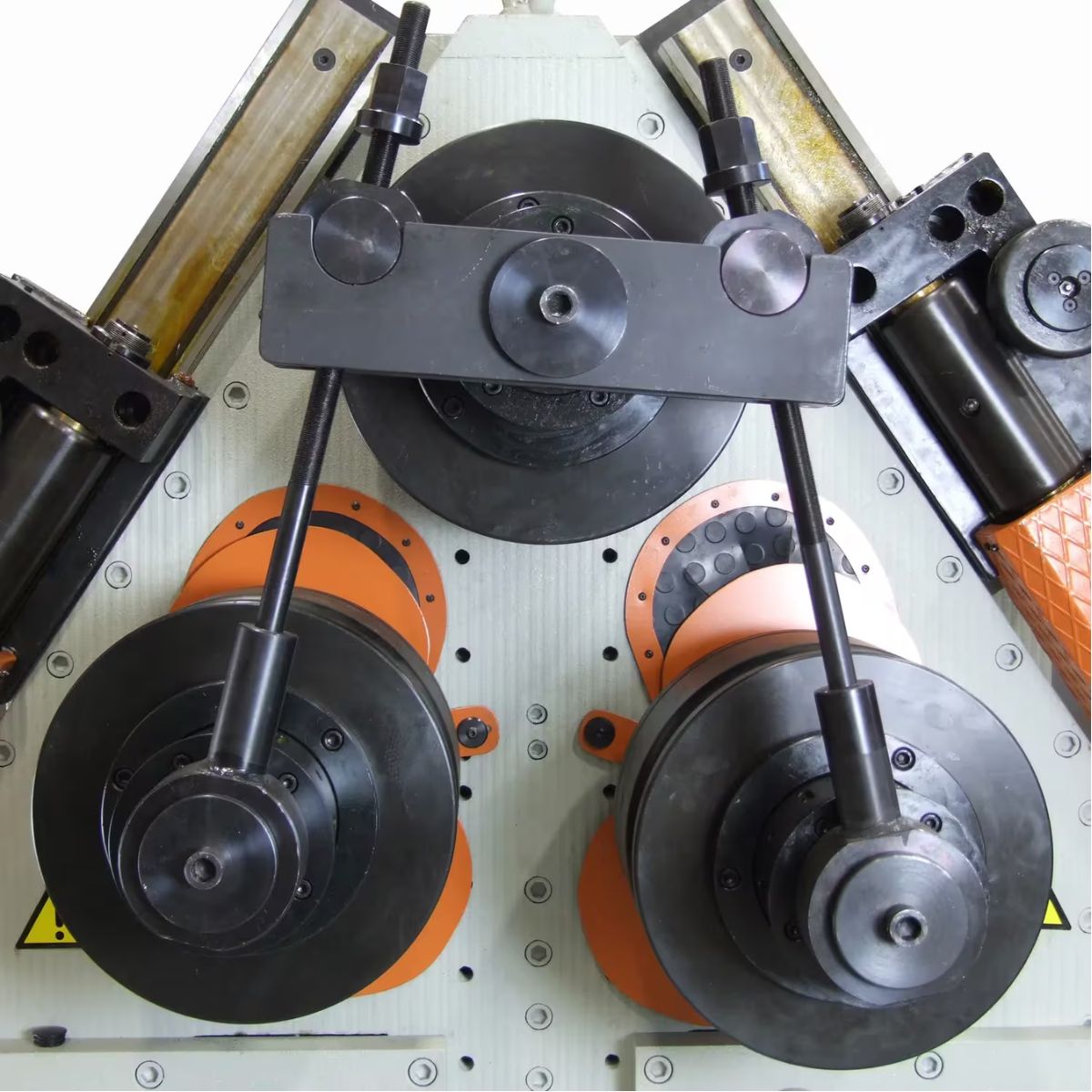

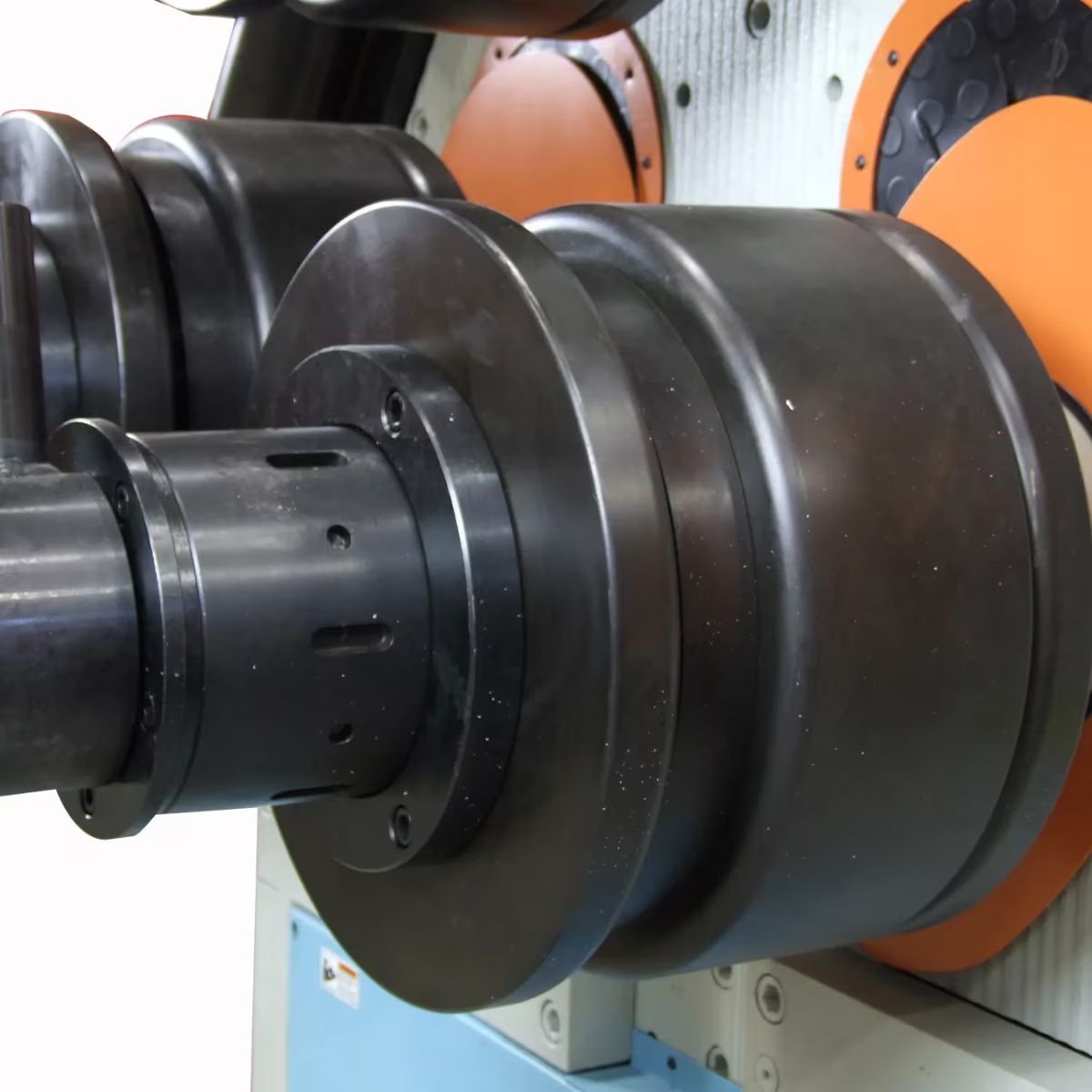

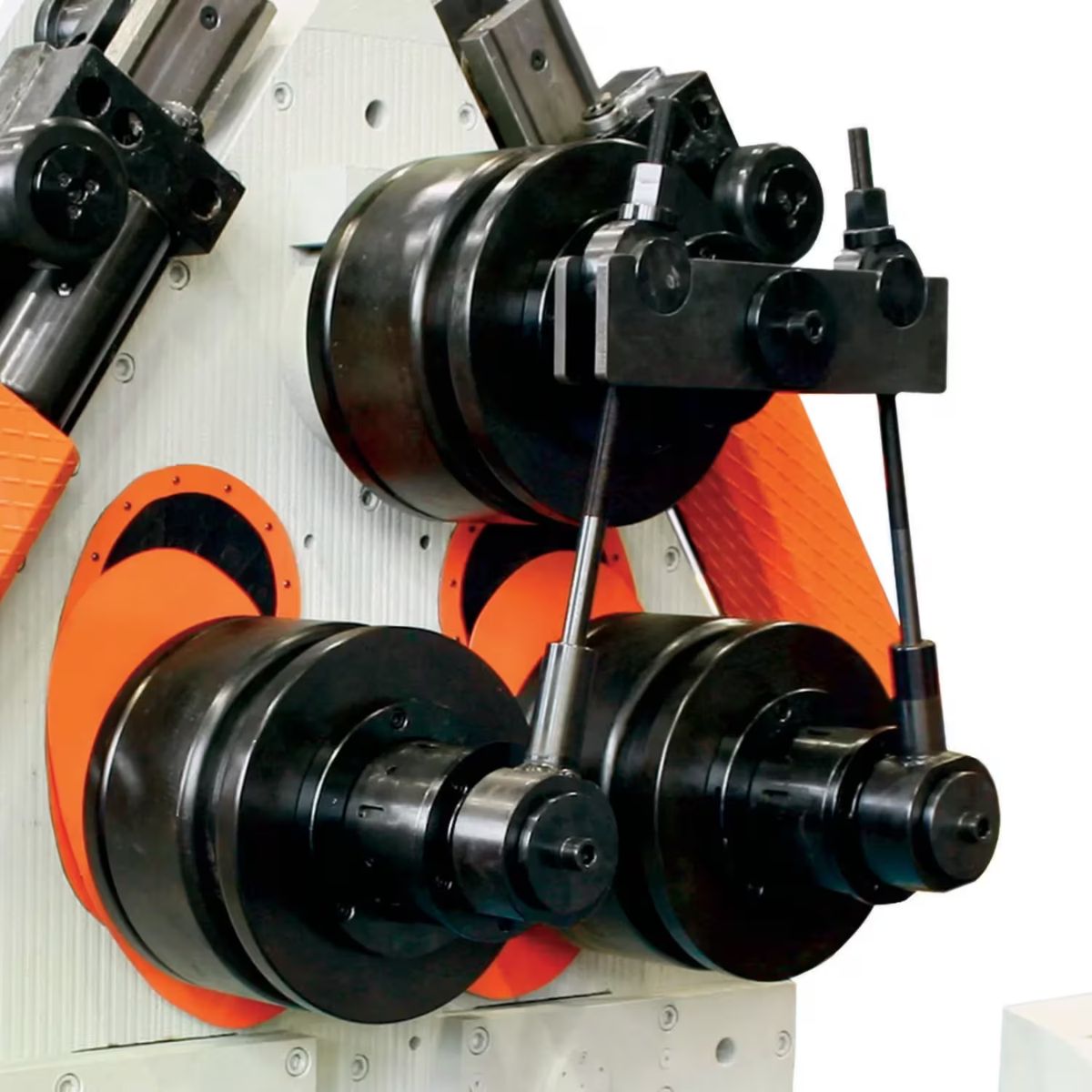

Two independent hydraulic bottom rolls and one fixed top roll grip the material from both ends of the bend. This double pinch design cuts down on the straight, unbent material left at the start and finish of each piece.
Digital Readout Delivers Repeatable Bends
A digital readout tracks roll position so you can return to the same setting on every run. That means less trial and error when you need to match a bend you already dialed in.

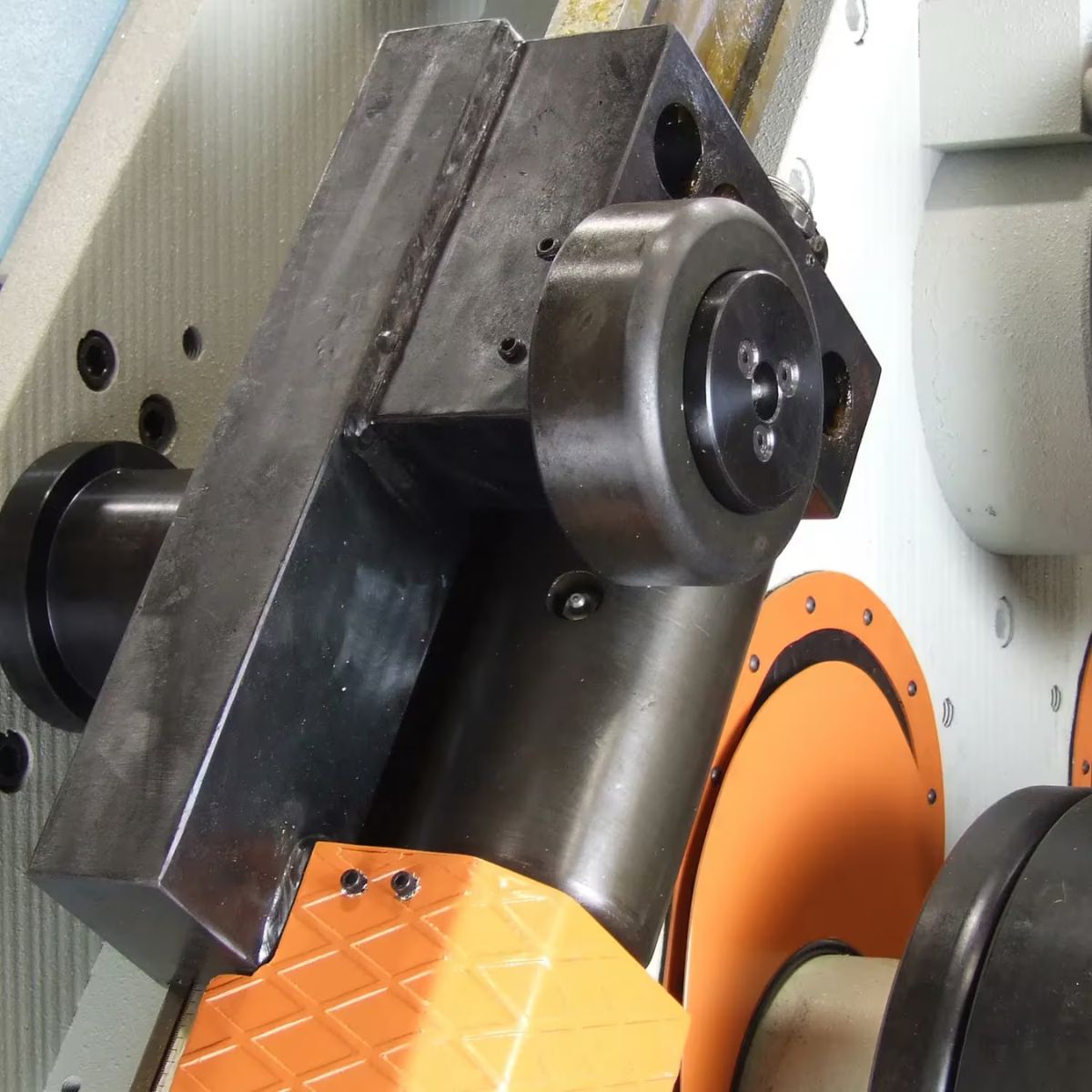

Hydraulic Lateral Guides Improve Alignment
Hydraulically driven lateral guides keep material tracking straight as it feeds through the rolls. Better alignment means fewer adjustments and cleaner results on long or heavy pieces.
Welded Steel Frame Handles Full Capacity Loads
The R-H150 frame is built from welded heavy steel plate to resist flex even at full bending capacity. A rigid frame keeps your bends accurate instead of drifting under load.
What's Included
What's Included? Baileigh R-H150 220V 3-Phase Hydraulic Double Pinch Profile Bending Machine
-
Baileigh R-H150 Hydraulic Roll Bender — Provides double-pinch hydraulic bending for round tube and angle iron profiles.
-

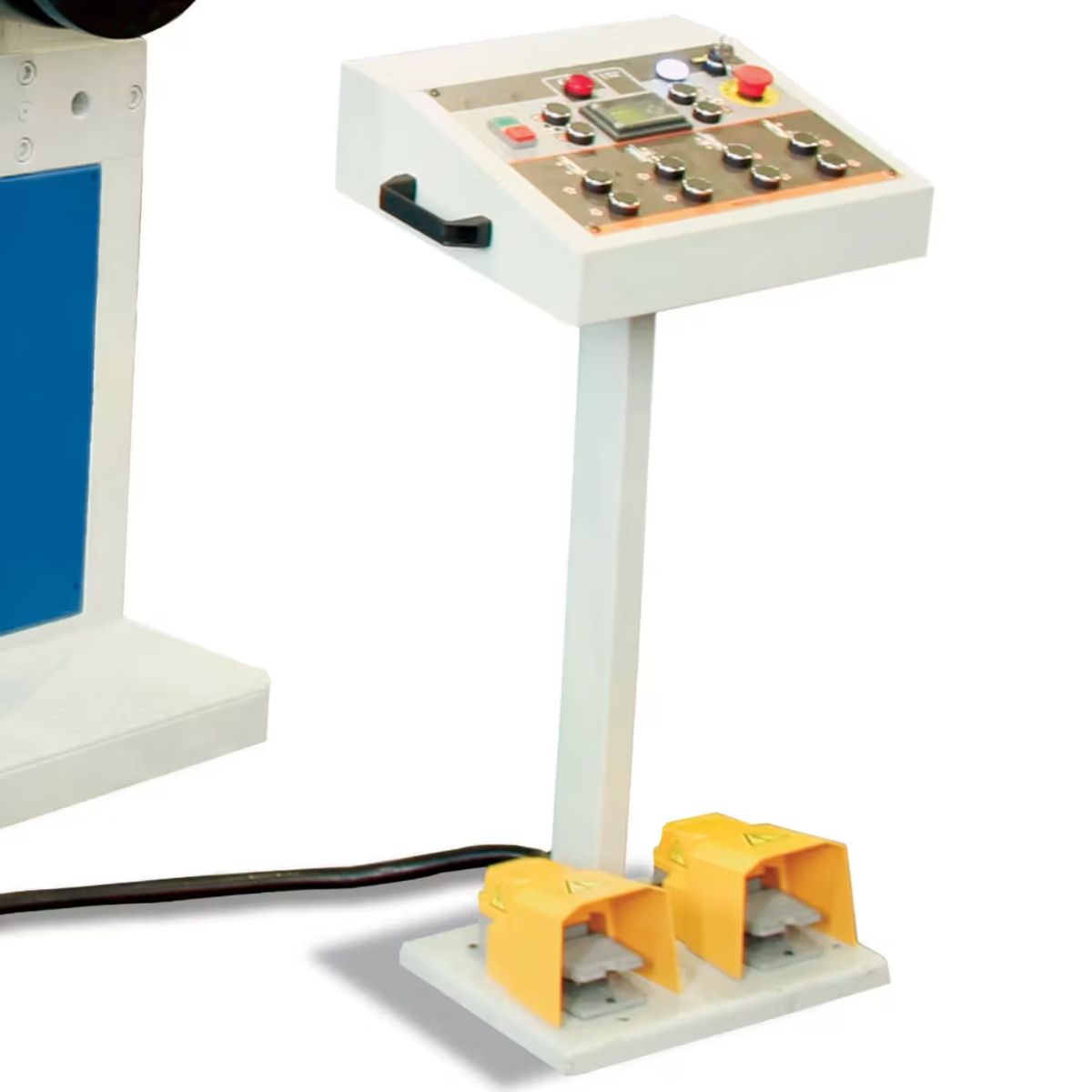

Movable Operator Podium with Foot Pedals — Lets you control forward and reverse bending motion from the material side of the machine.
Specs
Baileigh R-H150 220V 3-Phase Hydraulic Double Pinch Profile Bending Machine Specifications
- Model: R-H150
- Stock Number: BA9-1006833
- Bend Capacity: 6.25 in. OD round tube
- Angle Iron Capacity: 4.75" x 4.75" x 0.5"
- Driven Rolls: 3 (2 hydraulic bottom rolls, 1 fixed top roll)
- Input Power: 220V Three Phase
- Horsepower: 20 HP
- Gross Weight: 10,400 lb
- Net Weight: 10,400 lb
- Warranty: 1 Year
