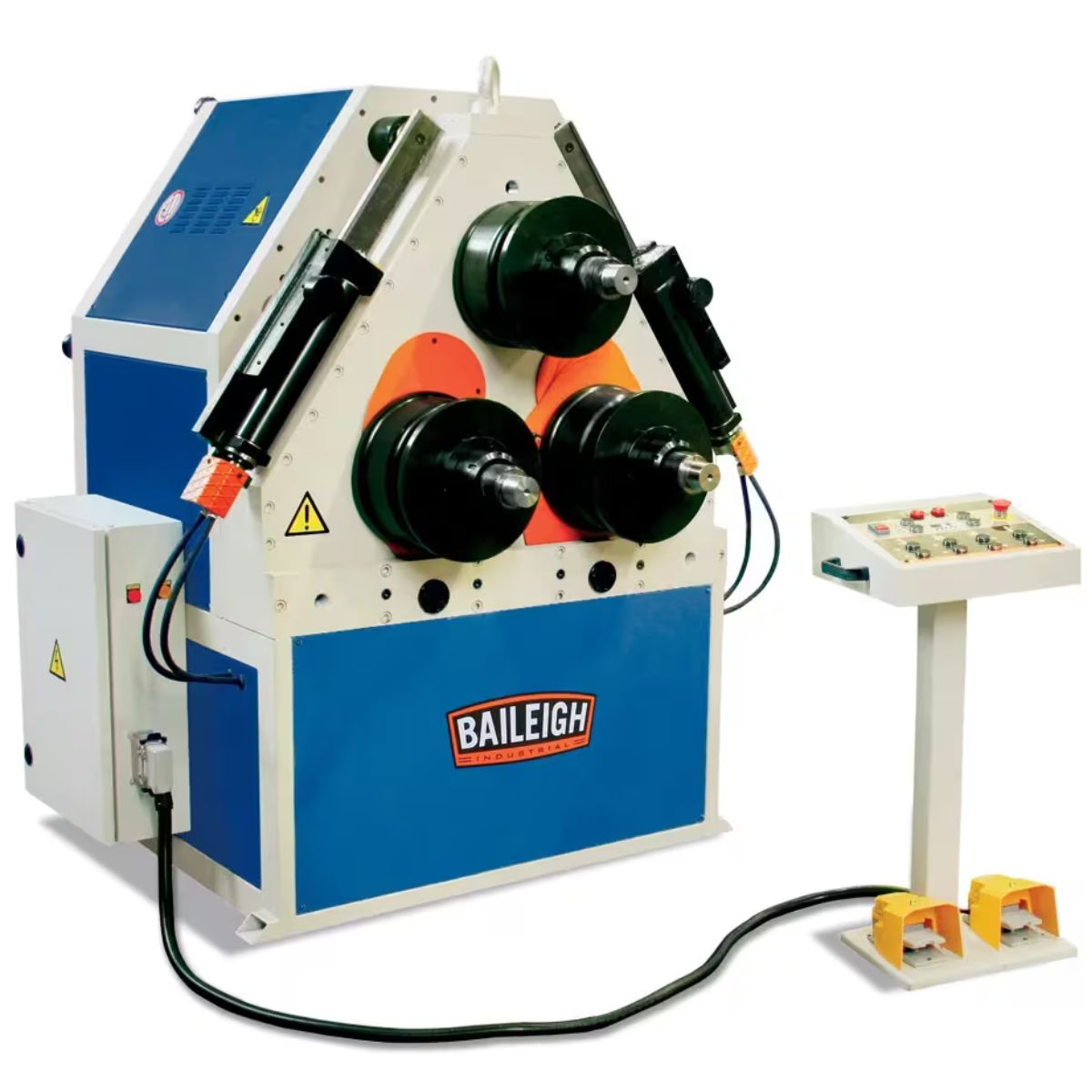

Baileigh R-H120 220V 3-Phase Hydraulic Double Pinch Roll Bender
Are you bending pipe and tube by hand, hoping the radius holds true every time?
What if a bender gave you consistent, repeatable bends without wasting straight material at both ends?
Meet the Baileigh R-H120 Hydraulic Roll Bender, a double pinch machine built for serious pipe and tube work.
With two hydraulic bottom rolls, a fixed top roll, and a digital readout, the bender holds tight tolerances bend after bend.
When the frame stays rigid and the readout stays accurate, you can trust every bend to match the last.
Baileigh R-H120 for Heavy Pipe and Tube Bending

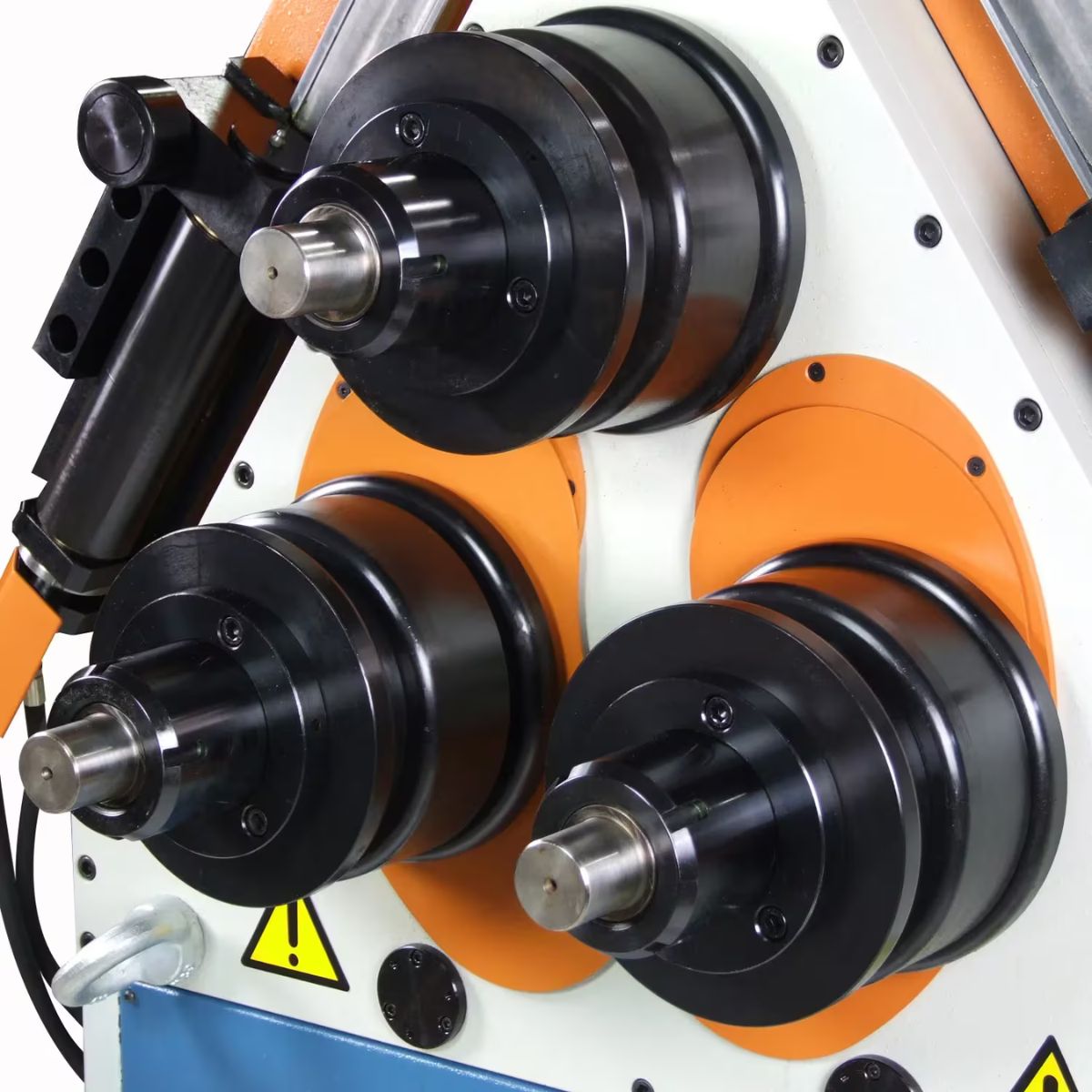

Double Pinch Rolls Reduce Wasted Material
Two independent hydraulic bottom rolls and one fixed top roll pinch the material at both ends of the bend. This double pinch design keeps more of your pipe or tube usable, cutting down on scrap at the start and finish of each run.
Digital Readout Keeps Bends Repeatable
A digital readout tracks roll position so you can return to the same setting on future jobs. That means less time trial fitting and more consistent radius from the first piece to the last.

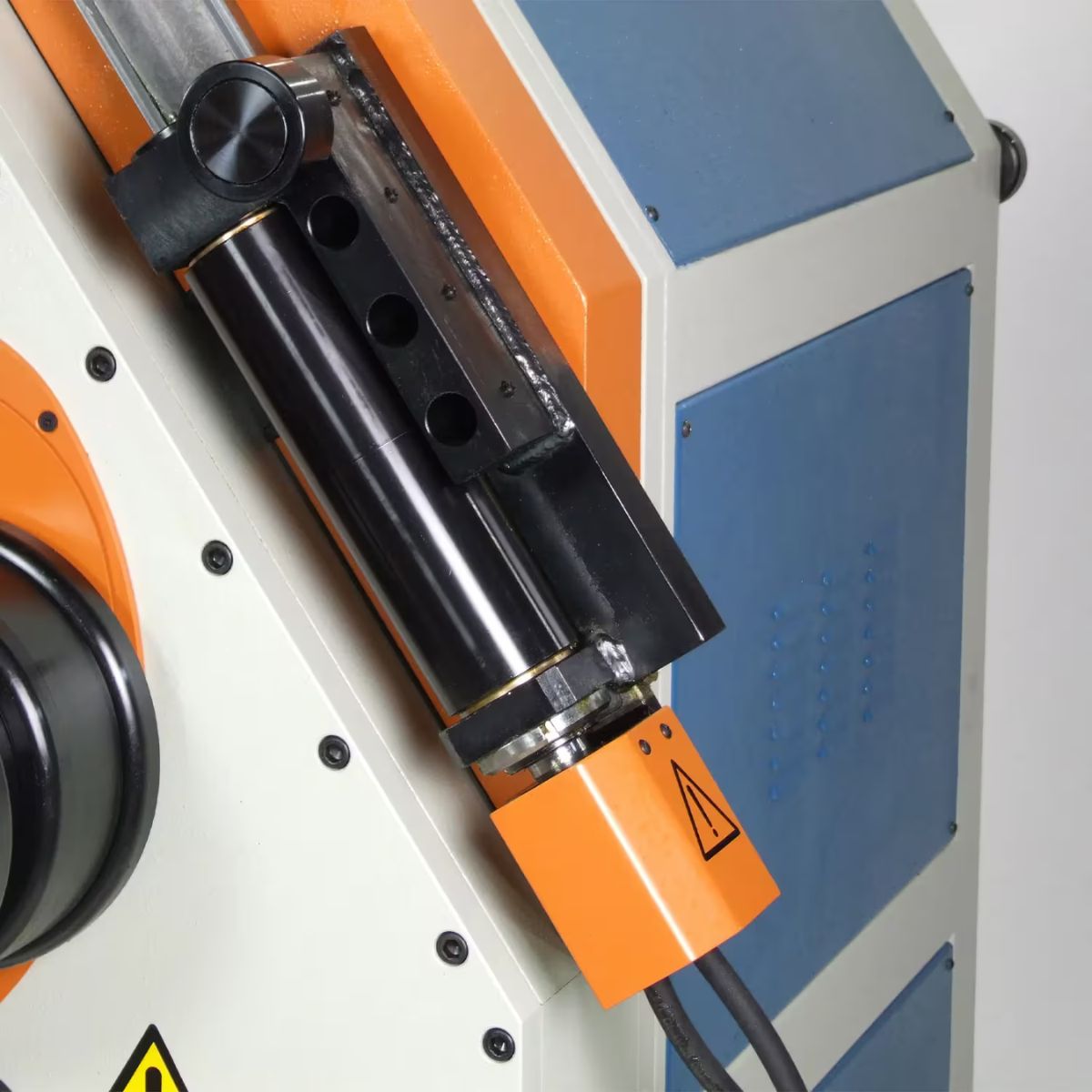

Hydraulic Lateral Guides Improve Alignment
Hydraulically driven lateral guides hold pipe and tube in position as it feeds through the rolls. Keeping material aligned reduces drift during the bend and helps you hit the same line every time.
Vertical and Horizontal Operation Adds Shop Flexibility
The R-H120 can be run in vertical or horizontal orientation depending on the job and material. That flexibility lets one machine handle a wider range of bending work in your shop.
What's Included
What's Included? Baileigh R-H120 220V 3-Phase Hydraulic Double Pinch Roll Bender
-
Baileigh R-H120 Hydraulic Roll Bender — A complete double pinch bending unit with digital readout, hydraulic lateral guides, and a movable operator podium.
Specs
Baileigh R-H120 220V 3-Phase Hydraulic Double Pinch Roll Bender Specifications
- Model: R-H120
- Stock Number: BA9-1006829
- Input Power: 220V Three Phase
- Motor Phase: Three
- Horse Power: 15 HP
- Driven Rolls: 3 rolls, 2 hydraulic bottom rolls and 1 fixed top roll
- Bend Design: Double pinch
- Maximum Round Tube Capacity: 5.5" OD
- Maximum Pipe Capacity: 4.5" schedule 40 pipe

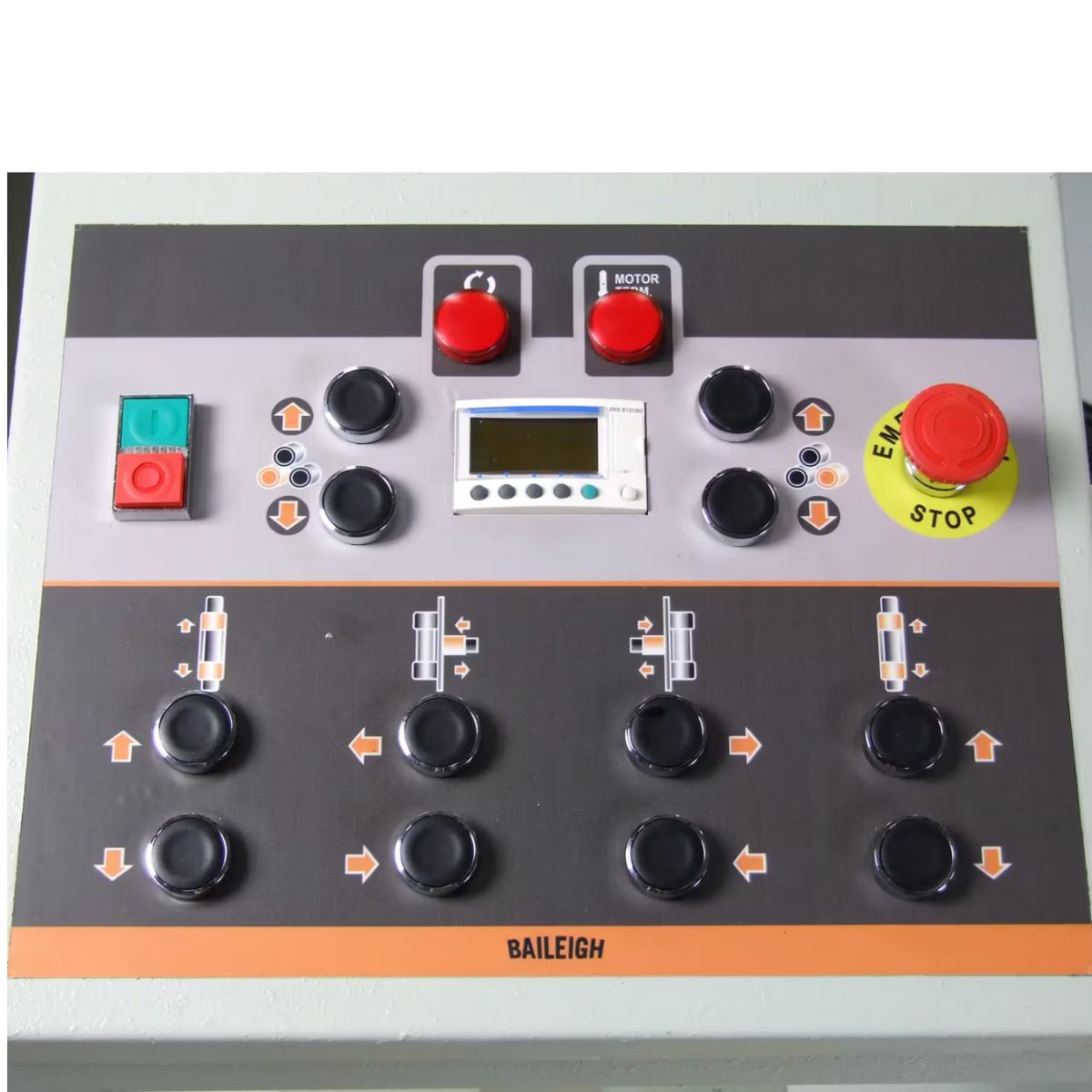

- Controls: Movable operator podium with foot pedals for forward and reverse
- Digital Readout: Tracks roll position for repeatable bends
- Lateral Guides: Hydraulically driven
- Operational Modes: Vertical or horizontal
- Gross Weight: 5,000 lb
- Net Weight: 5,000 lb
- Warranty: 1 Year Parts, Lifetime Technical Support
