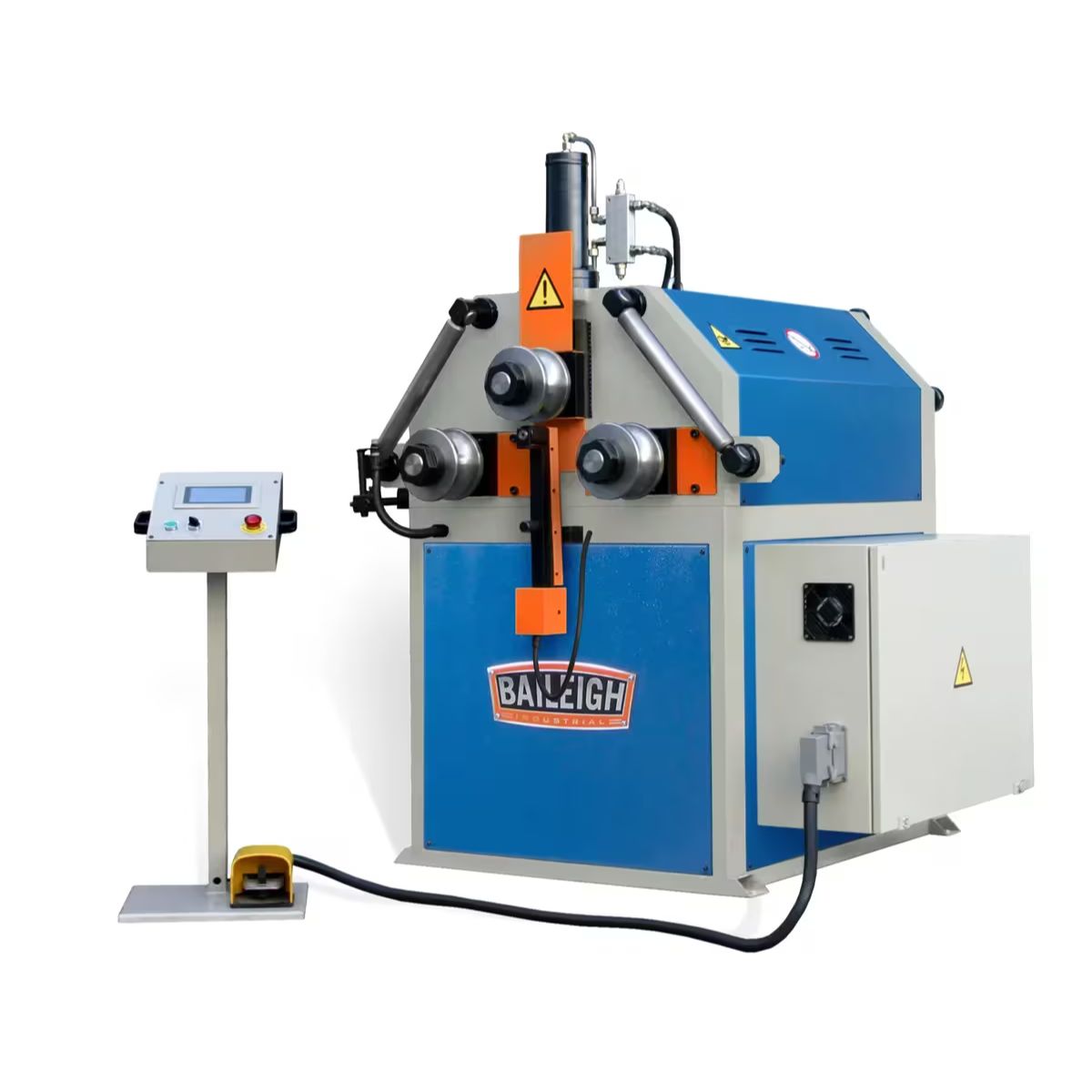

Baileigh R-CNC80 220V 3-Phase CNC Hydraulic Roll Bender with Arc Meter
Are you looking for a roll bender that can repeat the same bend accurately, run after run?
What if your shop had a CNC roll bender that saves every profile for you?
Meet the Baileigh R-CNC80, a computer controlled hydraulic roll bender built for production bending work.
With three driven variable speed rolls and a heavy electro welded steel frame, the R-CNC80 holds its calibration through long runs.
When the machine remembers your program, you can move from one job to the next without resetting the setup.
Baileigh R-CNC80 for Production Tube and Pipe Bending
CNC Control Podium Stores Repeatable Bend Programs
The digital control podium lets you save up to 40 programs with as many as 24 segments each. Once a program is set, you can run the same bend again without resetting the machine by hand.
Three Driven Rolls Keep Material Moving Through the Bend
Three driven, variable speed rolls move tube and pipe through the bending process with steady control. The double pinch design helps keep material aligned as it feeds through each pass.
Heavy Electro Welded Frame Holds Calibration Under Load
A heavy electro welded steel frame gives the machine the rigidity it needs to hold its settings through repeated production runs. This keeps bend results consistent from the first part to the last.
Selectable Roll Movement Adjusts to the Job at Hand
The R-CNC80 offers selectable progressive or direct top roll movement to match different bending needs. Foot pedal controls work alongside the digital podium so the operator can adjust roll position without stepping away from the material.
What's Included
What's Included? Baileigh R-CNC80 220V 3-Phase CNC Hydraulic Roll Bender with Arc Meter
-
Baileigh R-CNC80 CNC Roll Bender — Provides a computer controlled hydraulic roll bender ready for production tube and pipe bending work.
Specs
Baileigh R-CNC80 220V 3-Phase CNC Hydraulic Roll Bender with Arc Meter Specifications
- Model: R-CNC80
- Stock Number: BA9-1006764
- Input Power: 220V 3-Phase
- Motor HP: 7.5 HP
- Bend Capacity: 4 in. OD tube
- Pipe Capacity: 2.5 in. Schedule 40 pipe
- Driven Rolls: 3 driven, variable speed (double pinch design)
- Roll Diameter: 6.693 in.
- Program Memory: 40 programs, up to 24 segments per program
- Profile Calibrations: 75 profile calibrations
- Digital Readout: Yes
- Gross/Net Weight: 2,400 lb
- Warranty: 1 Year
