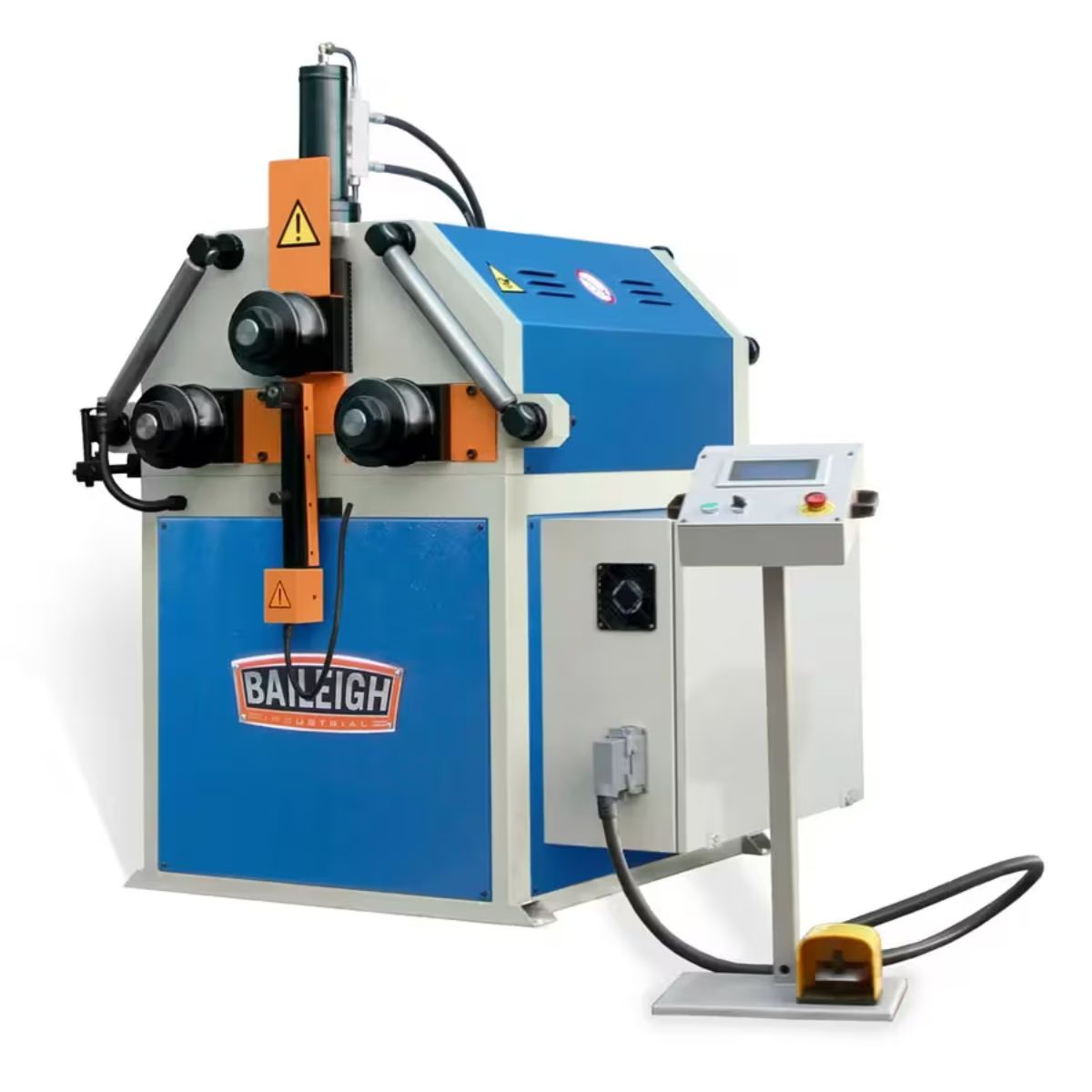

Baileigh R-CNC45 220V 3-Phase CNC Hydraulic Roll Bender with Arc Meter
Are you looking for a CNC roll bender that holds tight tolerances on repeat production runs?
What if your shop had a compact machine that bends tube and pipe with the same accuracy every time?
Meet the Baileigh R-CNC45, a computer controlled hydraulic roll bender built for precision tube and pipe work.
With a double-pinch design, electro-welded steel frame, and touchscreen CNC controls, this machine holds steady through demanding bending jobs.
When the bender repeats a program accurately, you can move through production runs with confidence.
Baileigh R-CNC45 for Precision CNC Tube and Pipe Bending
Double-Pinch Hydraulic Design Reduces Bending Flex
The R-CNC45 uses a double-pinch hydraulic design that holds the material firmly while forming. This keeps flex to a minimum, so bends stay consistent from the first part to the last.
Touchscreen CNC Controller Simplifies Program Setup
The touchscreen control podium stores up to 40 programs with as many as 24 bends each. Once a program is set, the operator can run repeat bends without resetting the machine each time.
Three Driven Rolls and Hydraulic Guides Improve Material Control
Three driven variable-speed rolls work with hydraulic lateral guide rolls to keep tube and pipe tracking straight through the bend. Interchangeable bottom rolls let the machine adapt to different material profiles.
Electro-Welded Steel Frame Holds Up to Production Work
The frame is built from electro-welded steel plate for added rigidity under load. A stiffer frame helps the machine hold its accuracy through long production runs.
What's Included
What's Included? Baileigh R-CNC45 220V 3-Phase CNC Hydraulic Roll Bender with Arc Meter
-
Baileigh R-CNC45 CNC Roll Bender — Provides a complete computer controlled hydraulic roll bending platform ready for shop setup.
Specs
Baileigh R-CNC45 220V 3-Phase CNC Hydraulic Roll Bender with Arc Meter Specifications
- Model: R-CNC45
- Stock Number: BA9-1006760
- Input Power: 220V Three Phase
- Amp Draw: 15 amps
- Horse Power: 7 HP
- Motor HP: 7.5
- Motor Phase: Three
- Maximum Tube Capacity: 2.5" OD round tube
- Maximum Pipe Capacity: 2" schedule 40 pipe
- Driven Rolls: 3, variable-speed, double-pinch design
- Bend Capacity: 2.5 in. OD
- Roll Diameter: 6.693 in.
- Distance Between Centers: Adjustable (lower rolls)
- Digital Readout: Yes
- Program Memory: Up to 40 programs, up to 24 bends per program
- Net Weight: 1,670 lb
- Gross Weight: 1,670 lb
- Warranty: 1 Year Parts, Lifetime Technical Support
