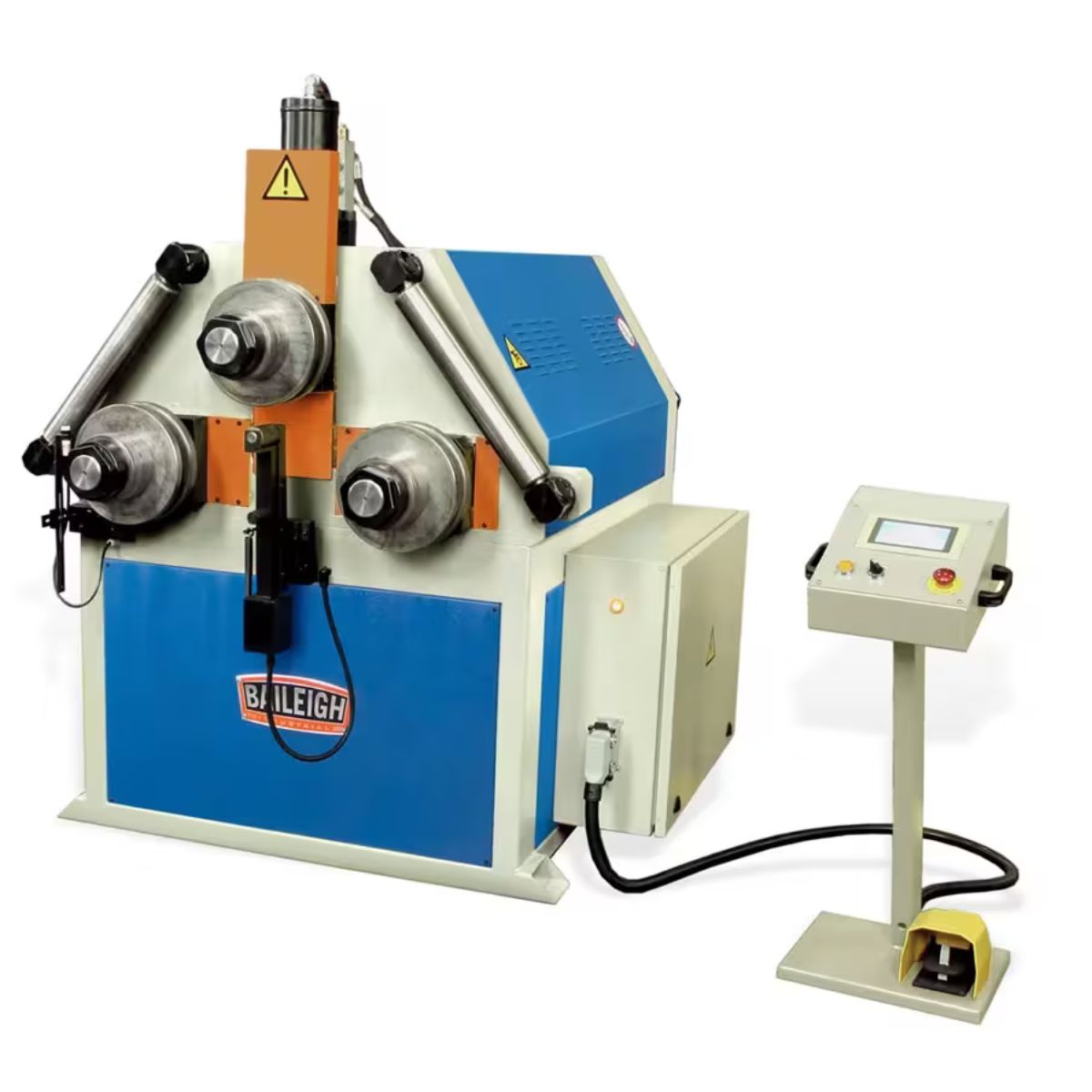

Baileigh R-CNC120 480V 3-Phase CNC Hydraulic Roll Bender with Arc Meter
Are you tired of hand-adjusting your roll bender for every new radius on a production run?
What if your shop could load a program once and repeat the same bend every time?
Meet the Baileigh R-CNC120, a CNC hydraulic roll bender built for accurate, repeatable tube and pipe forming.
With a touchscreen podium, internal program memory, and an included arc meter, the R-CNC120 gives you real control over every bend.
When the machine holds the program steady from part to part, you can focus on the run instead of the setup.
Baileigh R-CNC120 for CNC Tube and Pipe Bending
Touchscreen Podium Simplifies Program Control
The R-CNC120 runs from a touchscreen operator podium that puts every setting in one place. You can build, save, and recall bend programs without stopping to reset the machine by hand.
Internal Program Memory Speeds Repeat Production
The control stores up to 40 programs with 24 segments each, so repeat jobs load in seconds. Up to 75 profile calibrations let you dial in multi-radius bends without starting from scratch each time.
Hydraulic Roll Adjustment Supports Multiple Profiles
Hydraulic roll adjustment lets the machine handle round tube, pipe, and other profiles within its rated capacity. This keeps changeovers fast when a job calls for a different shape or size.
Heavy Steel Frame Holds Up Under Load
The electro-welded steel frame is built to stay rigid under the force of daily bending work. A stable frame helps the machine hold its accuracy over years of production use.
What's Included
What's Included? Baileigh R-CNC120 480V 3-Phase CNC Hydraulic Roll Bender with Arc Meter
-
Baileigh R-CNC120 CNC Roll Bender — The complete hydraulic roll bending machine with touchscreen controls.
-
Arc Meter — Gives you a precise readout for measuring bend progress as you work.
Specs
Baileigh R-CNC120 480V 3-Phase CNC Hydraulic Roll Bender with Arc Meter Specifications
- Model: R-CNC120
- Stock Number: BA9-1006758
- Input Power: 480V 3-Phase
- Horsepower: 7 HP
- Round Tube Capacity: 4.75" OD
- Pipe Capacity: 4" Schedule 40
- Roll Diameter: 6.693 in
- Program Storage: 40 programs, 24 segments each
- Profile Calibrations: Up to 75
- Length: 73 in
- Width: 64 in
- Height: 76 in
- Net Weight: 3,540 lb
- Warranty: 1 Year Parts, Lifetime Technical Support
