Baileigh PT-105HD-W-V2 5' x 10' CNC Plasma Table with Integrated Water Bath
Are you spending too much time on layout and hand cutting when your shop needs accurate, repeatable parts?
What if you had a full 5 foot by 10 foot CNC plasma table that could cut the same part the same way every time.
Meet the Baileigh PT-105HD-W-V2, a heavy-duty water bath CNC plasma table built for production fabrication work.
With a 60 by 122 inch cutting area, stepper motor drives on all axes, automatic torch height control, and BobCAD-CAM Express software included, the table gives you the tools to go from a DXF file to a finished part.
When the table runs your program precisely and the water bath keeps the work area clear, you can stay focused on what the shop needs to produce.
Baileigh PT-105HD-W-V2 for Production Plasma Cutting

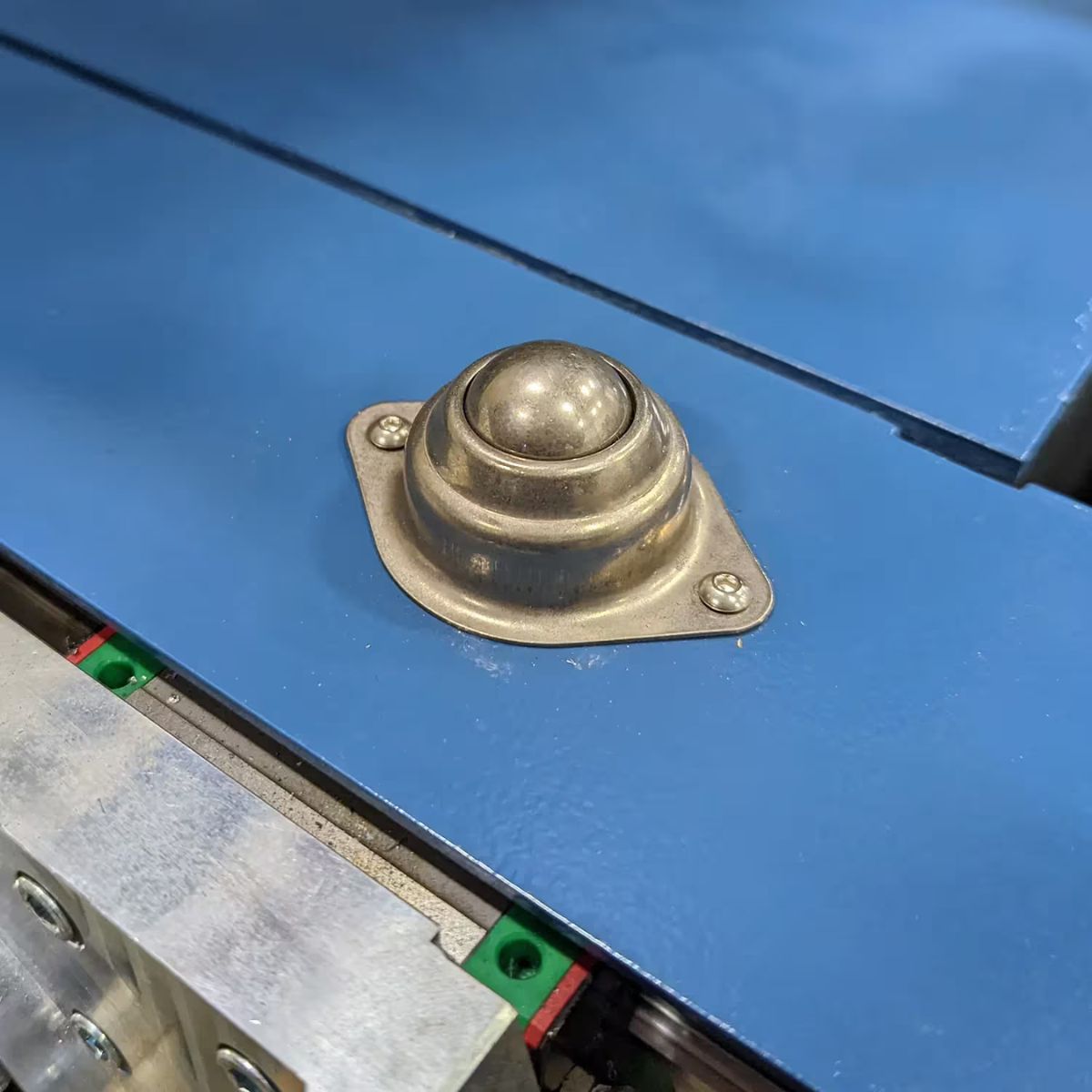

Heavy-Duty Welded Steel Frame Holds Squareness Under Load
The table is built on a welded steel frame sized to handle full 5 foot by 10 foot sheets of mild steel up to 1 inch thick. The rigid frame keeps the gantry square and supports consistent cut quality across the full cutting area from one job to the next.

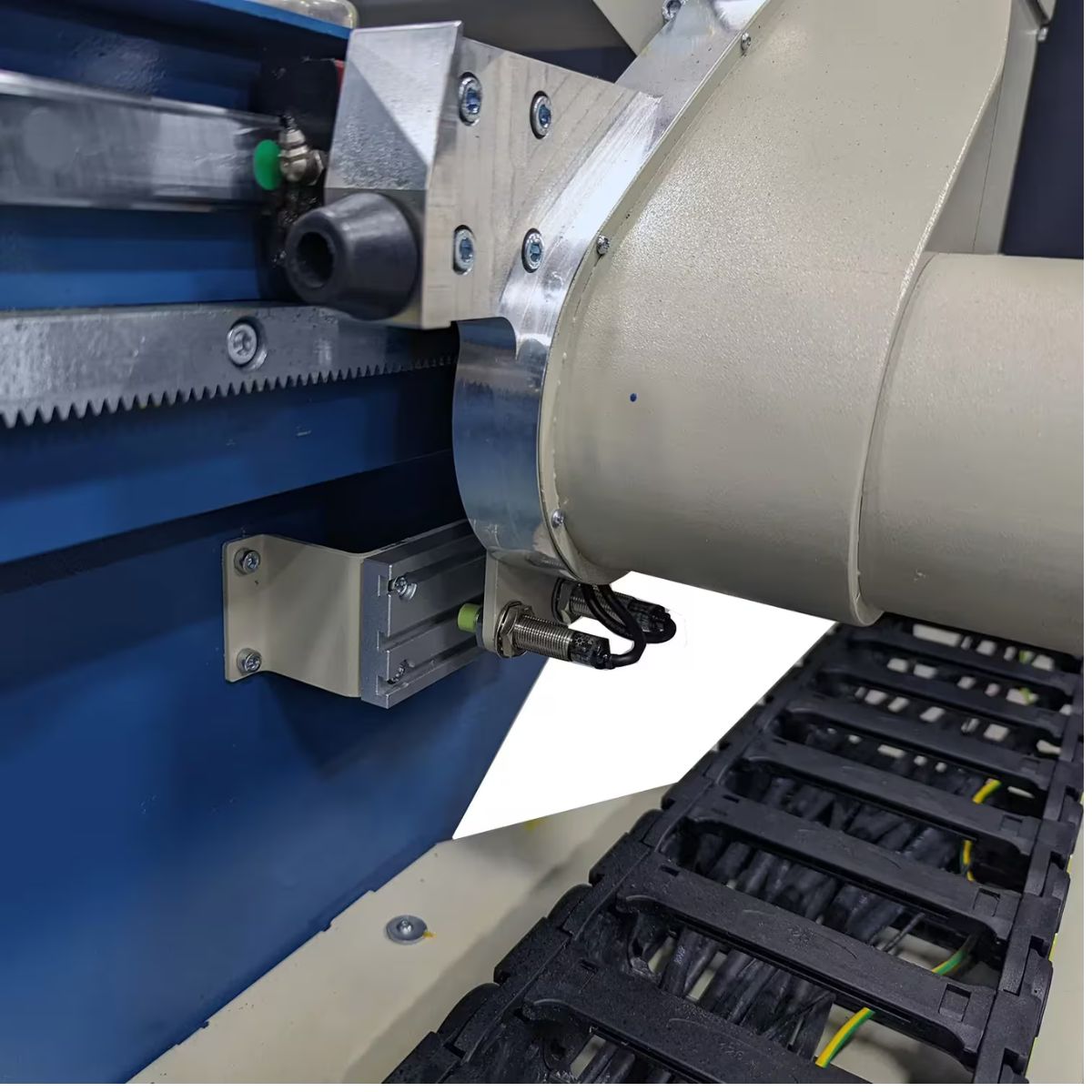

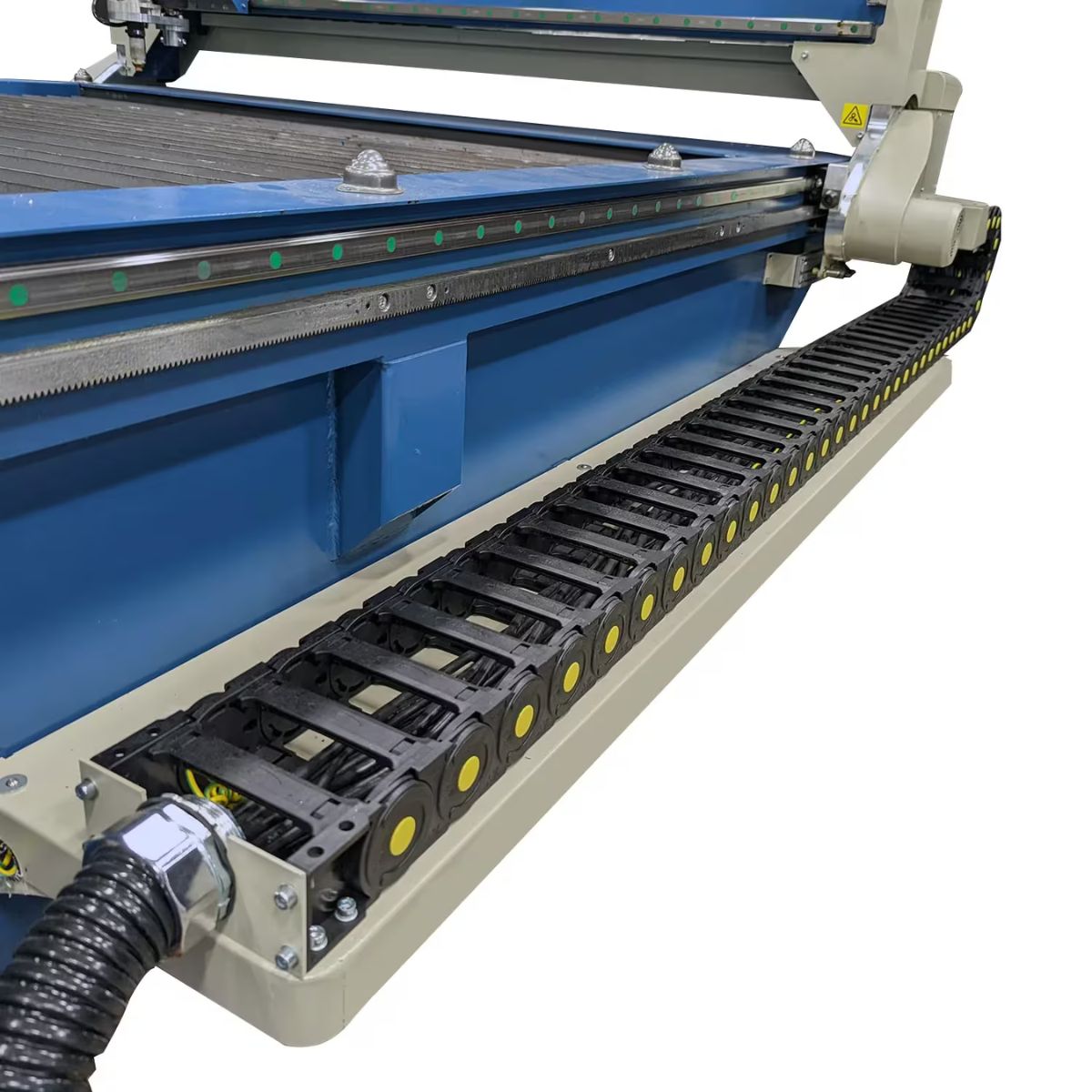

Stepper Motor Drive System Controls All Three Axes

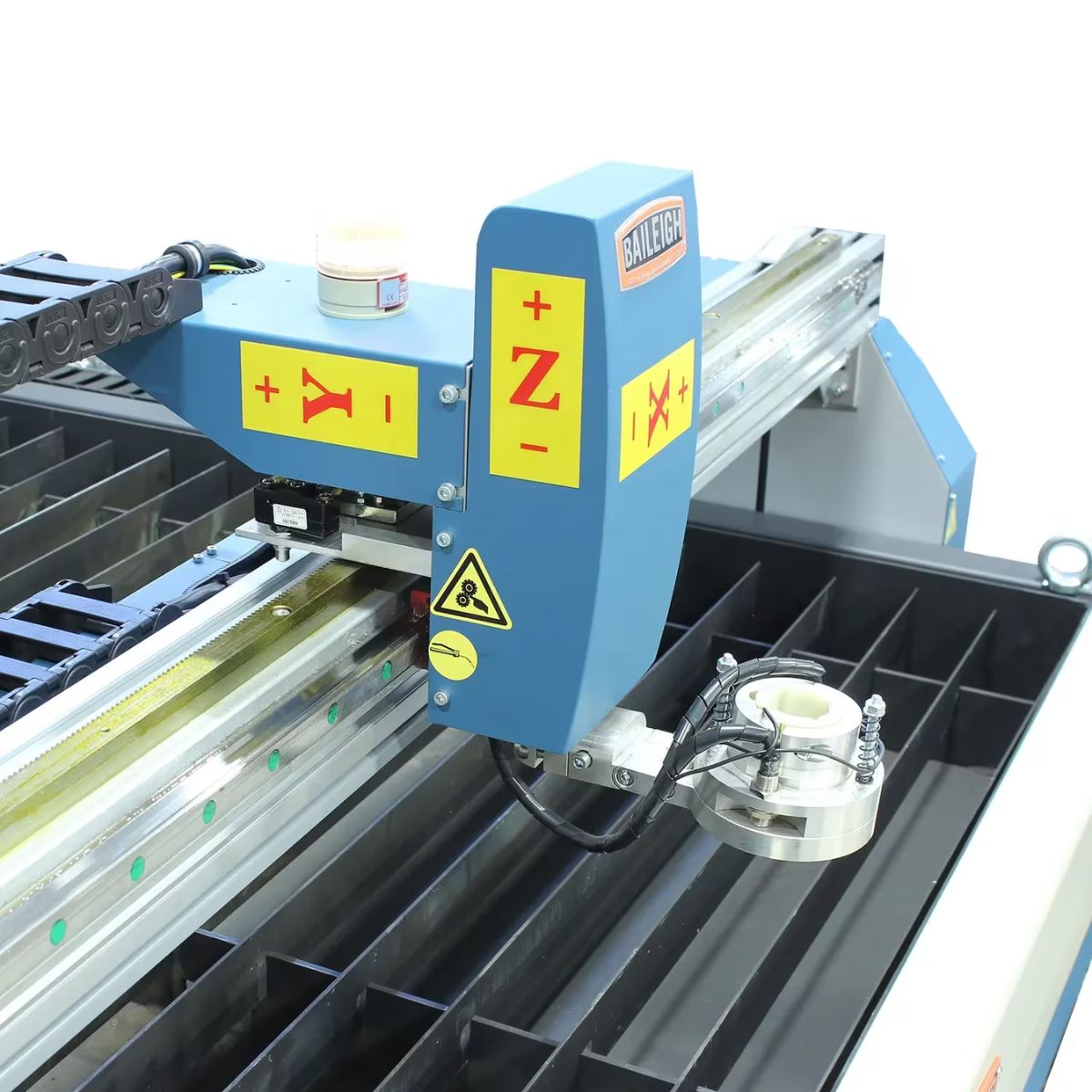

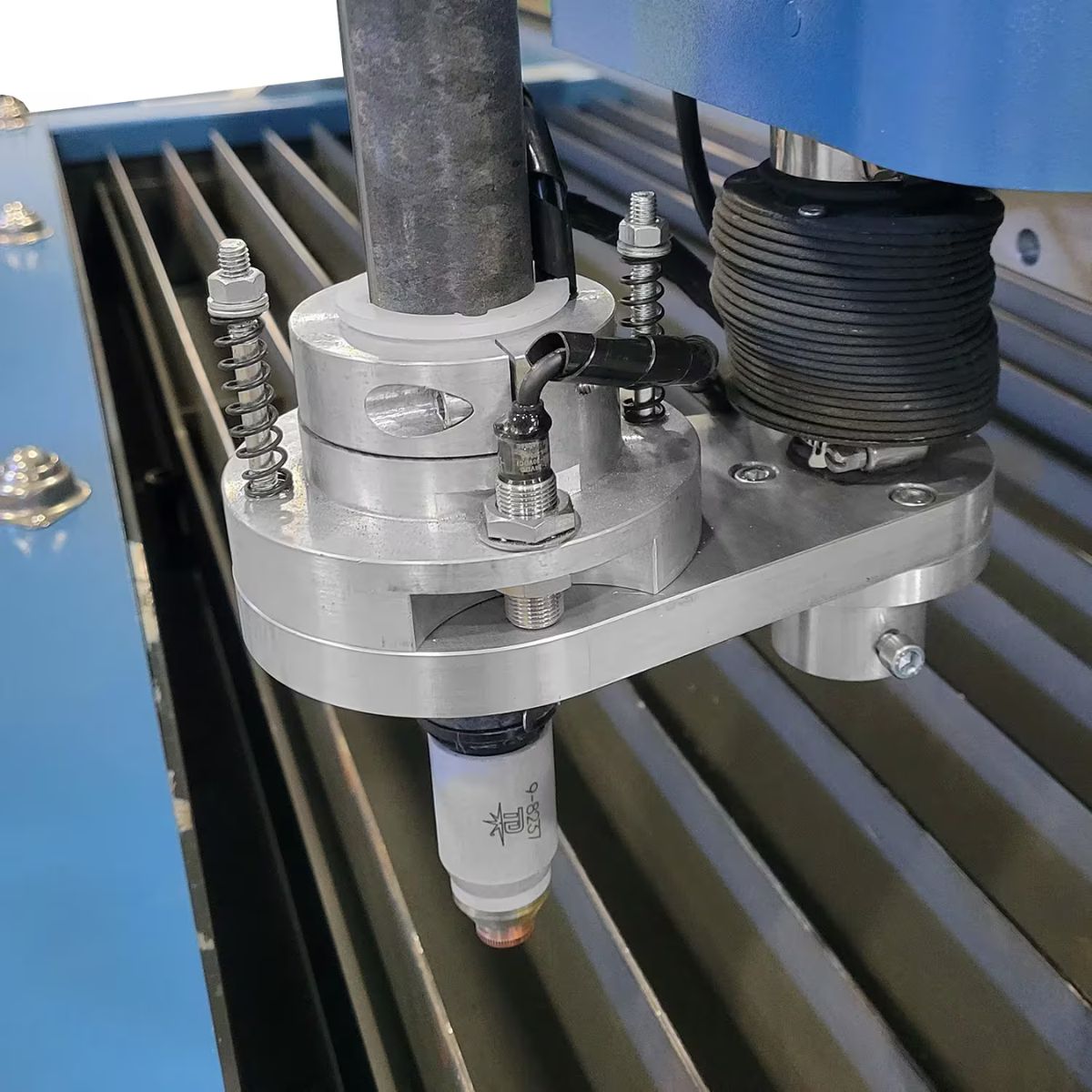

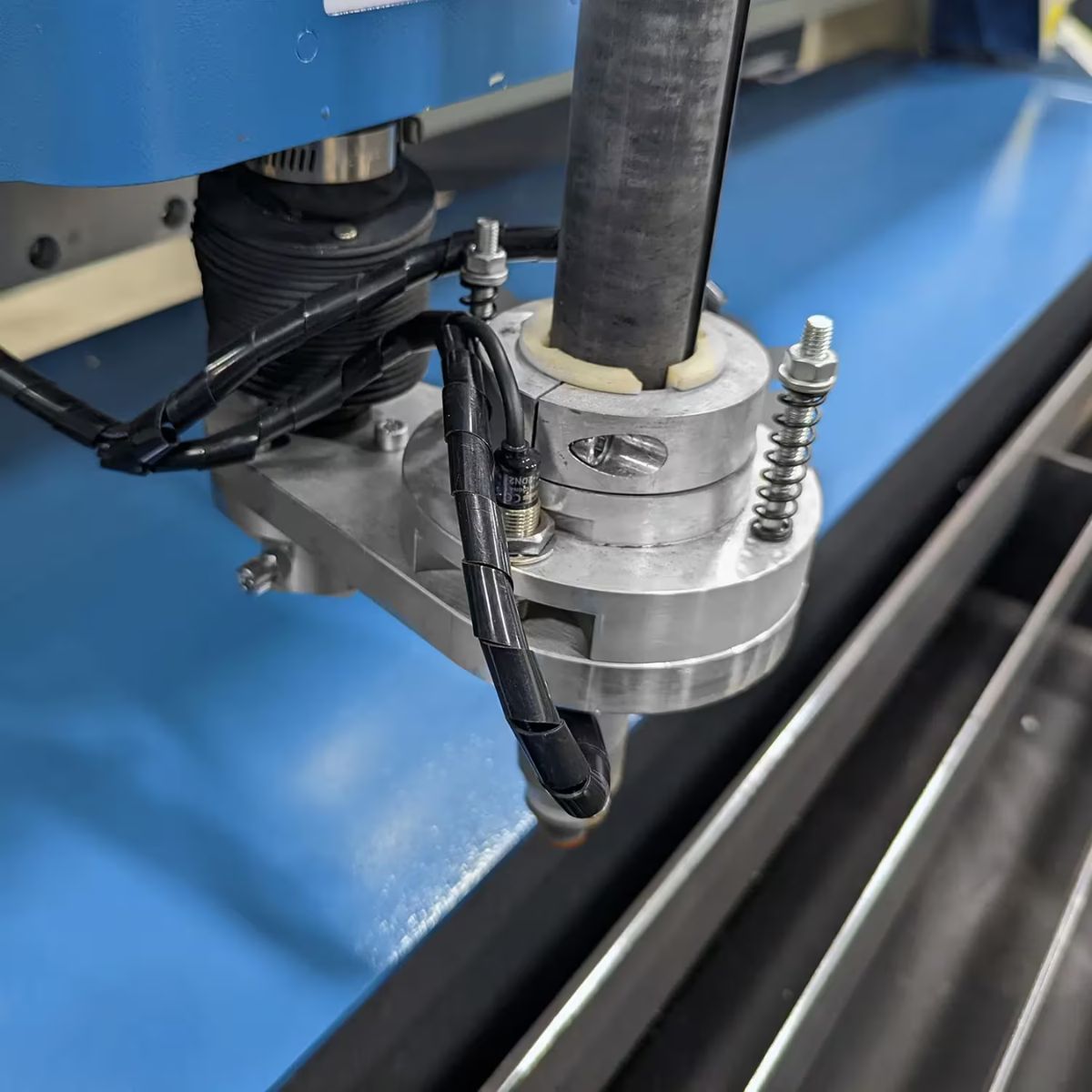

Single X axis and dual Y axis stepper motors drive the gantry across the table at up to 315 inches per minute. The Z axis motor controls torch height positioning, working together with the automatic height control to keep the torch at the correct distance from the material throughout the cut.
Integrated Water Bath Reduces Heat and Airborne Debris
The built-in water bath holds approximately 100 gallons and sits beneath the cutting surface to catch slag and reduce airborne particulate during cutting. Cutting over water keeps the work area cleaner and helps reduce heat buildup on cut parts.
BobCAD-CAM Express Software Supports File-to-Cut Workflow
A license for BobCAD-CAM Express is included with the table and supports DXF, DWG, BMP, JPG, and other common file formats for 2D cutting work. Files are loaded to the CNC controller via USB, and the built-in shape library gives you a starting point for common cutting jobs without CAD work.
What's Included
What's Included? Baileigh PT-105HD-W-V2 5' x 10' CNC Plasma Table with Integrated Water Bath
-

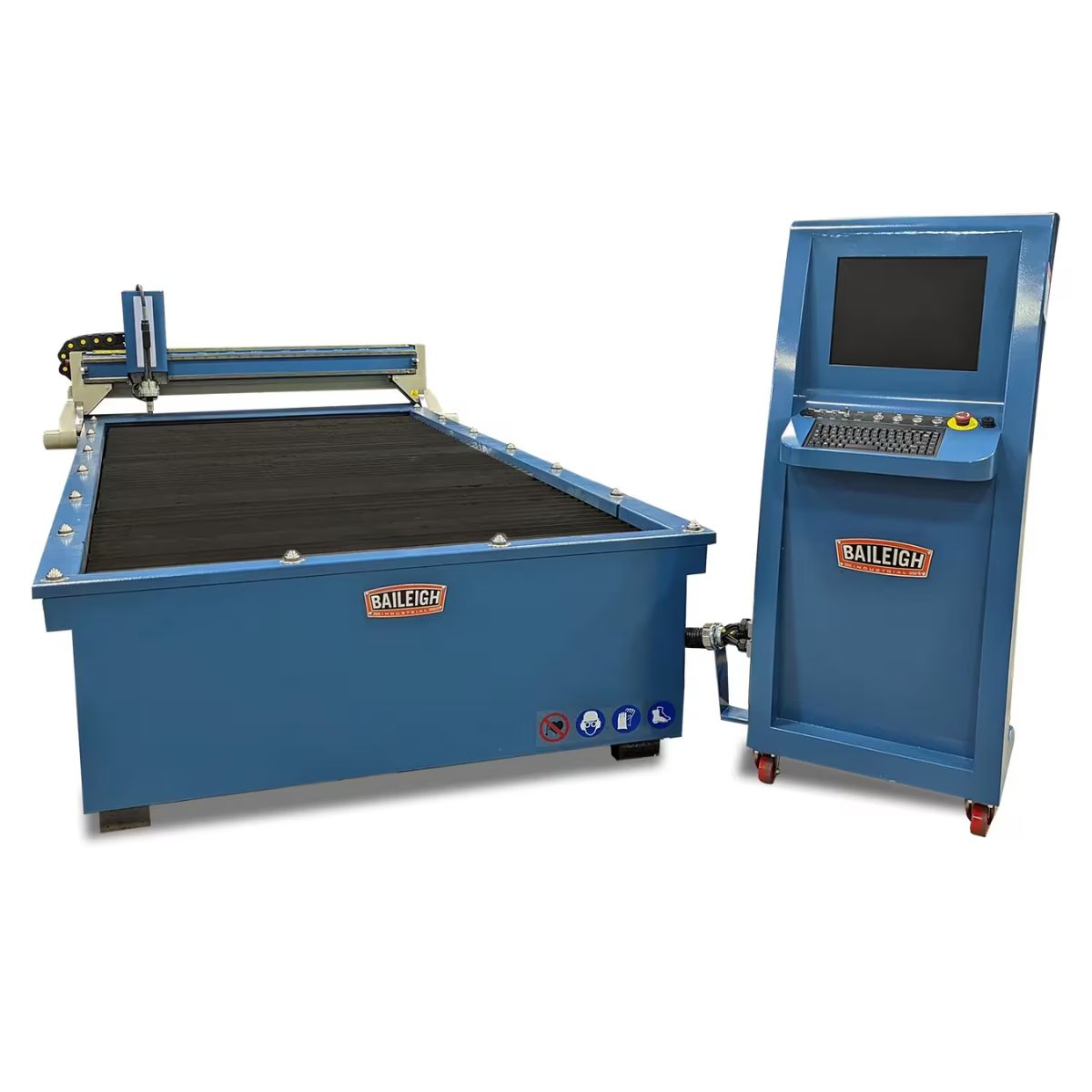

Assembled CNC Plasma Table with Water Bath — Provides the full 60 by 122 inch cutting platform with integrated water bath, gantry, and stepper motor drive system ready for installation.
-

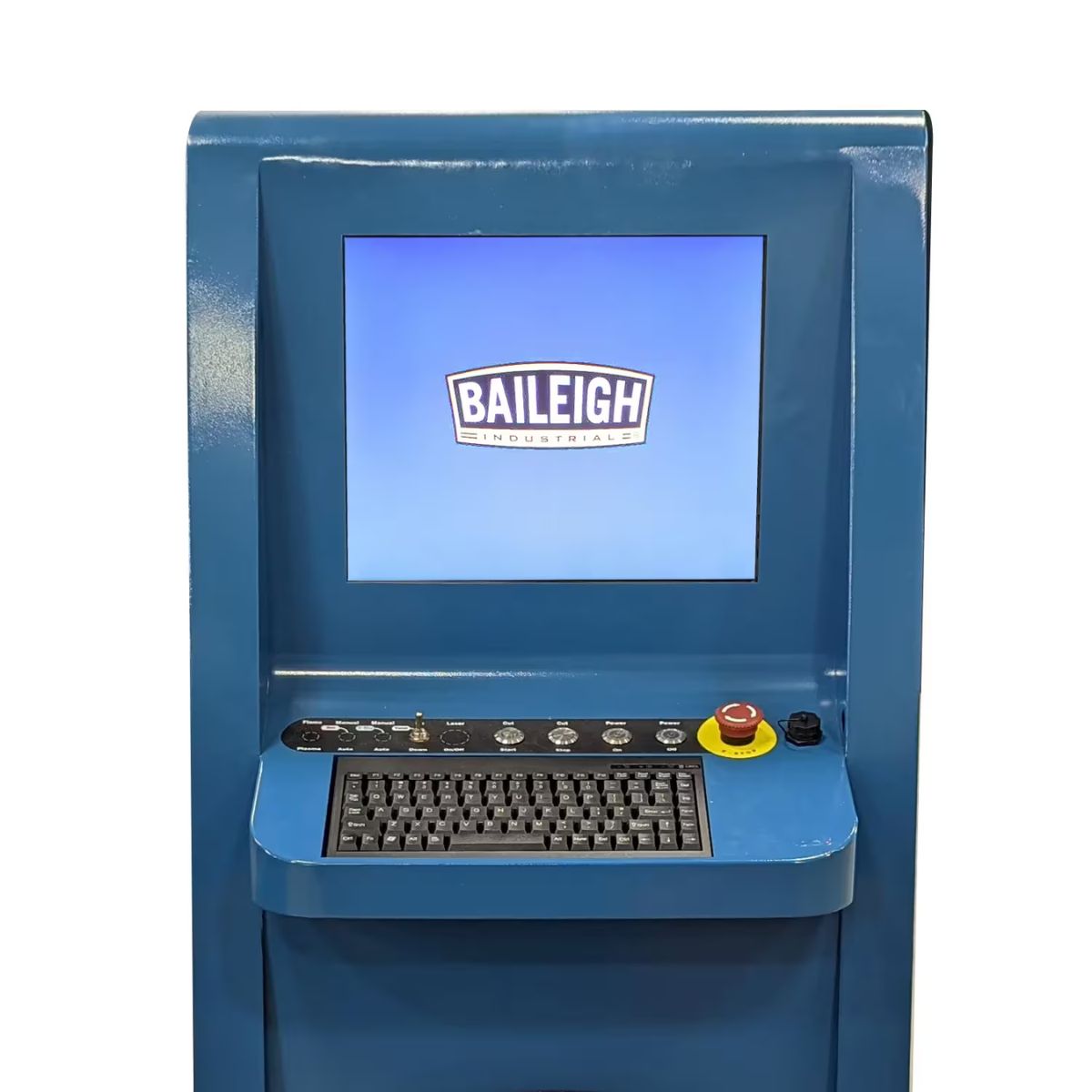

Control Console — Houses the CNC controller, drive electronics, and operator interface for running cutting programs.
-
BobCAD-CAM Express License — Allows you to create and import cutting files for 2D plasma work using DXF and other common formats.
-
Flash Drive with Manuals and Files — Provides digital copies of the operator's manual, wire interconnect diagram, and controller manual for reference during setup and operation.
Note: The plasma cutter power supply and torch are not included with the table. The cutting capacity of this machine depends on the plasma system you pair with it. Contact us if you need help selecting a compatible plasma cutter.
Specs
Baileigh PT-105HD-W-V2 5' x 10' CNC Plasma Table with Integrated Water Bath Specifications
- Model: PT-105HD-W-V2
- Stock Number: BA9-1231496
- Table Dimensions (W x L x H): 102.25" x 177.5" x 58.75"
- Cutting Area (X x Y): 60" x 122"
- Table Height: 34.25"
- Travel Speed: 315 ipm (8,000 mm/min)
- Table Load Capacity: 1" mild steel
- Cutting Capacity: Depends on plasma system chosen
- Drive: Stepper motors — single X axis, dual Y axis, Z axis
- Power: 220V, 1ph, 60hz, 8A (does not include plasma cutter)
- Exhaust Fan: 220V / 1ph / 60hz, 1,300 cfm
- Water Table Capacity: Approximately 100 gal
- File Transfer: USB 2.0
- Software: BobCAD-CAM Express (license included)
- Shipping Weight: 1,400 lb
- Shipping Dimensions (W x L x H): 90" x 111" x 69"
- Warranty: 1 Year Parts
- Product Manuals: PT-105HD-W Operator's Manual — Book 1 of 2 | PT-105HD Controller Manual — Book 2 of 2
