Baileigh PT-105HD-V2 5' × 10' CNC Plasma Table with Downdraft
Are you losing time on cuts that drift, torch height that shifts, and software that slows you down?
What if your shop had a full-size CNC plasma table that held position, tracked height automatically, and imported your DXF files without extra steps?

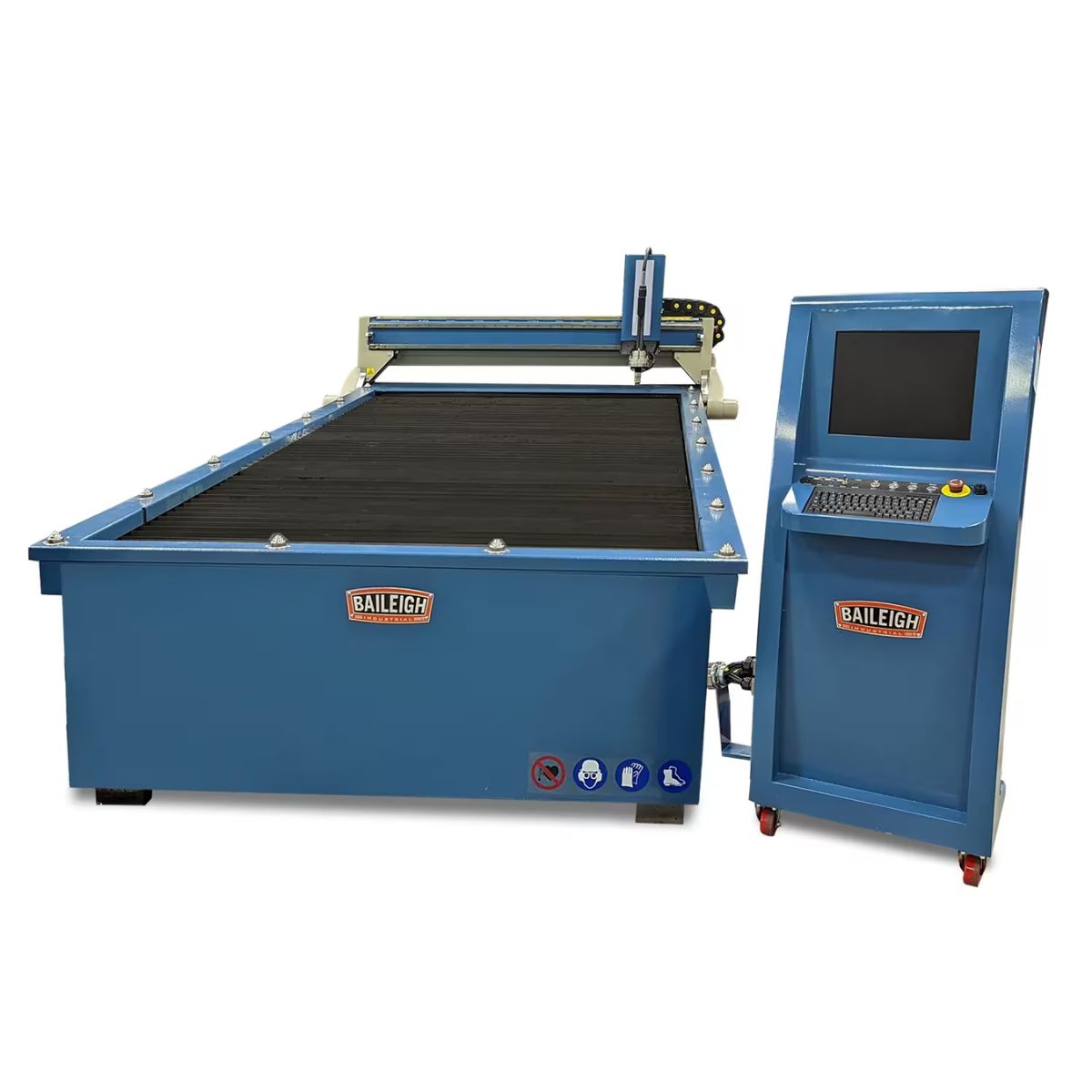

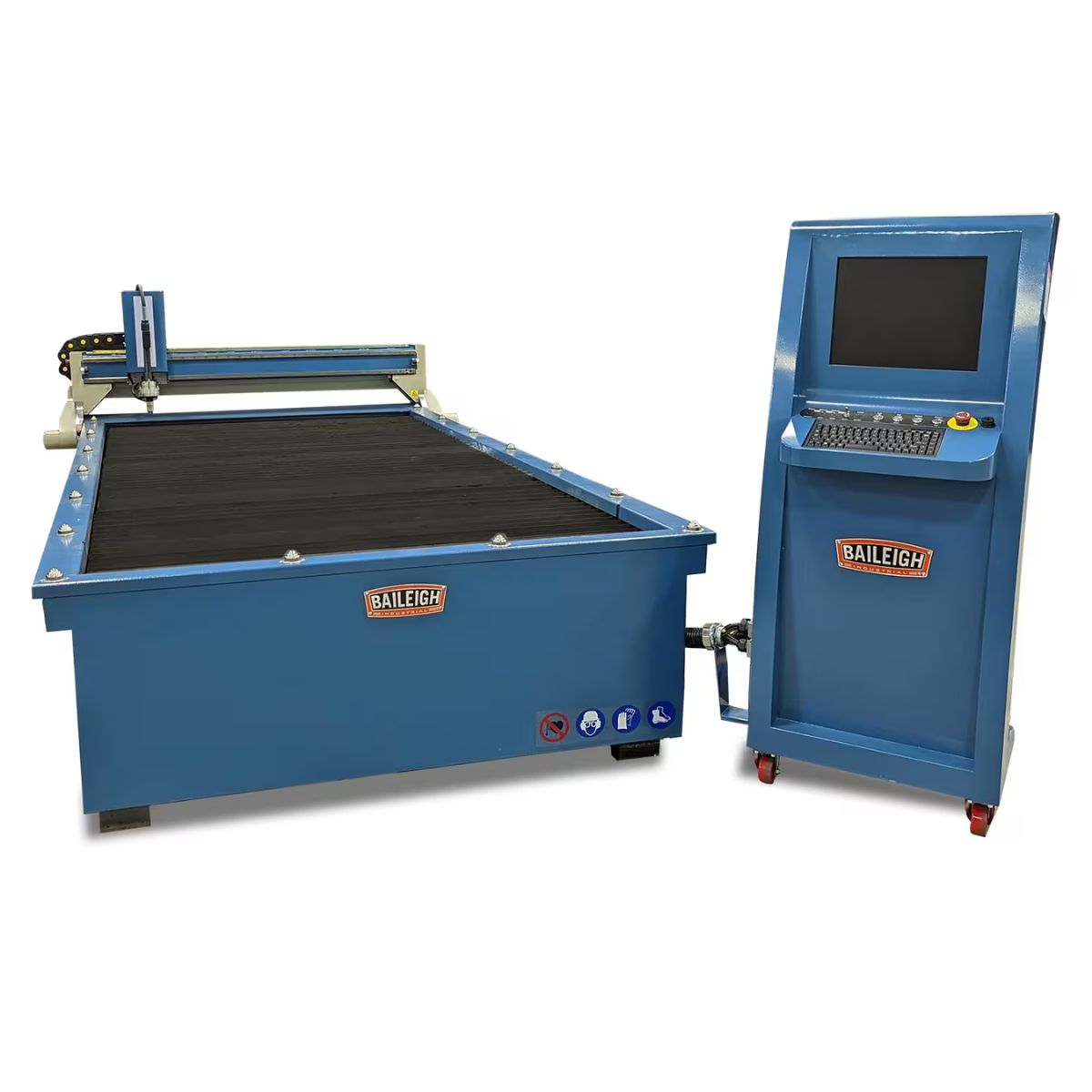

Meet the Baileigh PT-105HD-V2 5' × 10' CNC Plasma Table with Downdraft, a heavy-duty welded steel cutting table built for serious fabrication work.
With servo motors, linear guide rails, automatic torch height detection, and BobCAD-CAM Express software, the table holds its position through every cut.
When the torch tracks true and the height stays consistent, you can run full sheets with confidence and move through production without stopping to check your work.
Baileigh PT-105HD-V2 for Full-Sheet CNC Plasma Cutting
Heavy-Duty Welded Steel Frame Handles Daily Production Work
The table is built on a heavy-duty welded steel frame designed to hold its shape under the demands of high-production fabrication. A rigid frame reduces flex and keeps the gantry running true from one end of the sheet to the other.

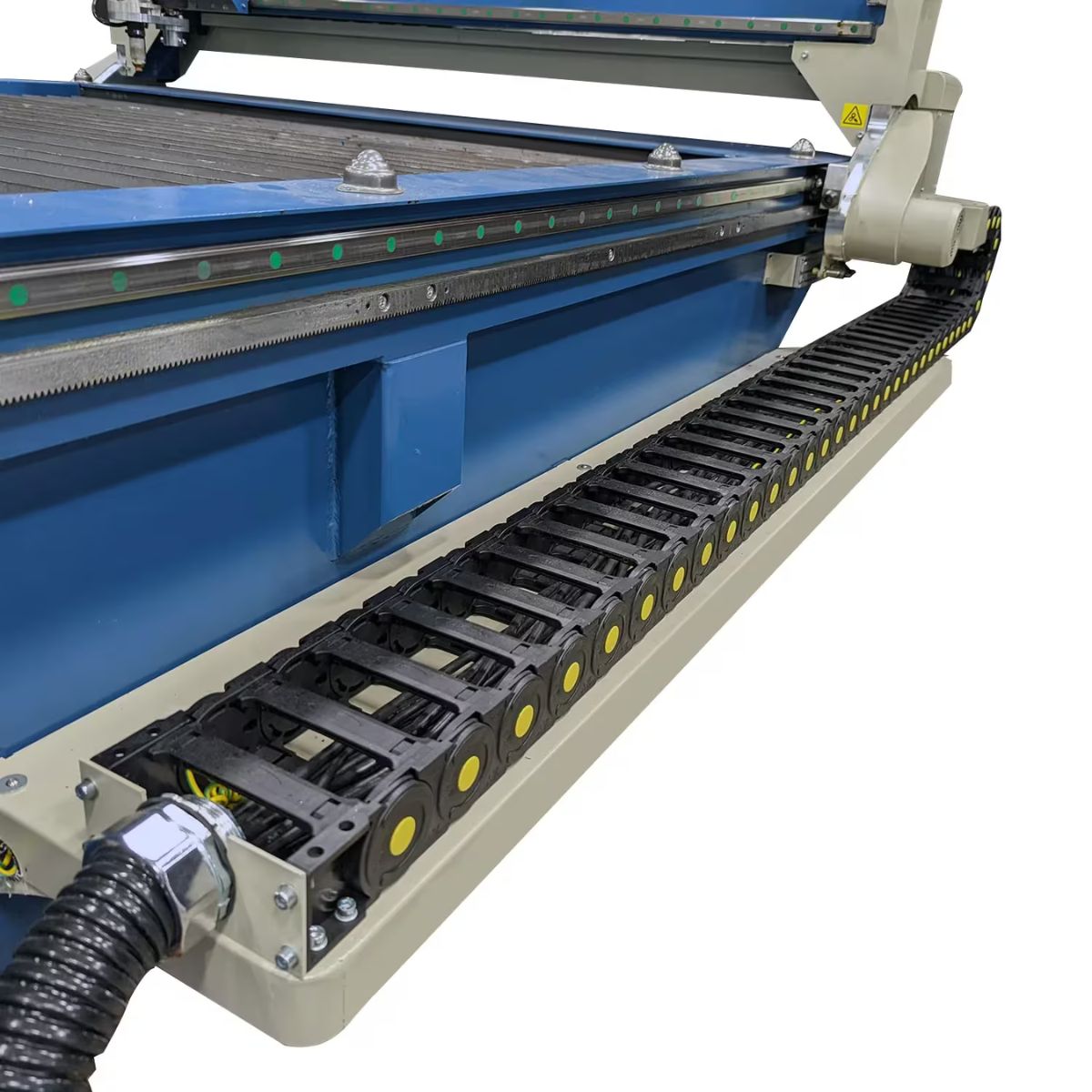

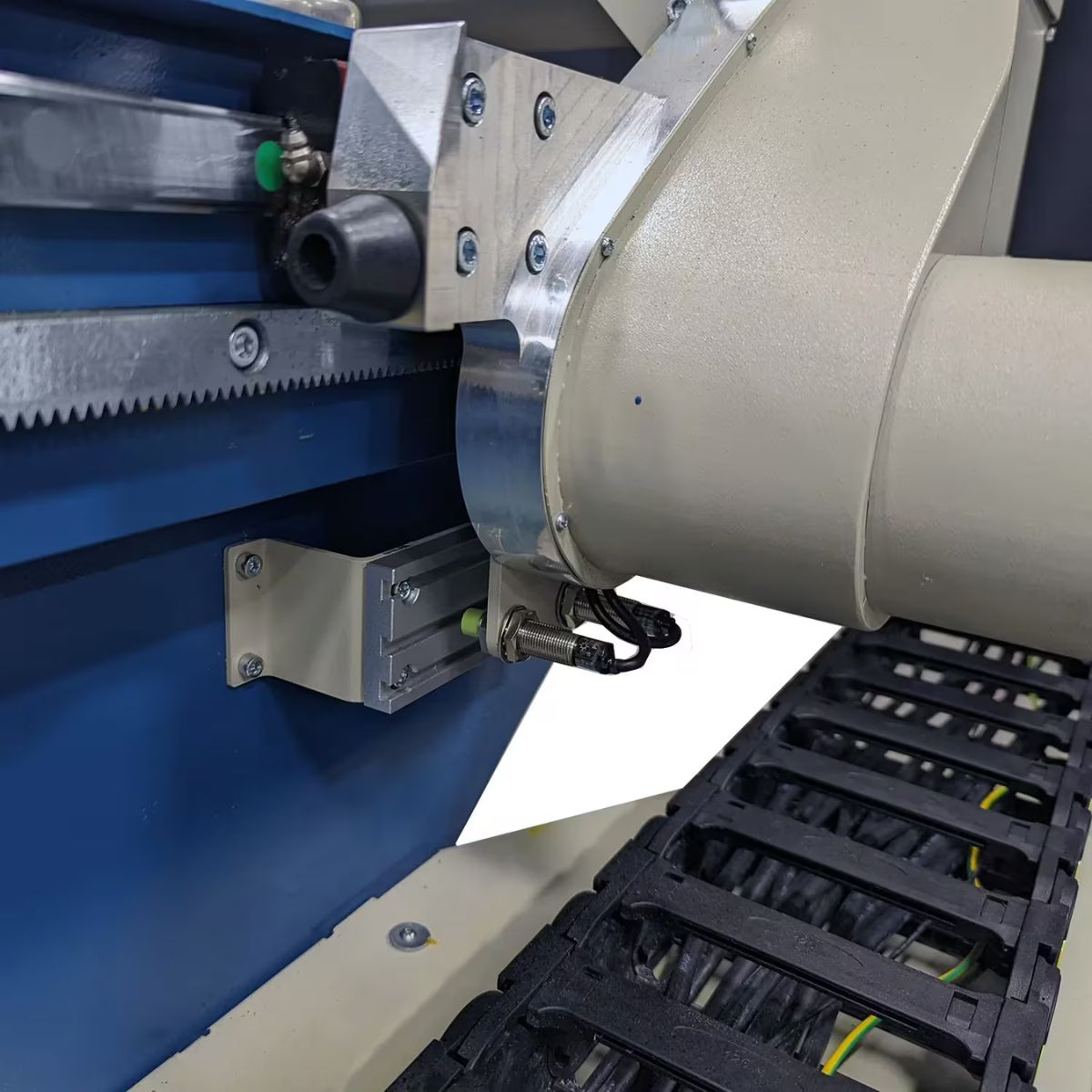

Servo Motors and Linear Guide Rails Deliver Accurate Motion
Servo motors drive the X, Y, and Z axes along precision linear guide rails for smooth and repeatable positioning across the full cutting area. Consistent motion control means your parts come out to spec without manual correction between cuts.

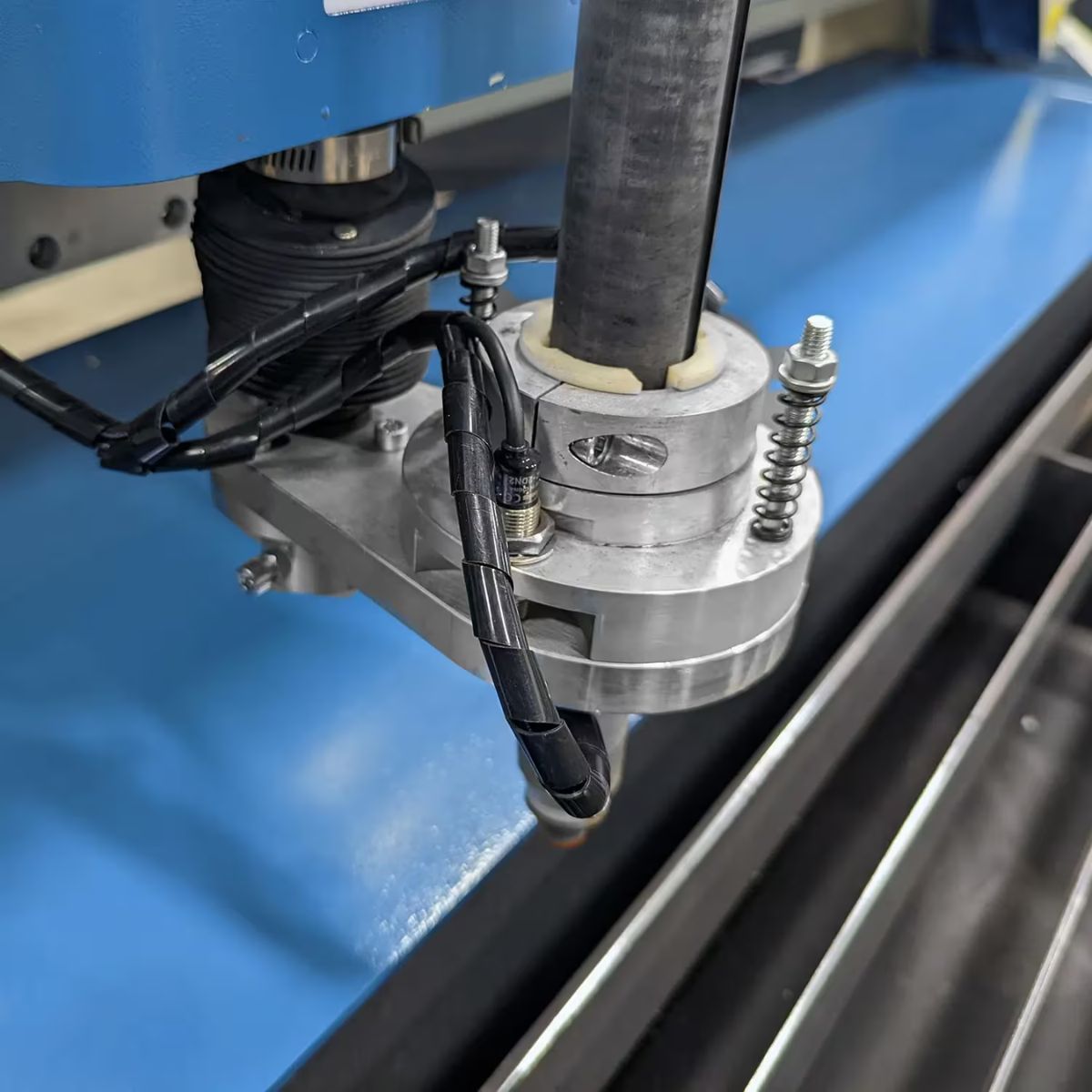

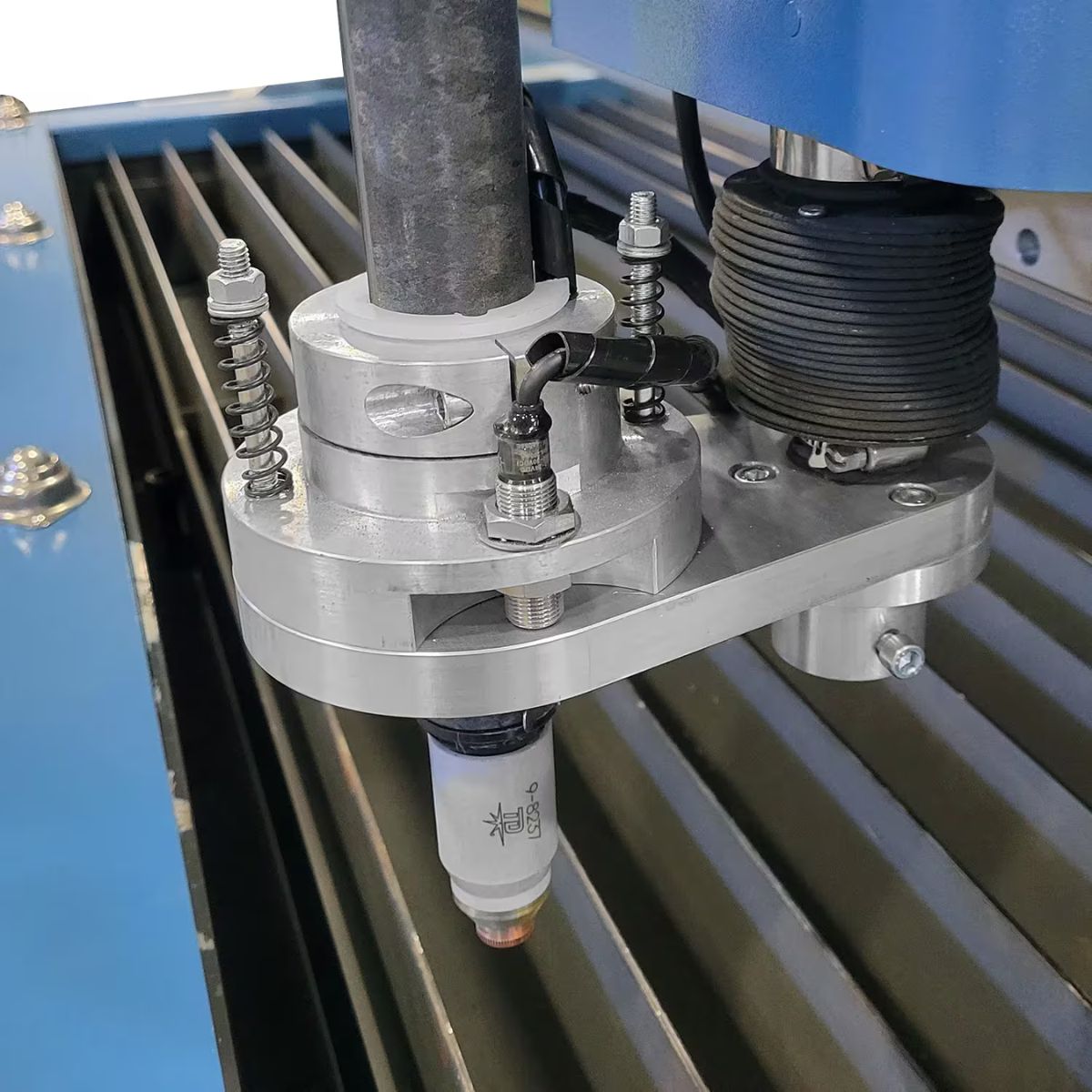

Automatic Torch Height Detection Keeps Cuts Consistent
The automatic torch height detection system adjusts the Z axis as it reads the material surface, keeping the torch at the correct cut height through warped or uneven stock. This reduces dross buildup and produces cleaner edges without manual torch adjustment.

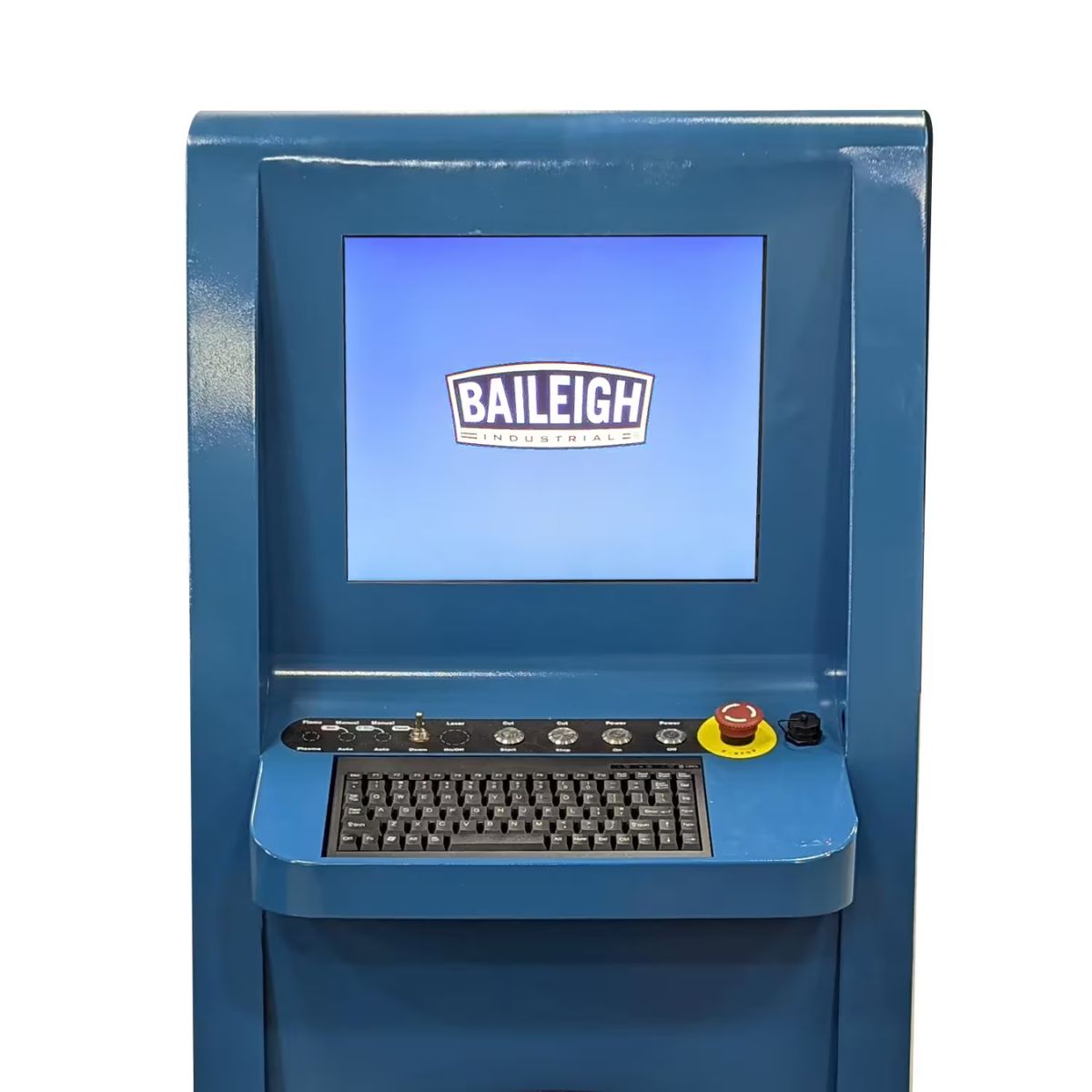

Windows-Based Controller Simplifies Programming and File Import
The Windows-based CNC controller accepts DXF files directly, so you can move from design to cut without converting file formats or rebuilding toolpaths. BobCAD-CAM Express software is included to handle part programming from the same workstation.
What's Included
What's Included? Baileigh PT-105HD-V2 5' × 10' CNC Plasma Table with Downdraft
-
Baileigh PT-105HD-V2 CNC Plasma Table with Downdraft — Provides a full 5' x 10' cutting area on a heavy-duty welded steel frame for production plasma work.
-
BobCAD-CAM Express Software — Allows you to program parts and import DXF files directly from the included workstation controller.
Specs
Baileigh PT-105HD-V2 5' × 10' CNC Plasma Table with Downdraft Specifications
- Model: PT-105HD-V2
- SKU: BA9-1231495A
- Cutting Area: 60" x 140" (5' x 10')
- Input Power: 220V Single Phase
- Drive System: Servo motors with linear guide rails
- Axes: X, Y, Z
- Torch Height Control: Automatic detection
- Controller: Windows-based, DXF compatible
- Software: BobCAD-CAM Express
- Frame: Heavy-duty welded steel
- Net Weight: 4,000 lb
- Warranty: 1 Year
- Parts Manual: PT-105HD Parts Manual
- Controller Manual: PT-105HD-V2 Controller Manual
