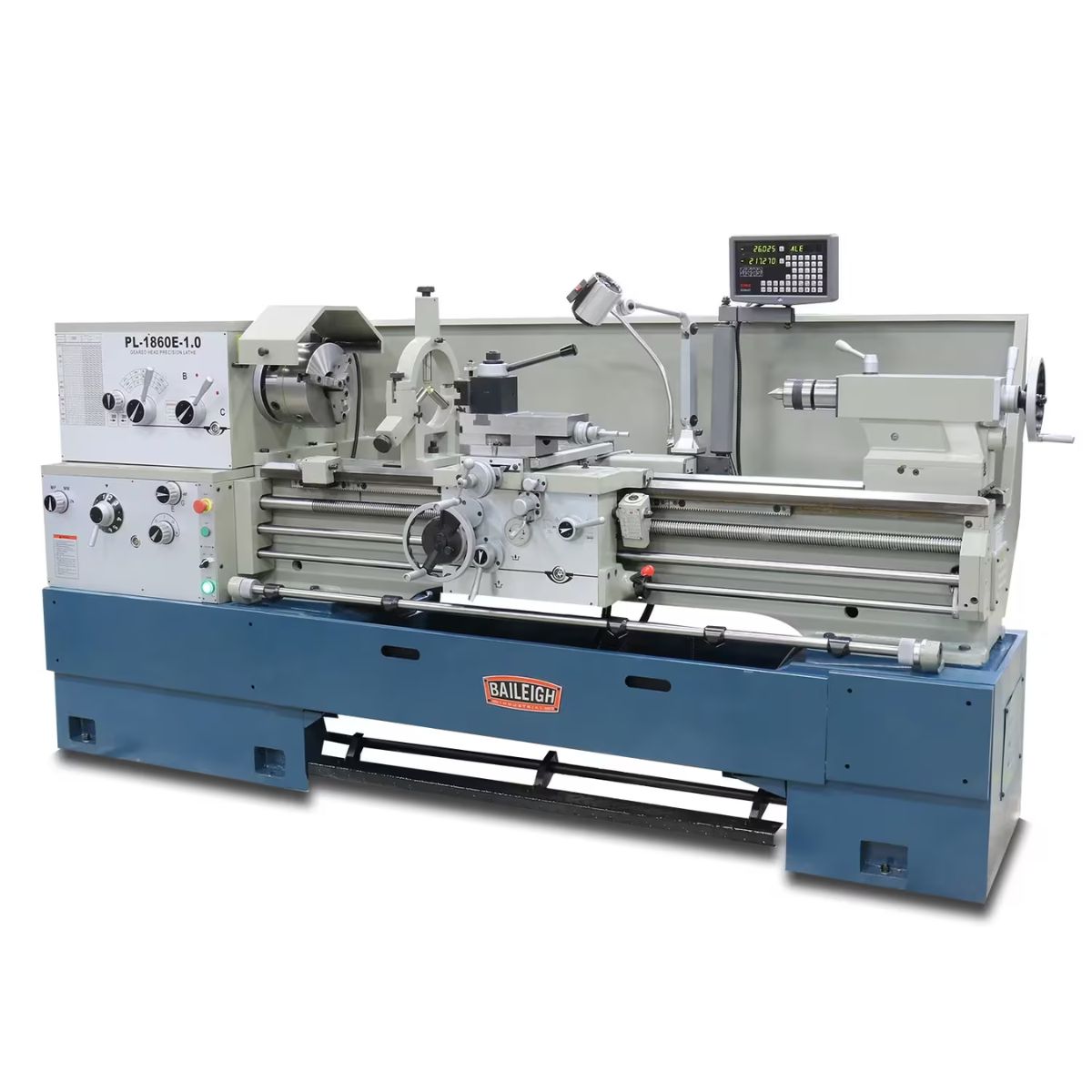

Baileigh PL-1860E 18" × 60" Geared Head Engine Lathe
Are you running a machine shop or industrial environment that needs a large-capacity engine lathe for long shafts and oversized workpieces on 220V 3-phase power?
What if that lathe gave you an 18-inch swing, 60 inches between centers, 12 spindle speeds from 25 to 1,800 RPM, and a 2-axis DRO on a precision-ground cast iron platform?
Meet the Baileigh PL-1860E, an 18-inch by 60-inch geared head engine lathe built for machine shops, schools, and industrial environments that need reliable, large-capacity turning with precision and repeatability.
With the PL-1860E, you get a 7.5 HP motor on 220V 3-phase power, a 3.125-inch spindle bore, gear-driven feeds, and a heavy cast iron base with precision-ground and polished ways.
When the PL-1860E is set up for your work, you get accurate, consistent results on large and long workpieces with a machine built for demanding industrial daily use.
Baileigh PL-1860E for Large-Capacity Industrial Engine Lathe Turning
12 Spindle Speeds Cover a Wide Range of Turning Operations

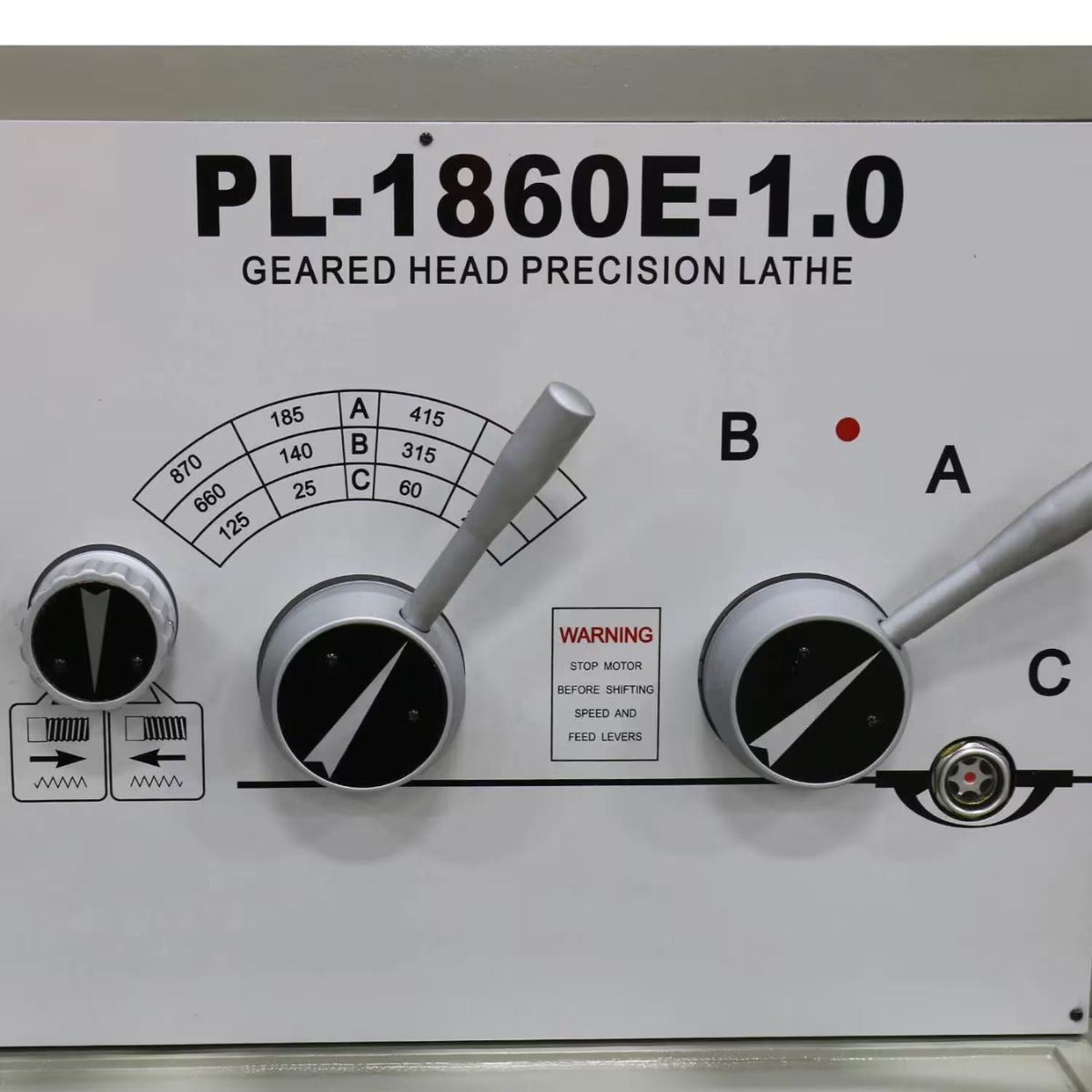

The geared headstock delivers 12 selectable spindle speeds from 25 to 1,800 RPM, giving operators the range to match cutting conditions across turning, facing, threading, and finishing operations on a wide variety of metals. Consistent torque delivery at all 12 speeds keeps cutting performance stable through heavy stock removal and fine finishing work alike.
18-Inch Swing and 60-Inch Centers Handle Large and Long Stock
The 18-inch swing over bed and 60 inches between centers accommodate oversized workpieces and long shafts that smaller lathes cannot handle. A 3.125-inch spindle bore accepts larger bar stock, and the 10-1/2-inch cross slide travel and 5.13-inch compound rest travel support a wide range of turning and facing operations on larger diameter parts.
2-Axis DRO and Precision-Ground Ways Support Accurate Machining

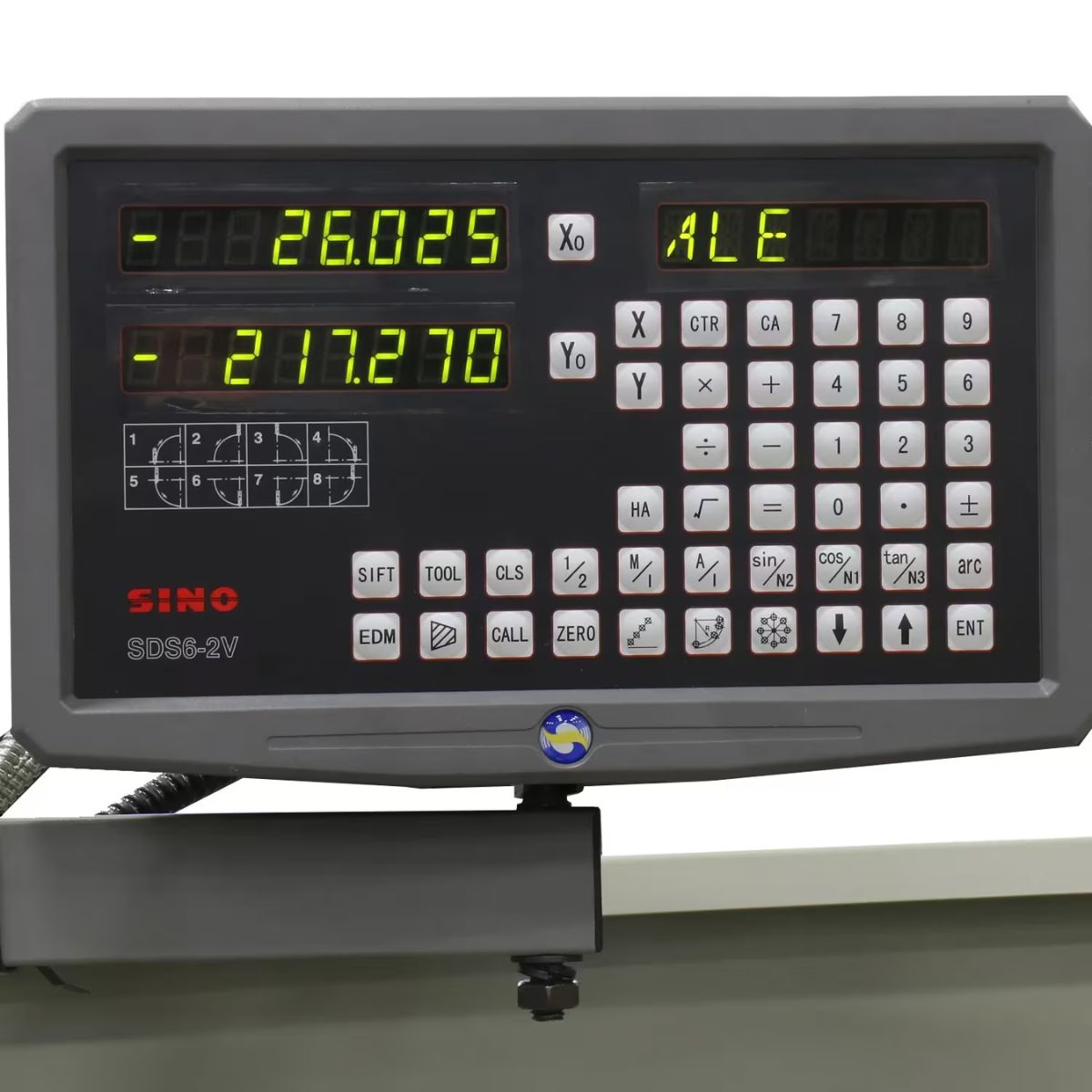

The 2-axis digital readout improves positioning accuracy and speeds up setup on close-tolerance work. Precision-ground and polished bed ways provide smooth, consistent slide movement that holds alignment through repeated heavy machining operations, keeping dimensional accuracy consistent from the first part to the last.

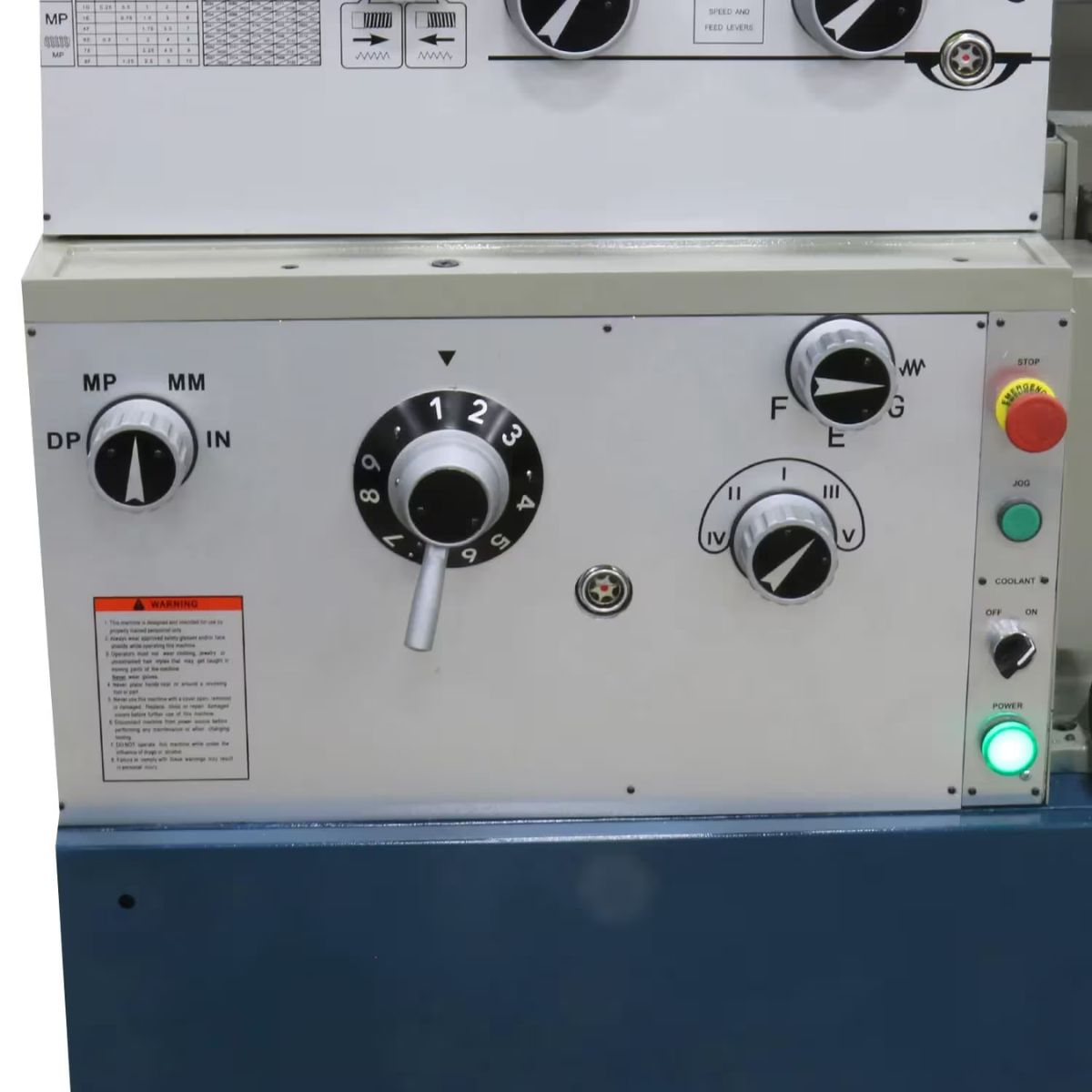

Comprehensive Threading Capability Covers Standard Shop Requirements

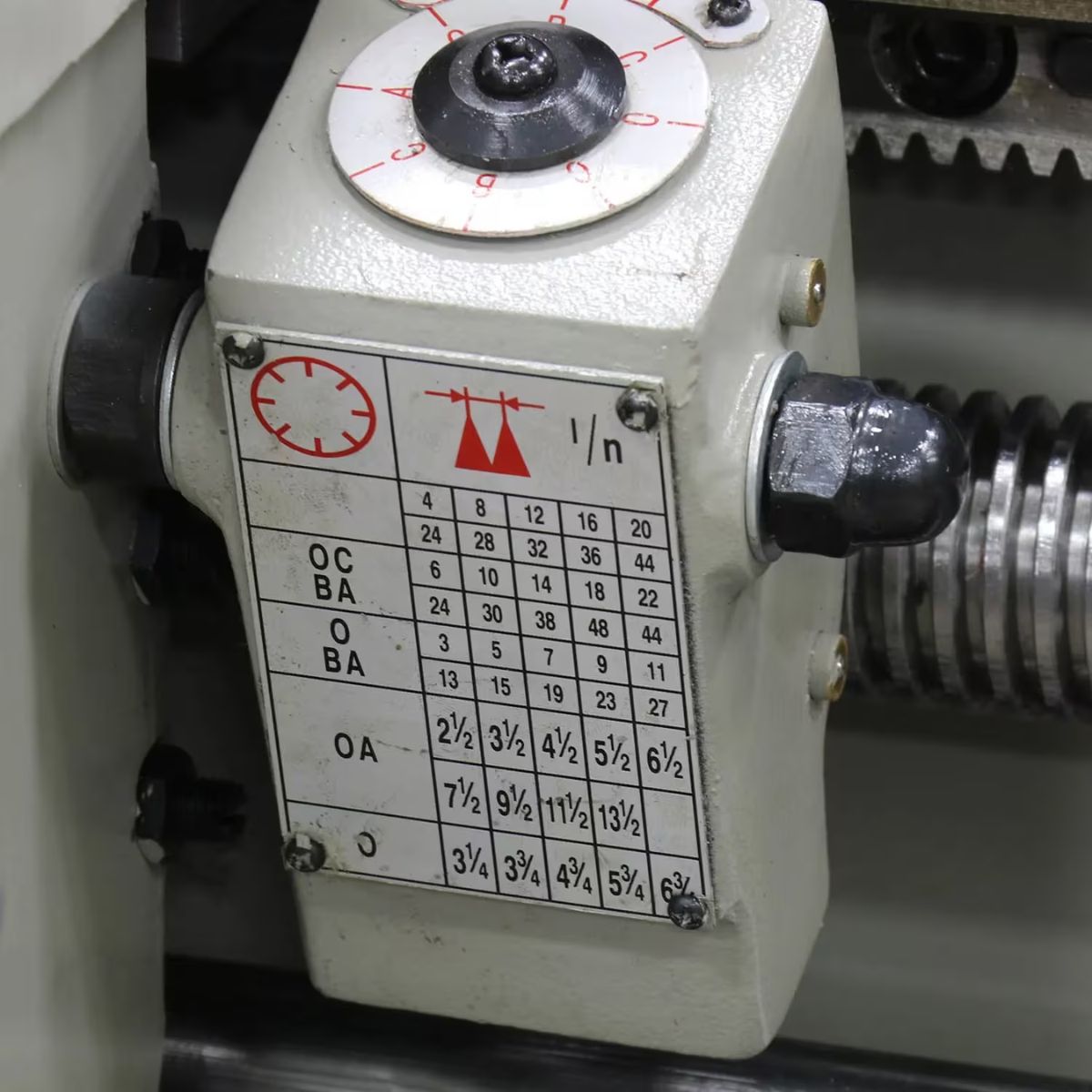

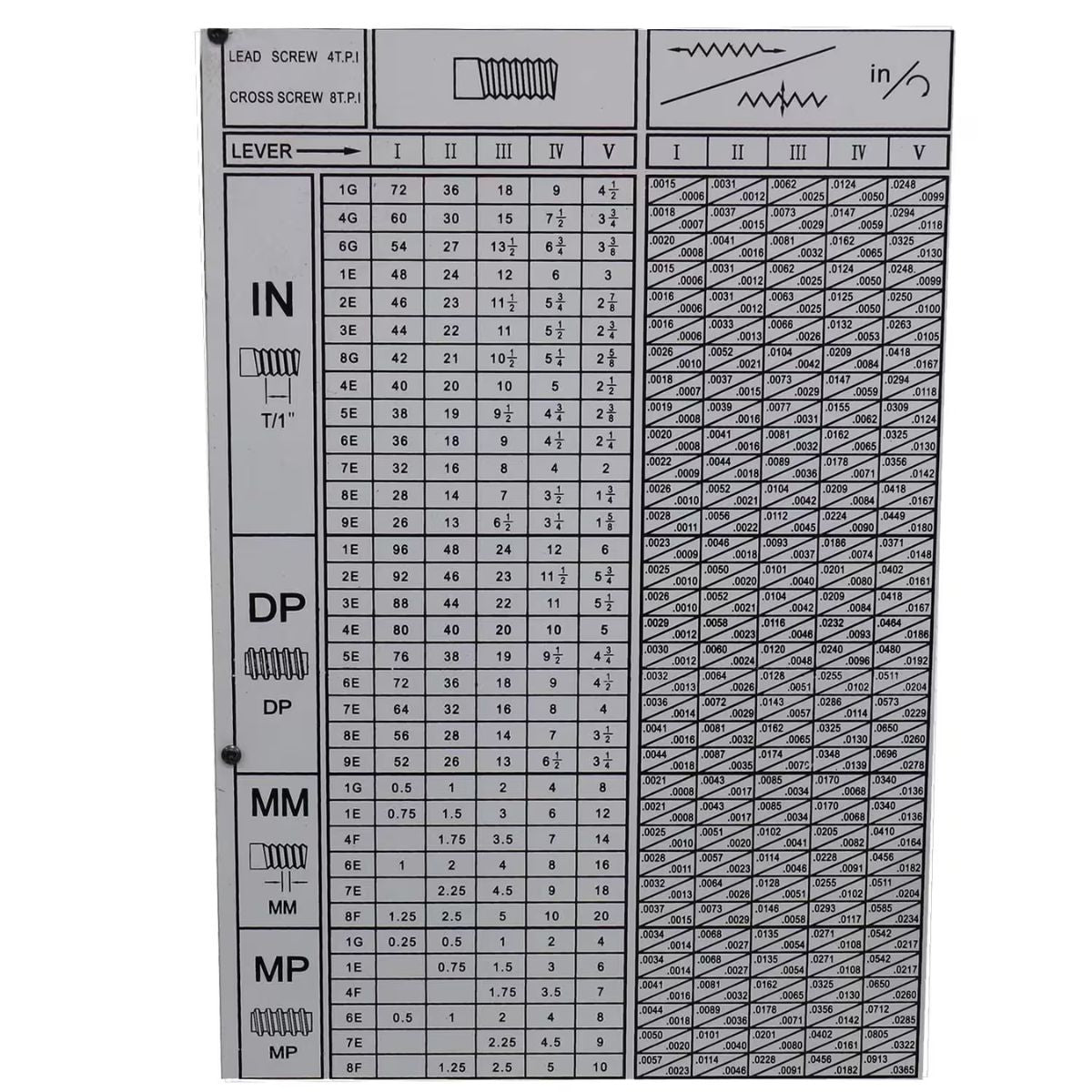

The PL-1860E cuts 61 imperial thread pitches from 1-5/8 to 72 TPI, 21 modular pitch threads, and 45 diametrical pitch threads from 3-1/2 to 96 DP. Longitudinal feeds span 122 speeds from 0.0015 to 0.0913 inches per revolution, covering the full range of threading and feed requirements that machine shops and industrial maintenance environments encounter on a regular basis.
What's Included
What's Included? Baileigh PL-1860E 18" × 60" Geared Head Engine Lathe
-
Geared Headstock — delivers consistent torque across 12 spindle speeds from 25 to 1,800 RPM.
-
2-Axis Digital Readout (DRO) — improves positioning accuracy and reduces setup errors on close-tolerance work.
Specs
Baileigh PL-1860E 18" × 60" Geared Head Engine Lathe Specifications
-
Model Number: PL-1860E-1.0
-
Stock Number: BA9-1016624
-
Motor: 7.5 HP
-
Power Requirement: 220V, 3-phase
-
Swing Over Bed: 18"
-
Distance Between Centers: 60"
-
Number of Spindle Speeds: 12
-
Spindle Speed Range: 25–1,800 RPM
-
Spindle Bore: 3.125"
-
Spindle Taper with Sleeve: MT5
-
Quill Taper: MT7
-
Cross Slide Travel: 10-1/2"
-
Compound Rest Travel: 5.13"
-
Lead Screw Diameter: 1.125"
-
Leadscrew Thread Pitch: 4 TPI
-
Imperial Thread Range: 1-5/8–72 TPI (61 speeds)
-
Modular Pitch Thread Range: 0.23 MP (21 speeds)
-
Diametrical Pitch Range: 3-1/2–96 DP (45 speeds)
-
Longitudinal Feed Range: 0.0015"–0.0913" per rev (122 speeds)
-
Digital Readout: 2-axis DRO
-
Assembled Dimensions: 116" x 45" x 66"
-
Net Weight: 5,650 lb.
-
Warranty: 1 Year
-
Product Manual: PL-1860E Operator Manual (Part 2) | PL-1860E Operator Manual (Part 3)
