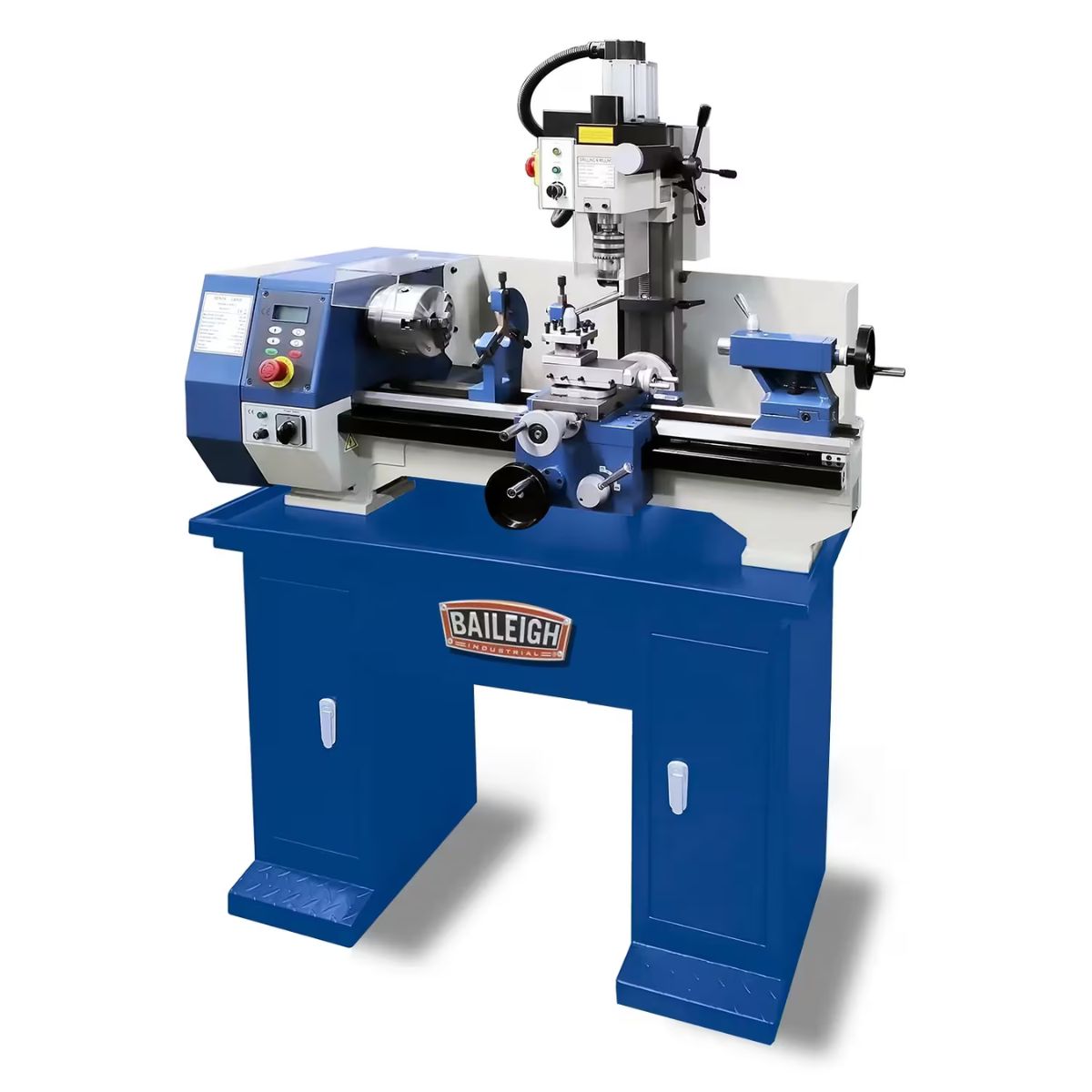

Baileigh MLD-1022 10" × 22" Mill / Lathe / Drill Combo Machine
Are you running a small fabrication shop or educational environment that needs lathe turning, vertical milling, and drill press capability without the floor space for three separate machines?
What if one compact machine gave you two independent 1 HP motors, a lathe DRO, variable speeds from 100 to 2,500 RPM, and 3-jaw and 4-jaw chucks on standard 110V power?
Meet the Baileigh MLD-1022, a 10-inch by 22-inch mill, lathe, and drill combo machine built for small fabrication shops and educational settings that need versatile machining capability in a limited footprint.
With the MLD-1022, you get two independent 1 HP motors on 110V single-phase power, a rigid cast iron construction with precision-ground ways, and a full set of included accessories ready for turning and milling work.
When the MLD-1022 is set up for your job, you get reliable lathe, milling, and drilling performance from one machine with a compact footprint that fits where larger machines cannot.
Baileigh MLD-1022 for Compact Mill, Lathe, and Drill Combo Machining
Two Independent Motors Reduce Wear and Extend Service Life
The MLD-1022 runs separate 1 HP motors for the mill and lathe functions, so each drive system operates independently without shared wear. This setup extends service life on both functions and allows one to be used without engaging the other during single-function operations.
Variable Lathe Speeds from 100 to 2,500 RPM Cover a Range of Materials

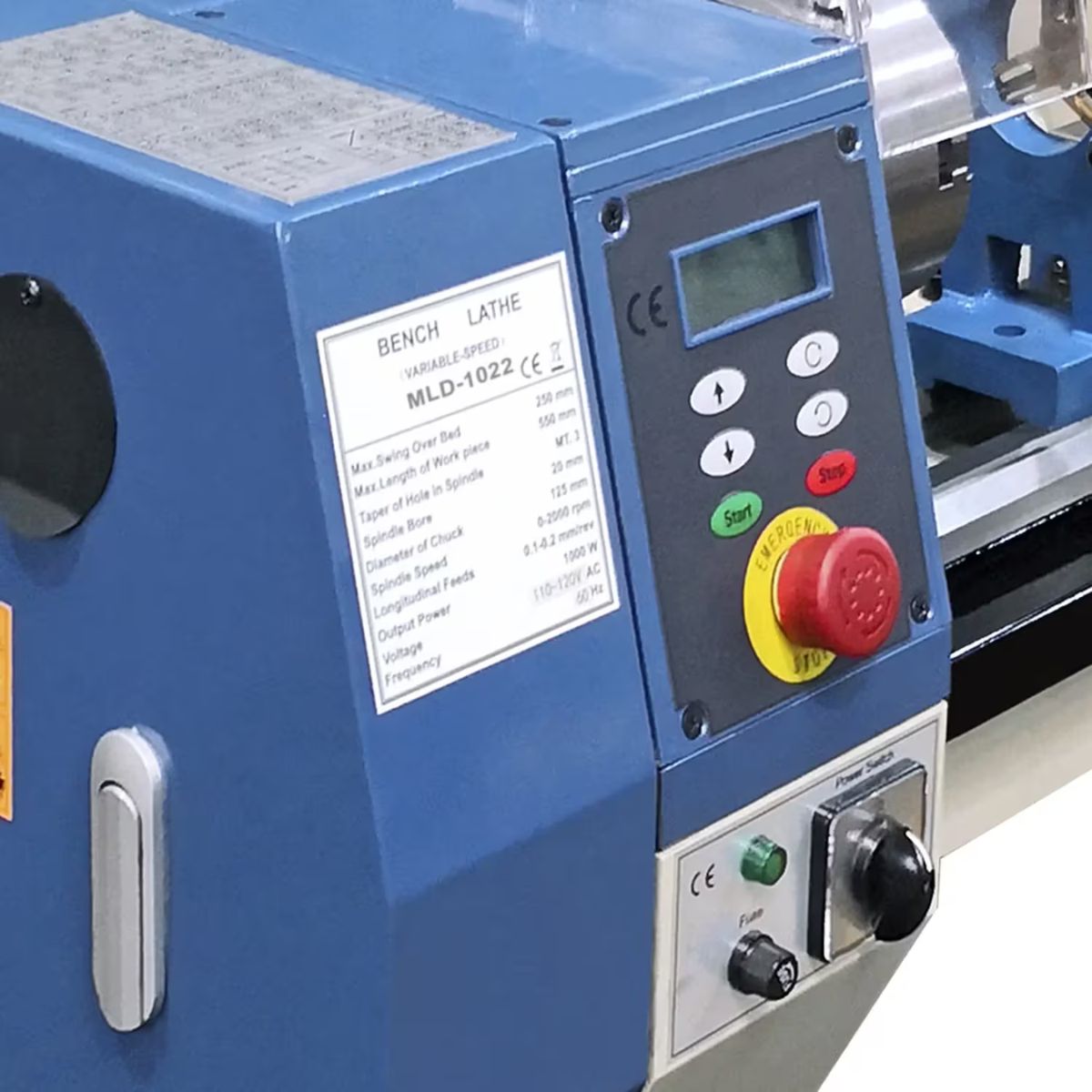

The lathe spindle adjusts from 100 to 2,500 RPM to match the material and operation at hand. An included DRO on the lathe provides accurate measurement feedback for precise setup and repeatable turning results on round and faced workpieces.
Three Functions in One Compact Footprint

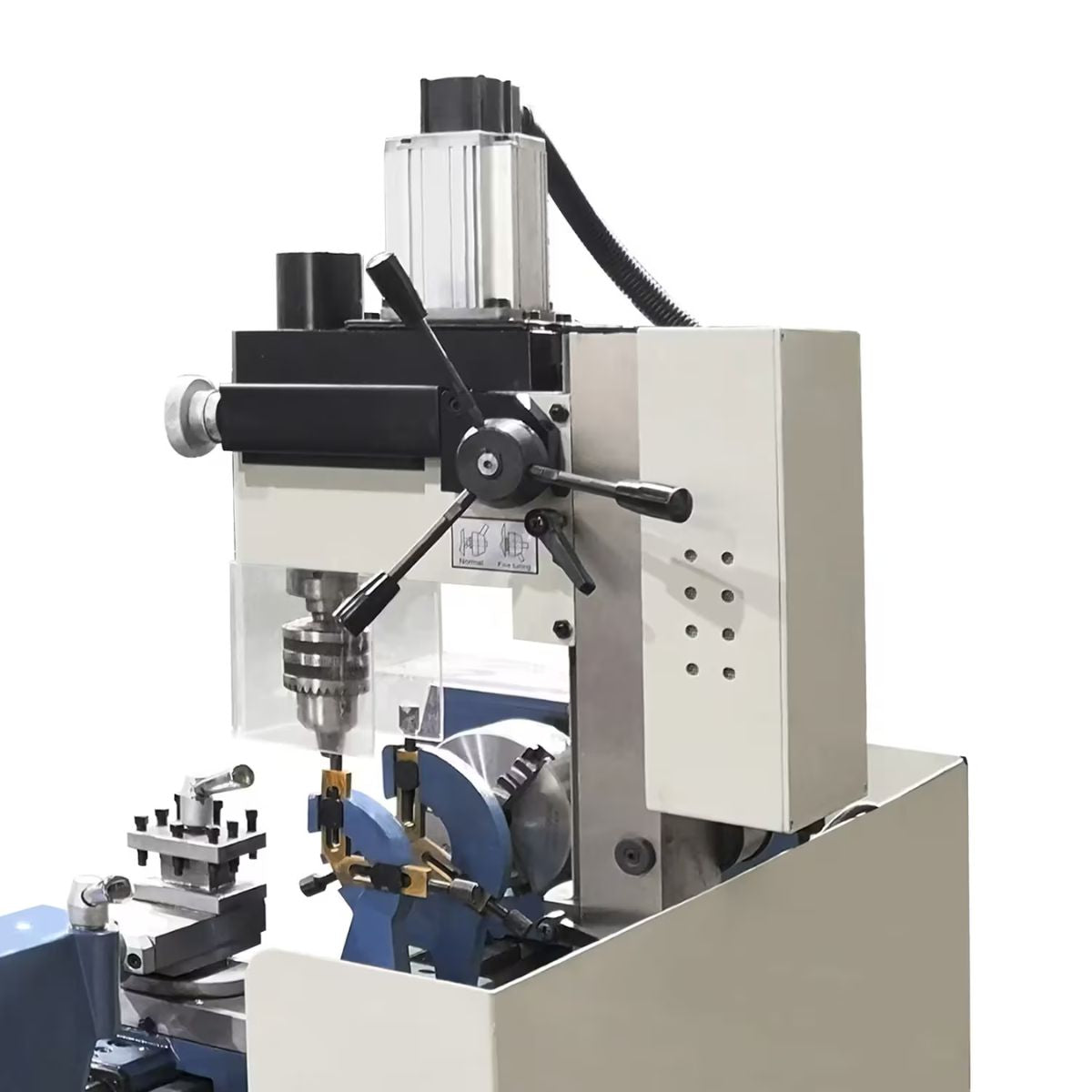

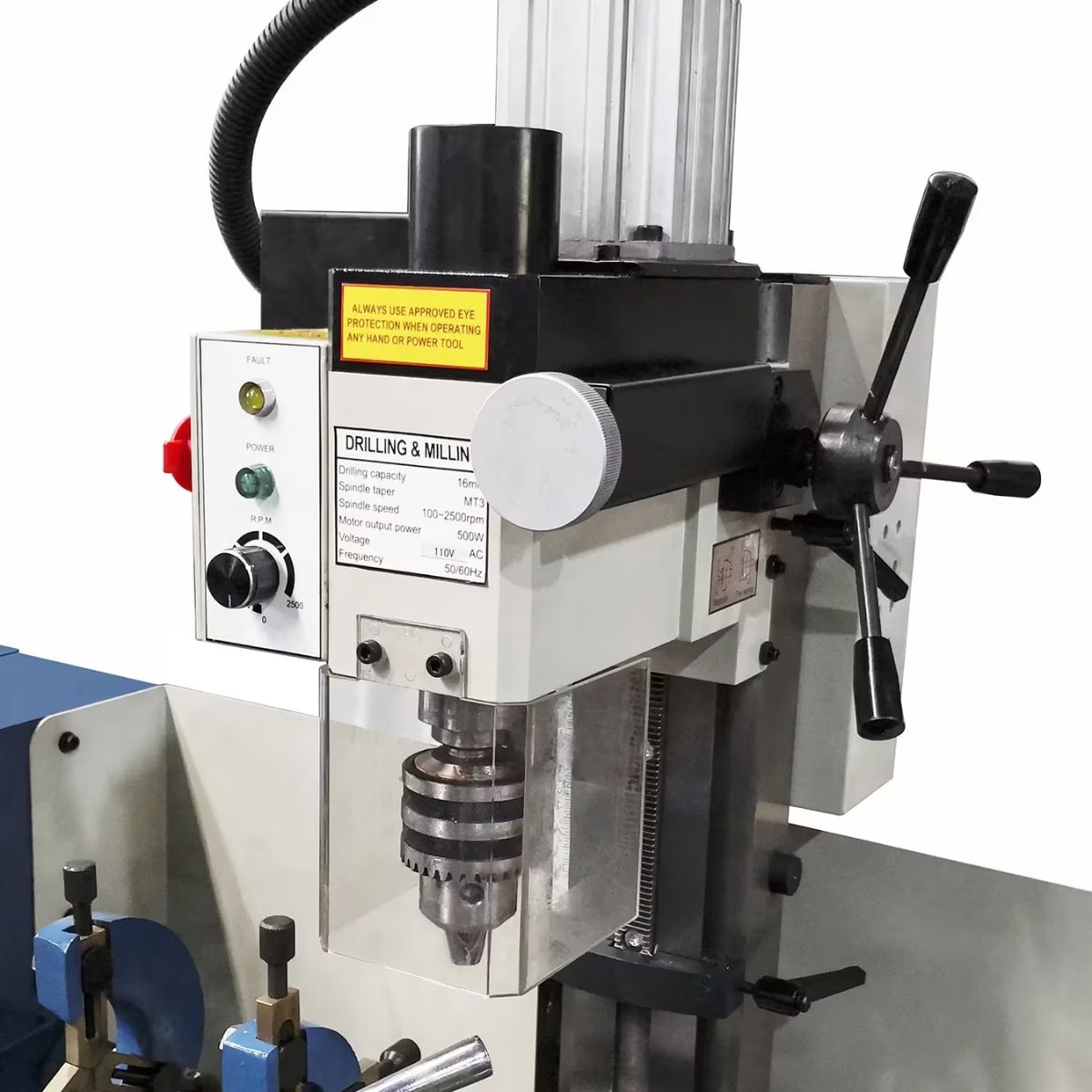

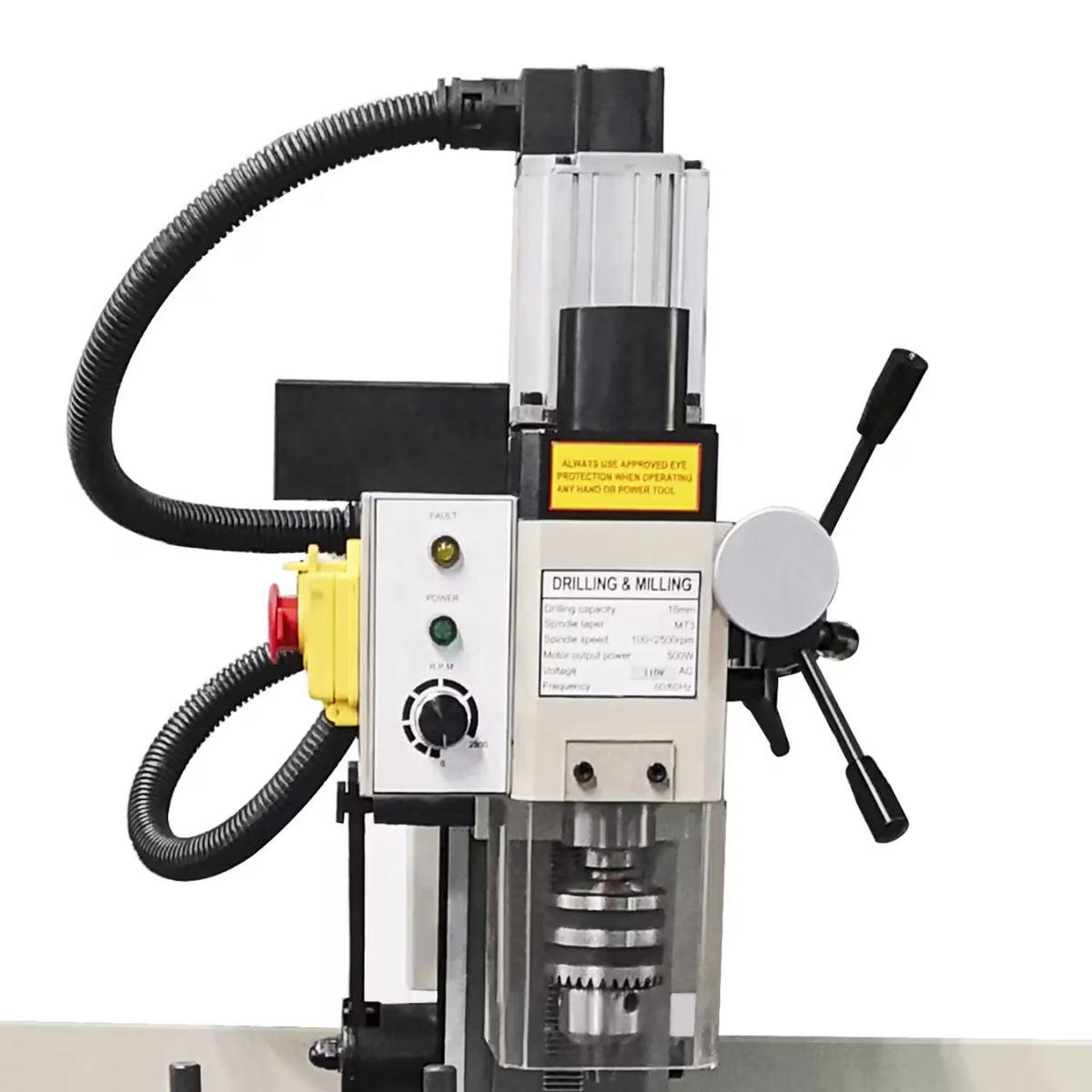

The MLD-1022 combines lathe turning with a 9.75-inch swing, vertical milling, and drill press operations in one machine with a single stand. This combination covers the core machining tasks that small shops and educational facilities handle regularly without requiring separate machines for each function.
Included Accessories Support Turning and Workholding
The MLD-1022 comes with a 3-jaw chuck for round stock, a 4-jaw chuck for square and irregular workpieces, and a steady rest and follow rest for supporting longer stock during turning. The MT4 lathe spindle taper and MT2 mill spindle taper provide broad tooling compatibility across both machining functions.
What's Included
What's Included? Baileigh MLD-1022 10" × 22" Mill / Lathe / Drill Combo Machine
-
Stand — supports the combo machine at working height for shop and educational use.
-
3-Jaw Chuck — holds round stock for standard lathe turning operations.
-
4-Jaw Chuck — holds square and irregular workpieces for lathe turning.
-

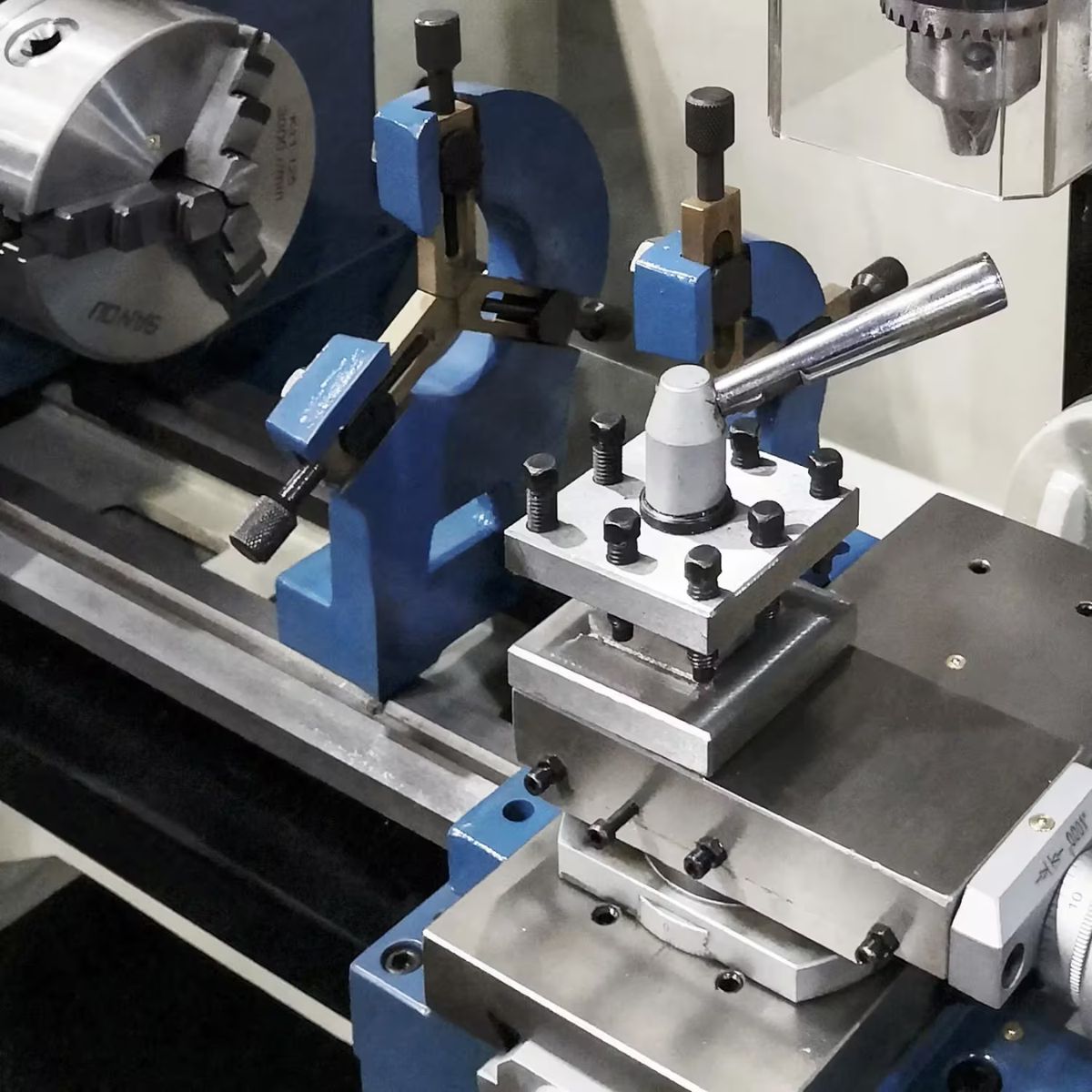

Steady Rest — supports long workpieces during turning to reduce deflection.
-
Follow Rest — travels with the carriage to support slender long stock during cutting.
-
Lathe DRO — provides accurate measurement feedback for precise turning setup.
Specs
Baileigh MLD-1022 10" × 22" Mill / Lathe / Drill Combo Machine Specifications
-
Model Number: MLD-1022
-
Stock Number: BA9-1228216
-
Motor: 1 HP (two independent motors — mill and lathe)
-
Power Requirement: 110V, single-phase
-
Amp Draw: 20A
-
Swing Over Bed: 9.75"
-
Swing: 5.7"
-
Distance Between Centers: 21.62"
-
Spindle Speeds: 100–2,500 RPM (variable)
-
Lathe Spindle Taper: MT4
-
Mill Spindle Taper: MT2
-
Cross Slide Travel: 4.5"
-
Top Slide Travel: 2"
-
Drilling Capacity (Mild Steel): 0.5"
-
Net Weight: 580 lb.
-
Warranty: 1 Year
