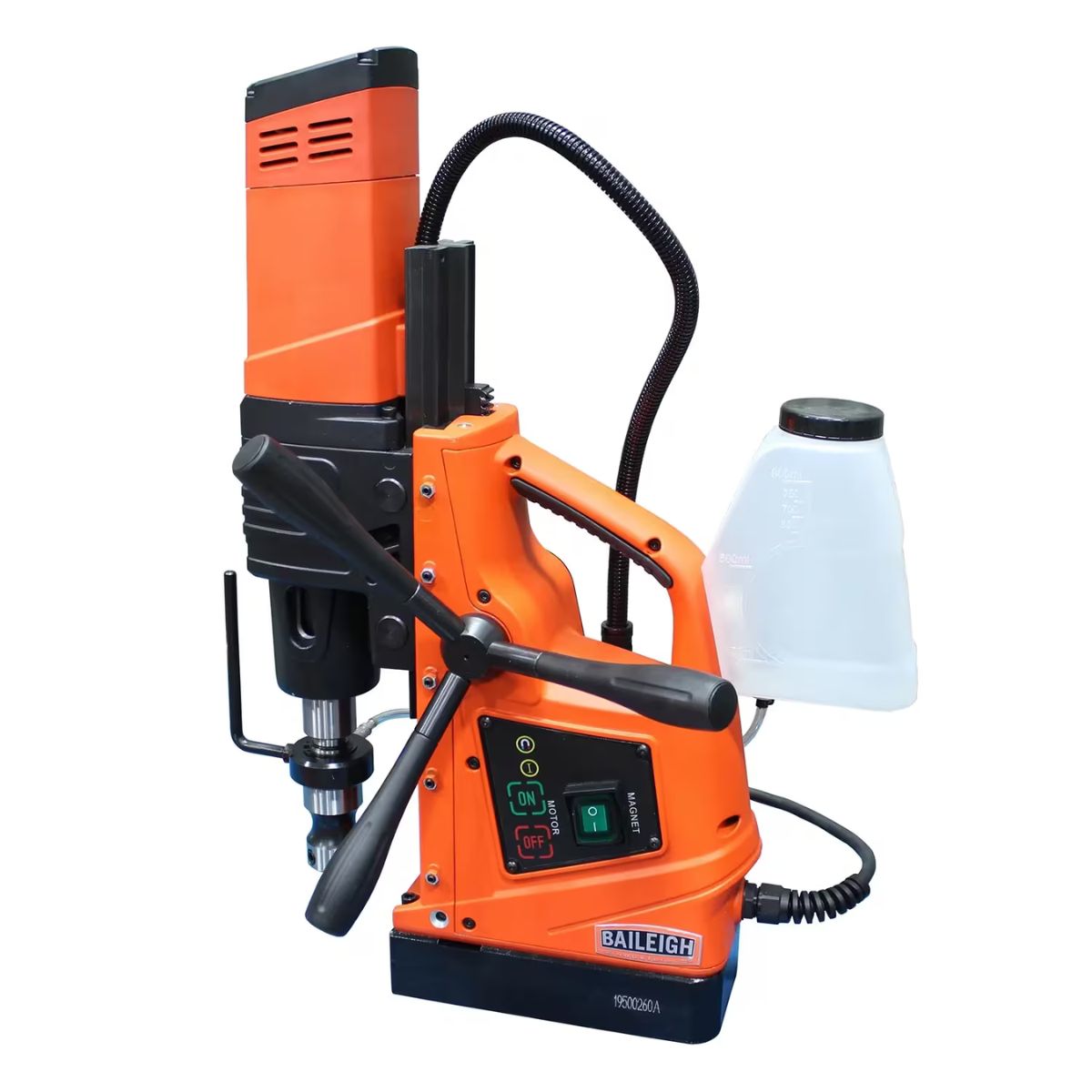

Baileigh MD-5015 50mm 2-Speed Magnetic Drill
Are you working on fabrication or structural steel jobs that need a portable magnetic drill with two selectable speeds and 15,000 N of holding force on standard 110V power?
What if that magnetic drill gave you 250 and 450 RPM, 1.25-inch twist drill capacity, 2-inch annular cutter capacity, a 6.69-inch stroke, and a gravity feed coolant system in a portable cast steel package?
Meet the Baileigh MD-5015, a 50mm 2-speed magnetic drill built for industrial fabrication and structural steel work that needs more holding force and drilling capacity than a single-speed entry-level magnetic drill can provide.
With the MD-5015, you get a dual-speed 110V motor at 250 and 450 RPM, an industrial-grade magnet with 15,000 N of holding force, a rigid cast steel frame, and an MT3 tool holder for broad tooling compatibility.
When the MD-5015 is set up on your steel, you get accurate, consistent drilling results on a portable machine built for demanding fabrication shops and structural steel job sites.
Baileigh MD-5015 for 2-Speed Portable Magnetic Drill Work on Steel
15,000 N Magnet Holds Securely to Steel During Drilling
The industrial-grade magnet delivers 15,000 N of adhesion to steel surfaces, keeping the drill fixed and aligned through the full drilling cycle on structural steel and fabricated assemblies. This holding force supports accurate hole placement on twist drill work up to 1.25-inch diameter and annular cutting up to 2-inch diameter in mild steel.

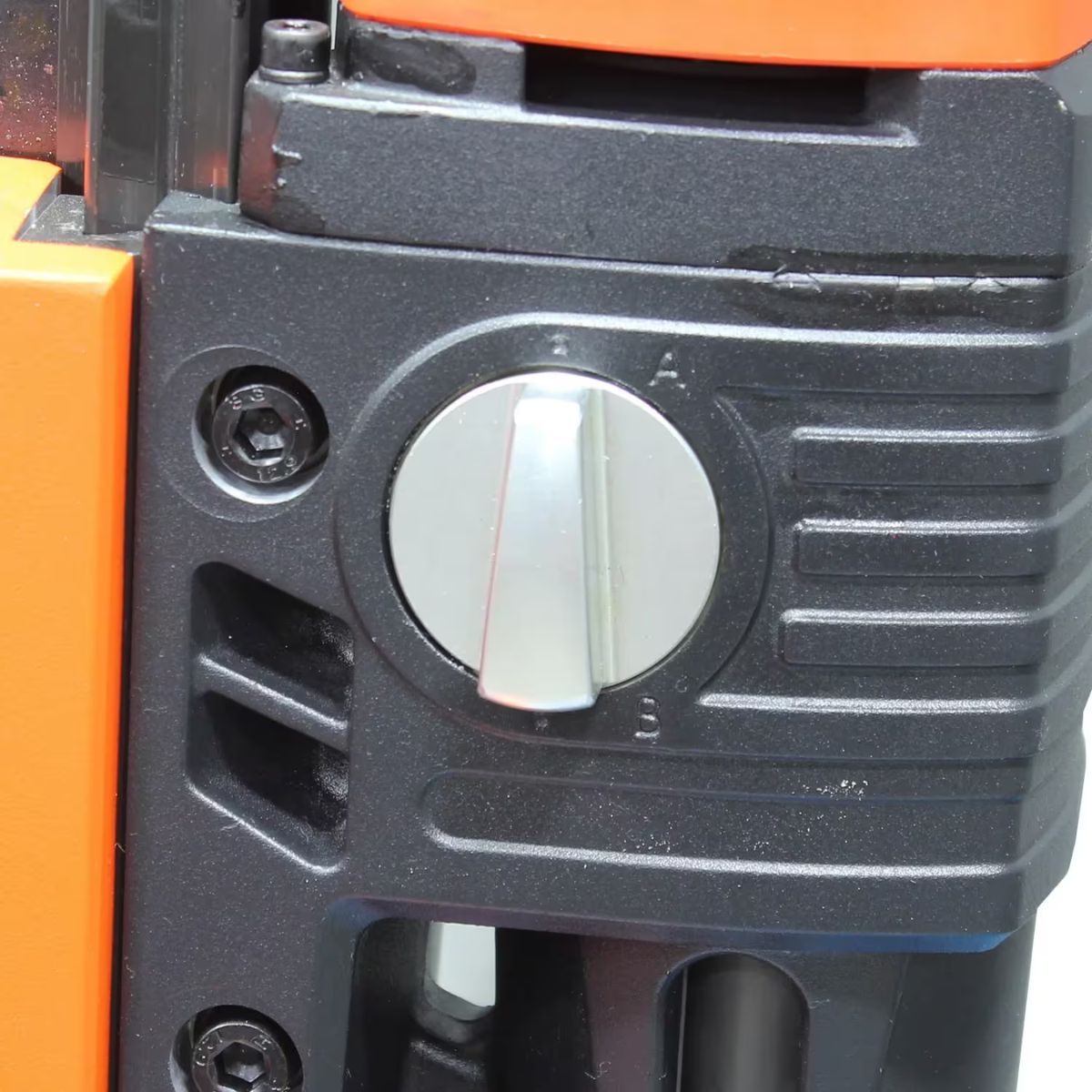

Two Speed Settings Match Cutting Rate to the Operation
Two selectable motor speeds — 250 RPM for low-speed annular cutter work and 450 RPM for faster twist drilling — let operators match the cutting rate to the tooling and material at hand. This two-speed capability extends the range of operations the MD-5015 handles effectively compared to single-speed magnetic drills.
6.69-Inch Stroke Handles Deeper Material Sections
The 6.69-inch maximum stroke gives the MD-5015 the reach to drill through material sections up to 2.75 inches thick without repositioning the drill on the work surface. This stroke length suits the structural and fabricated steel sections that demanding on-site and shop magnetic drill work regularly involves.
Gravity Feed Coolant and MT3 Tool Holder Support Daily Use

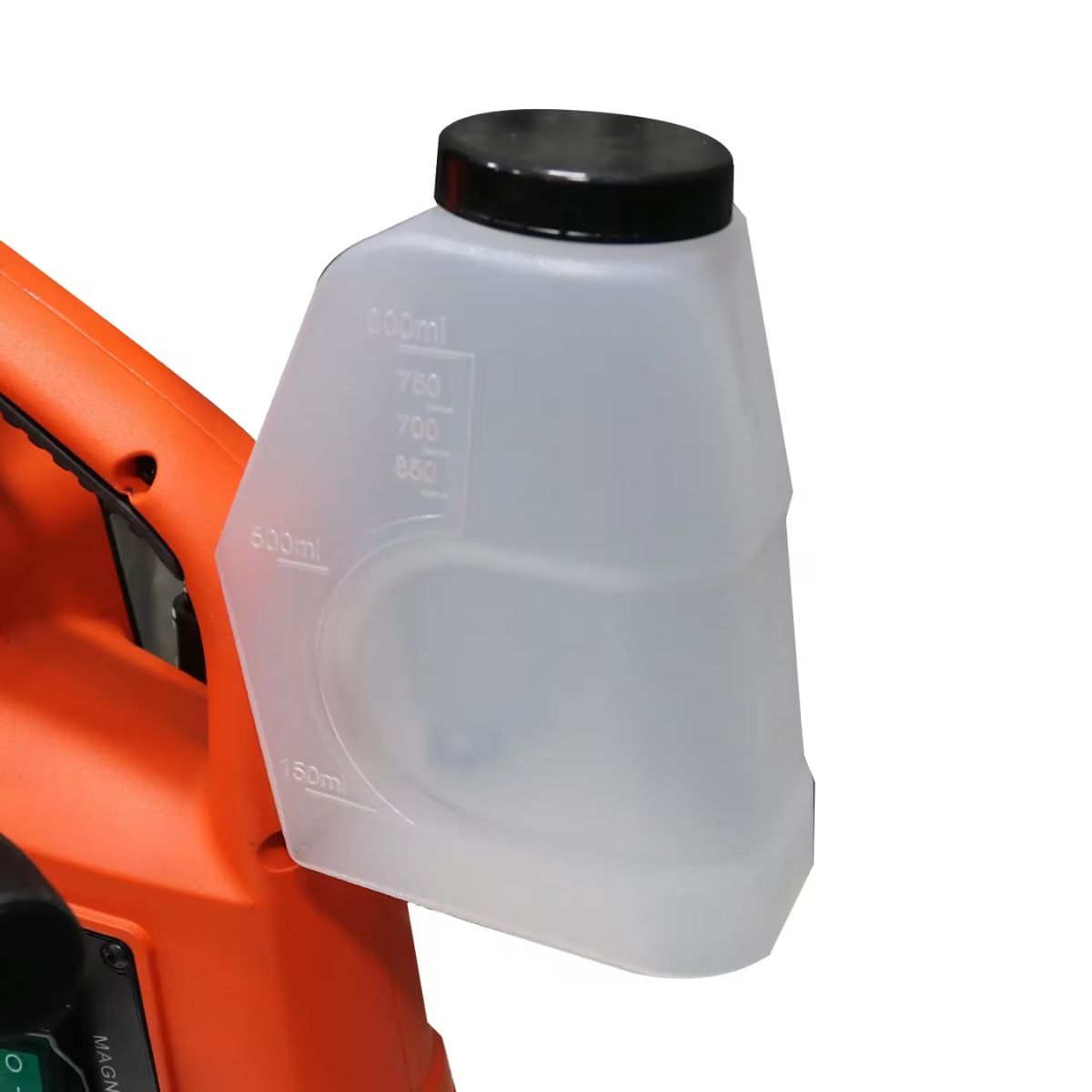

The gravity feed coolant system delivers lubrication to the cutting zone during drilling, extending twist drill and annular cutter life on longer drilling sessions. The included MT3 tool holder provides broad tooling compatibility with standard MT3 tooling that fabrication and structural steel shops commonly stock.

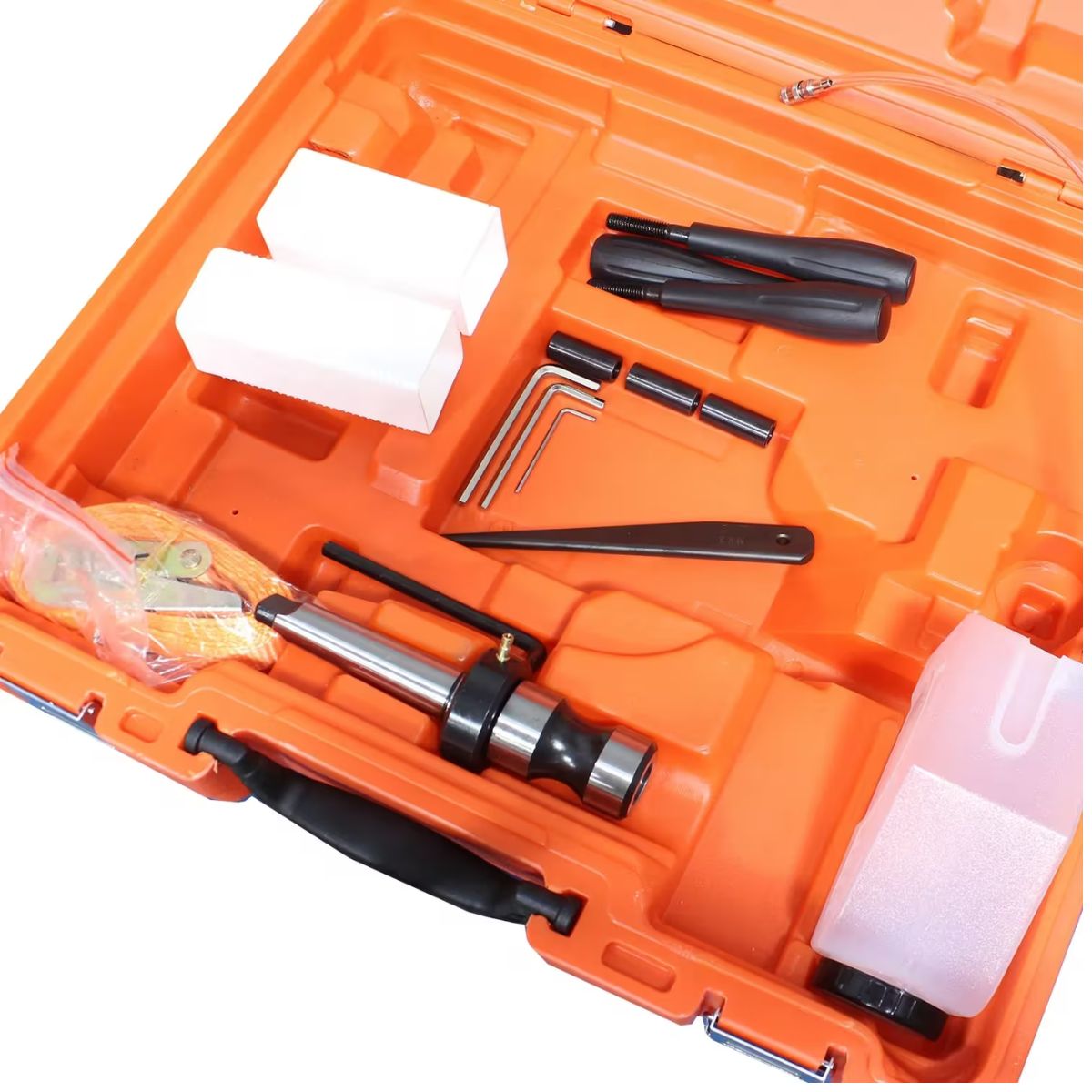

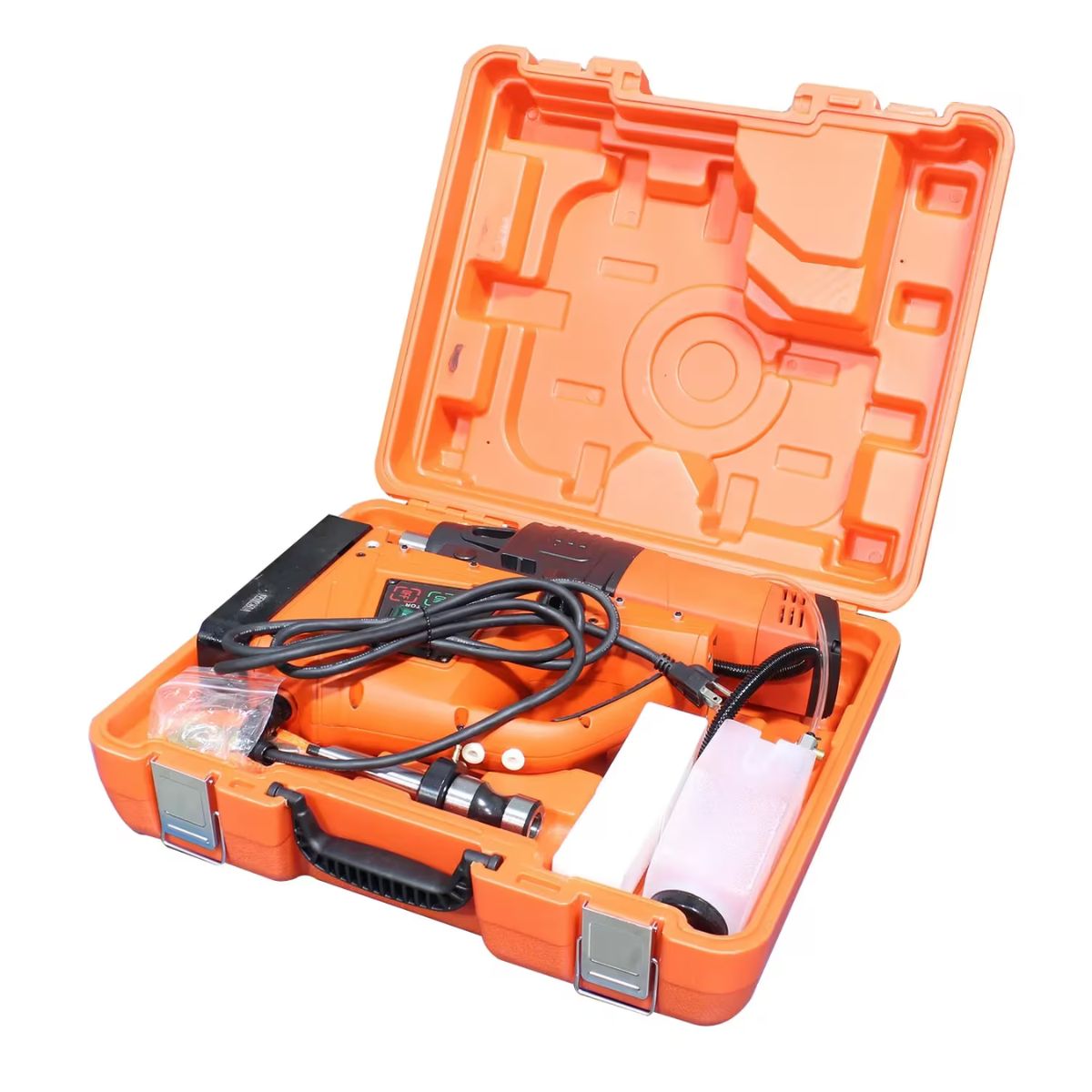

What's Included
What's Included? Baileigh MD-5015 50mm 2-Speed Magnetic Drill
-
MT3 Tool Holder — provides broad tooling compatibility for twist drill and annular cutter work.
-
Gravity Feed Coolant System — delivers lubrication to the cutting zone to extend tooling life during drilling.
Specs
Baileigh MD-5015 50mm 2-Speed Magnetic Drill Specifications
-
Model Number: MD-5015
-
Stock Number: BA9-1227409
-
Power Requirement: 110V, single-phase
-
Motor Speeds: 250 RPM (low) / 450 RPM (high)
-
Twist Drill Capacity (Mild Steel): 1.25"
-
Annular Cutter Capacity: 2"
-
Maximum Material Thickness: 2.75"
-
Stroke Length: 6.69"
-
Magnetic Clamping Force: 15,000 N
-
Spindle Holder: MT3
-
Net Weight: 61 lb.
-
Warranty: 1 Year
