Baileigh IGBB-436 8" Bench Grinder & 4" × 36" Belt Sander Combo
Are you working in a fabrication or welding shop that needs both a bench grinder and a belt sander without dedicating floor space to two separate machines?
What if one compact machine gave you an 8-inch bench grinder at 3,600 RPM and a 4-inch by 36-inch belt sander with adjustable tool rests and quick-adjust spark guards on standard 115V power?
Meet the Baileigh IGBB-436, an 8-inch bench grinder and 4-inch by 36-inch belt sander combo built for fabrication, welding, and metalworking shops that need efficient grinding and finishing in a single compact machine.
With the IGBB-436, you get a 1 HP motor on 115V single-phase power, 3,600 RPM wheel speed, fully sealed ball bearings, and a solid cast structure that reduces vibration during grinding and sanding work.
When the IGBB-436 is running, you get consistent performance for smoothing burrs, chamfering weld edges, and cleaning up castings with two finishing tools in one compact bench-top footprint.
Baileigh IGBB-436 for Combined Bench Grinding and Belt Sanding Work
8-Inch Bench Grinder at 3,600 RPM Handles Grinding and Deburring
The 8-inch grinding wheels spin at 3,600 RPM, delivering consistent cutting speed for deburring, sharpening, and surface preparation on metal parts. Adjustable tool rests support precise grinding angles, and one-piece quick-adjust spark guards improve operator safety during grinding operations.

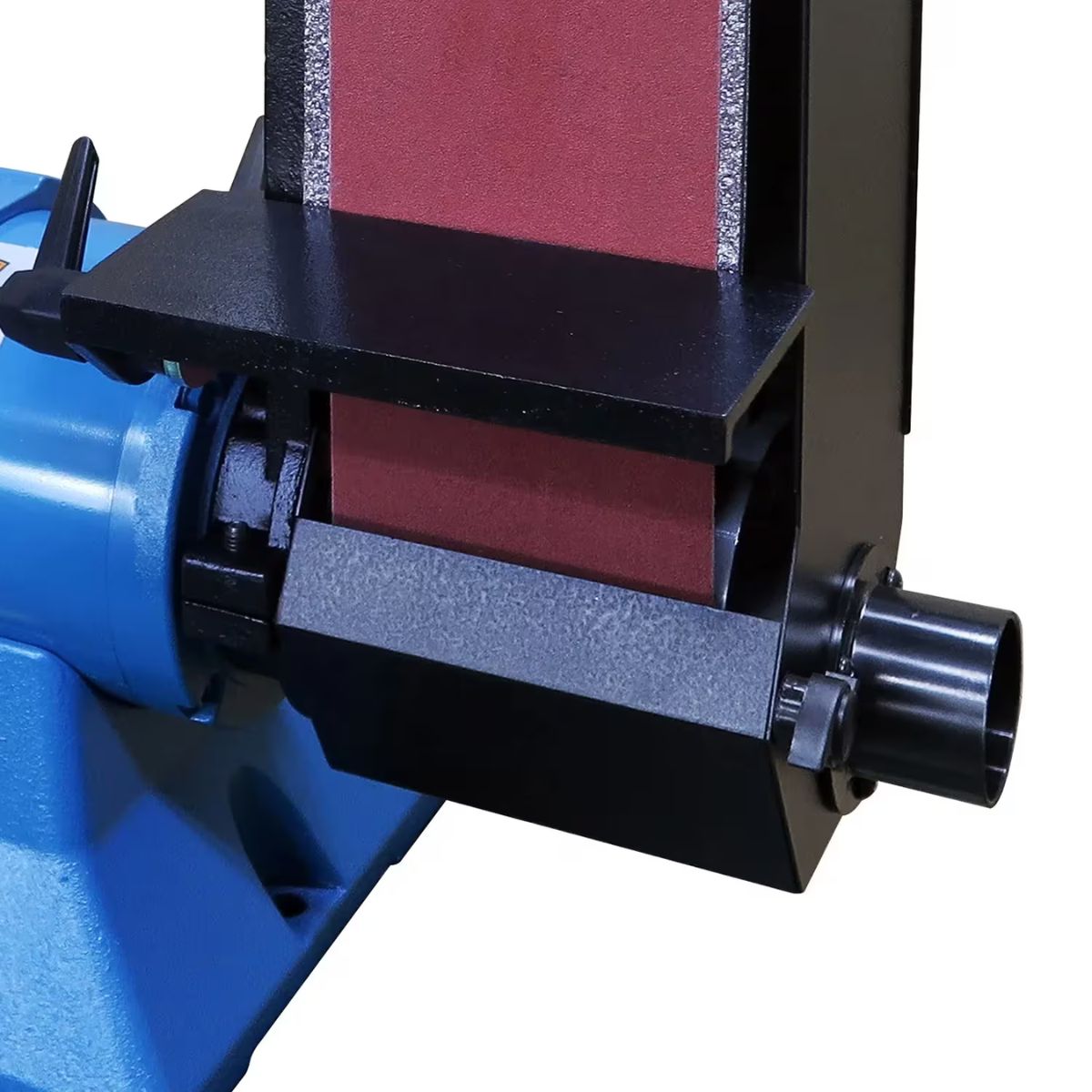

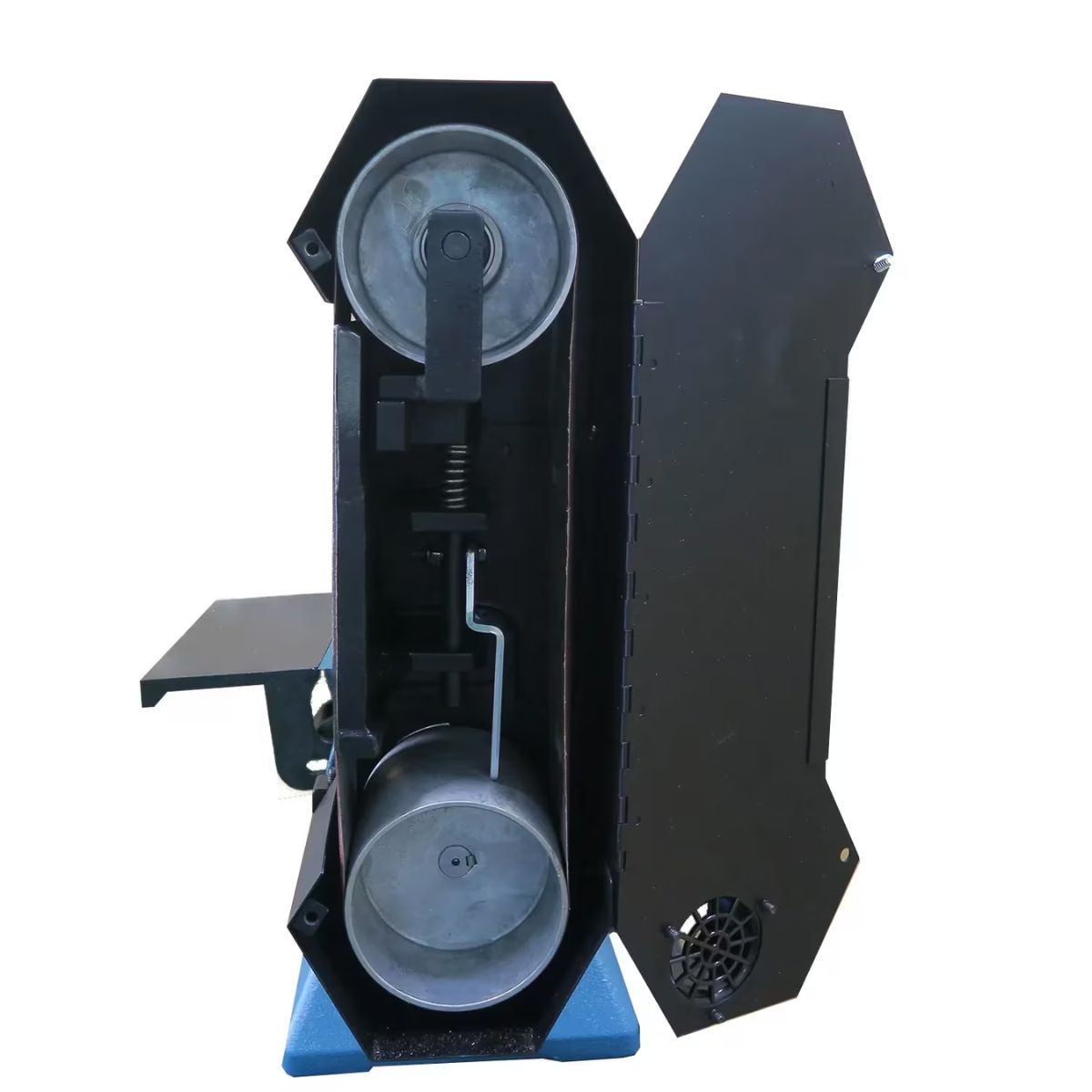

4" × 36" Belt Sander Covers Material Removal and Surface Finishing
The 4-inch by 36-inch belt sander handles material removal, weld edge chamfering, and surface finishing on fabricated parts. The belt sander and bench grinder share the same 1 HP motor, combining two finishing functions in one machine without the footprint of two separate units.
Fully Sealed Ball Bearings Reduce Maintenance
Fully sealed ball bearings minimize wear and reduce the maintenance requirements that come with daily grinding and sanding work. This bearing design extends service life and keeps the machine running consistently through fabrication and welding shop use without frequent bearing service.
Solid Cast Structure and Wheel Dresser Support Accurate Grinding
The solid cast structure reduces vibration during operation, keeping the machine stable and the grinding angle consistent through repeated use. The included 1-1/4-inch wheel dresser allows operators to maintain wheel profiles directly at the machine, keeping grinding performance consistent without sending wheels out for dressing.
What's Included
What's Included? Baileigh IGBB-436 8" Bench Grinder & 4" × 36" Belt Sander Combo
-
8" × 1" × 5/8" Grinding Wheels (36 grit) — installed on the bench grinder and ready for deburring and surface preparation.
-
4" × 36" Sanding Belt (80 grit) — installed on the belt sander and ready for material removal and surface finishing.
-
1-1/4" Wheel Dresser — maintains wheel profiles at the machine for consistent grinding performance.
-
Quick-Adjust Spark Guards — one-piece guards that adjust quickly for operator safety during grinding.
Specs
Baileigh IGBB-436 8" Bench Grinder & 4" × 36" Belt Sander Combo Specifications
-
Model Number: IGBB-436
-
Stock Number: BA9-1227899
-
Motor: 1 HP
-
Power Requirement: 115V, single-phase
-
Wheel Size: 8" x 1" x 5/8"
-
Wheel Speed: 3,600 RPM
-
Wheel Grit: 36
-
Belt Size: 4" x 36"
-
Belt Grit: 80
-
Bearings: Fully sealed ball bearings
-
Net Weight: 150 lb.
-
Warranty: 1 Year
