Baileigh HSP-60M-C 220V 3-Phase 60/15-Ton Dual-Force Electric Hydraulic H-Frame Press
Are you looking for one machine that can handle both heavy pressing and everyday arbor work?
What if your shop had a press strong enough for bending and straightening, with a second station ready for smaller jobs.

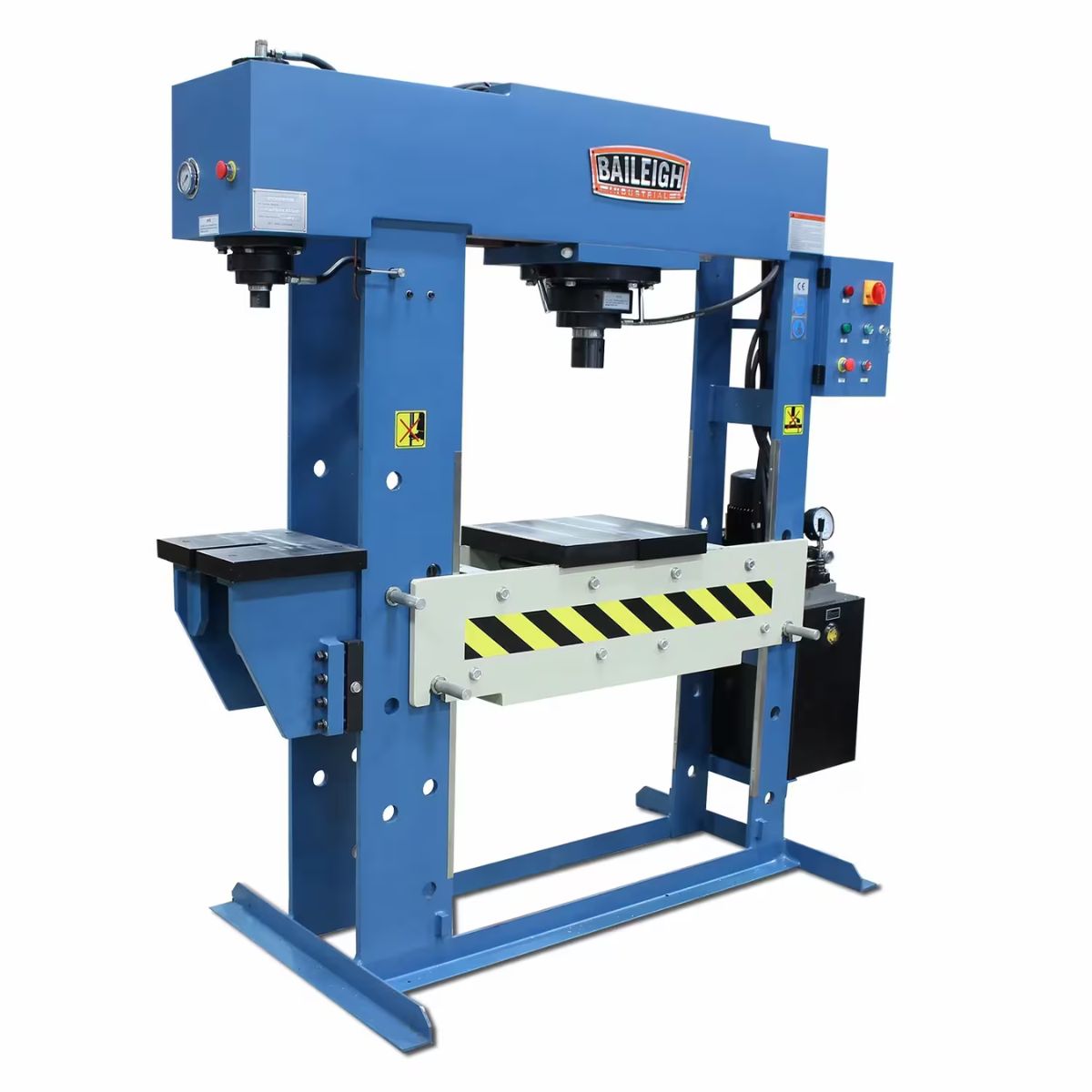

Meet the Baileigh HSP-60M-C, a two-station hydraulic press built for shops that need real pressing power.
With a 60 ton main press and 15 ton side press in one welded frame, you get two machines in a single footprint.
When both stations are ready together, you can move between jobs without swapping machines.
Baileigh HSP-60M-C for Heavy Shop Pressing and Bending

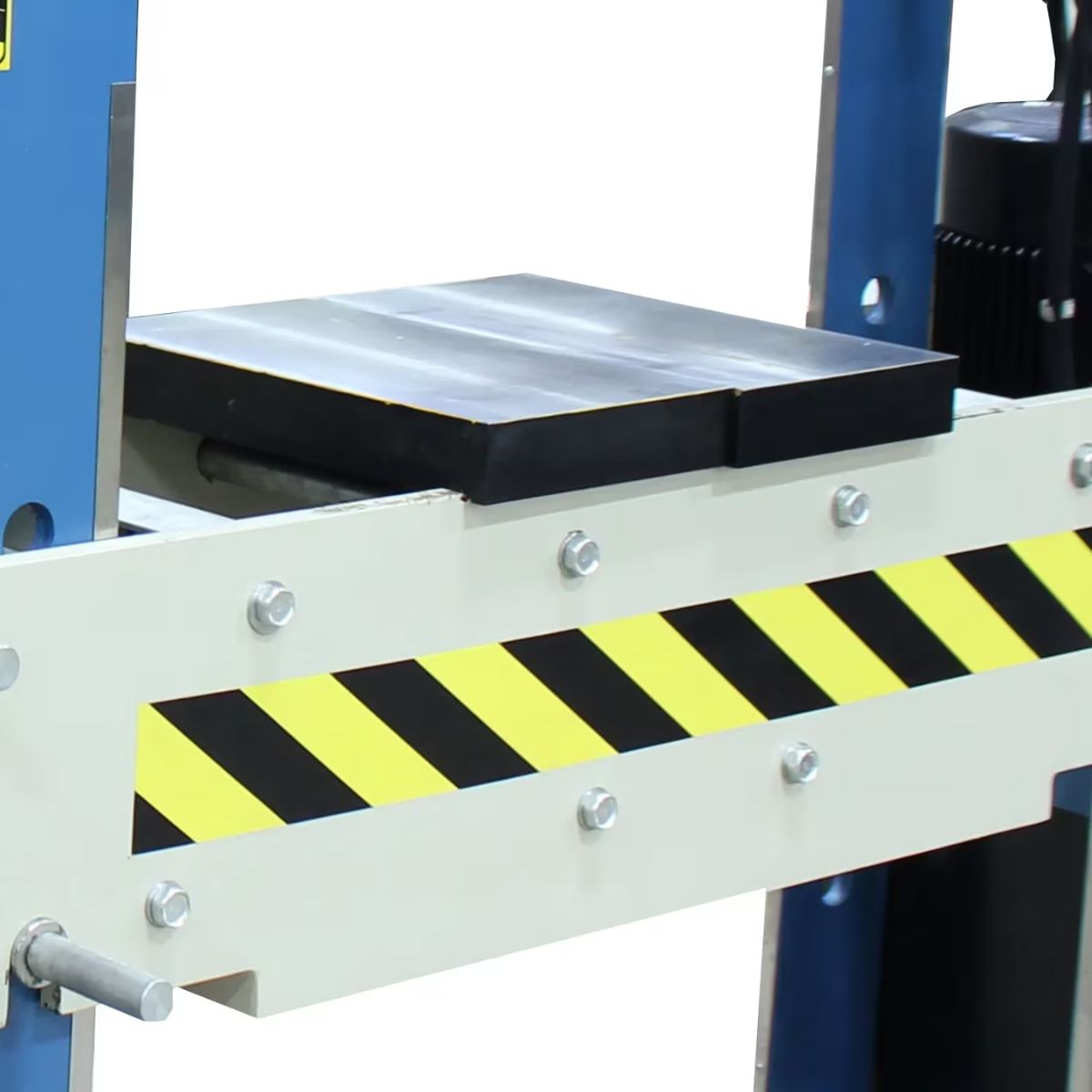

60-Ton Main Press Handles Heavy Pressing and Bending
The H-frame main press delivers 60 tons of force across a 41.25 inch working width for straightening, bending, and pressing work. This gives you room to handle larger stock without moving to a second machine.

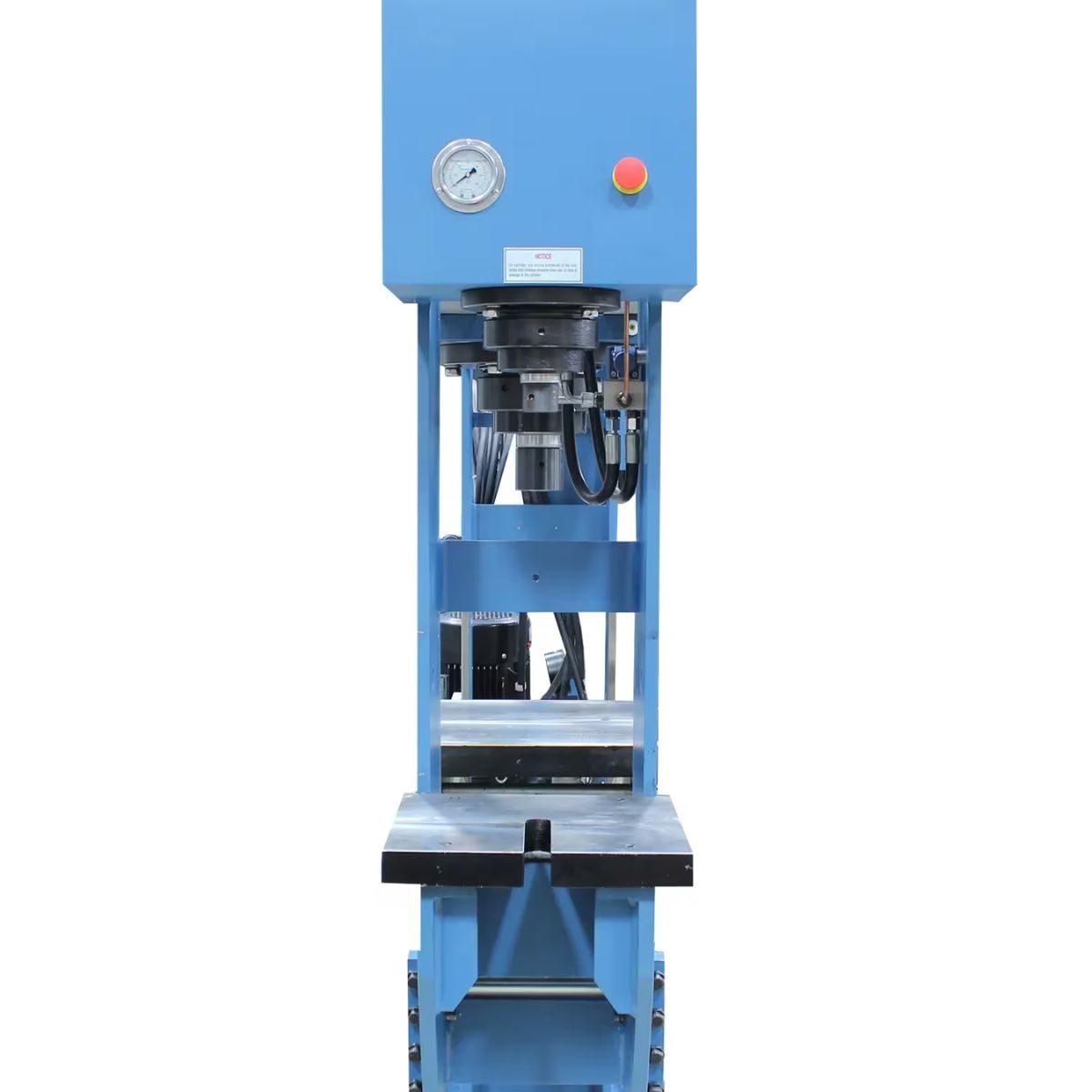

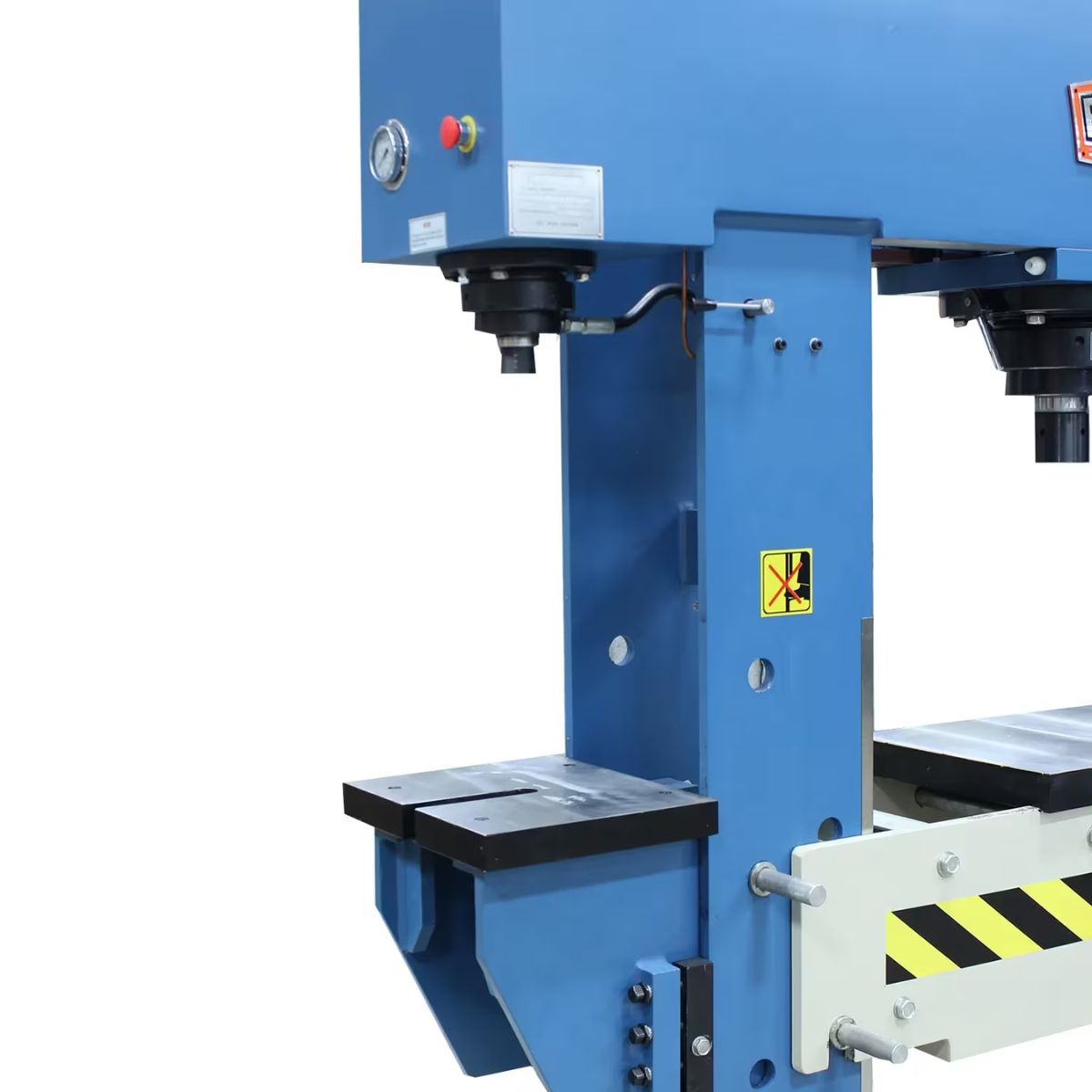

15-Ton Side Press Adds a Second Work Station
The C-frame side press adds 15 tons of separate pressing capacity for arbor press tasks like bearing and bushing work. Having both stations built into one frame keeps two common shop jobs on a single machine.

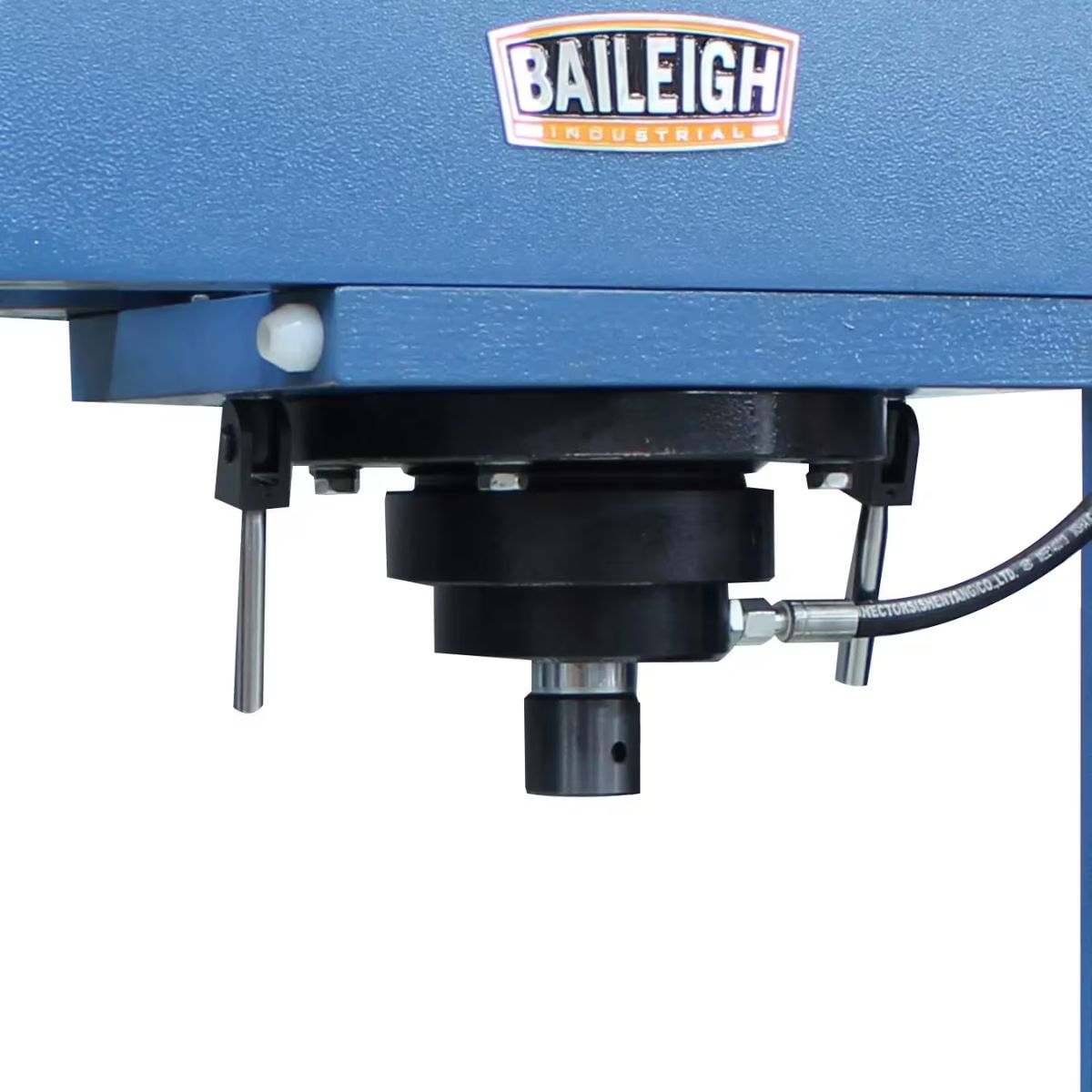

Movable Main Cylinder Simplifies Off-Center Work
The main cylinder shifts left and right to line up with off-center parts. This lets you position the ram over the work instead of repositioning the workpiece.
Dual Pressure Gauges Support Repeatable Results
Separate pressure gauges on each station let you dial in and repeat pressure settings for pressing or arbor work. This helps you get the same result each time you run a job.
What's Included
What's Included? Baileigh HSP-60M-C Two-Station Hydraulic Press
-
Baileigh HSP-60M-C Two-Station Hydraulic Press — Provides the complete 60/15 ton dual-station press for pressing, bending, and arbor work.
-
Set of V-Blocks — Supports round stock during pressing operations.
Specs
Baileigh HSP-60M-C Two-Station Hydraulic Press Specifications
- Model: HSP-60M-C
- Stock Number: BA9-1019290
- Main Press Capacity: 60 Ton
- Secondary Press Capacity: 15 Ton
- Working Width (Main Press): 41.25 in
- Stroke Length (Main Press): 11.8 in
- Stroke Length (Side Press): 11.75 in
- Input Power: 220V 3-Phase
- Net Weight: 2,960 lb
- Gross Weight: 2,960 lb
- Warranty: 1 Year
