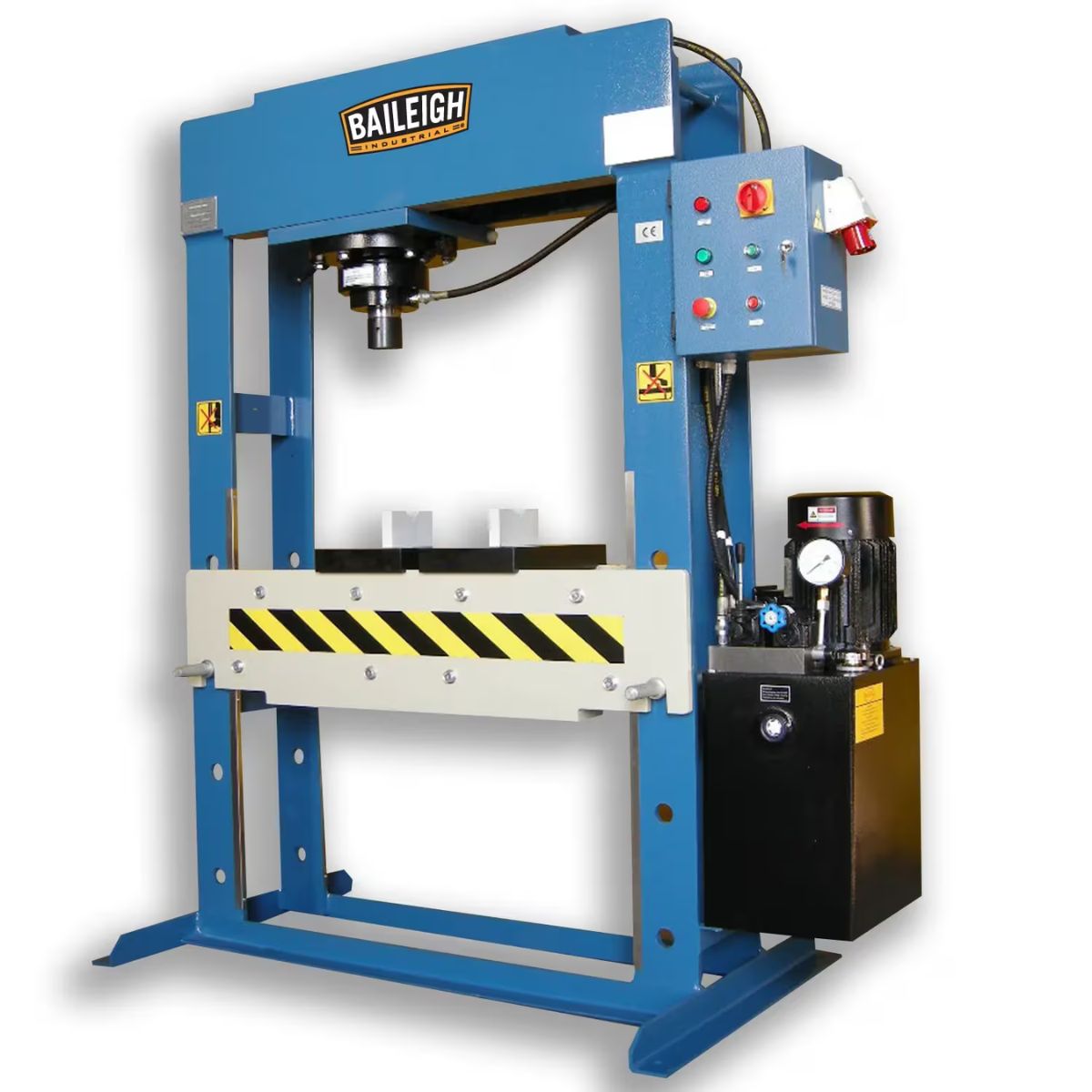

Baileigh HSP-60M 220V 3-Phase 60-Ton Electric Hydraulic H-Frame Press

Baileigh HSP-60M 220V 3-Phase 60-Ton Electric Hydraulic H-Frame Press

Baileigh HSP-60M for Heavy Fabrication Work

Welded Steel Frame Adds Long-Term Rigidity

The HSP-60M frame is built from heavy welded steel plate for lasting rigidity under high loads. A rigid frame keeps the press stable and accurate through repeated bending and forming work.

5 HP Motor Powers Consistent 60 Ton Force

A 5 HP motor drives the piston style hydraulic pump behind the HSP-60M's 60 ton pressing force. Steady power delivery helps you push through tough forming and straightening jobs without stalling.

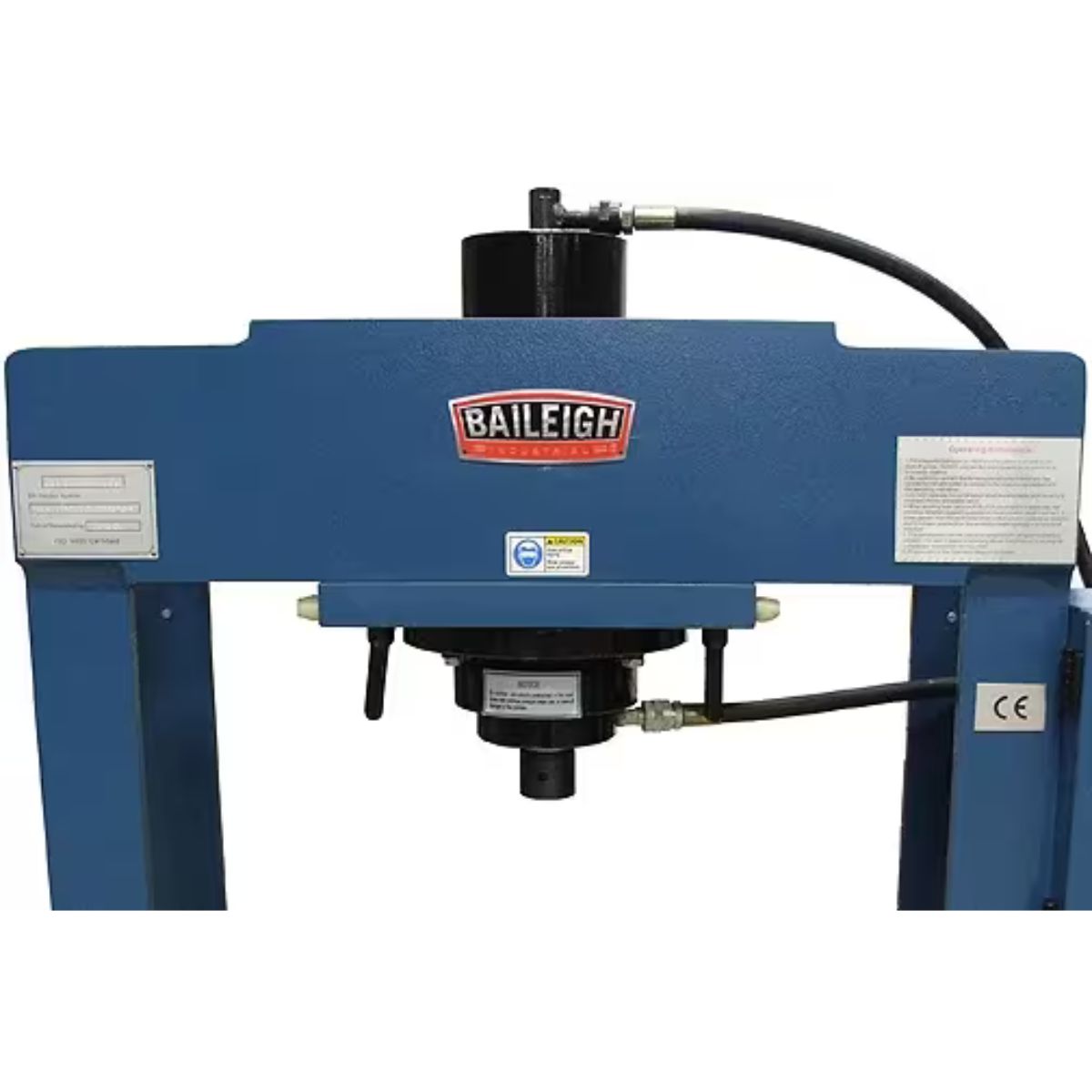

Traveling Cylinder Handles Off-Center Work

The cylinder moves left and right within the 41.25 inch working width to reach off-center parts. This lets you position the ram exactly where the work needs it instead of forcing the part to fit the press.

Two-Piece V-Block Set Adds Workholding Versatility

The HSP-60M comes with a two piece V-block set for supporting round and irregular stock during pressing. Reliable workholding keeps parts steady so your pressing results stay consistent.

What's Included

What's Included? Baileigh HSP-60M Hydraulic Press

• Baileigh HSP-60M Hydraulic Press — Provides the core 60 ton H-frame pressing platform for shop fabrication work.
• Two-Piece V-Block Set — Supports round and irregular stock for stable workholding during pressing.
• Pressure Gauge — Lets you monitor pressing force for consistent, repeatable results.

Specs

Baileigh HSP-60M Hydraulic Press Specifications

• Model: HSP-60M
• Stock Number: BA9-1012740A
• Press Capacity: 60 Ton
• Input Power: 220V Three Phase
• Motor: 5 HP
• Working Width: 41.25 in
• Distance From Table To Ram: Min. 10.04 in – Max. 39.57 in
• Stroke Length: 12 in
• Speed: 1440 RPM
• Net Weight: 2200 lb
• Warranty: 1 Year Parts, Lifetime Technical Support
