Baileigh HSP-30M 220V 30-Ton Electric Hydraulic H-Frame Press
Are you looking for a hydraulic press that holds up to daily pressing and repair work in the shop?
What if your press delivered steady, predictable force for bearings, bushings, and fabrication jobs every time?

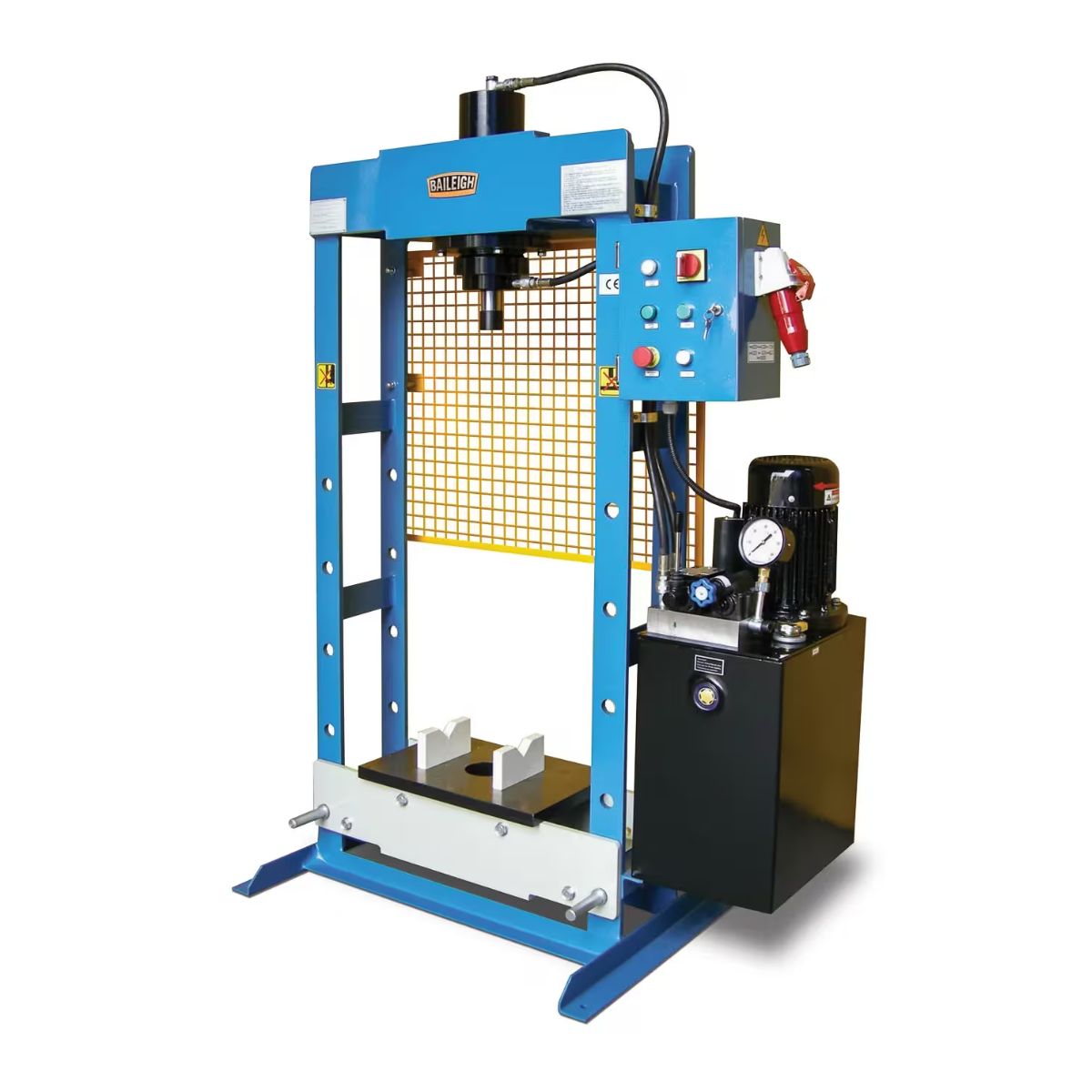

Meet the Baileigh HSP-30M, a 30 ton electric hydraulic H-frame press built for metalworking and automotive shops.
With a heavy-duty welded steel frame and a movable cylinder for off-center work, this press holds steady under load.
When your press holds steady, you can move through repair and fabrication jobs with confidence.
Baileigh HSP-30M for Metalworking and Automotive Pressing
Welded Steel Frame Handles Daily Shop Loads
The HSP-30M frame is built from heavy-duty welded steel for strength and long-term reliability. This rigid construction keeps the press stable during repeated pressing and forming work.

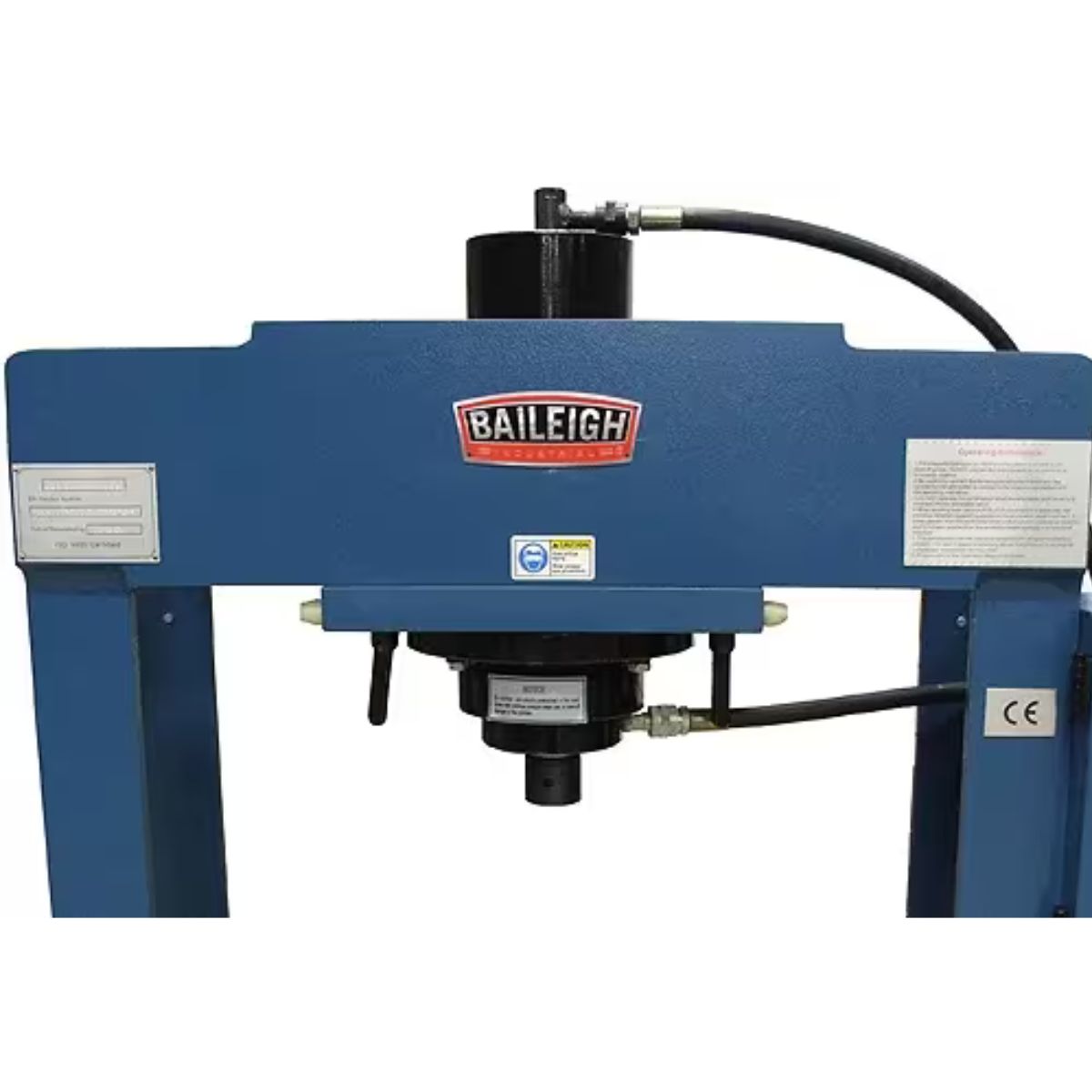

30 Ton Hydraulic Cylinder Delivers Steady Pressing Force
The hydraulic cylinder is rated at 30 tons, giving you consistent force for bearings, bushings, and other pressing tasks. The cylinder's stroke gives you enough travel for a wide range of jobs.
Movable Cylinder Simplifies Off-Center Work
The cylinder shifts left and right to line up with off-center workpieces. This makes it easier to press parts that are not centered in the frame without repositioning the whole setup.
3 HP Motor Powers Consistent Cycling

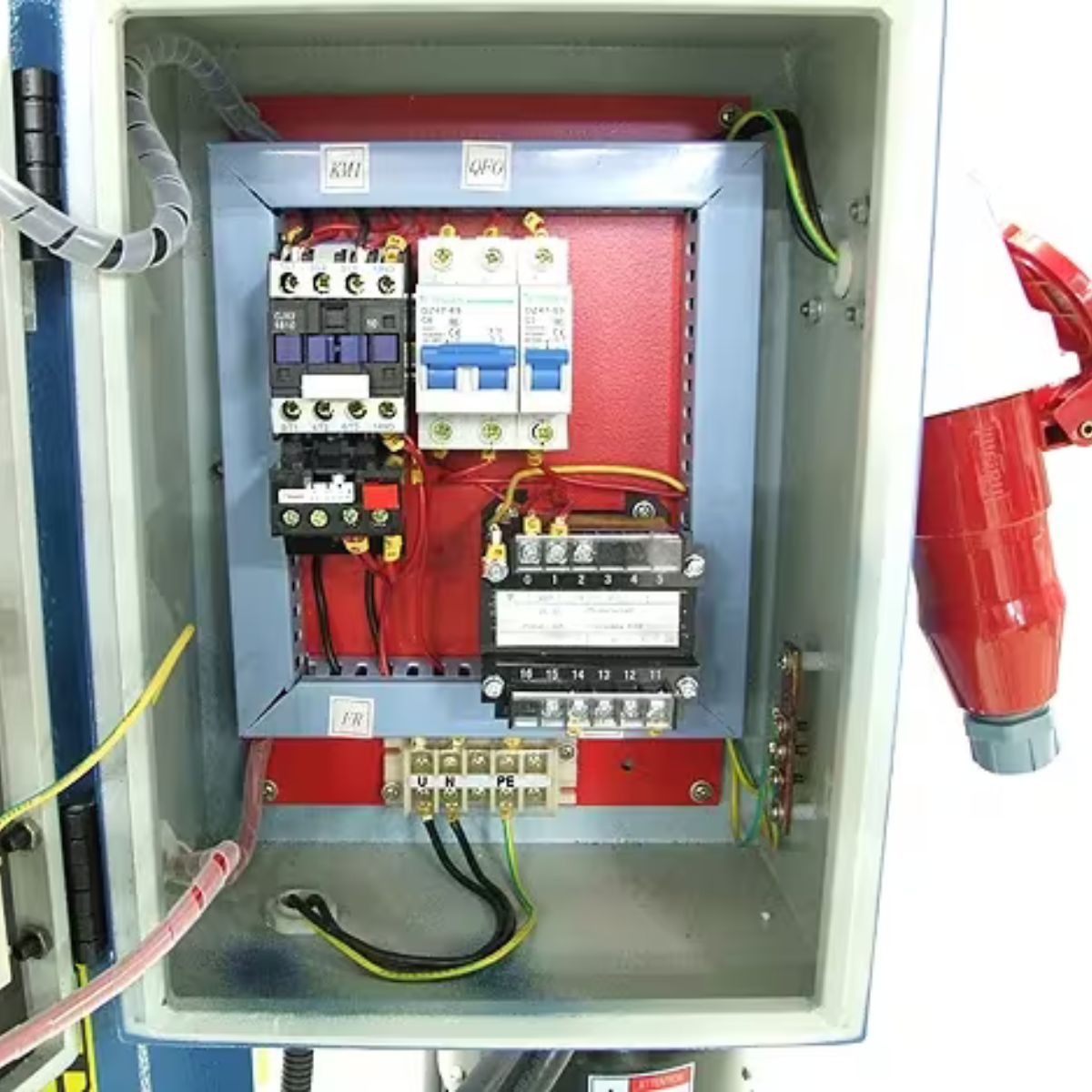

A 3 HP motor drives the hydraulic system on 220V single-phase power. This keeps the press cycling steadily through repair and fabrication work.
What's Included
What's Included? Baileigh HSP-30M 220V 30-Ton Electric Hydraulic H-Frame Press
-
Baileigh HSP-30M Hydraulic Press — Provides a 30 ton H-frame pressing platform for shop and automotive work.
-
2-Piece V-Block — Supports round stock during pressing operations.
-
Pressure Gauge — Lets you monitor pressing force as you work.
Specs
Baileigh HSP-30M 220V 30-Ton Electric Hydraulic H-Frame Press Specifications
- Model: HSP-30M
- Stock Number: BA9-1012401
- Rated Capacity: 30 Ton
- Input Power: 220V Single Phase
- Motor: 3 HP
- Working Width: 27.5 in
- Cylinder Diameter: 5.74 in
- Stroke Length: 10 in
- Distance From Table To Ram: Min. 9.84 in, Max. 41.34 in
- Net Weight: 1,060 lb
- Warranty: 1 Year
