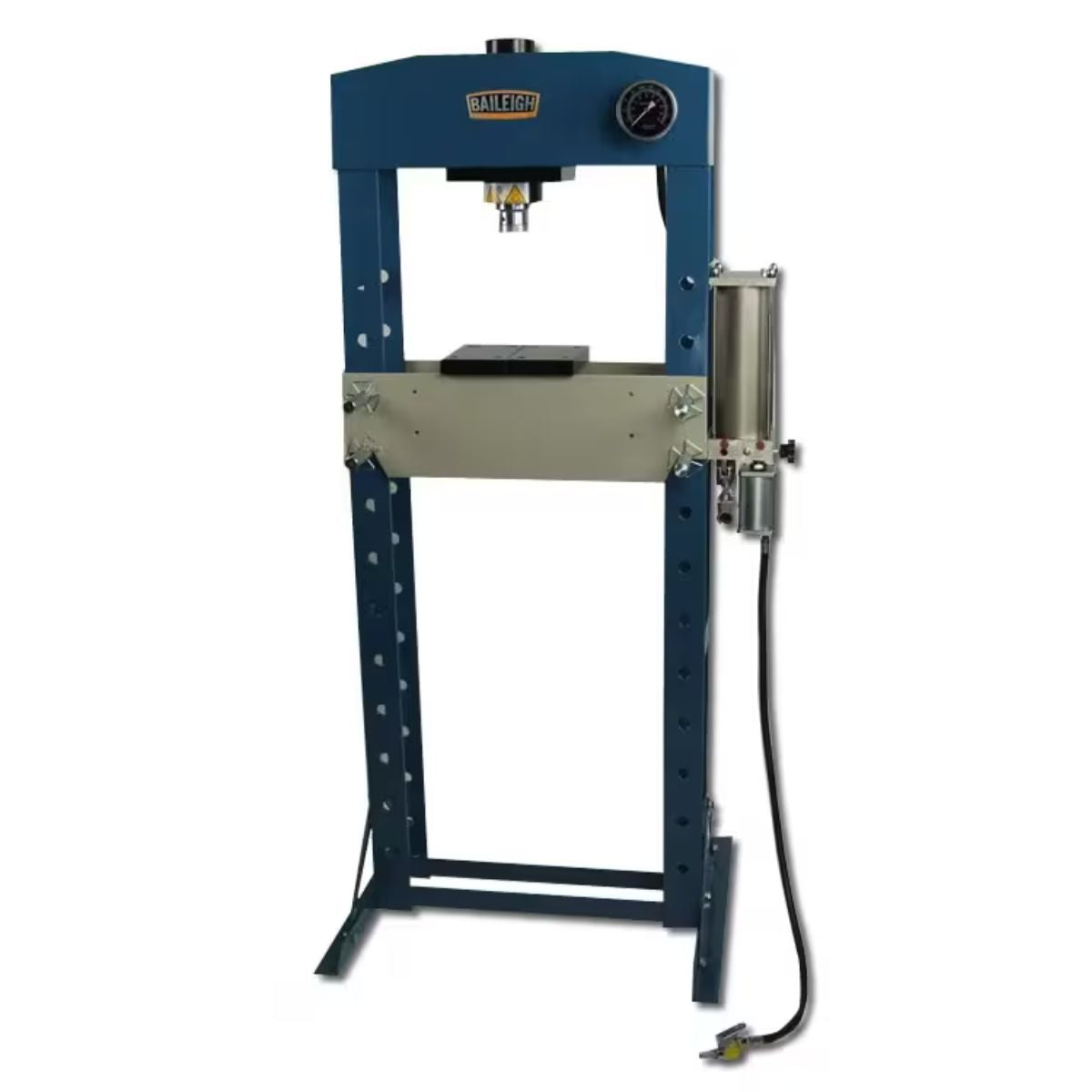

Baileigh HSP-30A 30-Ton Air/Hand H-Frame Press — CE Approved
Are you looking for a shop press that handles pressing, bending, and straightening jobs without fighting for control?
What if your press gave you pneumatic speed for repetitive work and hand control for delicate setups.
Meet the Baileigh HSP-30A, a 30 ton air and hand operated H-frame press built for daily shop use.
With a welded steel frame, movable ram head, and included V-blocks, the press holds steady through demanding jobs.
When the press gives you power and control, you can take on a wider range of work with confidence.
Baileigh HSP-30A for Everyday Shop Pressing Work
Pneumatic and Hand Operation Give You Two Ways to Press
The HSP-30A runs on air power for fast, repetitive work and switches to hand operation when you need finer control. This lets you match press speed to the job instead of one fixed setting.

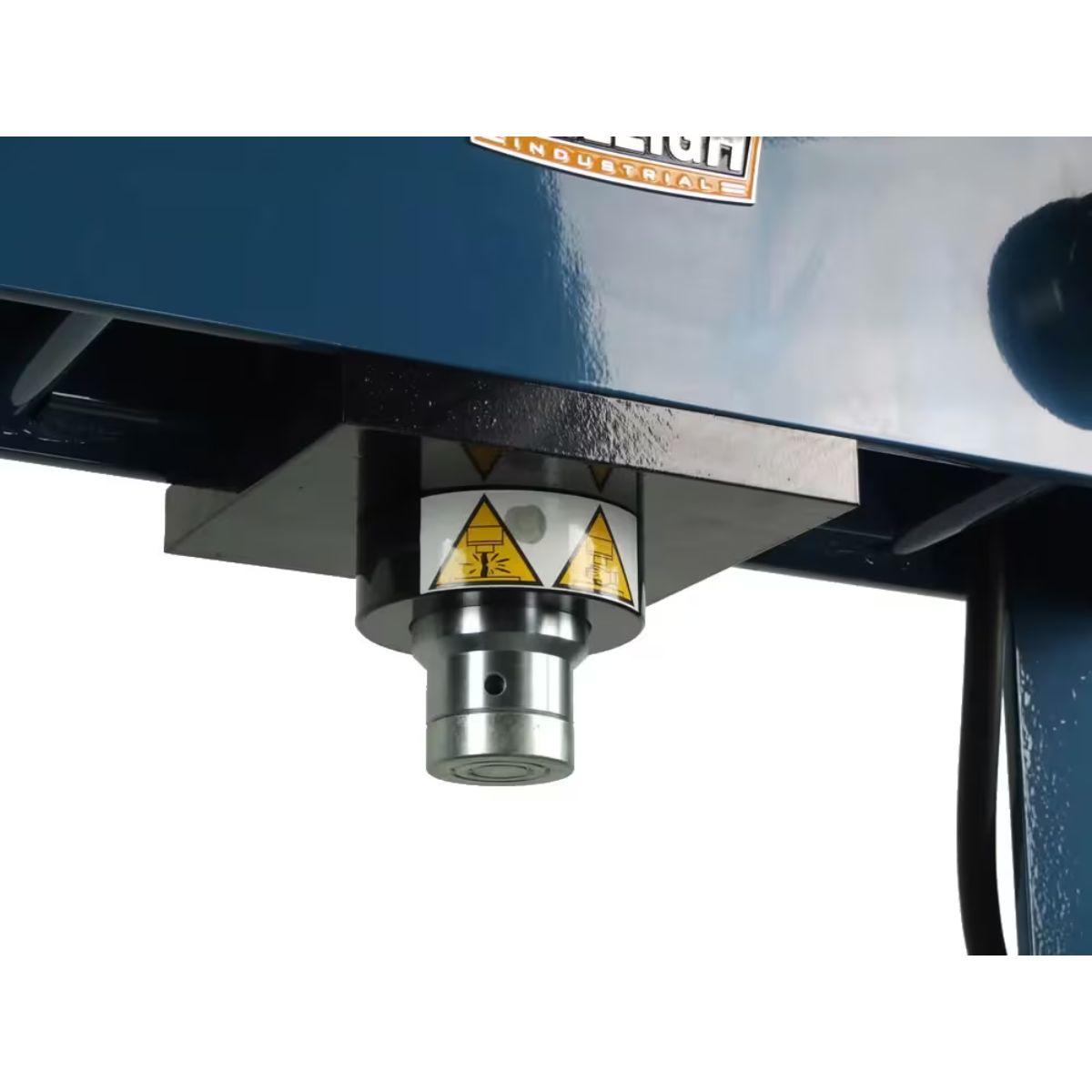

Movable Ram Head Allows Off-Center Pressing
The ram head shifts to handle parts that are not centered on the table. This gives you more flexibility when pressing bushings, bearings, or shafts of different sizes.
Welded Steel Frame Holds Up Under Daily Use
The H-frame is fully welded from heavy-duty steel for long-term rigidity. A solid frame keeps the press accurate even after years of frequent use.

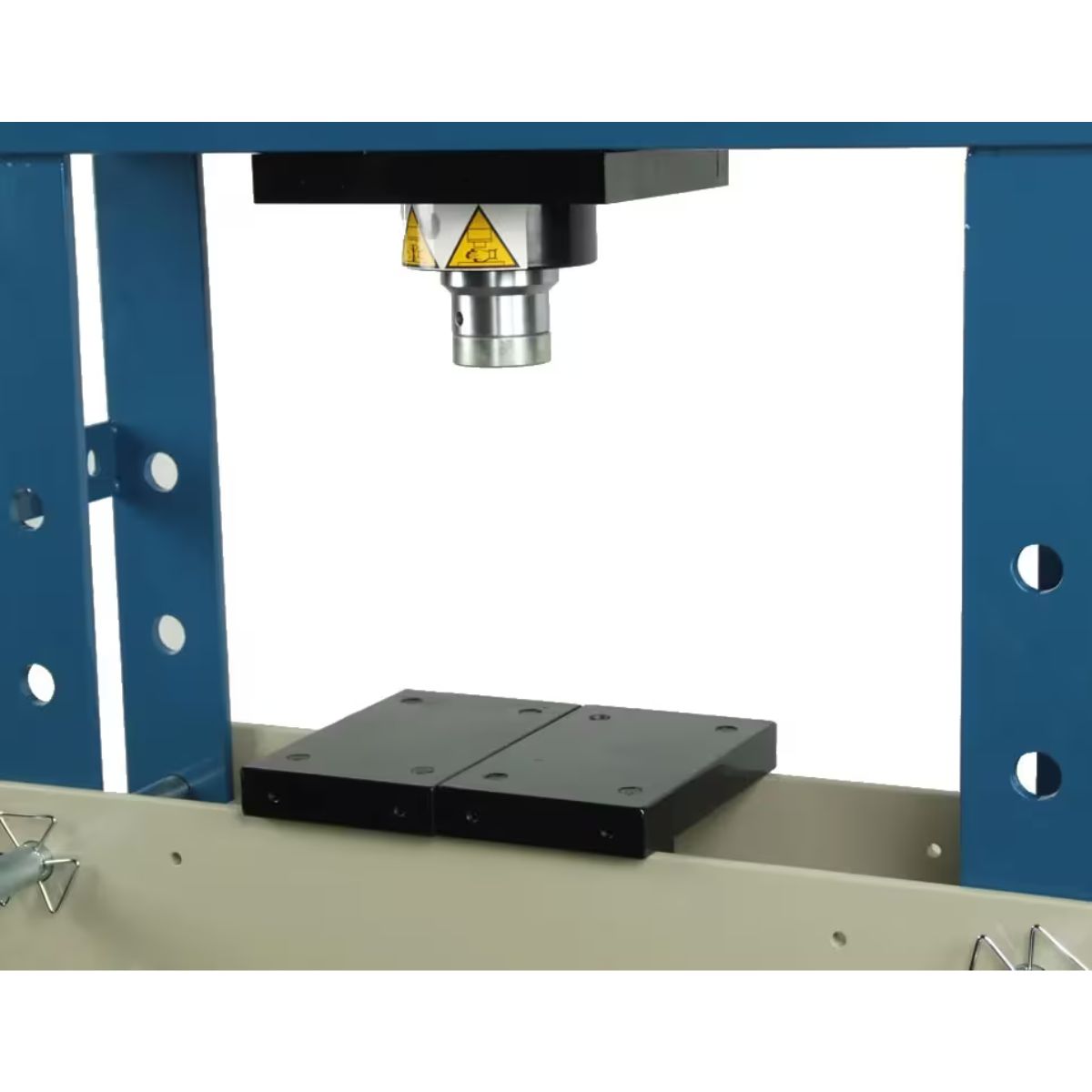

Adjustable Working Table Fits a Range of Part Sizes
The table adjusts to match the height of the work you are pressing. Included V-blocks help support round stock so it stays steady during the press.
What's Included
What's Included? Baileigh HSP-30A 30-Ton Air/Hand H-Frame Press
-
Baileigh HSP-30A H-Frame Press — Provides a 30 ton air and hand operated press for shop use.
-
V-Block Set — Supports round stock securely during pressing.
Specs
Baileigh HSP-30A Specifications
- Model: HSP-30A
- Stock Number: BA9-1004816
- Rated Capacity: 30 Tons
- Working Width: 21.653 in
- Distance From Table To Ram: 5.94 in min, 40.59 in max
- Stroke Length: 5.75 in (see flag above — supplier feature list also lists 5.9 in)
- Input Power: Pneumatic (with manual hand operation)
- Gross Weight: 430 lb
- Net Weight: 345 lb
- UPC: 731325407686
- Warranty: 1 Year
