Baileigh HSP-20A 20-Ton Air/Hand H-Frame Press — CE Approved
Are you looking for a shop press that gives you real pressing force without waiting on a compressor?
What if your press ran on air when you have it and by hand when you don't?

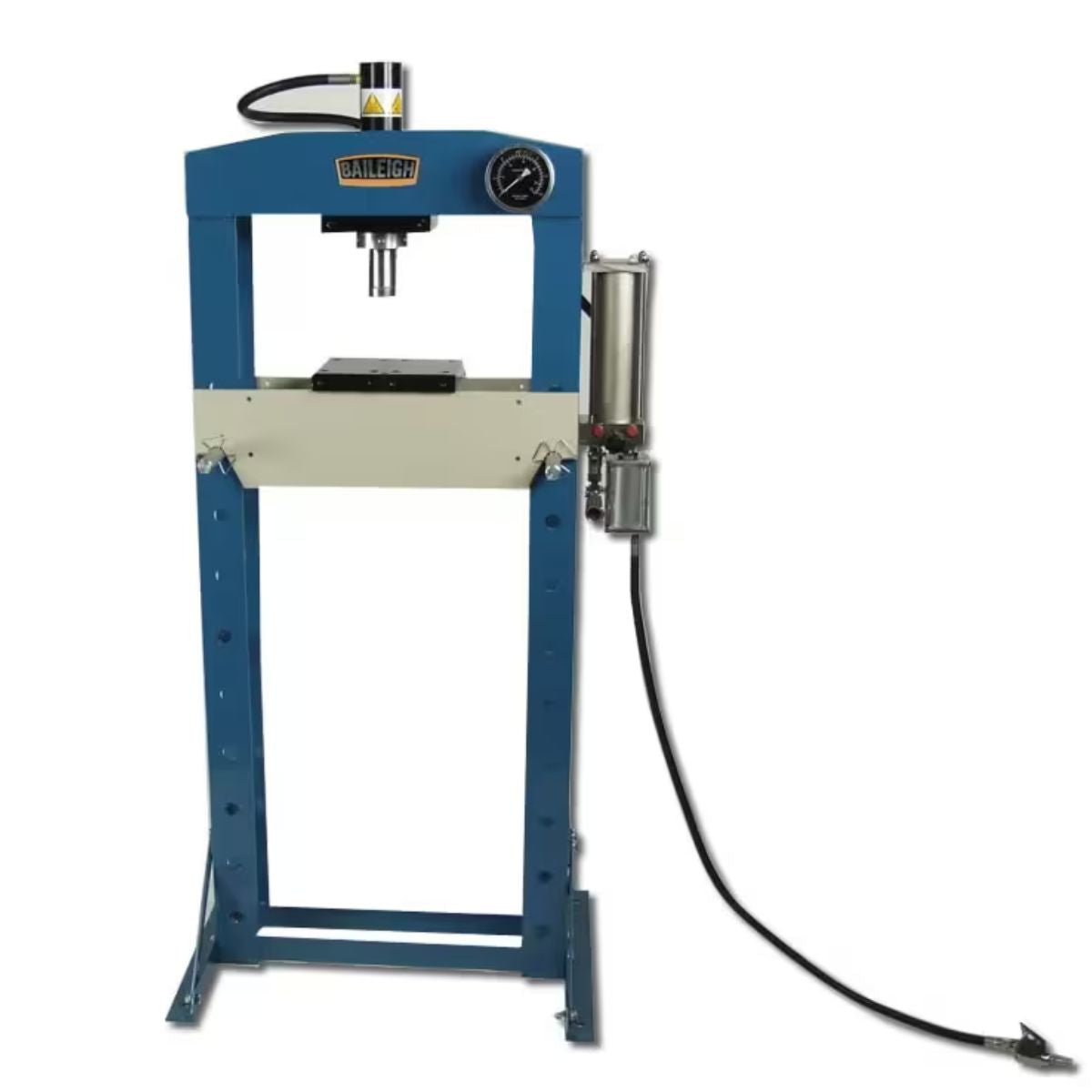

Meet the Baileigh HSP-20A, a 20 ton H-frame press built for pressing, bending, and straightening work.
With a pneumatic pump backed by a manual hand pump, the HSP-20A keeps working even without shop air.
When the press is always ready to run, you can keep the job moving without delay.
Baileigh HSP-20A for Shop Pressing and Metal Forming Work

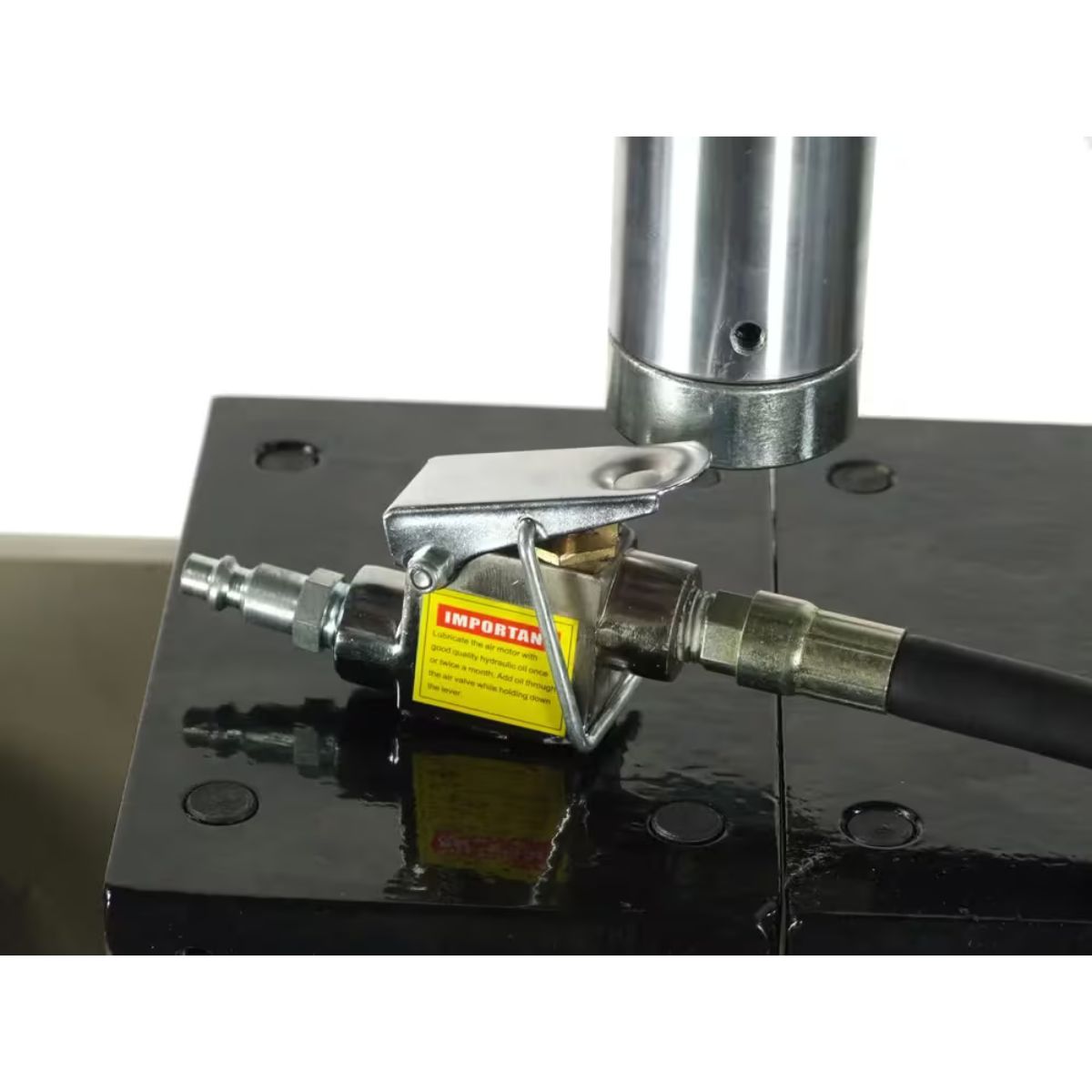

Dual Air and Hand Pump Options Keep You Working

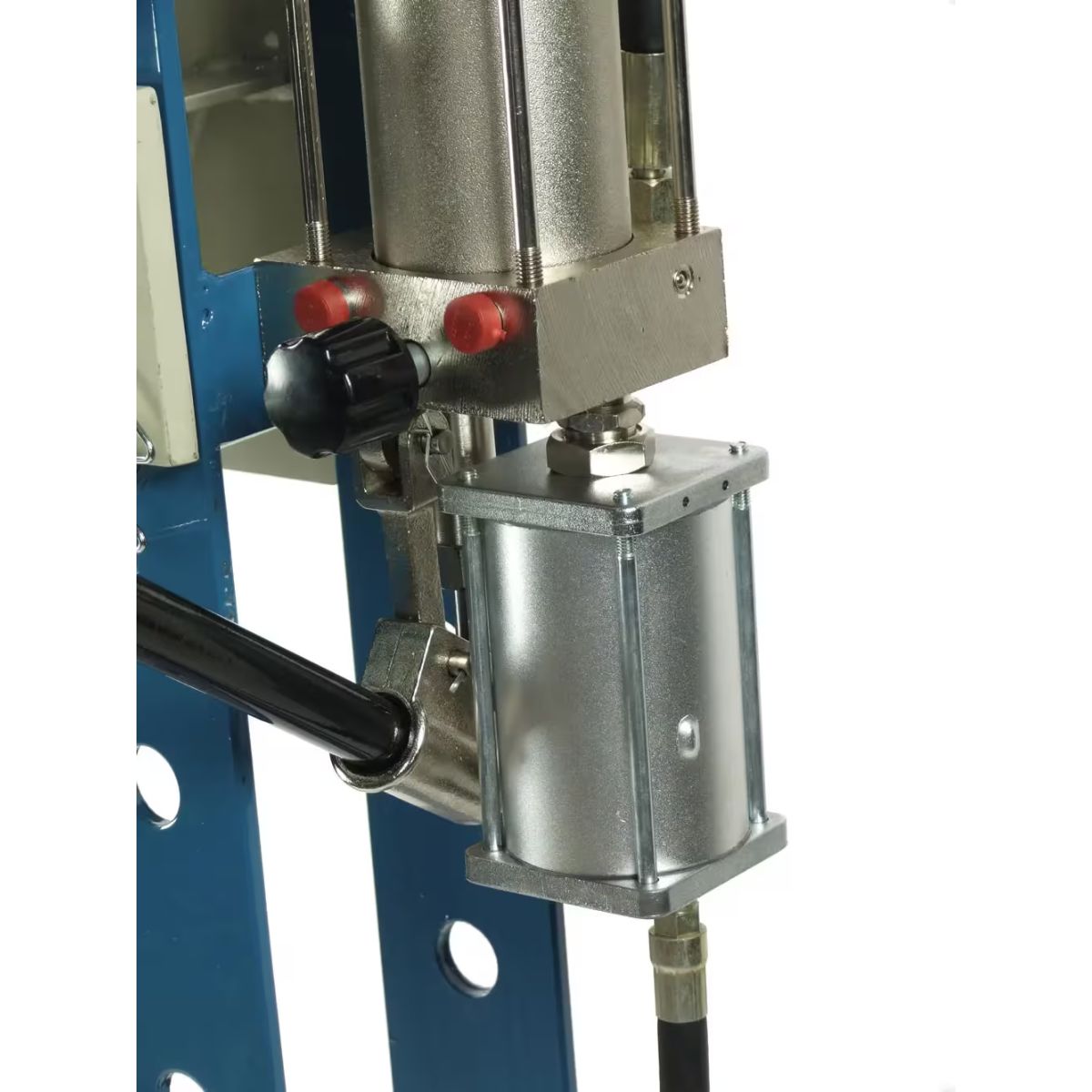

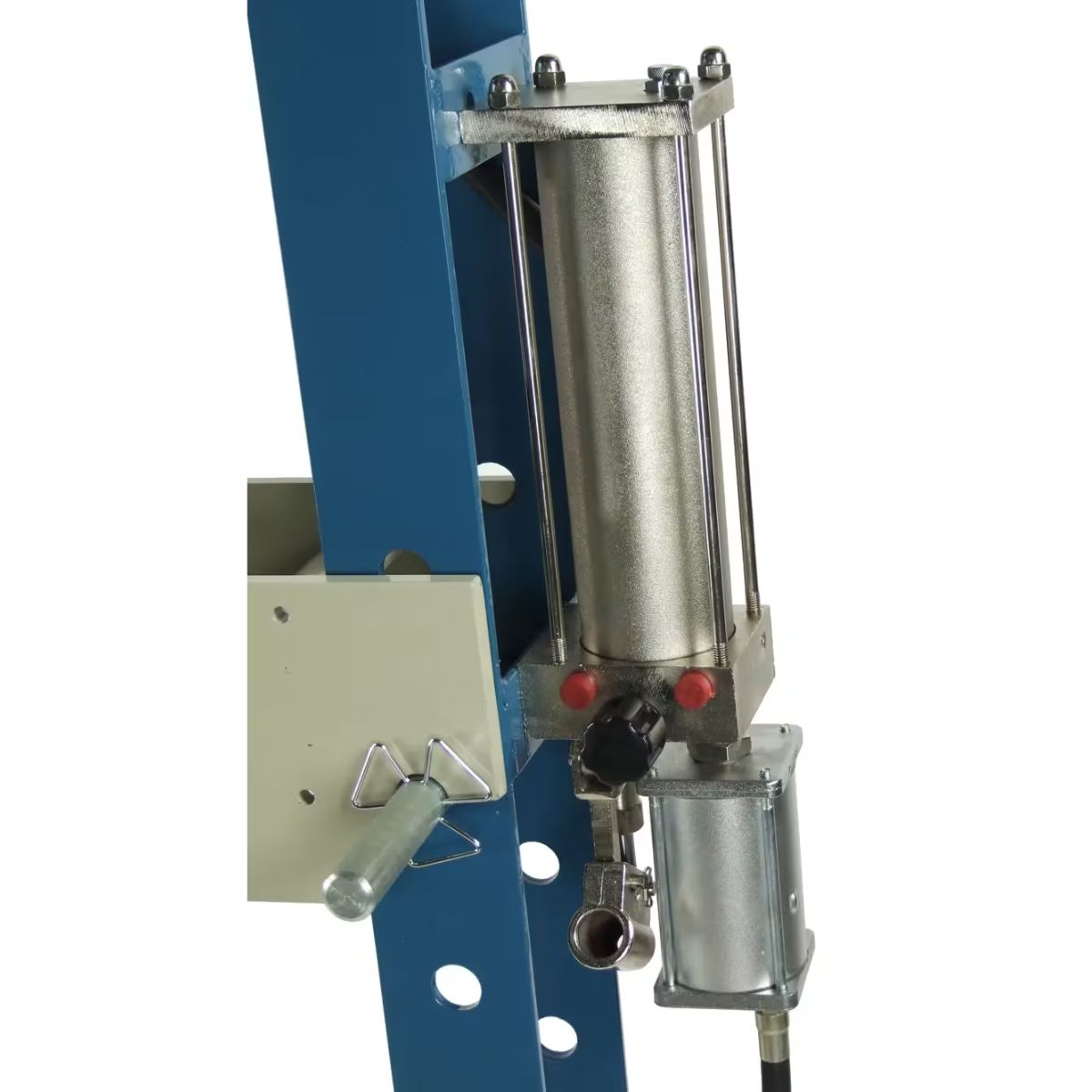

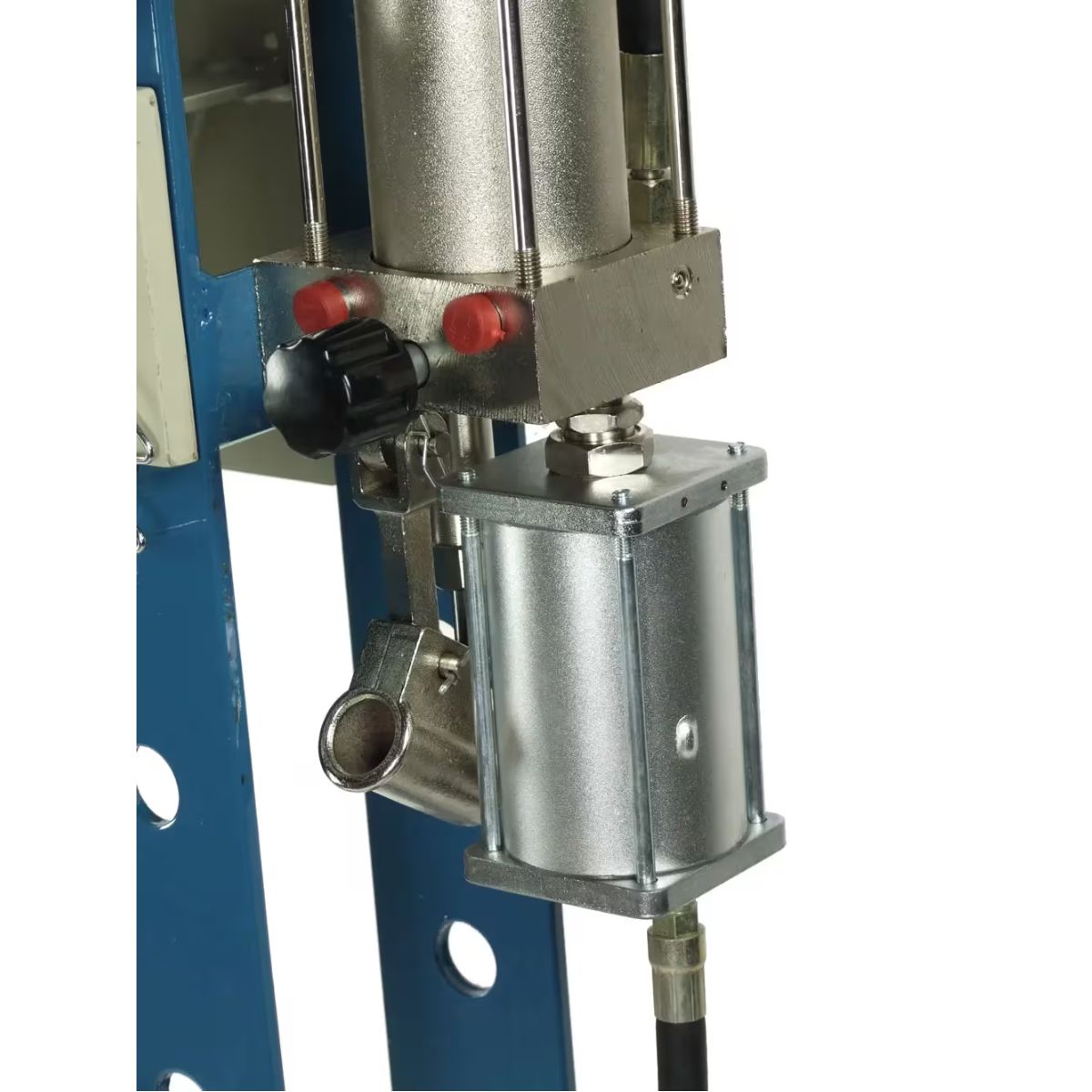

The HSP-20A runs on shop air or its built in manual hand pump. When air isn't available, you can still press parts by hand without stopping the job.
Welded Steel H-Frame Handles Heavy Pressing Loads

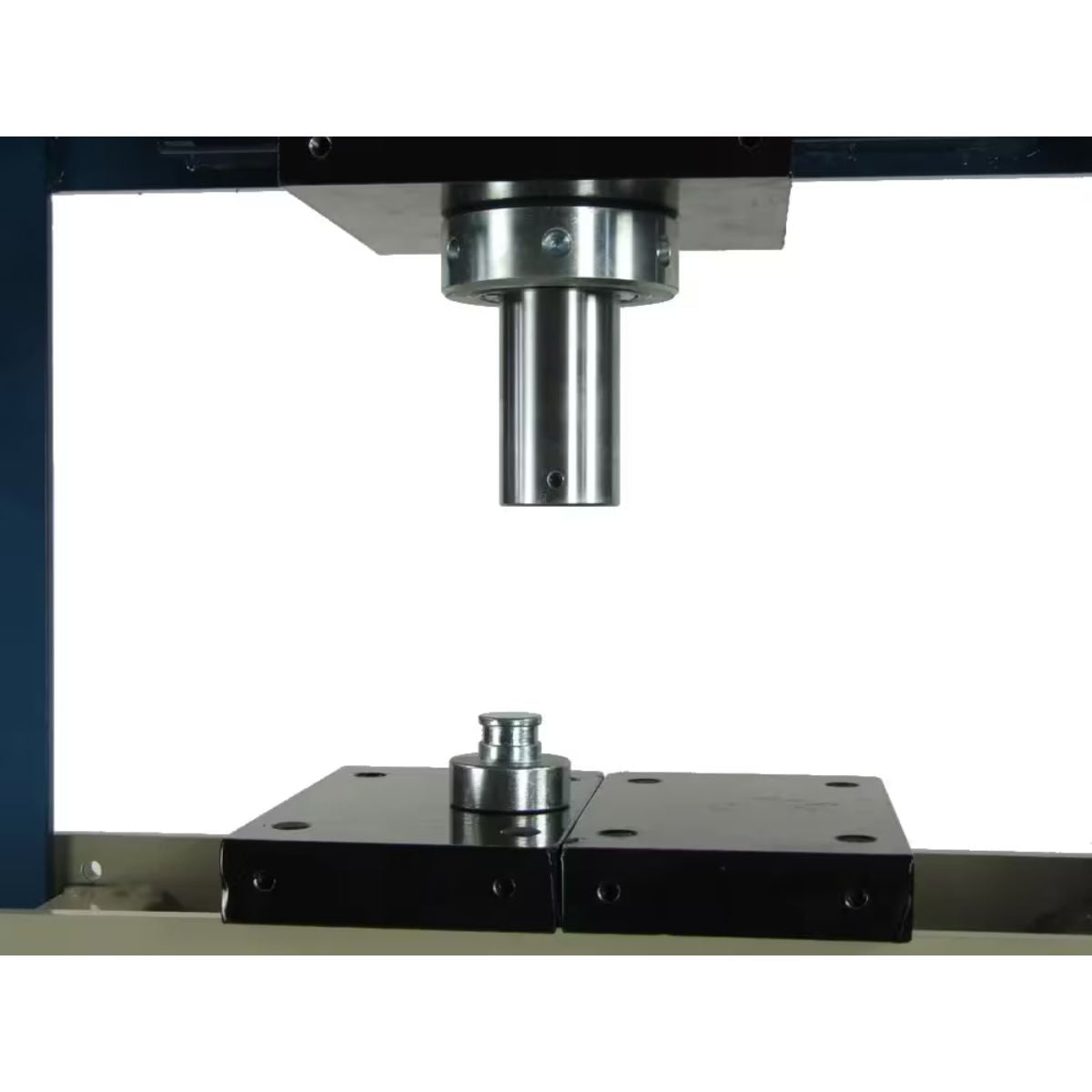

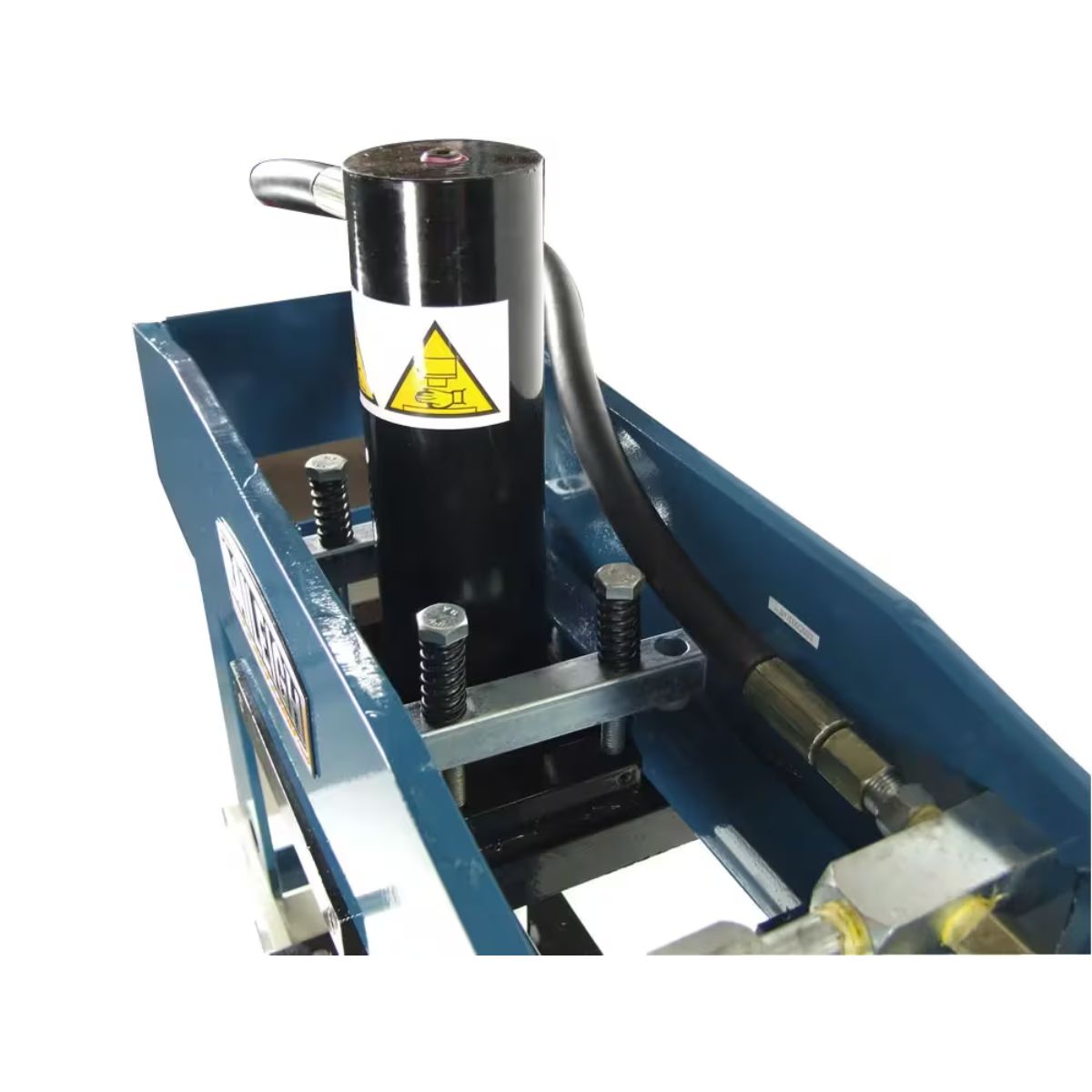

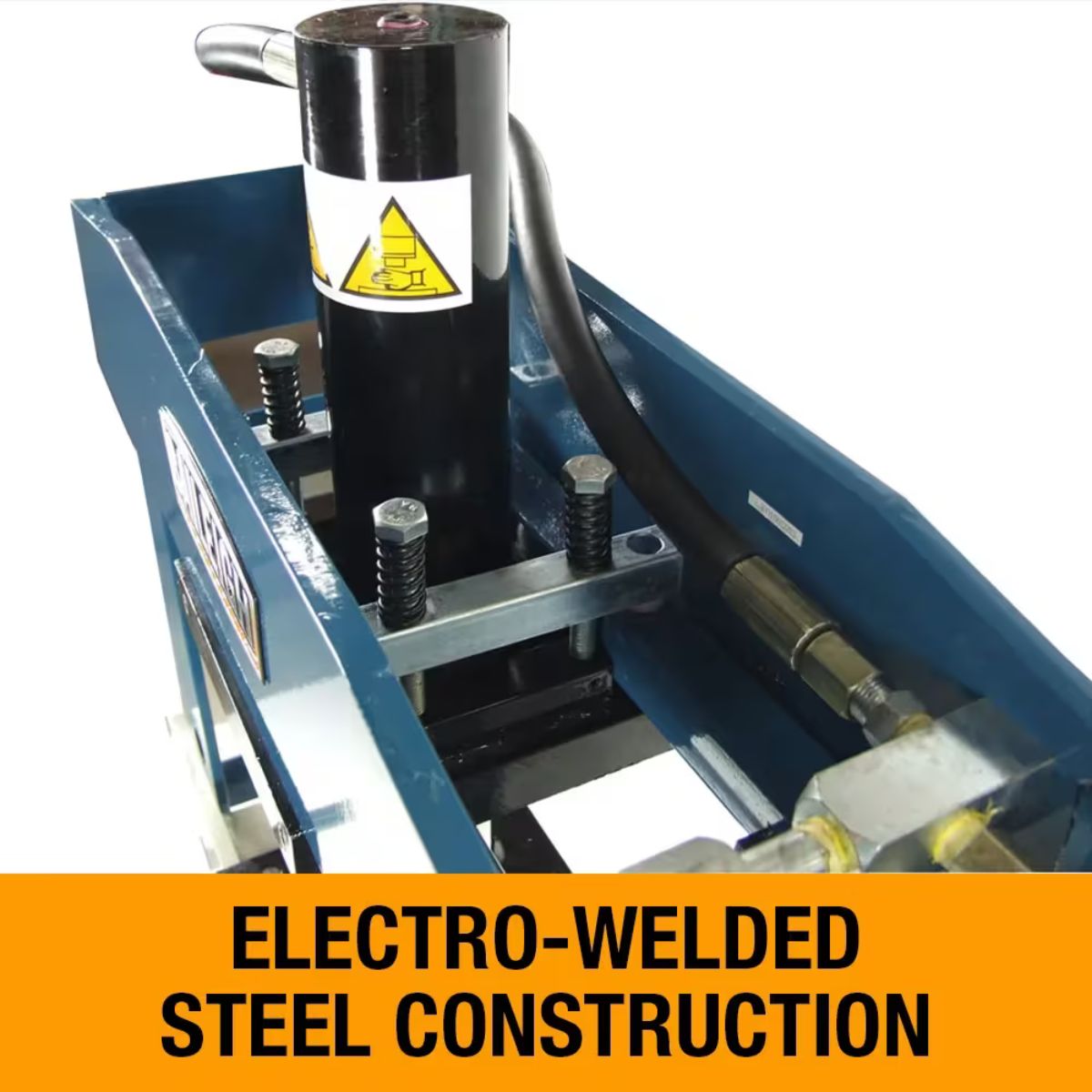

The welded steel H-frame gives the press a rigid base for pressing, bending, and straightening work. This frame construction holds steady under load so results stay consistent.

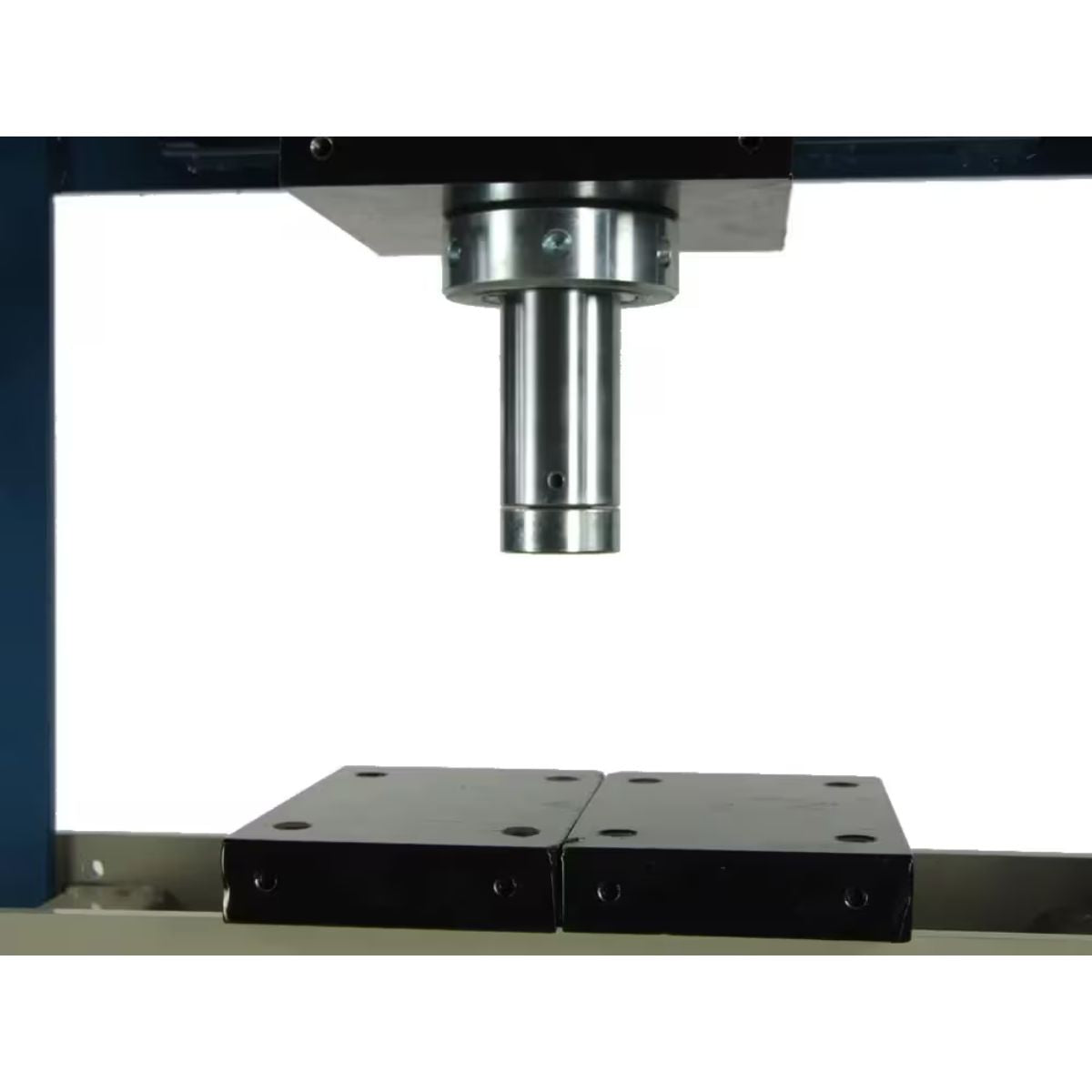

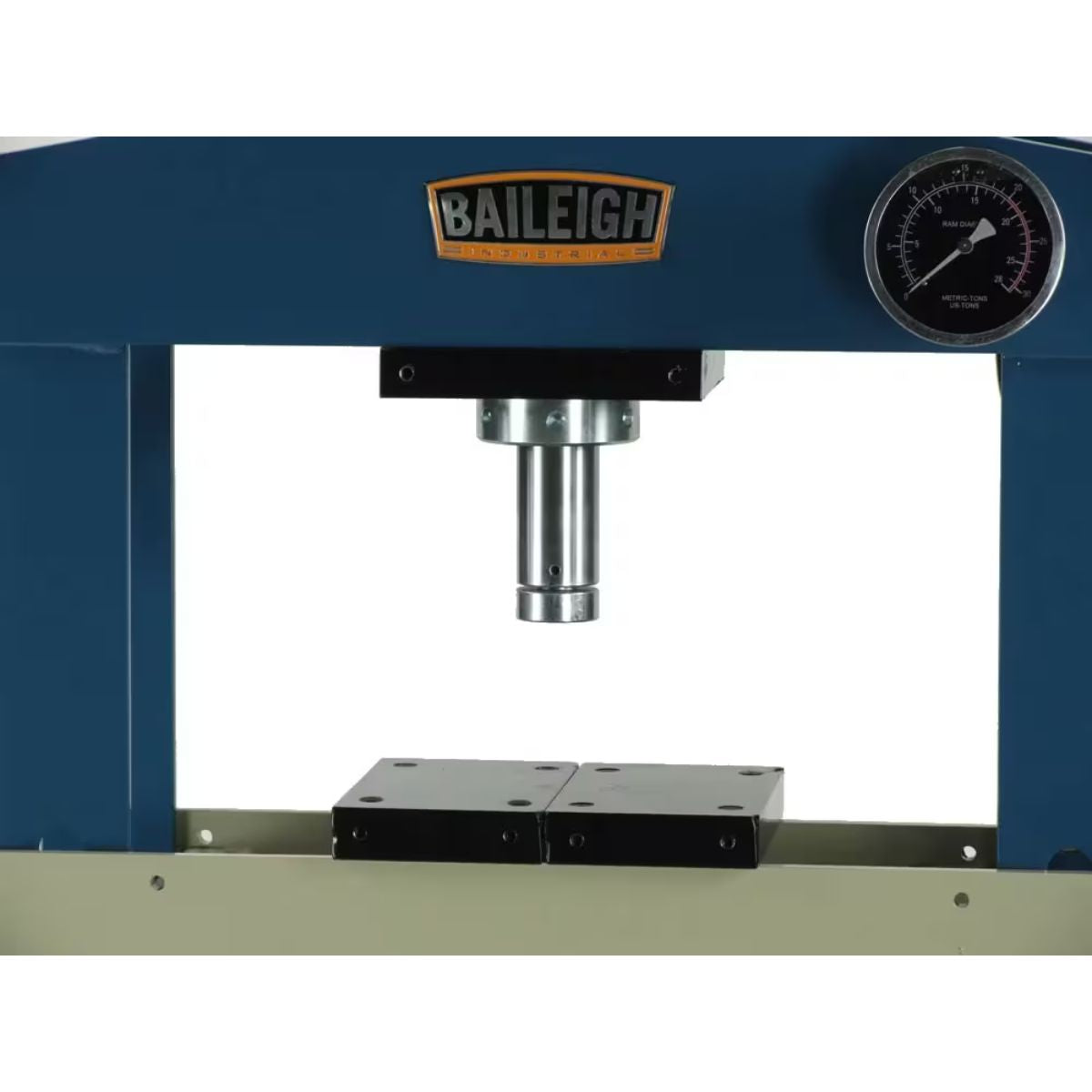

Adjustable Bed Frame Fits a Range of Work

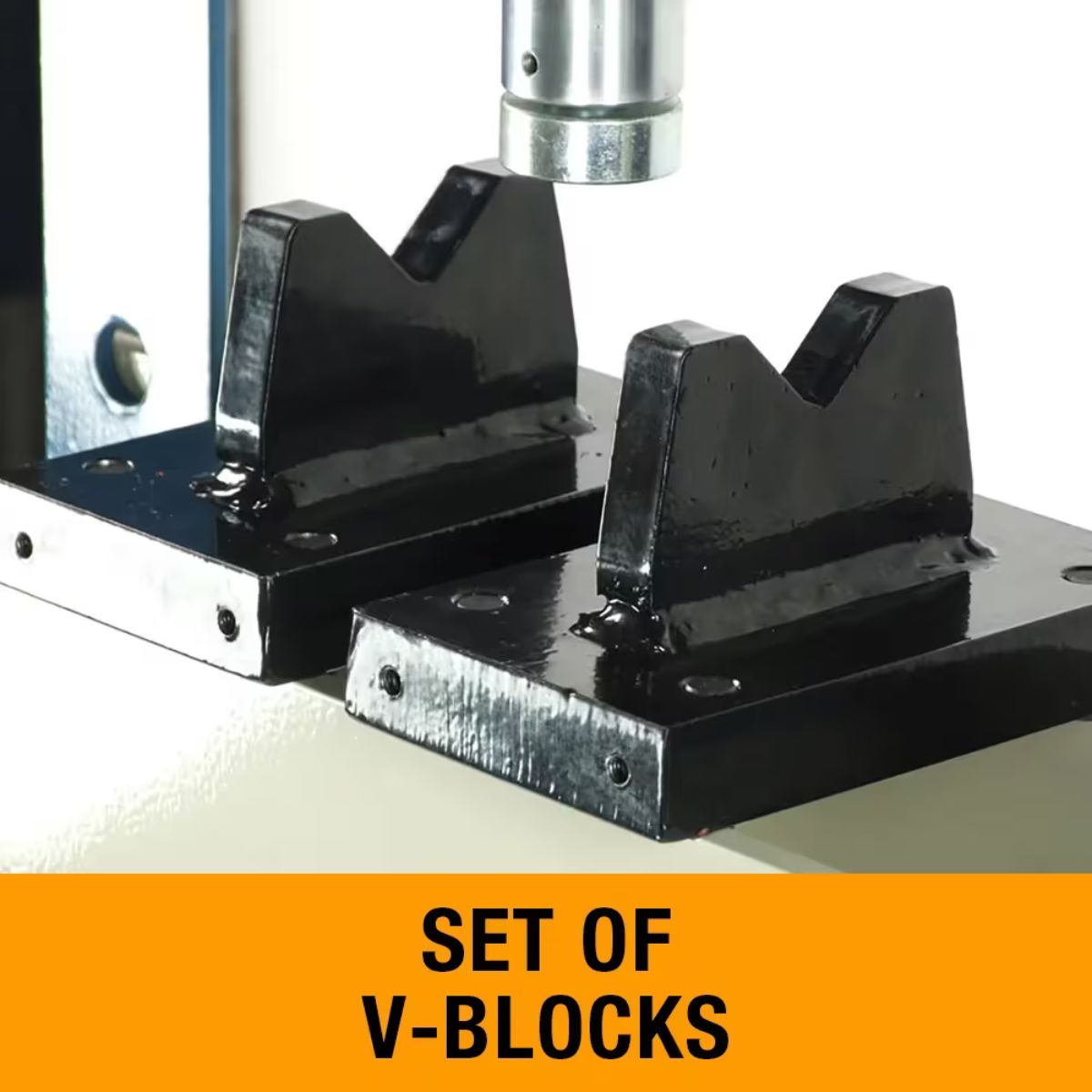

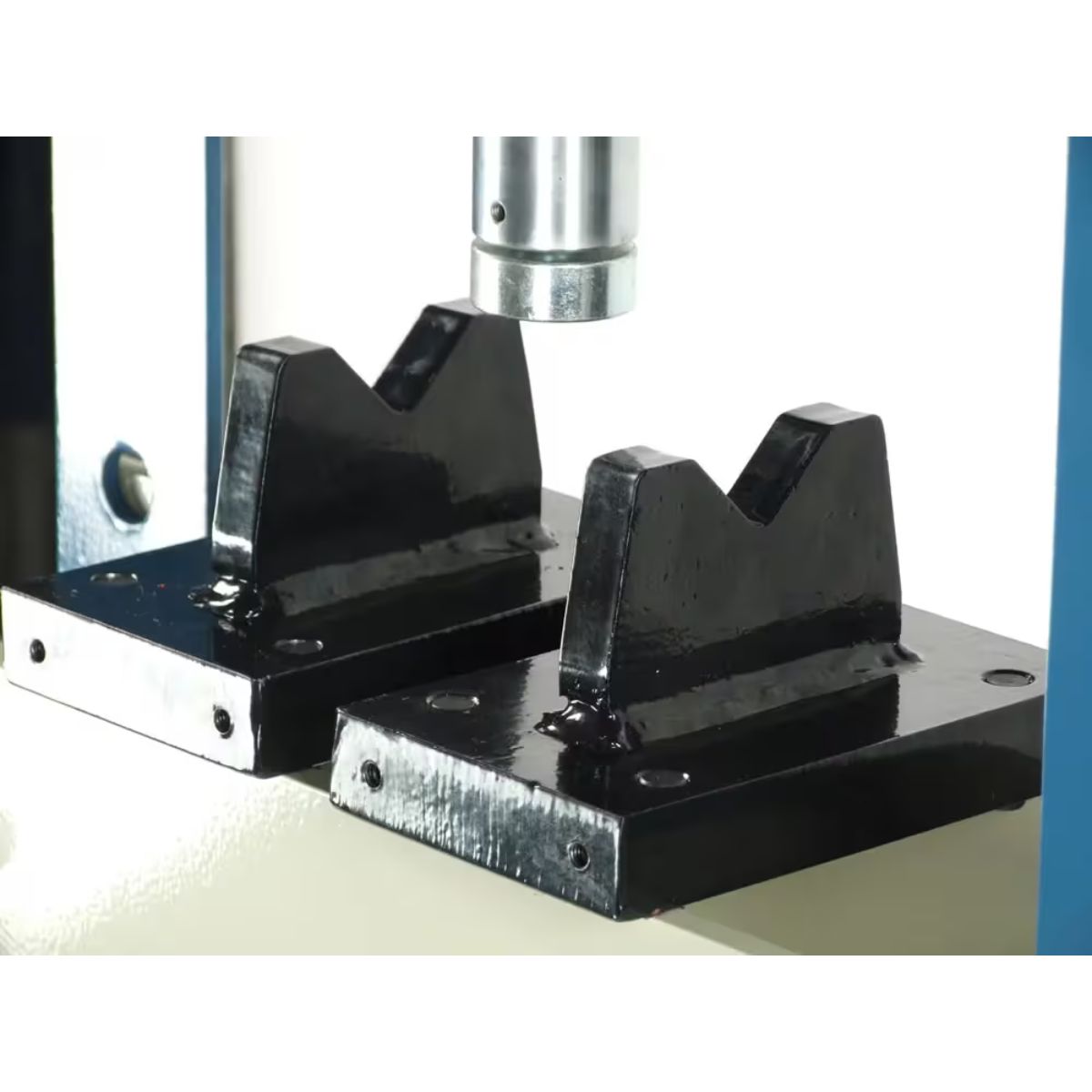

The bed frame pins into multiple hole positions so you can set the right working height for each job. Two heel blocks support the workpiece in flat or V-block orientation.

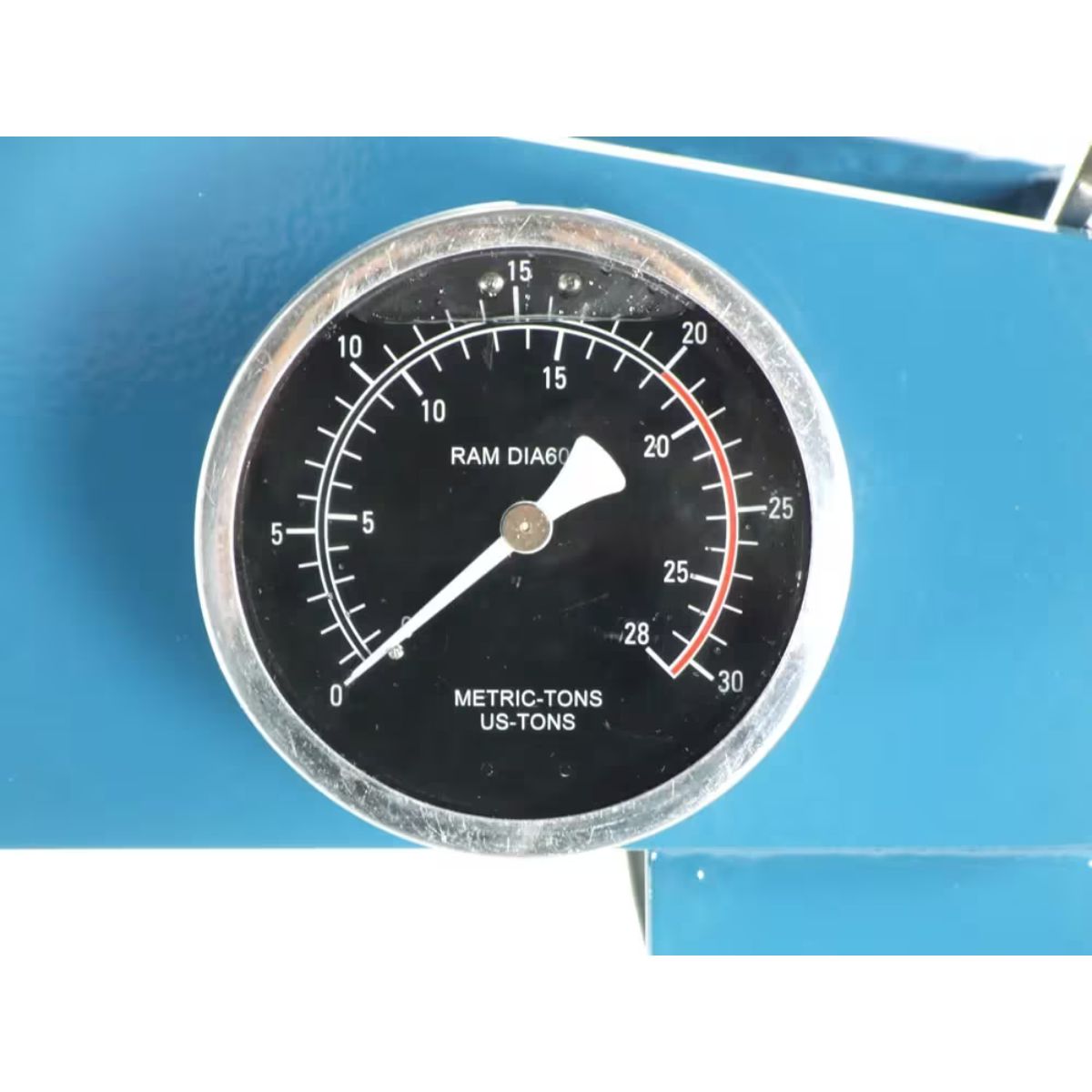

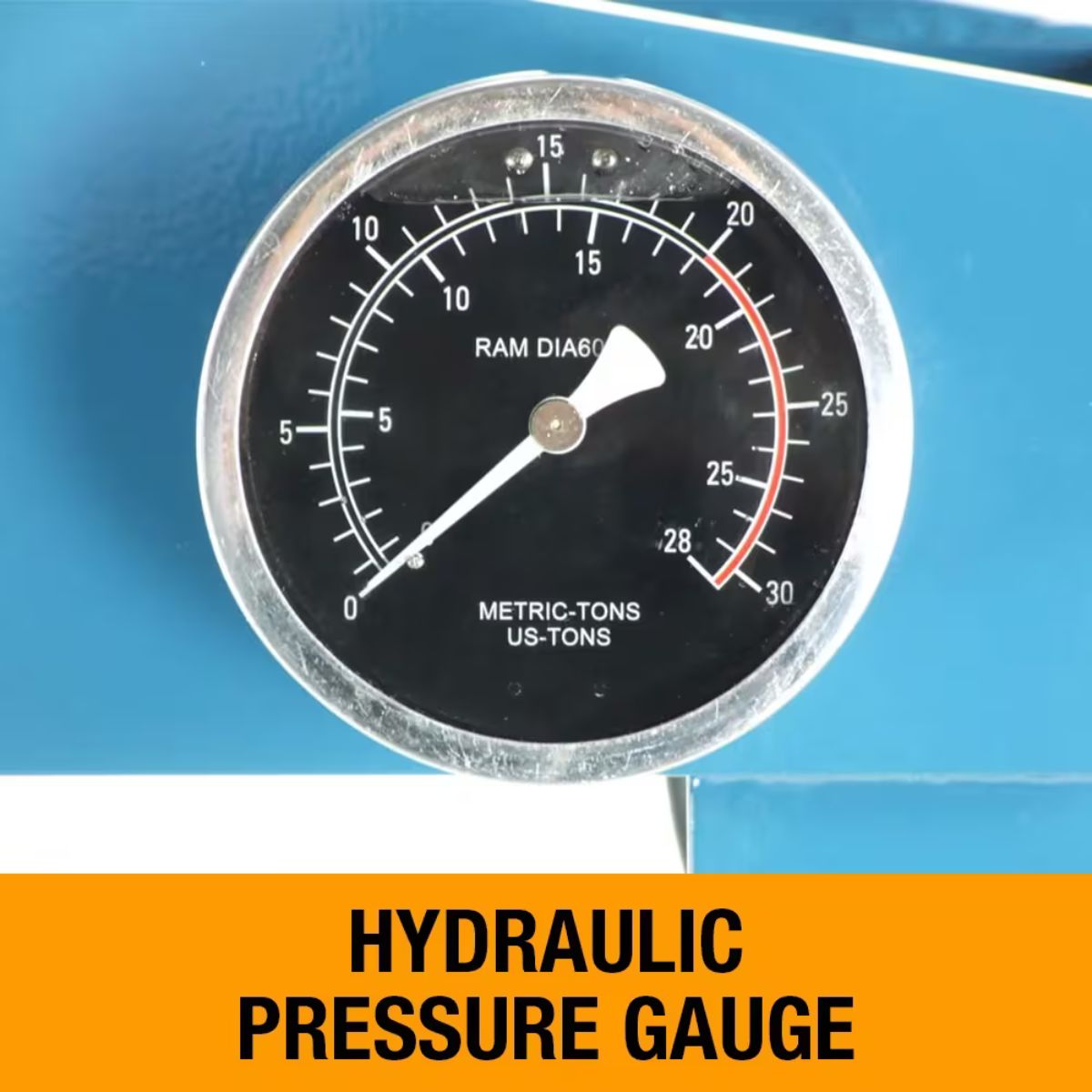

Pressure Gauge Shows Applied Force
A pressure gauge reads the force being applied during each press cycle. This lets you monitor the job and stay within the machine's rated capacity.
What's Included
What's Included? Baileigh HSP-20A 20-Ton Air/Hand H-Frame Press
-
Baileigh HSP-20A Press Frame — Provides the full H-frame press with pneumatic and hand pump system ready for shop use.
-
Heel Blocks (Pair) — Support the workpiece in either flat or V-block position.
-
Pressure Gauge — Lets you monitor applied force during each press cycle.
-
Hand Pump Handle — Lets you operate the press manually when air isn't available.
Specs
Baileigh HSP-20A 20-Ton Air/Hand H-Frame Press Specifications
- Model Number: HSP-20A
- Stock Number: BA9-1004808
- Power Requirement: Pneumatic/Manual
- Maximum Capacity: 20 Ton (18 Ton)
- Hydraulic System Pressure: 10,060 psi
- Working Width: 19-1/4"

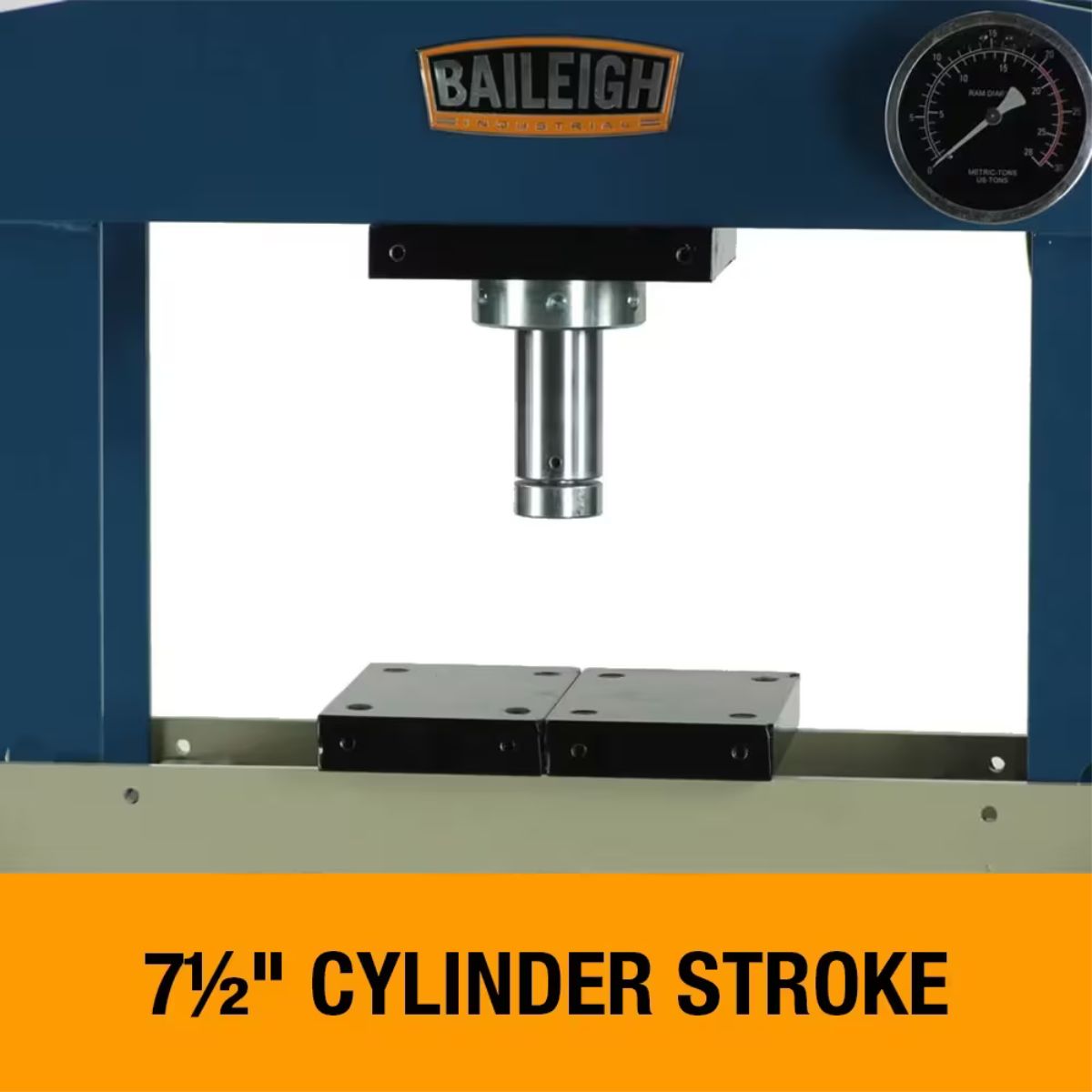

- Cylinder Stroke: 7-1/2"
- Cylinder Diameter: 3"
- Piston Rod Diameter: 1-1/2"
- Piston Head Diameter: 2"
- Working Range: 2-1/8" to 41-1/8"
- Air Fitting: 1/4" NPT
- Air Pressure Required: 107–124 psi
- Shipping Weight: 319 lb
- Shipping Dimensions: 66" x 29" x 12"
- Warranty: 1 Year
