Baileigh HSP-176M-HD 220V 3-Phase 176-Ton Heavy Duty Electric Hydraulic H-Frame Press
Are you looking for a shop press that can handle heavy bending and straightening jobs without slowing down?
What if your press could shift from fast approach to steady pressing force in the same cycle?

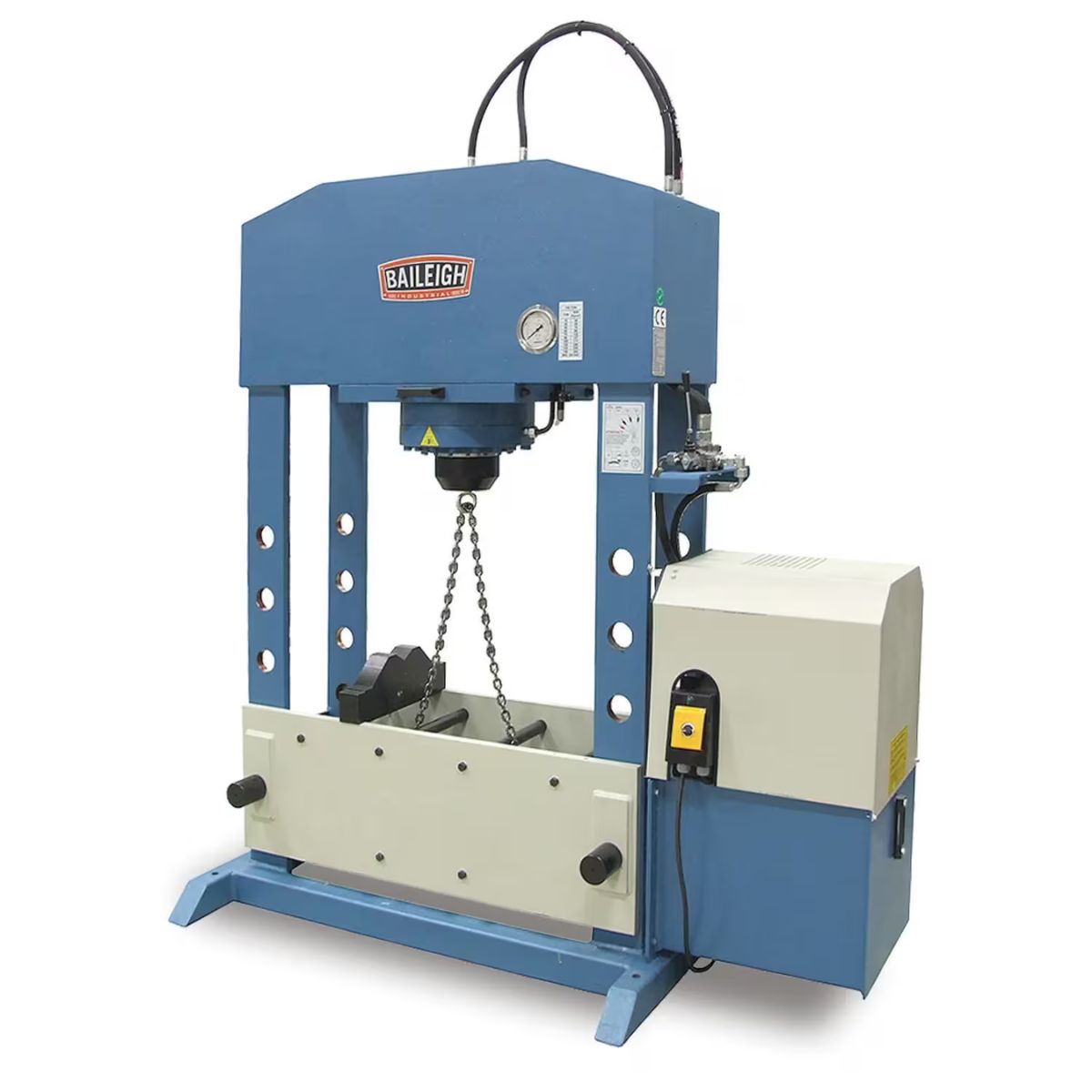

Meet the Baileigh HSP-176M-HD, a 176 ton hydraulic H-frame press built for demanding industrial work.
With a reinforced welded steel frame and a movable ram head, the press handles centered and off-center jobs alike.
When the frame holds steady under load, you can press, bend, and straighten with confidence.
Baileigh HSP-176M-HD for Heavy Industrial Pressing
Reinforced Steel Frame Handles Heavy Loads
The fully welded steel H-frame gives the press rigidity under high tonnage. This keeps the frame stable and steady through demanding bending, straightening, and forming work.
Two Speed Hydraulic System Speeds Up Cycles
The hydraulic system moves through a rapid advance before shifting to a slower, controlled approach. This cuts down wasted time while keeping pressing force accurate as the ram nears the work.

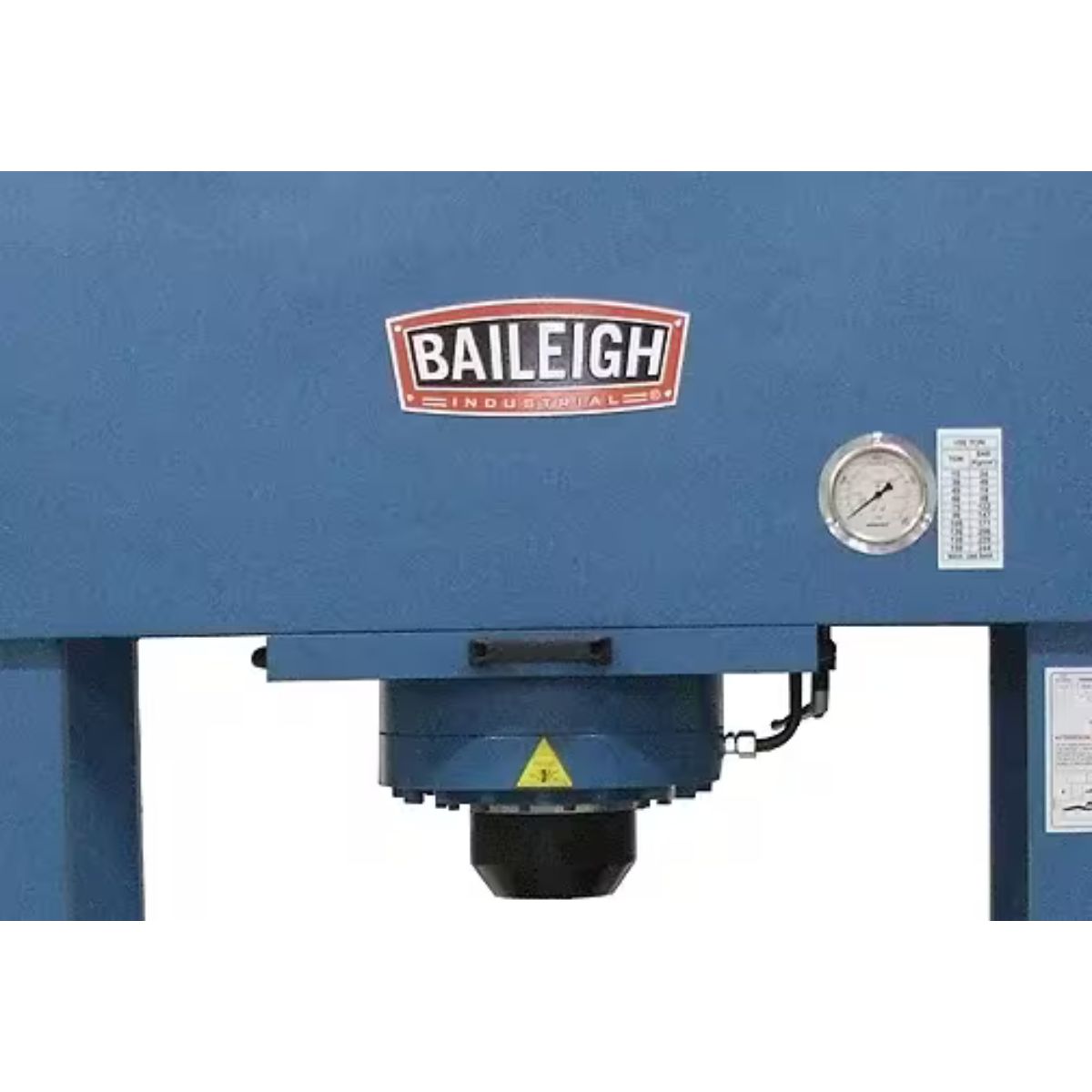

Movable Ram Head Handles Off-Center Work
The cylinder shifts left or right so the ram can reach parts that are not centered on the table. This gives you more flexibility when pressing irregular or offset workpieces.

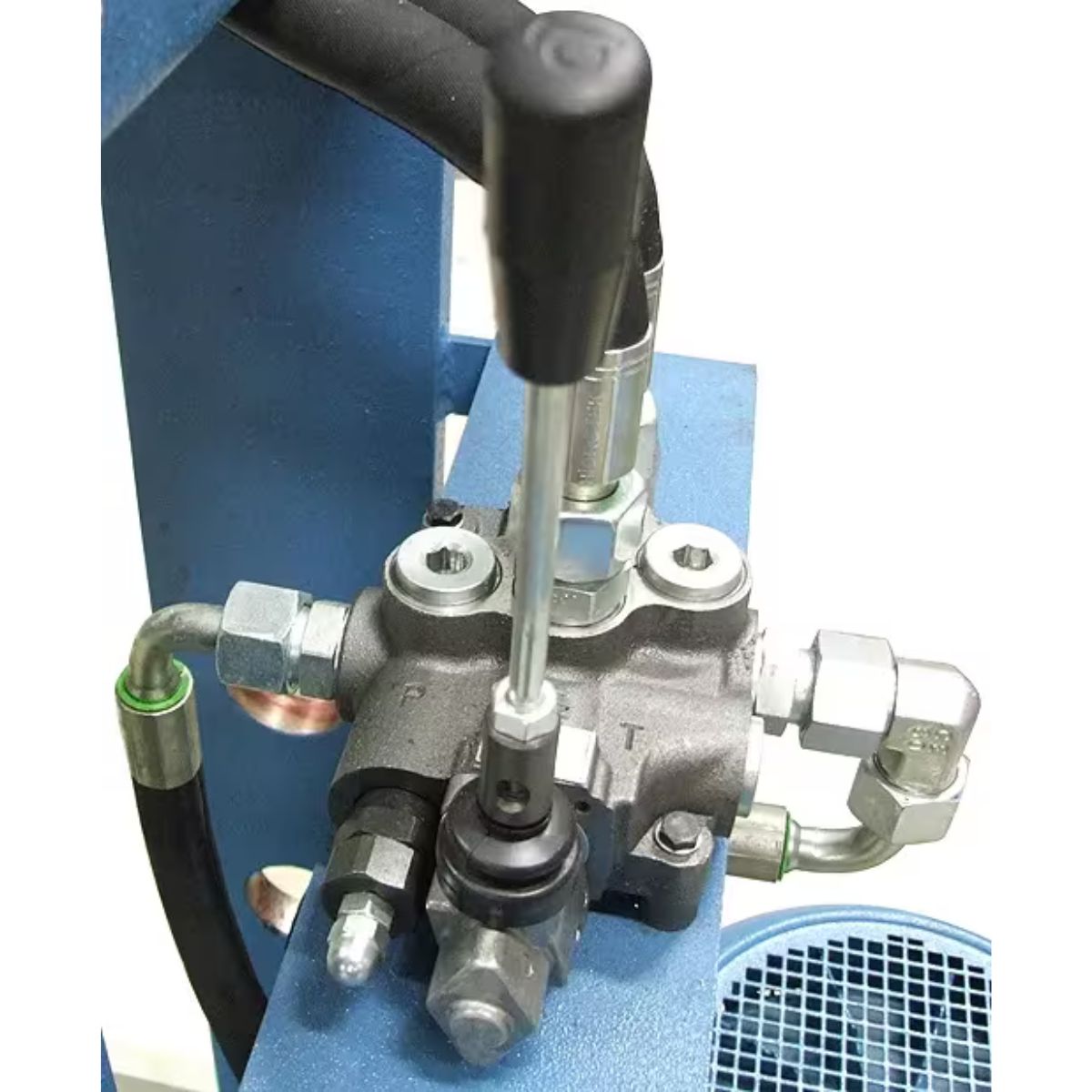

Manual and Motorized Control Modes Adapt to the Job
The press runs in motorized automatic mode or by manual hand pump. Switching modes lets you match control to the precision or speed each job calls for.
What's Included
What's Included? Baileigh HSP-176M-HD 220V 3-Phase 176-Ton Heavy Duty Electric Hydraulic H-Frame Press
-
Baileigh HSP-176M-HD Press — Provides the full 176 ton hydraulic H-frame press for industrial shop work.
-
V-Block Set — Supports round stock securely during pressing, bending, and straightening work.
Specs
Baileigh HSP-176M-HD 220V 3-Phase 176-Ton Heavy Duty Electric Hydraulic H-Frame Press Specifications
- Model: HSP-176M-HD
- Stock Number: BA9-1012428
- Capacity: 176 Ton
- Working Width: 43.3 in
- Stroke Length: 12 in
- Input Power: 220V Three Phase
- Motor: 14.75 HP
- Frame: Reinforced welded heavy duty steel H-frame
- Hydraulic System: Two speed, rapid advance and slower approach
- Control Modes: Motorized automatic or manual hand pump
- Movable Cylinder: Shifts left and right for off-center pressing
- Gross Weight: 3,465 lb
- Net Weight: 3,465 lb
- Warranty: 1 Year
