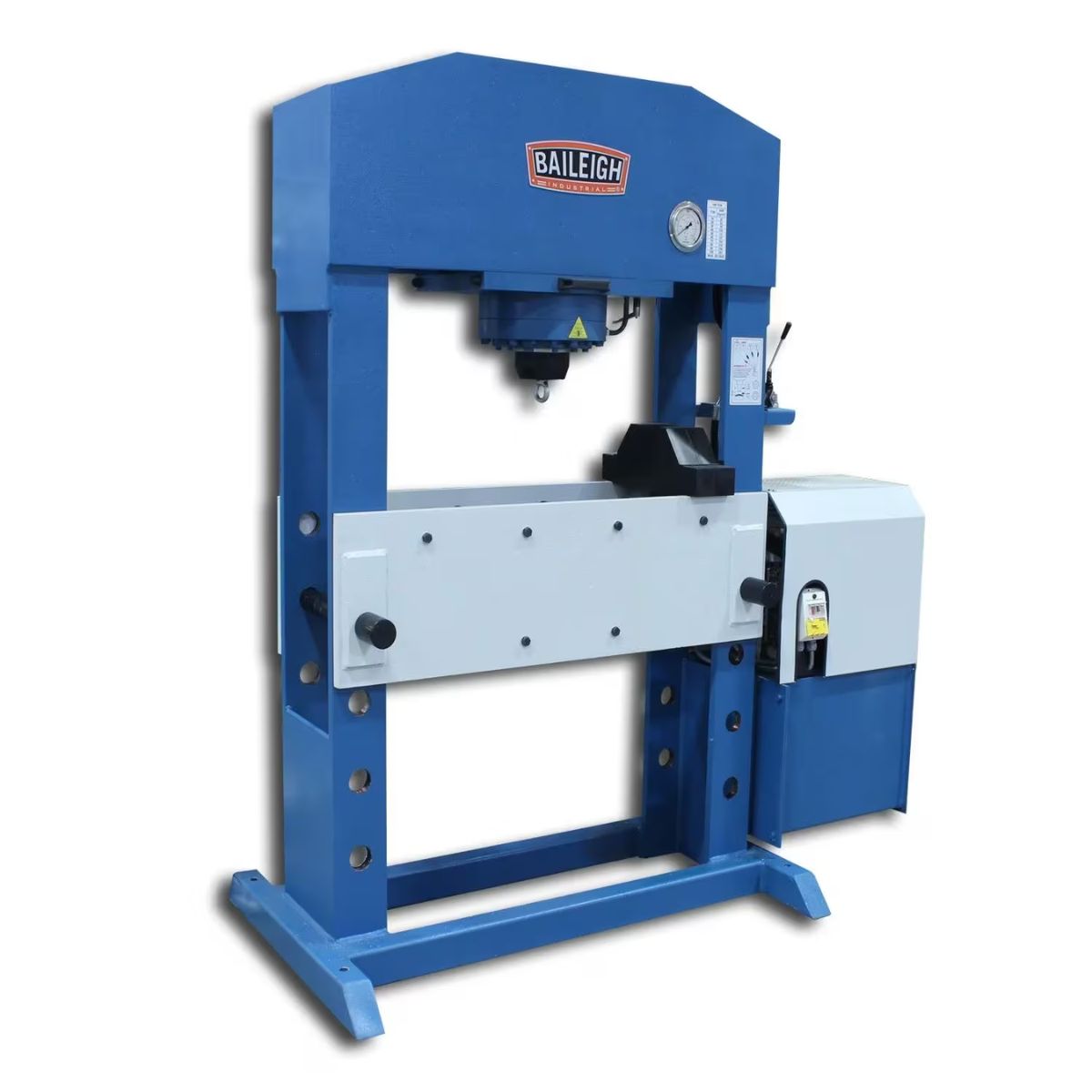

Baileigh HSP-110M-HD 220V 3-Phase 110-Ton Heavy Duty Electric Hydraulic H-Frame Press
Are you looking for a hydraulic press that handles heavy pressing, bending, and straightening without flexing under load?
What if your shop had a 110 ton H-frame press built to stand up to daily industrial use.
Meet the Baileigh HSP-110M-HD, a heavy duty hydraulic press built for fabrication shops and maintenance facilities.
With a reinforced steel frame, movable cylinder, and 7.5 hp hydraulic motor, the press delivers steady, controlled force on every job.
When the press holds steady under full load, you can press, bend, and straighten parts with confidence.
Baileigh HSP-110M-HD for Heavy Industrial Pressing

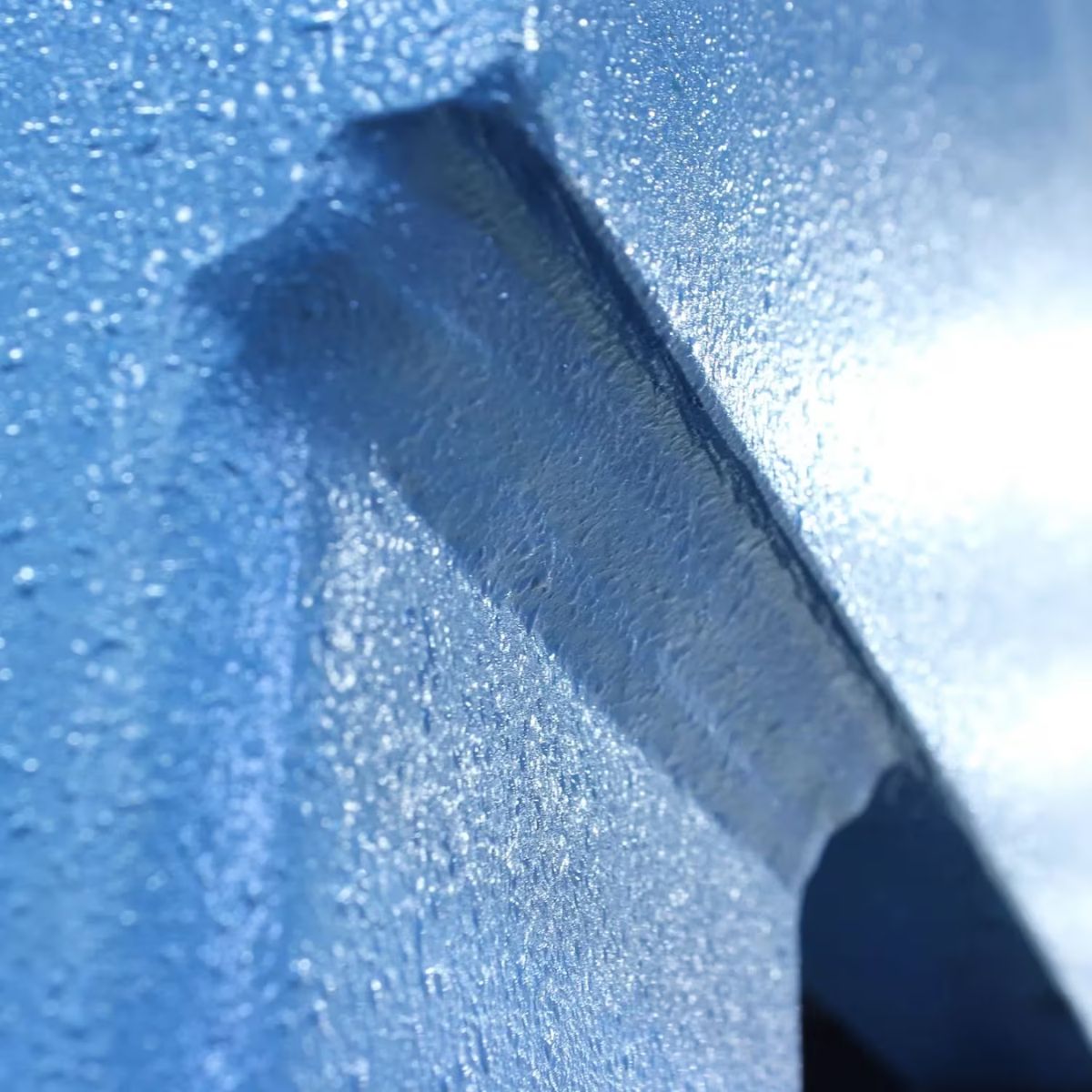

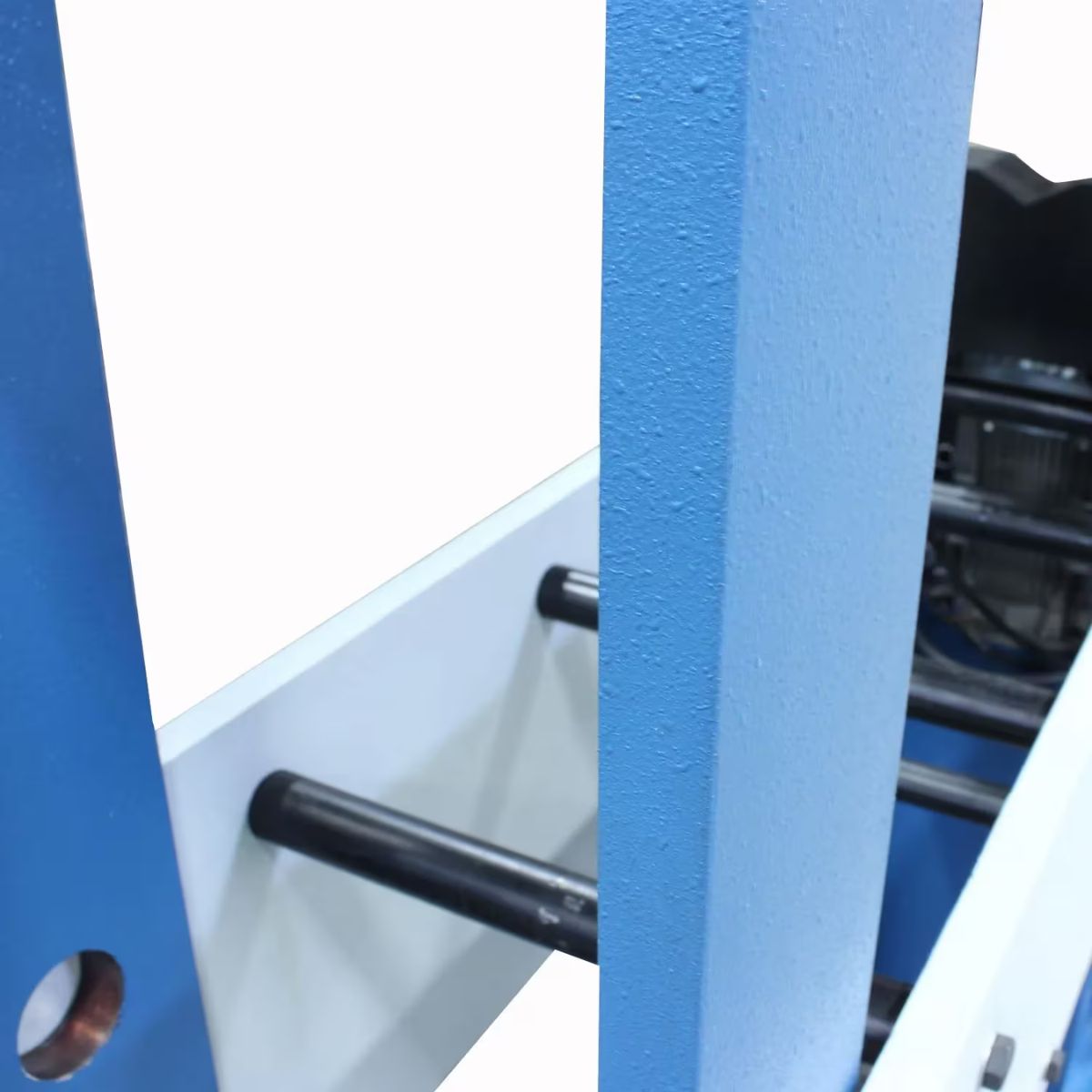

Reinforced H-Frame Construction Adds Rigidity Under Load
The H-frame is built from reinforced steel for maximum rigidity during heavy pressing work. This solid construction helps the press stay stable and resist flex when working with large components.

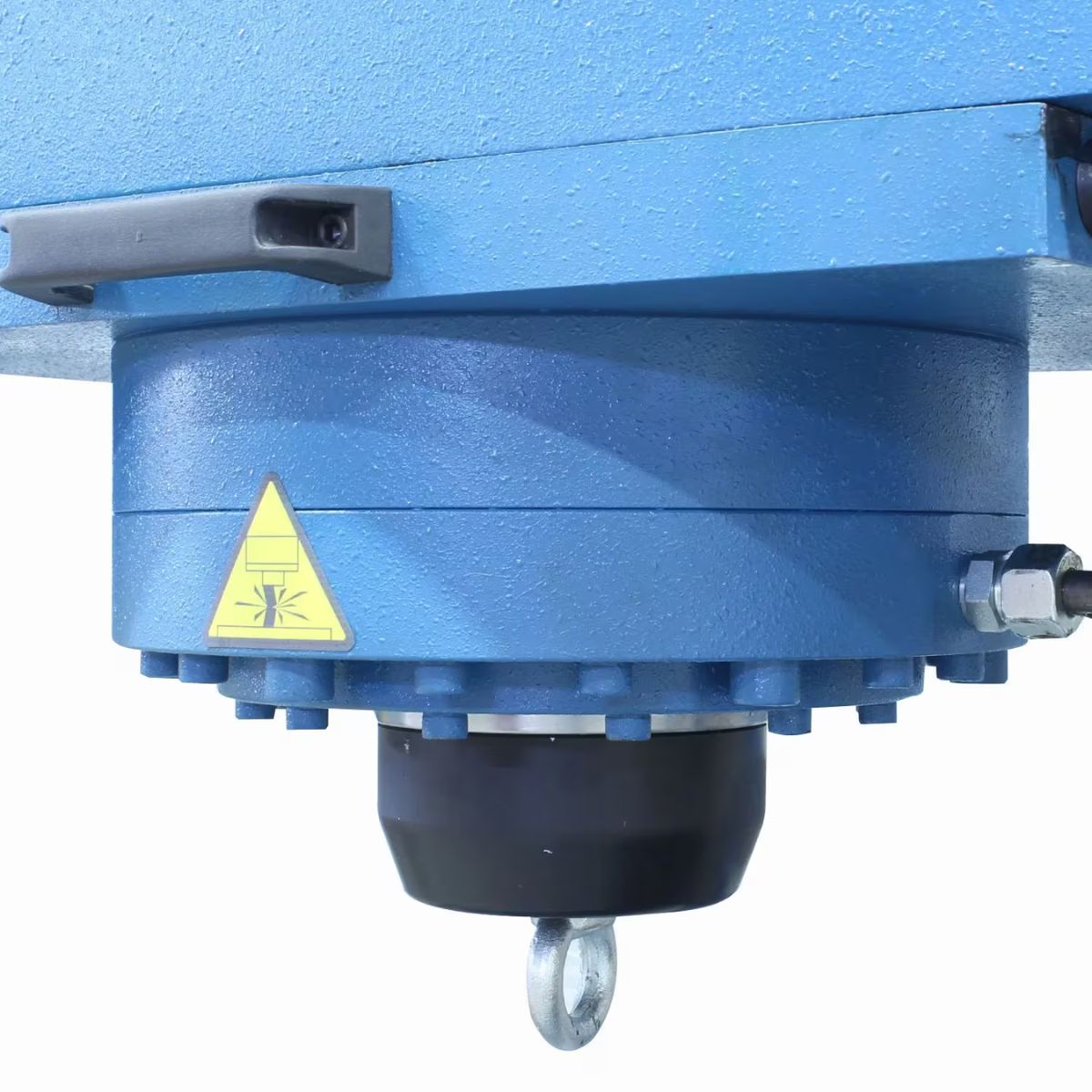

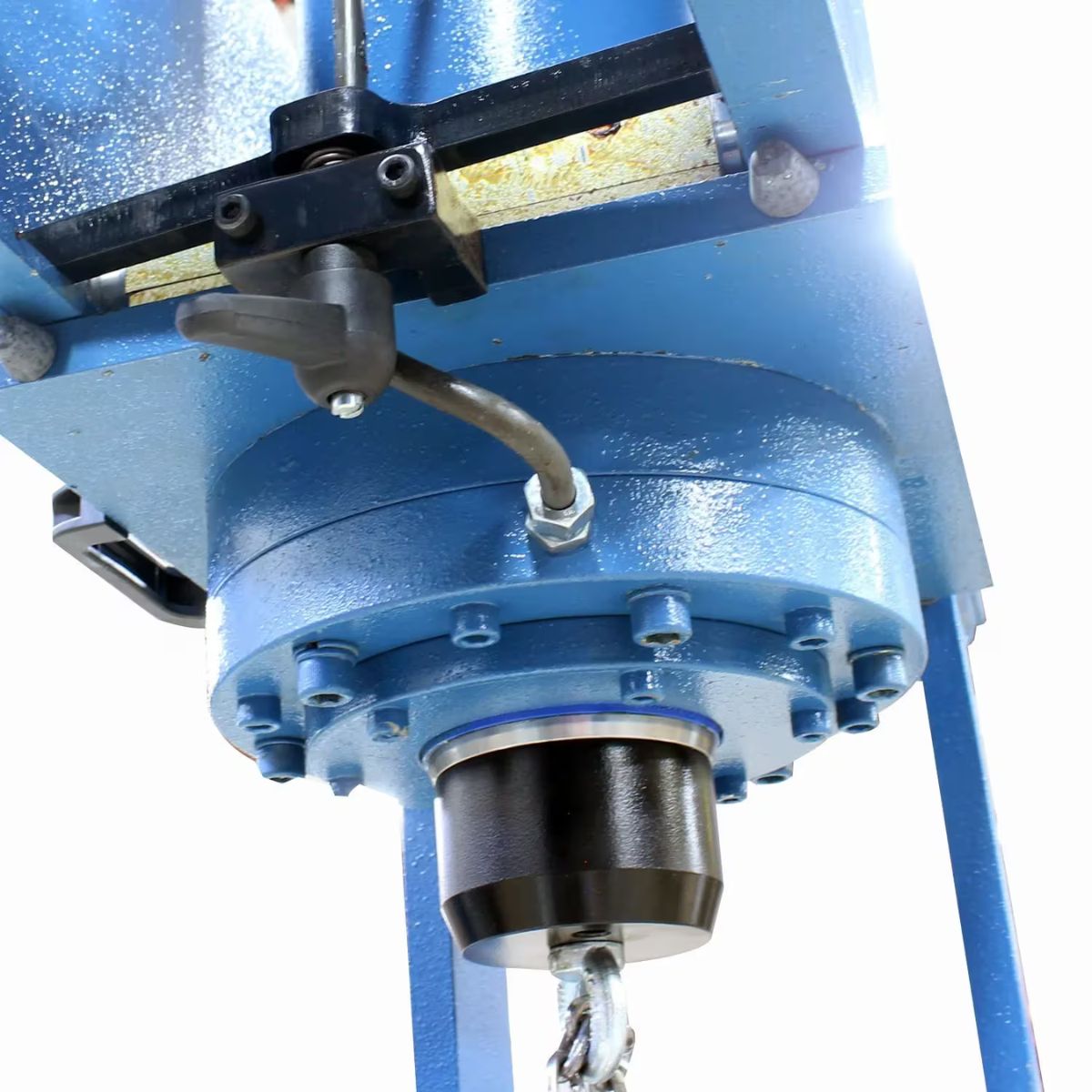

Movable Cylinder Enables Off-Center Pressing
The cylinder can be repositioned to handle off-center pressing tasks that a fixed cylinder cannot reach. This added flexibility lets you work with a wider range of part shapes and sizes.
7.5 HP Hydraulic Motor Powers Full Capacity Performance
The 7.5 hp hydraulic motor drives the full 110 ton pressing force needed for heavy industrial work. Consistent motor power helps the press perform reliably through demanding daily use.

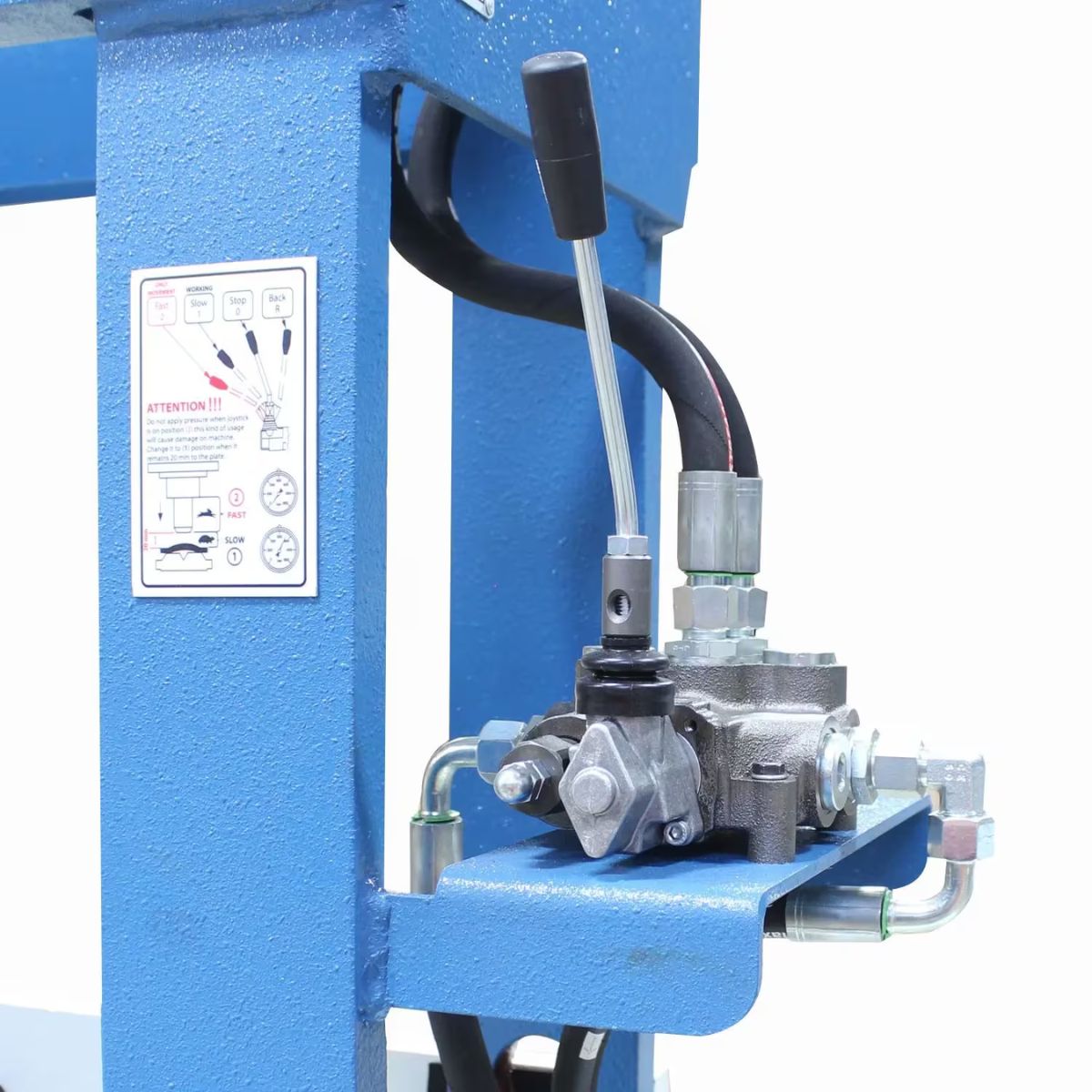

Two-Speed Control With Pressure Regulator Simplifies Setup
A two-speed down movement lets you adjust ram speed to match the task at hand. The pressure regulator gives you precise control over force application for accurate results.
What's Included
What's Included? Baileigh HSP-110M-HD 220V 3-Phase 110-Ton Heavy Duty Electric Hydraulic H-Frame Press
-
Baileigh HSP-110M-HD Hydraulic H-Frame Press — Provides a complete 110 ton pressing system ready for shop use.
Specs
Baileigh HSP-110M-HD 220V 3-Phase 110-Ton Heavy Duty Electric Hydraulic H-Frame Press Specifications
- Model: HSP-110M-HD
- Stock Number: BA9-1012426
- Capacity: 110 Ton
- Working Width: 42.12 in
- Stroke Length: 11.8 in
- Motor: 7.5 HP Hydraulic Motor
- Input Power: 220V 3 Phase
- Piston: 6.3 in Chrome Piston with Automatic Return
- Speed: 3000 RPM
- Net Weight: 3400 lb
- Gross Weight: 3400 lb
- Warranty: 1 Year Parts, Lifetime Technical Support
