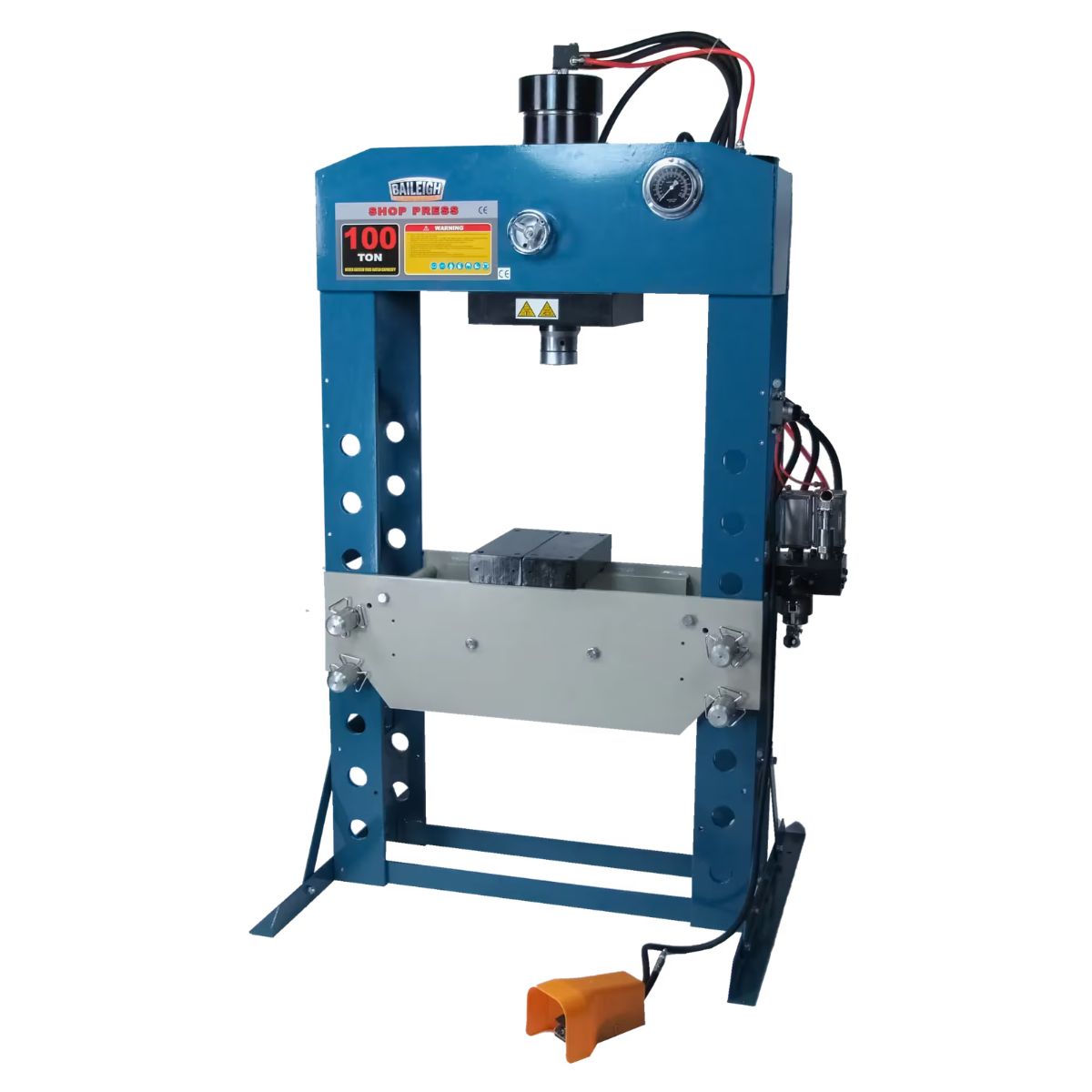

Baileigh HSP-100A 100-Ton Air/Hand H-Frame Press — CE Approved

Baileigh HSP-100A 100-Ton Air/Hand H-Frame Press — CE Approved

Baileigh HSP-100A for Heavy Pressing and Straightening Work

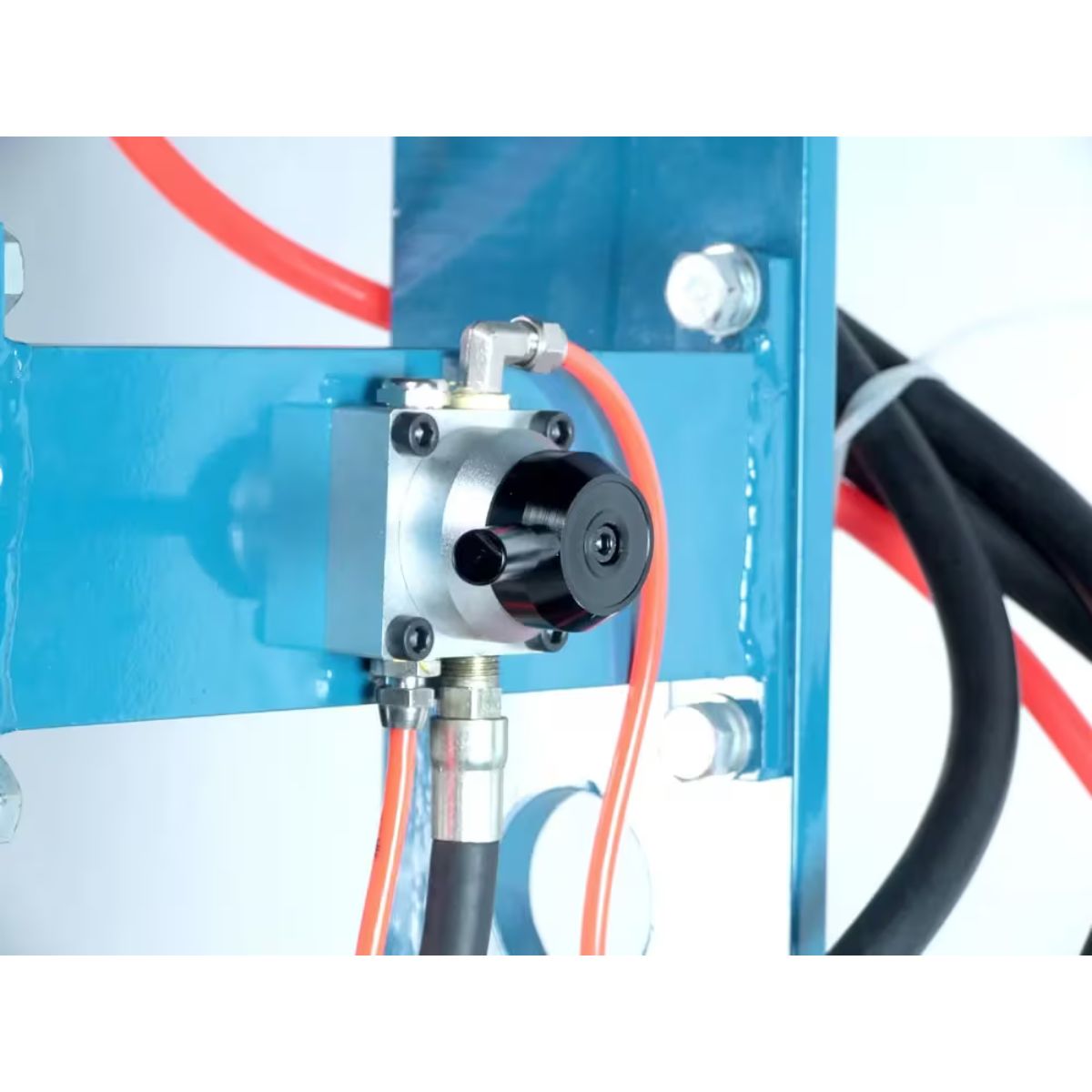

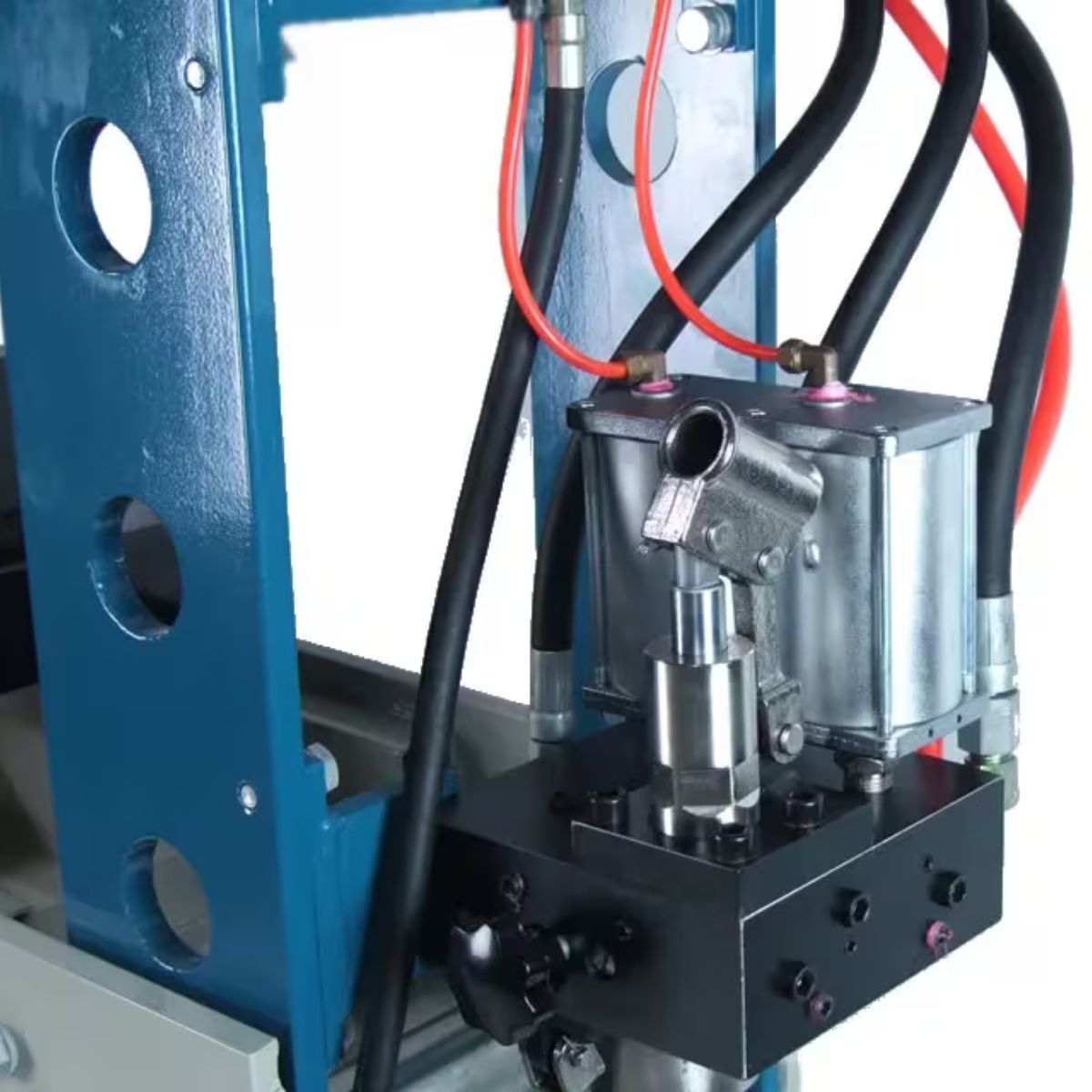

Pneumatic Operation Reduces Operator Fatigue

Air powered operation lets you press with a foot pedal instead of manual effort. A manual lever is also available for finer control when you need it.

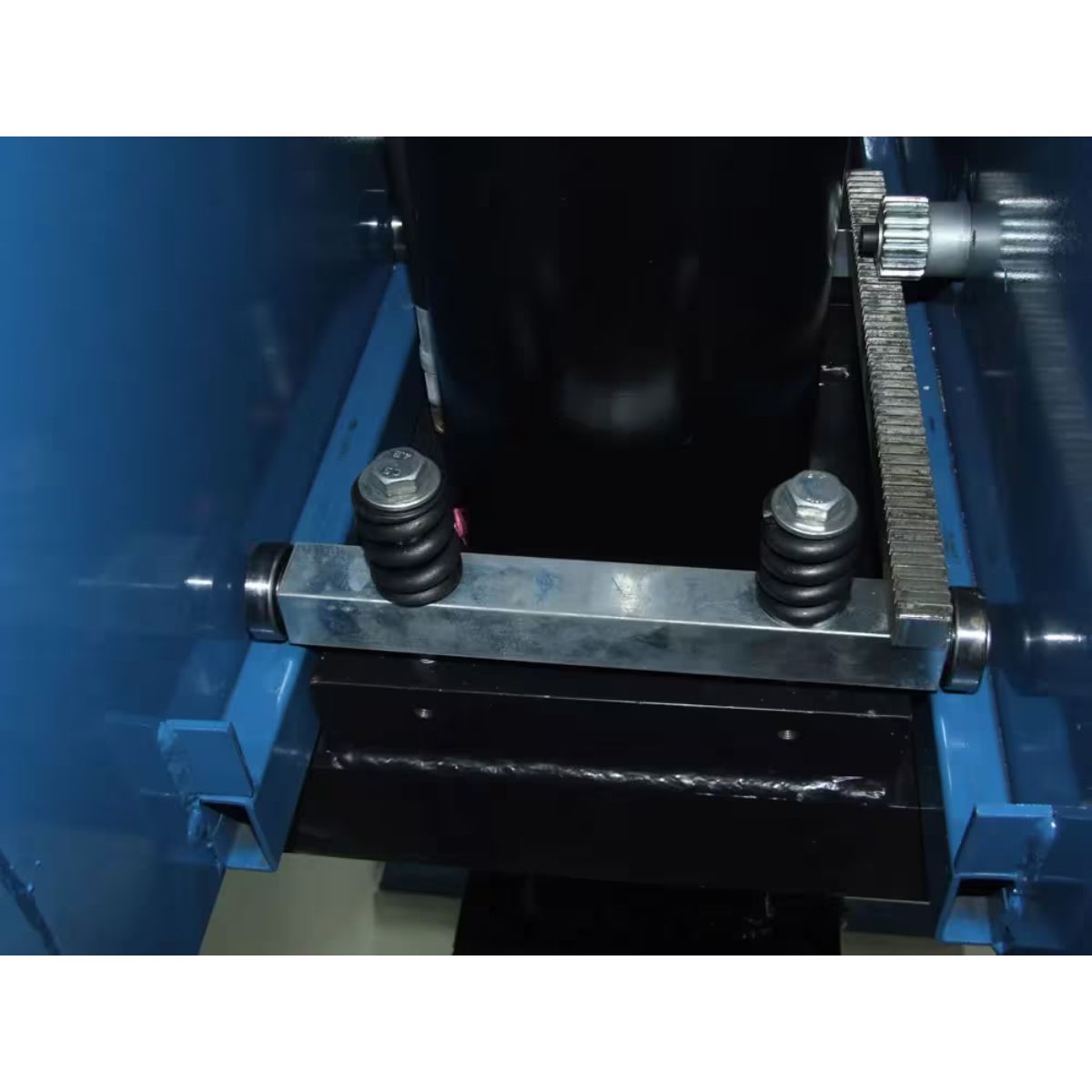

Sliding Hydraulic Cylinder Handles Off-Center Parts

The 6.5 inch hydraulic cylinder moves left and right along the frame. This lets you press parts that are not centered without repositioning the whole workpiece.

Fully Welded Steel Frame Holds Up Under Load

The H-frame is built from fully welded heavy duty steel for long term strength. A frame this solid stays steady even when you're pressing at full tonnage.

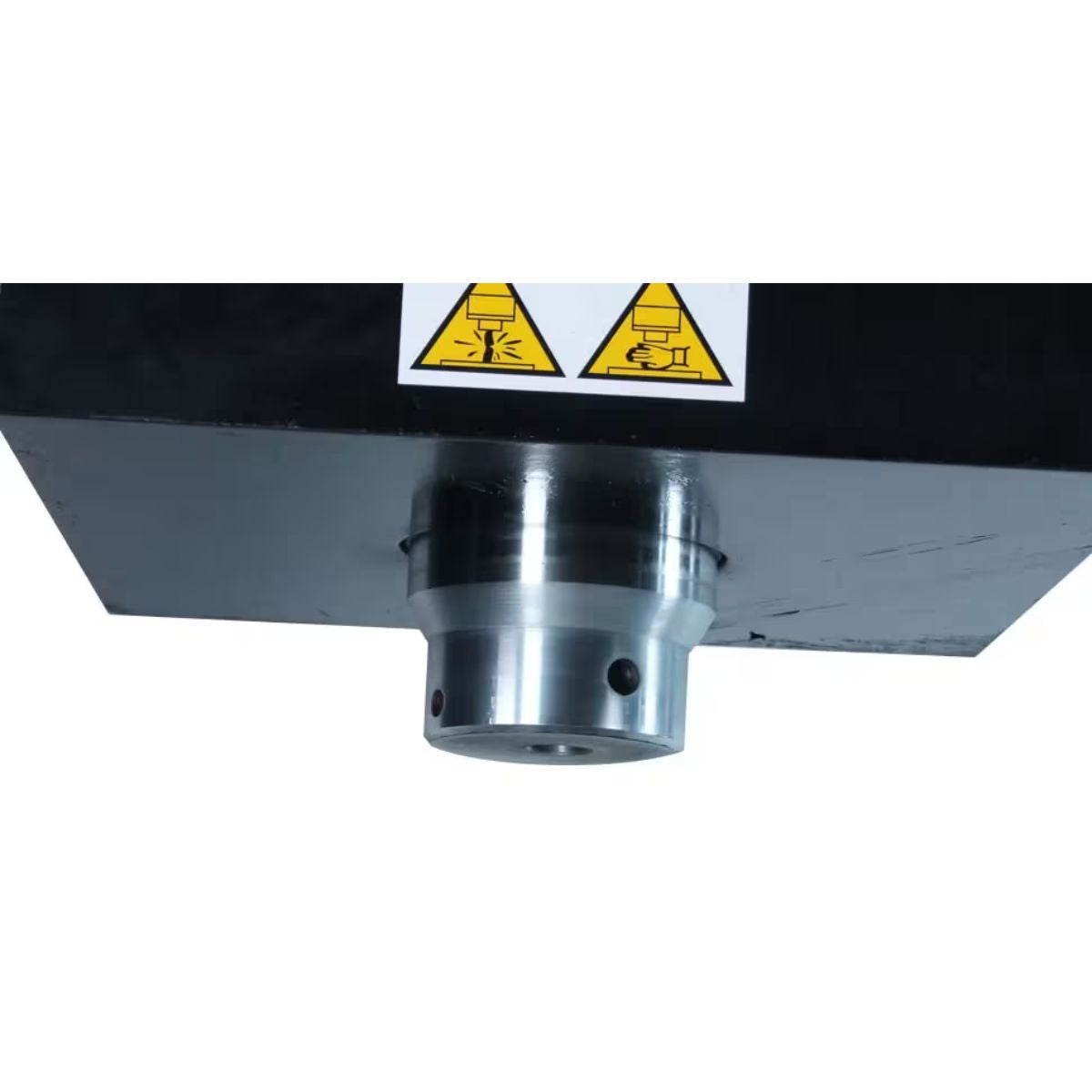

Movable Ram Head and Adjustable Table Speed Setup

The ram head and work table both adjust to fit parts of different sizes. This cuts down on setup time between jobs.

What's Included

What's Included? Baileigh HSP-100A 100-Ton Air/Hand H-Frame Press

• Baileigh HSP-100A H-Frame Press — Provides the complete pneumatic press for heavy shop pressing work.

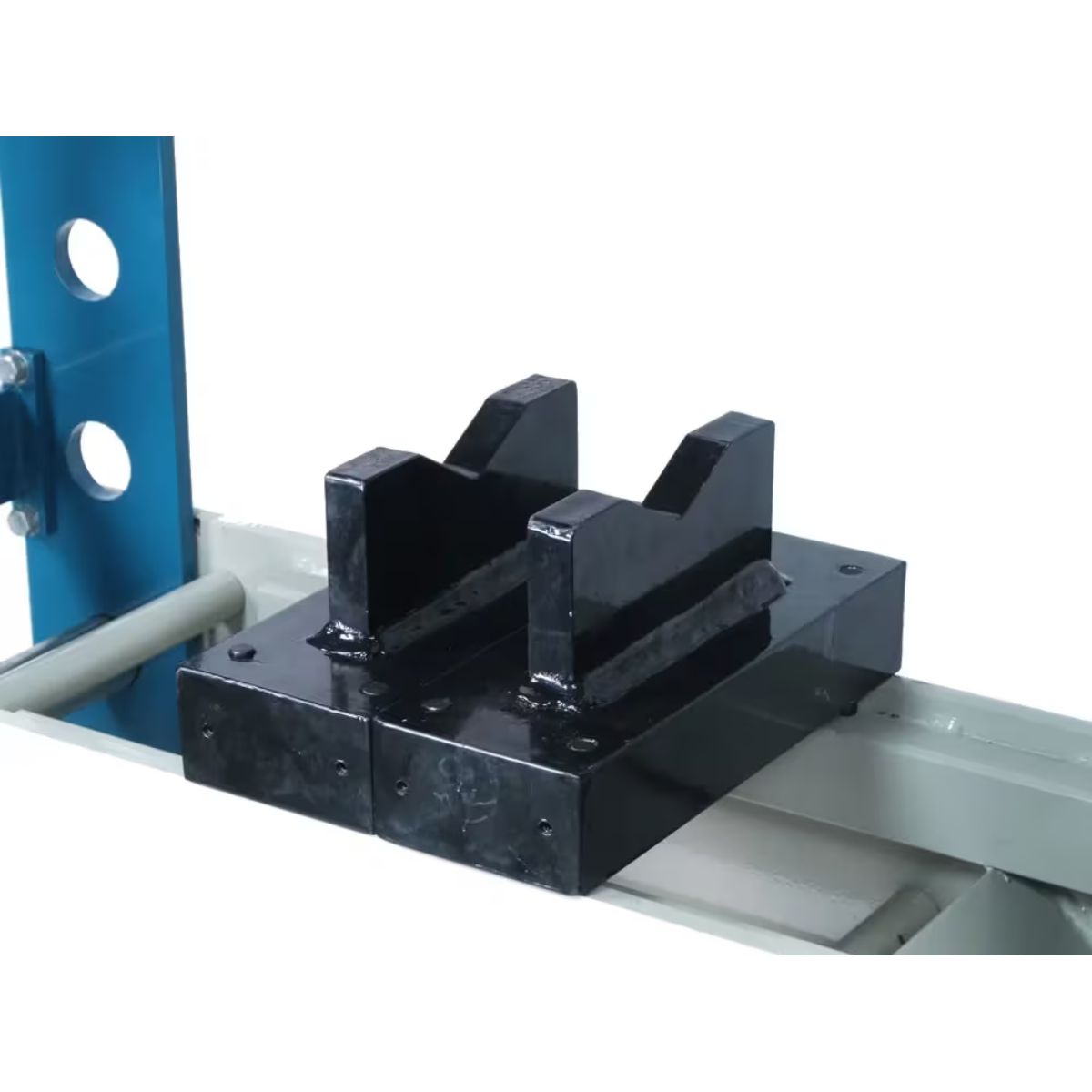

• Set of V-Blocks — Supports round stock during pressing and bending work.

Specs

Baileigh HSP-100A Specifications

• Model: HSP-100A
• Stock Number: BA9-1004759
• Capacity: 100 Tons
• Working Width: 31 in
• Stroke Length: 12 in
• Hydraulic Cylinder Travel: 6.5 in, left and right
• Frame: Fully Welded Heavy Duty Steel H-Frame
• Control: Foot Pedal with Manual Lever Option
• Includes Pressure Gauge for Monitoring Tonnage
• Input Power: Pneumatic
• Net Weight: 1,620 lb
• Gross Weight: 1,620 lb
• Warranty: 1 Year Parts, Lifetime Technical Support
