Baileigh HPB-78NC 220V 3-Phase 78-Ton Horizontal Press Brake with NC Controller
Are you looking for a press brake that handles production bending with consistent force and repeatable results?
What if your shop had a heavy-duty horizontal press brake that stores bend programs and holds tight accuracy across every run.

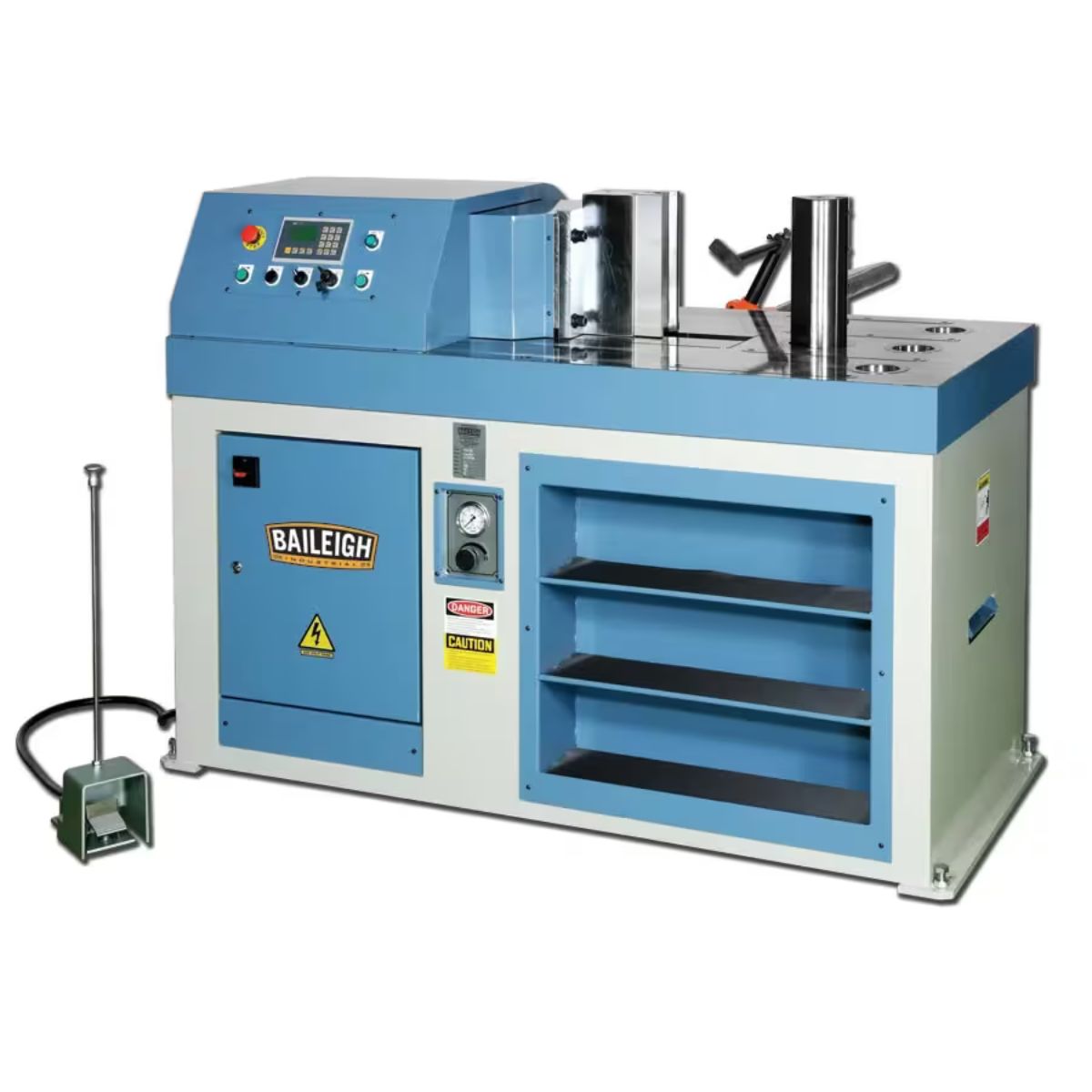

Meet the Baileigh HPB-78NC 220V 3-Phase 78-Ton Horizontal Press Brake with NC Controller, a full-steel machine built for serious fabrication work.
With 78 tons of hydraulic force, a programmable NC controller, and electronic encoders accurate to ±.002", the HPB-78NC is built for shops that need precise, repeatable bends.
When the machine holds your program and repeats every bend to spec, you can move through production runs with confidence.
Baileigh HPB-78NC for Heavy-Duty Production Bending
All-Steel Frame Holds Rigidity Under Load
The HPB-78NC is built from a 4,580-lb all-steel frame using inch-thick flat bar construction. That mass keeps the machine rigid and accurate through repeated production cycles without flexing under load.
78-Ton Hydraulic Force Powers Through Heavy Material
A 7.5 HP hydraulic motor delivers 78 tons of bending force with a 13.75" stroke length and a maximum bend angle of 135 degrees. The hydraulic system approaches the work at 1.69 inches per second for a controlled, consistent press.
NC Controller Stores Bend Programs for Production Runs
The programmable NC controller stores multiple bend sequences so you can switch between jobs without resetting from scratch. Electronic encoders hold accuracy to ±.002" and keep each bend repeatable across the full run.
Manual Back Gauge and Machined Table Support Accurate Setup
The manual back gauge bolts directly to the machine and gives you a fixed reference point for consistent part positioning. A machined work table at 37.4" height supports material squarely through the bend.
What's Included
What's Included? Baileigh HPB-78NC 220V 3-Phase 78-Ton Horizontal Press Brake with NC Controller
-
Baileigh HPB-78NC Press Brake — Provides 78 tons of hydraulic bending force in a rigid all-steel frame for production fabrication work.
-
NC Controller — Stores multiple bend programs for repeatable production runs with electronic encoder accuracy.
-
Manual Back Gauge — Bolts to the machine to give you a fixed reference point for consistent part positioning.
Specs
Baileigh HPB-78NC 220V 3-Phase 78-Ton Horizontal Press Brake with NC Controller Specifications
- Model: HPB-78NC
- Stock Number: BA9-1004720
- Pressure Rating: 78 Ton
- Stroke Length: 13.75 in
- Maximum Bend Angle: 135°
- Approach Speed: 1.69 in/sec
- Motor: 7.5 HP
- Input Power: 220V 3-Phase
- Table Height: 37.4 in
- Fixture Holes: 1 @ 4.5 in dia / 3 @ 3.25 in dia
- Accuracy: ±.002 in
- Net Weight: 4,580 lb
- Warranty: 1 Year Parts / Lifetime Technical Support
