Baileigh HPB-20 220V 3-Phase 20-Ton Horizontal Press Brake
Are you working with flat bar, angle iron, or plate stock that needs consistent bends, punches, or shears without stopping to reposition?
What if your shop had a horizontal press that delivers 20 tons of force while keeping both hands free to guide the material.
Meet the Baileigh HPB-20 220V 3-Phase 20-Ton Horizontal Press Brake, a hydraulic press built for steady fabrication work.
With a foot pedal control, quick-release tooling system, and a hydraulic unit positioned to reduce flex, the HPB-20 is designed for consistent, repeatable forming.
When the press holds steady and your hands stay on the material, you move through bending and forming work with more control and less setup time.
Baileigh HPB-20 for Hydraulic Bending and Forming Work
Industrial Frame and Hydraulic Placement Reduce Flex
The HPB-20 is built on an industrial-grade frame with the hydraulic system positioned on top of the machine to minimize flex under load. This placement keeps the press stable during bending, punching, and shearing tasks in a busy fabrication environment.
5 HP Motor Delivers Full 20-Ton Bending Force

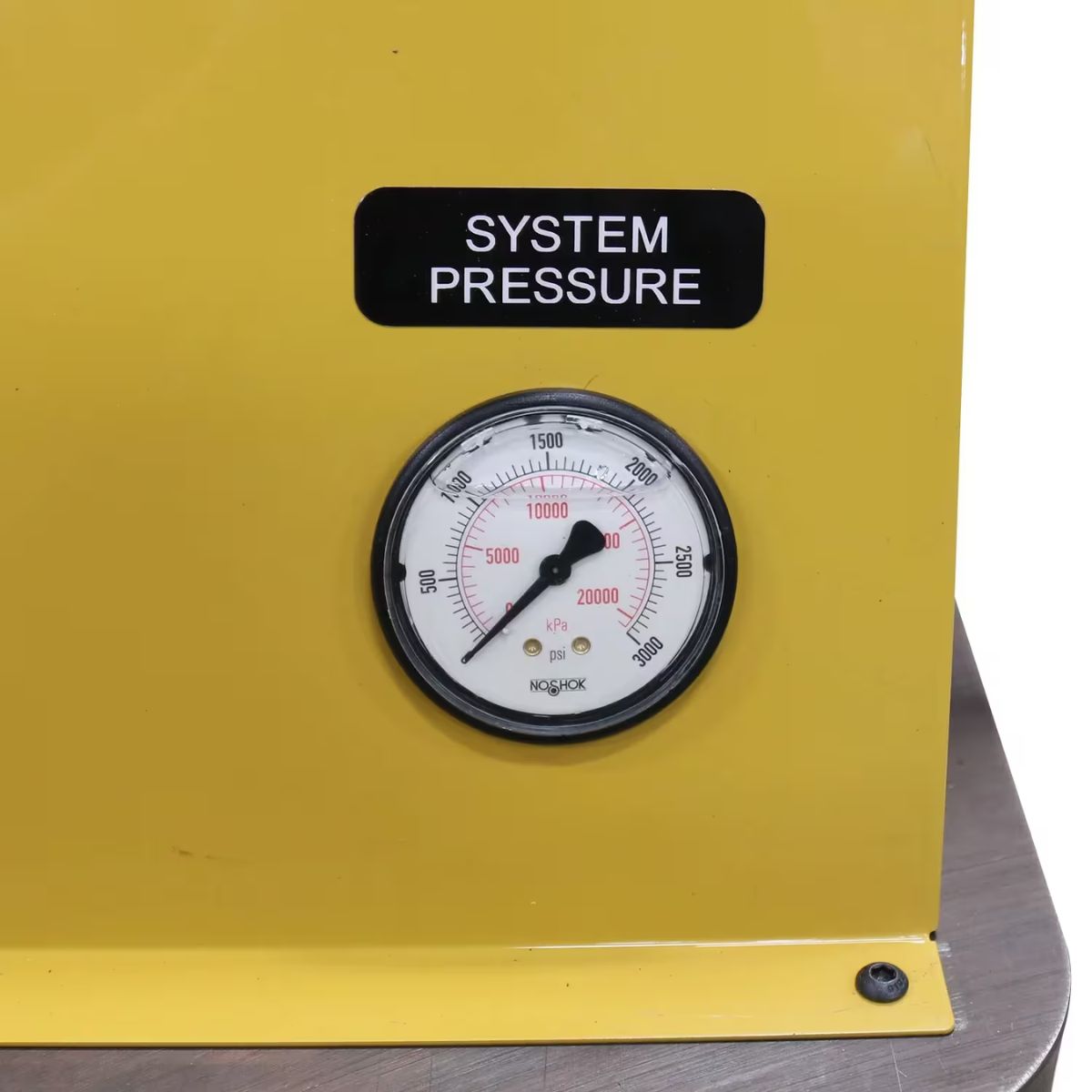

A 5 HP motor powers the hydraulic system to deliver up to 20 tons of bending force at 2,750 PSI with a 12 inch stroke length. Adjustable pressure control lets you dial in the force needed for each task without overworking the material.

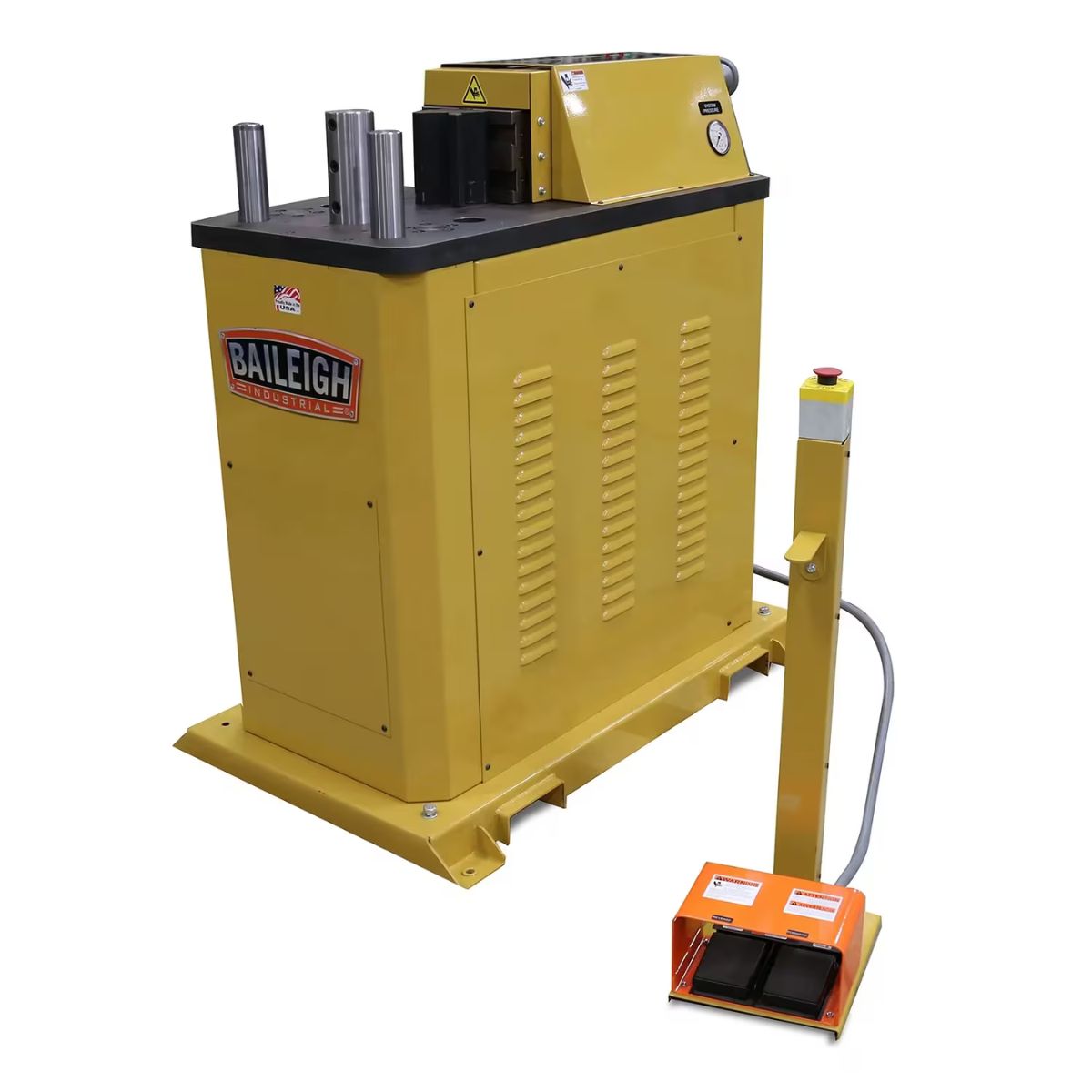

Foot Pedal Control Keeps Both Hands on the Work
The foot pedal actuates the stroke so both hands stay free to position and guide material through the press. This control setup reduces the need to stop and reposition between strokes, keeping forming work moving at a steady pace.
Quick-Release Tooling System Speeds Changeover

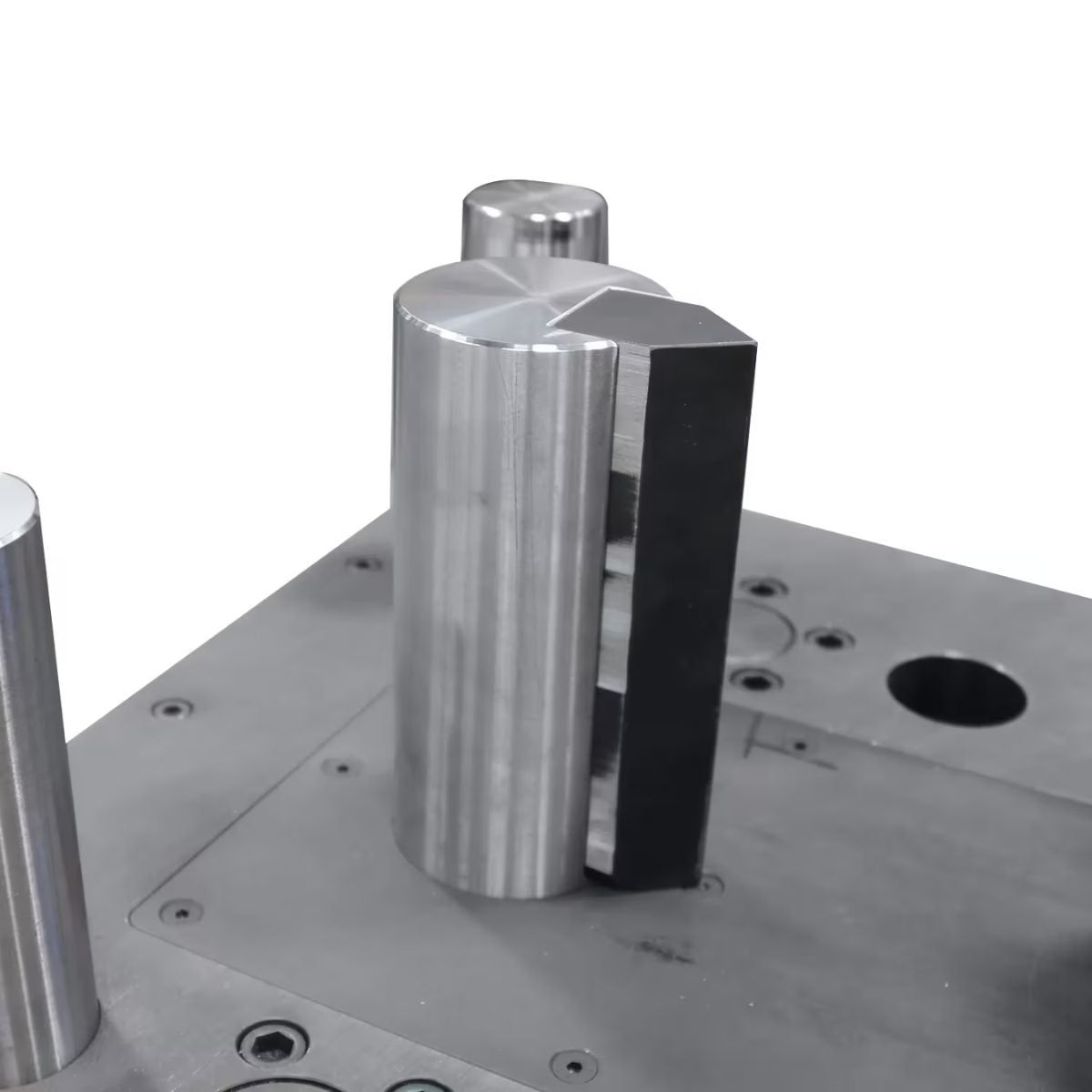

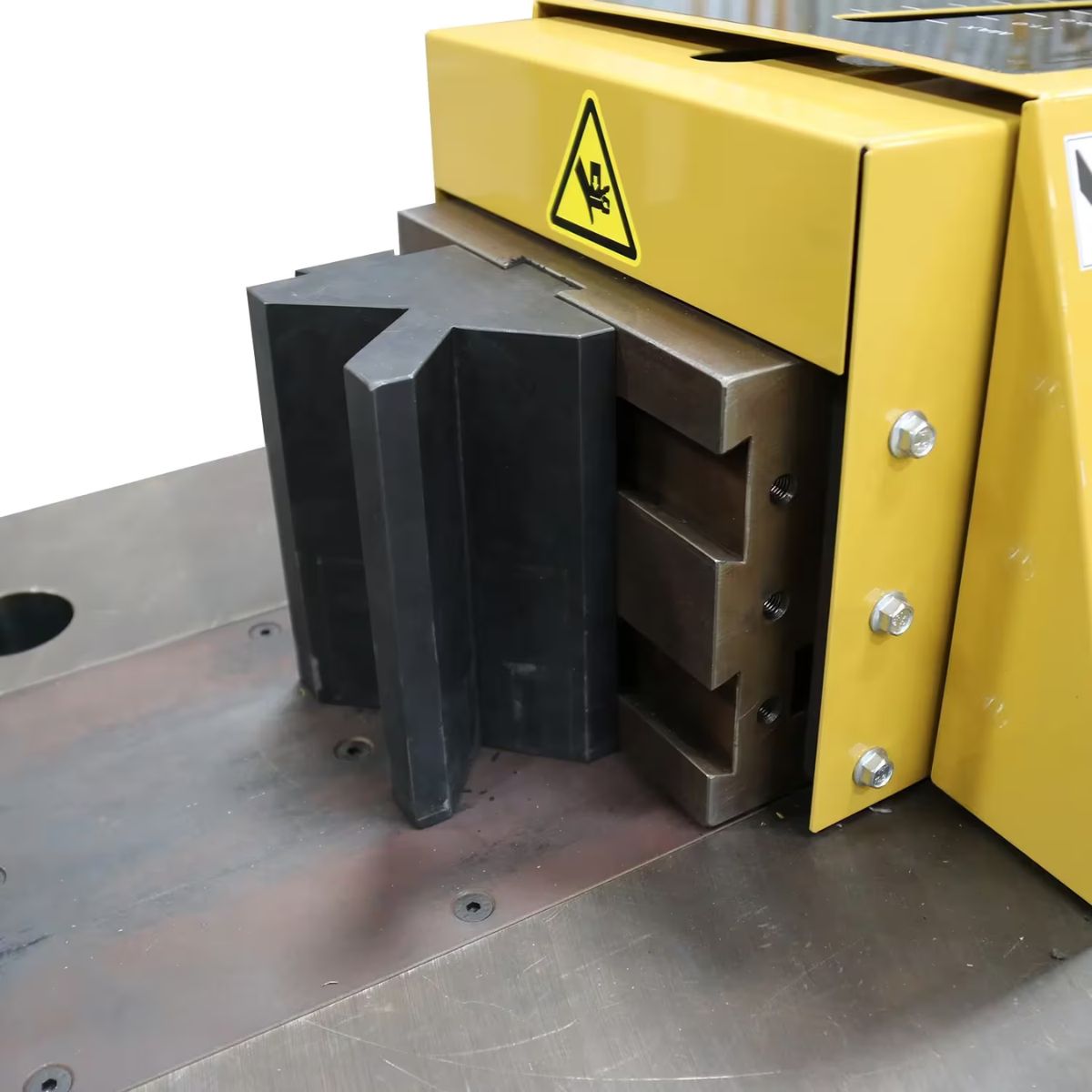

The HPB-20 includes a quick-release tooling system with Multi-V tooling — a V-opening die and V-post — included from the factory. The system accepts additional tooling sets for punching, shearing, and other forming operations as your work demands.
What's Included
What's Included? Baileigh HPB-20 220V 3-Phase 20-Ton Horizontal Press Brake
-
Baileigh HPB-20 Horizontal Press Brake — Provides 20 tons of hydraulic bending force for forming, punching, and shearing on flat bar, plate, and angle iron.
-
Multi-V Tooling Set (V-Opening Die and V-Post) — Allows you to begin bending work right out of the box without sourcing additional tooling.
-
Foot Pedal Control — Frees both hands to guide material during pressing operations.
Specs
Baileigh HPB-20 220V 3-Phase 20-Ton Horizontal Press Brake Specifications
- Model: HPB-20
- Stock Number: BA9-HPB20
- Rating: 20 Ton
- Motor: 5 HP
- Input Power: 220V Three Phase
- Hydraulics: 2,750 PSI
- Stroke Length: 12 in
- Maximum Bend Degree: 135°
- Bending Capacity Length: Unlimited
- Work Height: 39 in

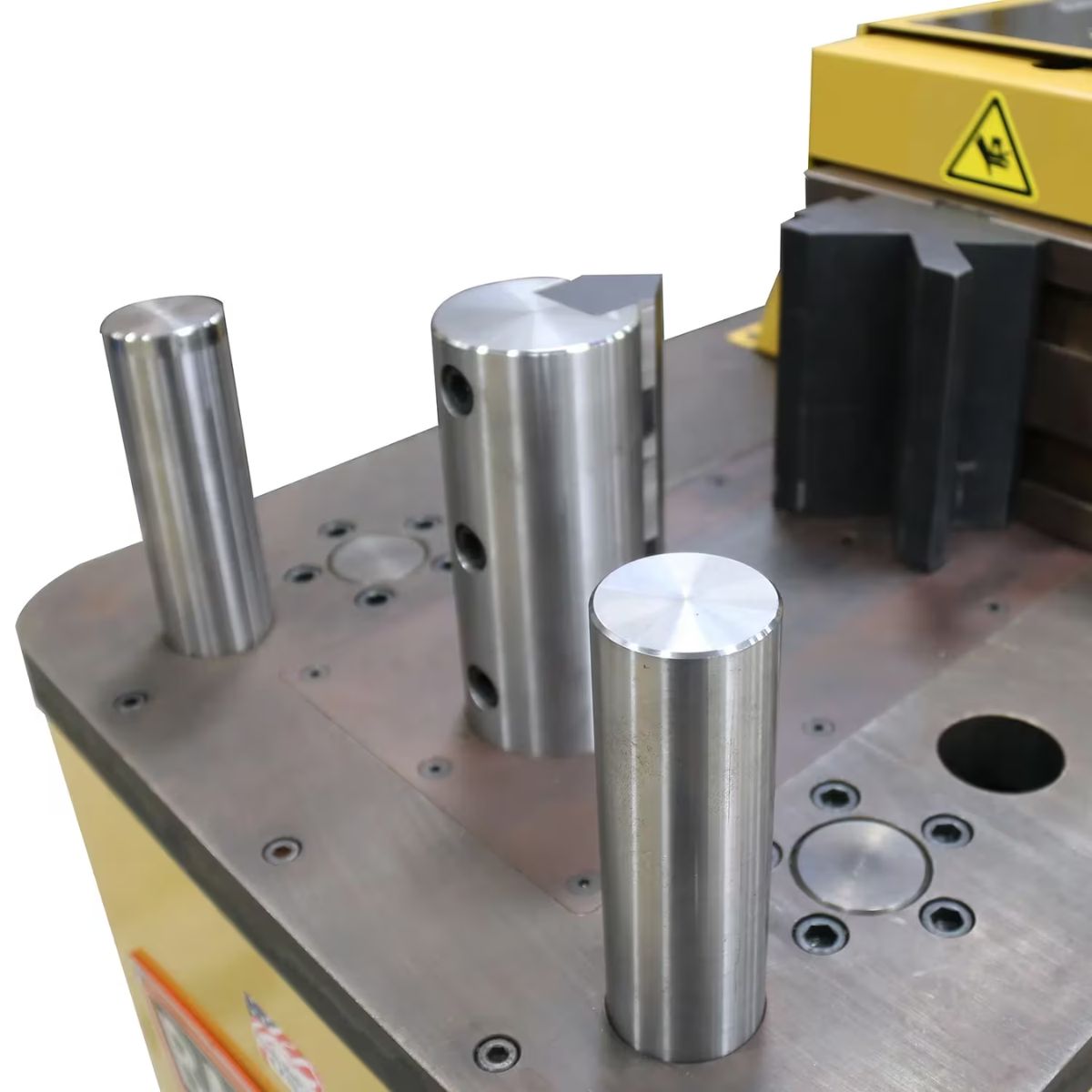

- Fixture Holes: 1 @ 3 in dia. / 3 @ 2 in dia.
- Net Weight: 1,350 lb
- Warranty: 1 Year Parts
