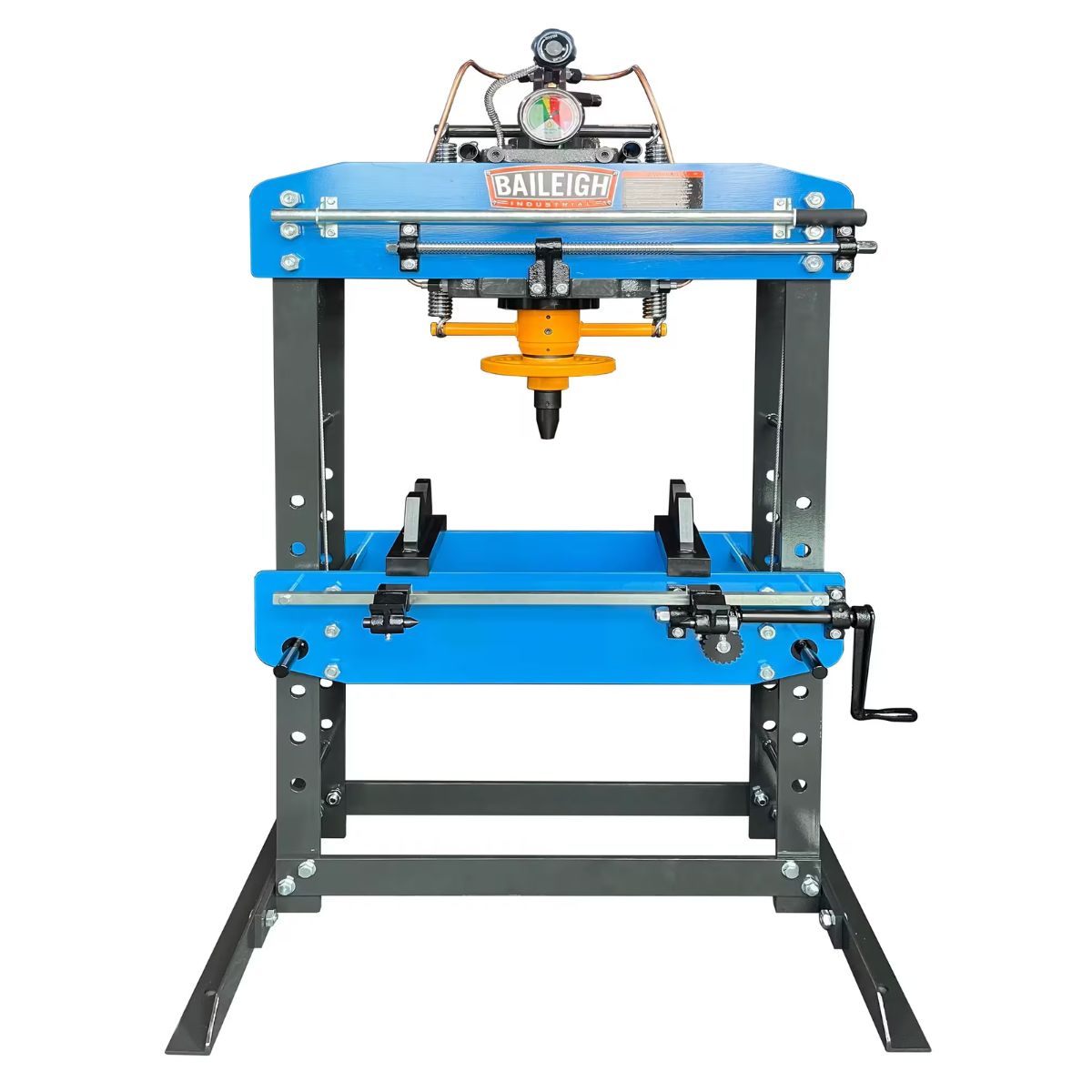

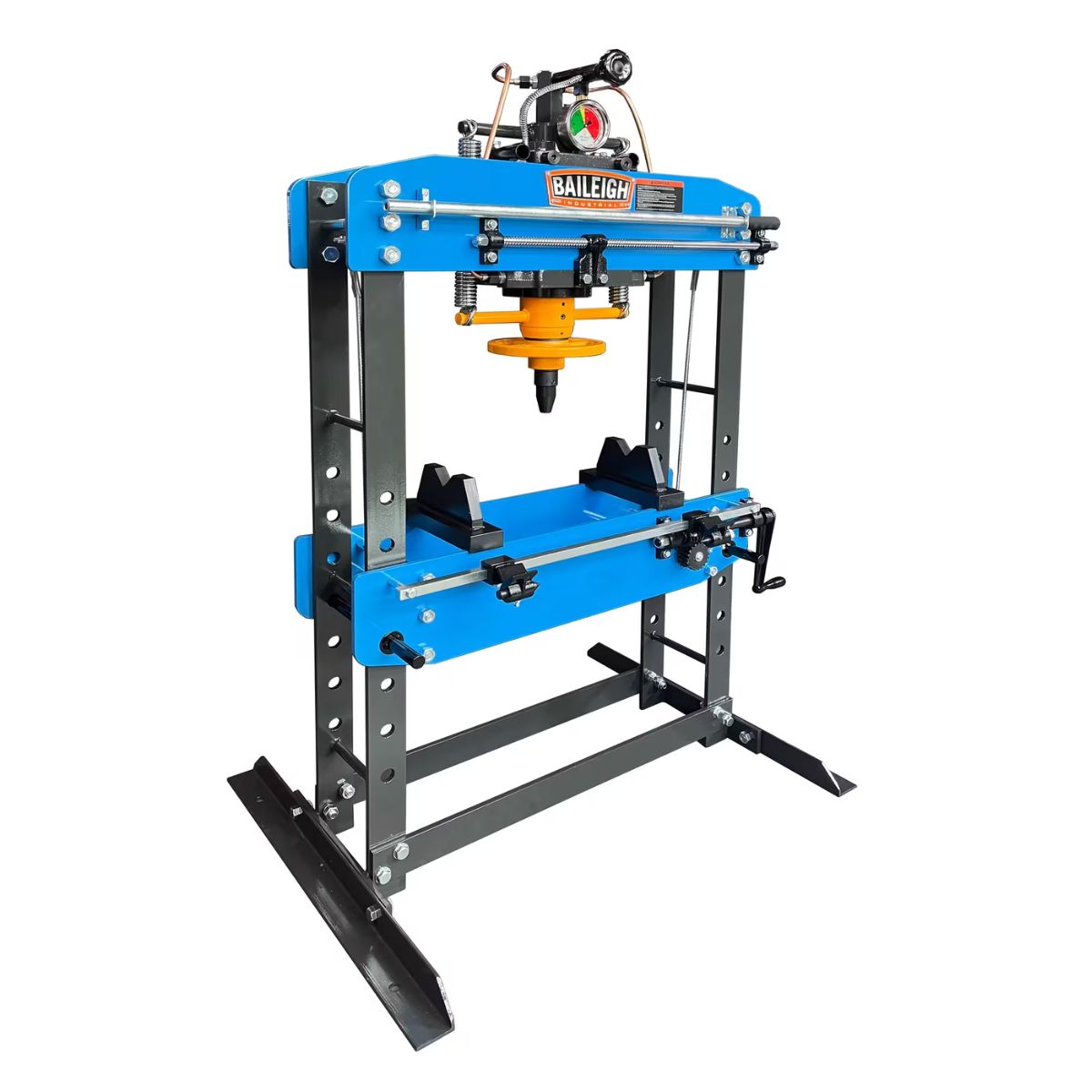

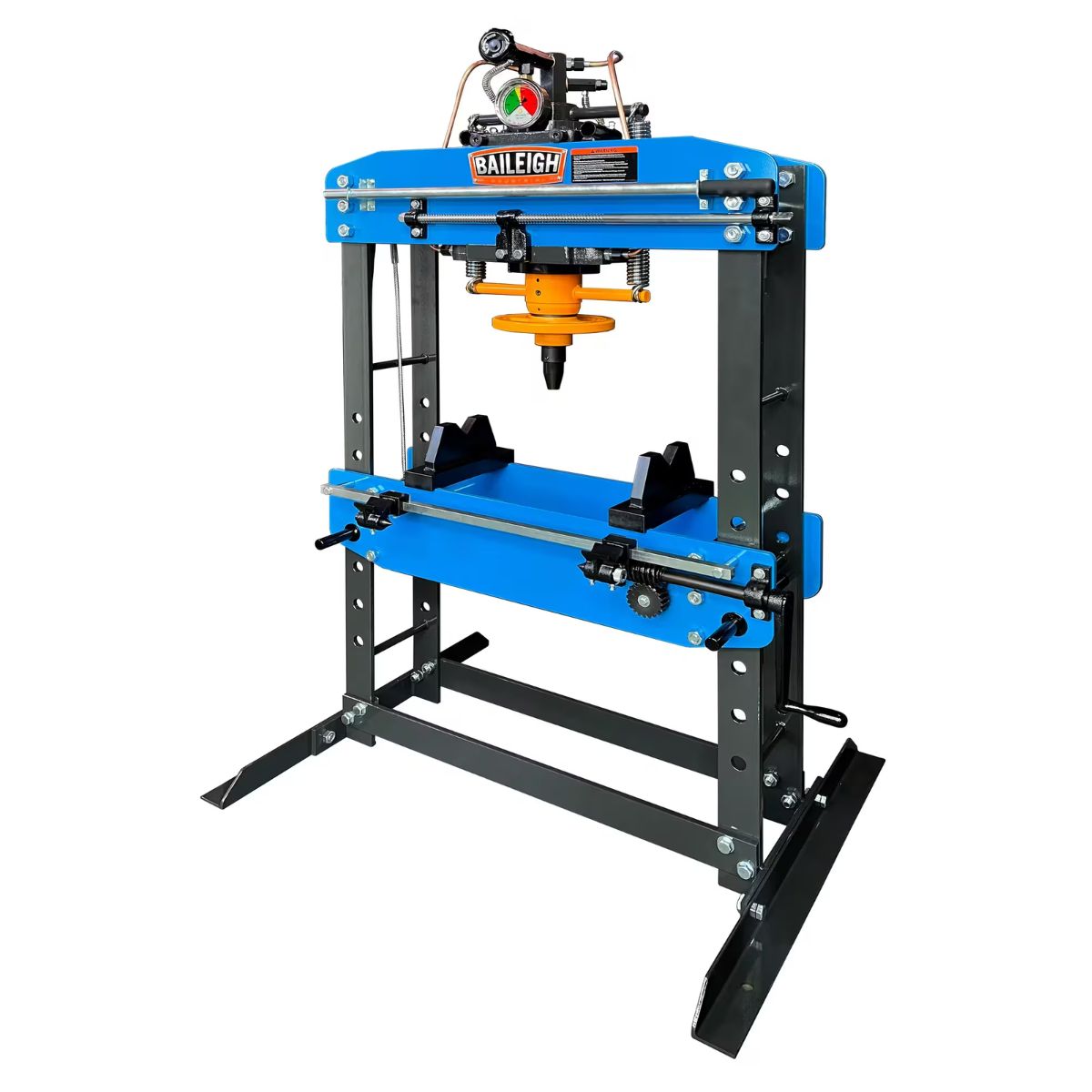

Baileigh HP-35A 35-Ton Hydraulic Shop Press
Are you tired of taking bearings and bushings to an outside shop to get them pressed?
What if you had a press strong enough to handle bearing work, bending, and straightening right in your own shop.
Meet the Baileigh HP-35A 35-Ton Hydraulic Shop Press, a heavy duty H-frame press built for fabrication work.
With a rugged electro-welded frame, adjustable table, and pressure gauge, the press gives you steady control over every job.
When the press holds parts firm and applies force smoothly, you can press and straighten with confidence.
Baileigh HP-35A for Heavy Duty Shop Pressing
Heavy Steel H-Frame Reduces Flex Under Load
The H-frame is built from heavy steel plate with electro-welded construction for a rigid, stable base. Less frame flex means more of the press force goes into the work instead of the frame.
4.5 Inch Stroke Handles Deep Pressing Jobs
The cylinder gives you a 4.5 inch stroke, enough travel for bearing removal, straightening, and bending tasks. A longer stroke means fewer repositions during a single job.
Pressure Regulator and Gauge Control Force Precisely
A built in pressure regulator and gauge let you dial in and monitor the exact force applied during a press. This helps you avoid overloading parts while still getting the job done.
Adjustable Work Table Fits a Range of Parts
The work table adjusts to match the size of the part you are pressing. This keeps the work positioned correctly under the ram for a controlled, centered press.
What's Included
What's Included? Baileigh HP-35A 35-Ton Hydraulic Shop Press
-
Baileigh HP-35A 35-Ton Hydraulic Shop Press — Provides a 35 ton H-frame press for pressing, bending, and straightening work.
-
V-Block Set — Supports round and irregular workpieces during pressing jobs.
Specs
Baileigh HP-35A 35-Ton Hydraulic Shop Press Specifications
- Model: HP-35A
- Stock Number: BA9-1232704
- Press Capacity: 35 Tons
- Working Width: 24.75 in
- Stroke Length: 4.5 in
- Input Power: Manual
- Frame Construction: Heavy Steel, Electro-Welded H-Frame
- Included Accessories: V-Block Set
- Net Weight: 772 lb
- Warranty: 1 Year
