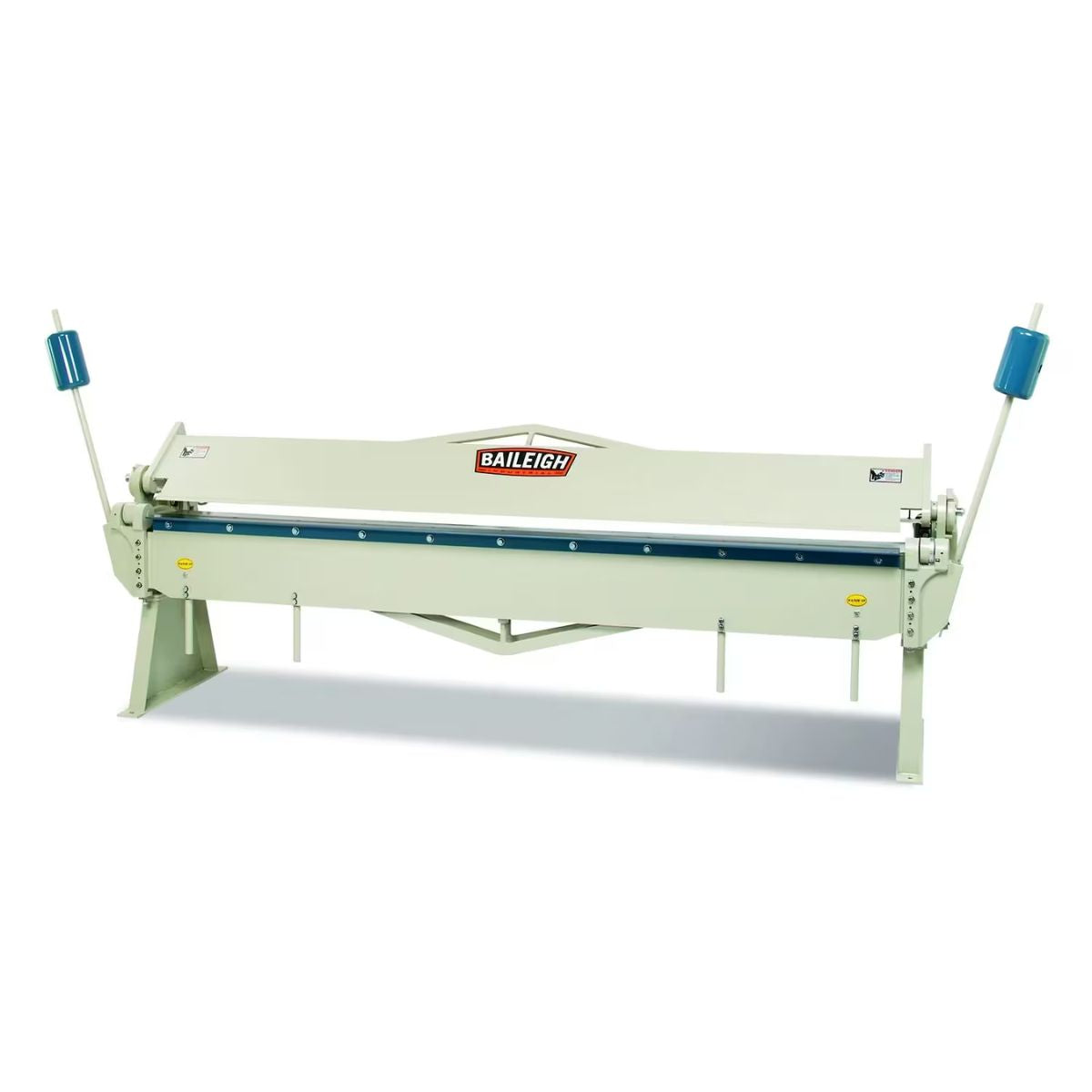

Baileigh HB-12016 120" Heavy Duty Manual Straight Brake — 16 Gauge
Are you looking for a manual sheet metal brake that handles full-size panels without flex or drift?
What if your shop had a 10-foot brake that bends consistently from one end to the other, every time?
Meet the Baileigh HB-12016 120" Heavy Duty Manual Straight Brake — 16 Gauge, a fully welded plate steel brake built for serious sheet metal work.
With cast iron pivot components, dual counterweights, and a standard stop rod, the HB-12016 handles demanding bends across the full working width.
When the brake holds straight through a 10-foot bend, you can work through a production run with confidence.
Baileigh HB-12016 for Full-Width Sheet Metal Bending
Welded Plate Steel Frame Reduces Flex Across Full Width
The top beam and leaf are fully welded from plate steel to resist flex during large panel bends. A rigid frame keeps the bend angle consistent from one end of the brake to the other.

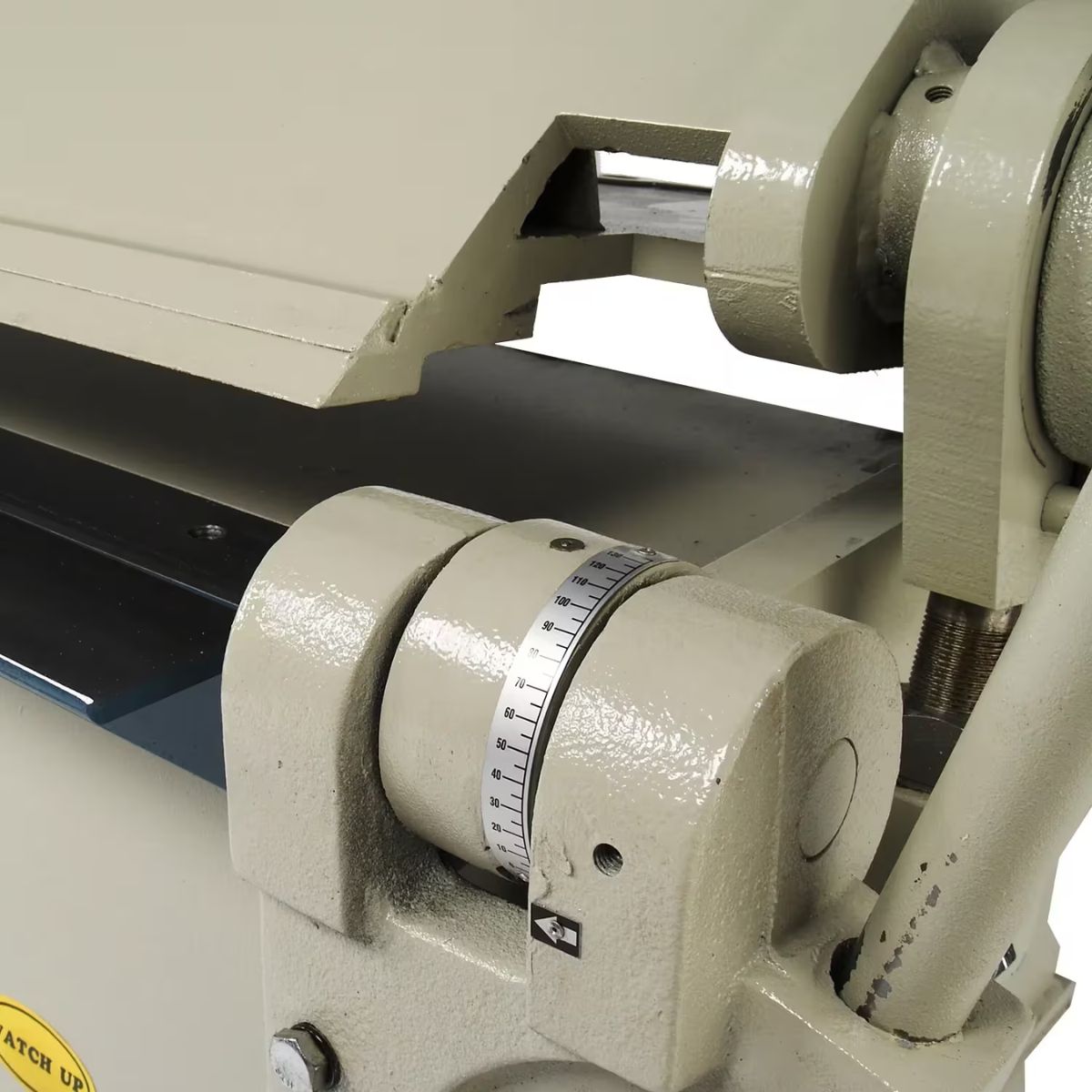

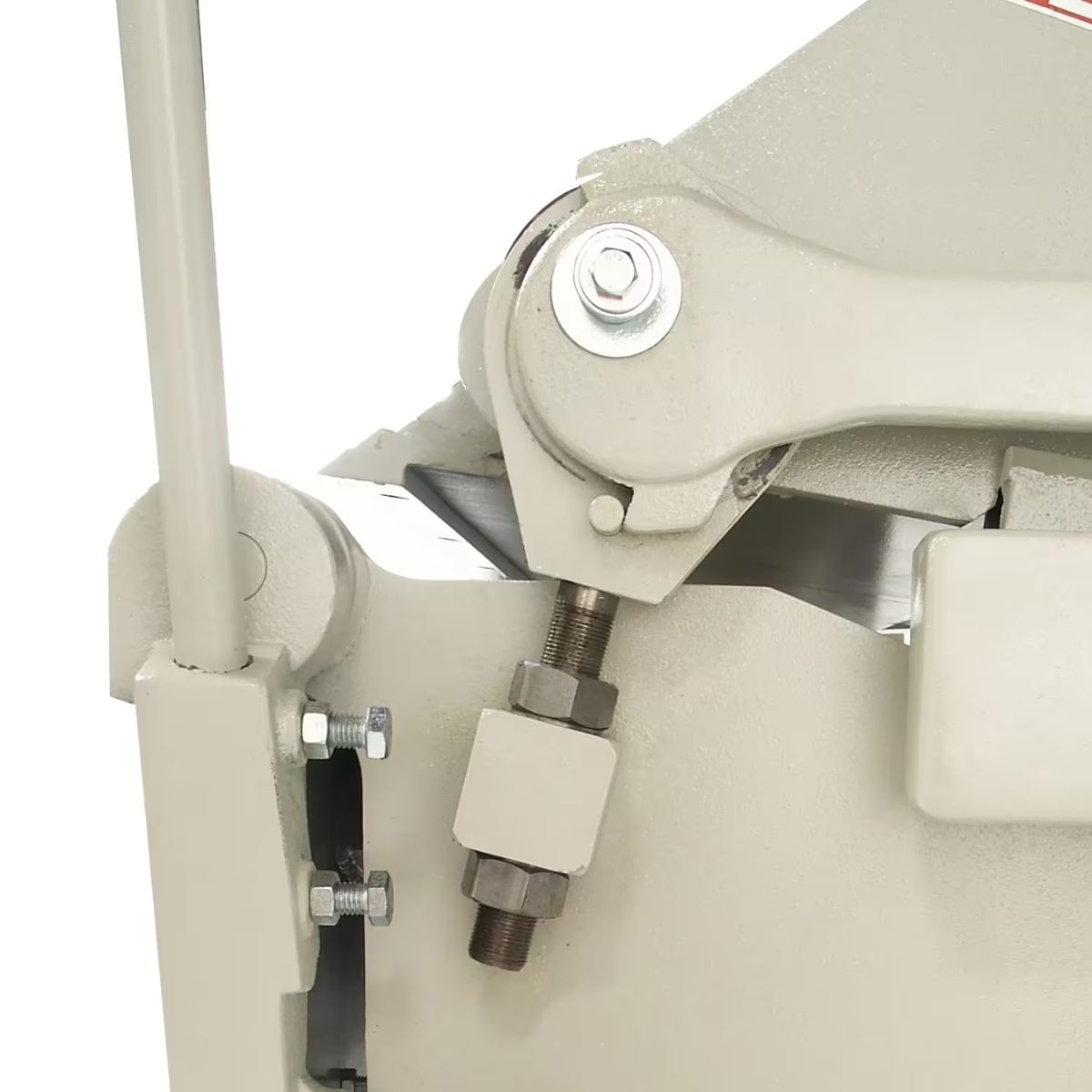

Cast Iron Pivots and Clamp Levers Support Precise Bends
Main pivots, supports, and clamp levers are cast from iron and machined for accuracy. Precision components at the pivot points reduce slop and help the brake produce repeatable results.
Dual Counterweights Reduce Operator Effort on Large Panels
Two heavy-duty counterweights assist the operator when lifting and bending full-size panels. This reduces physical strain during longer production runs without adding mechanical complexity.

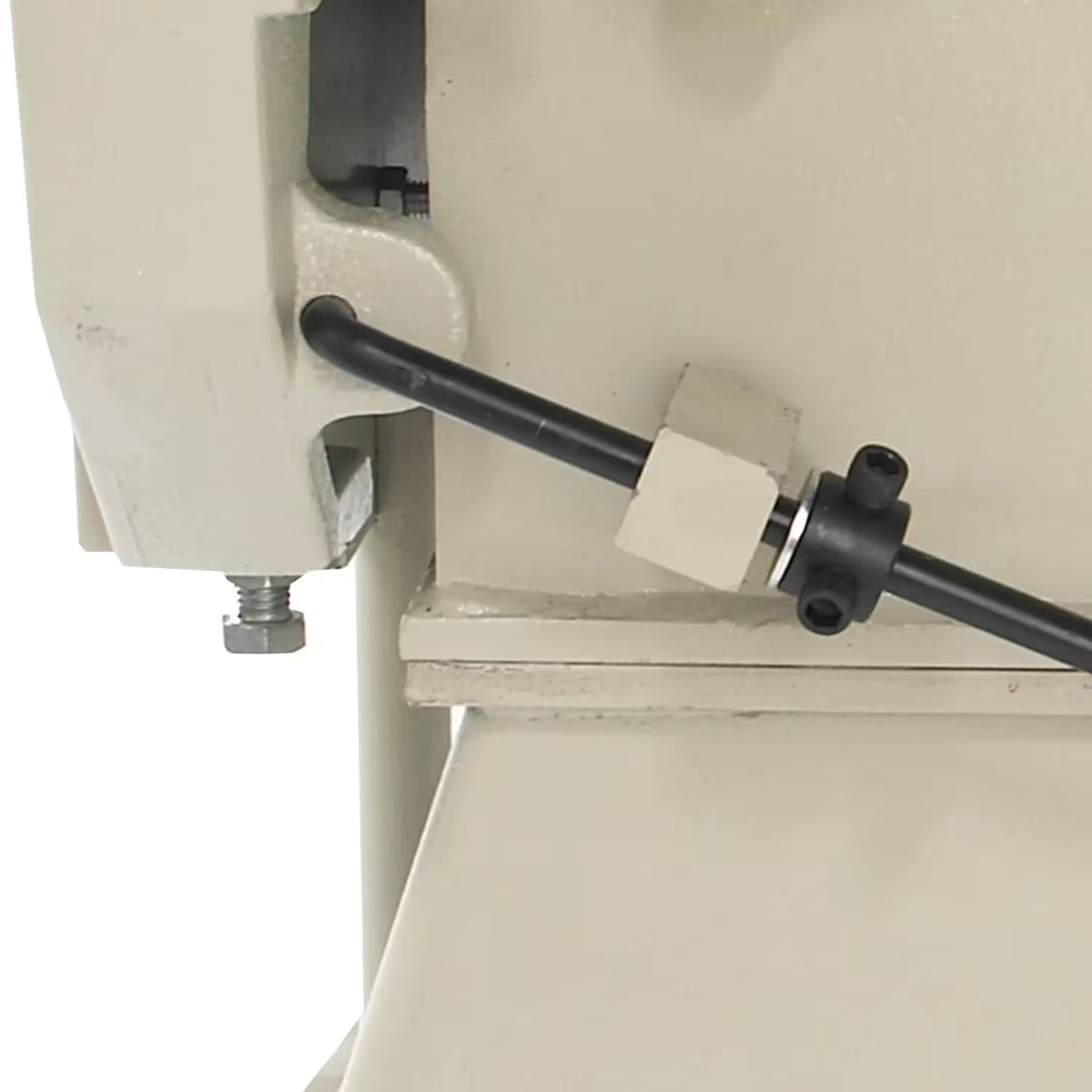

Stop Rod Enables Repeatable Production Bends
A standard stop rod is included so you can set a bend position and repeat it across a run of parts. No guesswork between bends keeps production moving at a steady pace.
What's Included
What's Included? Baileigh HB-12016 120" Heavy Duty Manual Straight Brake — 16 Gauge
-
Baileigh HB-12016 120" Heavy Duty Manual Straight Brake — 16 Gauge — Provides a 10-foot manual bending platform for full-size sheet metal panels.
-
Fully Welded Steel Stand — Supports the brake at working height and can be bolted to the floor for added stability.
-
Stop Rod — Allows you to set a repeatable bend position for production work.
Specs
Baileigh HB-12016 120" Heavy Duty Manual Straight Brake — 16 Gauge Specifications
- Model: HB-12016
- Stock Number: BA9-1004639
- Bending Capacity Length: 120 in (10 ft)
- Mild Steel Capacity: 16 Gauge
- Maximum Bend Angle: 135°
- Input Power: Manual
- Net Weight: 2,840 lb
- Warranty: 1 Year Parts, Lifetime Technical Support
