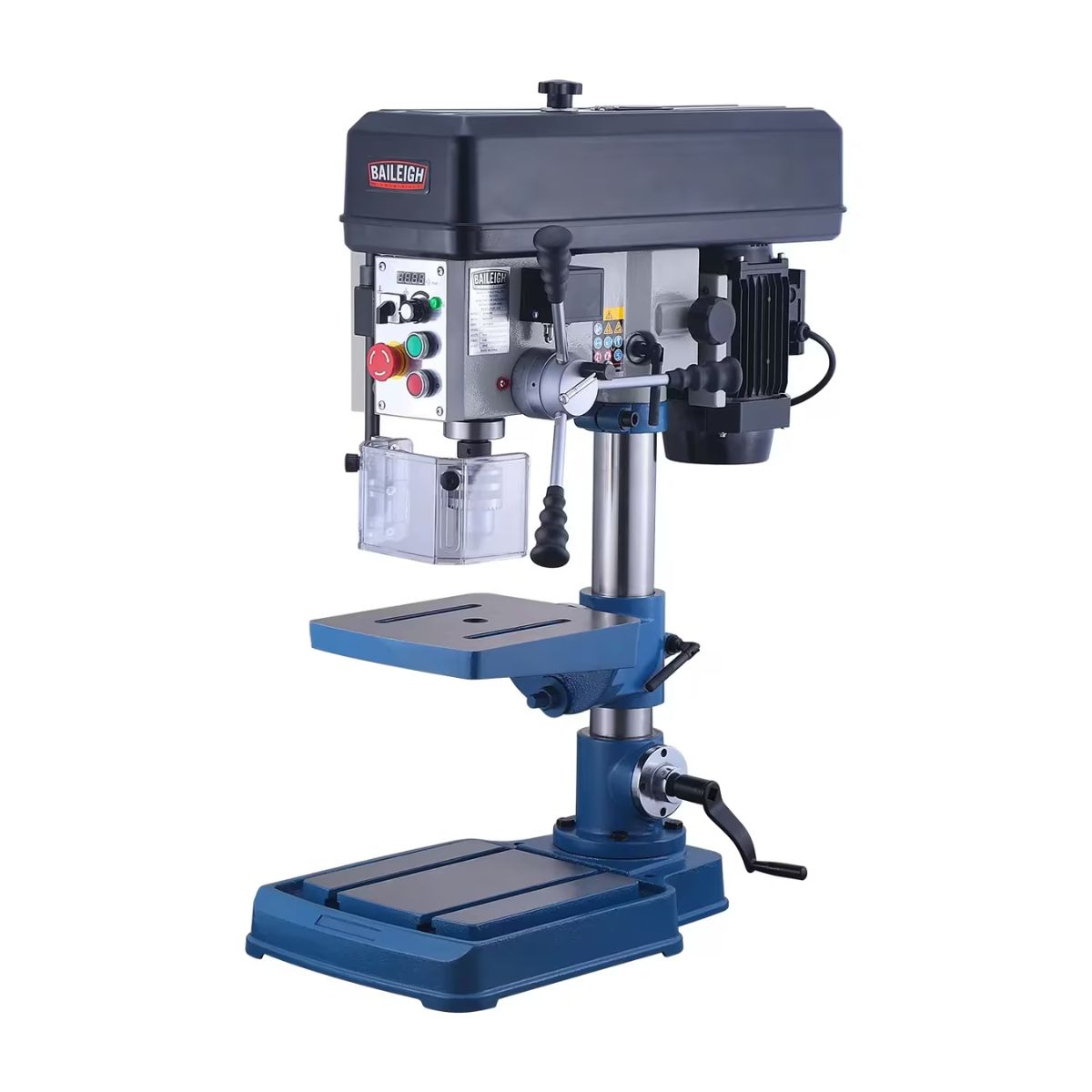

Baileigh DP-4016B-VS 16" Variable Speed Benchtop Drill Press
Are you working in a shop that needs a variable speed benchtop drill press with an auto-reversing tapping function and no belt changes on standard 110V power?
What if that drill press gave you continuously variable speed from 0 to 2,100 RPM, a 16-inch swing, a 45-degree tilting table, and built-in tapping capability up to 1/2-inch steel?
Meet the Baileigh DP-4016B-VS, a 16-inch variable speed benchtop drill press built for metalworking and fabrication shops that need flexible speed control and tapping capability in a compact footprint.
With the DP-4016B-VS, you get a 0.75 HP inverter-driven motor on 110V single-phase power, continuous speed adjustment without belt changes, and a rigid cast iron base and table that resist flex during drilling and tapping operations.
When the DP-4016B-VS is set up for your job, you get accurate, consistent drilling and tapping results on a compact machine built for dependable daily shop use.
Baileigh DP-4016B-VS for Variable Speed Benchtop Drilling and Tapping
Continuously Variable Speed from 0 to 2,100 RPM
The inverter-driven motor adjusts spindle speed continuously from 0 to 2,100 RPM without changing belts, letting operators dial in the right cutting rate for the material and bit at hand. This continuous variable control improves tooling life and adapts to a wider range of materials and operations than fixed-speed benchtop drill presses.
Auto-Reversing Tapping Function Adds Practical Versatility
The auto-reversing tap feature supports tapping operations up to 1/2-inch in mild steel directly from the drill press, eliminating the need for a separate tapping machine on jobs where drilled holes require threads. This built-in tapping capability makes the DP-4016B-VS a more versatile machine for shops that tap regularly.
Cast Iron Construction and 2-3/4" Column Resist Flex
The rigid cast iron base and table minimize flex and vibration during drilling and tapping operations, keeping the spindle aligned and results accurate through repeated daily use. The 2-3/4-inch steel column adds structural support that reduces deflection on heavier drilling work at the benchtop.
16-Inch Swing and Tilting Table Cover a Range of Work

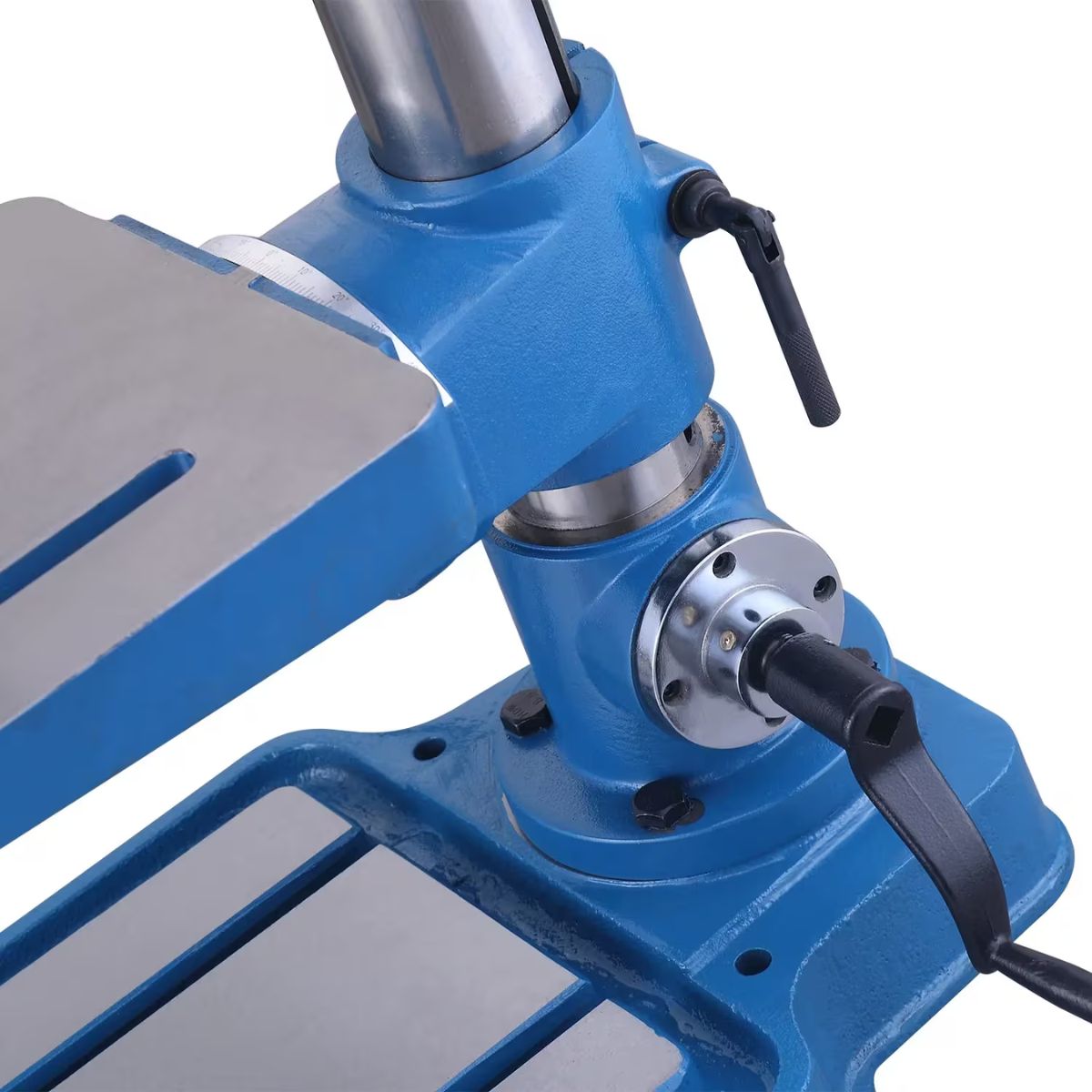

The 16-inch swing accommodates a wide range of workpiece sizes, and the 11-inch by 10-inch cast iron table tilts up to 45 degrees left or right for angled drilling without repositioning the workpiece. The 360-degree rotating headstock and 3.93 inches of spindle travel add further flexibility for a variety of drilling setups.
What's Included
What's Included? Baileigh DP-4016B-VS 16" Variable Speed Benchtop Drill Press
-
Auto-Reversing Tapping Function — supports tapping up to 1/2-inch in mild steel directly from the drill press.
Specs
Baileigh DP-4016B-VS 16" Variable Speed Benchtop Drill Press Specifications
-
Model Number: DP-4016B-VS
-
Stock Number: BA9-1228213
-
Motor: 0.75 HP (inverter-driven)
-
Power Requirement: 110V, single-phase
-
Swing: 16"
-
Spindle Speed Range: 0–2,100 RPM (variable)
-
Spindle Taper: MT2
-
Spindle Travel: 3.93"
-
Chuck Size: 0.03"–0.625" (B16)
-
Drilling Capacity (Mild Steel): 3/4"
-
Tapping Capacity (Mild Steel): 1/2"
-
Table Size: 11" x 10"
-
Table Material: Cast iron
-
Table Tilt: 45° left or right
-
Headstock Movement: 360°
-
Column Diameter: 2-3/4"
-
Working Load Limit: 132 lb.
-
Net Weight: 270 lb.
-
Warranty: 1 Year
