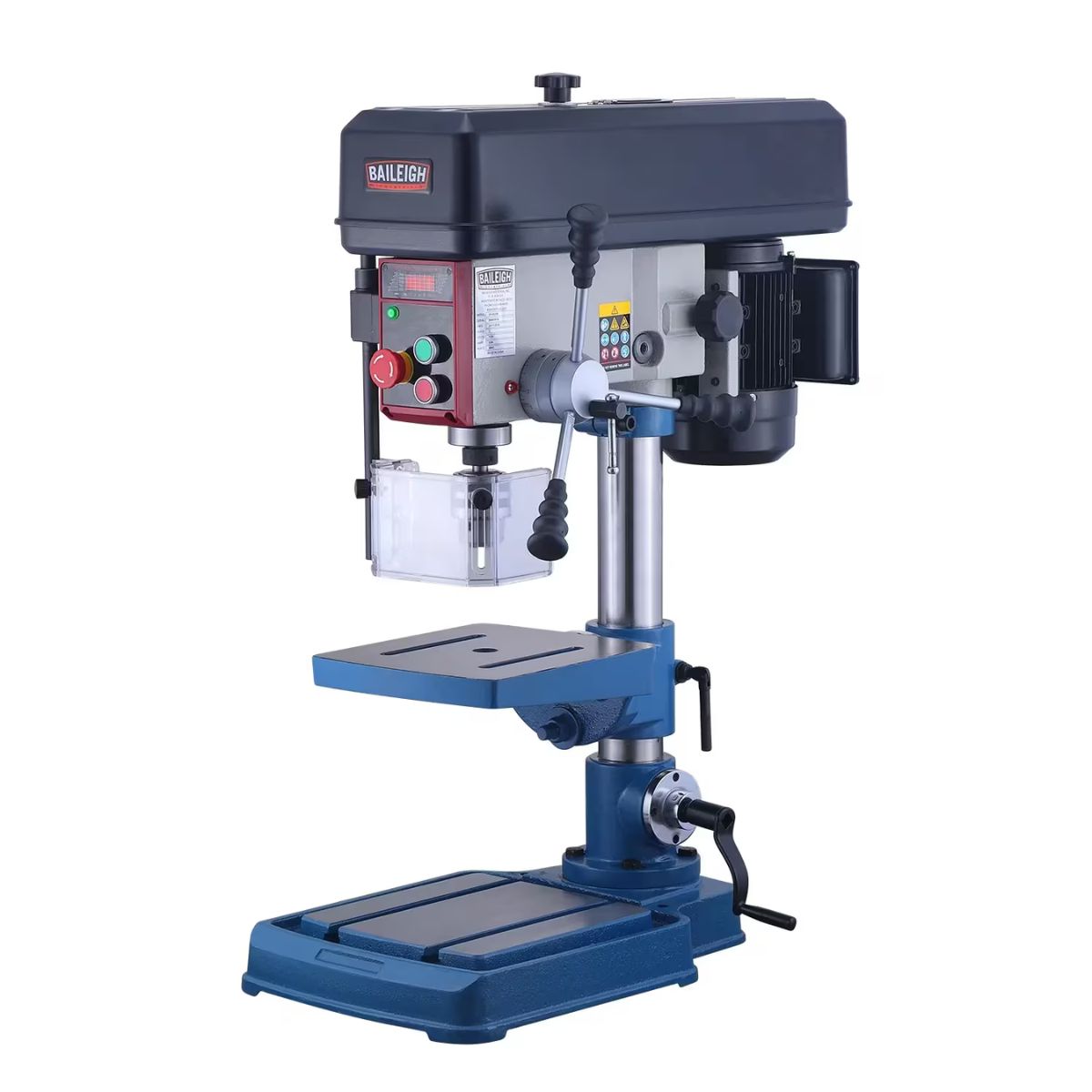

Baileigh DP-4016B 16" 5-Speed Benchtop Drill Press
Are you working in a shop or maintenance department that needs a larger benchtop drill press with a cast iron build and five selectable speeds on standard 110V power?
What if that drill press gave you a 16-inch swing, 250 to 2,900 RPM across five speeds, a tilting cast iron table, and a 360-degree rotating headstock in a compact benchtop package?
Meet the Baileigh DP-4016B, a 16-inch 5-speed benchtop drill press built for shops, maintenance departments, and fabrication environments that need dependable drilling performance with more capacity than smaller benchtop models.
With the DP-4016B, you get a 0.75 HP motor on 110V single-phase power, a belt-driven head with smooth speed transitions, and a rigid cast iron base, head, and table that resist flex during drilling operations.
When the DP-4016B is set up for your job, you get accurate, consistent drilling results on a compact machine built for dependable daily shop use.
Baileigh DP-4016B for 5-Speed Benchtop Drill Press Work
Five Belt-Driven Speeds Cover 250 to 2,900 RPM
The belt-driven head delivers five selectable spindle speeds from 250 to 2,900 RPM, giving operators the range to match drilling speed to the material and bit size at hand. Belt drive provides smooth speed transitions and consistent torque delivery across all five speed settings.
Cast Iron Base, Head, and Table Resist Flex Under Load
The rigid cast iron construction on the base, head, and table minimizes flex and vibration during drilling operations, keeping the spindle aligned and the hole accurate through repeated daily use. A 2-3/4-inch steel column adds structural support that reduces deflection on heavier drilling work.

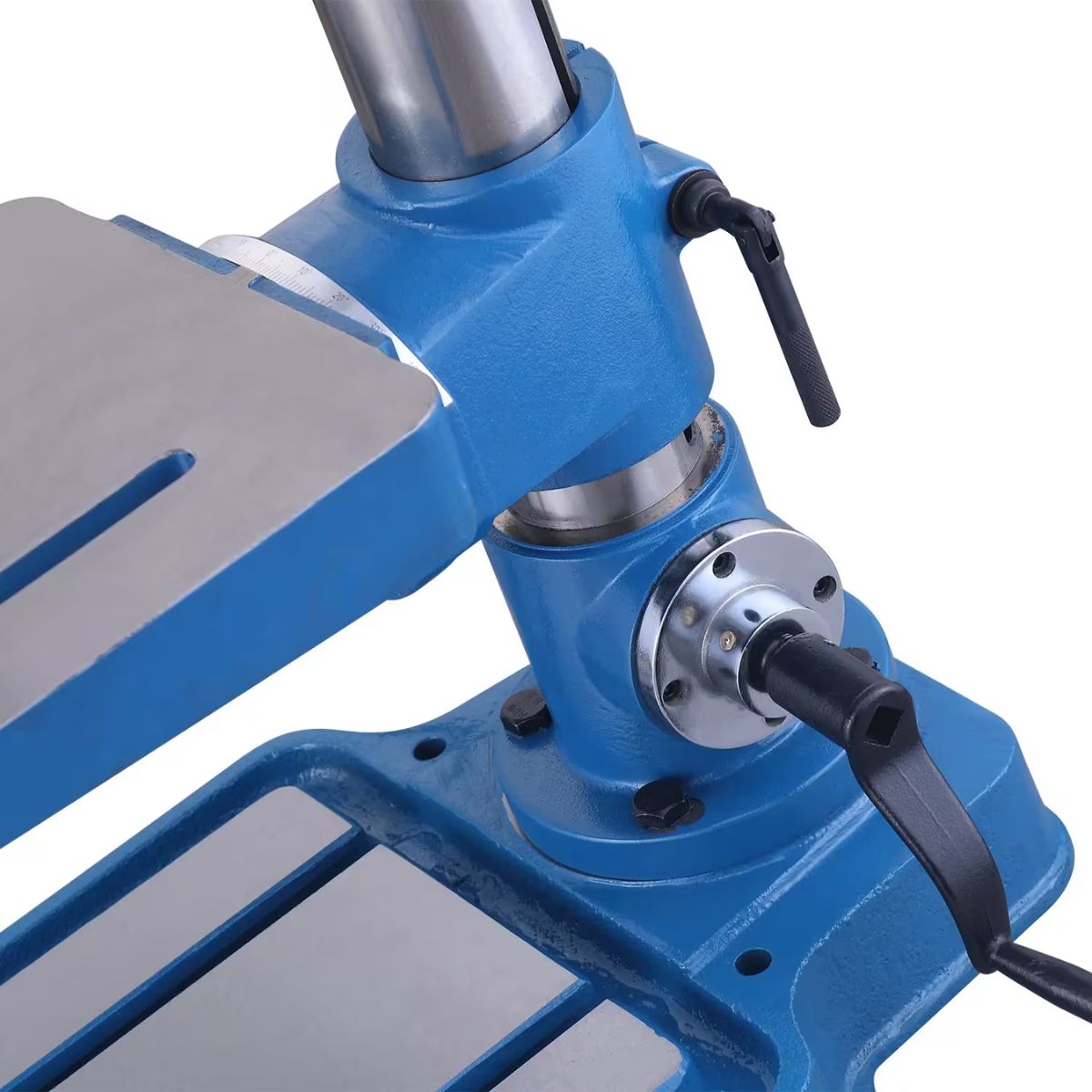

16-Inch Swing and Tilting Table Cover a Range of Work
The 16-inch swing accommodates a wider range of workpiece sizes than smaller benchtop drill presses, and the 11-inch by 10-inch cast iron table tilts for angled drilling without repositioning the workpiece. The 360-degree rotating headstock adds further flexibility for positioning the spindle over the work.
Safety Shield and MT2 Spindle Support Daily Use

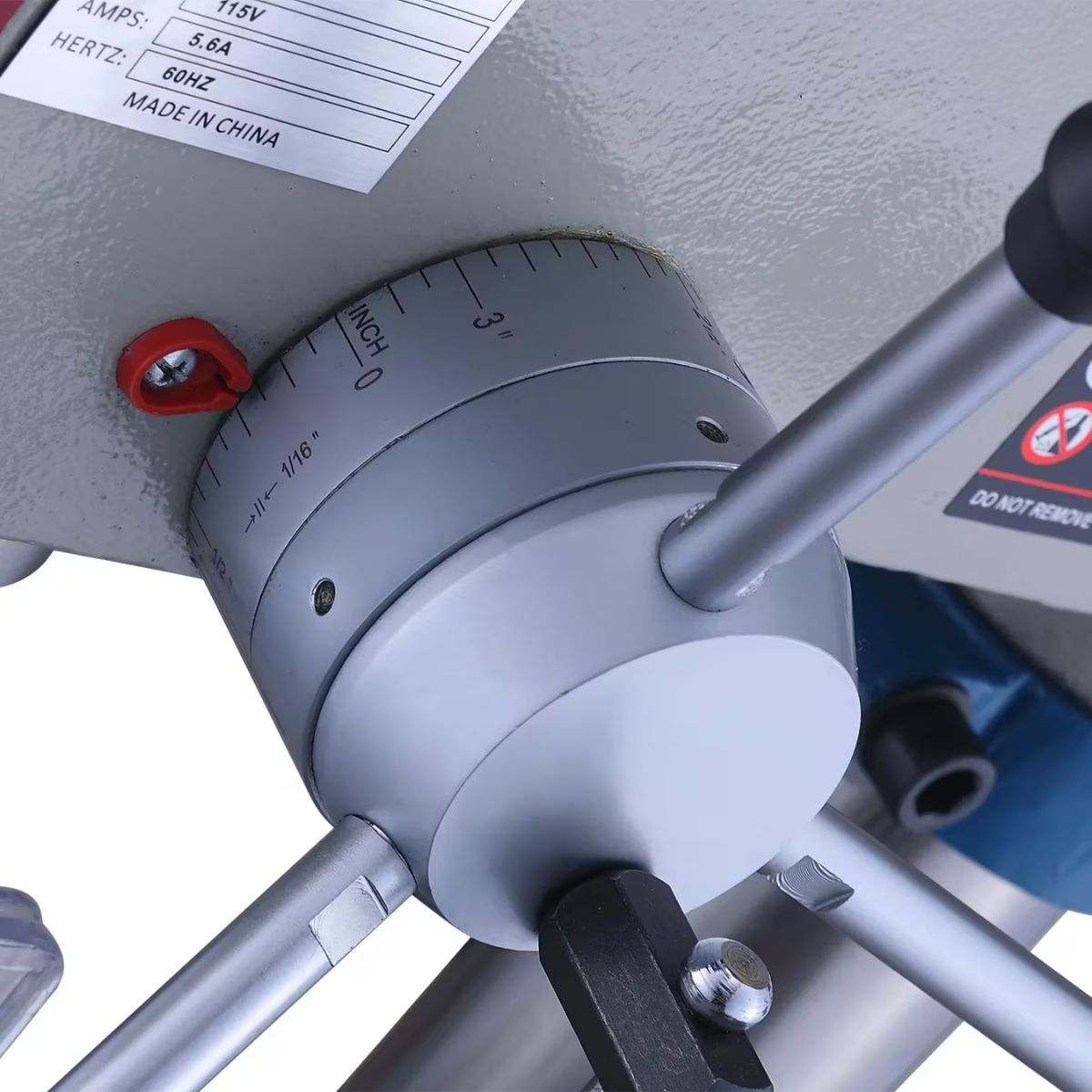

The safety shield around the drill head protects the operator during drilling operations. The MT2 spindle taper accepts standard tooling, and 3.93 inches of spindle travel gives the machine the reach to handle a variety of workpiece thicknesses on the benchtop table.
What's Included
What's Included? Baileigh DP-4016B 16" 5-Speed Benchtop Drill Press
-
Safety Shield — protects the operator around the drill head during drilling operations.
Specs
Baileigh DP-4016B 16" 5-Speed Benchtop Drill Press Specifications
-
Model Number: DP-4016B
-
Stock Number: BA9-1228212
-
Motor: 0.75 HP
-
Power Requirement: 110V, single-phase
-
Swing: 16.14"
-
Number of Spindle Speeds: 5
-
Spindle Speed Range: 250–2,900 RPM
-
Spindle Taper: MT2
-
Spindle Travel: 3.93"
-
Chuck Size: 0.03"–0.625" (B16)
-
Drilling Capacity (Mild Steel): 3/4"
-
Tapping Capacity (Mild Steel): 1/2"
-
Table Size: 11" x 10"
-
Table Material: Cast iron
-
Headstock Movement: 360°
-
Column Diameter: 2-3/4"
-
Working Load Limit: 132 lb.
-
Net Weight: 260 lb.
-
Warranty: 1 Year
