Baileigh DP-3814B 14" 5-Speed Benchtop Drill Press
Are you working in a shop or maintenance department that needs a reliable benchtop drill press with a cast iron build and five selectable speeds on standard 110V power?
What if that drill press gave you a 14-inch swing, 250 to 2,900 RPM across five speeds, a 45-degree tilting table, and a 360-degree rotating headstock in a compact benchtop package?

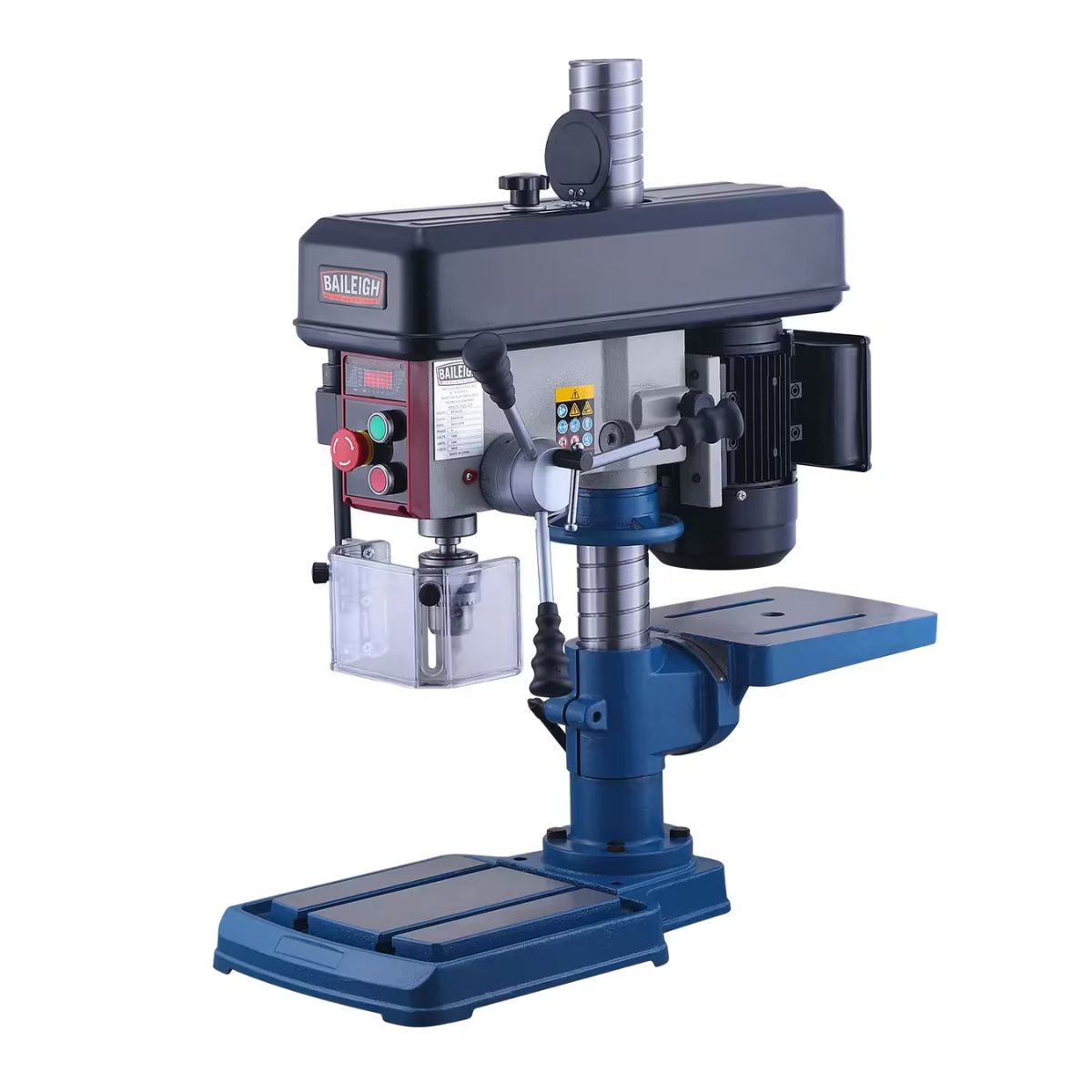

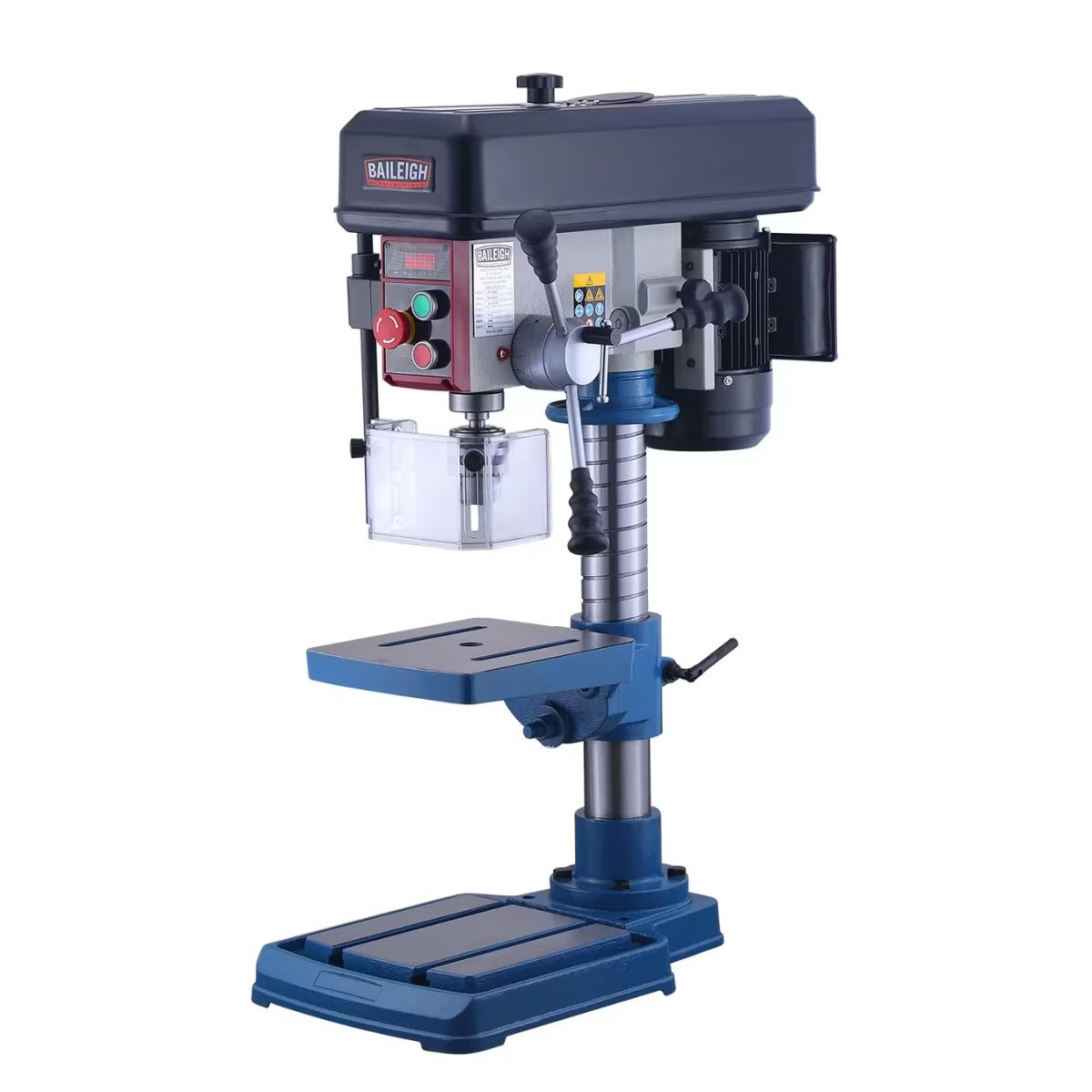

Meet the Baileigh DP-3814B, a 14-inch 5-speed benchtop drill press built for shops, maintenance departments, and fabrication environments that need dependable drilling performance in a compact footprint.
With the DP-3814B, you get a 0.5 HP motor on 110V single-phase power, a belt-driven head with smooth speed transitions, and a rigid cast iron base, head, and table that resist flex during drilling operations.
When the DP-3814B is set up for your job, you get accurate, consistent drilling results on a compact machine built for dependable daily shop use.
Baileigh DP-3814B for 5-Speed Benchtop Drill Press Work
Five Belt-Driven Speeds Cover 250 to 2,900 RPM

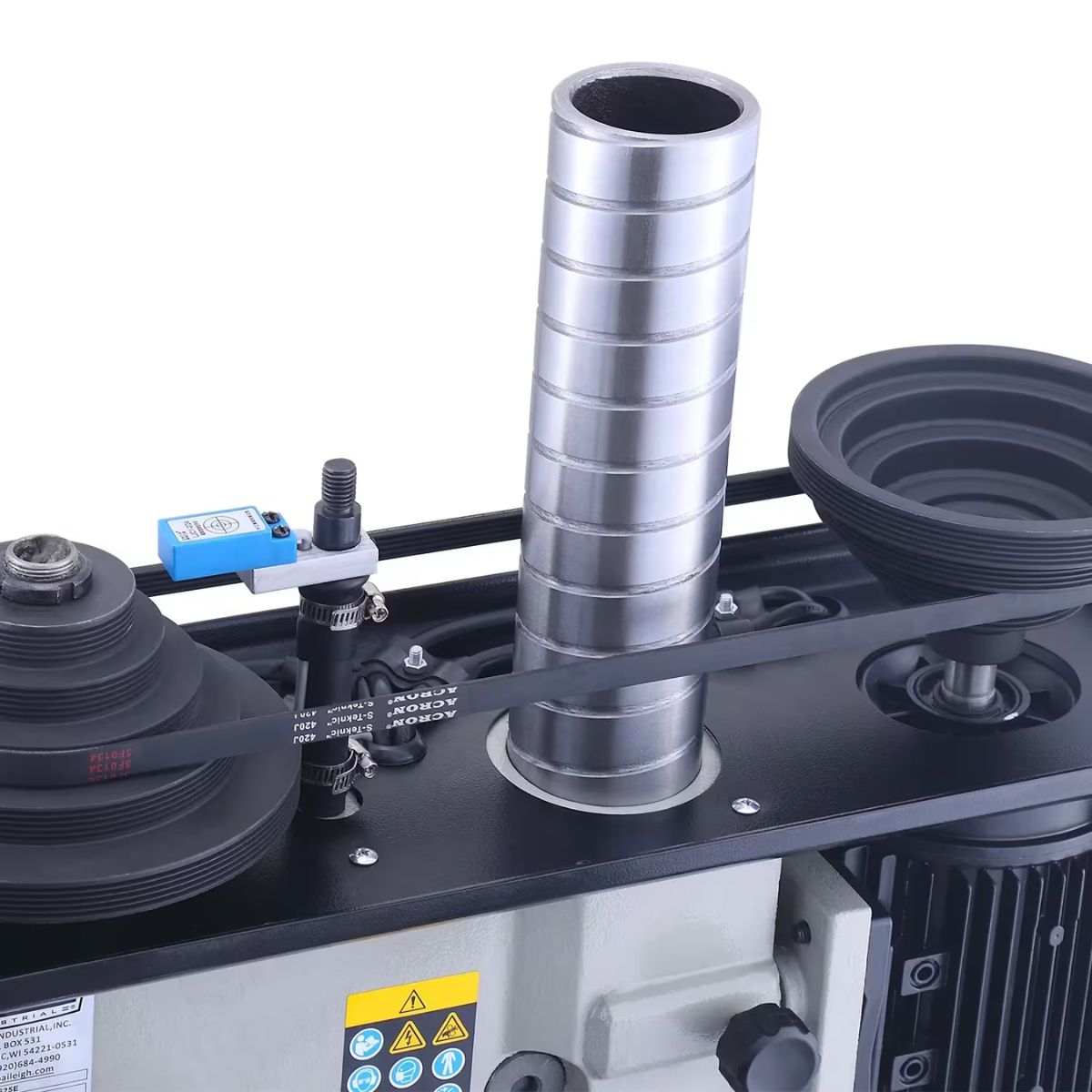

The belt-driven head delivers five selectable spindle speeds from 250 to 2,900 RPM, giving operators the range to match drilling speed to the material and bit size at hand. Belt drive provides smooth speed transitions and consistent torque delivery across all five speed settings.
Cast Iron Base, Head, and Table Resist Flex Under Load
The rigid cast iron construction on the base, head, and table minimizes flex and vibration during drilling operations, keeping the spindle aligned and the hole accurate through repeated daily use. A 2-3/4-inch steel column adds structural support that reduces deflection on heavier drilling work.
14-Inch Swing and 45-Degree Tilting Table Cover a Range of Work

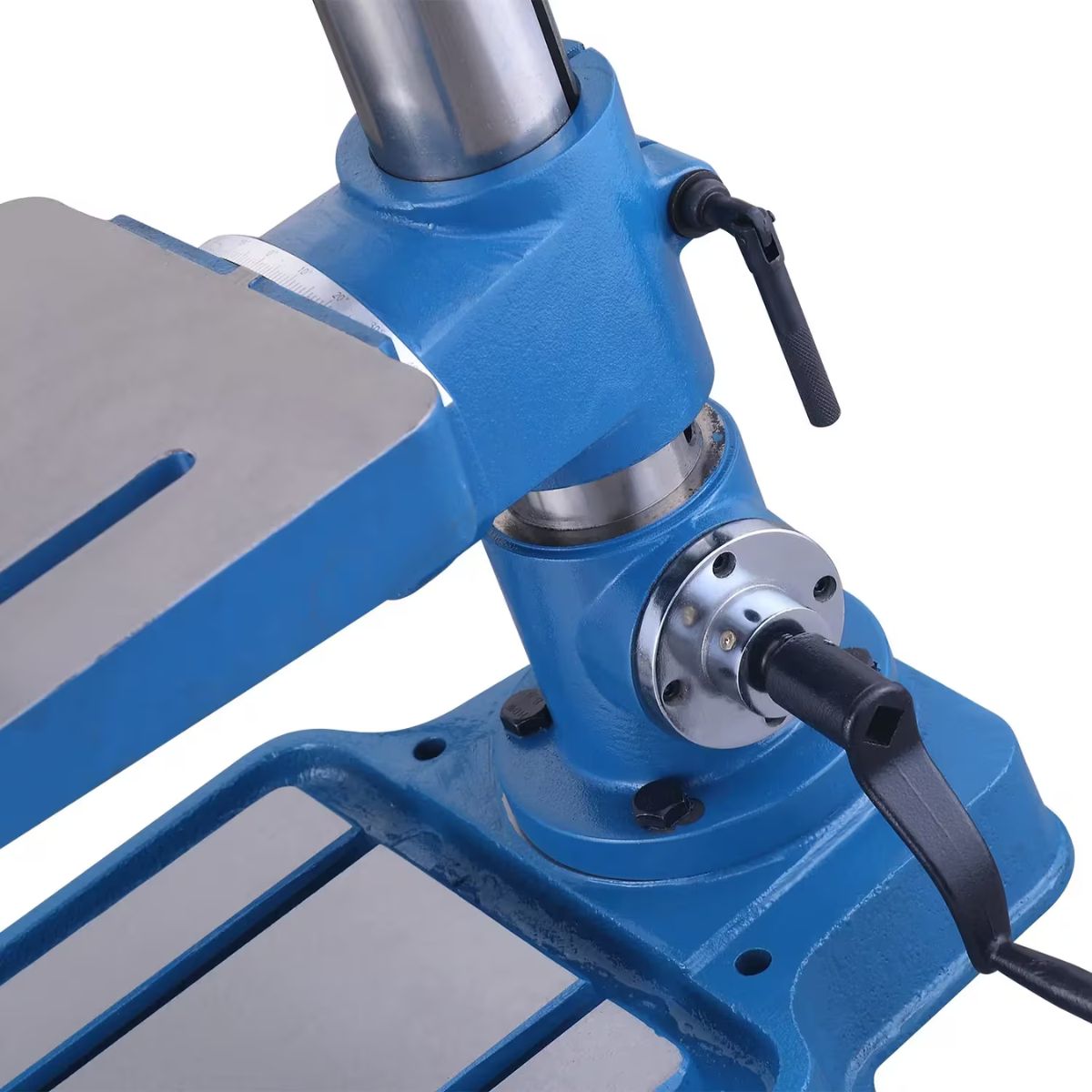

The 14-inch swing accommodates a wide range of workpiece sizes for a benchtop machine, and the cast iron table tilts up to 45 degrees left or right for angled drilling without repositioning the workpiece. The 360-degree rotating headstock adds further flexibility for positioning the spindle over the work.
Safety Shield and Easy Adjust Design Support Daily Use
The safety shield around the drill head protects the operator during drilling operations. The easy-adjust head and table design reduce the time spent repositioning between setups, keeping the machine productive through jobs that require multiple drilling positions throughout the day.
What's Included
What's Included? Baileigh DP-3814B 14" 5-Speed Benchtop Drill Press
-
Safety Shield — protects the operator around the drill head during drilling operations.
Specs
Baileigh DP-3814B 14" 5-Speed Benchtop Drill Press Specifications
-
Model Number: DP-3814B
-
Stock Number: BA9-1228211
-
Motor: 0.5 HP
-
Power Requirement: 110V, single-phase
-
Swing: 14"
-
Number of Spindle Speeds: 5
-
Spindle Speed Range: 250–2,900 RPM
-
Chuck Size: 0.03"–0.625"
-
Drill Capacity (Mild Steel): 5/8"
-
Table Material: Cast iron
-
Table Tilt: 45° left or right
-
Headstock Movement: 360°
-
Column Diameter: 2-3/4"
-
Working Load Limit: 132 lb.
-
Net Weight: 210 lb.
-
Warranty: 1 Year
