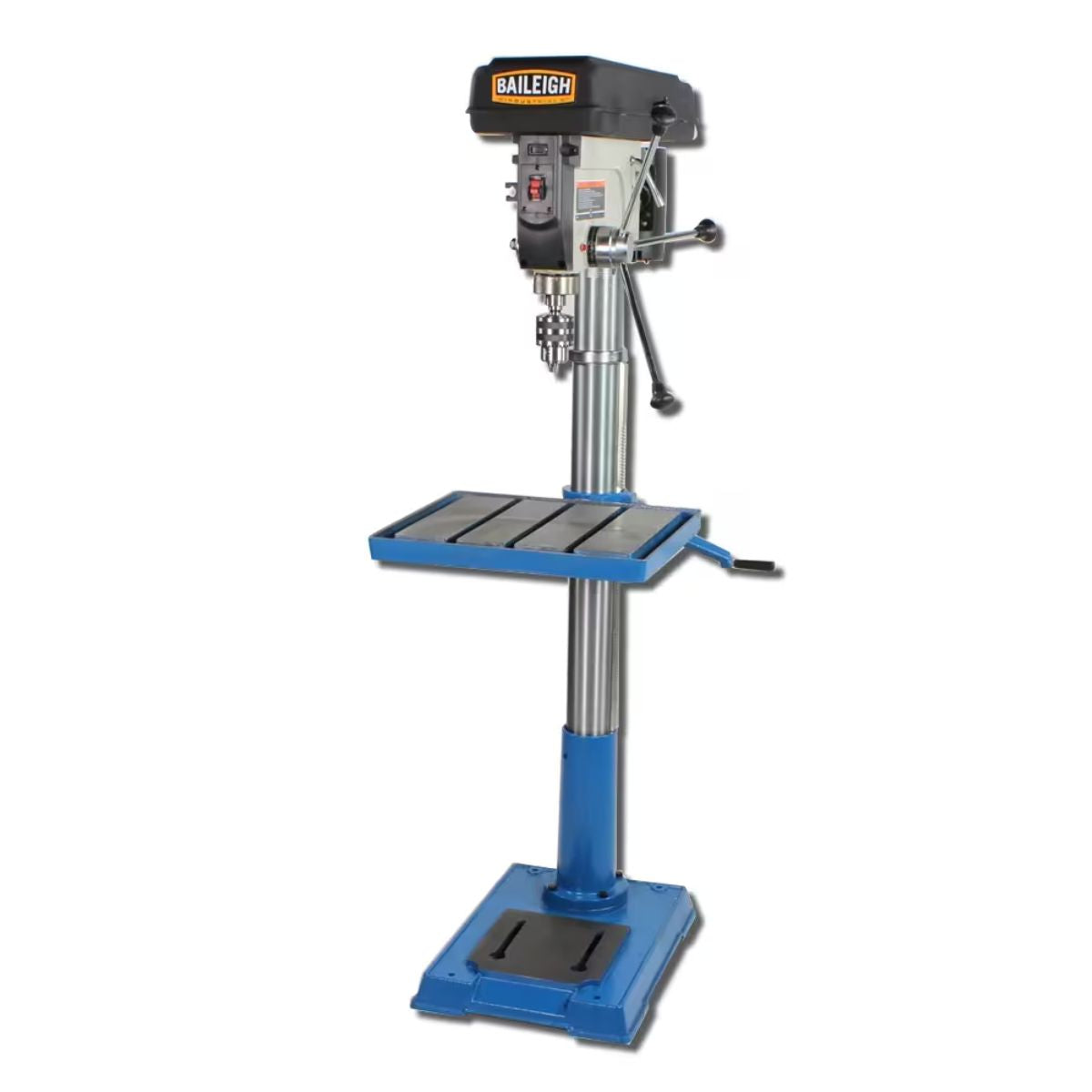

Baileigh DP-2012F-HD 20" Floor Drill Press
Are you running a fabrication, maintenance, or production shop that needs a heavy-duty floor drill press with 12 selectable speeds and a large tilting table in your choice of 110V or 220V single-phase power?
What if that drill press gave you a 20-inch swing, 12 speeds from 220 to 3,200 RPM, and a 16.5-inch by 18.5-inch cast iron table in the voltage that matches your shop?
Meet the Baileigh DP-2012F-HD, a 20-inch floor drill press available in 110V and 220V single-phase configurations, built for fabrication, maintenance, and machine shops that need industrial-grade drilling performance on a wide range of materials.
With the DP-2012F-HD, you get a 2 HP geared head motor, 12 spindle speeds, front-mounted easy-adjust controls, and a rigid cast iron frame and column that resist vibration during heavy drilling work.
When the DP-2012F-HD is set up for your job, you get accurate, consistent drilling results with a machine built for dependable daily shop use in the voltage configuration your shop requires.
Baileigh DP-2012F-HD for Heavy-Duty Floor Drill Press Work
12 Spindle Speeds Cover 220 to 3,200 RPM
Twelve selectable spindle speeds from 220 to 3,200 RPM give operators the range to match drilling conditions to material type and bit size across steel, wood, and composites. The geared head drive maintains torque and smooth operation across all 12 speed settings without the performance drop that belt-only systems can experience under heavy load.
Cast Iron Frame and Column Resist Vibration Under Load
The rigid cast iron frame and durable column minimize vibration during drilling operations, keeping the spindle aligned and hole placement accurate through repeated daily use. This construction suits fabrication and production shop environments where the drill press handles a variety of materials and drilling loads throughout the workday.

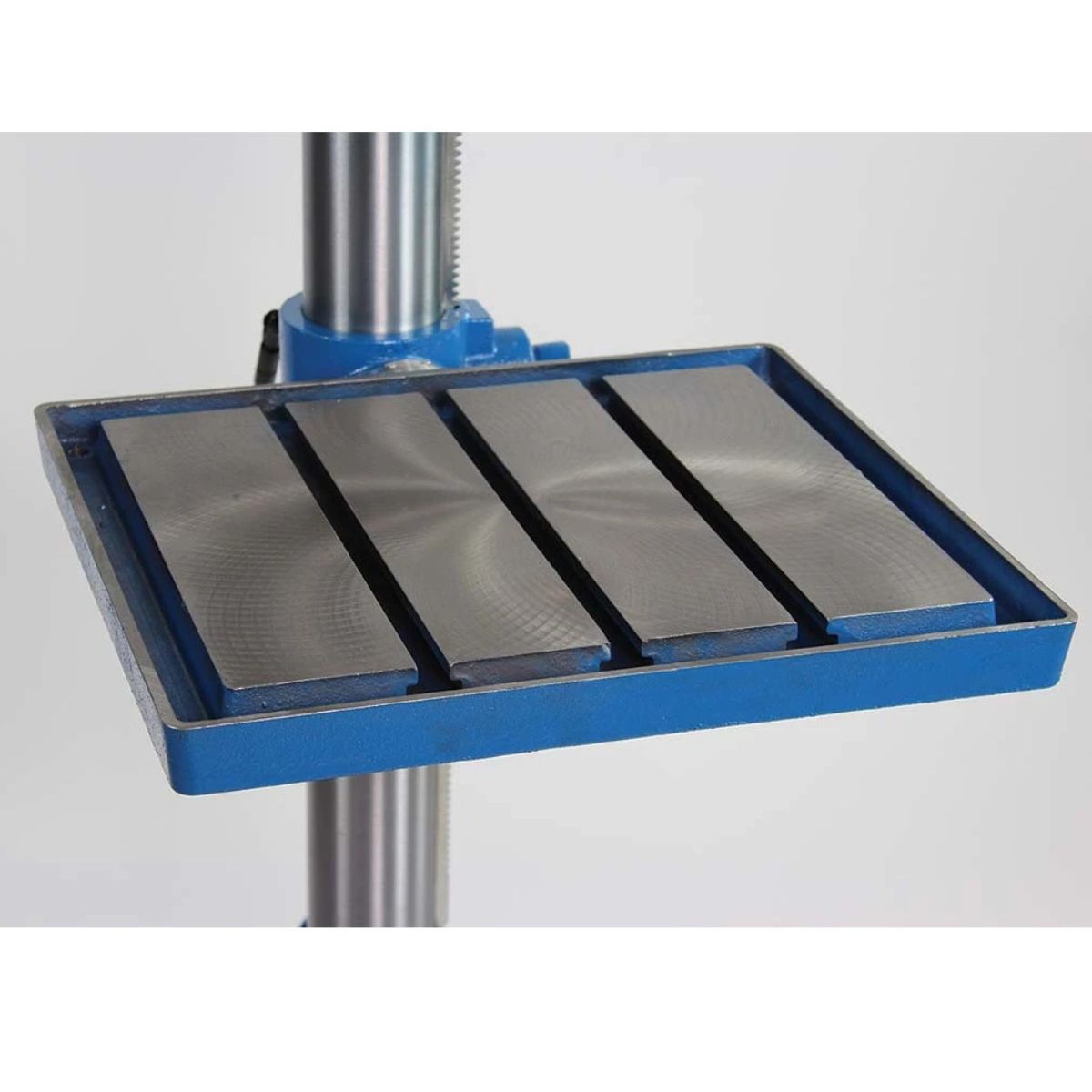

20-Inch Swing and 16.5" × 18.5" Table Handle Larger Setups
The 20-inch swing accommodates a wide range of larger workpiece sizes, and the 16.5-inch by 18.5-inch cast iron table provides a generous work surface for secure workholding and fixturing. The large tilting worktable supports precision angled drilling setups without repositioning the workpiece.
Two Voltage Configurations Match Your Shop Power Requirements
The DP-2012F-HD is available in 110V single-phase for standard shop circuits and 220V single-phase for shops that require higher voltage operation. Both configurations share the same 2 HP geared head motor, 12 spindle speeds, 20-inch swing, and cast iron construction for consistent drilling performance regardless of the voltage selected.
What's Included
What's Included? Baileigh DP-2012F-HD 20" Floor Drill Press
-
Cast Iron Worktable (16.5" × 18.5") — provides a stable work surface for secure workholding and fixturing.
Specs
Baileigh DP-2012F-HD 20" Floor Drill Press Specifications
-
Available Voltage Configurations: 110V (DP-2012F-HD-V2) | 220V (DP-2012F-HD-V3)
-
Stock Number (110V): BA9-1014890
-
Stock Number (220V): BA9-1015771
-
Model Number (110V): DP-2012F-HD-V2
-
Model Number (220V): DP-2012F-HD-V3
-
Motor: 2 HP
-
Power Requirement (110V): 110V, single-phase
-
Power Requirement (220V): 220V, single-phase
-
Swing: 20"
-
Number of Spindle Speeds: 12
-
Spindle Speed Range: 220–3,200 RPM
-
Drilling Capacity (Mild Steel — 110V): 1.25"
-
Table Size: 16.5" x 18.5"
-
Spindle Travel (220V): 5.9"
-
Net Weight (110V): 318 lb.
-
Net Weight (220V): 390 lb.
-
Warranty: 1 Year
